FOR YOUR SEAL, FIT & FEEL
Silicone / LSR Molding for Your Seals & Flexible Parts
Discuss silicone injection molding services for your drawing, material grade and production needs.
Align fit, flash limits and sample approval before tooling. Your molding scope is confirmed after review.
Project scope confirmed after review. NDA available on request.
Material Fit
Review grade, hardness and service conditions.
Flash & Fit Review
Define your critical surfaces before tooling.
Sample Approval
Agree inspection and functional checks.
Dallas-Area Support
U.S. communication for your project review.

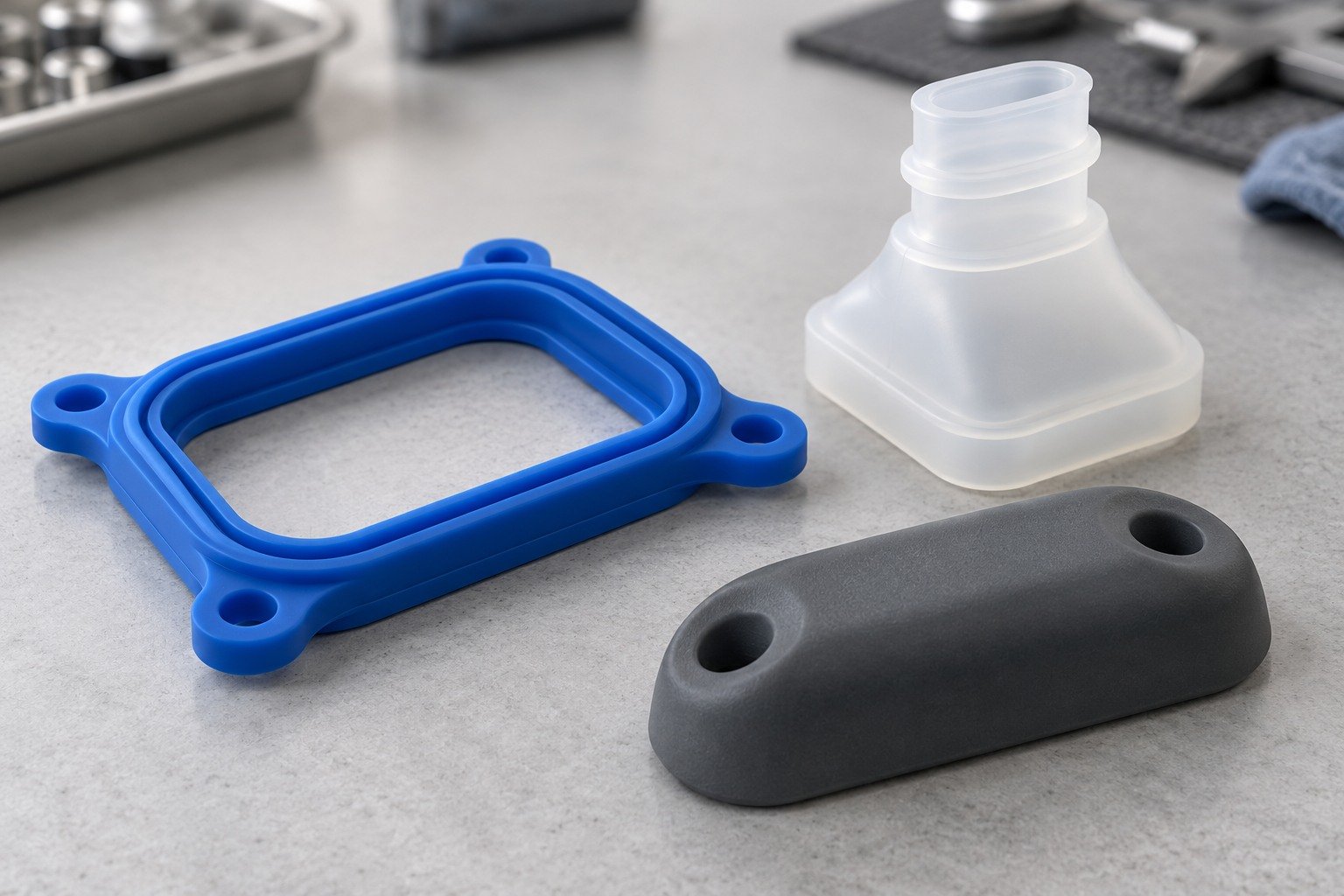

Liquid Silicone Rubber Parts for Your Application
Select your application, then review 4 topics that affect your part.

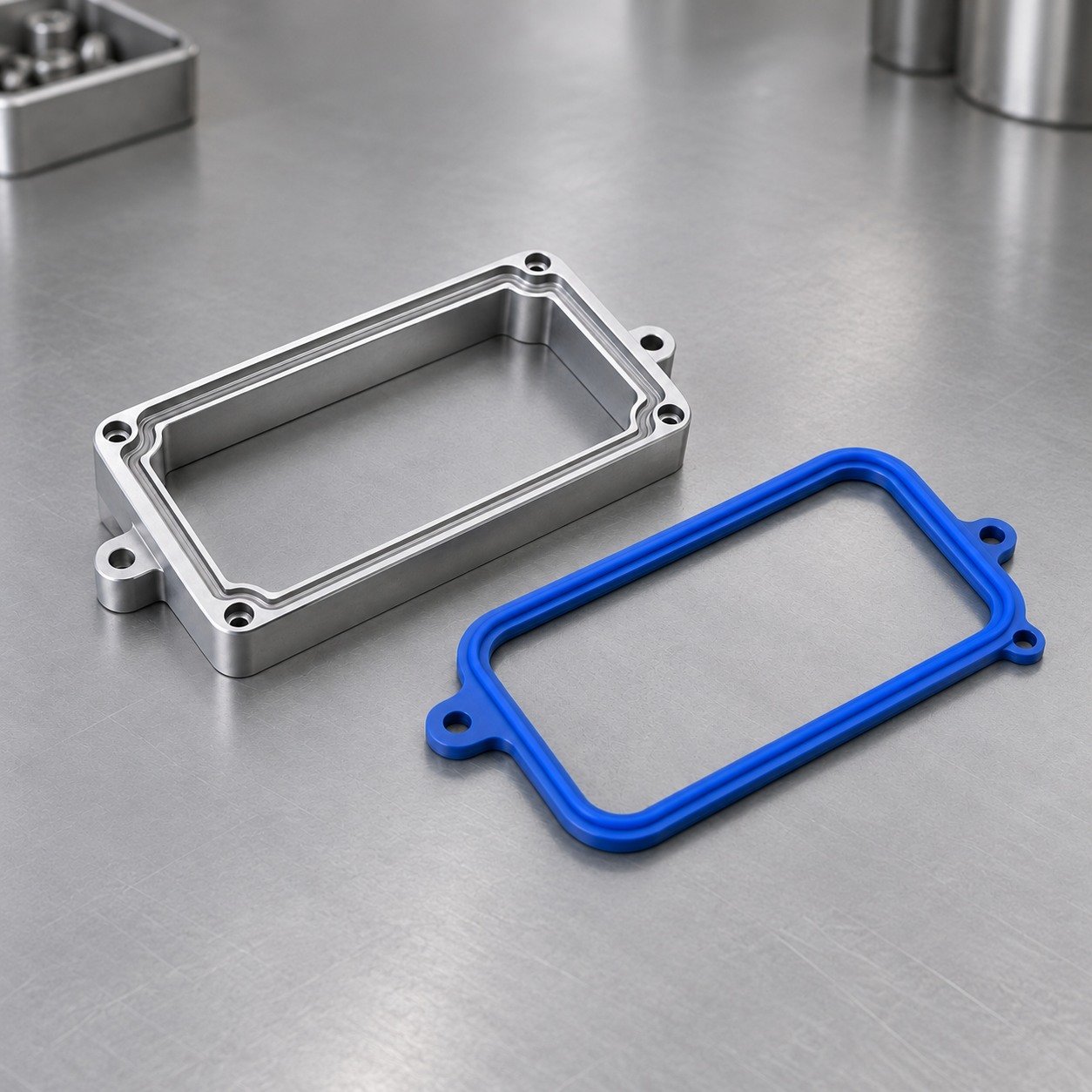

Define Your Complete Sealing Path
For custom LSR seals, share your groove, mating gap, medium and operating conditions.
- Mark the complete sealing path and mounting features.
- Define the assembled compression and leak-test requirement.
Illustrative applications. Material and process suitability are reviewed for your project.

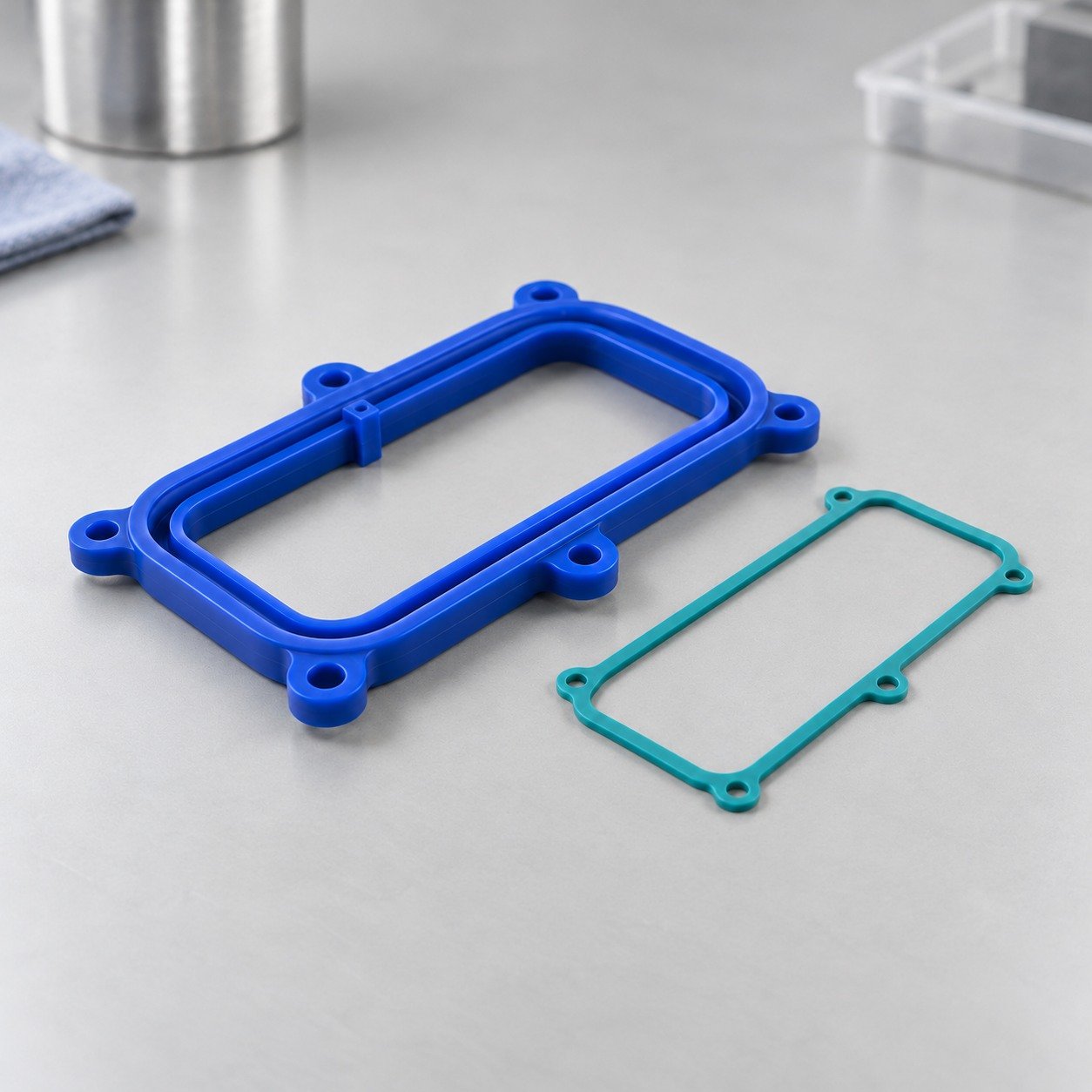

Custom LSR Seals for Your Assembly
Review injection molded silicone gaskets against your groove, compression and operating environment.
| LSR Shore A hardness | Match hardness to your part’s function. |
|---|---|
| Grade & exposure | Check heat, fluids and cleaning conditions. |
| Compression set | Agree test conditions and recovery needs. |
| Color & cure | Confirm pigment and any post-cure. |
Illustrative applications. Material and process suitability are reviewed for your project.

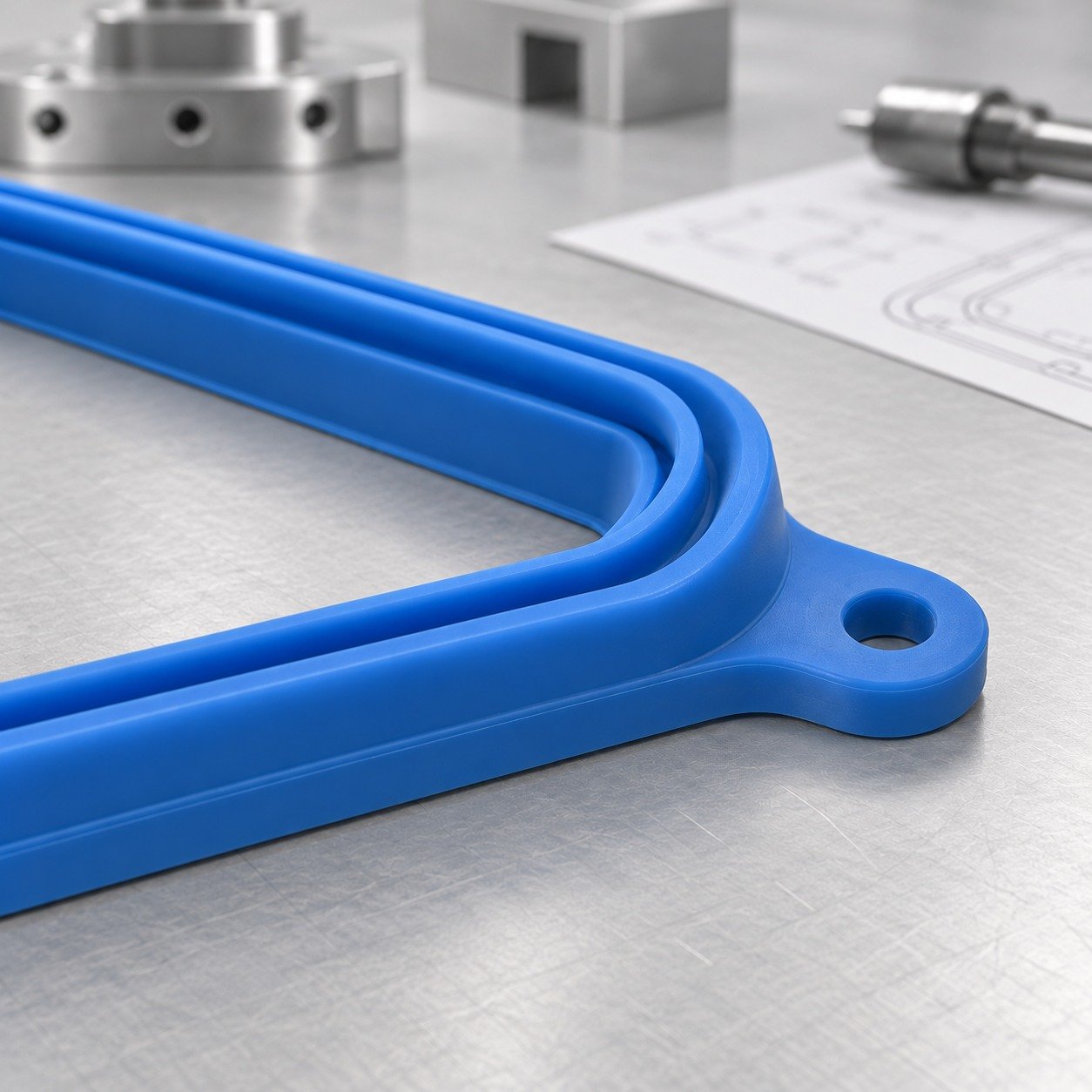

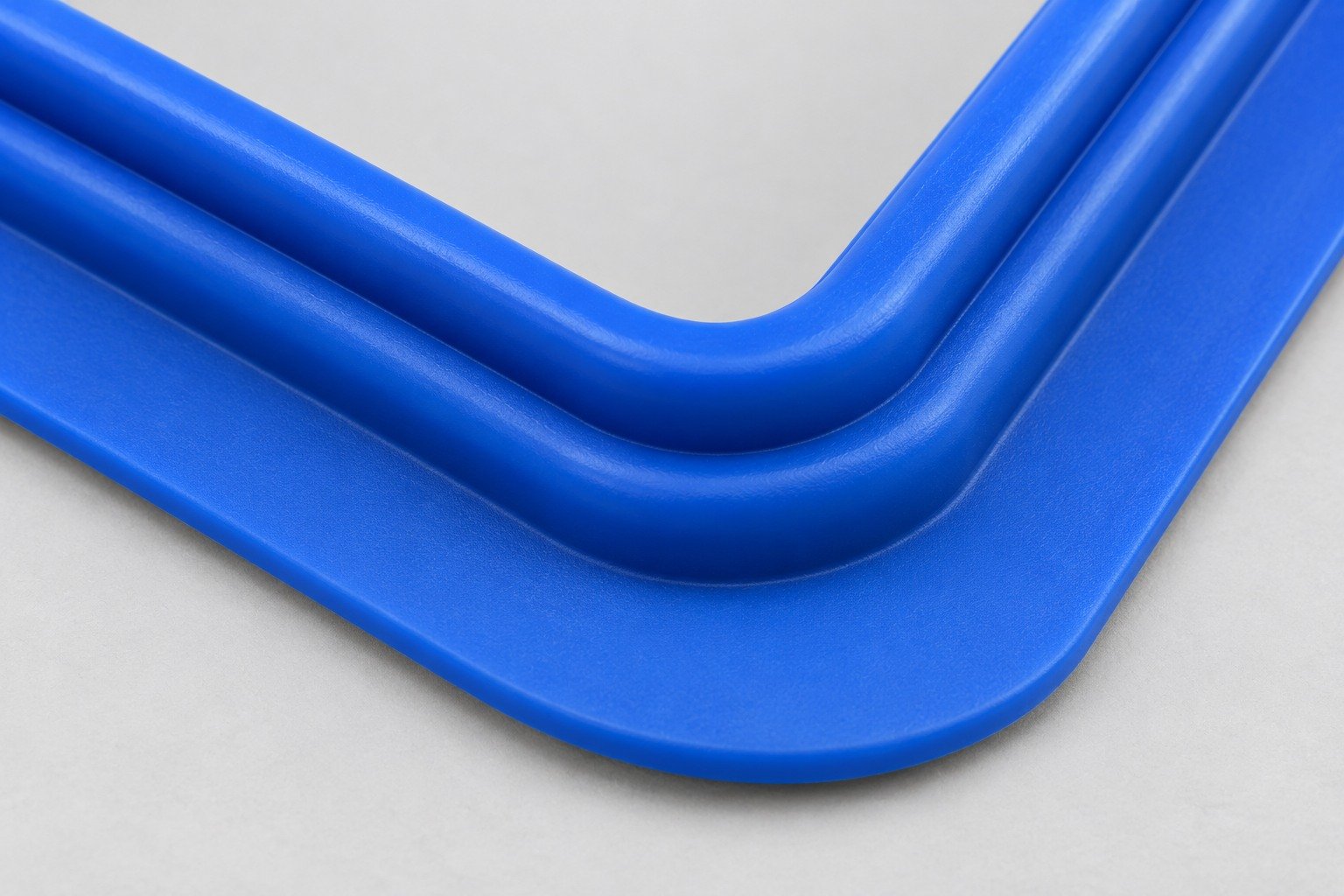

Keep Flash Away from Your Seal Faces
Review your sealing lips, parting line and gates before tooling. A visually clean edge alone does not establish sealing performance.
- Mark allowed flash and gate locations on your drawing.
- Review demolding strain around thin lips and mounting ears.
Illustrative applications. Material and process suitability are reviewed for your project.

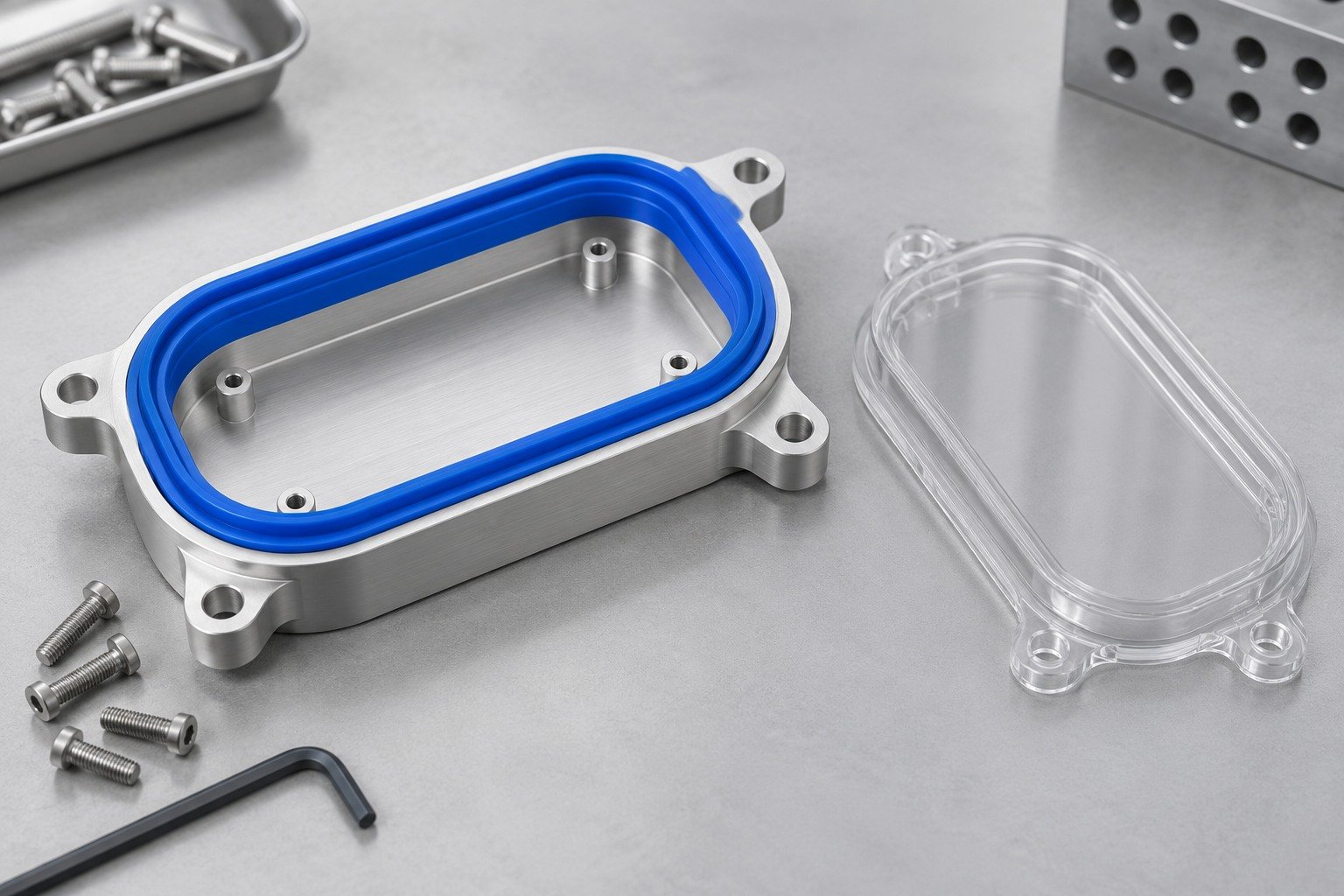

Agree How Your Seal Will Be Approved
Define your sample checks in the actual mating assembly.
Fit & dimensions
Agree groove fit, compression and support.
Sealing function
Define medium, fixture, pressure and limit.
Edges & appearance
Set flash and gate-mark limits.
Grade & cure state
Confirm conditioning and lot records.
Your Sample Approval Plan
Methods, sample quantities and acceptance criteria are agreed for your project.
Test Method
Define how your part will be checked.
Sample Quantity
Agree the number of samples for review.
Acceptance Criteria
Set fit, function and appearance requirements.
Illustrative applications. Material and process suitability are reviewed for your project.

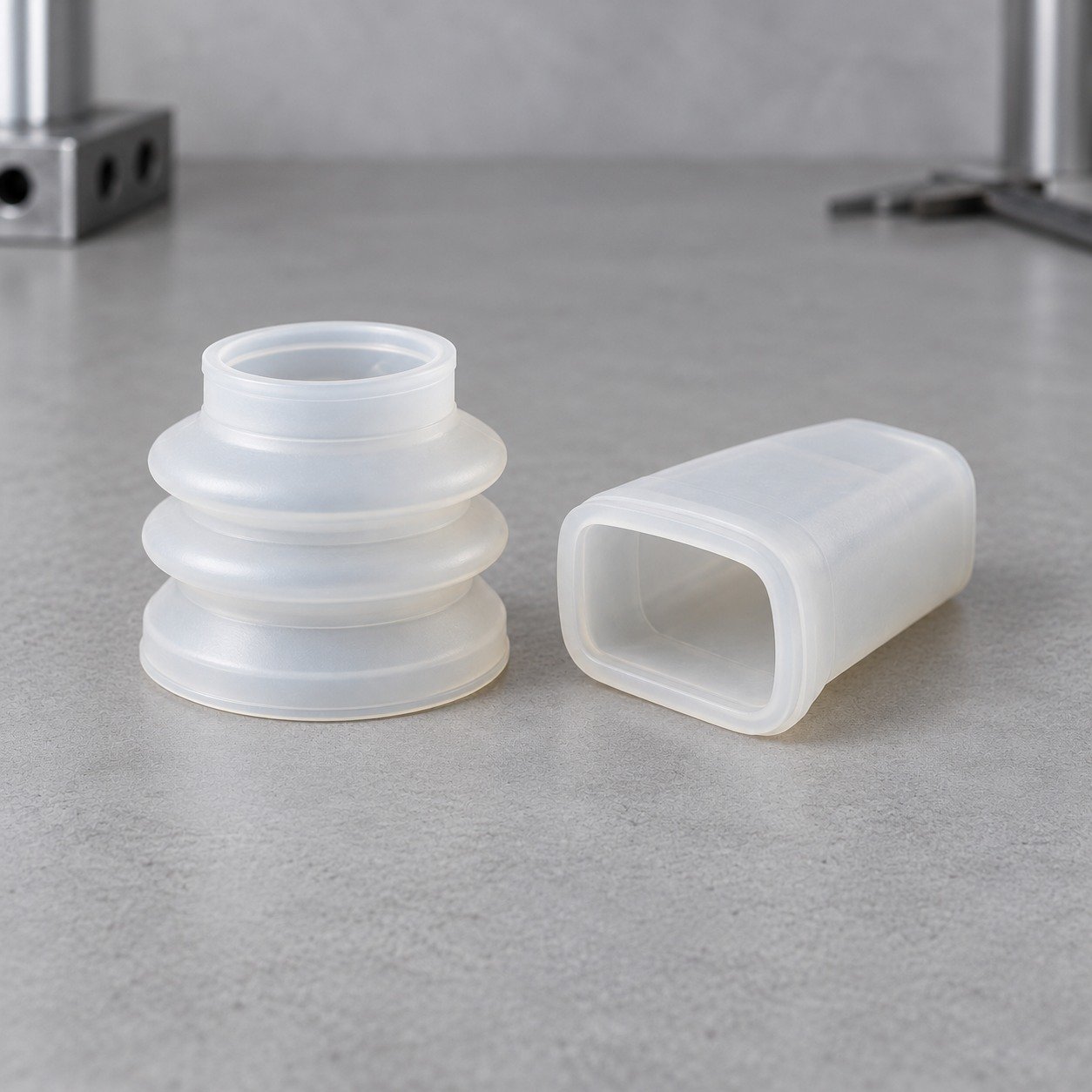

Protect the Interfaces Your Cover Must Flex Around
For molded covers and boots, identify mounting collars, clearances and the motion your part must accommodate.
- Share mating CAD and the full motion envelope.
- Keep service access and drainage features usable.
Illustrative applications. Material and process suitability are reviewed for your project.

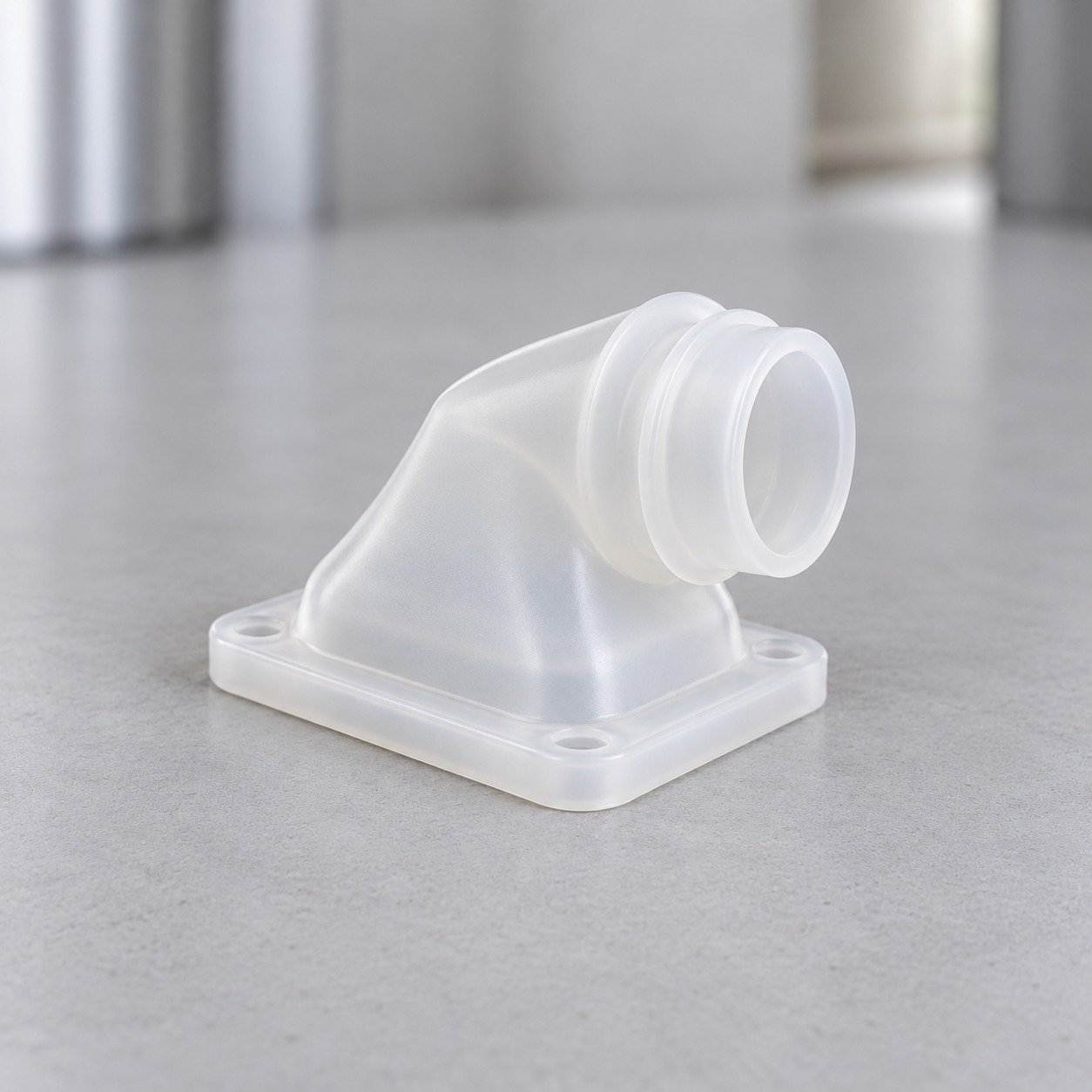

Match Your Cover to Its Working Conditions
Custom liquid silicone molding starts with the exact grade, flex requirements and exposure, rather than translucency alone.
| Hardness & recovery | Define handling and flex needs. |
|---|---|
| Exposure | Share heat, fluids and cleaning conditions. |
| Color & translucency | Agree sample appearance limits. |
| Cure state | Confirm any post-cure before acceptance. |
Illustrative applications. Material and process suitability are reviewed for your project.

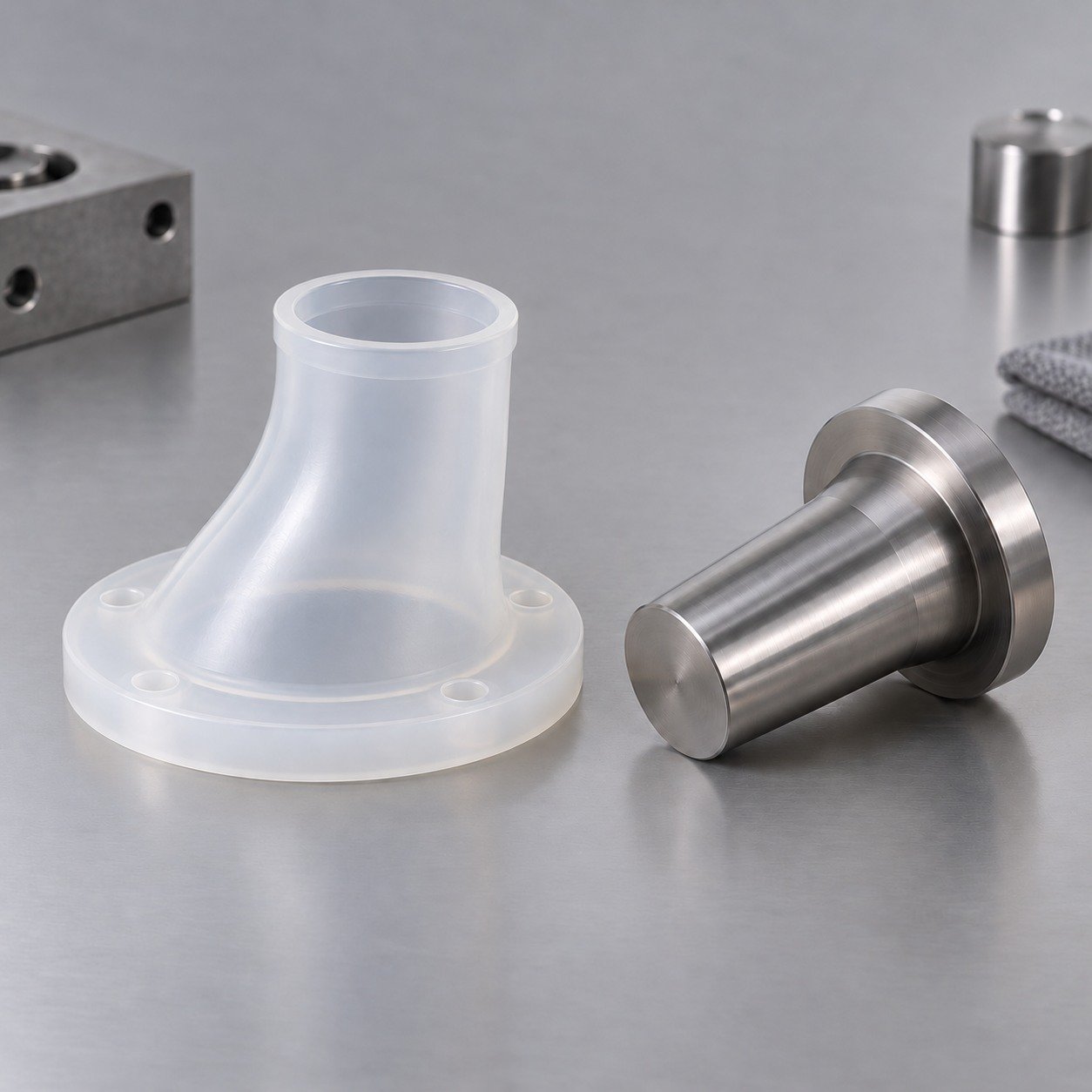

Help Your Boot Flex Without Tearing at Transitions
Review wall transitions, collar roots and removal from the mold. Smooth thickness changes can reduce concentrated strain.
- Identify repeated flex zones and constrained mounting edges.
- Review vents, gates and safe demolding around undercuts.
Illustrative applications. Material and process suitability are reviewed for your project.

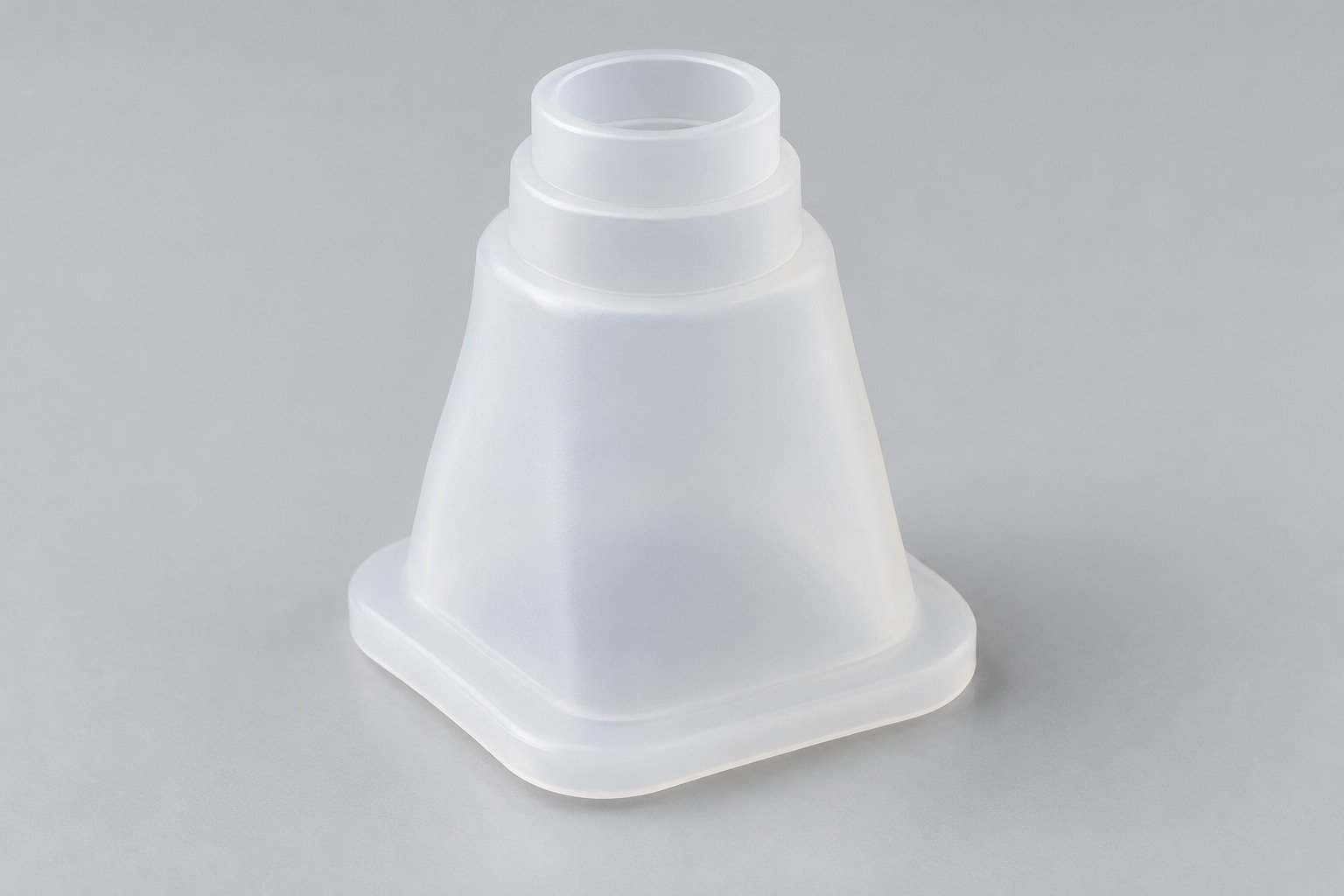

Confirm How Your Cover Will Be Approved
Define sample checks for your fit, flex and handling requirements.
Fit & dimensions
Confirm mounting features, clearances and measurement support.
Flex & recovery
Define motion, loads, cycles and conditioning.
Edges & appearance
Agree flash, gate marks, color and surface limits.
Grade & cure state
Confirm grade, lot records and any post-cure before acceptance.
Your Sample Approval Plan
Methods, sample quantities and acceptance criteria are agreed for your project.
Test Method
Define how your part will be checked.
Sample Quantity
Agree the number of samples for review.
Acceptance Criteria
Set fit, function and appearance requirements.
Illustrative applications. Material and process suitability are reviewed for your project.

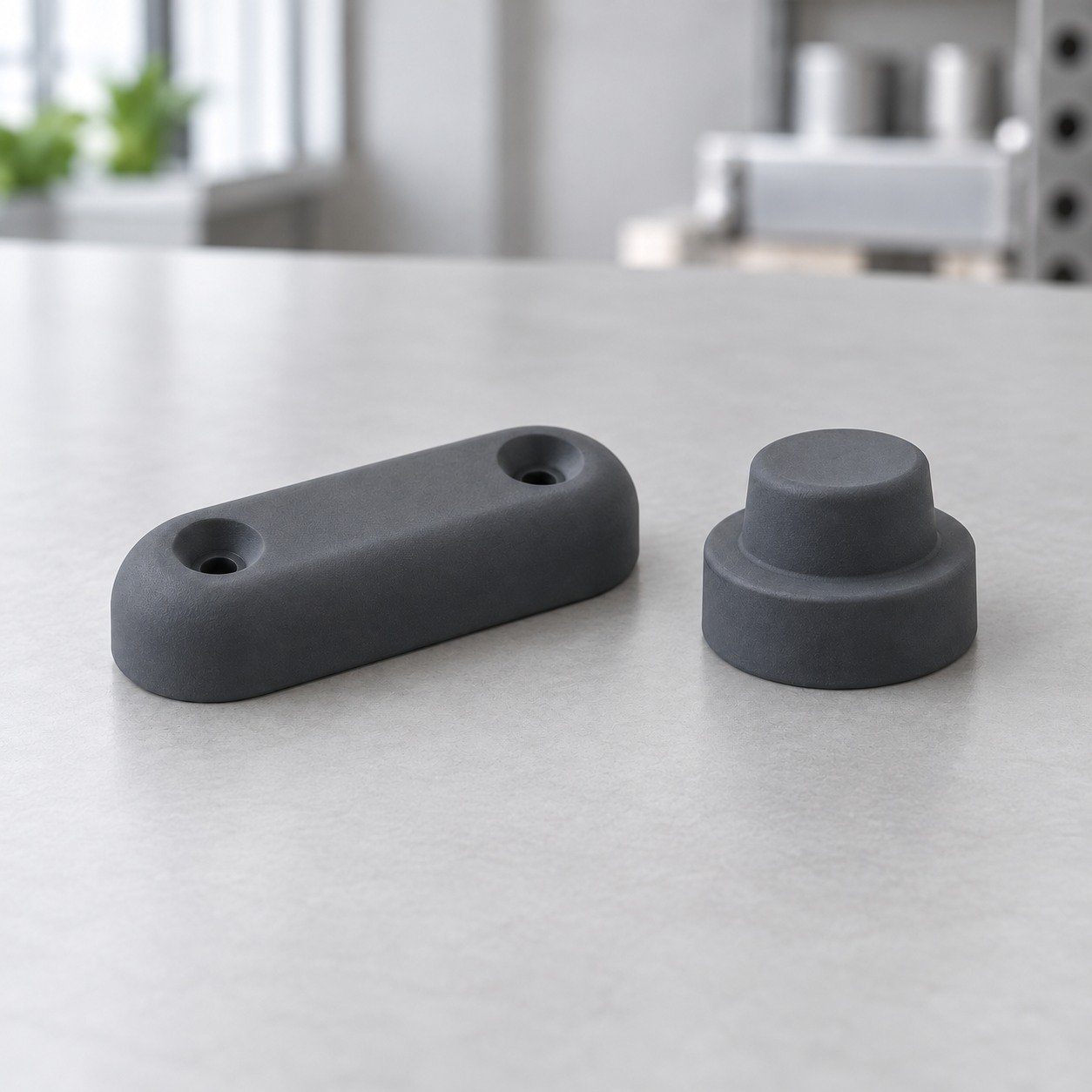

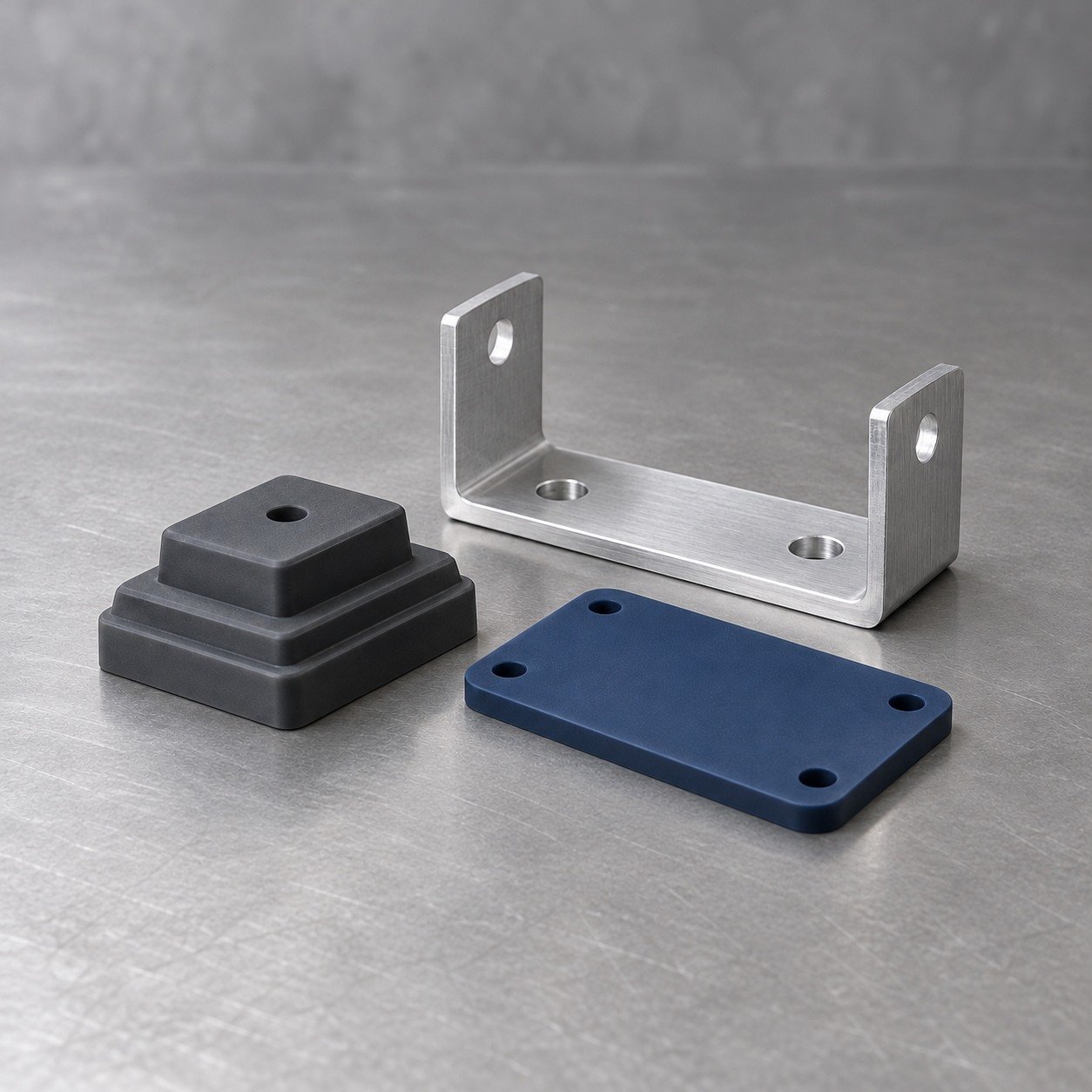

Define the Load Your Pad Must Manage
Your bumper or pad needs a defined mounting surface, load and permitted deformation.
- Share the contact surfaces and installation method.
- Define repeated loads and the recovery your assembly needs.
Illustrative applications. Material and process suitability are reviewed for your project.
Select Hardness Around Your Load and Recovery
For molding silicone rubber parts, review exact grade and geometry together; Shore A alone does not predict damping or service life.
| Compression | Specify load, contact area and installed gap. |
|---|---|
| Recovery | Agree conditioning and repeat-load checks. |
| Environment | Define temperature, fluids and cleaning. |
| Appearance | Confirm color and surface requirements. |
Illustrative applications. Material and process suitability are reviewed for your project.

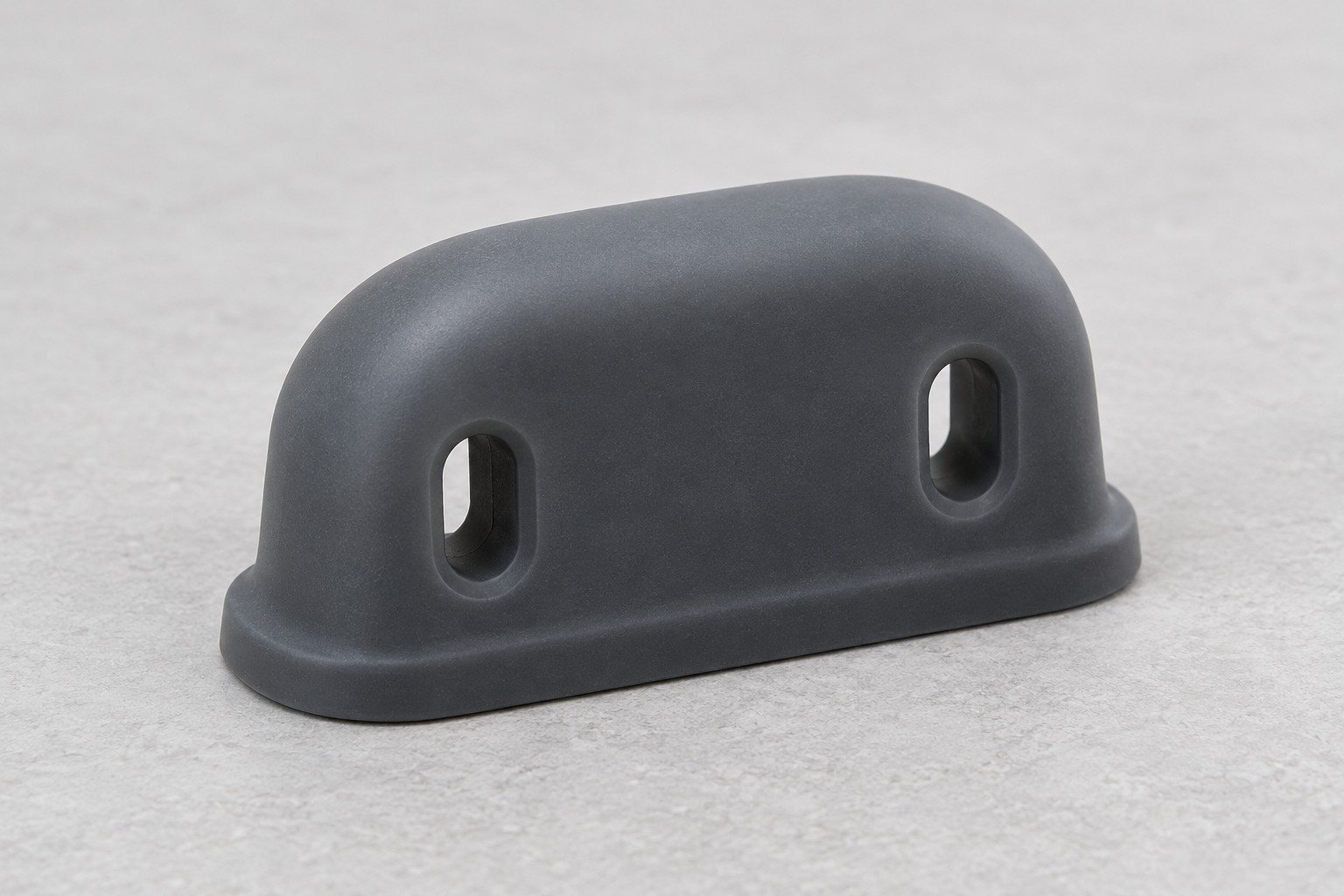

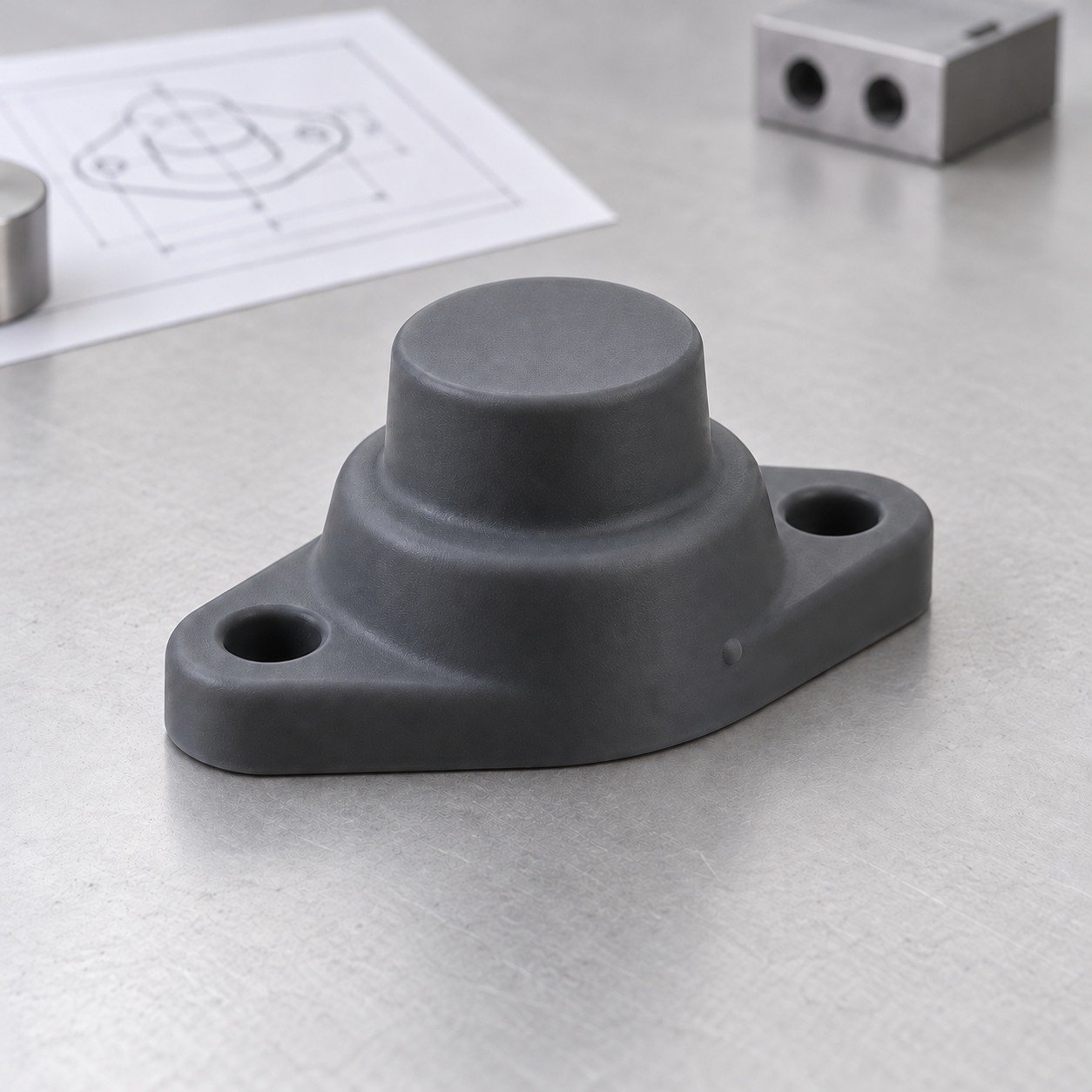

Protect Your Pad’s Mounting and Contact Faces
Review silicone molding tolerances for mounting holes, contact height and flat support surfaces with the measurement force defined.
- Locate gates and parting lines away from critical contact areas.
- Review hole edges, transitions and demolding strain.
Illustrative applications. Material and process suitability are reviewed for your project.

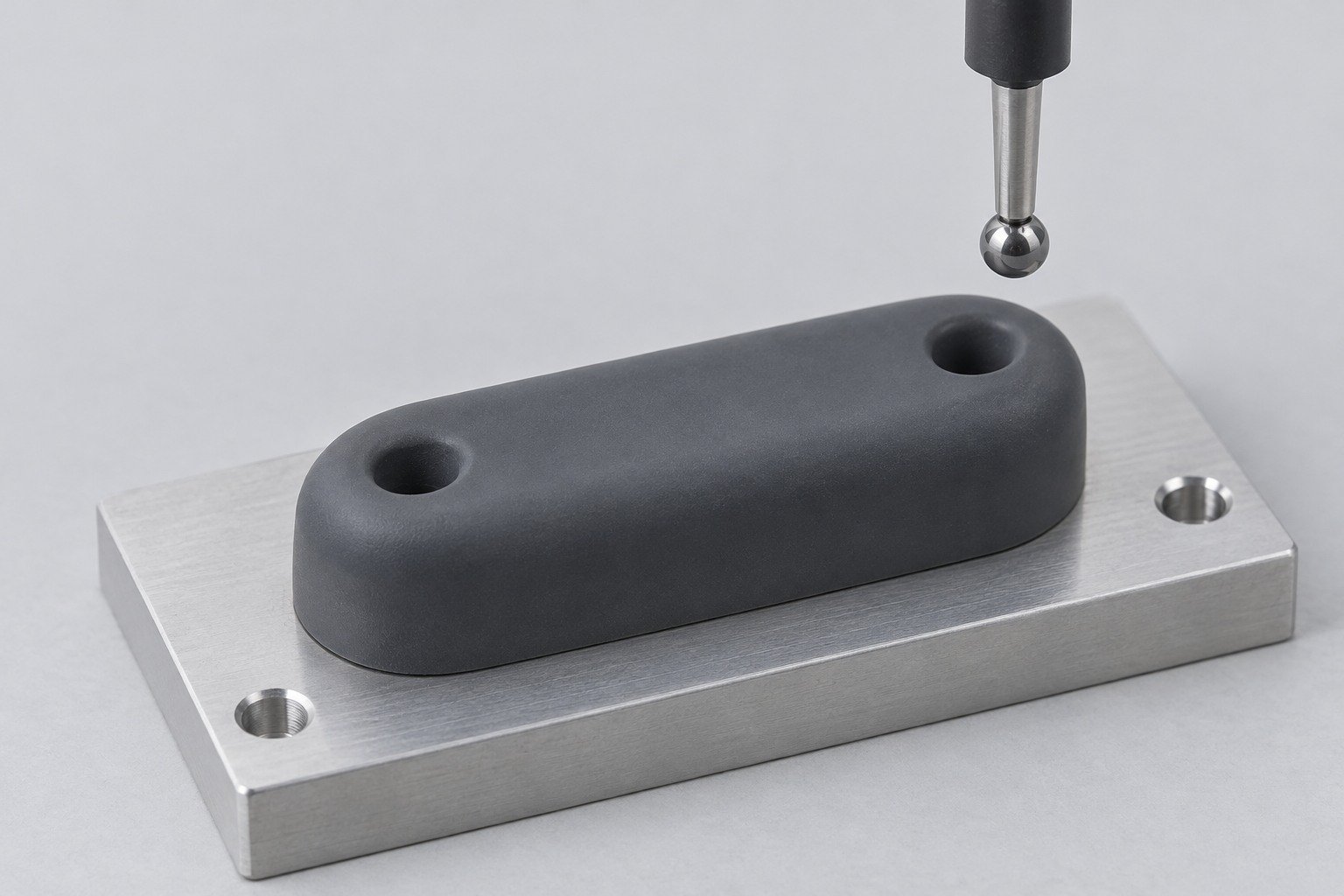

Approve Your Pad at the Agreed Load
Review supported dimensions, deformation and recovery using an agreed fixture.
Mounting fit
Check hole locations and contact height.
Load & recovery
Define force, cycles and conditioning.
Appearance
Set limits for flash and gate marks.
Release records
Agree grade, lot and cure-state evidence.
Your Sample Approval Plan
Methods, sample quantities and acceptance criteria are agreed for your project.
Test Method
Define how your part will be checked.
Sample Quantity
Agree the number of samples for review.
Acceptance Criteria
Set fit, function and appearance requirements.
Illustrative applications. Material and process suitability are reviewed for your project.

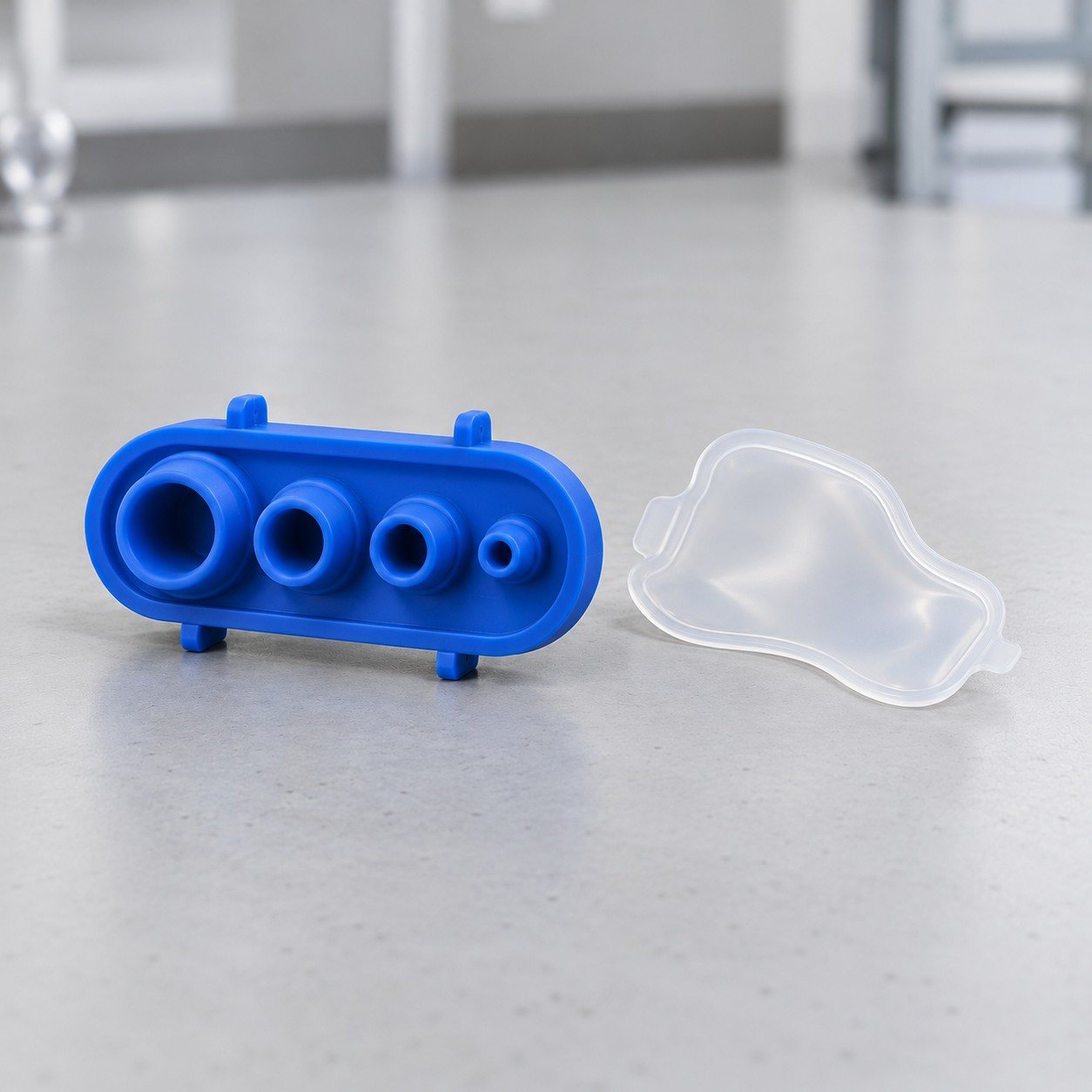

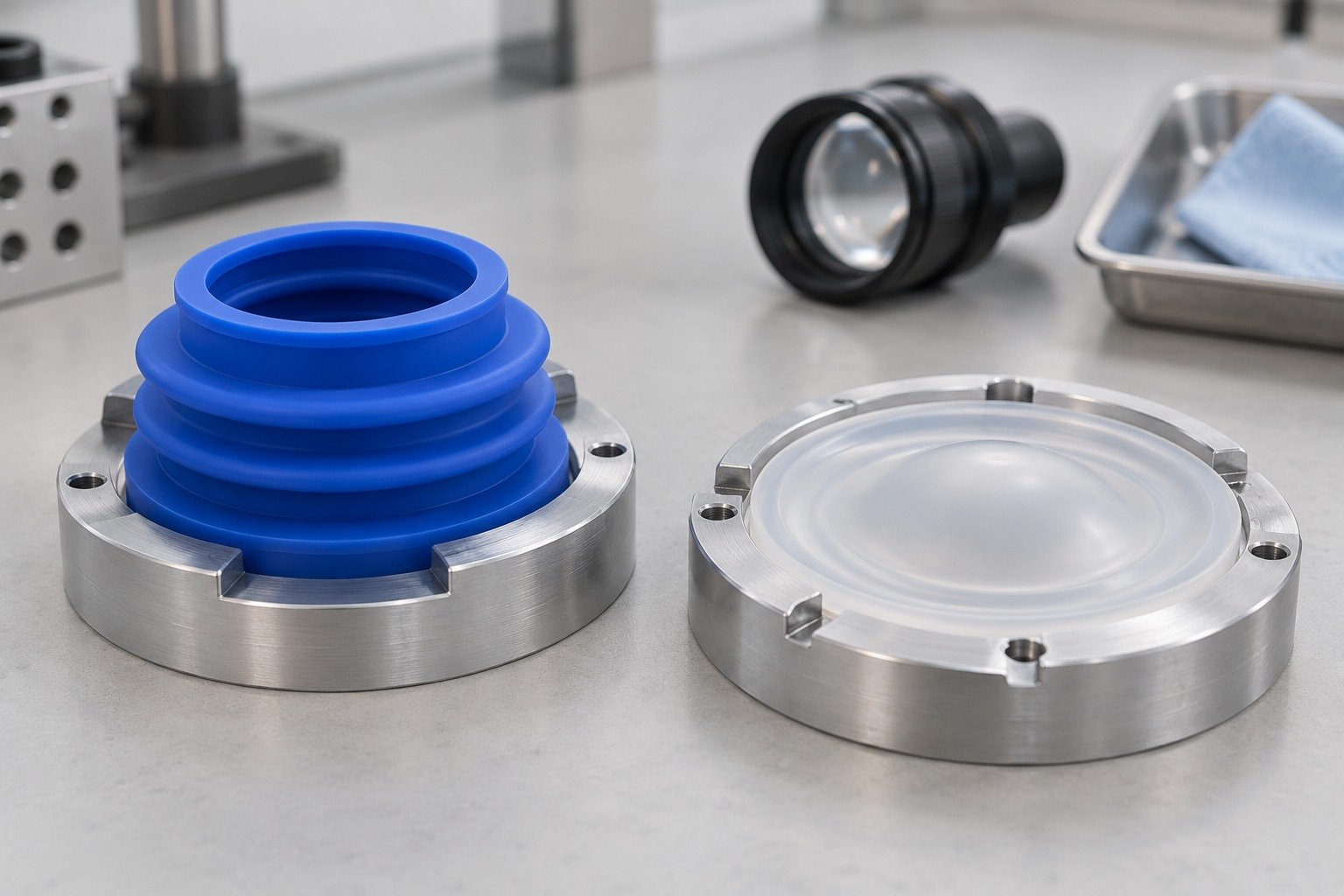

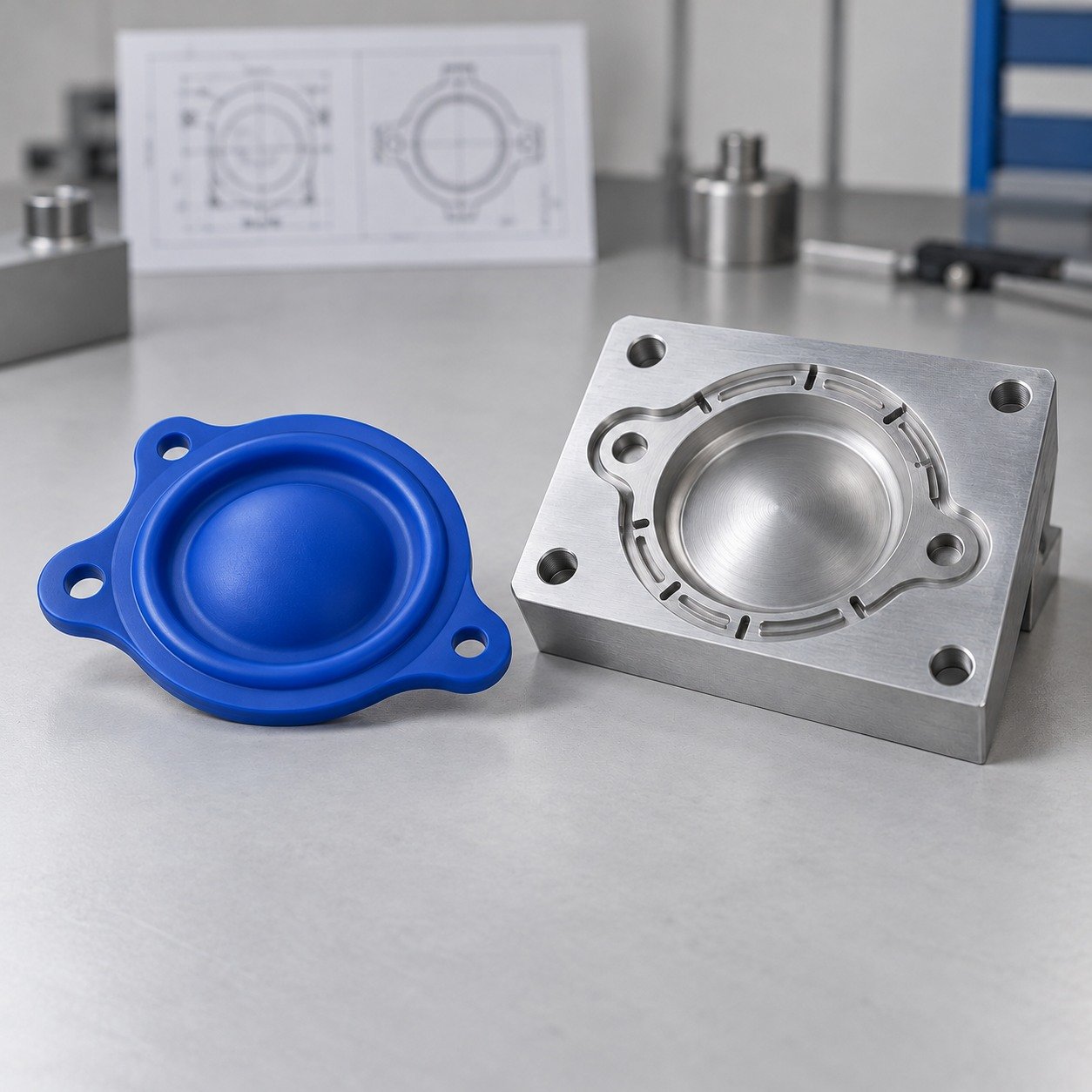

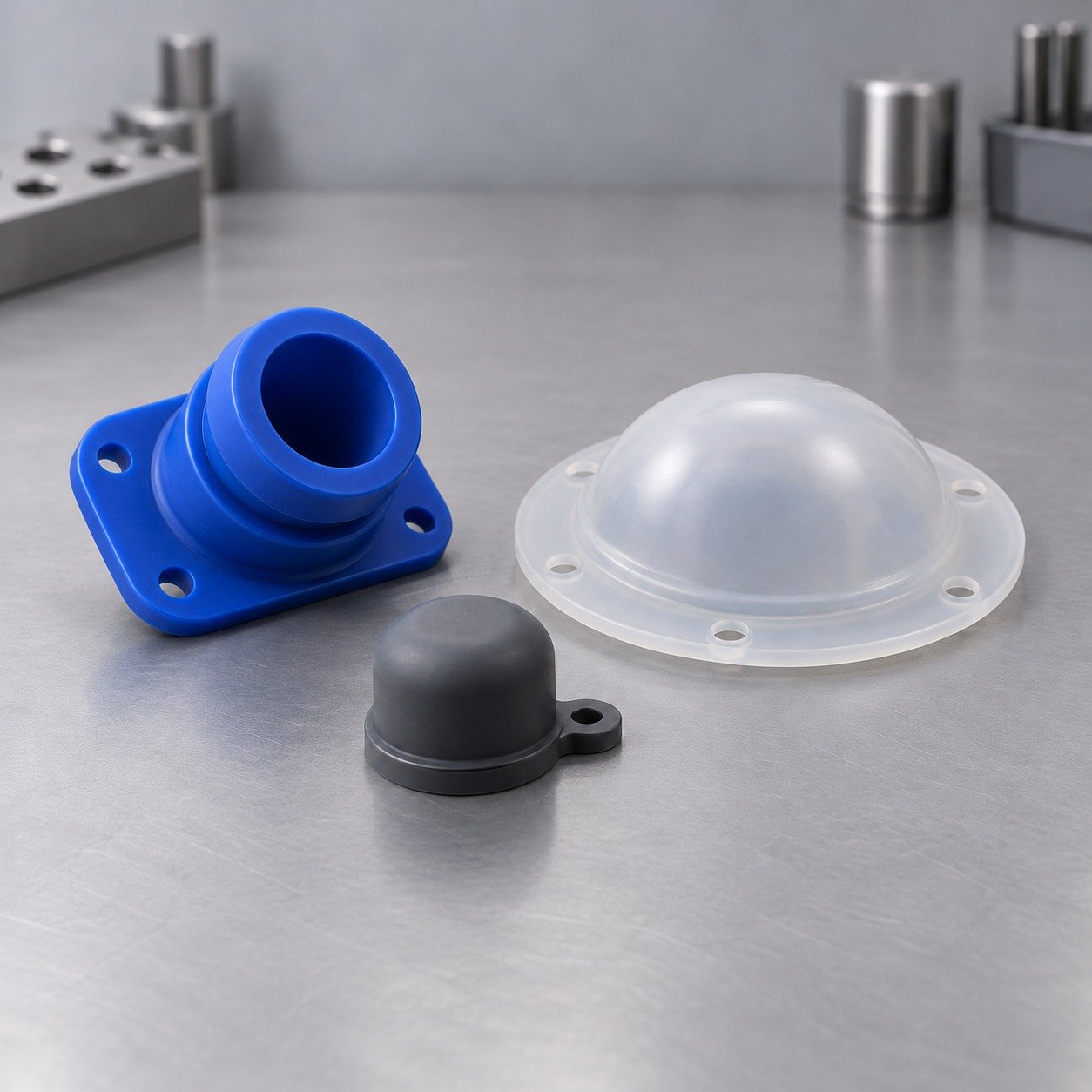

Bring Your Custom Part’s Function into the Review
Custom silicone molding needs your drawing and application requirements. LSR connector seals, molded diaphragms or valves require their own geometry and validation review.
- Identify critical interfaces and functional surfaces.
- Define medium, loads, motion and required approval records.
Illustrative applications. Material and process suitability are reviewed for your project.
Confirm Your Grade Before Your Tool Is Built
For platinum cured LSR molding, review supplier grade information, pigment compatibility and intended cure conditions.
| Exact grade | Avoid treating a material-family name as approval. |
|---|---|
| Hardness | Define the relevant test method and condition. |
| Exposure | Identify service and cleaning media. |
| Regulated use | Review requirements separately; do not assume qualification. |
Illustrative applications. Material and process suitability are reviewed for your project.

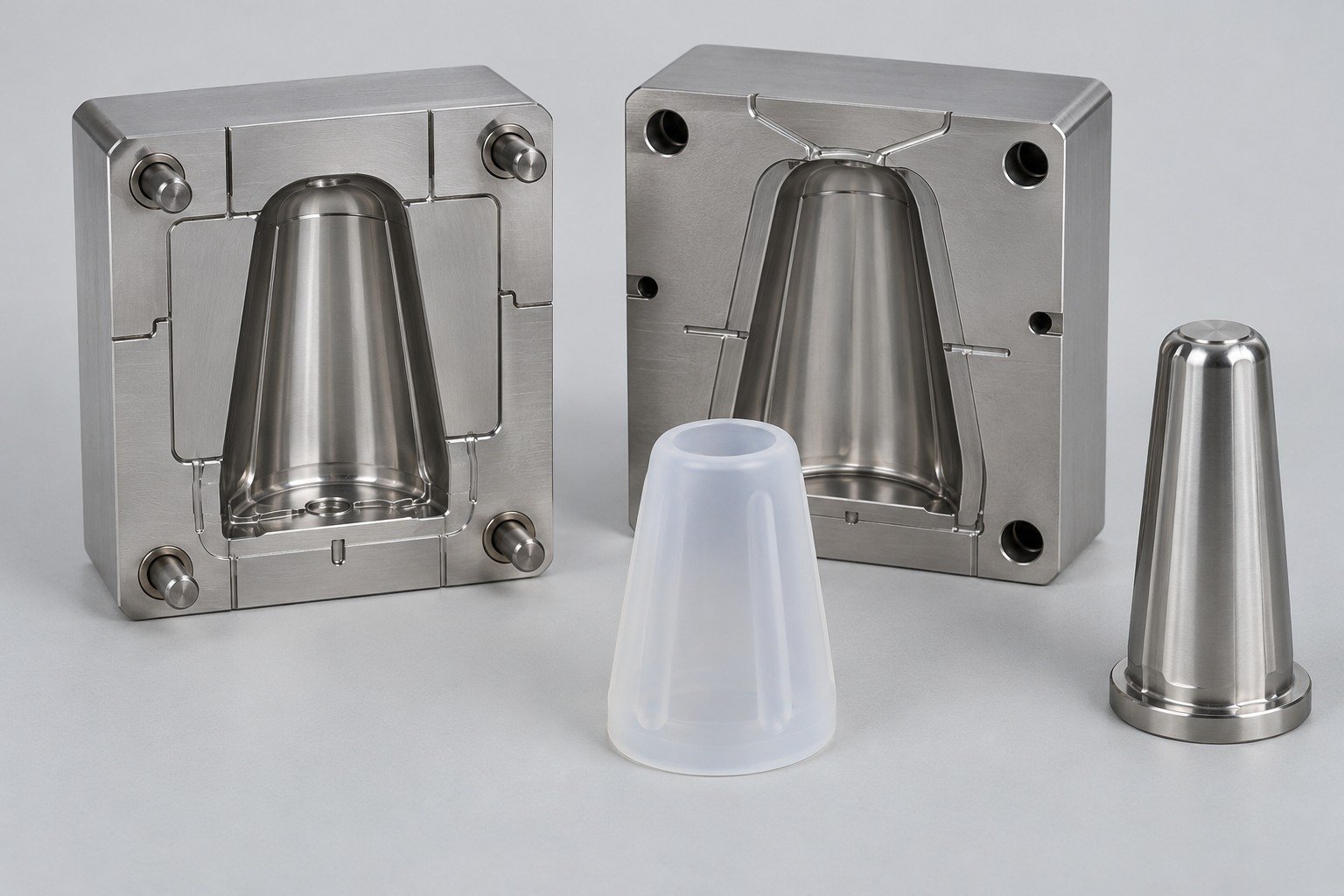

Set Your LSR Mold Design Around Critical Features
Review gates, venting, shutoffs and demolding for your geometry. LSR and HCR routes use different feed and tooling arrangements.
- Mark flash limits and protected interfaces.
- Agree datum support and inspection access before tooling.
Illustrative applications. Material and process suitability are reviewed for your project.
Give Your Custom Part a Clear Approval Plan
Your sample must answer the fit and function questions that matter to your assembly.
Critical fit
Agree datums and supported measurement.
Functional checks
Define your fixture and operating conditions.
Appearance
Agree flash, color and gate-mark limits.
Grade & cure state
Confirm material and release records.
Your Sample Approval Plan
Methods, sample quantities and acceptance criteria are agreed for your project.
Test Method
Define how your part will be checked.
Sample Quantity
Agree the number of samples for review.
Acceptance Criteria
Set fit, function and appearance requirements.
Illustrative applications. Material and process suitability are reviewed for your project.
Your Silicone Injection Molding Design Guide
Sealing Surfaces
Locate parting lines and agree flash limits around your critical seal faces.
Your Tooling Plan
Review LSR mold design for gates, venting and safe demolding.
Critical Dimensions
Agree silicone molding tolerances with grade, geometry and measurement conditions.
Your LSR Molding Process
LSR is a two-part thermoset injected into a heated mold, where it cures into a flexible component. It does not remelt like a thermoplastic.
- 01Meter & Mix
- 02Inject & Cure
- 03Demold & Finish
- 04Inspect & Approve
Post-cure when required by the material and application. Process resources are confirmed in your project scope.
Approve Your Samples Against Agreed Criteria
Confirm methods, sample quantities and acceptance limits before production.
Sample Checks
Plan LSR molding prototypes around your agreed fit and functional checks.

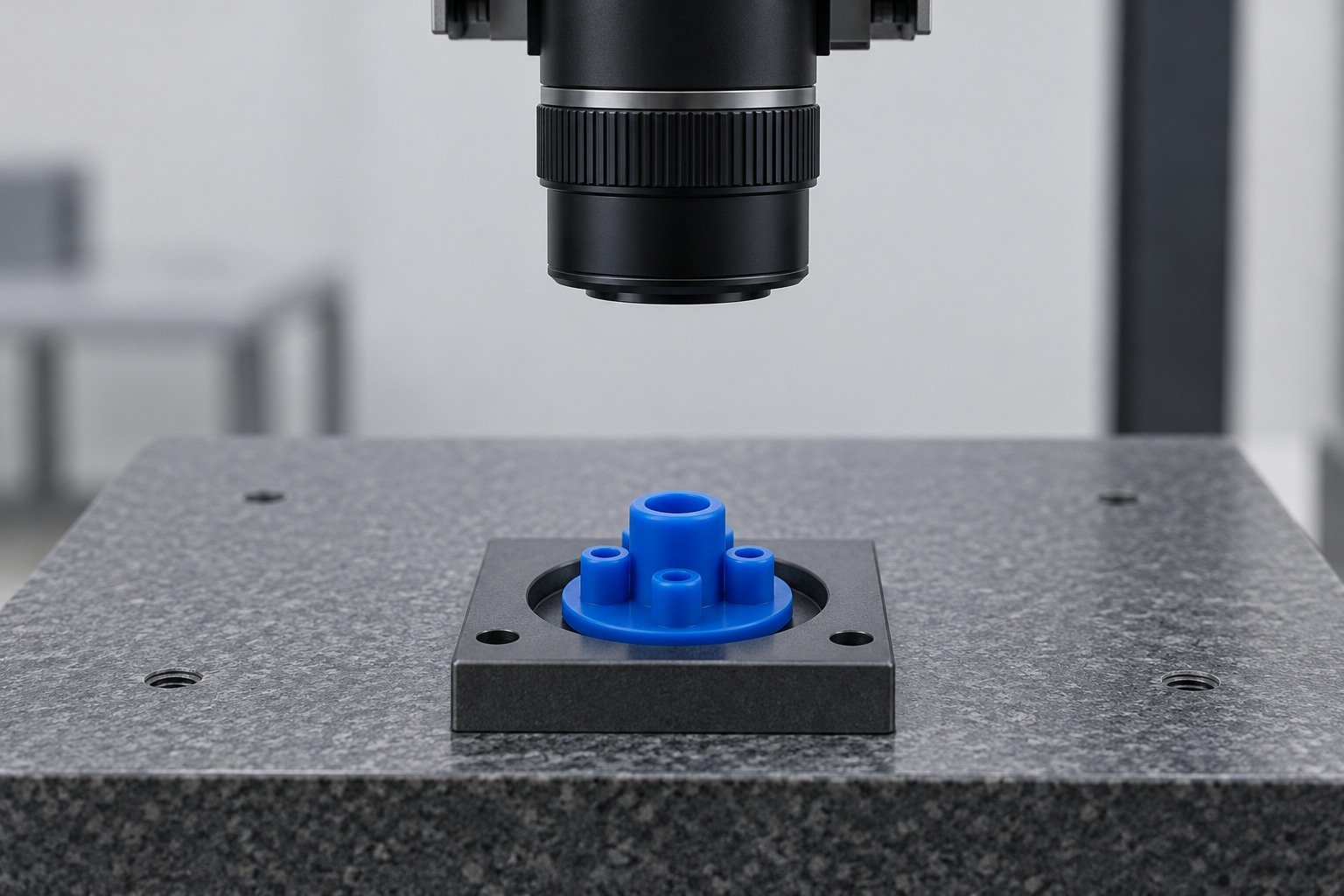

Soft-Part Measurement
Define support, conditioning and measurement force; contact pressure can deform a soft feature.
Material & Release Records
Agree grade, lot traceability and final cure state before inspection.
Inspection and functional validation have separate scopes. Confirm the method suitable for your part.
Sample Checks · Soft-Part Measurement →Make Your Quote Easier to Compare
Your silicone injection molding cost depends on tooling, grade, quantities and required inspection.
Tool Ownership
Agree ownership, maintenance, storage and change terms.
Samples & Quantities
Review low volume silicone molding against tooling and batch economics. Share first-order and annual quantities.
Inspection & Records
Define checks, traceability and release documents before ordering.
Schedule & Delivery
Separate tooling, sample and production milestones; confirm packaging and ship-to terms.
Answers Before You Commit
Explore Injection Molding →Does LSR molding require post curing?
It depends on the grade and application. Confirm supplier guidance and any required post-cure before final inspection; do not assume every LSR part uses the same cycle.
How is flash controlled in LSR molding?
Tool shutoffs, parting surfaces, venting and process settings influence flash. Mark critical seal faces and agree measurable acceptance limits; any finishing route is reviewed for your part.
How do you measure soft LSR parts?
Use agreed support, conditioning and measurement force. Contact tools can deform the feature; review optical or other suitable methods and record the cure state before comparing results.
What files are needed for an LSR molding quote?
Send part CAD and 2D drawing, exact grade and hardness, color, first-order and annual quantities, operating conditions, critical dimensions and acceptance requirements. Minimum order quantity and tooling timing are confirmed after scope review.
LSR vs HCR silicone molding: Which route fits your part?
LSR uses a liquid feed and heated-tool curing. HCR uses a high-consistency silicone compound with different feed and process arrangements. Compare geometry, grade, quantity and tooling; HCR, RTV casting and multi-material work need separate scope confirmation.
