YOUR ENVIRONMENT. YOUR SEALING INTERFACES. YOUR INSTALLED FIT.
Custom Networking Enclosures for Your Ports, Mounting & Operating Environment
Define your custom networking equipment enclosures around the installed environment, cable entries and mounting interfaces. Agree the manufactured part and the assembled validation scope before choosing a route.
Start with Your Installed Conditions
Location
Indoor/outdoor exposure, temperature and nearby equipment.
Cable entries
Connector and gland geometry, access and routing.
Mounting
Wall, pole, rack or equipment interfaces and fasteners.
Acceptance
Drawing checks, finish and any defined enclosure tests.
Define the Component You Need Manufactured
Enclosures & covers
Review walls, lid fit, sealing lands and accessible assembly details.
Port & connector plates

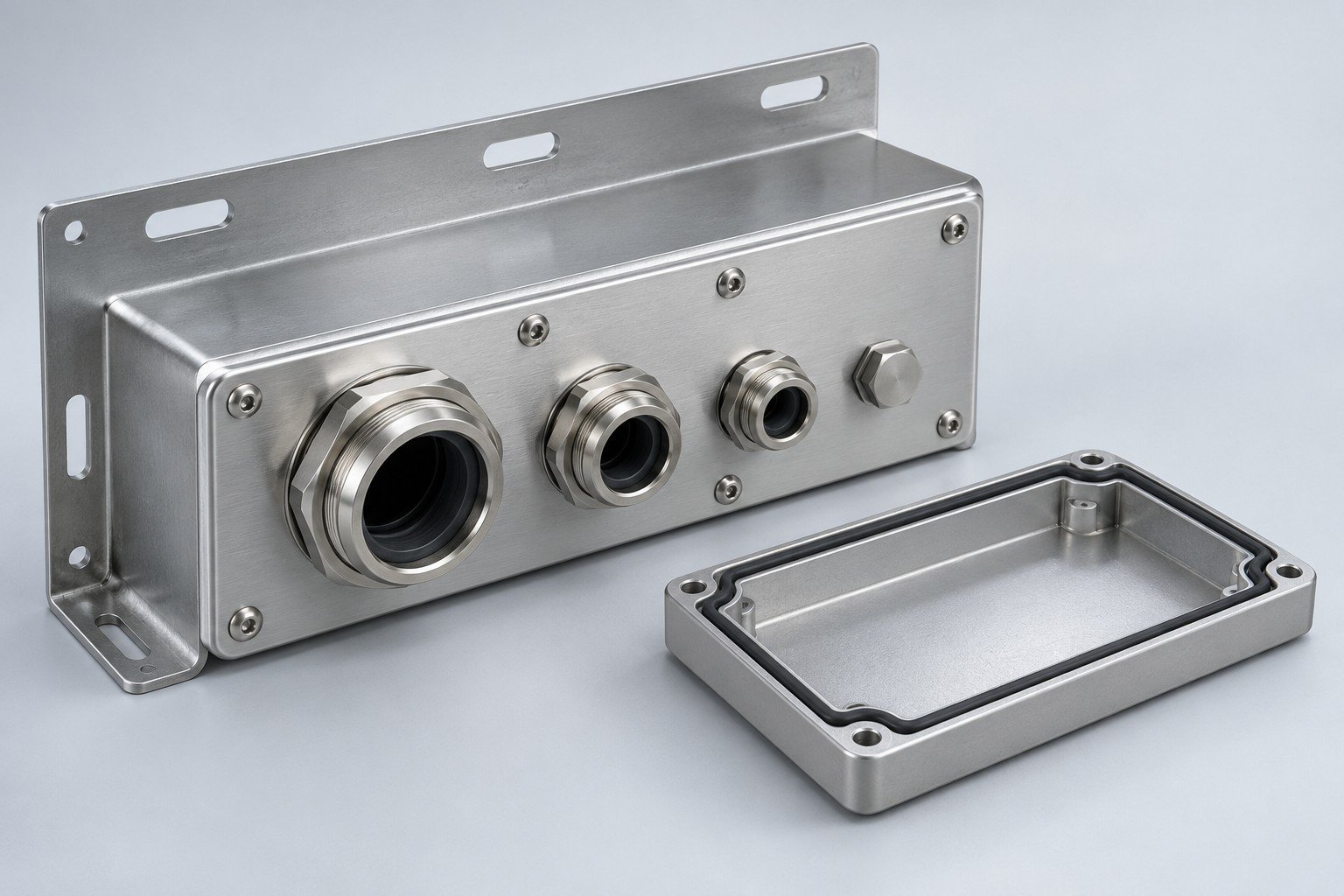

Define hole geometry, mating connectors and gasket or gland interfaces.
Mounts & supports
Review slotted brackets, fastener access, load interfaces and the final finish.
Connect Your Ports, Seal & Fasteners on One Drawing
When assessing a telecommunications machined parts supplier, identify which dimensions control mounting and which support the sealing or connector assembly.
- Mark sealing lands and gasket grooves.
- Identify cable-entry parts and installation access.
- Review protected threads and coating masks.
- Confirm the assembled condition to be checked.
Compare IP Code Meanings Before You Specify a Test
These code descriptions compare environmental protection categories. They are not LK MFG product ratings, test results or interchangeable NEMA classifications.
IP54 reference
IP54
5 · Solids: dust-protected.
4 · Water: splashing water from any direction under the applicable test.
IP65 reference
IP65
6 · Solids: dust-tight.
5 · Water: jetting water from any direction under the applicable test.
Digits are categories, not a linear performance scale. A code does not by itself establish corrosion resistance, EMC performance or suitability for a particular fluid. Define the assembled housing, ports, glands, gasket and fasteners that the test covers.
Choose the Route Around Your Enclosure Geometry
For telecom enclosure sheet metal fabrication, review formed seams, hardware and the finishing sequence together.
Your ports. Your mounting. Your finished enclosure.
Review cable entries, seams and hardware with the required final condition before choosing the route.
| Part scope | Route to review | Your decision |
|---|---|---|
| Aluminum housings for networking equipment | CNC machining or casting with secondary features | Mating geometry, material, quantity and final condition |
| Covers, panels and brackets | Sheet cutting and forming | Bends, seams, edges, hardware and finish |
| Repeated section with machined ends | Extrusion plus secondary machining | Profile choice, cut length, end plates and interfaces |
| Multi-part mounting group | Joining and assembly | Fixture control, fastener plan and final mating checks |

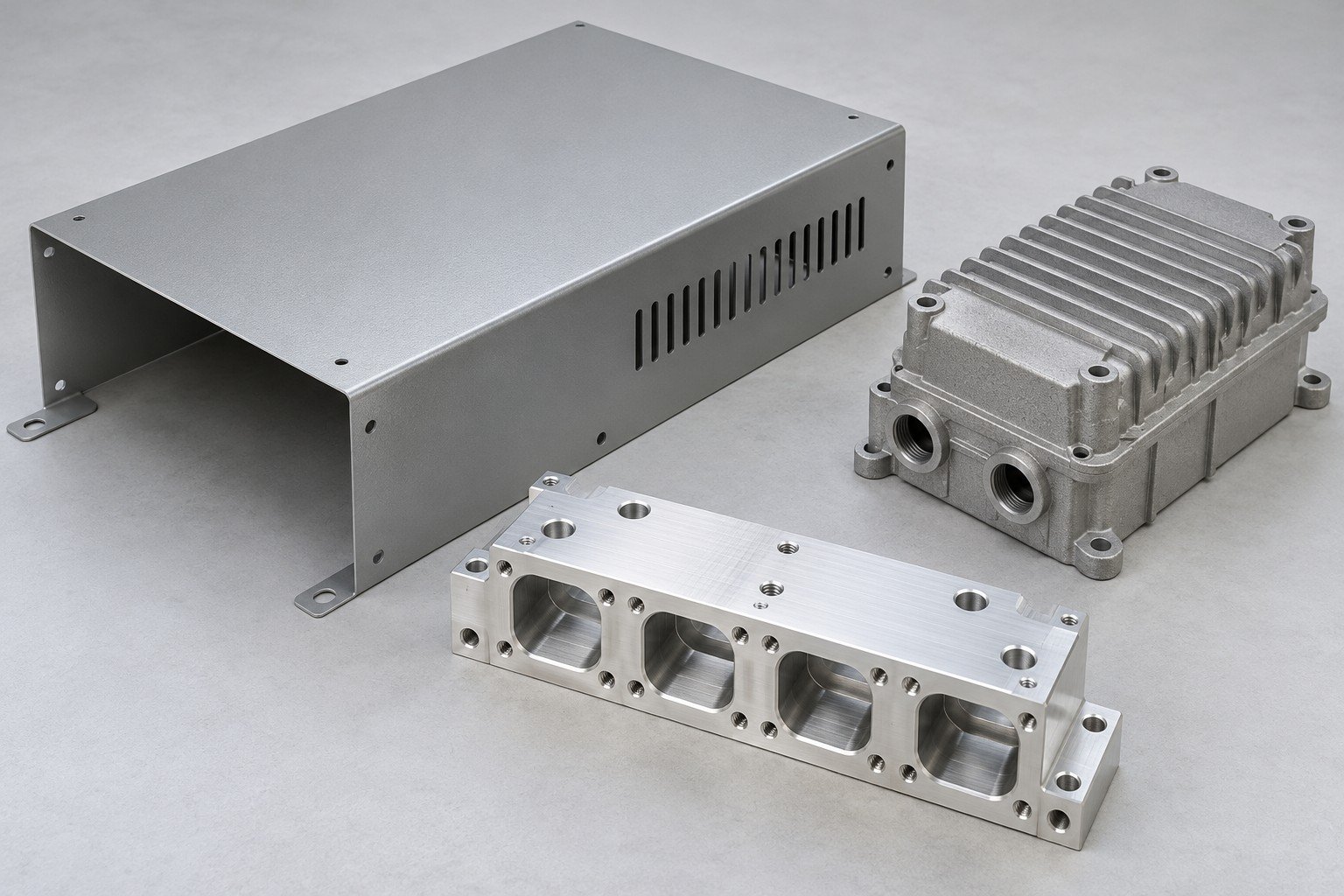

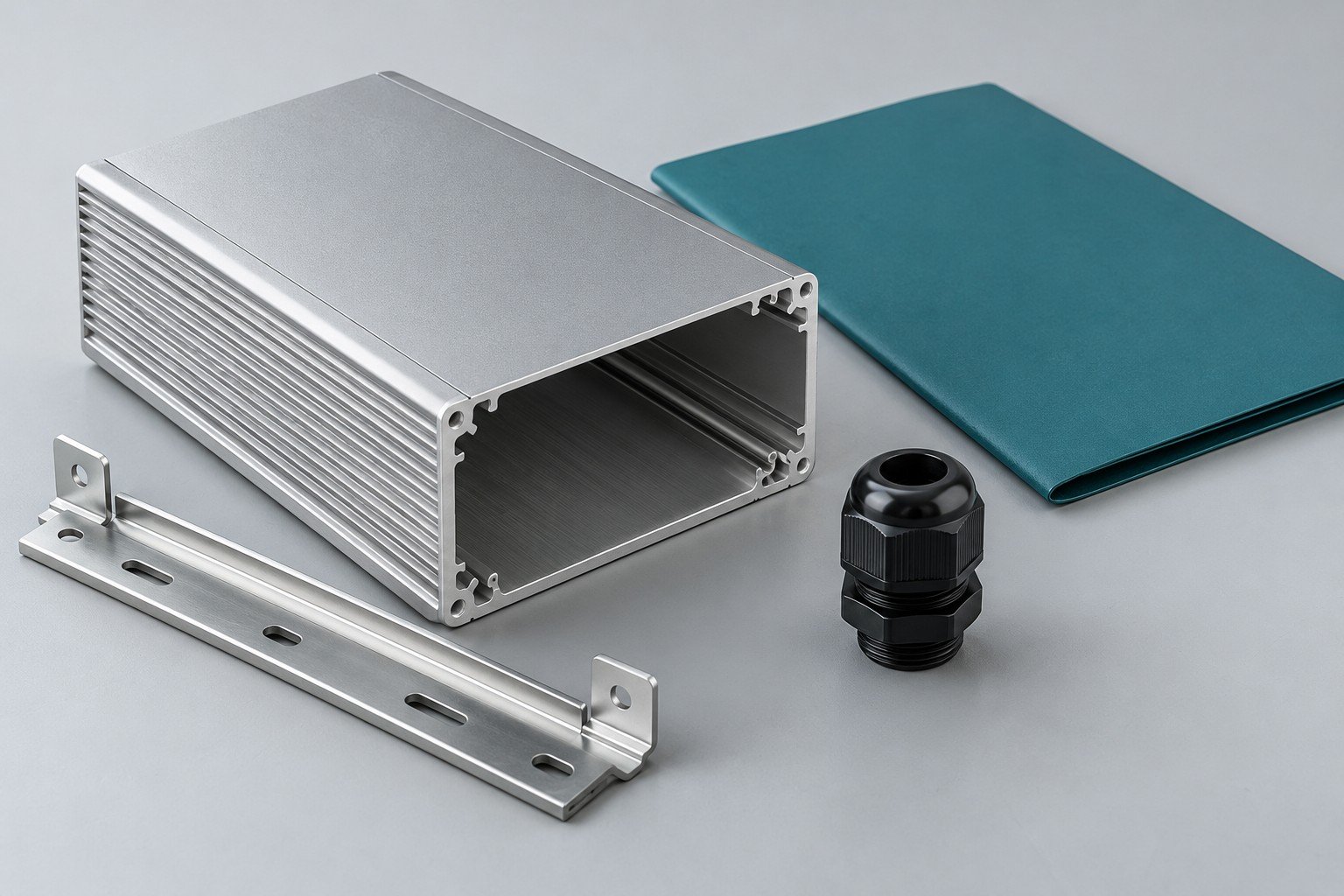

The actual route and test scope require project review; the image does not prove an ingress or corrosion rating.
Separate Component Inspection from Enclosure Validation
Dimensional evidence
Selected interfaces and sealing geometry against the released drawing.
Material & finish
Required records for grade, condition and specified finishing.
Assembly state
Defined gasket, gland, connector and fastener configuration.
Environmental result
Agreed standard, test conditions, acceptance and reporting owner.
5 Checkpoints from Drawing to Repeat Parts
01 · Inputs
Confirm drawing revision and actual application.
02 · Route
Review material, geometry and manufacturing sequence.
03 · Sample
Build the agreed sample and check defined interfaces.
04 · Approval
Record accepted features, finish and required evidence.
05 · Release
Coordinate repeat scope, packing and delivery requirements.
6 Inputs for Your Part Review
- CAD and controlled drawing revision.
- Installation and mounting interfaces.
- Operating environment and exposure.
- Ports, glands, gasket and mating hardware.
- Material, finish and planned quantities.
- Inspection and defined validation scope.
Answers Before You Specify
How to specify corrosion protection for telecom enclosures?
Describe the exposure, material combination, finish and intended service conditions. State the applicable test and acceptance criteria; do not treat an IP number as a corrosion specification.
Does an IP code certify a machined enclosure by itself?
No. The code concerns the tested enclosure configuration. Ports, glands, gaskets, fasteners and assembly condition must be included in your agreed validation scope.
Which route suits a custom networking enclosure?
Compare geometry, material, wall requirements, expected quantity, interfaces and finishing. Confirm the route from the released drawing rather than appearance alone.
What should I send with my inquiry?
Send CAD, drawing revision, installation details, environment, material/finish, mating ports and sealing parts, quantities and required checks.
