YOUR INTERFACES. YOUR OPERATING CASE. YOUR APPROVAL.
AI Cooling Componentsfor Your Server, Rack & Liquid-Cooling Interfaces
Plan your custom AI cooling components around the server interface and the supplied assembly boundary. Compare cold plates, rack manifolds and defined loop assemblies before freezing your drawing, material and sample acceptance.

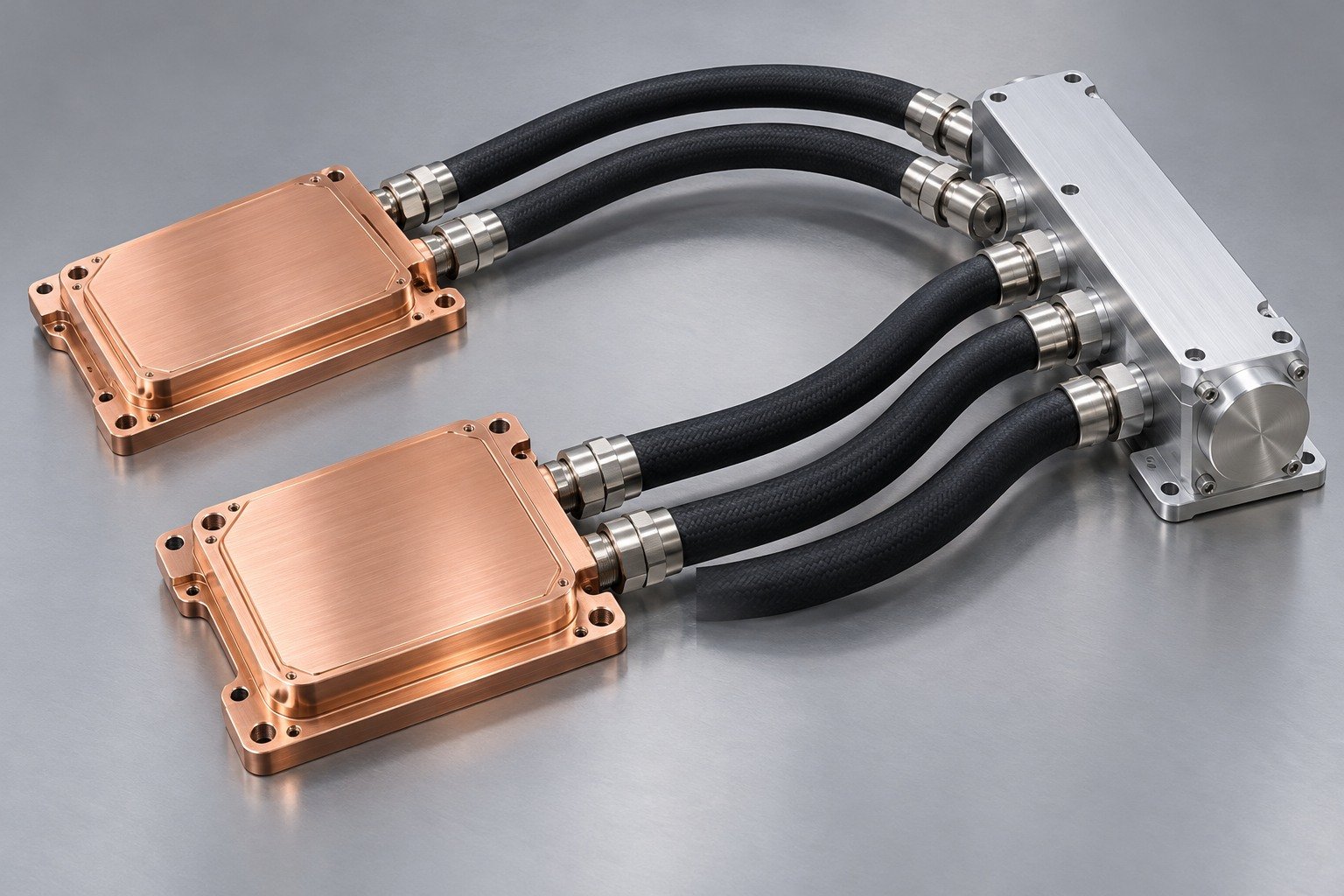

Illustrative manufactured-component concepts
4 Decisions Before You Specify
Part boundary
List what is included
Installed conditions
Name your operating case
Material path
Review all wetted items
Sample acceptance
Assign checks and owners
AI Compute Cooling
AI Server Cooling
Review platform mounting, contact stack and connection access.

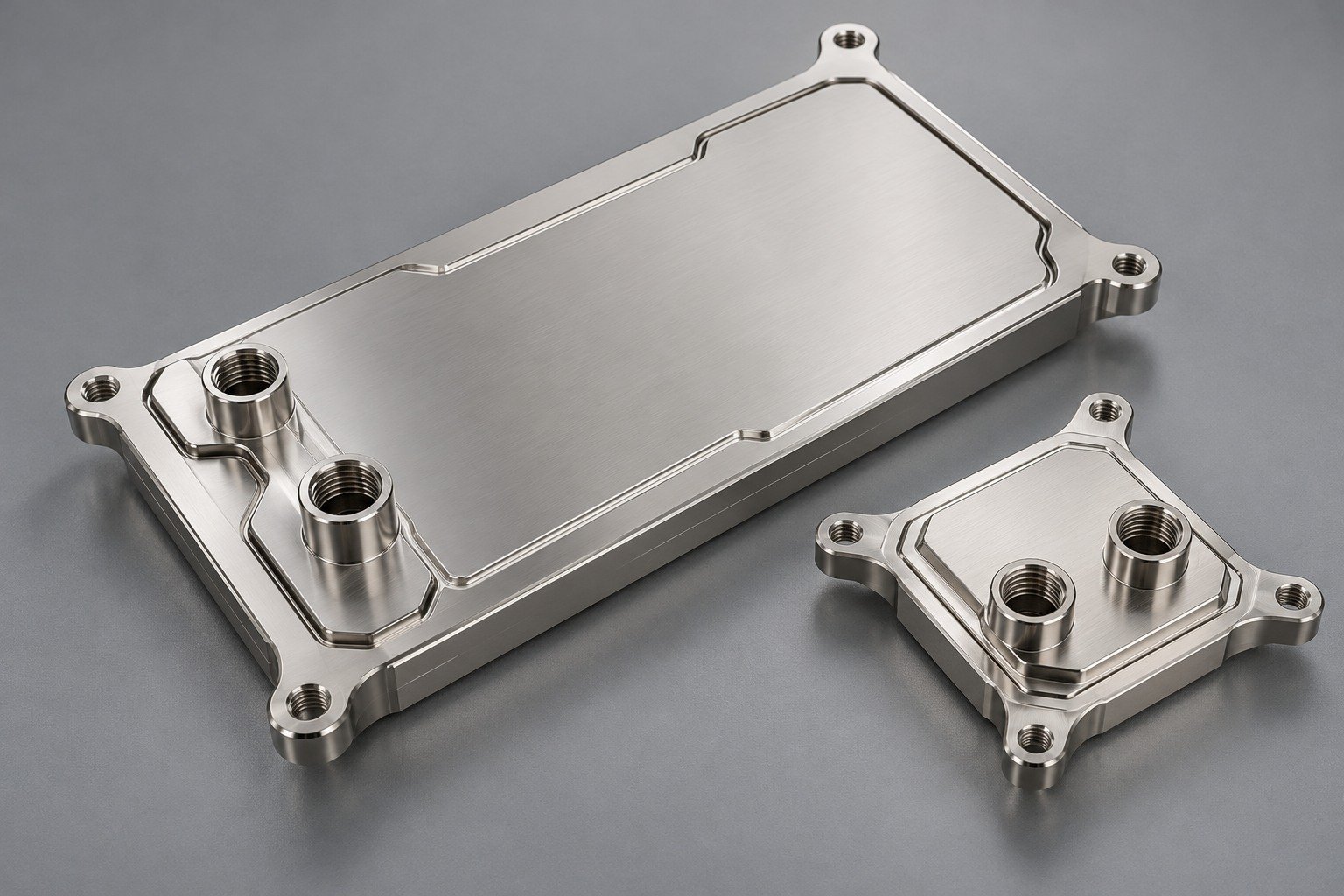

GPU / CPU Cold Plates
Match package keep-outs, mounting load and the contact footprint.
Data Center Cooling Components
Define manufactured parts, purchased items and integration responsibility.
Illustrative concepts; open each topic for drawing-review details
Distribution & Assembly
Rack Cooling Interfaces
Review rail position, insertion travel, connector access and service clearance.

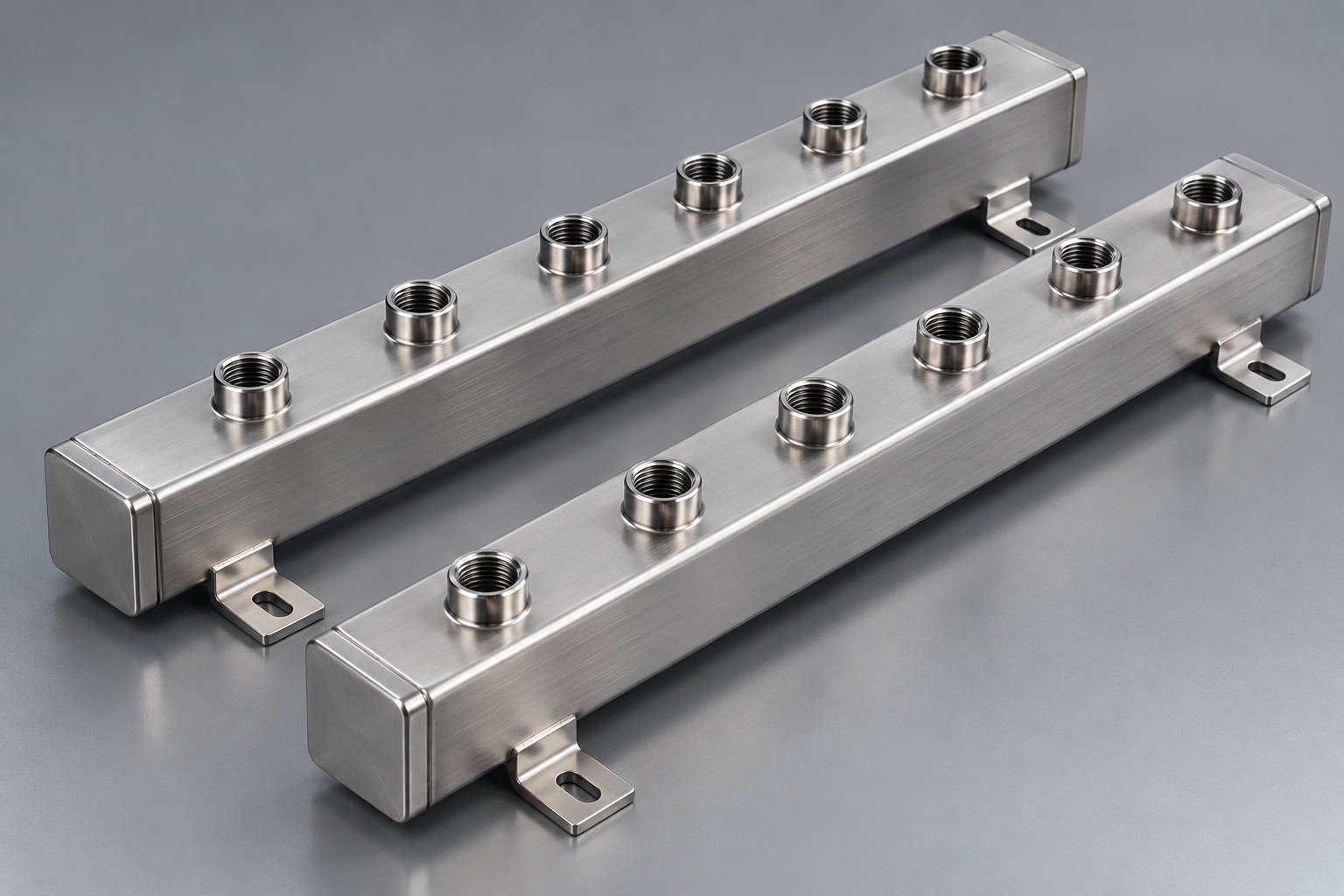

Manifolds & CDU Components
Define branch ports, supports and the component boundary inside your CDU.
Cooling Loops & Assemblies
Coordinate hoses, fittings, assembly revision and agreed integrity records.
Illustrative concepts; open each topic for drawing-review details

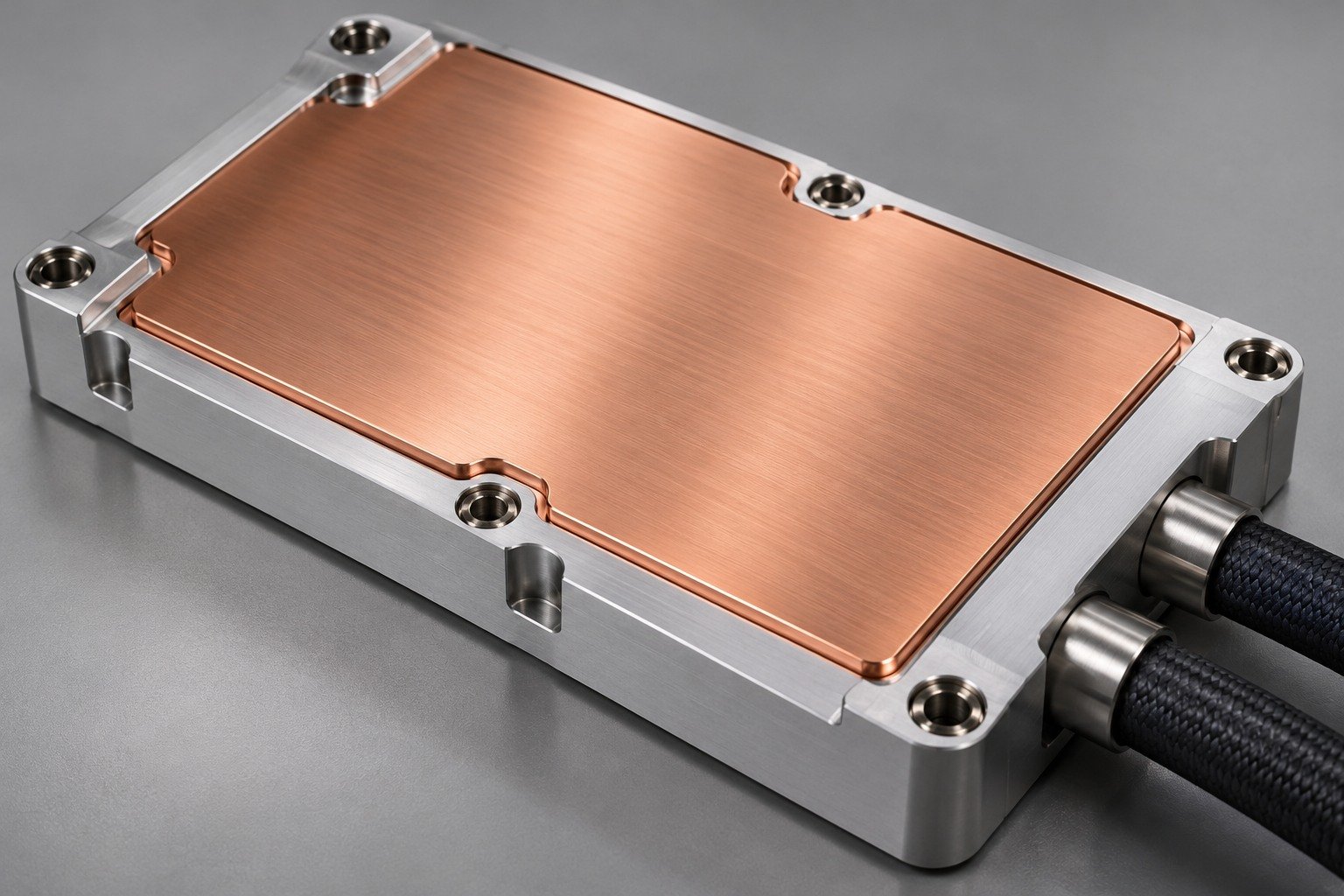

Match Your Part to the Installed Assembly
Illustrative interface review; thermal validation is a separate scope
For direct to chip cooling components, review the contact stack and the complete path from cold plate to rack connection. Port size alone does not establish available flow. Specify your fluid, temperature, flow, pressure-drop allowance and service state.
- Controlled mounting and contact datums
- Connection drawings, seals and tool access
- Approved fluid and full wetted-material list
- Assembly revision and service clearance

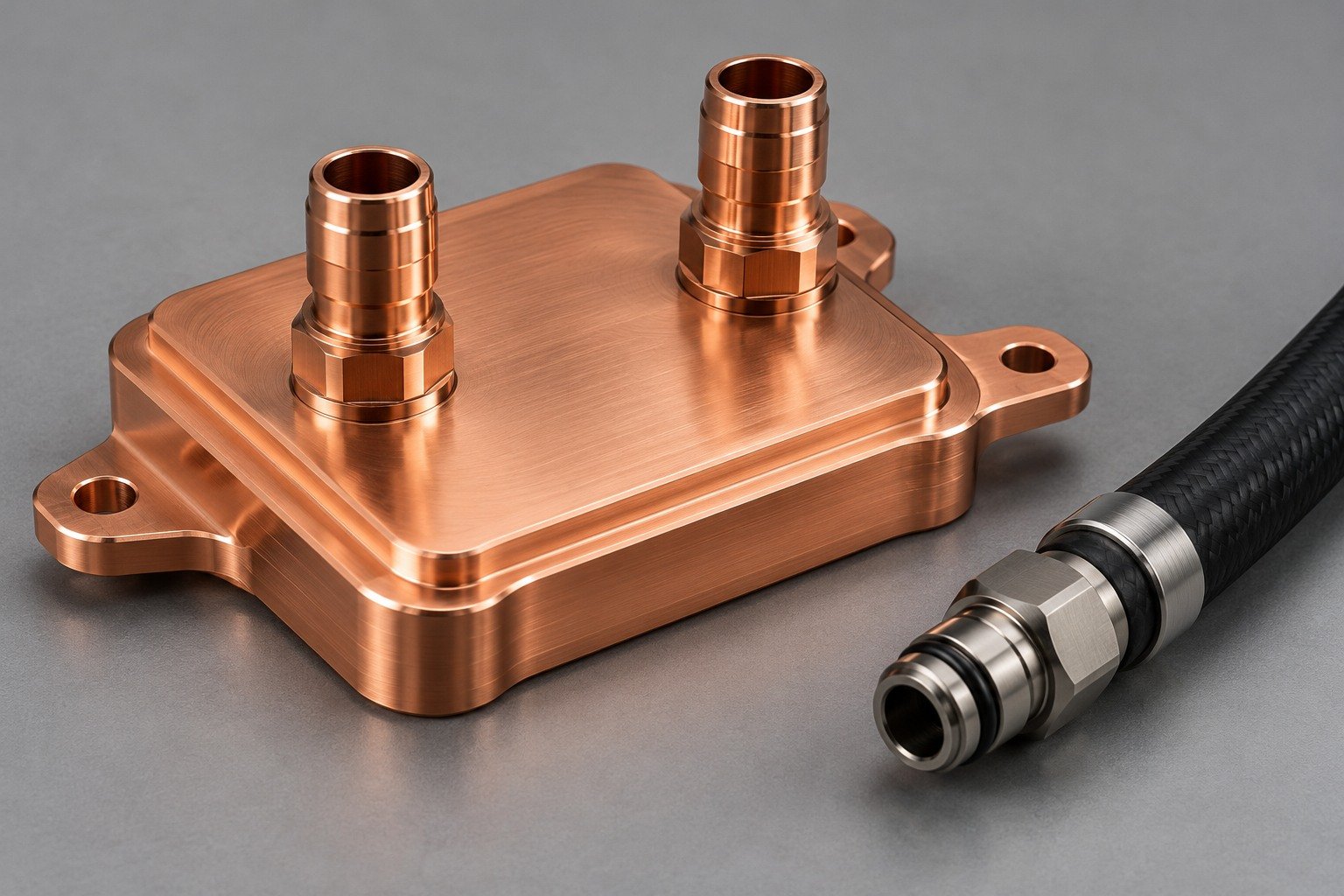

Compare Your Cold-Plate Material References
Compare bulk conduction and mass alongside your contact stack, coolant, coatings and manufacturing route. These references are not finished server-cooling tests or material substitution approvals.
Typical thermal conductivity
Hydro 6061-T6 at 25°C. KME Cu-ETP annealed at 20°C.
Density reference
Calculate finished mass from the actual geometry. A material conductivity difference does not establish a device-temperature reduction.
| Grade | European reference | Si | Fe | Cu | Mn | Mg | Zn | Al |
|---|---|---|---|---|---|---|---|---|
| 6061 | EN AW-6061 · AlMg1SiCu | 0.40–0.80 | ≤0.70 | 0.15–0.40 | ≤0.15 | 0.80–1.20 | ≤0.25 | Balance |
| C11000 | Cu-ETP · CW004A | — | — | ≥99.90 | — | — | — | — |
Selected elements only. Dash means not specified in this summary, not zero. 6061: Cr 0.04–0.35%, Ti ≤0.15%; C11000: O ≤0.040%; do not relabel Cu-ETP as oxygen-free copper. Aluminum other elements ≤0.05% each / ≤0.15% total. The purchasing standard and certificate govern. Confirm product form, temper, joining compatibility and required final condition.
Sources: Hydro 6061 → · KME Cu-ETP →
Agree Your Evidence Before Repeat Manufacture

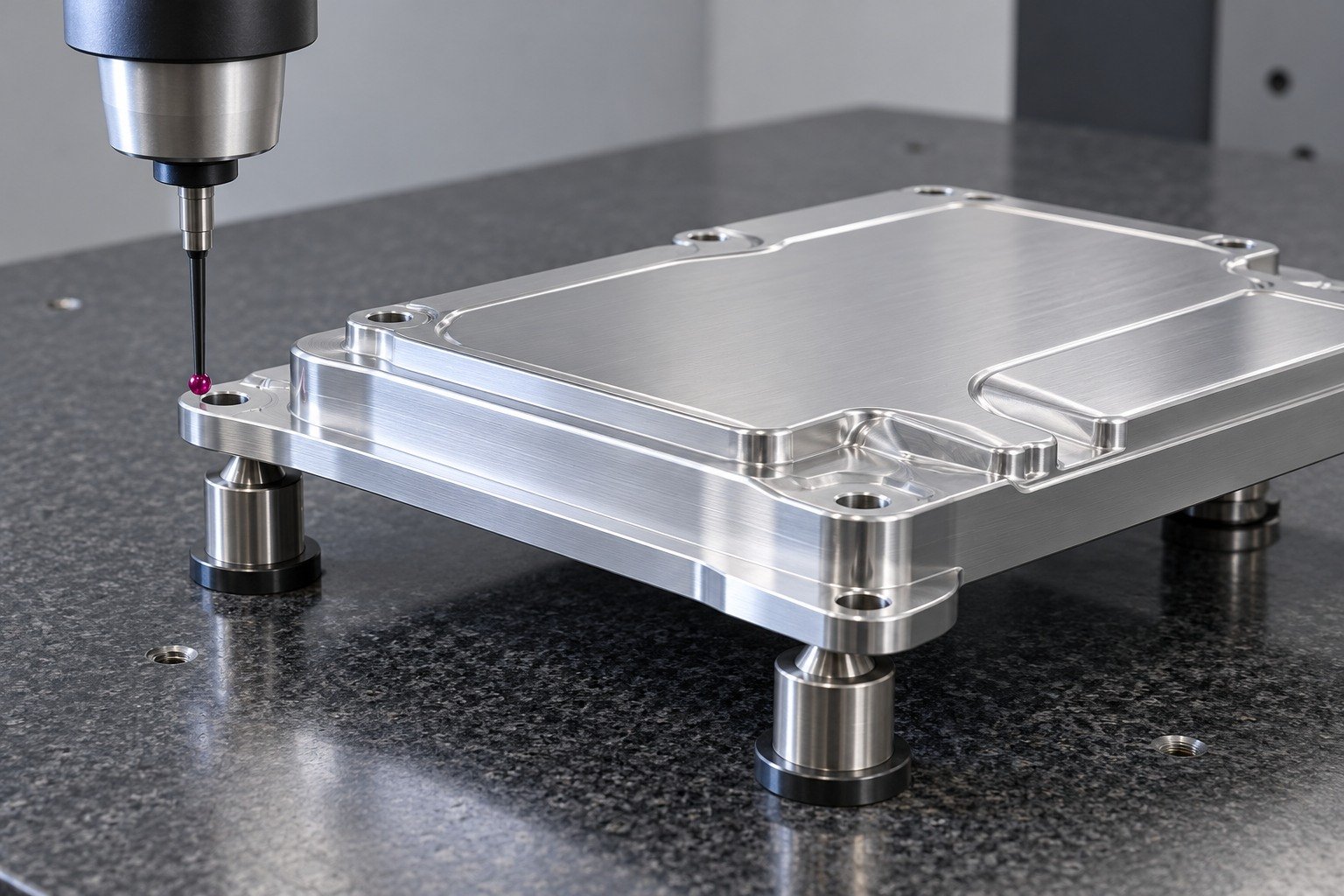

Your mechanical approval
Confirm contact, mounting and ports against the released interface drawing.
Your integrity scope
Agree AI cooling component leak testing by test medium, pressure, duration, acceptance limit, assembled state and records. Specify cleaning, drying and port protection separately.
Your thermal and flow approval
Identify the heat map, contact stack, inlet state, flow, pressure measurement boundary and sensor positions. A dimensional report is not a finished cooling-performance result.
6 Inputs for Your Component Review
- CAD + controlled interface drawing
- Dissipated heat map + duty cycle
- Contact stack + named temperature limits
- Airflow or coolant, flow + pressure allowance
- Material, finish, ports + assembly boundary
- Quantities, sample records + approval owners
When comparing an AI cooling components manufacturer, confirm the supplied boundary before approving AI cooling prototype manufacturing.
Answers Before You Specify
What information is needed to quote AI server cooling components?
Provide AI cooling component drawings, platform interface, heat map, contact stack, coolant/inlet/flow conditions, ports, quantities and required records. Separate made parts, purchased items and validation responsibility.
Does an AI cooling parts supplier provide the complete cooling system?
Component supply does not by itself include a complete CDU, chiller, server or commissioned facility system. List each deliverable and integration responsibility in the quotation.
Which records should accompany an AI liquid cooling component sample?
Agree material identity, drawing revision, dimensional evidence, specified cleanliness and integrity checks. Define thermal and hydraulic testing separately with named conditions and owners.
How should I review AI cooling material compatibility?
Review every wetted metal, coating, seal and approved fluid together under actual conditions. A bulk conductivity figure or a plated appearance does not establish compatibility.
5 Checkpoints from Drawing to Repeat Supply
Drawing & inputs
Define the part and operating case.
Route review
Agree material, machining and joining.
Sample build
Trace the controlled revision.
Agreed evidence
Review fit and specified checks.
Repeat release
Approve the part and supply records.
