YOUR GRADE. YOUR MOISTURE CONTROL. YOUR FINISHED FIT.
PBT for Your Custom Parts
Plan your custom PBT parts around the full stock or resin grade, reinforcement and operating environment. Review drying evidence, molded shrinkage and critical fits before production.
Material availability and manufacturing scope are reviewed for your drawing.
Grade & FormSpecify stock or resin.
Exposure & AssemblyDefine media, load and temperature.
Stability & FitAgree the inspection state.
Material RecordsRetain grade and lot identity.
4 PBT Directions to Review First
Start with the full manufacturer product and purchasing form. These are review directions, not interchangeable grades or stock promises.

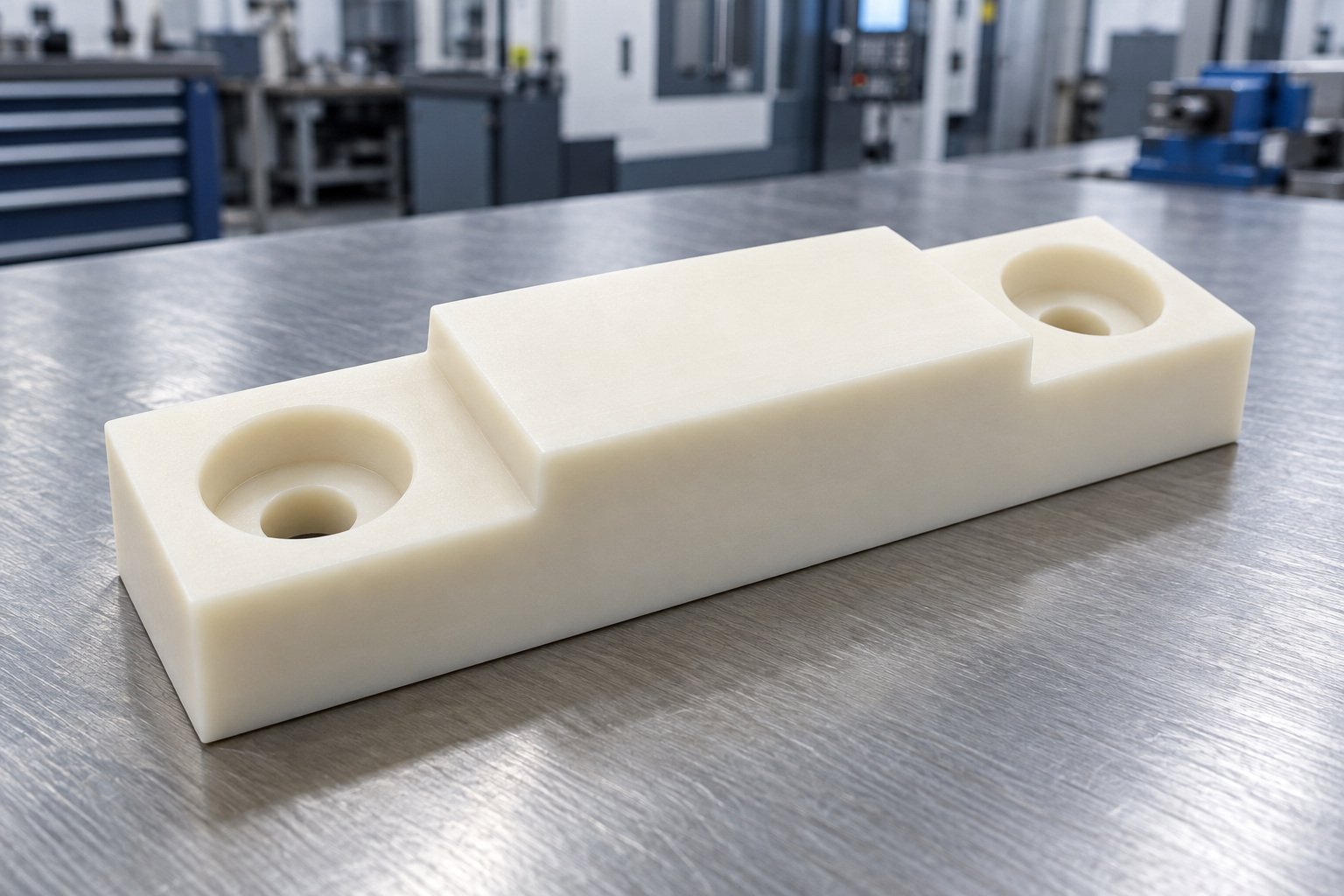

Unfilled PBT
For your PBT prototype parts, confirm actual stock or resin and finished geometry. A family name is insufficient for substitution.

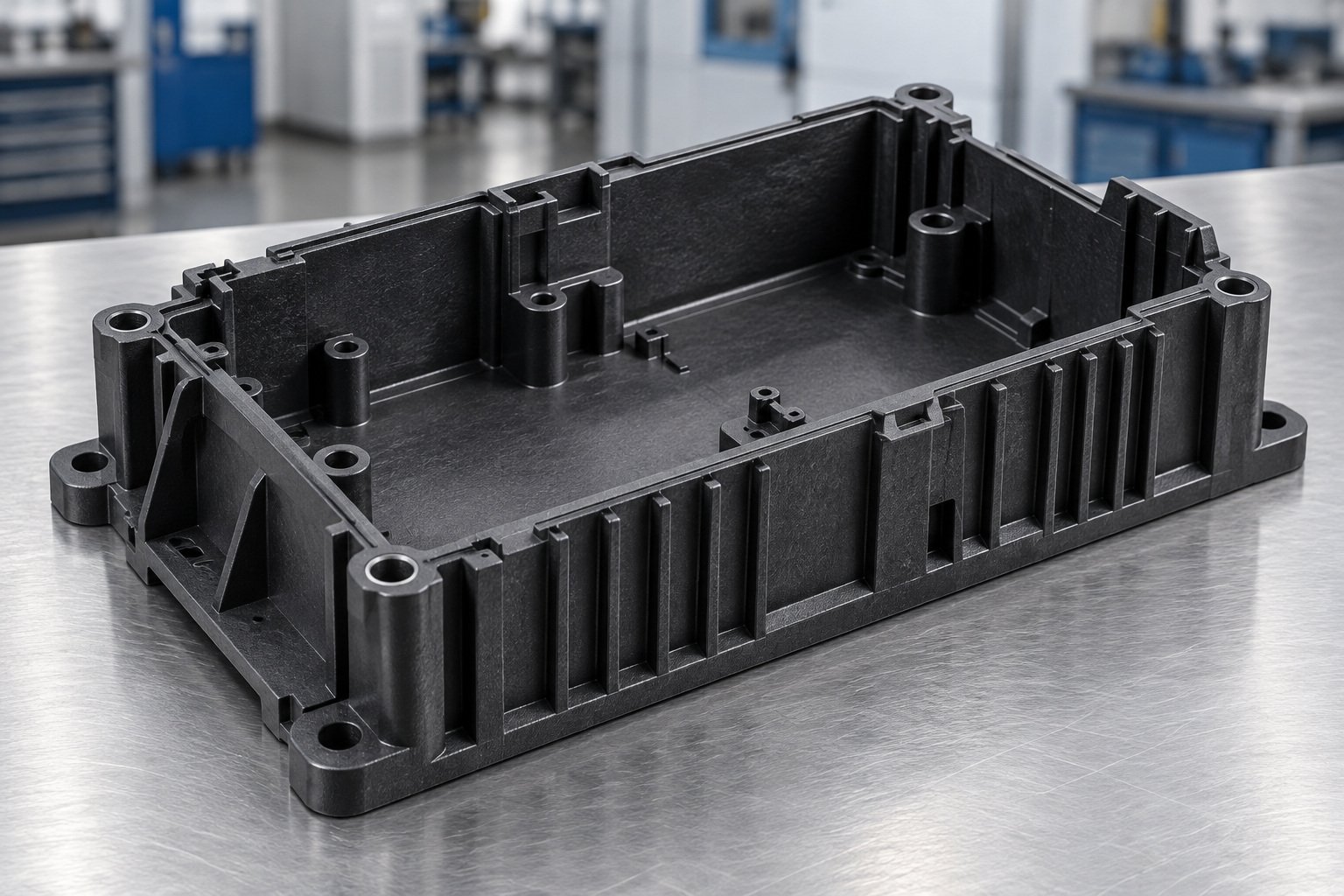

Glass-filled PBT
Review glass filled PBT around stiffness, fiber direction, mating surfaces and warpage. PBT GF30 does not identify a complete resin grade.
Hydrolysis-resistant grade
Review PBT hydrolysis against actual moisture, temperature and duration. Confirm a specific hydrolysis-resistant product and evidence.

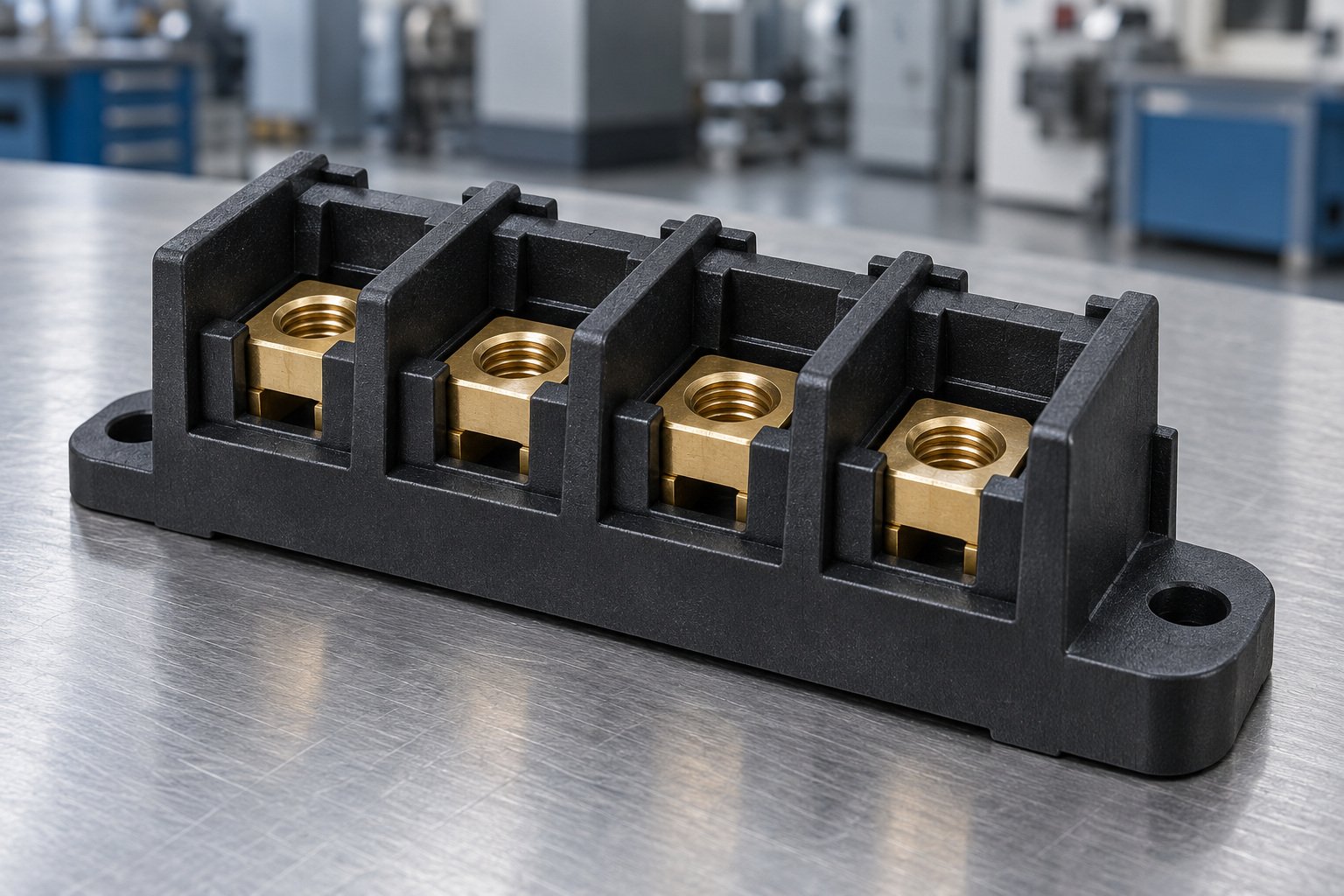

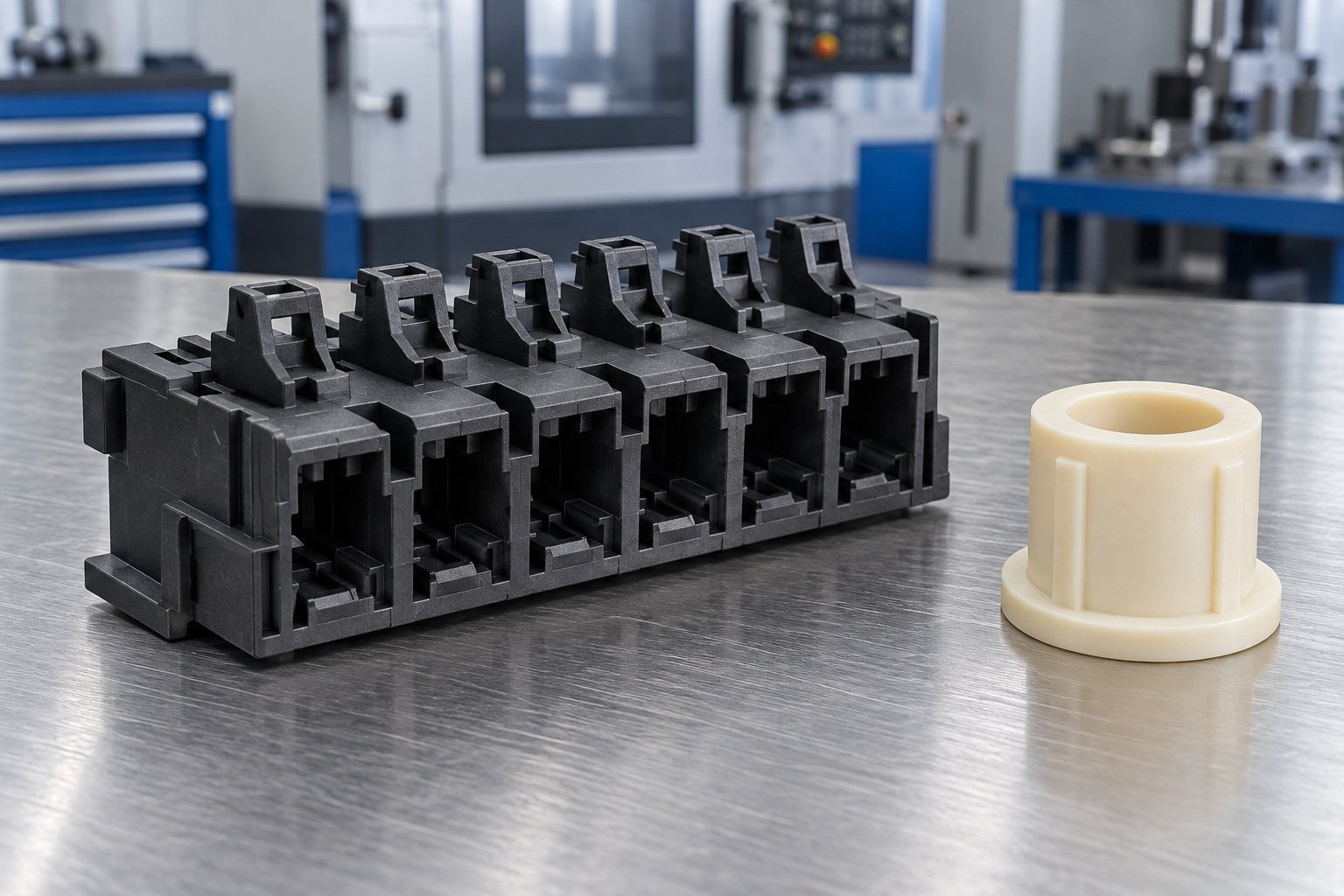

Electrical molding grade

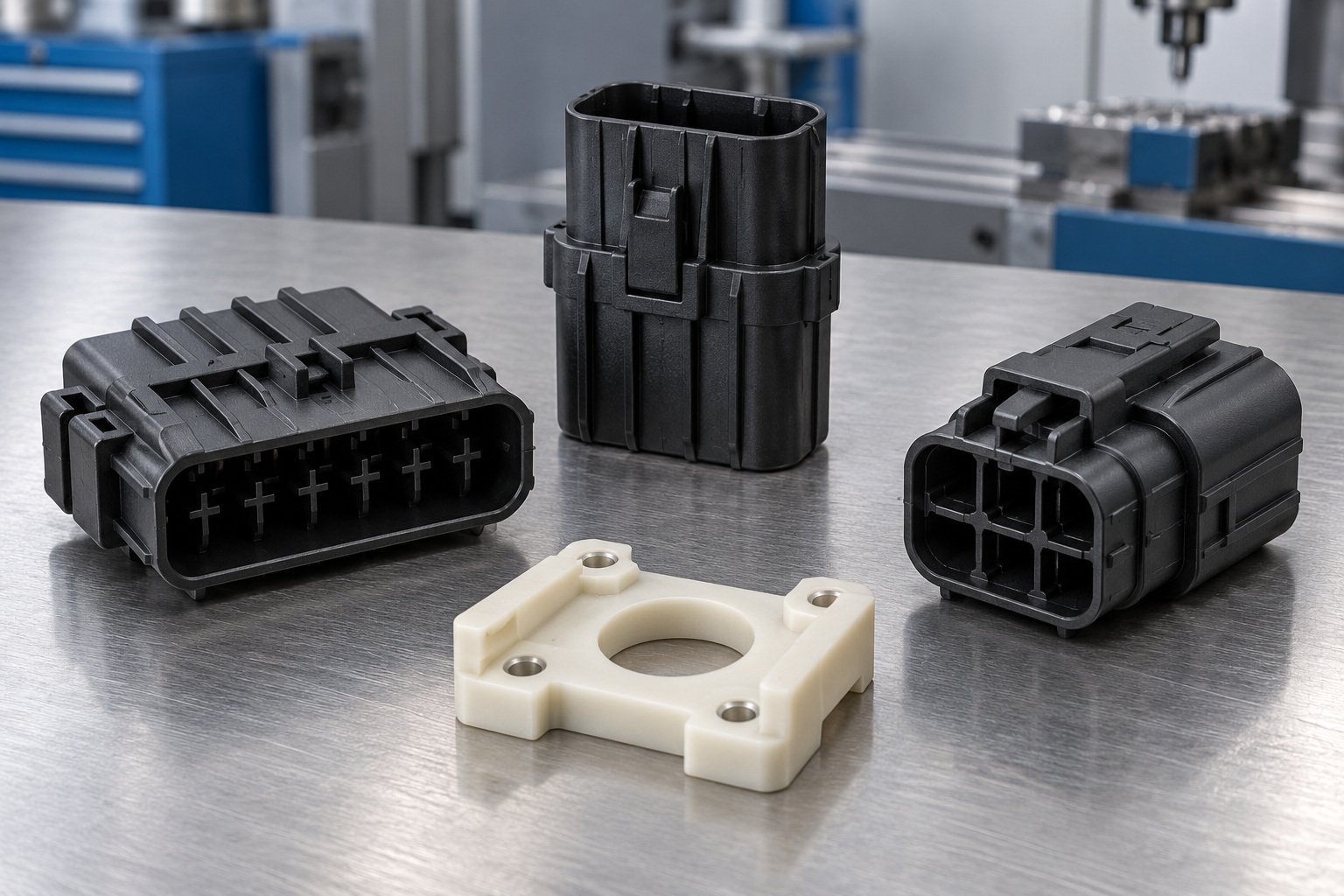

For PBT electrical connectors, specify full grade, color, geometry, insert details and required product-specific evidence. No blanket electrical or flame approval is implied.
Choose Around Your Part’s Requirements
Review Unfilled PBT for Your Drawing
For your PBT prototype parts, confirm actual stock or resin and finished geometry. A family name is insufficient for substitution.
| Your decision | What to confirm |
|---|---|
| Full product | Manufacturer, grade suffix, color and lot |
| Purchasing form | Stock shapes or molding resin |
| Your approval | Actual load, assembly and sample |
Two Purchasing Routes, Different Evidence
A resin data sheet does not identify unspecified sheet, rod or tube.
| Your decision | What to confirm |
|---|---|
| CNC Stock: Confirm the Actual Product | For your PBT machining services, identify the stock manufacturer, full product, color, form and lot. Resin data alone does not identify the sheet or rod being cut. |
| Molding Resin: Full Grade + Color | For your PBT injection molding quote, confirm the complete resin designation, moisture verification, tooling, quantities and approved sample. |
Agree Your Finished Fit
Review geometry, temperature state, support and timing before comparing dimensions.
| Your decision | What to confirm |
|---|---|
| Assembly | Mating parts, contact media and assembly stress |
| Processing | Heat history, cooling and support |
| Inspection | Datums, support and agreed method |
Confirm PBT Material Certification
Material records must correspond to the product and batch actually supplied.
| Your decision | What to confirm |
|---|---|
| Identity | Full stock or resin product, color and batch |
| Finished part | Dimensions and functional sample approval |
| No automatic equivalence | Printed or machined prototypes do not validate molded-part performance |
Review Glass-filled PBT for Your Drawing
Review glass filled PBT around stiffness, fiber direction, mating surfaces and warpage. PBT GF30 does not identify a complete resin grade.
| Your decision | What to confirm |
|---|---|
| Full product | Manufacturer, grade suffix, color and lot |
| Purchasing form | Stock shapes or molding resin |
| Your approval | Actual load, assembly and sample |
Two Purchasing Routes, Different Evidence
A resin data sheet does not identify unspecified sheet, rod or tube.
| Your decision | What to confirm |
|---|---|
| CNC Stock: Confirm the Actual Product | For your PBT machining services, identify the stock manufacturer, full product, color, form and lot. Resin data alone does not identify the sheet or rod being cut. |
| Molding Resin: Full Grade + Color | For your PBT injection molding quote, confirm the complete resin designation, moisture verification, tooling, quantities and approved sample. |
Agree Your Finished Fit
Review geometry, temperature state, support and timing before comparing dimensions.
| Your decision | What to confirm |
|---|---|
| Assembly | Mating parts, contact media and assembly stress |
| Processing | Heat history, cooling and support |
| Inspection | Datums, support and agreed method |
Confirm PBT Material Certification
Material records must correspond to the product and batch actually supplied.
| Your decision | What to confirm |
|---|---|
| Identity | Full stock or resin product, color and batch |
| Finished part | Dimensions and functional sample approval |
| No automatic equivalence | Printed or machined prototypes do not validate molded-part performance |
Review Hydrolysis-resistant grade for Your Drawing
Review PBT hydrolysis against actual moisture, temperature and duration. Confirm a specific hydrolysis-resistant product and evidence.
| Your decision | What to confirm |
|---|---|
| Full product | Manufacturer, grade suffix, color and lot |
| Purchasing form | Stock shapes or molding resin |
| Your approval | Actual load, assembly and sample |
Two Purchasing Routes, Different Evidence
A resin data sheet does not identify unspecified sheet, rod or tube.
| Your decision | What to confirm |
|---|---|
| CNC Stock: Confirm the Actual Product | For your PBT machining services, identify the stock manufacturer, full product, color, form and lot. Resin data alone does not identify the sheet or rod being cut. |
| Molding Resin: Full Grade + Color | For your PBT injection molding quote, confirm the complete resin designation, moisture verification, tooling, quantities and approved sample. |
Agree Your Finished Fit
Review geometry, temperature state, support and timing before comparing dimensions.
| Your decision | What to confirm |
|---|---|
| Assembly | Mating parts, contact media and assembly stress |
| Processing | Heat history, cooling and support |
| Inspection | Datums, support and agreed method |
Confirm PBT Material Certification
Material records must correspond to the product and batch actually supplied.
| Your decision | What to confirm |
|---|---|
| Identity | Full stock or resin product, color and batch |
| Finished part | Dimensions and functional sample approval |
| No automatic equivalence | Printed or machined prototypes do not validate molded-part performance |
Review Electrical molding grade for Your Drawing
For PBT electrical connectors, specify full grade, color, geometry, insert details and required product-specific evidence. No blanket electrical or flame approval is implied.
| Your decision | What to confirm |
|---|---|
| Full product | Manufacturer, grade suffix, color and lot |
| Purchasing form | Stock shapes or molding resin |
| Your approval | Actual load, assembly and sample |
Two Purchasing Routes, Different Evidence
A resin data sheet does not identify unspecified sheet, rod or tube.
| Your decision | What to confirm |
|---|---|
| CNC Stock: Confirm the Actual Product | For your PBT machining services, identify the stock manufacturer, full product, color, form and lot. Resin data alone does not identify the sheet or rod being cut. |
| Molding Resin: Full Grade + Color | For your PBT injection molding quote, confirm the complete resin designation, moisture verification, tooling, quantities and approved sample. |
Agree Your Finished Fit
Review geometry, temperature state, support and timing before comparing dimensions.
| Your decision | What to confirm |
|---|---|
| Assembly | Mating parts, contact media and assembly stress |
| Processing | Heat history, cooling and support |
| Inspection | Datums, support and agreed method |
Confirm PBT Material Certification
Material records must correspond to the product and batch actually supplied.
| Your decision | What to confirm |
|---|---|
| Identity | Full stock or resin product, color and batch |
| Finished part | Dimensions and functional sample approval |
| No automatic equivalence | Printed or machined prototypes do not validate molded-part performance |
Compare Named Grades, Not Every PBT
BASF Ultradur brochure · Figure 1 · modulus of elasticity, MPa.
Published Resin Reference Values
Historical brochure references for two named resins, not current supply specifications, finished-part guarantees or substitution approval. Fiber direction, geometry and test conditions matter. Confirm current exact-grade data before design.
BASF source and conditions →2 Purchasing Routes. Different Material Evidence.

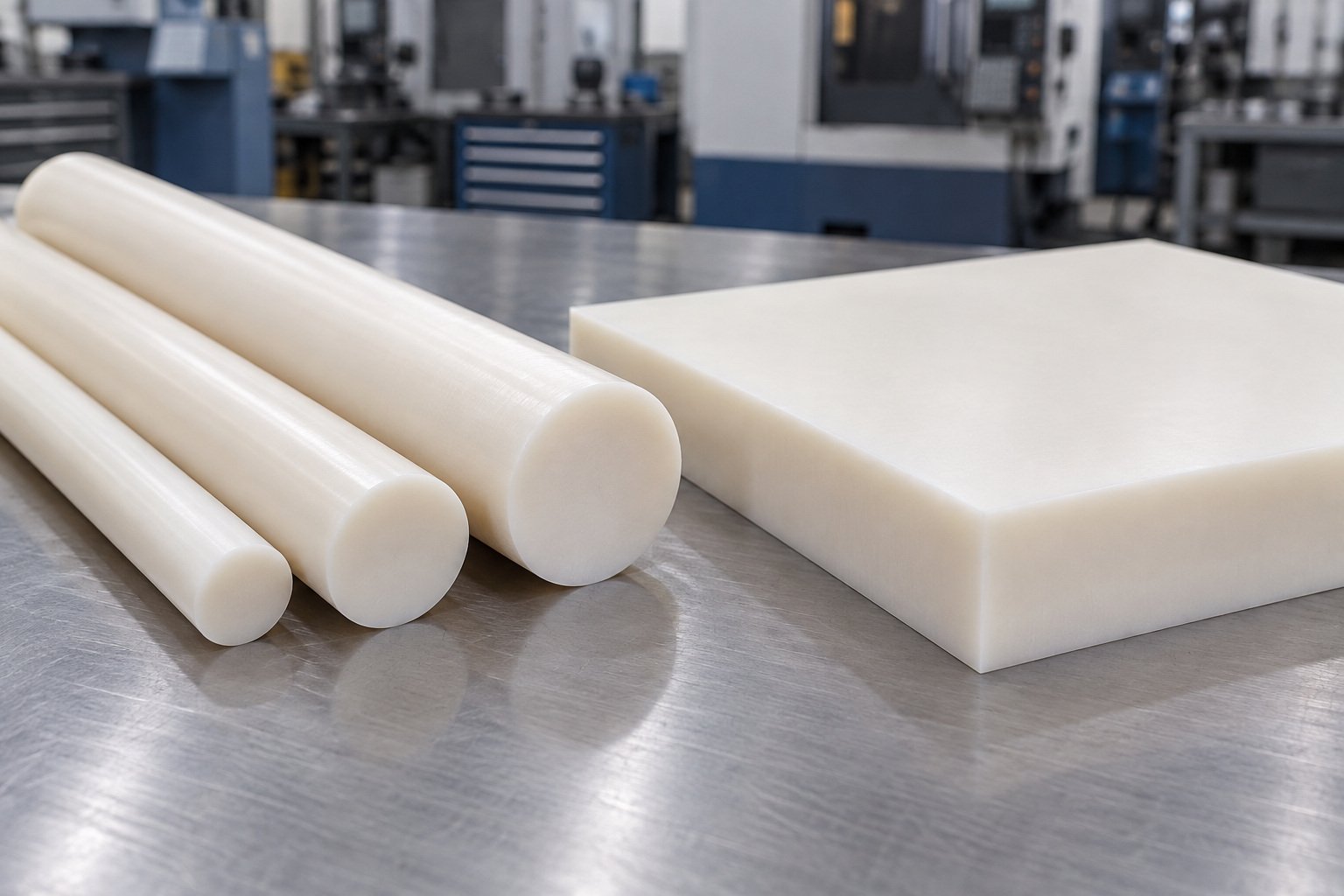

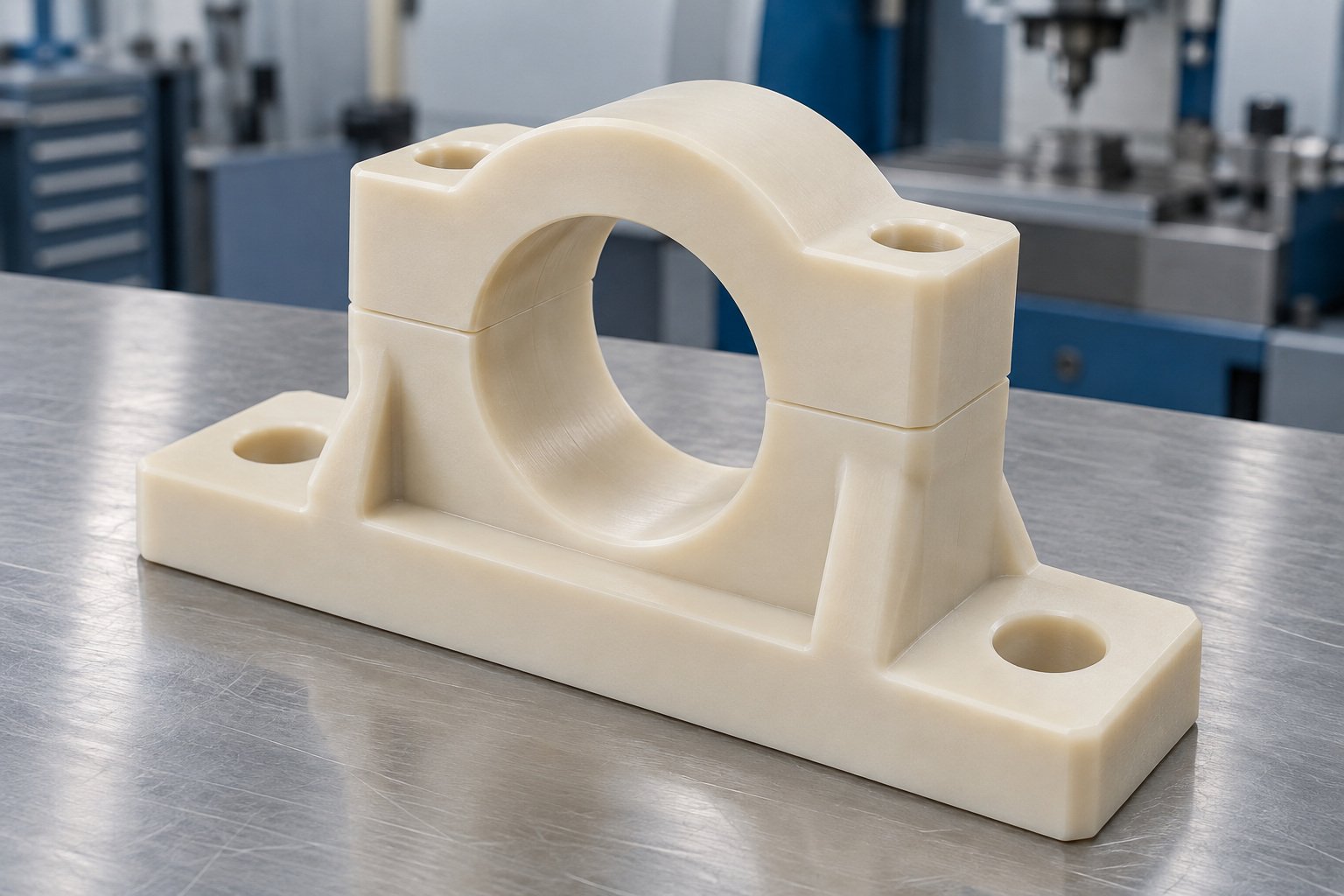

CNC Stock: Confirm the Actual Product
For your PBT machining services, identify the stock manufacturer, full product, color, form and lot. Resin data alone does not identify the sheet or rod being cut.

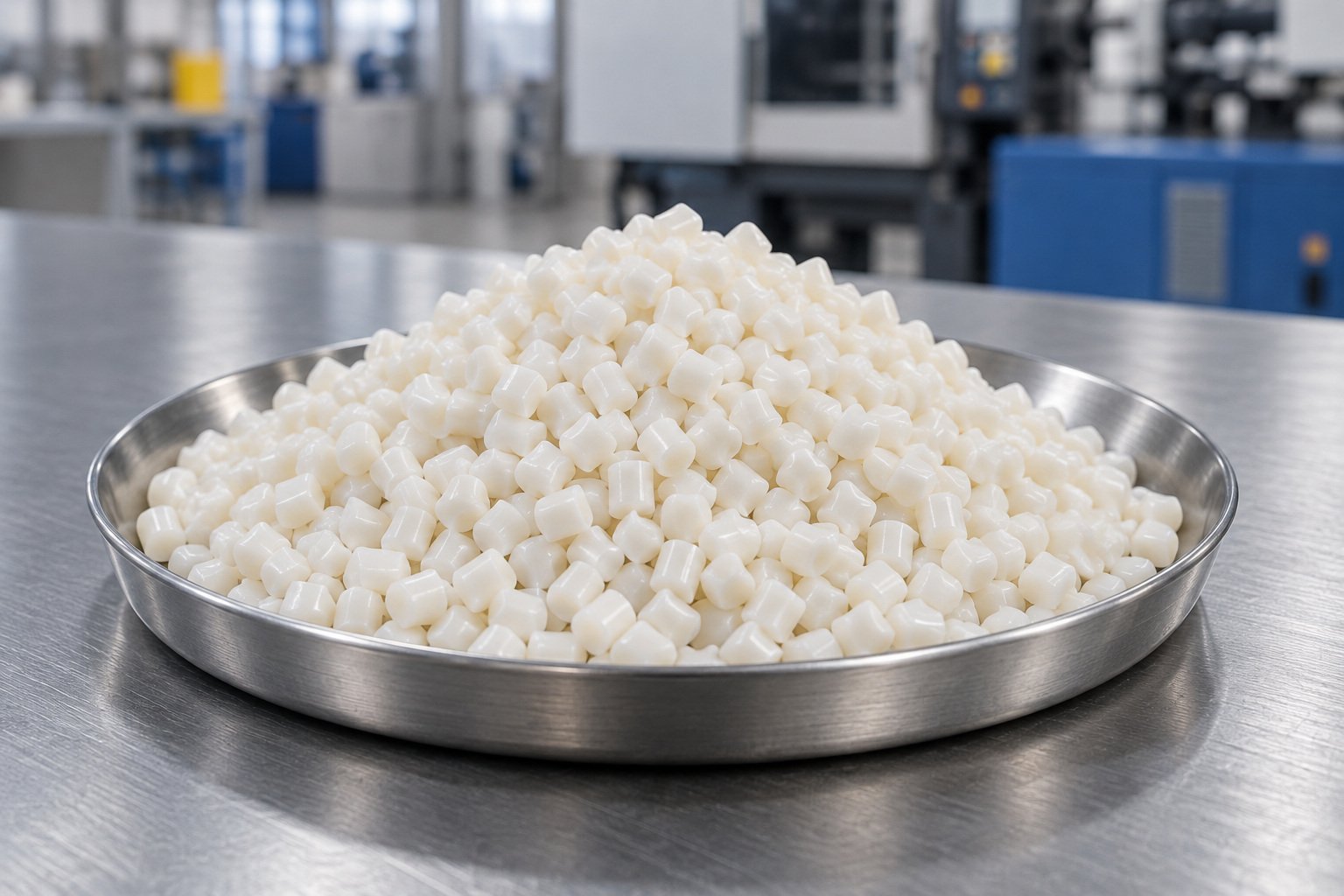

Molding Resin: Full Grade + Color
For your PBT injection molding quote, confirm the complete resin designation, moisture verification, tooling, quantities and approved sample.
Resolve 6 PBT Risks Before Production

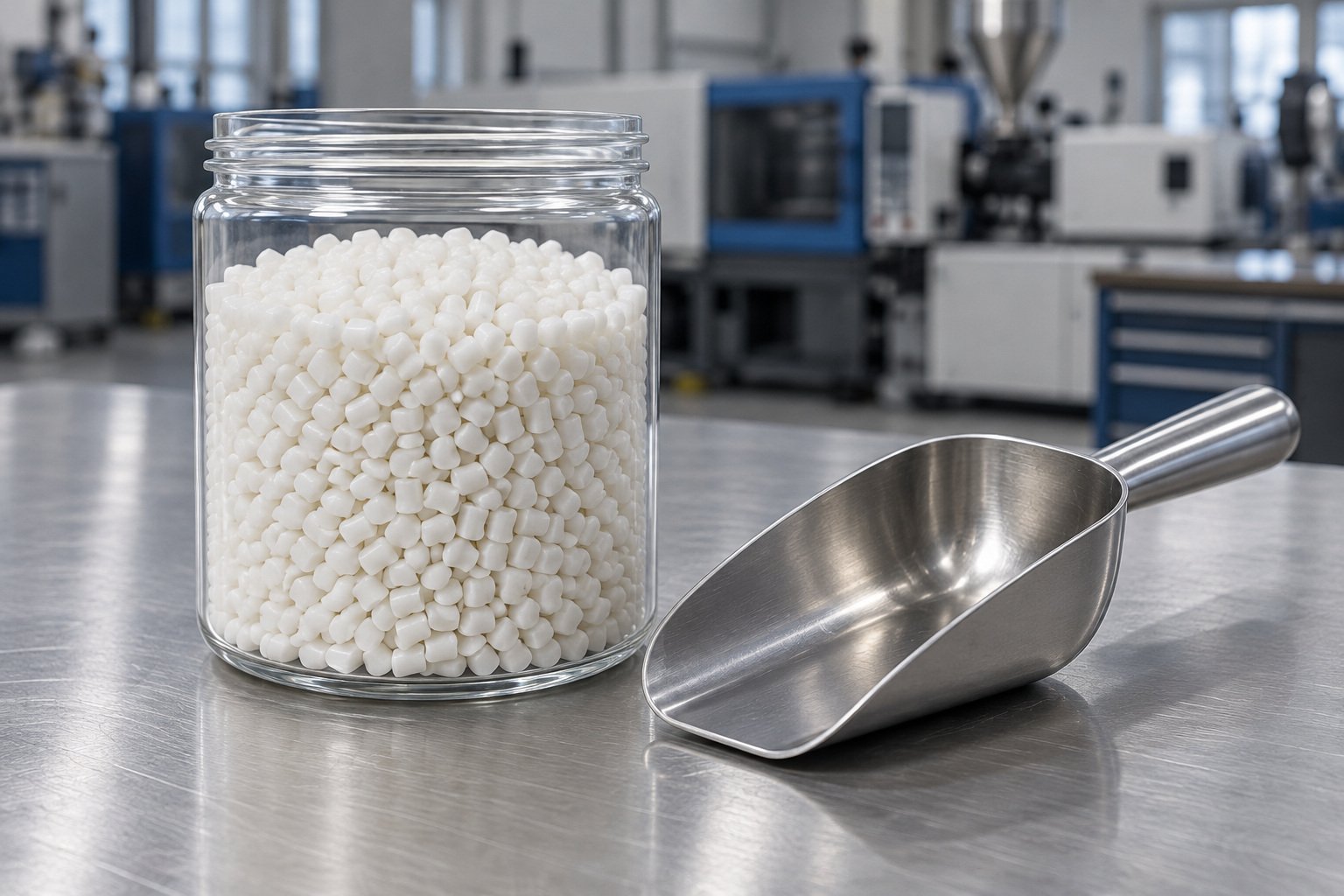

Moisture & drying for Your Finished Part
For PBT drying, verify actual resin moisture against the current grade instructions. Dryer time alone is not evidence that the resin meets its moisture limit.

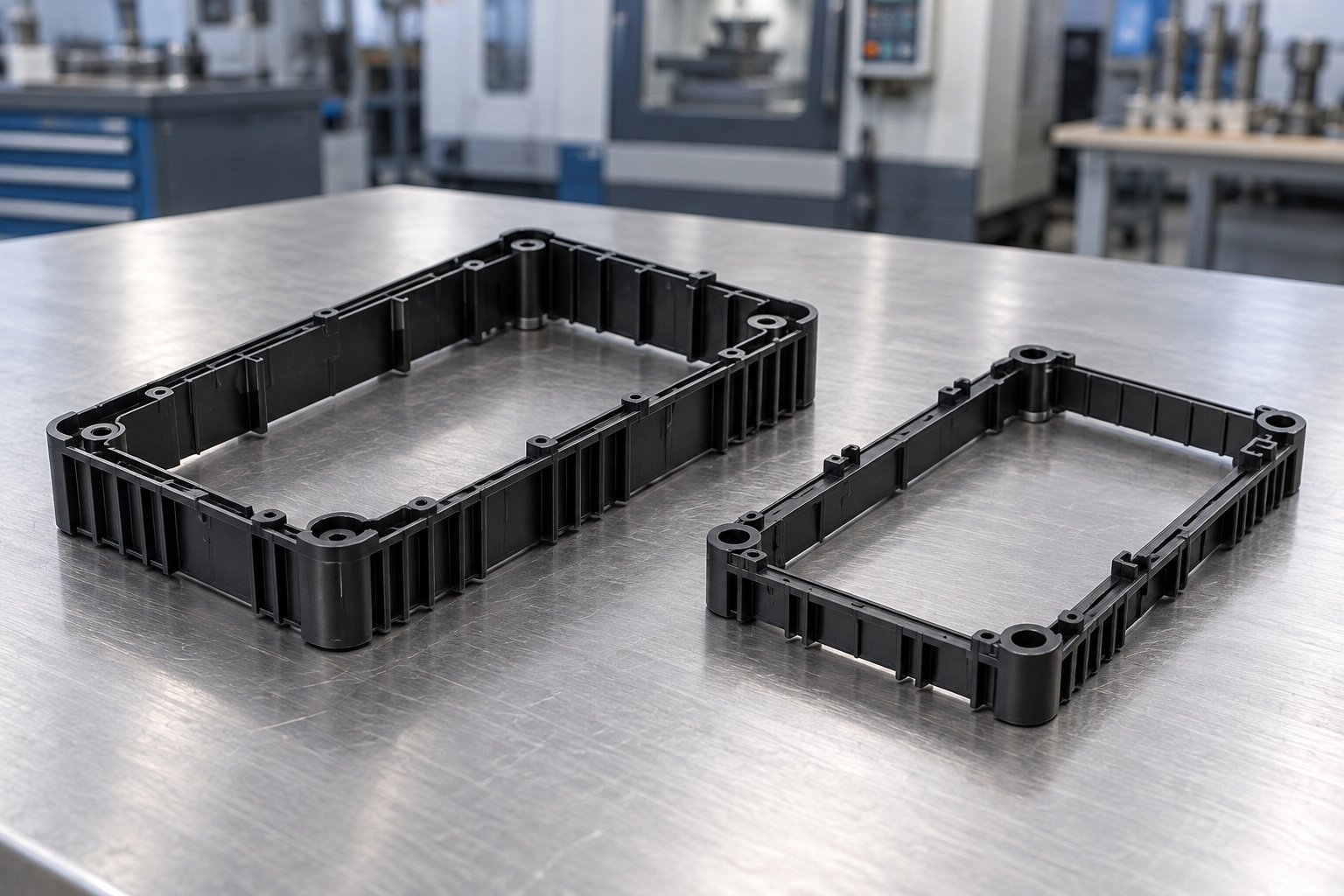

Shrinkage & warpage for Your Finished Part
PBT shrinkage and PBT warpage depend on grade, reinforcement, flow direction, geometry and processing. Agree critical dimensions on approved molded samples.

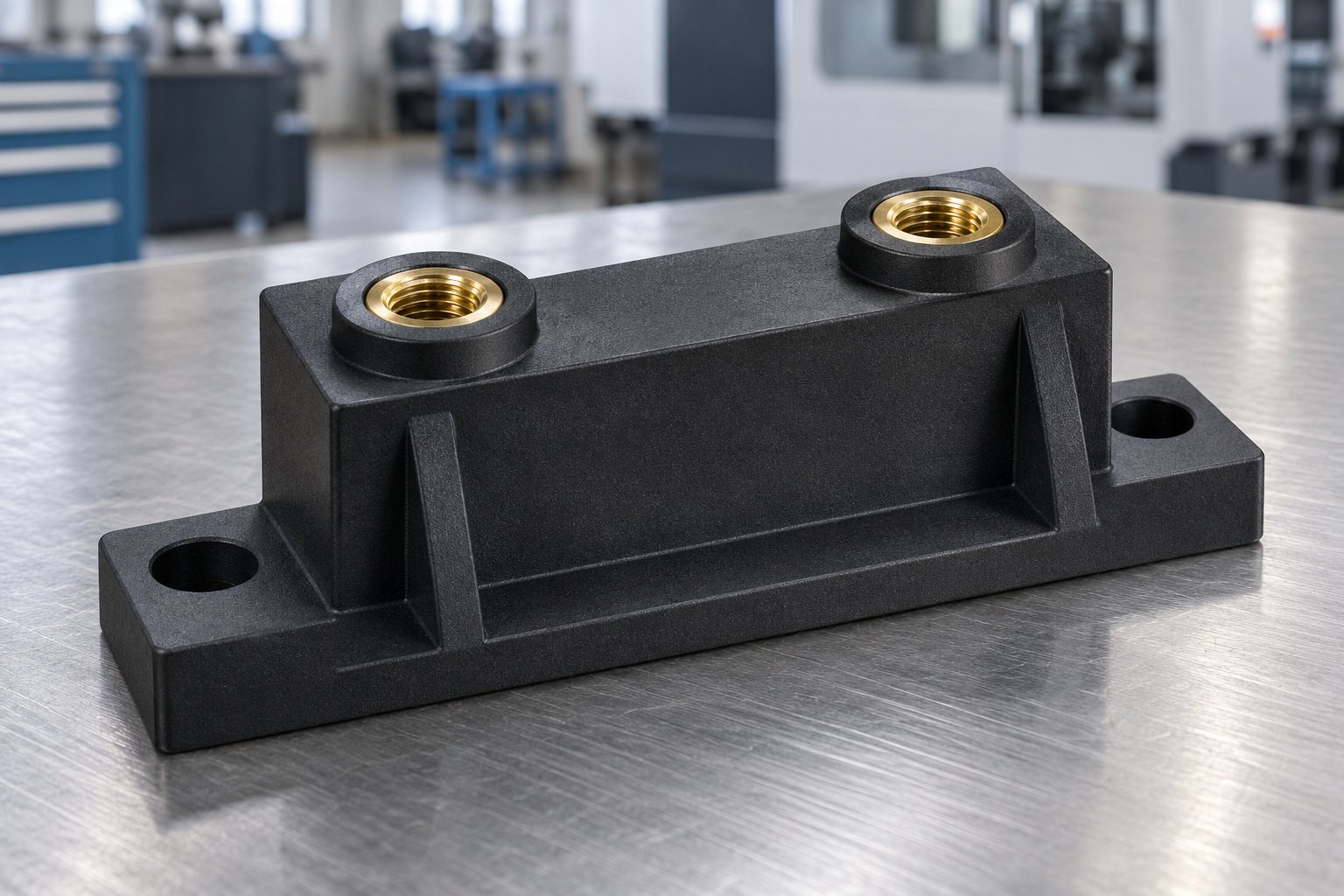

Inserts & assembly for Your Finished Part
For PBT insert molding, review insert temperature, retention geometry, differential expansion and assembly stress. Define sample and functional acceptance.

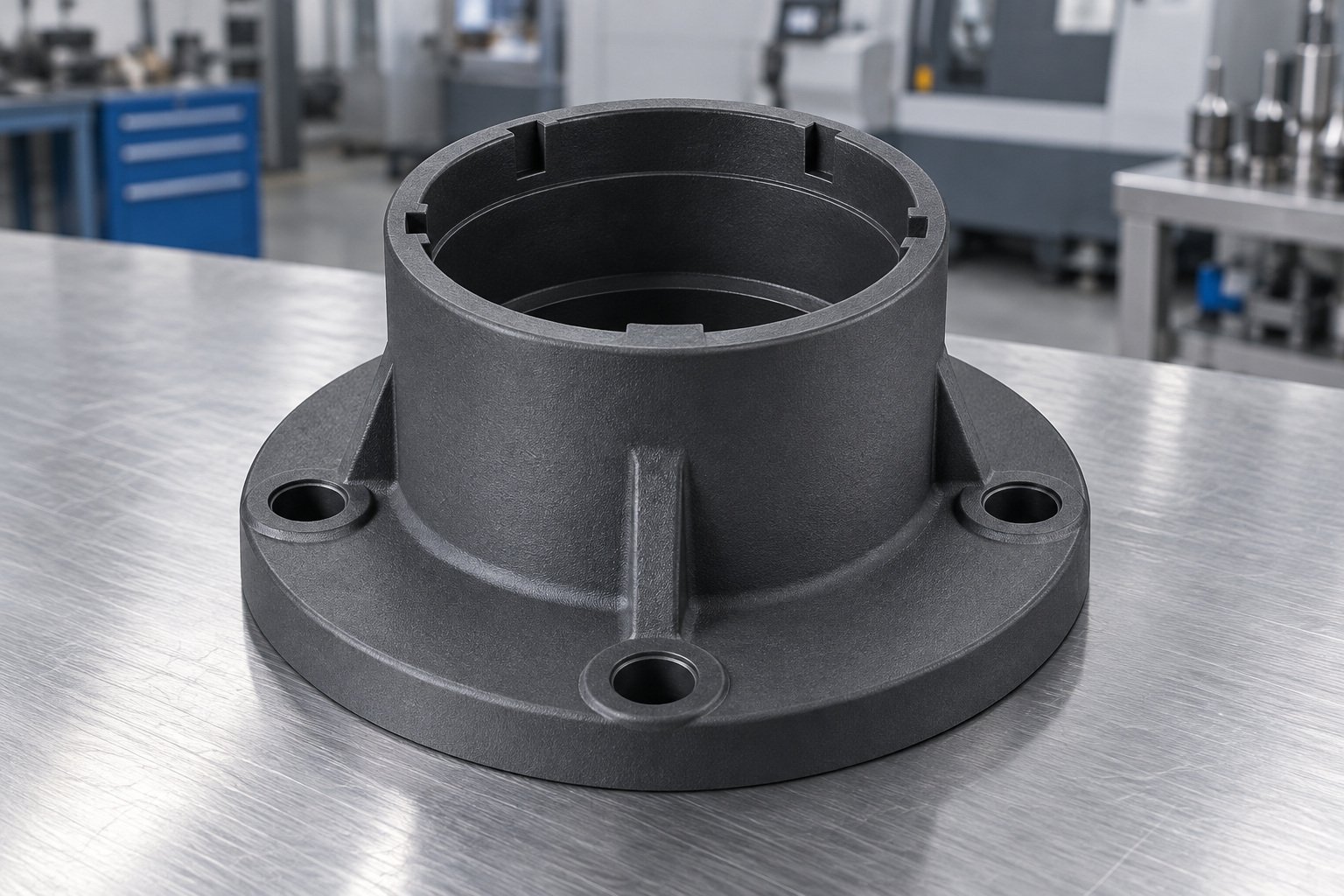

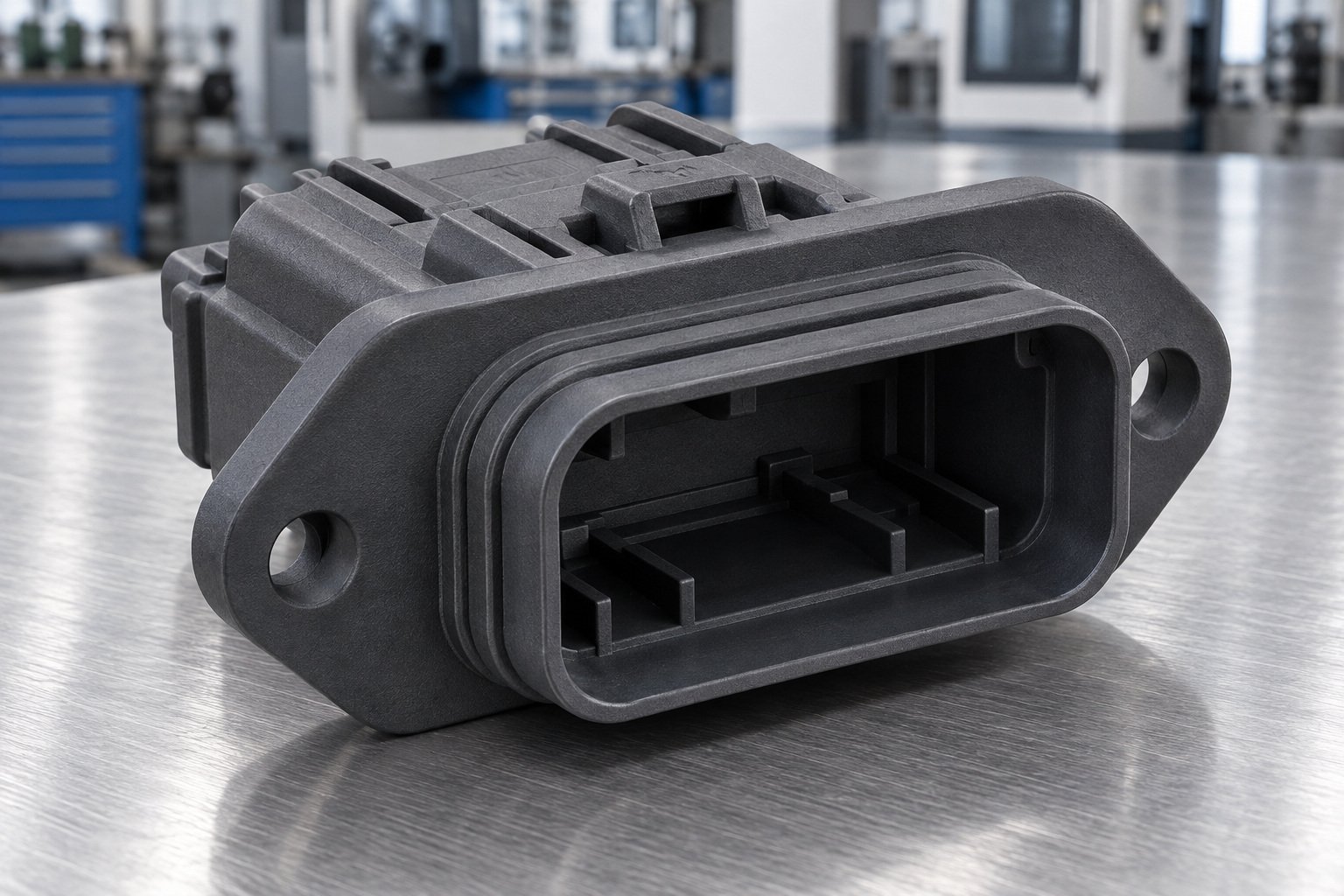

Hydrolysis & exposure for Your Finished Part
Does all PBT have the same hydrolysis resistance? No. Review the specific formulation, medium, temperature and duration; agree relevant verification.

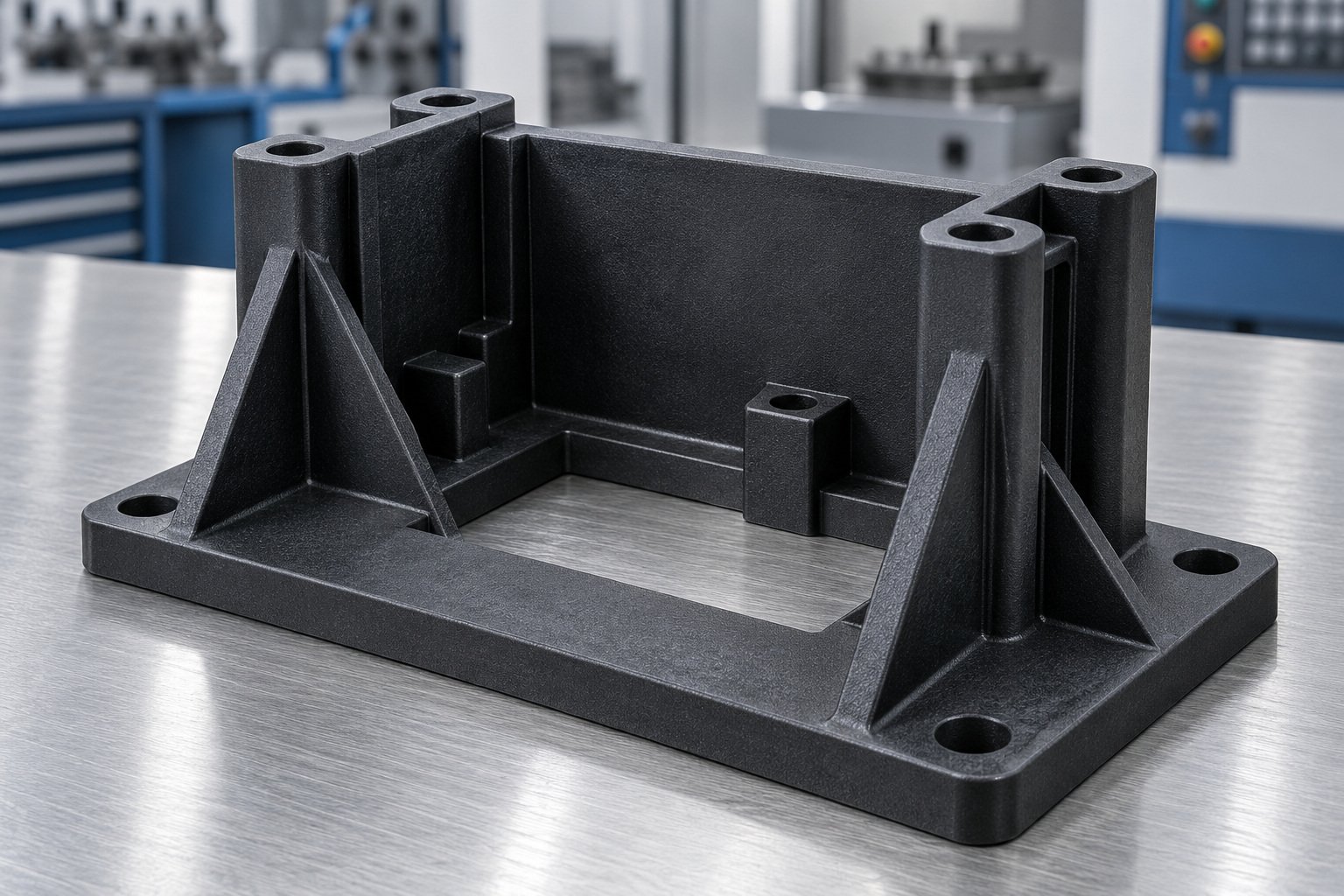

Fiber & mating surfaces for Your Finished Part
Can glass filled PBT replace unfilled PBT without redesign? Do not assume so. Review anisotropy, wall geometry, fit and counterface wear.

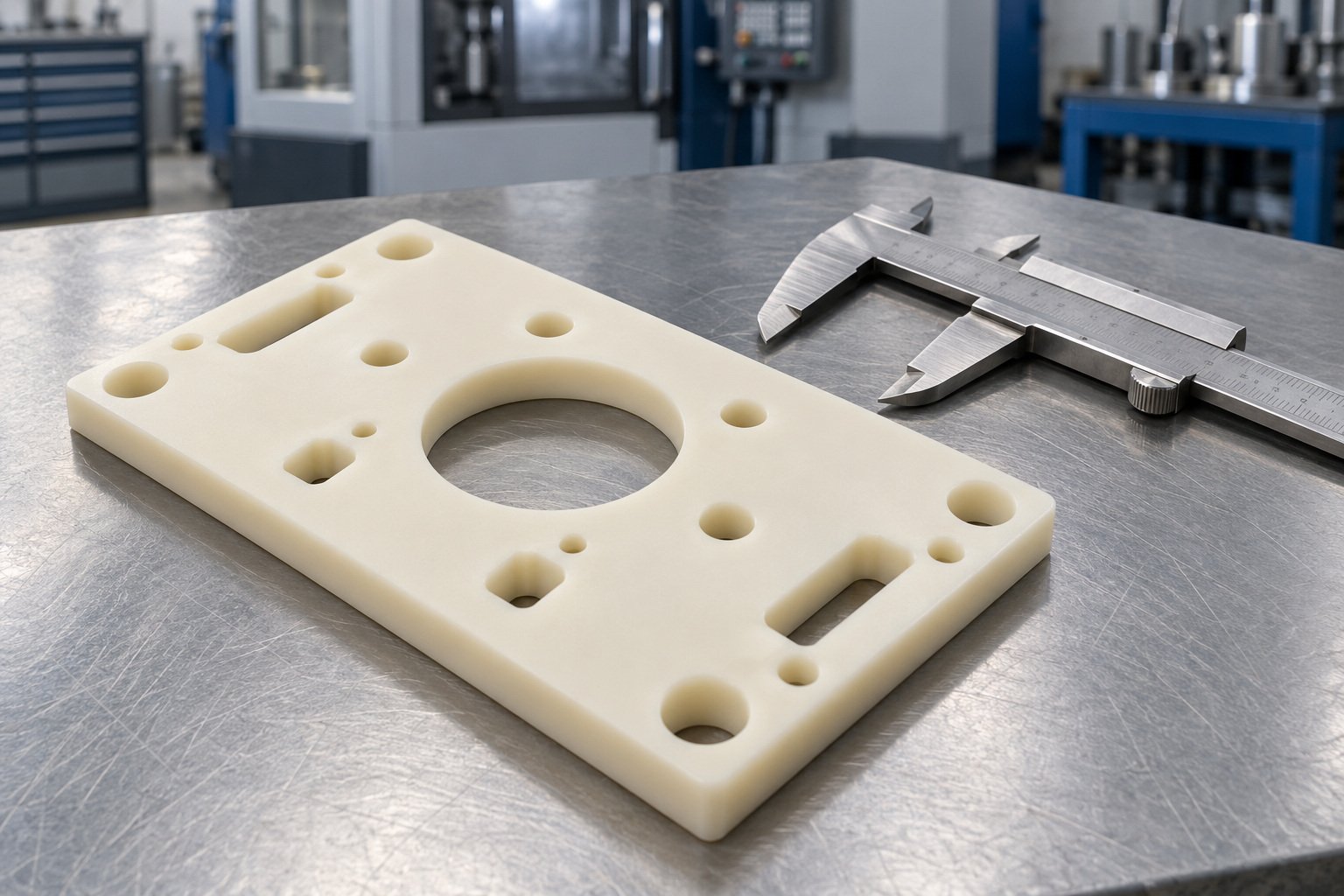

Stock & inspection for Your Finished Part
PBT finished part inspection requirements should identify datums, sample state and functional checks. Retain PBT stock or resin grade traceability to the supplied lot.
Match the Route to Your Finished Part

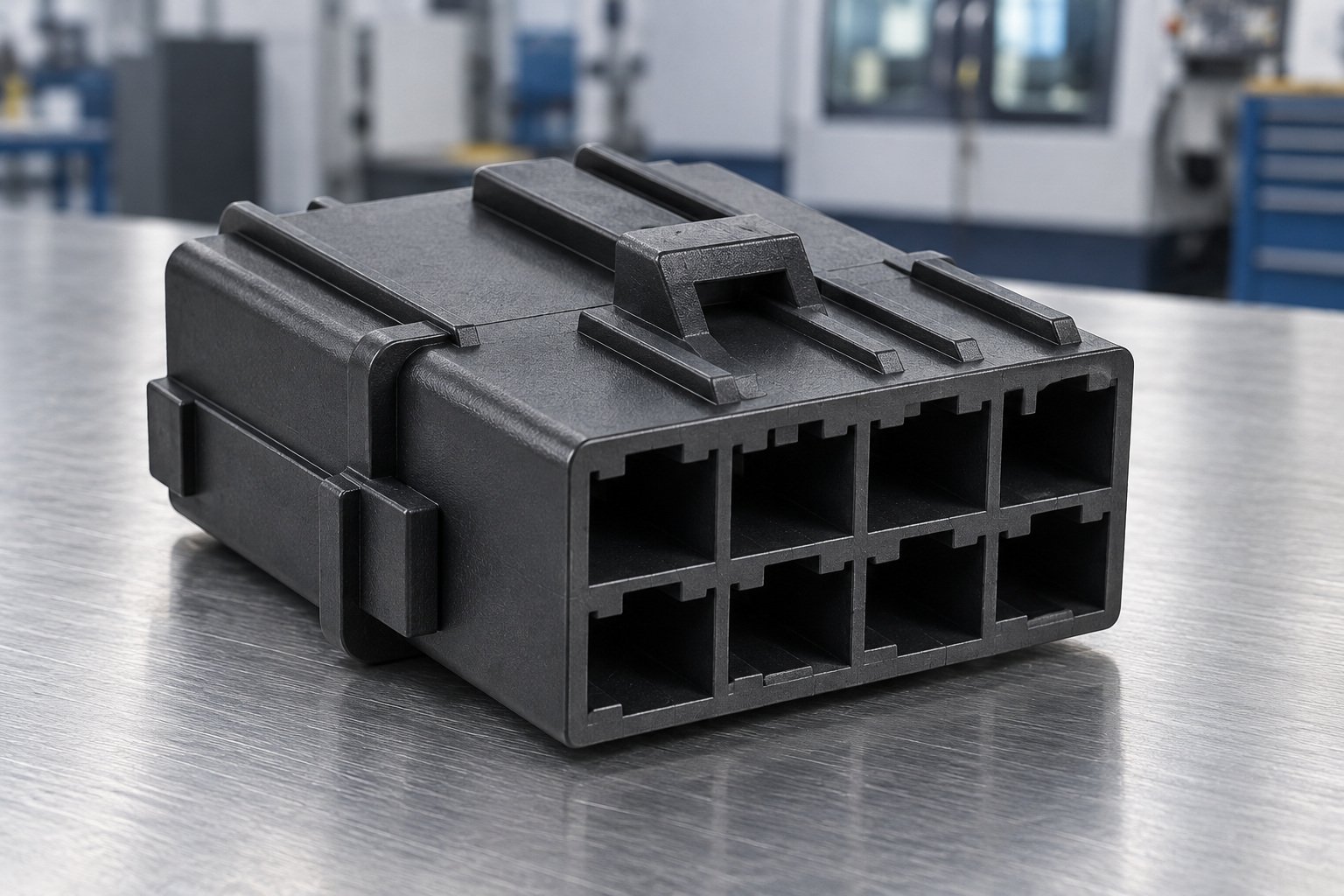

Injection Molding
Review full resin, flow, cooling and the approved production sample.
Review service →
Process availability and material scope require confirmation for your drawing.

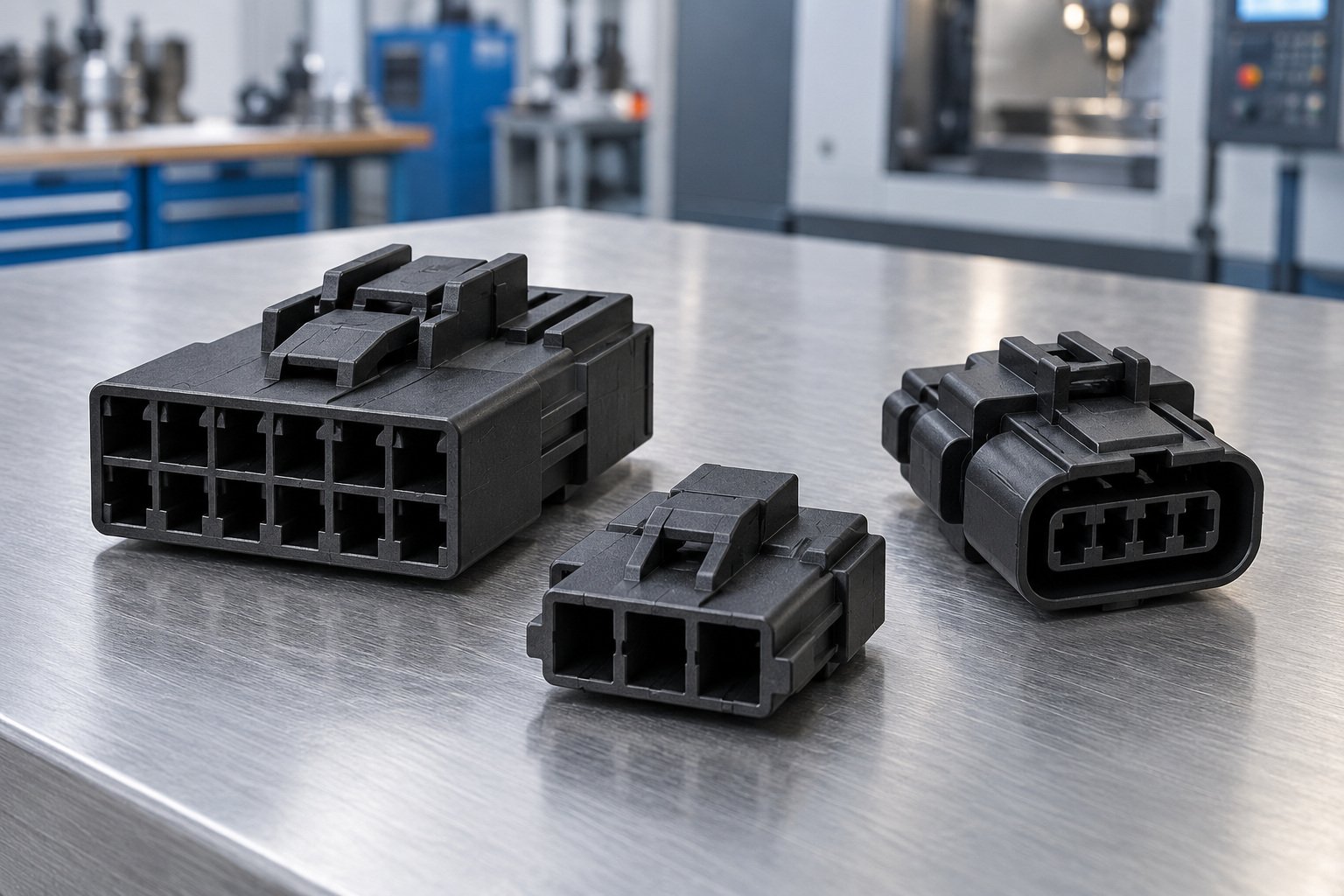

Agree 3 Checks for Your Receiving Team
| Your check | Evidence to agree |
|---|---|
| 1 | Material identity: full stock or resin grade, color, reinforcement and lot. |
| 2 | Finished fit: datums, inspection temperature, molding direction and sample state. |
| 3 | Agreed tests, material certification, sample approval and delivery records. |
PBT finished part inspection requirements must define the final measurement state. Material identity is separate from functional approval.
6 Inputs for Your PBT Quote
- 01CAD + controlled drawing
- 02Full grade + color + purchasing form
- 03Order quantities + production route
- 04Moisture control + exposure + temperature
- 05Assembly stress + critical fits
- 06Inspection records + delivery
Material · Tooling or machining · Quantity · Inspection · Delivery
Answers Before You Specify
Why must PBT resin moisture be verified before molding?
Moisture can affect polyester processing and material integrity. Follow the current exact-grade instructions and verify the actual resin condition rather than relying only on elapsed dryer hours.
Can PBT GF30 identify a complete resin grade?
No. Confirm manufacturer, full grade suffix, reinforcement, color and required records. A generic reinforcement label does not establish interchangeability.
Can a PBT PC blend use pure PBT material data?
No automatic transfer is valid. Review the complete blend product and its own processing, properties and approval evidence.
How should PBT connectors be specified for molding?
Provide controlled geometry, resin grade and color, inserts, assembly conditions, critical fits and any required electrical or regulated evidence for the actual product.
How should I compare PBT vs PET or PBT vs nylon?
Compare named products under relevant conditions, including moisture, heat, loads, process and finished fit. Family-level property rankings do not approve a replacement.
What should a custom PBT injection molding quote include?
Send CAD and drawing, full grade and color, stock or resin route, order quantities, exposure and load, critical dimensions, inspection records and delivery needs.
Material references: BASF Ultradur. Candidate material families are not inventory or capability commitments.
Specify the PBT Behind Your Part
PBT is polybutylene terephthalate. Unfilled, glass-filled, flame-retardant and hydrolysis-resistant formulations need their own complete product identity. Do not infer additive content, approval or performance from color.
For your PBT material certification, connect manufacturer, complete grade, color, reinforcement and supplied lot to the finished-part records. A generic PBT GF30 description does not replace this evidence.
