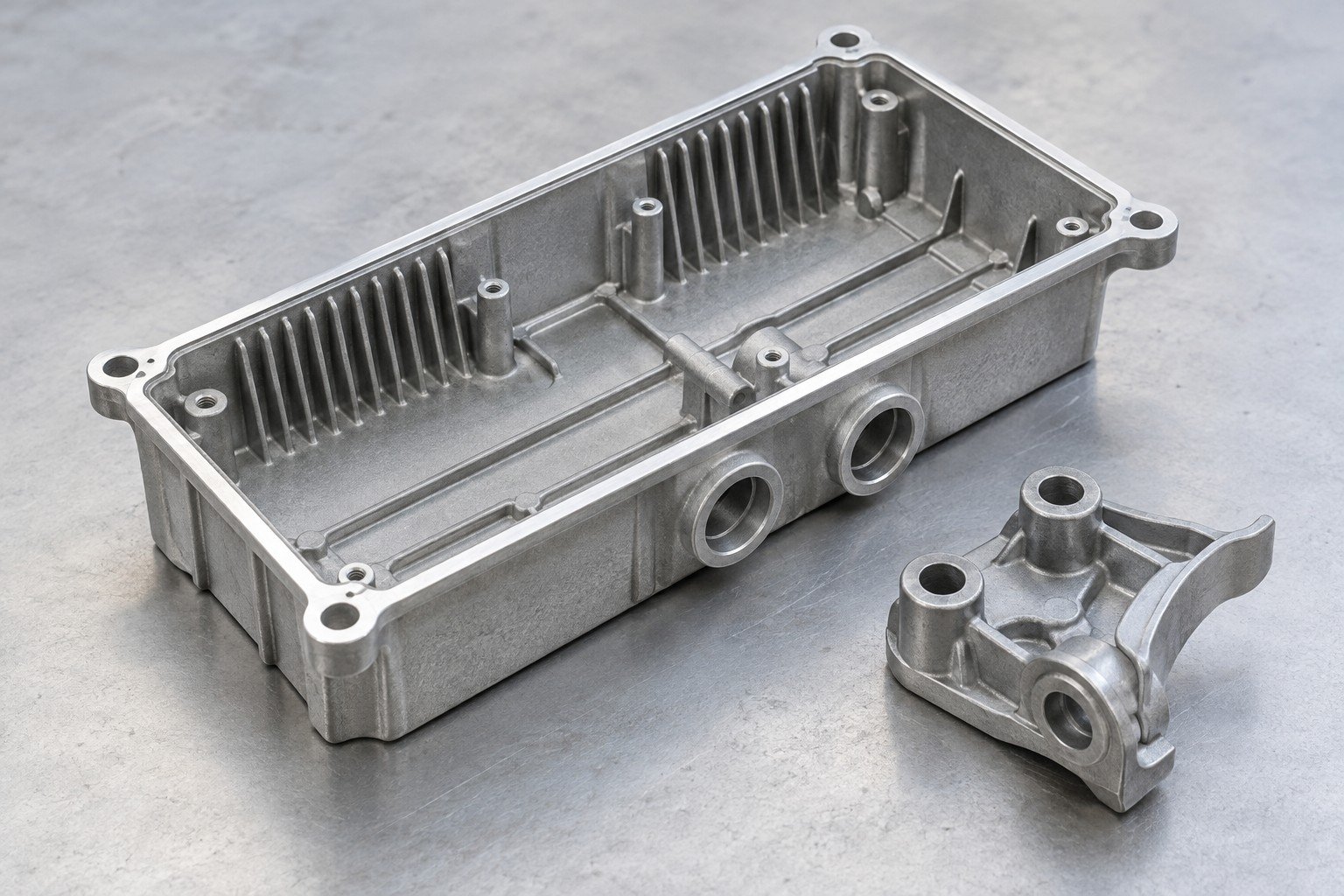

Custom Zinc Die Casting Services for Your Detailed, Finished Parts
Plan custom zinc die casting around your alloy, cosmetic faces and final fit. Review tooling, machining and coating requirements before production.
Start with CAD model + controlled 2D drawing.
Alloy Review
Grade and use conditions.
Final Fit
Dimensions after finishing.
Finish Planning
Cosmetic faces and coating.
Sample Approval
Evidence before release.
U.S. Coordination
Dallas-area project support.
3 Decisions Before Your Tool Is Cut
Share the conditions that affect your alloy, final dimensions and production plan.
Your alloy
Load, temperature and forming needs.
Your finish
Visible faces, coating and final fit.
Your demand
Trial batch, first order and annual volume.

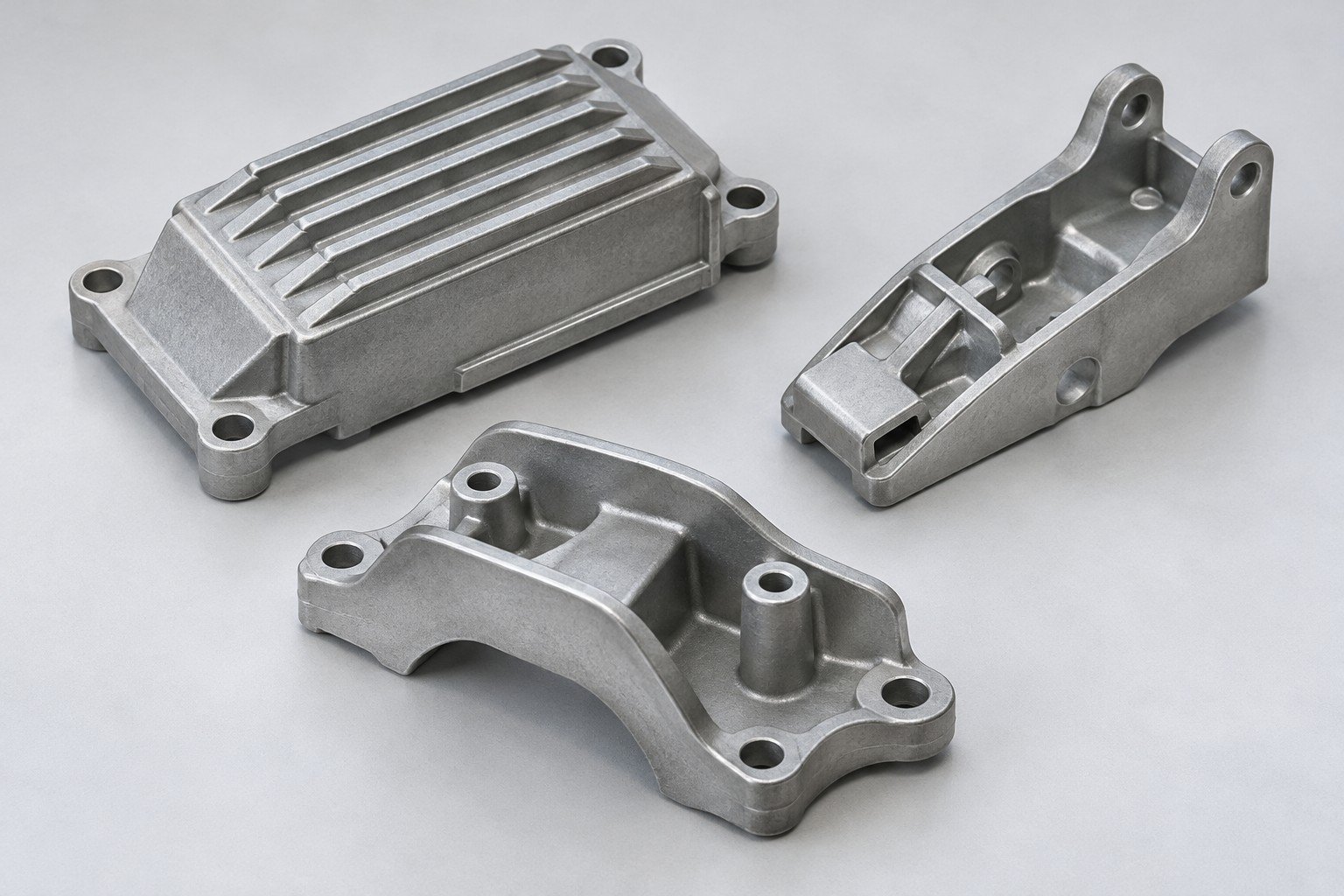

Zinc Die Casting Parts for Your Assembly
Choose the part type for your custom zinc die casting parts, then review its requirements.

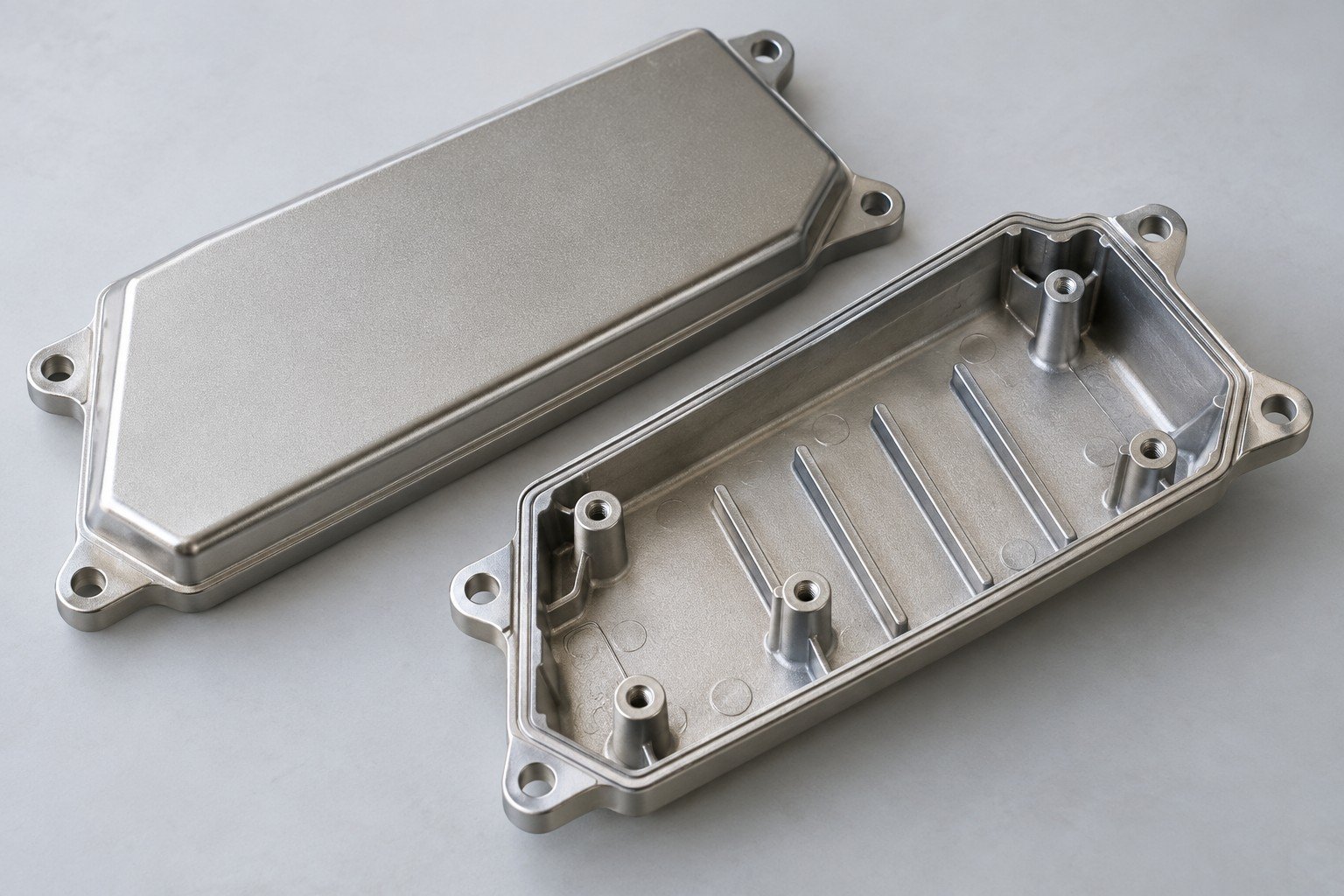

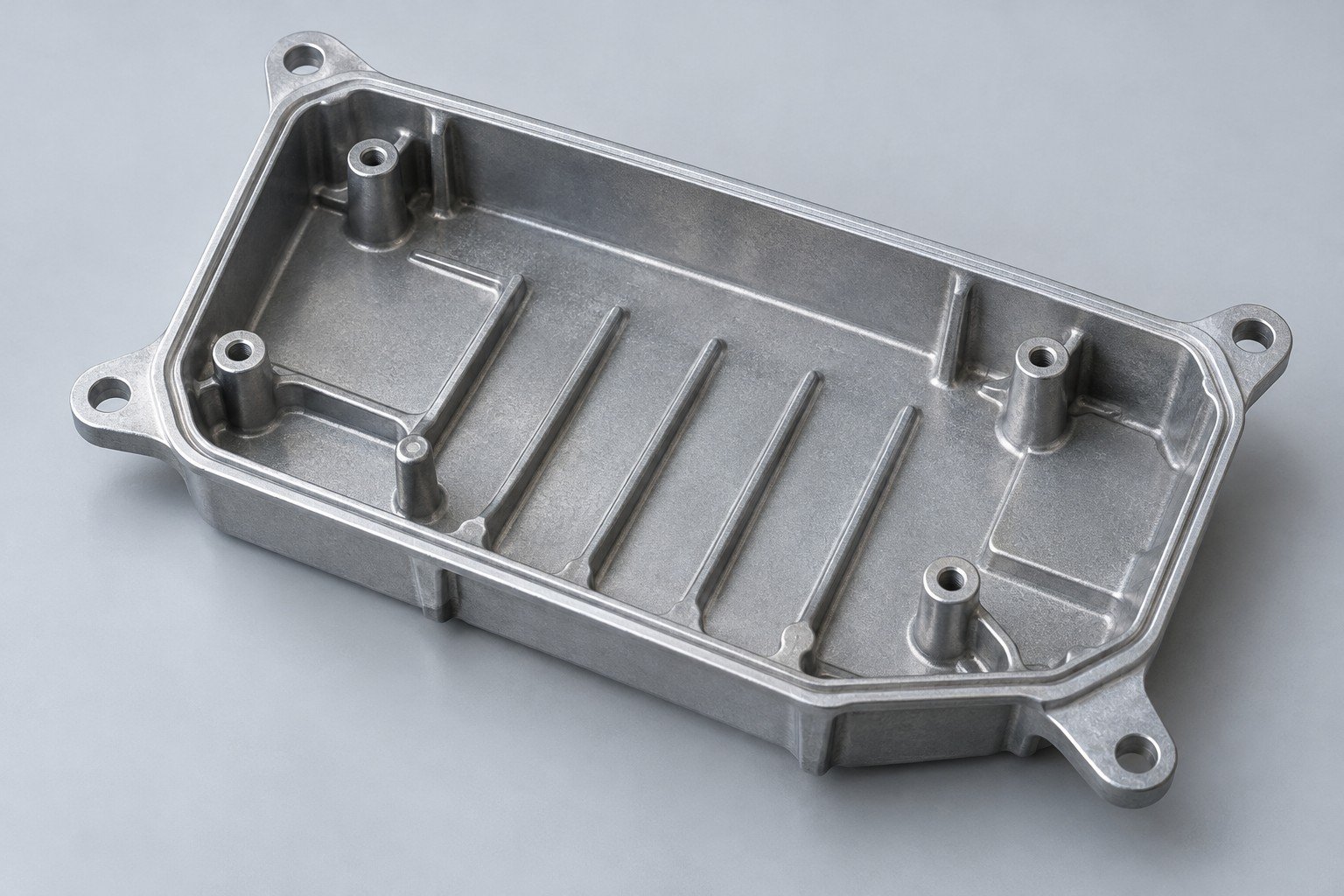

Plan Your Zinc Die Casting Housing
Mark mounting holes, thread requirements and visible faces on your drawing.
| Your function | Mating parts, loads and use conditions |
|---|---|
| Your fit | Datums and finished dimensions |
| Your appearance | Surface sample and viewing conditions |
Geometry and production scope are reviewed for your project.

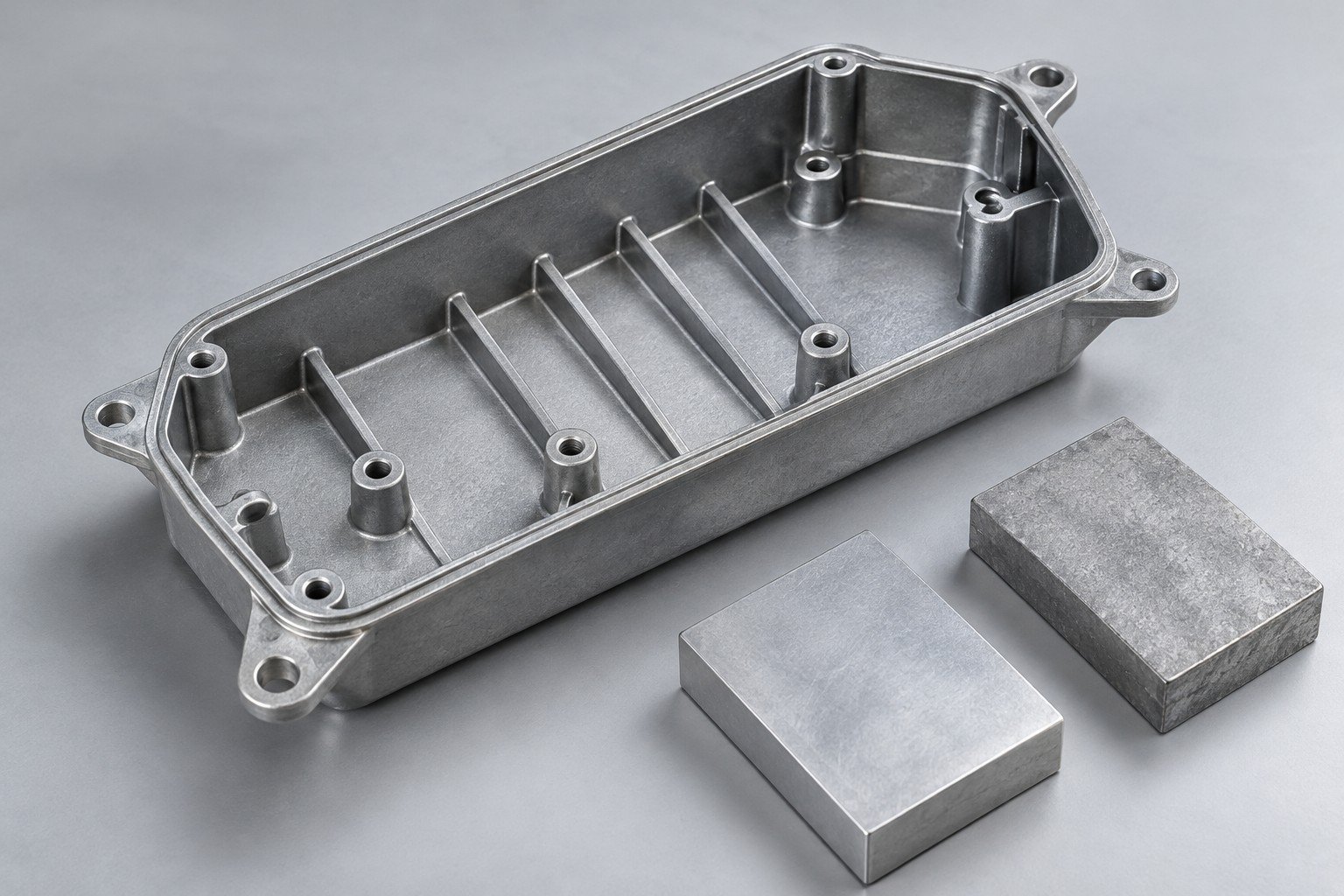

Match Your Zinc Die Casting Material to Its Job
Review grade, specification and sustained load together. Confirm the route for your selected material before tooling.
| Your grade | Standard and required material records |
|---|---|
| Your use | Temperature, load and duration |
| Your assembly | Forming, fastening and finish needs |
Geometry and production scope are reviewed for your project.
Plan Your Finish Around Your Final Dimensions
Define the coating system, cosmetic faces and size after finishing. Review the actual substrate and surface preparation before sample approval.
| Your finish | System, thickness and surface sample |
|---|---|
| Your fit | Finished size and masking boundaries |
| Your acceptance | Appearance, adhesion and specified tests |
Geometry and production scope are reviewed for your project.

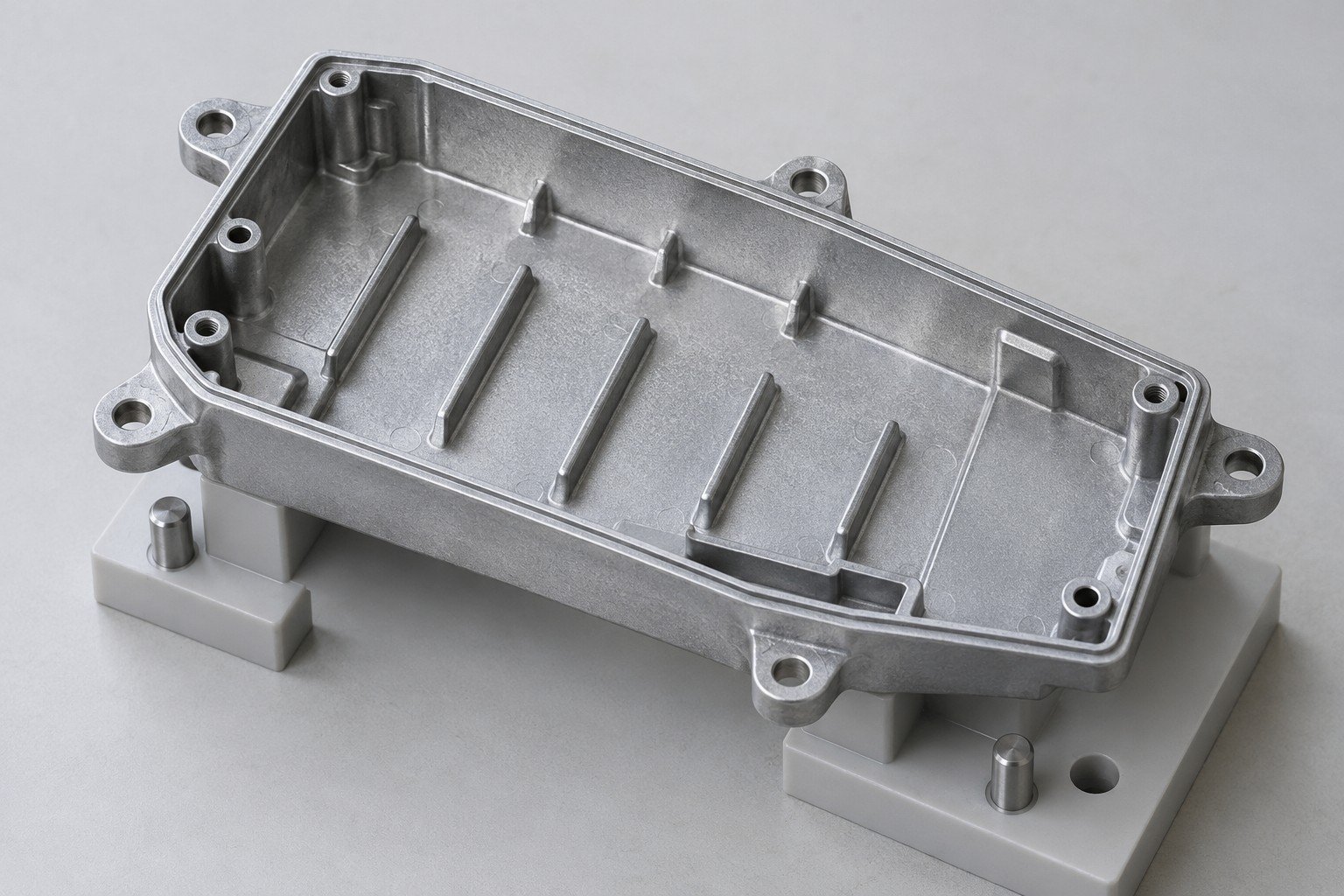

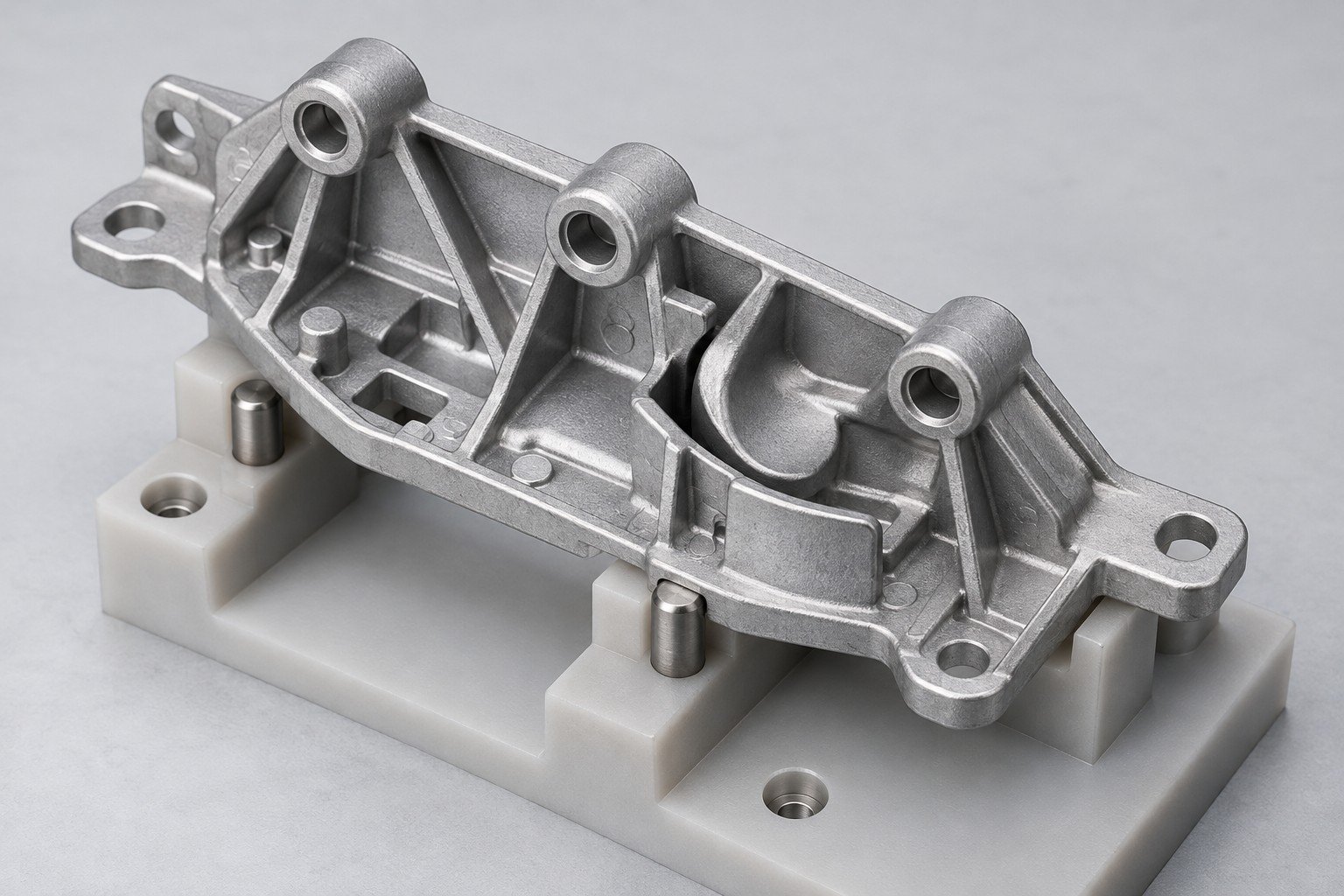

Agree How Your Finished Part Will Be Approved
Review the finished component against your drawing, assembly and surface requirements.
| Your dimensions | Datums and final coated interfaces |
|---|---|
| Your appearance | Approved sample and viewing conditions |
| Your function | Assembly loads and specified checks |
Geometry and production scope are reviewed for your project.

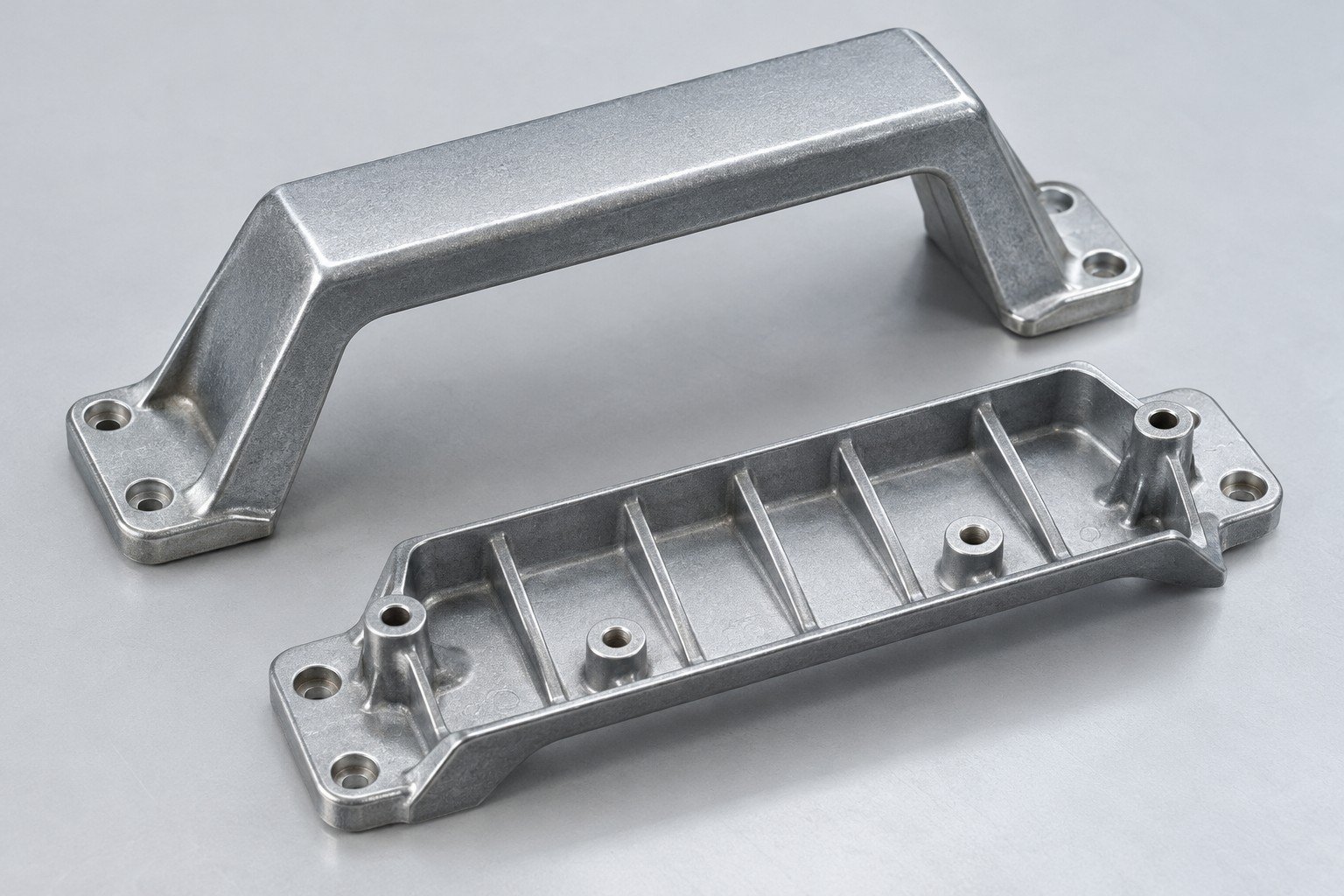

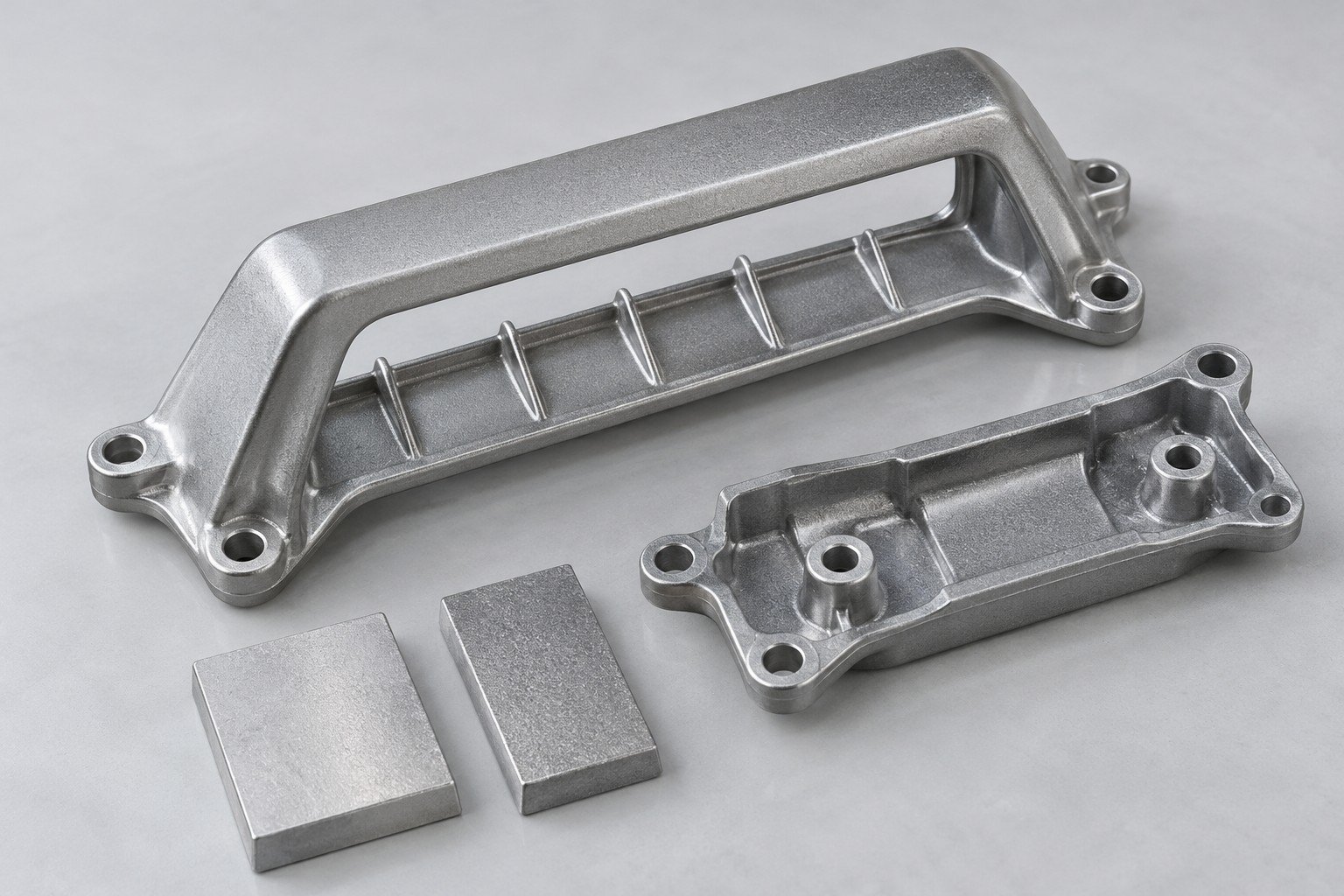

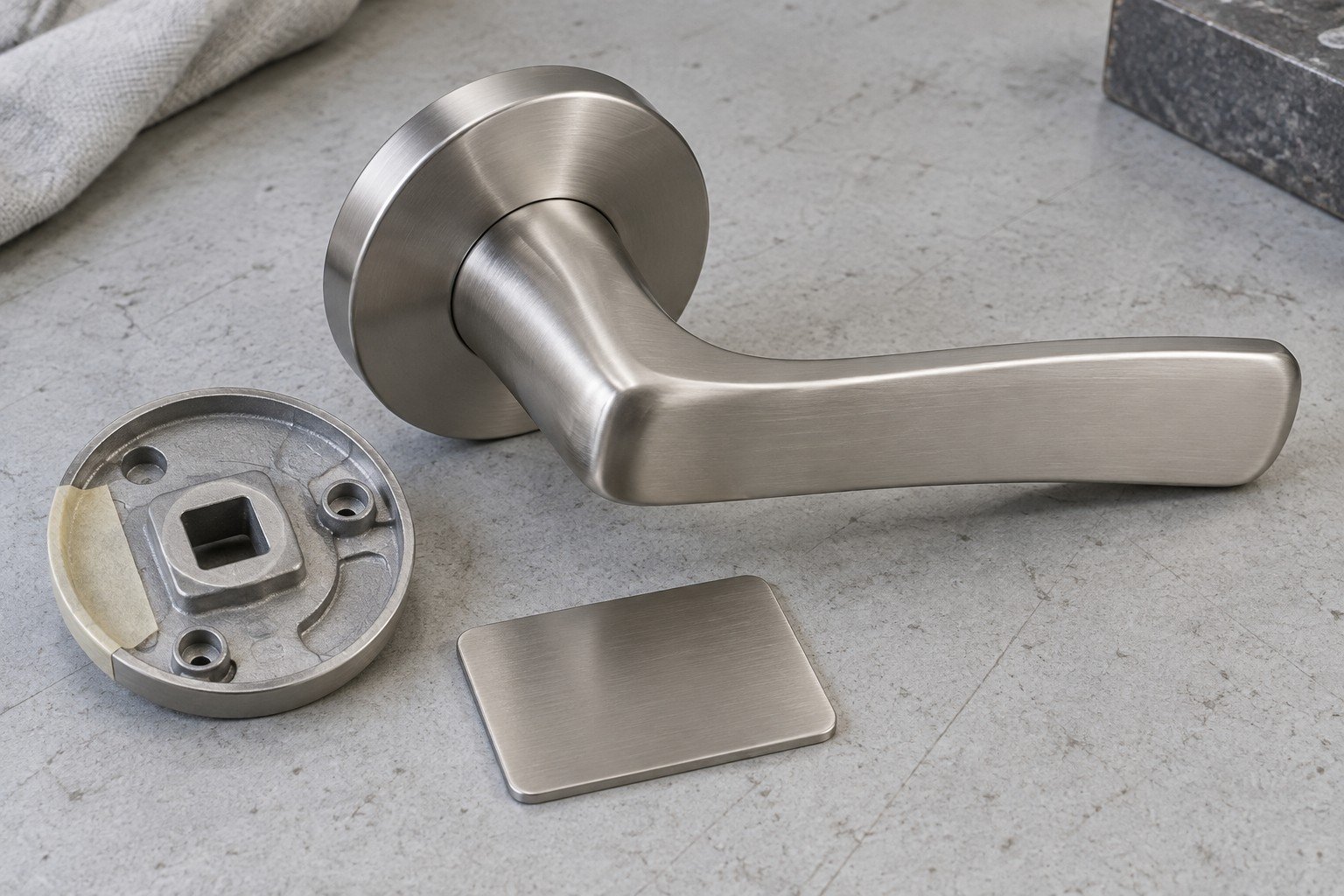

Plan Your Zinc Die Casting Hardware
Share mounting points, load direction and the surface your user will touch.
| Your function | Grip, mounting and assembly loads |
|---|---|
| Your fit | Fasteners and mating clearances |
| Your appearance | Touch surfaces and finish sample |
Geometry and production scope are reviewed for your project.
Match Your Zinc Die Casting Material to Its Job
Review grade, specification and sustained load together. Confirm the route for your selected material before tooling.
| Your grade | Standard and required material records |
|---|---|
| Your use | Temperature, load and duration |
| Your assembly | Forming, fastening and finish needs |
Geometry and production scope are reviewed for your project.
Plan Your Finish Around Your Final Dimensions
Define the coating system, cosmetic faces and size after finishing. Review the actual substrate and surface preparation before sample approval.
| Your finish | System, thickness and surface sample |
|---|---|
| Your fit | Finished size and masking boundaries |
| Your acceptance | Appearance, adhesion and specified tests |
Geometry and production scope are reviewed for your project.
Agree How Your Finished Part Will Be Approved
Review the finished component against your drawing, assembly and surface requirements.
| Your dimensions | Datums and final coated interfaces |
|---|---|
| Your appearance | Approved sample and viewing conditions |
| Your function | Assembly loads and specified checks |
Geometry and production scope are reviewed for your project.

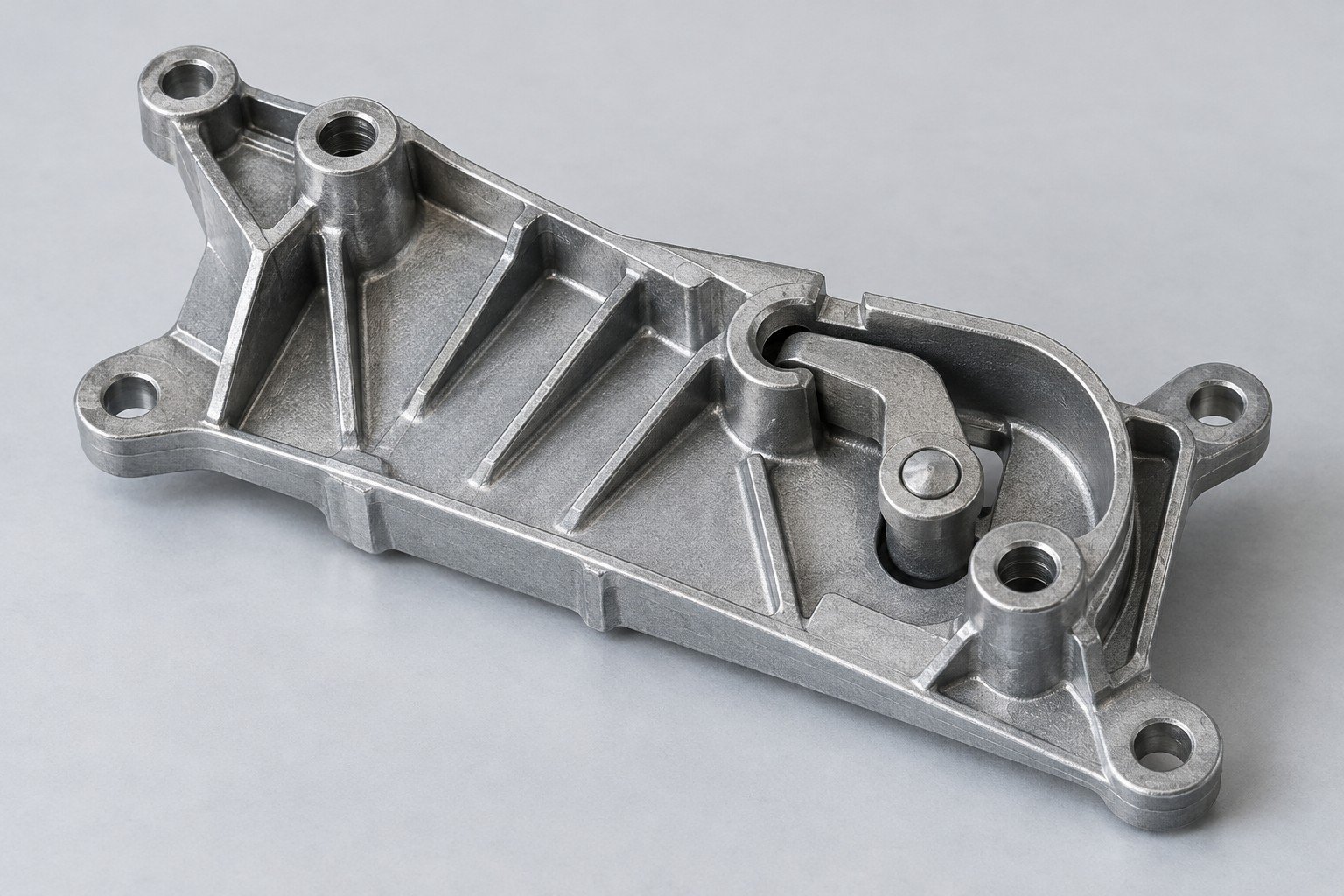

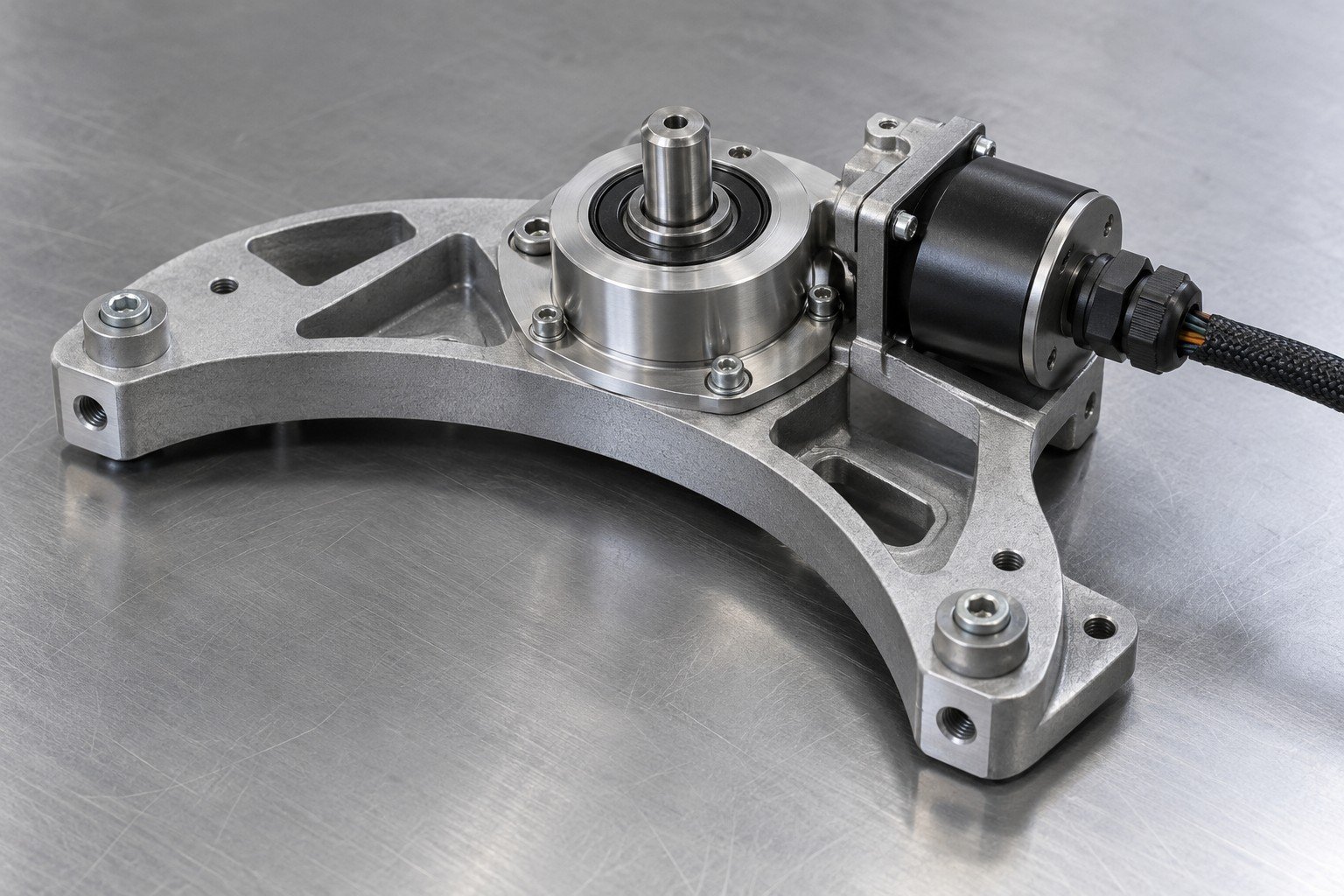

Protect Your Mechanism’s Mating Features
Identify pivot bores, moving clearances and final coated interfaces.
| Your function | Travel, loads and moving interfaces |
|---|---|
| Your fit | Pivot bores and coated clearances |
| Your appearance | Visible faces and protected zones |
Geometry and production scope are reviewed for your project.

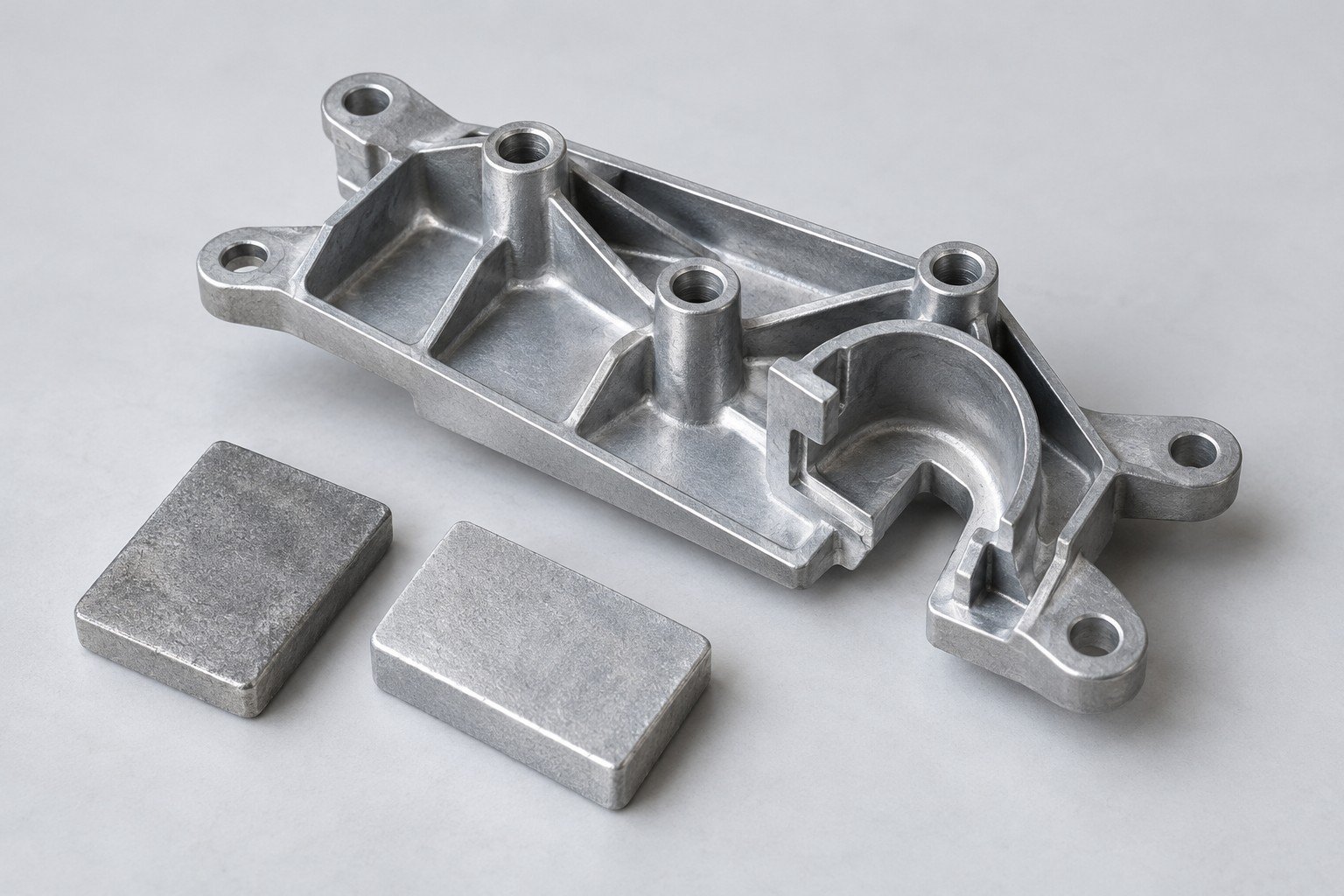

Match Your Zinc Die Casting Material to Its Job
Review grade, specification and sustained load together. Confirm the route for your selected material before tooling.
| Your grade | Standard and required material records |
|---|---|
| Your use | Temperature, load and duration |
| Your assembly | Forming, fastening and finish needs |
Geometry and production scope are reviewed for your project.

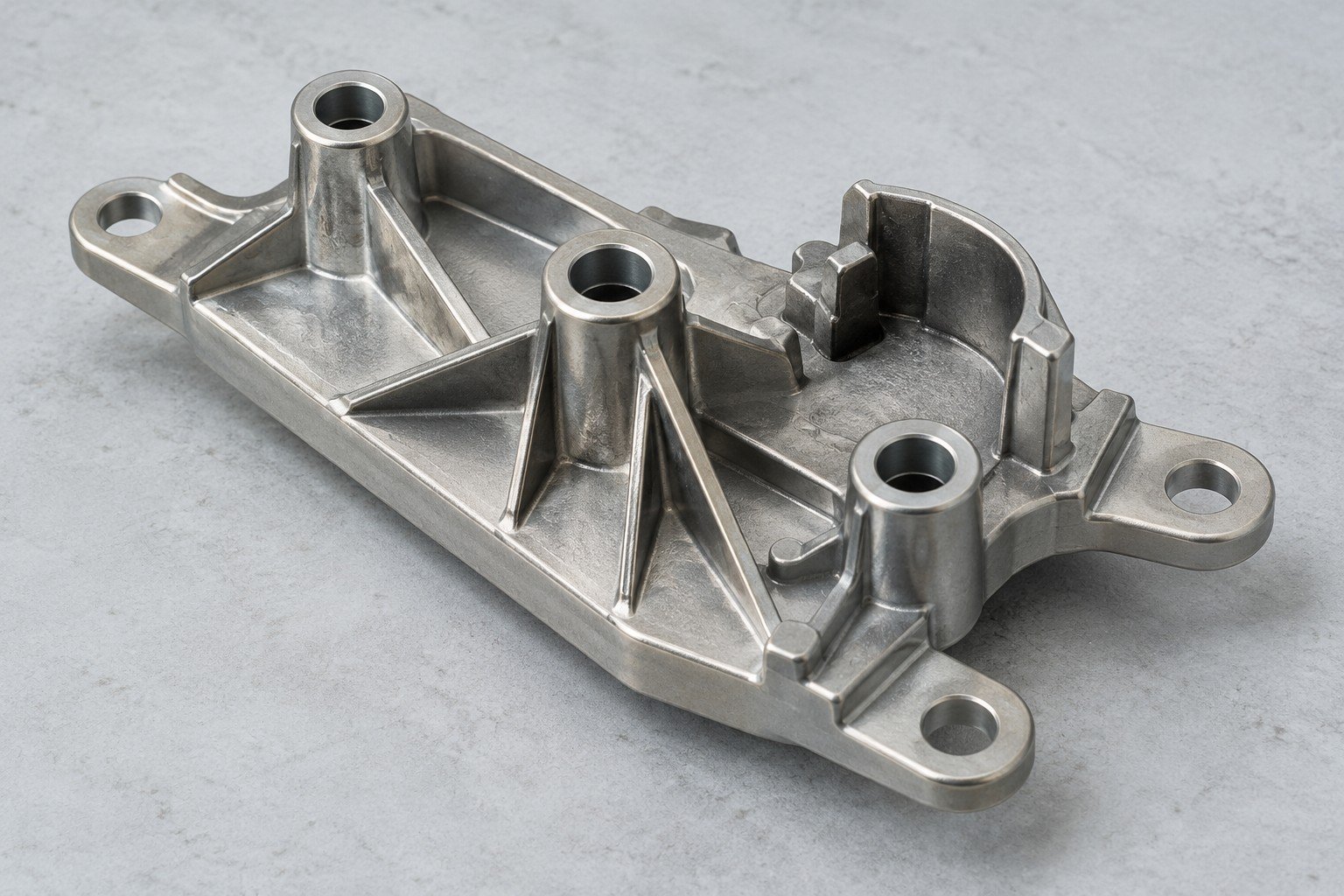

Plan Your Finish Around Your Final Dimensions
Define the coating system, cosmetic faces and size after finishing. Review the actual substrate and surface preparation before sample approval.
| Your finish | System, thickness and surface sample |
|---|---|
| Your fit | Finished size and masking boundaries |
| Your acceptance | Appearance, adhesion and specified tests |
Geometry and production scope are reviewed for your project.

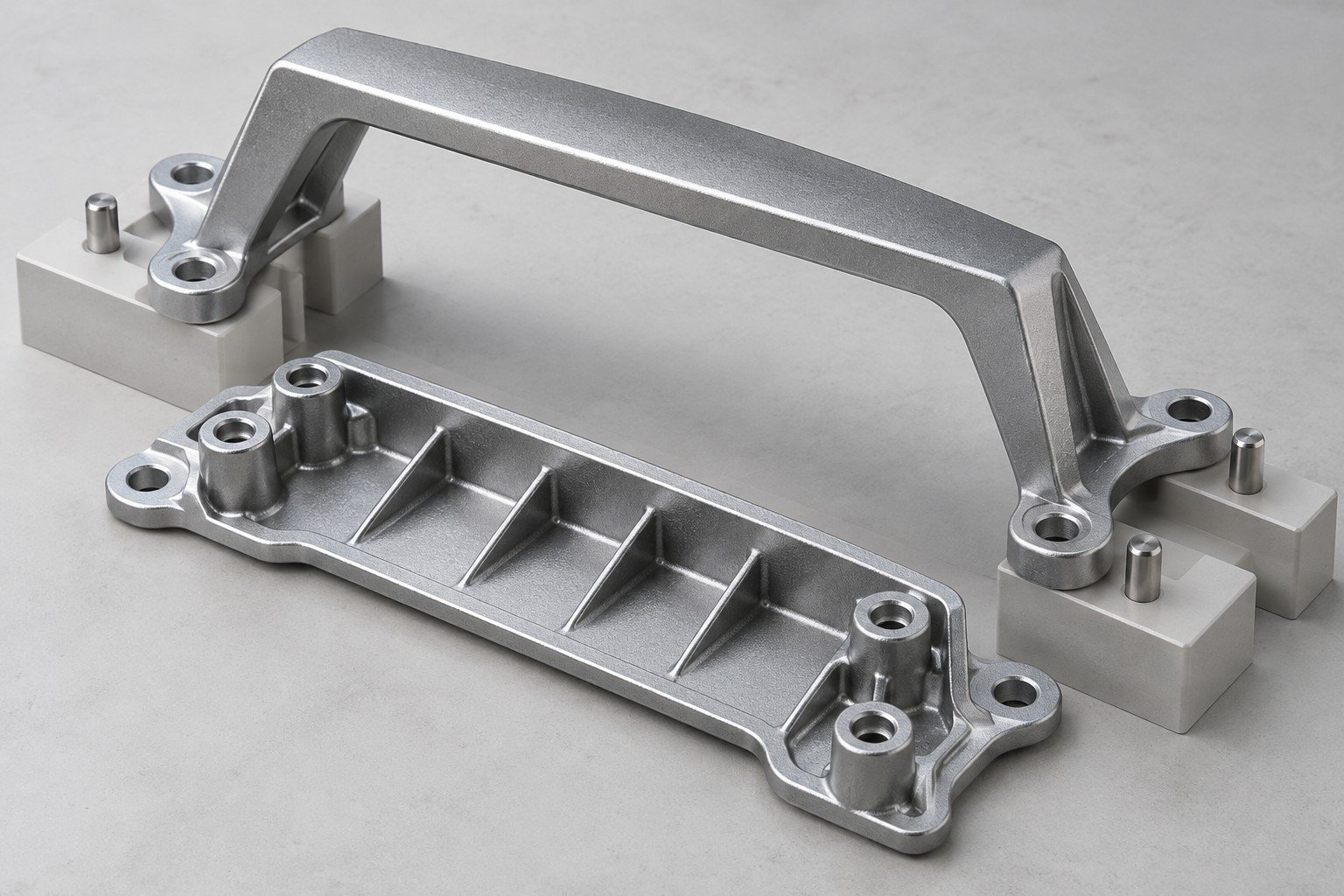

Agree How Your Finished Part Will Be Approved
Review the finished component against your drawing, assembly and surface requirements.
| Your dimensions | Datums and final coated interfaces |
|---|---|
| Your appearance | Approved sample and viewing conditions |
| Your function | Assembly loads and specified checks |
Geometry and production scope are reviewed for your project.

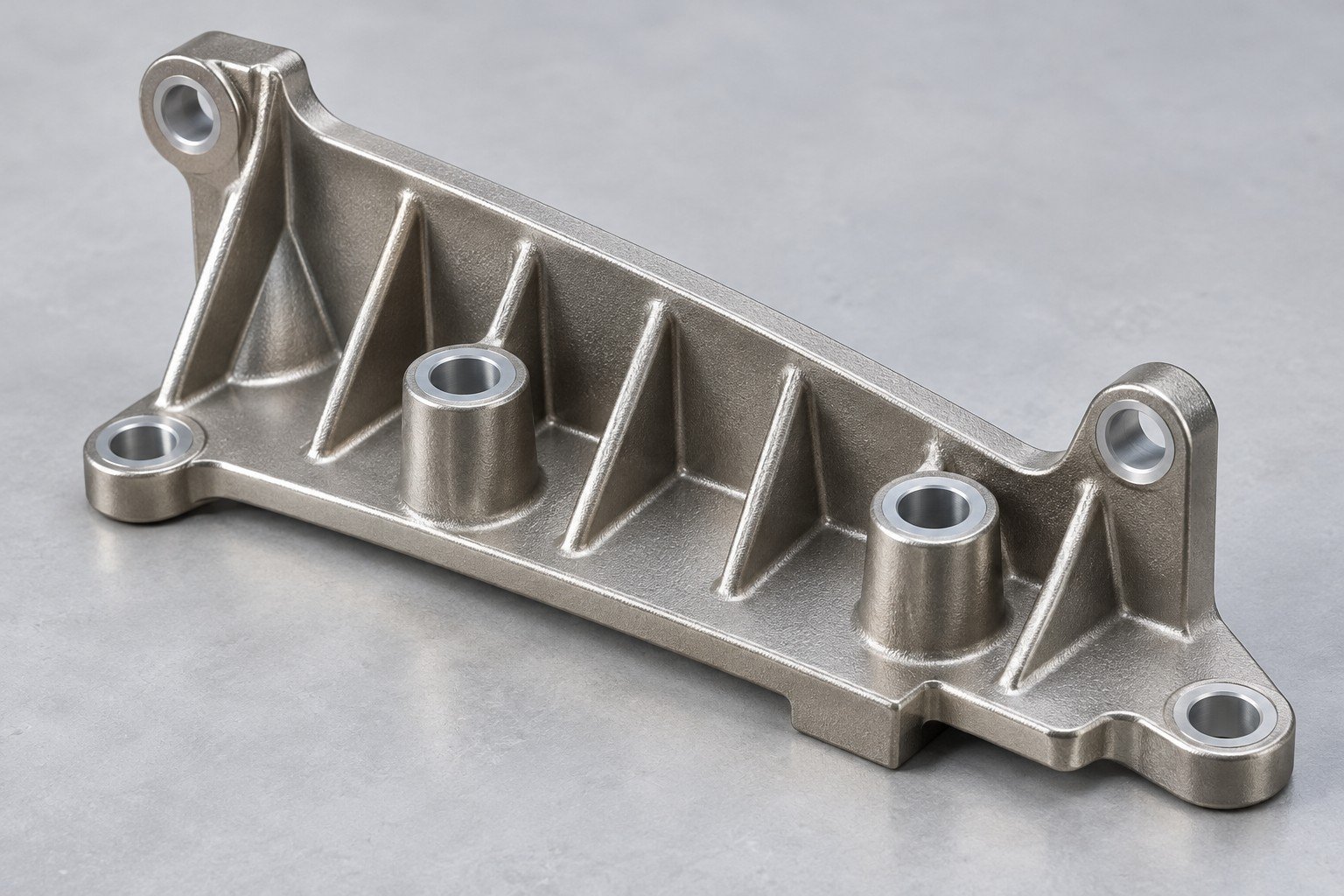

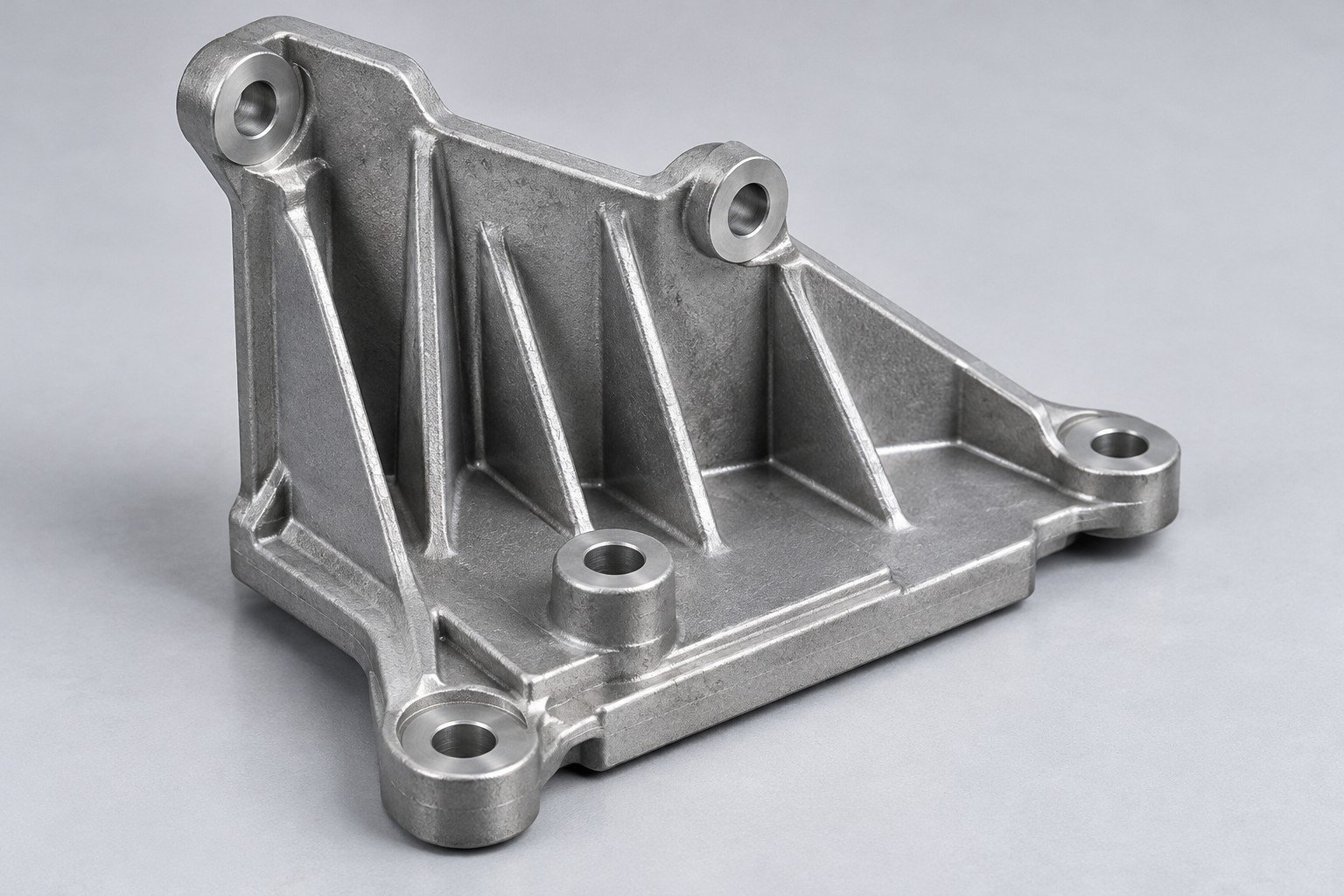

Define Your Bracket’s Final Fit
Specify fasteners, locating faces and the loads your assembly must carry.
| Your function | Joint loads and mounting direction |
|---|---|
| Your fit | Locating faces and bolt access |
| Your appearance | Finish and masked interfaces |
Geometry and production scope are reviewed for your project.

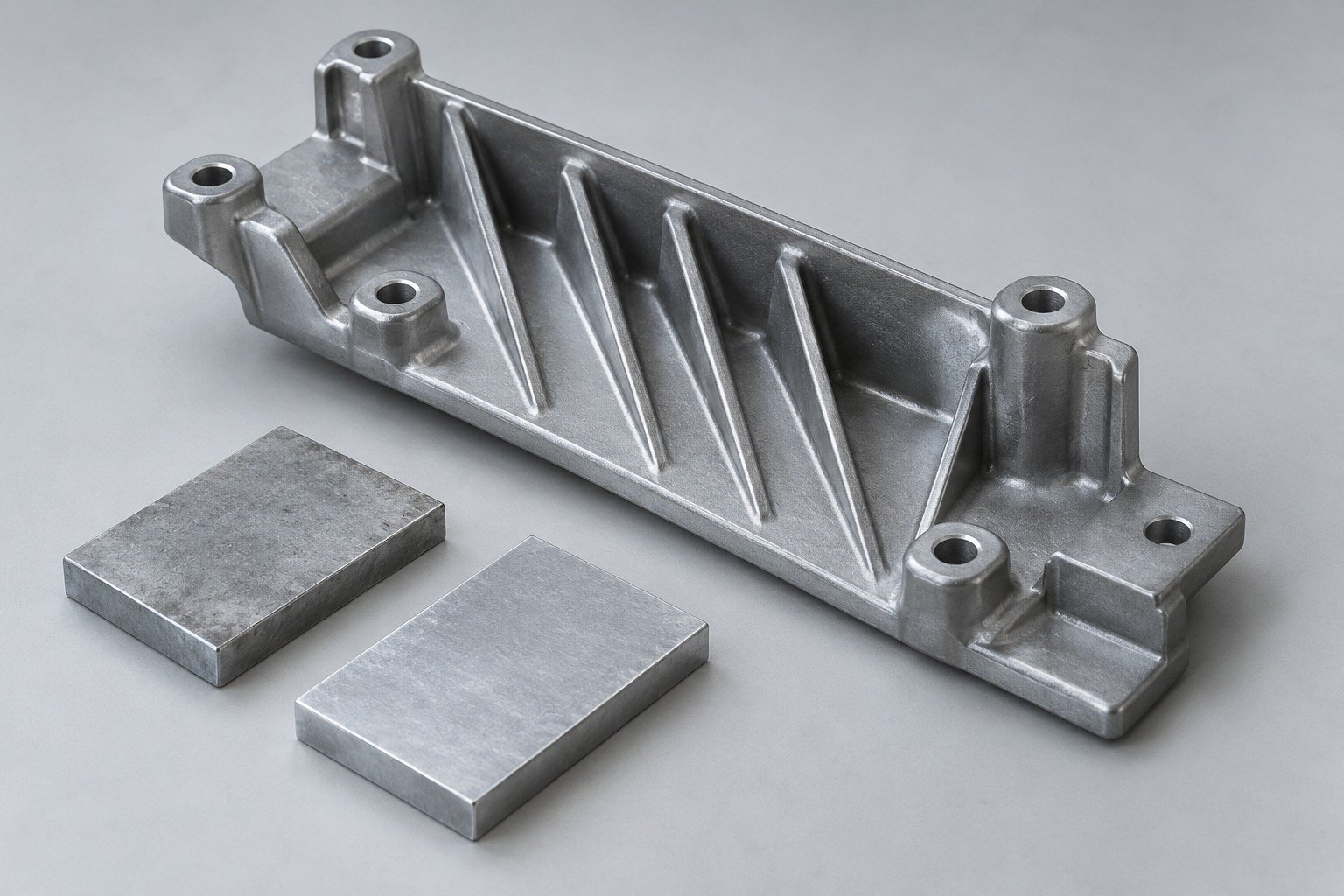

Match Your Zinc Die Casting Material to Its Job
Review grade, specification and sustained load together. Confirm the route for your selected material before tooling.
| Your grade | Standard and required material records |
|---|---|
| Your use | Temperature, load and duration |
| Your assembly | Forming, fastening and finish needs |
Geometry and production scope are reviewed for your project.
Plan Your Finish Around Your Final Dimensions
Define the coating system, cosmetic faces and size after finishing. Review the actual substrate and surface preparation before sample approval.
| Your finish | System, thickness and surface sample |
|---|---|
| Your fit | Finished size and masking boundaries |
| Your acceptance | Appearance, adhesion and specified tests |
Geometry and production scope are reviewed for your project.

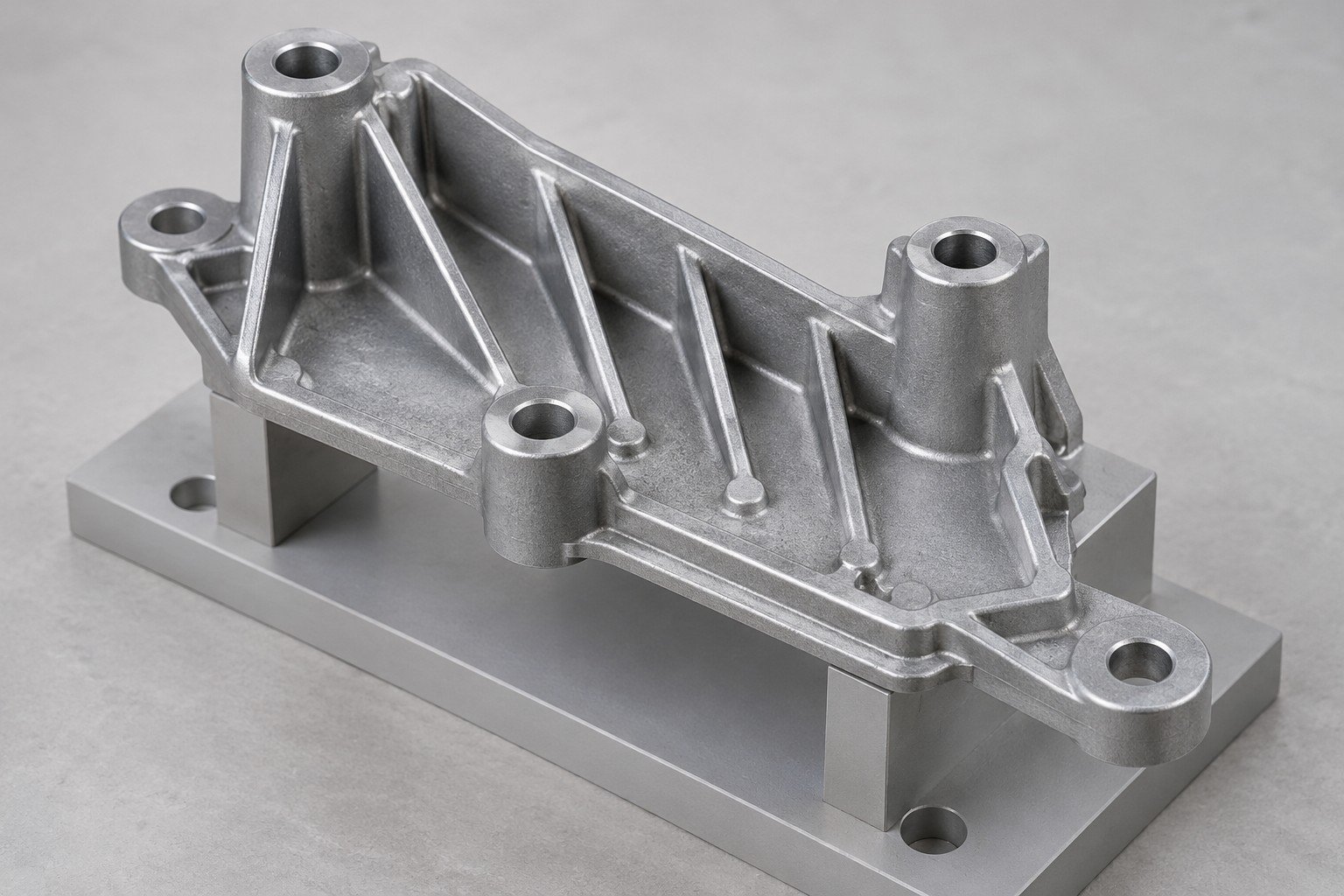

Agree How Your Finished Part Will Be Approved
Review the finished component against your drawing, assembly and surface requirements.
| Your dimensions | Datums and final coated interfaces |
|---|---|
| Your appearance | Approved sample and viewing conditions |
| Your function | Assembly loads and specified checks |
Geometry and production scope are reviewed for your project.
Choose Your Grade, Not Just “Zinc”
Compare zinc die casting alloys against your load, temperature and finishing needs.
| Review option | Why consider it? | What to check? |
|---|---|---|
| Zamak 3 Die Casting | General hardware and finishing needs | Forming, final fit and surface requirements |
| Zamak 5 Die Casting | Higher strength and hardness than Zamak 3 | Lower ductility and secondary forming |
Review Zamak 3 vs Zamak 5 for die casting around your service conditions and assembly method. Grade, specification and availability are confirmed during your review.
Sustained load? Share the temperature, load and duration.
Resolve 6 Design Details Before Tooling
Your zinc die casting design guide starts with critical interfaces.

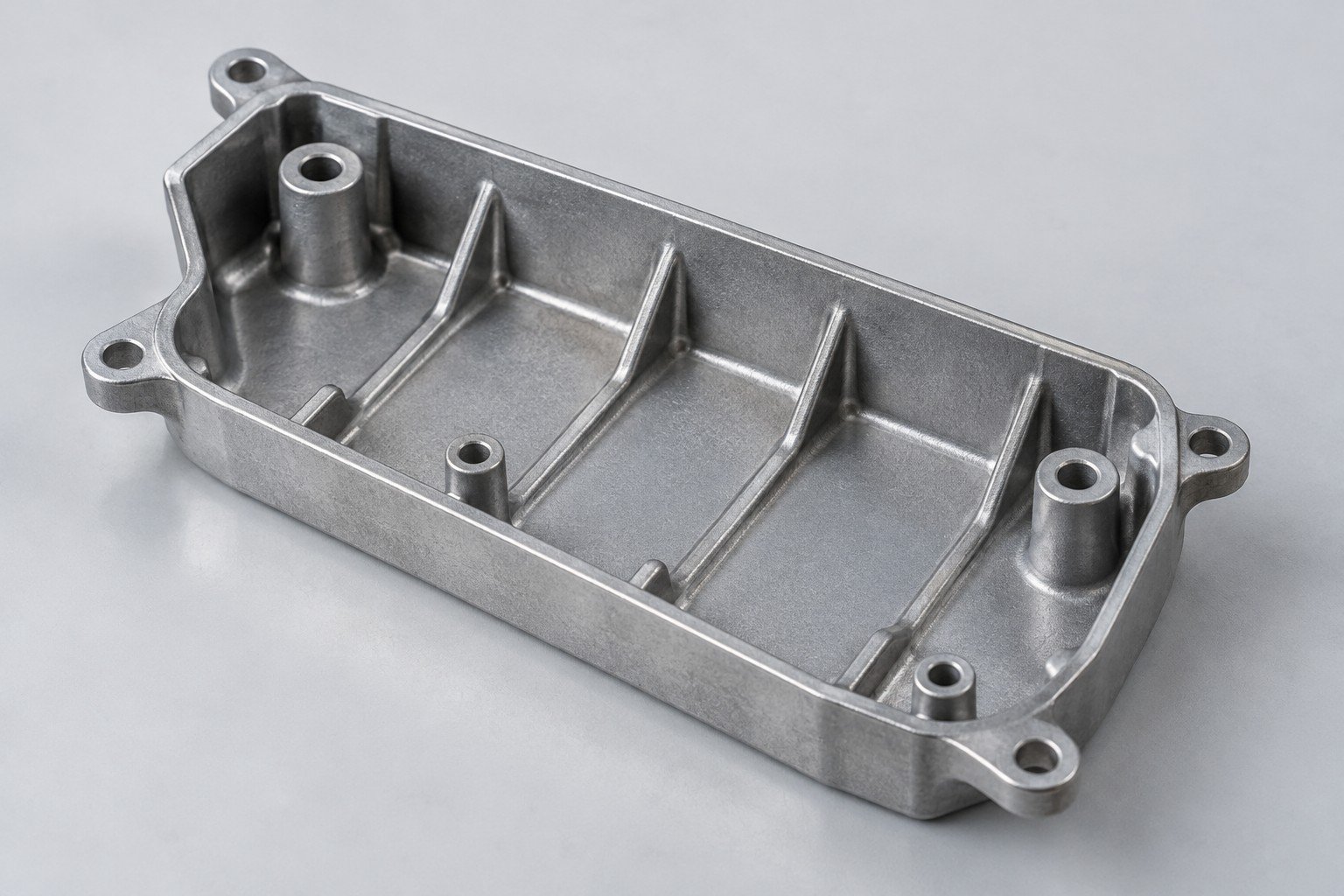

Review Your Wall Transitions and Ribs
Review thin wall zinc die casting against flow length, alloy and feature geometry. Avoid a minimum-wall assumption without a part review.
01
Your input
Wall transitions and feature depths
02
Our review
Ribs, cored bosses and fill path
Confirm methods, scope and acceptance limits for your part.

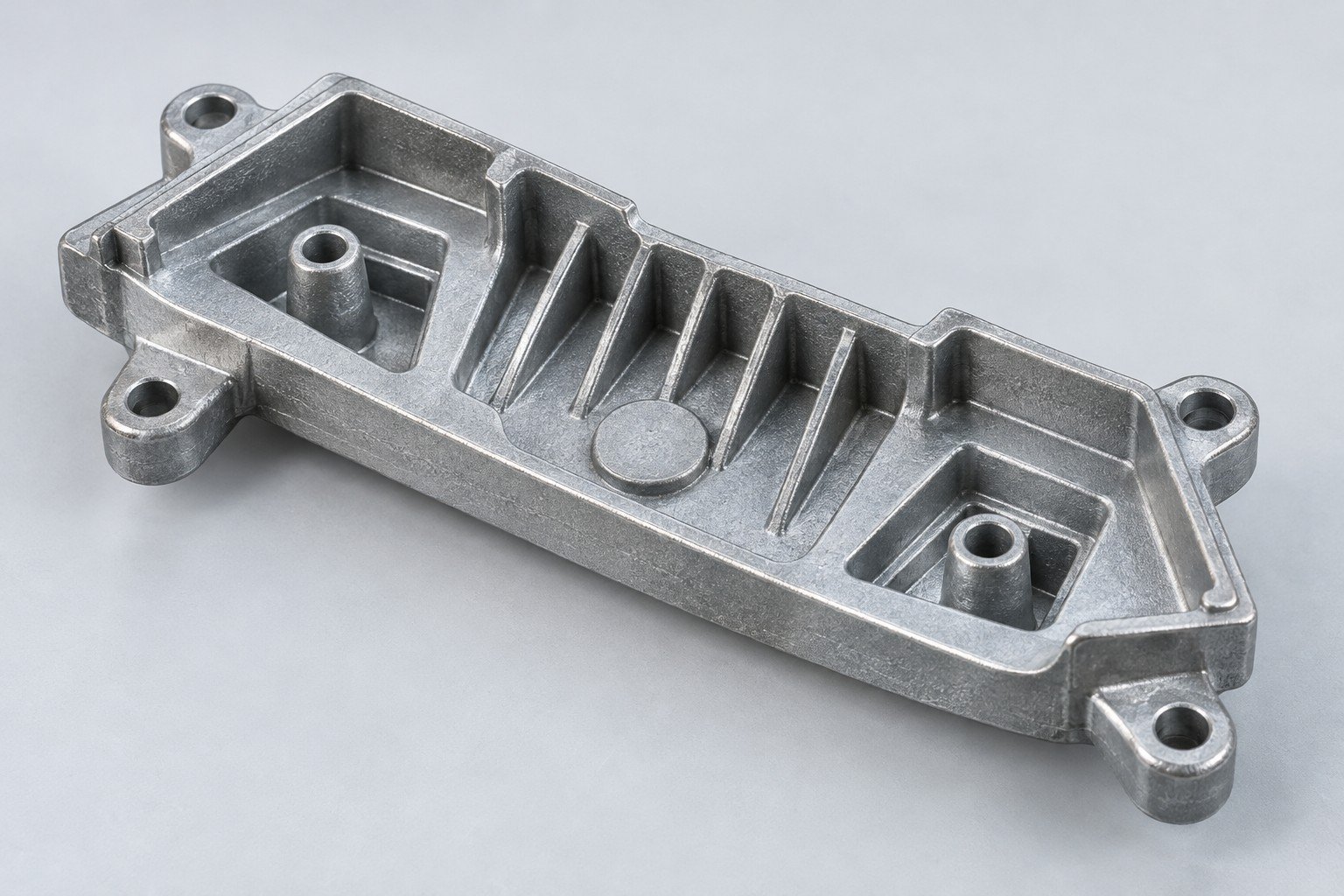

Review Your Release and Ejection Features
Define release direction, drafted recesses and ejection contact areas around your visible and functional faces.
01
Your input
Release direction and visible faces
02
Our review
Draft, undercuts and ejector access
Confirm methods, scope and acceptance limits for your part.

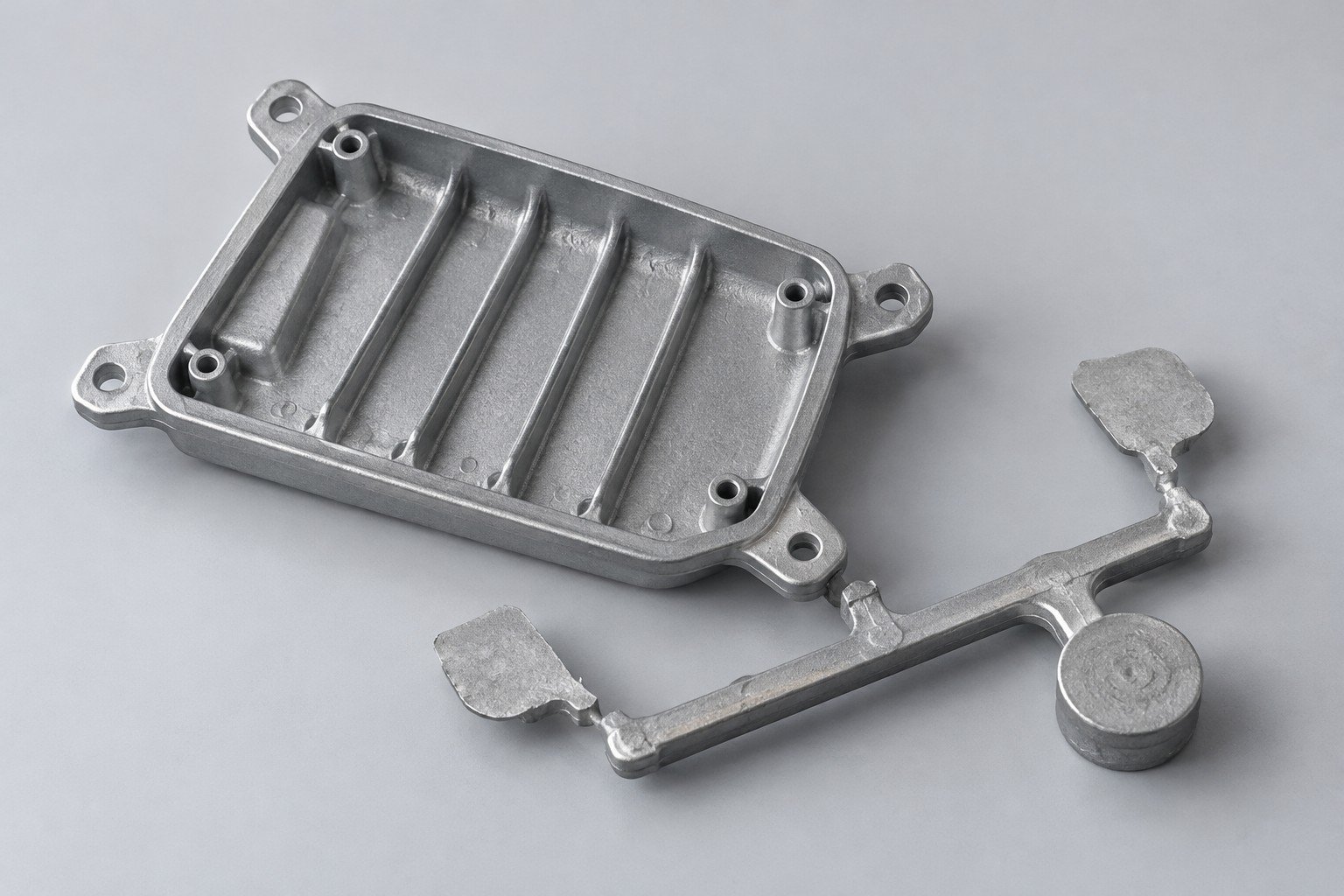

Keep Witnesses Away from Your Critical Faces
Mark cosmetic and mating faces so parting lines, gate witnesses and trim access can be reviewed.
01
Your input
Cosmetic faces and trim limits
02
Our review
Parting, gates and overflow access
Confirm methods, scope and acceptance limits for your part.

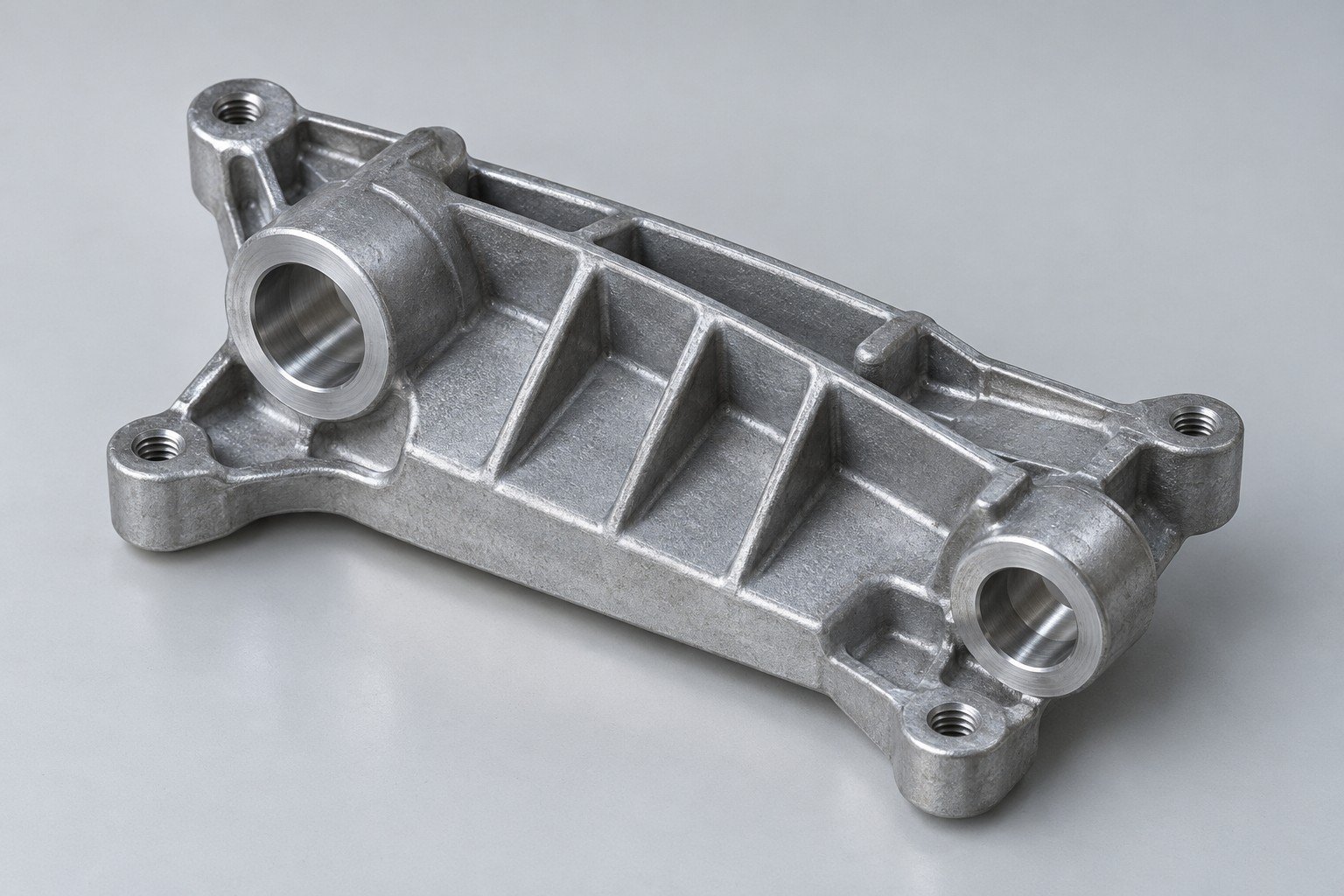

Locate Your Bores and Threads
Identify datums, usable threads and the features that require machining after casting.
01
Your input
Datums and controlled thread details
02
Our review
Machining stock and fixture access
Confirm methods, scope and acceptance limits for your part.

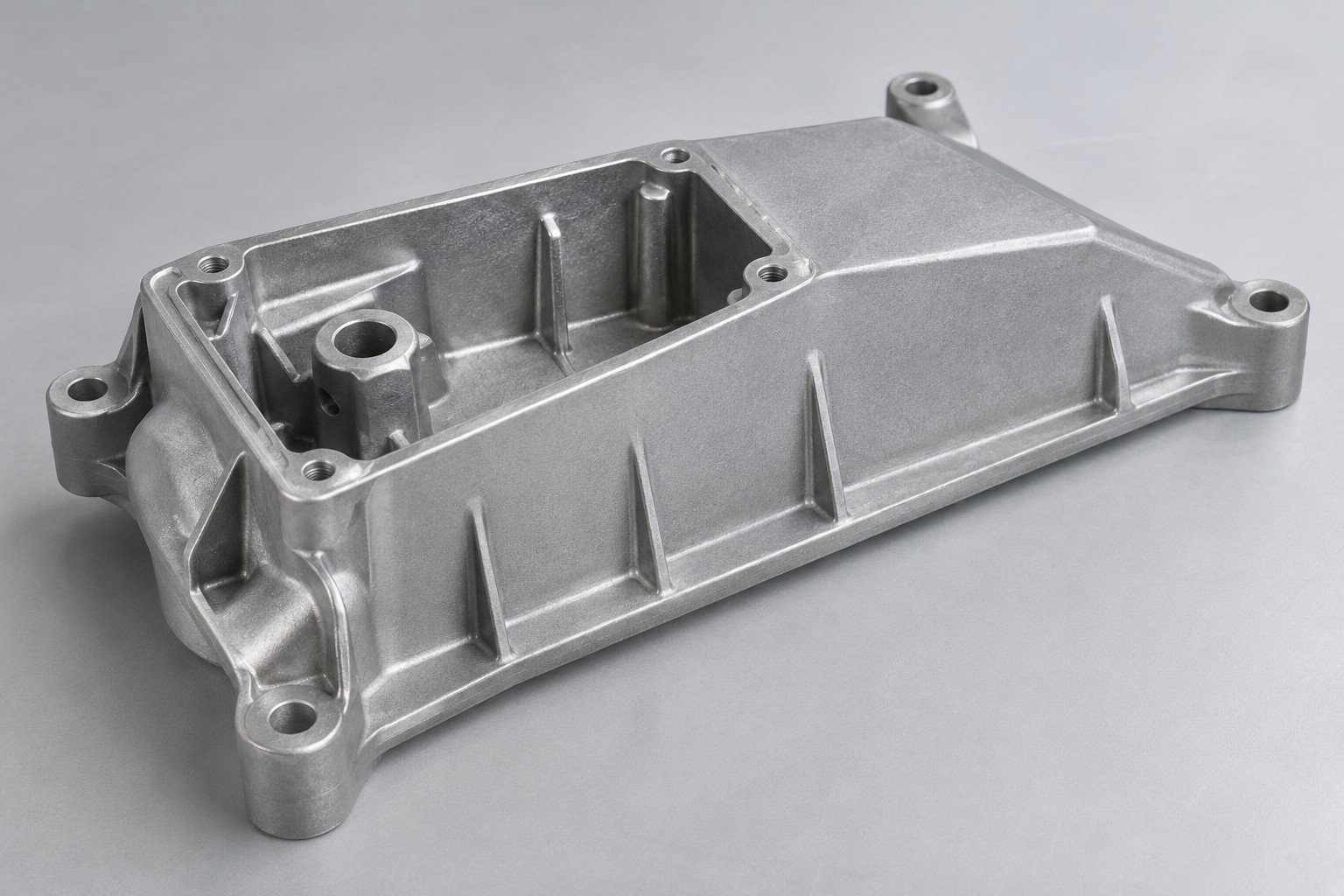

Define the Surface and Internal Quality You Need
Review zinc die casting defects against your acceptance criteria. Specify surface limits and any required internal-quality checks.
01
Your input
Surface limits and specified tests
02
Our review
Flow, venting and inspection stage
Confirm methods, scope and acceptance limits for your part.

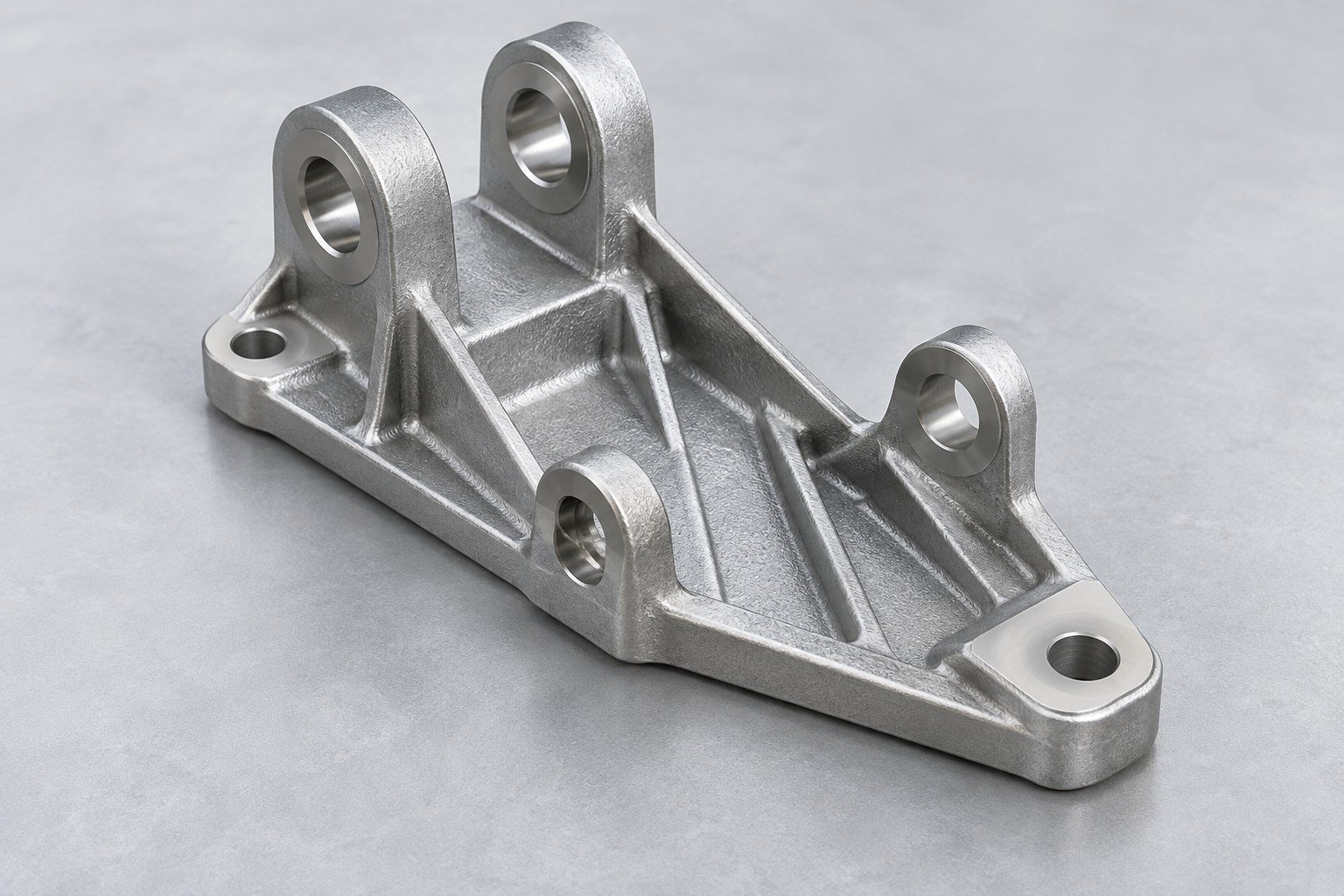

Protect Your Fit After Finishing
When plating zinc die casting components, define the final size, not only the metal size.
EXAMPLE ONLY — NOT A CASTING SPECIFICATION
01
Before coating
10.000 mm
02
Assumed deposit
10 µm / side
03
After coating
10.020 mm
Assumes a uniform deposit on 2 opposite outside faces: 10.000 mm + 2 × 0.010 mm = 10.020 mm. Actual distribution varies; review masking and inspection locations.
Approve the finished dimension on your drawing.
3 Part States. 1 Acceptance Drawing.
Set zinc die casting tolerances by feature and inspection stage.

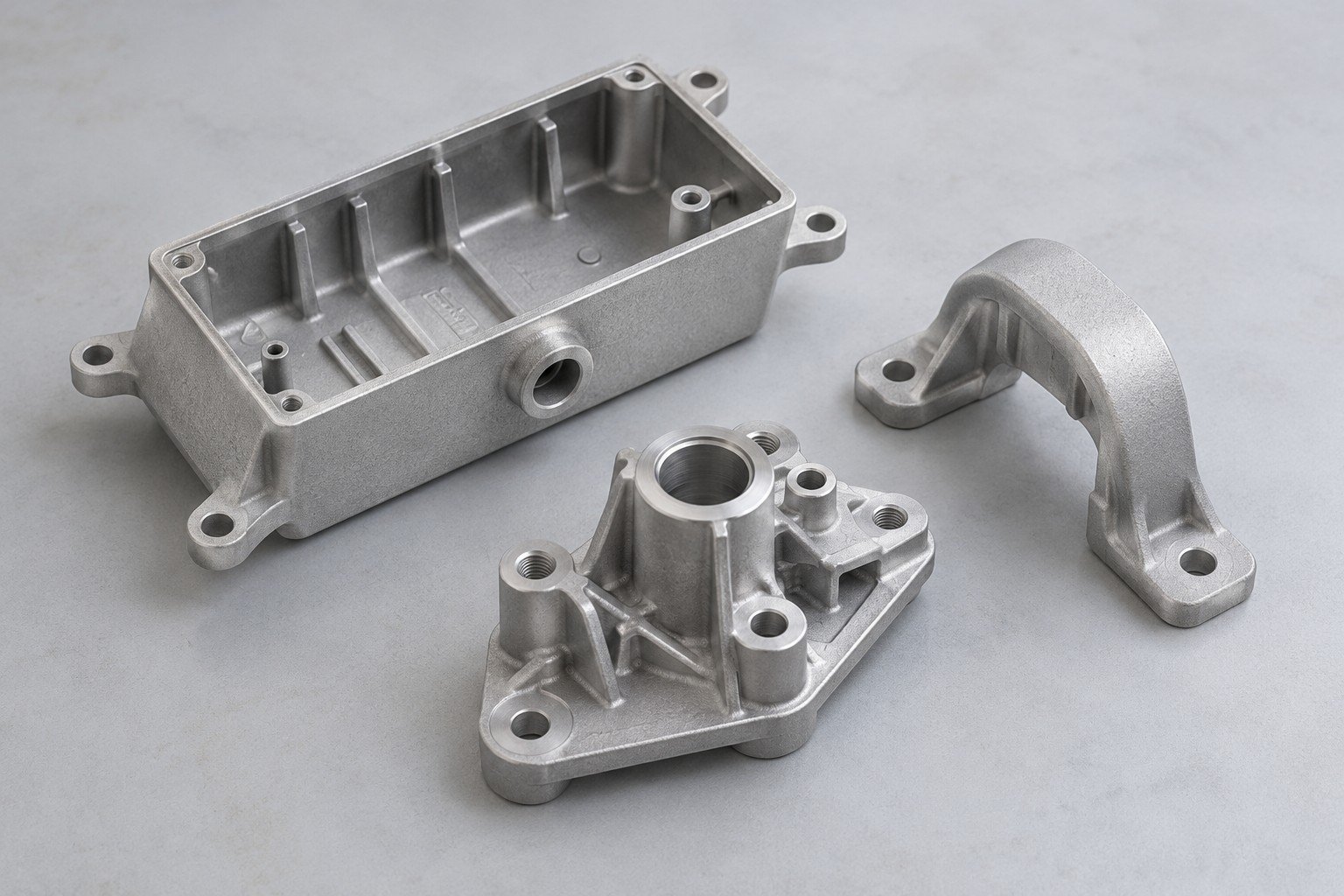

| Part state | Your key features | Review focus |
|---|---|---|
| As-cast | Walls, ribs and locating stock | Die geometry, flash and parting lines |
| After machining | Bores, threads and mating faces | Datums, gauges and stock allowance |
| After finishing | Coated fits and visible surfaces | Final dimensions, masking and approved sample |
A machined zinc die casting still needs its final coating allowance reviewed.
Your Zinc Die Casting Process
Hot chamber zinc die casting is commonly used for Zamak alloys. Molten alloy fills a steel die, solidifies and is ejected for subsequent operations.
Cast & Trim
Agreed alloy and die geometry
Machine
Bores, threads and mating faces
Finish
Agreed system and masking
Inspect
Final dimensions and release checks
CNC machining for zinc die casting parts and other secondary operations are agreed for your grade and drawing; special alloy routes require a separate review.
Specify 4 Requirements for Your Finish
Define the final appearance and functional surfaces before samples.
Finish specification
System and substrate preparation
Cosmetic faces
Surface sample and viewing conditions
Thickness & masking
Final fit and protected features
Test & acceptance criteria
Agreed checks and release limits
Approve Your Parts with 3 Evidence Groups
Agree your records and acceptance limits before production.

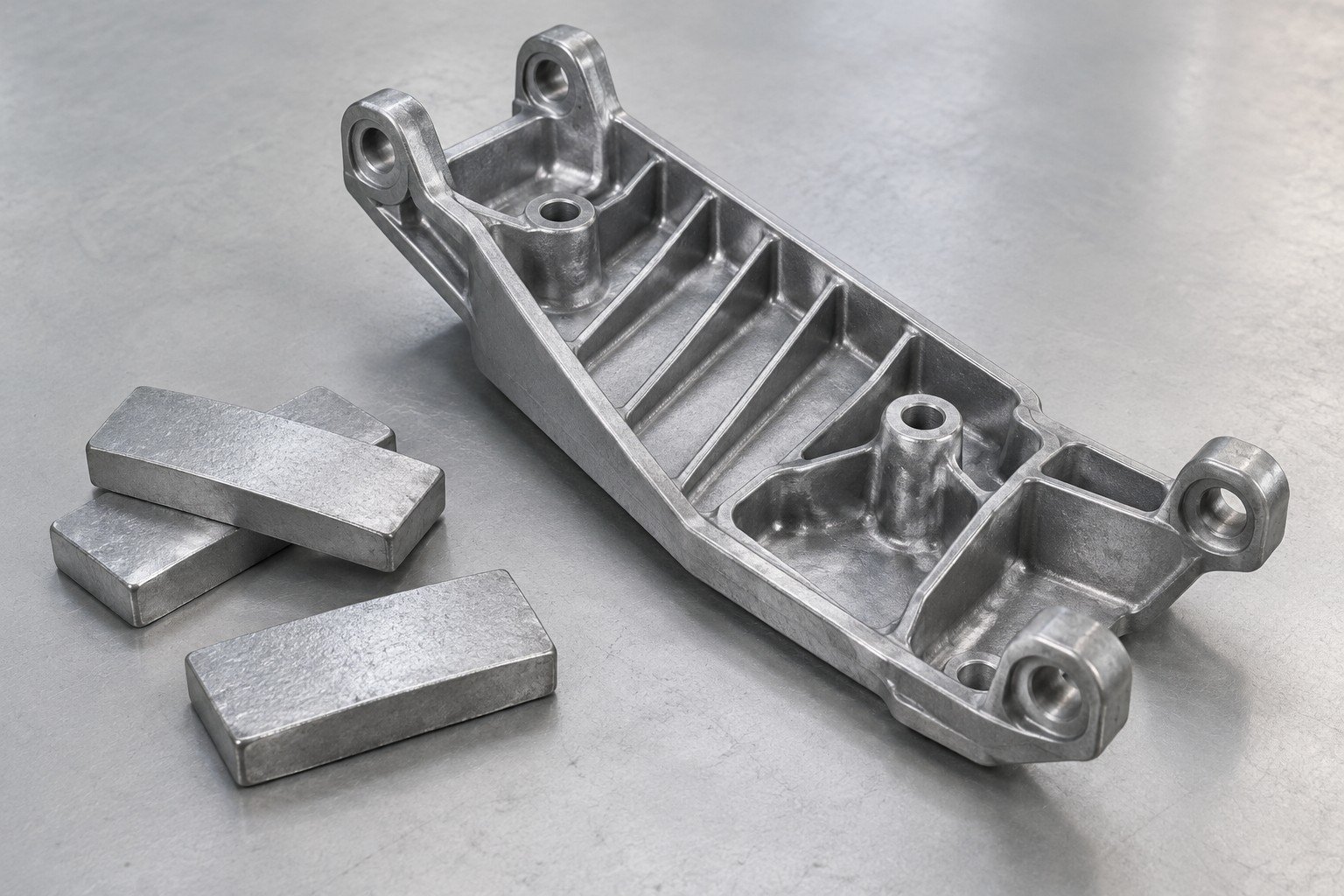

Confirm Your Incoming Alloy and Lot Records
Confirm grade, material lot and required records against your specification.
Material RecordDimensional ReportFinish Record
Document scope, sampling and special tests are agreed in your quotation.

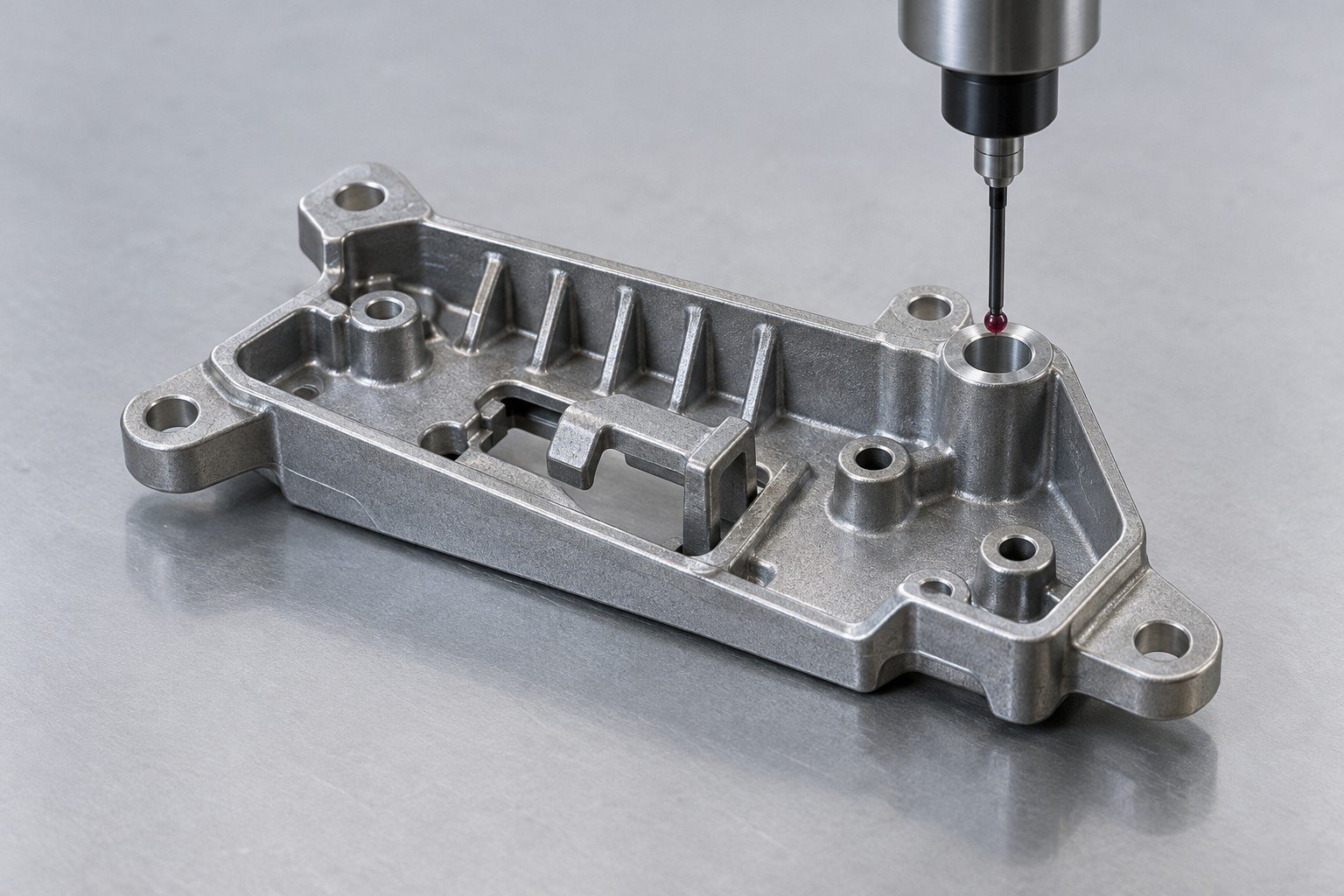

Check the Finished Part, Not Just the Casting
Plan prototype zinc die casting samples to verify the agreed part and process. A CNC fit model does not validate casting porosity or a production finish.
Material RecordDimensional ReportFinish Record
Document scope, sampling and special tests are agreed in your quotation.

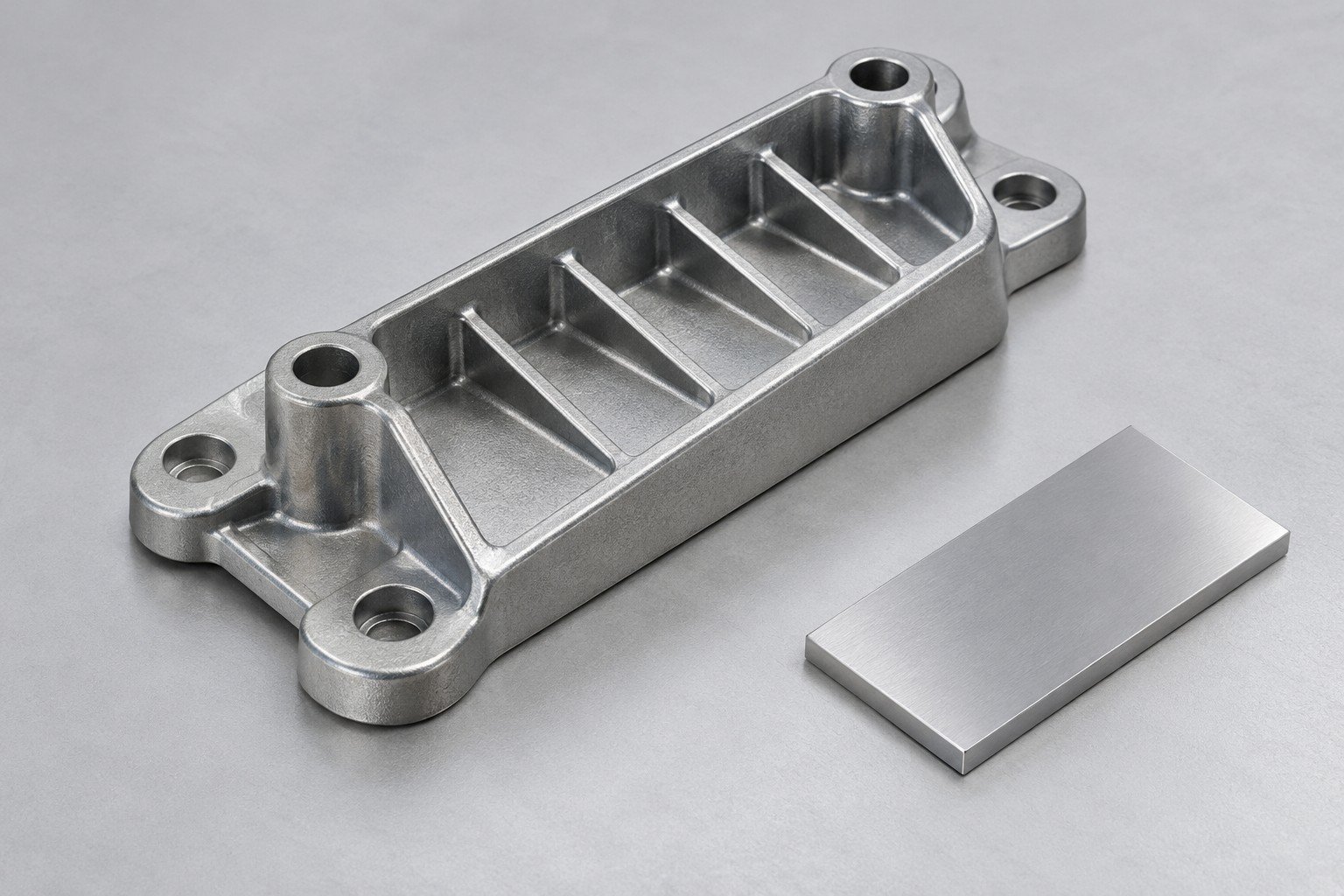

Approve Your Finish Against the Agreed Sample
Review coating, masking and cosmetic faces against the approved sample and your specified tests.
Material RecordDimensional ReportFinish Record
Document scope, sampling and special tests are agreed in your quotation.

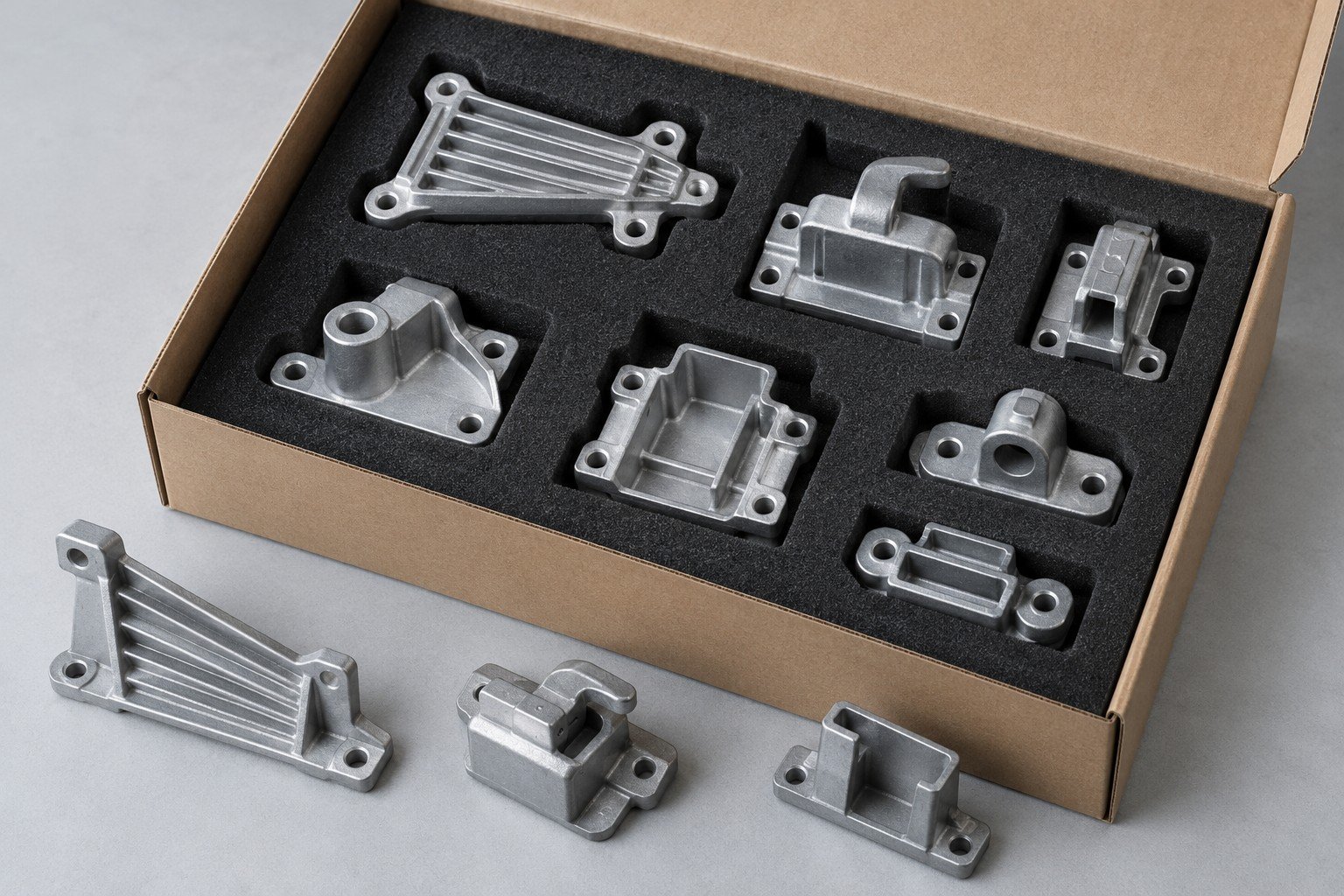

Release Your Order with Clear Records
Review final acceptance, labels, protection and shipment records before dispatch.
Material RecordDimensional ReportFinish Record
Document scope, sampling and special tests are agreed in your quotation.
Compare Your Quote at 3 Quantities
Separate zinc die casting cost into one-time tooling and recurring items.
EXAMPLE RFQ QUANTITIES — NOT MINIMUM ORDERS
500 pcs
Pilot comparison
2,000 pcs
Initial production comparison
10,000 pcs
Higher-volume comparison
Tooling
Casting
CNC machining
Finishing
Inspection
Delivery
Replace these example quantities with your actual demand. Compare the same 6 items against the same drawing, alloy and finish scope.
4 Terms to Agree with Your Supplier
When comparing zinc die casting suppliers, review zinc die casting tooling cost with these commercial terms.
Ownership & location
Who owns the zinc die casting mold and where it is held.
Maintenance & expected life
Record assumptions for geometry, alloy, maintenance and service life.
Changes & sample approval
How revisions and new samples are approved and charged.
Transfer & repeat orders
Conditions for transfer and future releases.
China Manufacturing. Dallas-Area Coordination.
Coordinate drawing review, sample decisions and delivery with your project contact. Manufacturing scope and location are confirmed in your quotation.
6 Inputs for Your Zinc Die Casting Quote
Send the details that affect cost and acceptance.
- 01CAD + controlled drawing
- 02Alloy + specification
- 03Trial, first-order + annual quantities
- 04Final fits + thread requirements
- 05Finish + inspection criteria
- 06Required date + ship-to location
Answers Before You Commit
Explore Other Casting Routes →Can zinc die cast parts be plated?
Yes. Confirm the finish system, visible faces, coating allowance and acceptance tests before approving samples. Review the actual substrate condition and surface preparation; a finish is not automatically available for every geometry.
Is Zamak suitable for high temperature applications?
Assess the specific grade, temperature, sustained load and duration. Creep and long-term dimensional change can affect fit; review material data and application checks rather than treating one temperature as a universal limit.
What is the minimum order quantity for zinc die casting?
The economic quantity depends on tooling, geometry, finish and your demand. Low volume zinc die casting needs the same tooling-cost review as repeat production. Request trial, first-order and annual-volume comparisons; the example quantities are not minimum orders.
How long does zinc die casting tooling take?
Confirm separate milestones for design approval, tool build, trial, revisions and sample approval. Production and shipping follow your agreed release plan; a delivery date is confirmed for your project.
Can zinc die cast parts be machined after casting?
Yes, where your grade and geometry suit the operation. Mark bores, threads and mating faces on your drawing, and define the measurement state after machining and after coating. Include allowances, masking and inspection in the review.
