YOUR LAMINATE. YOUR FABRIC DIRECTION. YOUR FINISHED FIT.
G10 / FR4 for Your Custom Parts
Plan custom G10 parts and custom FR4 parts around the exact laminate, stock form, thickness, fabric direction and drawing. For FR4 machining and industrial insulating components, agree critical dimensions, edge condition and required records before comparing quotations.
This is an industrial laminate purchasing guide. Exact material availability, machining scope and finished-component suitability require review of your drawing and required evidence.
Exact LaminateKeep product, standard and lot.
Form & DirectionSpecify stock and fabric axes.
Finished FitDefine holes, edges and interfaces.
Your EvidenceAgree material and part records.
4 Starting Points for Your Laminate Review
G10 Machined Components
Review your laminate standard, complete manufacturer product, stock thickness and fabric direction. G10 vs FR4 is a specification decision, not automatic substitution approval.

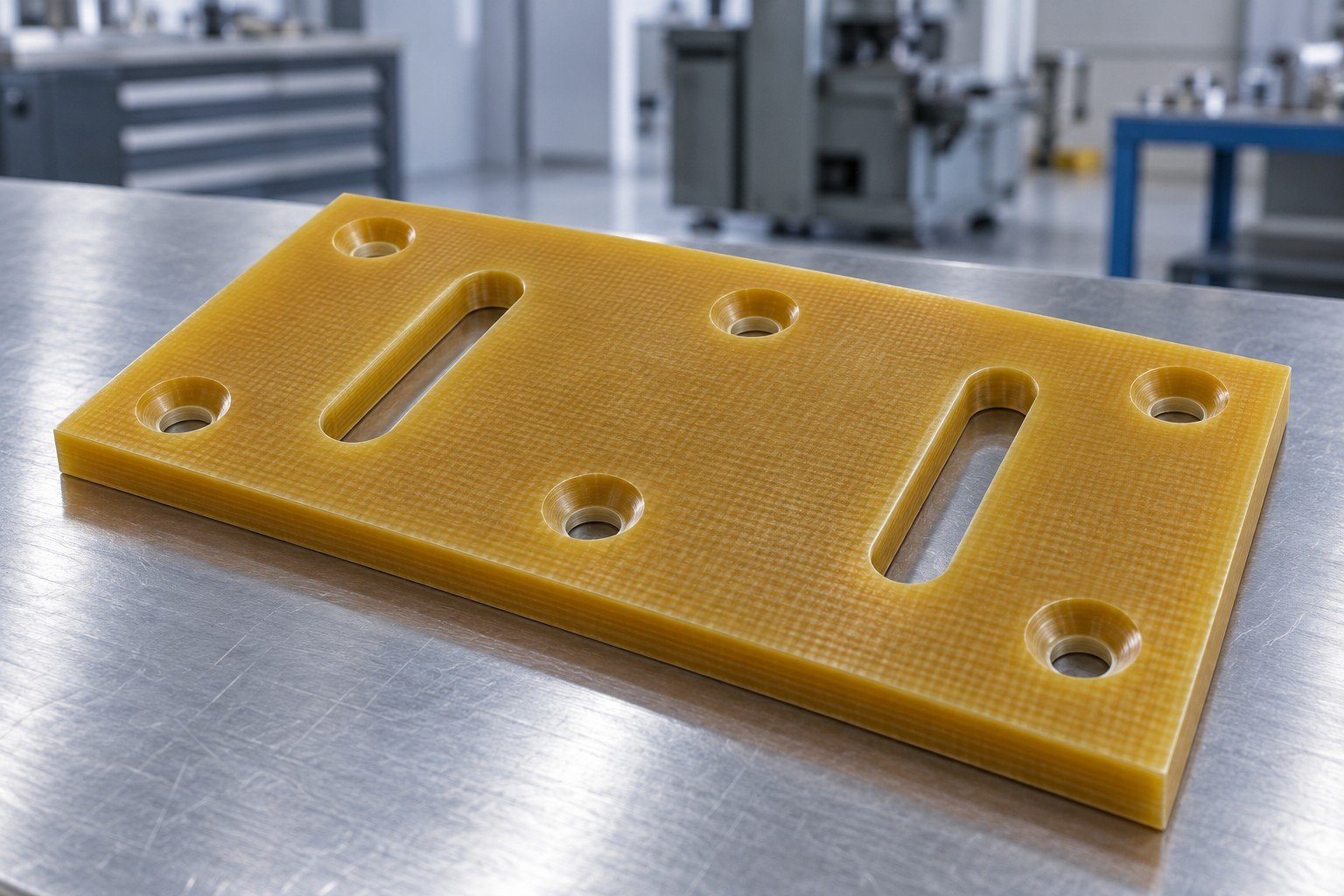

Industrial Insulating Panels
For G10 electrical insulation, agree the full material, thickness, interfaces and required test evidence. A material designation alone does not approve an electrical assembly.

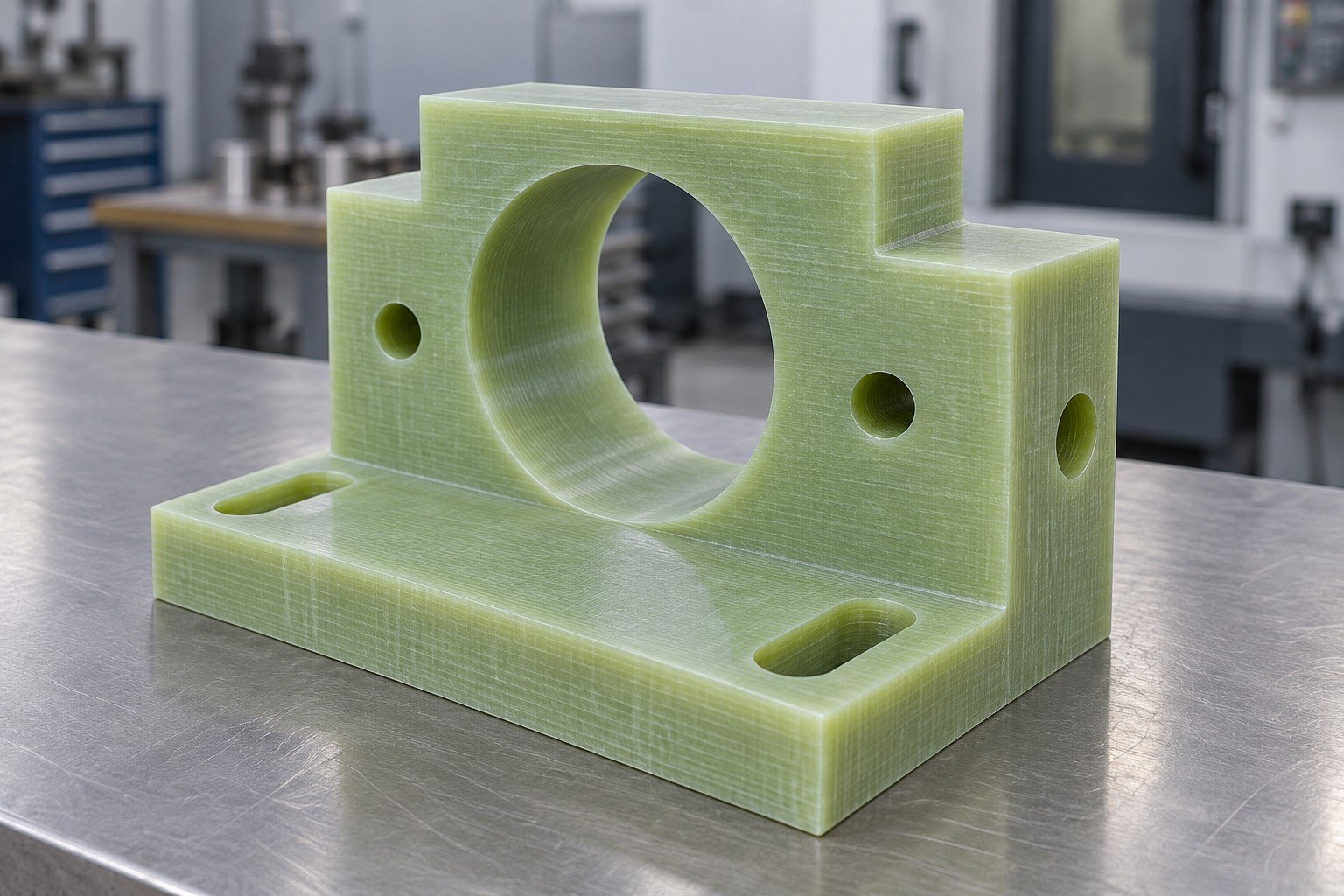

FR4 Structural Components
Review FR4 material properties against the actual product, thickness, direction and conditions. A generic FR4 name does not establish every finished-part requirement.

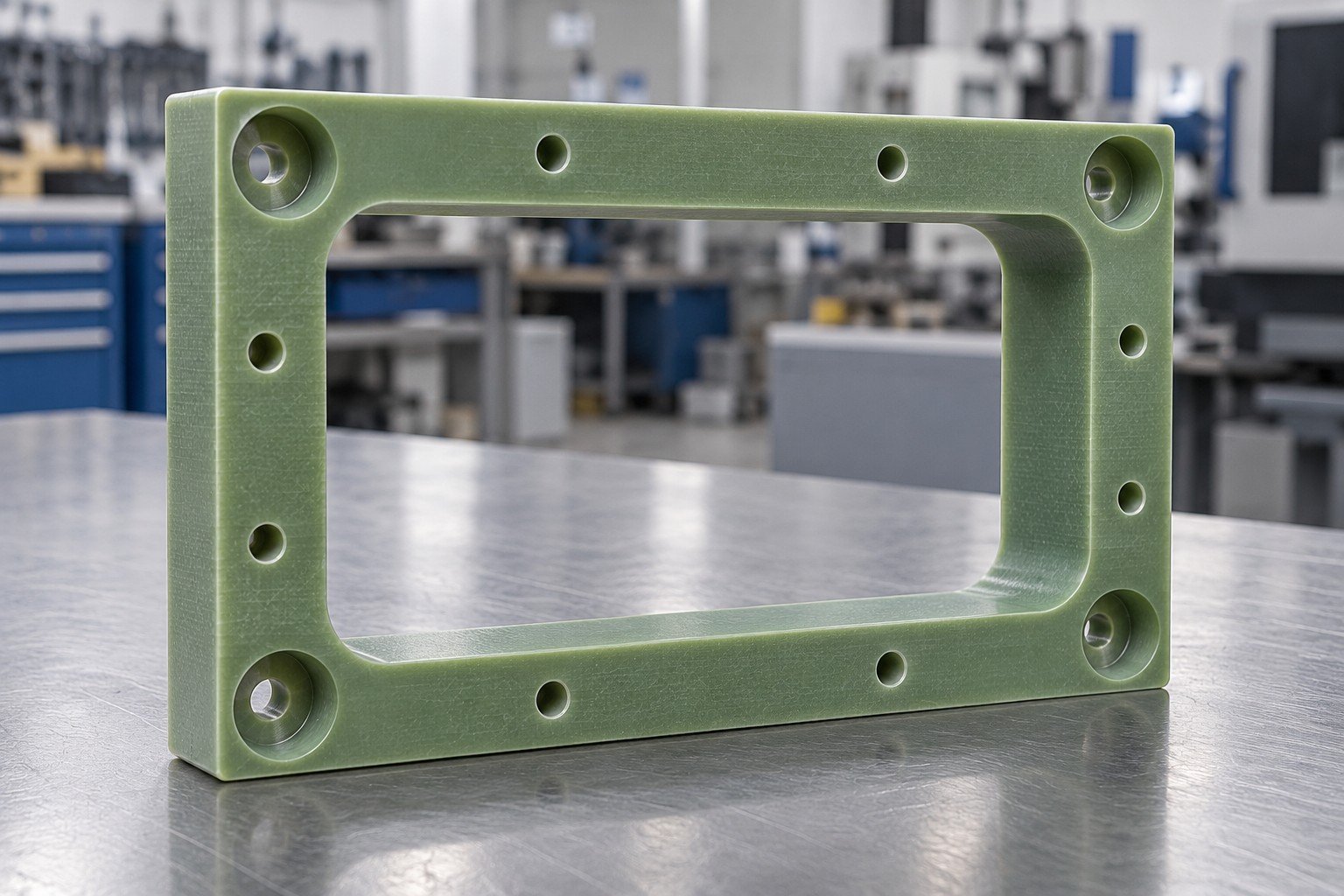

Frames, Spacers & Fixtures
For FR4 CNC machining services, send your controlled drawing, stock specification, critical fits, holes and edge acceptance. Confirm scope for your exact part.
Review Your Full Laminate Product and Stock Form
Review G10 Specification for Your Drawing
Retain the required G10 standard and full manufacturer product. Specify resin and reinforcement description, stock form, thickness, fabric direction and required records; a color or generic glass-epoxy name is not material identification.
| Your decision | What to confirm |
|---|---|
| Material identity | Full manufacturer product and required standard |
| Stock and direction | Form, thickness, fabric axes and lot |
| Acceptance | Controlled drawing, approved sample and required tests |
Confirm the Stock Form
Sheet, rod and tube products require their own identity and orientation evidence.
| Your decision | What to confirm |
|---|---|
| Sheet and Plate Stock | Identify complete laminate product, sheet thickness and tolerance, fabric direction, flatness, lot and surface condition. Retain the supplier stock specification separately from finished machined dimensions. |
| Rod, Tube and Other Forms | Specify the actual producer, grade and manufacturing form. Do not assume a rod or rolled tube has the same reinforcement orientation, product data or acceptance as a sheet carrying a similar generic label. |
Agree Your Finished Fit
Retain the actual assembly, environment and measuring condition.
| Your decision | What to confirm |
|---|---|
| Interfaces | Locating shoulders, holes, pockets, fasteners and edge condition |
| Environment | Temperature, moisture and required exposure or electrical evidence |
| Measurement | Support, axes, critical dimensions and agreed method |
Retain Stock and Part Records
Supplier material evidence and finished-component acceptance serve different purposes.
| Your decision | What to confirm |
|---|---|
| Identity | Producer, complete grade, standard, thickness, direction and lot |
| Drawing | Critical dimensions, hole positions, flatness and edges |
| Function | Approved sample and specified electrical, mechanical or assembly tests |
Review NORPLEX NP500A for Your Drawing
For a NORPLEX NP500A custom parts quote, retain the full Norplex-Micarta product and required G10 specification. The supplier identifies woven glass with a non-brominated epoxy system; do not silently substitute a brominated FR4 product.
| Your decision | What to confirm |
|---|---|
| Material identity | Full manufacturer product and required standard |
| Stock and direction | Form, thickness, fabric axes and lot |
| Acceptance | Controlled drawing, approved sample and required tests |
Confirm the Stock Form
Sheet, rod and tube products require their own identity and orientation evidence.
| Your decision | What to confirm |
|---|---|
| Sheet and Plate Stock | Identify complete laminate product, sheet thickness and tolerance, fabric direction, flatness, lot and surface condition. Retain the supplier stock specification separately from finished machined dimensions. |
| Rod, Tube and Other Forms | Specify the actual producer, grade and manufacturing form. Do not assume a rod or rolled tube has the same reinforcement orientation, product data or acceptance as a sheet carrying a similar generic label. |
Agree Your Finished Fit
Retain the actual assembly, environment and measuring condition.
| Your decision | What to confirm |
|---|---|
| Interfaces | Locating shoulders, holes, pockets, fasteners and edge condition |
| Environment | Temperature, moisture and required exposure or electrical evidence |
| Measurement | Support, axes, critical dimensions and agreed method |
Retain Stock and Part Records
Supplier material evidence and finished-component acceptance serve different purposes.
| Your decision | What to confirm |
|---|---|
| Identity | Producer, complete grade, standard, thickness, direction and lot |
| Drawing | Critical dimensions, hole positions, flatness and edges |
| Function | Approved sample and specified electrical, mechanical or assembly tests |
Review FR4 Specification for Your Drawing
Retain the exact FR4 standard, product, stock form, thickness and required flame or electrical evidence. Generic PCB FR4 identification does not by itself document the industrial stock and part acceptance required by your drawing.
| Your decision | What to confirm |
|---|---|
| Material identity | Full manufacturer product and required standard |
| Stock and direction | Form, thickness, fabric axes and lot |
| Acceptance | Controlled drawing, approved sample and required tests |
Confirm the Stock Form
Sheet, rod and tube products require their own identity and orientation evidence.
| Your decision | What to confirm |
|---|---|
| Sheet and Plate Stock | Identify complete laminate product, sheet thickness and tolerance, fabric direction, flatness, lot and surface condition. Retain the supplier stock specification separately from finished machined dimensions. |
| Rod, Tube and Other Forms | Specify the actual producer, grade and manufacturing form. Do not assume a rod or rolled tube has the same reinforcement orientation, product data or acceptance as a sheet carrying a similar generic label. |
Agree Your Finished Fit
Retain the actual assembly, environment and measuring condition.
| Your decision | What to confirm |
|---|---|
| Interfaces | Locating shoulders, holes, pockets, fasteners and edge condition |
| Environment | Temperature, moisture and required exposure or electrical evidence |
| Measurement | Support, axes, critical dimensions and agreed method |
Retain Stock and Part Records
Supplier material evidence and finished-component acceptance serve different purposes.
| Your decision | What to confirm |
|---|---|
| Identity | Producer, complete grade, standard, thickness, direction and lot |
| Drawing | Critical dimensions, hole positions, flatness and edges |
| Function | Approved sample and specified electrical, mechanical or assembly tests |
Review NORPLEX NP510A for Your Drawing
For a NORPLEX NP510A custom parts quote, retain the complete manufacturer product and required FR4 specification. The supplier identifies a woven glass-epoxy laminate; retain thickness, fabric direction and exact product documentation.
| Your decision | What to confirm |
|---|---|
| Material identity | Full manufacturer product and required standard |
| Stock and direction | Form, thickness, fabric axes and lot |
| Acceptance | Controlled drawing, approved sample and required tests |
Confirm the Stock Form
Sheet, rod and tube products require their own identity and orientation evidence.
| Your decision | What to confirm |
|---|---|
| Sheet and Plate Stock | Identify complete laminate product, sheet thickness and tolerance, fabric direction, flatness, lot and surface condition. Retain the supplier stock specification separately from finished machined dimensions. |
| Rod, Tube and Other Forms | Specify the actual producer, grade and manufacturing form. Do not assume a rod or rolled tube has the same reinforcement orientation, product data or acceptance as a sheet carrying a similar generic label. |
Agree Your Finished Fit
Retain the actual assembly, environment and measuring condition.
| Your decision | What to confirm |
|---|---|
| Interfaces | Locating shoulders, holes, pockets, fasteners and edge condition |
| Environment | Temperature, moisture and required exposure or electrical evidence |
| Measurement | Support, axes, critical dimensions and agreed method |
Retain Stock and Part Records
Supplier material evidence and finished-component acceptance serve different purposes.
| Your decision | What to confirm |
|---|---|
| Identity | Producer, complete grade, standard, thickness, direction and lot |
| Drawing | Critical dimensions, hole positions, flatness and edges |
| Function | Approved sample and specified electrical, mechanical or assembly tests |
Keep Fabric Direction With the Property Value
NP510A flexural strength, MPa · IEC 60893-2/5.1 · Condition A · 1.59 mm specimen
Flexural Strength (MPa)
Typical values for the named supplier laminate and stated specimen, not design allowables or finished-part acceptance. Keep product, direction, thickness, conditioning and current test method with any comparison.
Supplier NP510A bulletin →2 Stock Forms. Different Orientation Evidence.
Sheet and Plate Stock
Identify complete laminate product, sheet thickness and tolerance, fabric direction, flatness, lot and surface condition. Retain the supplier stock specification separately from finished machined dimensions.
Rod, Tube and Other Forms
Specify the actual producer, grade and manufacturing form. Do not assume a rod or rolled tube has the same reinforcement orientation, product data or acceptance as a sheet carrying a similar generic label.
Resolve 6 Glass-Epoxy Part Risks

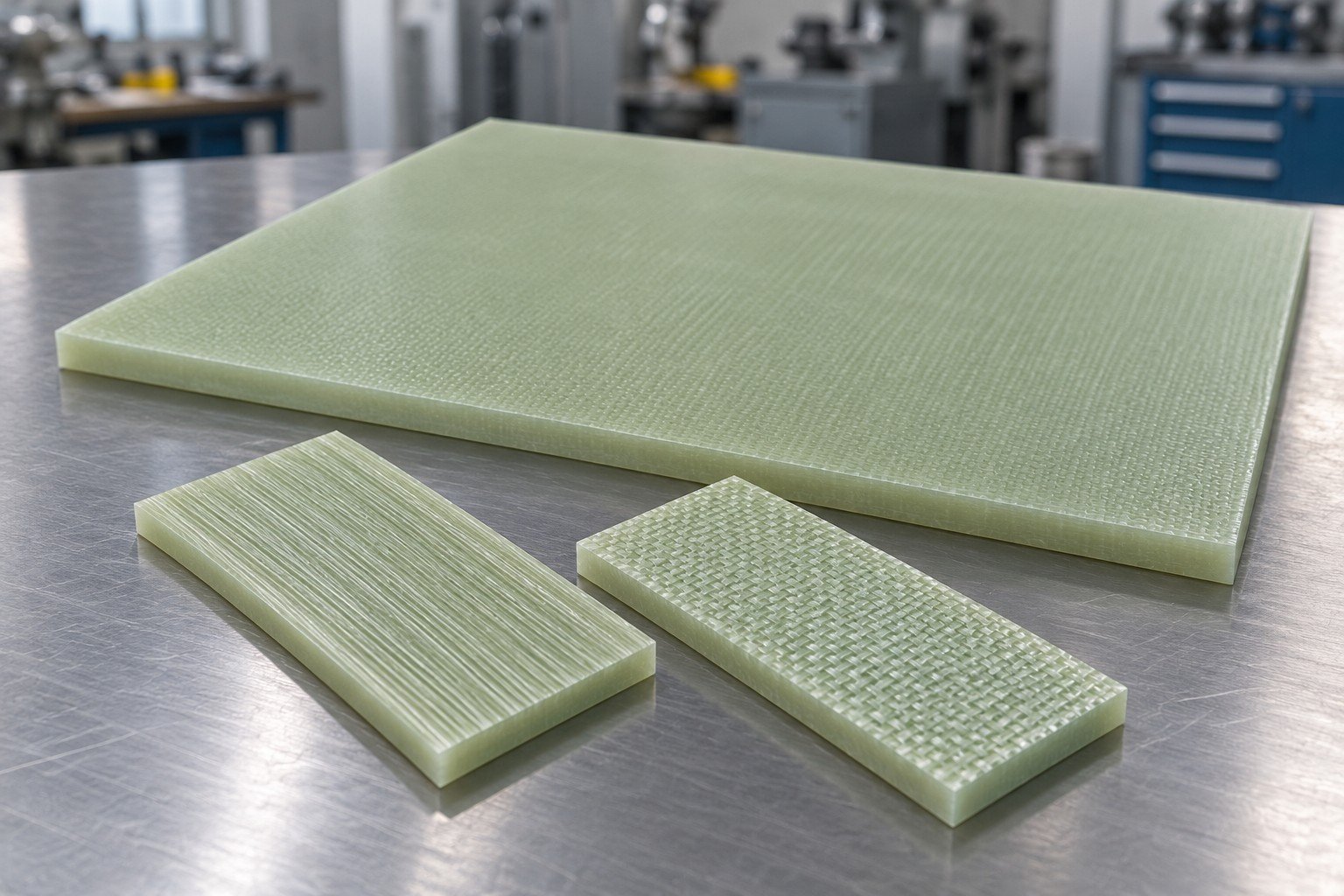

Fabric & direction for Your Finished Part
How should glass fabric orientation be specified for G10 parts? Define sheet directions, part axes and critical load or inspection directions on the drawing. Retain orientation through blank preparation, machining and inspection.

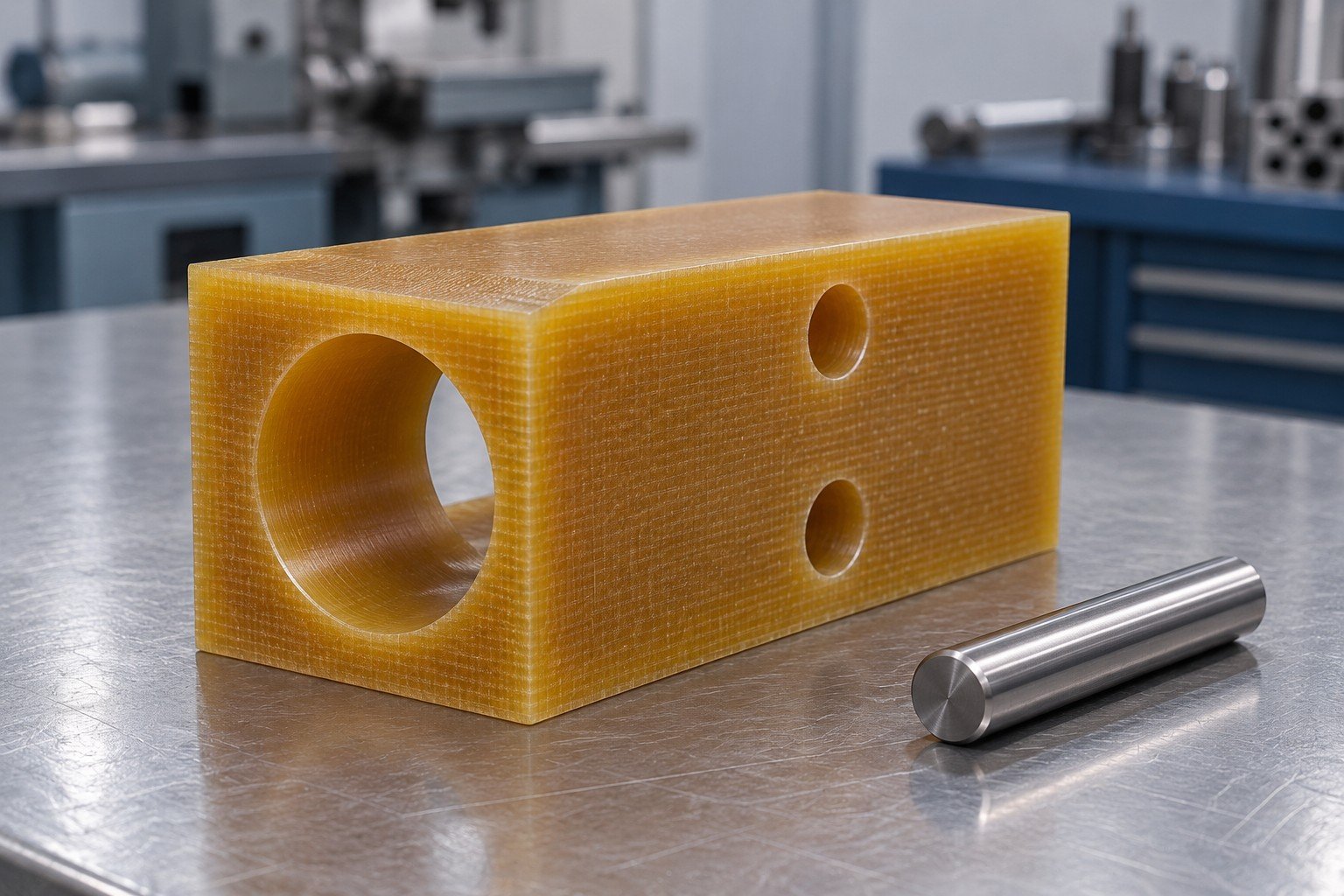

Deep holes & location for Your Finished Part
What causes deep holes to wander in G10 laminates? Review the actual material structure, hole depth and diameter, support, tool condition, access and setup. Agree entry, exit and positional inspection rather than a generic tolerance promise.
Edges & breakout for Your Finished Part
How should FR4 edge breakout be inspected? Define the permitted chip, delamination and exposed-fiber condition at each edge and hole, with an agreed visual method or sample. Keep sacrificial coupon appearance separate from accepted part evidence.

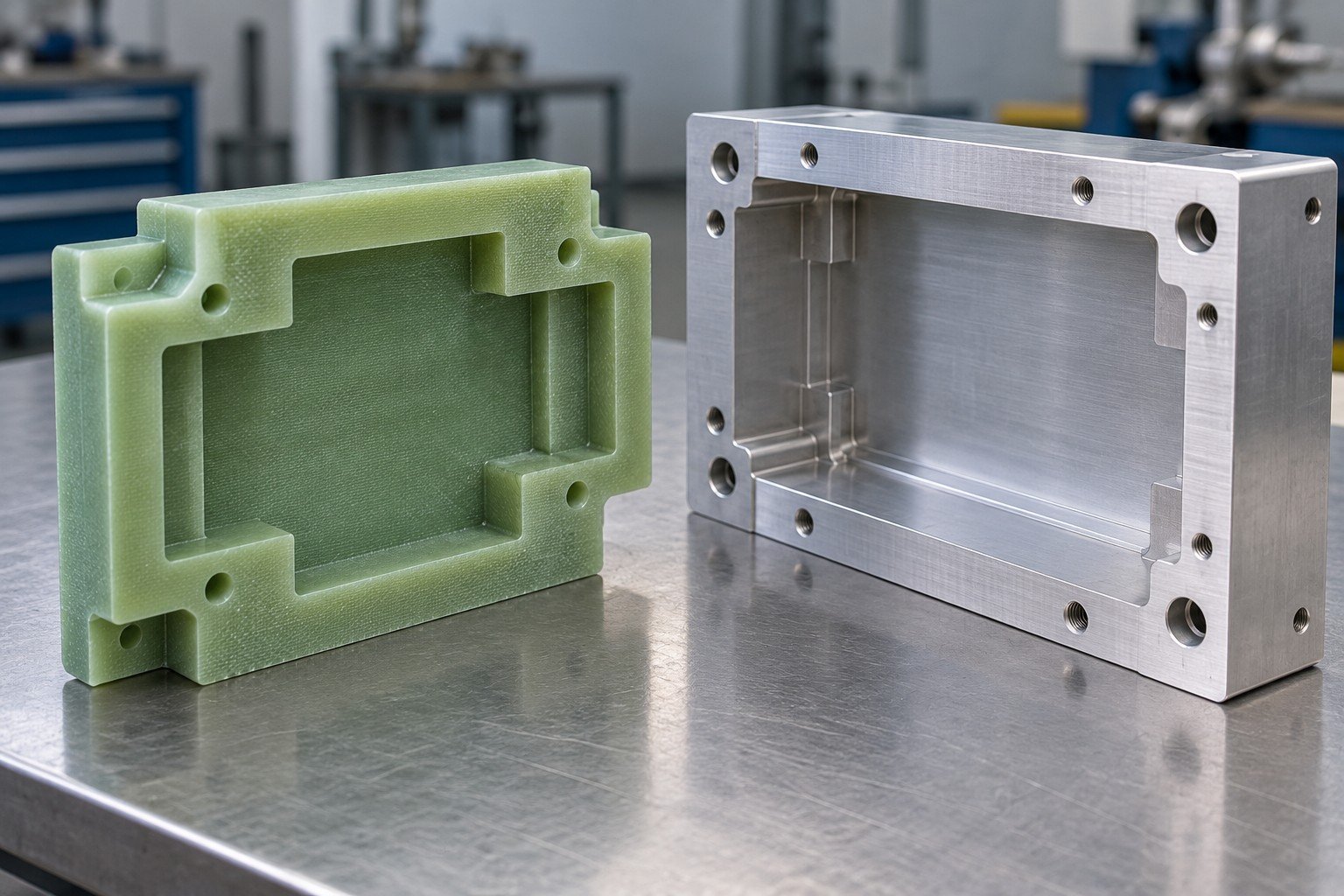

Fit & dimensional state for Your Finished Part
Agree FR4 machining tolerances from the controlled drawing, laminate form, thickness and critical geometry. Review G10 dimensional stability with temperature, moisture, orientation and measurement state; no universal close-tolerance claim is applied.

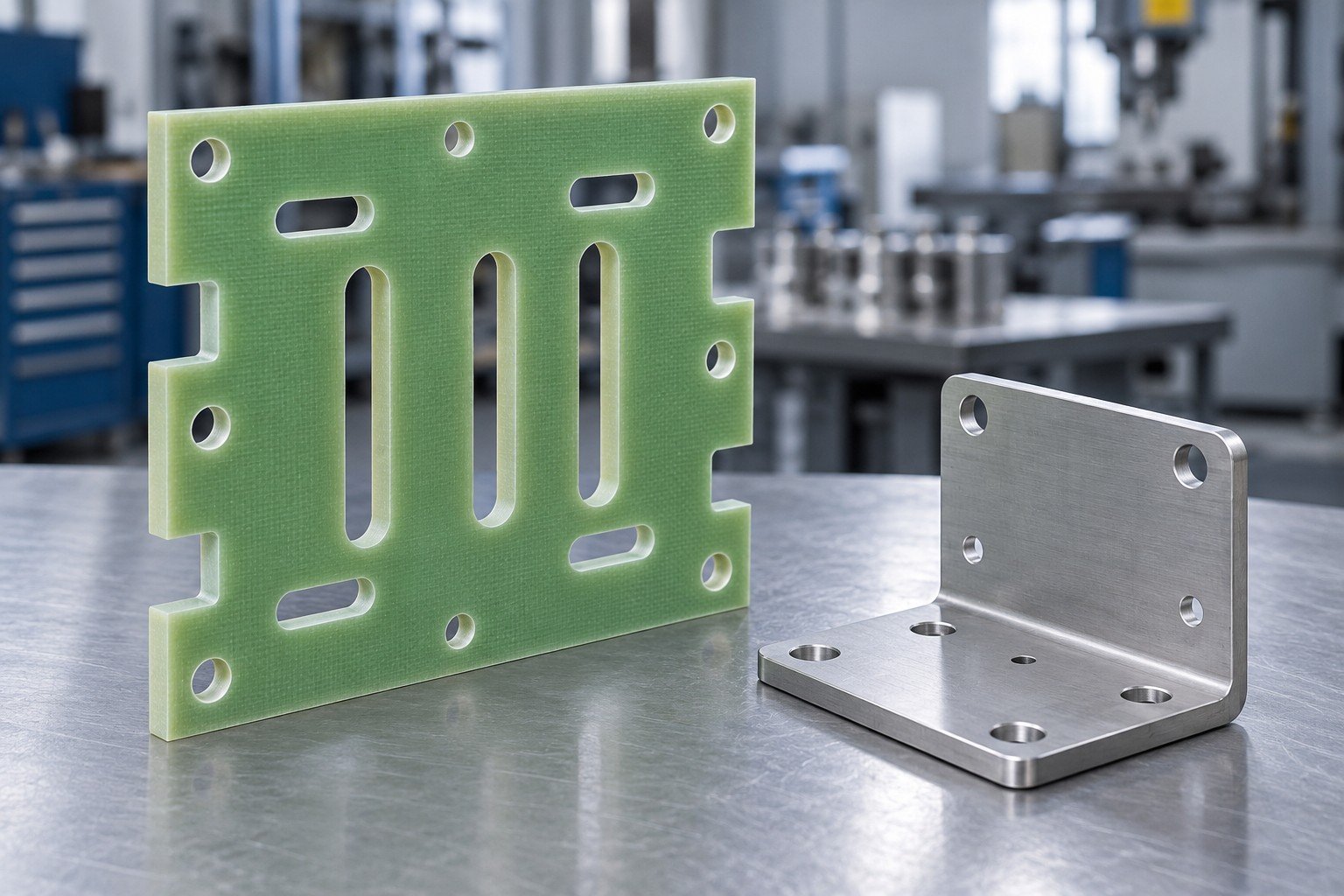

Insulation & product evidence for Your Finished Part
Retain required flame and electrical properties for the exact material, thickness, test conditions and assembly. Do not transfer a supplier coupon value or PCB designation into a blanket finished-component approval.
Final fit & traceability for Your Finished Part
For G10 material certification, agree producer, complete product, standard, thickness, direction, lot and stock records. Keep laminate documents, dimensional inspection and agreed assembly or functional tests separate.
Match the Route to Your Laminate Part

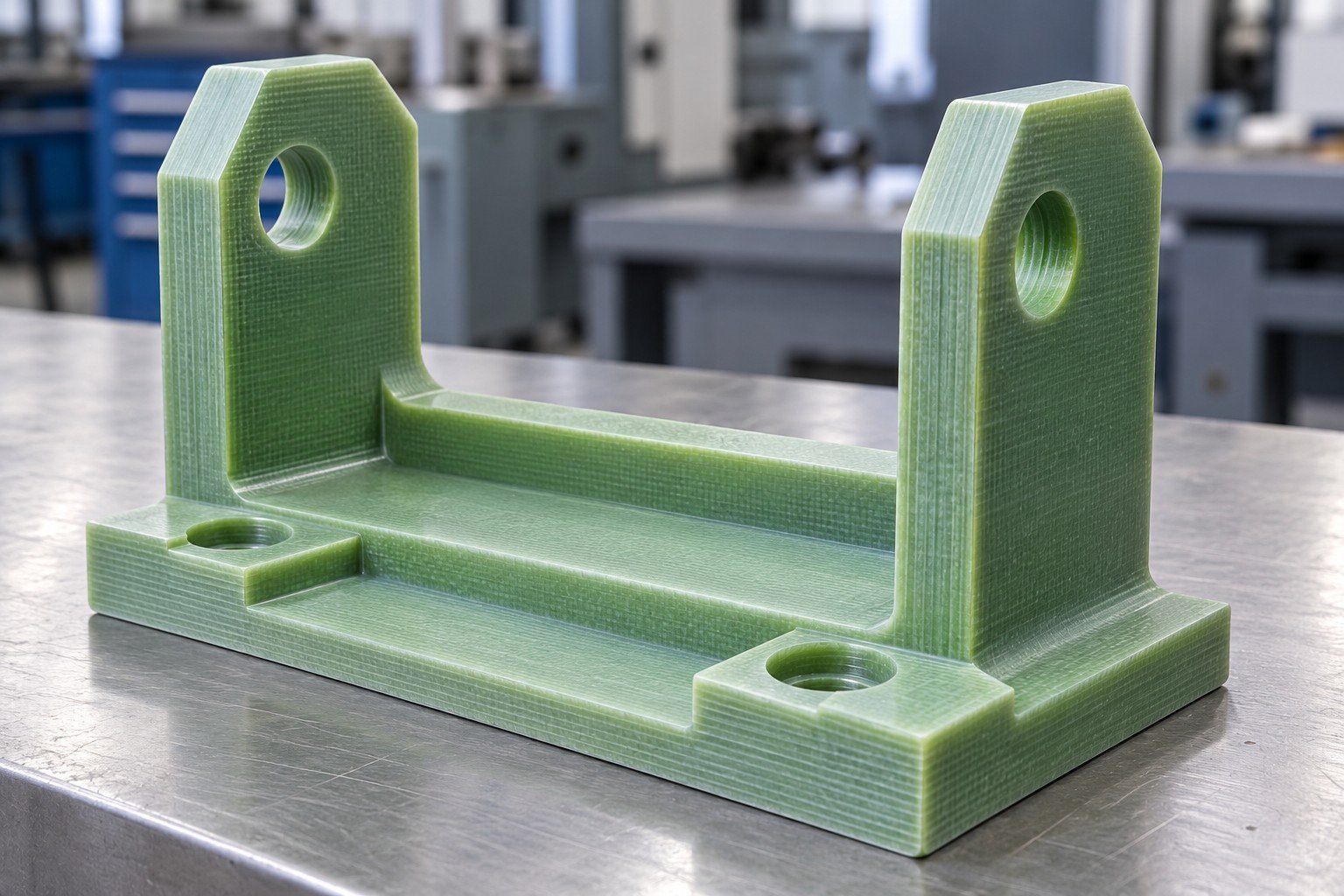

CNC Machining Review
For FR4 machining or G10 components, agree exact stock, axes, tooling scope, holes and final edge acceptance.
Review service →

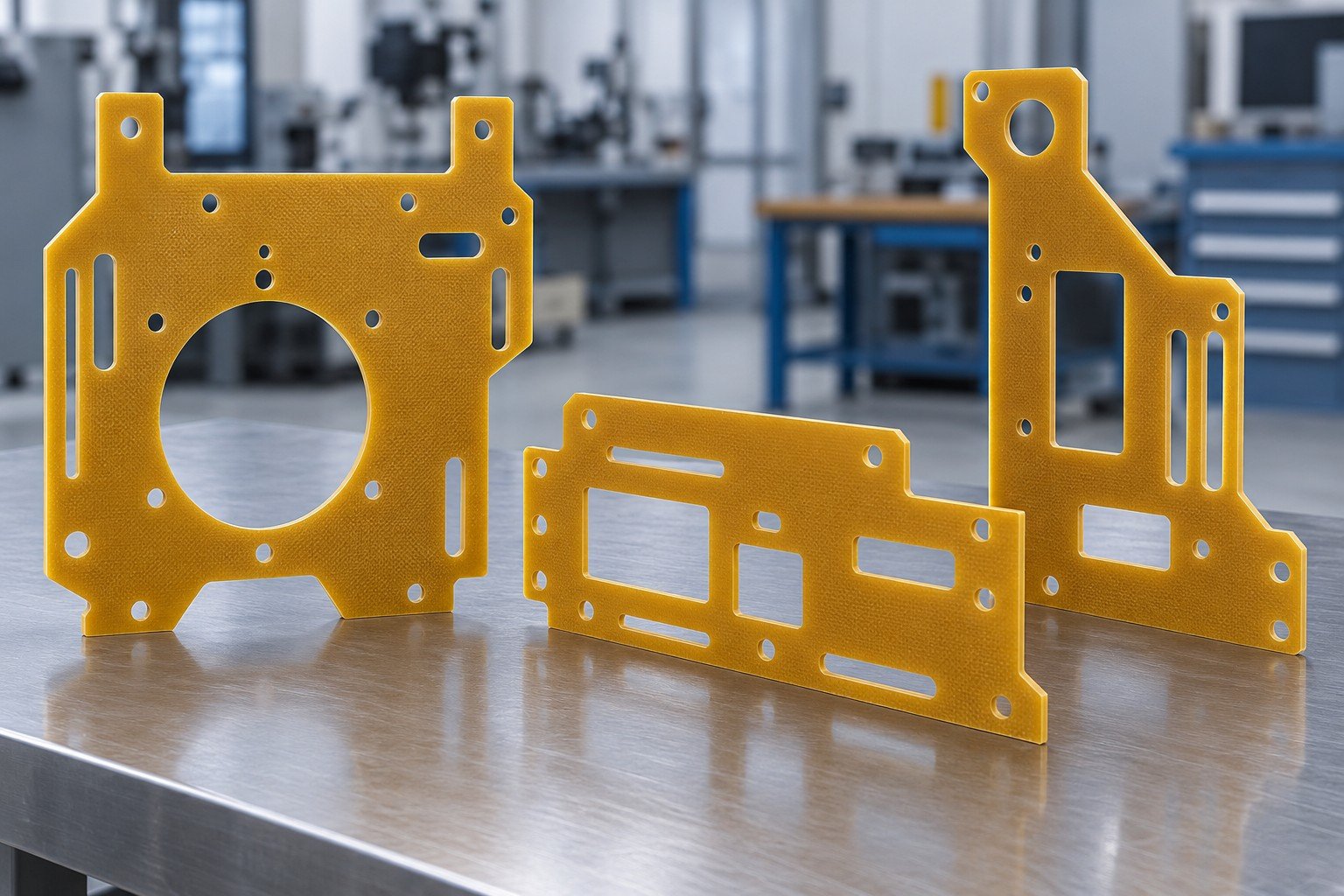

Profile and Panel Review
Agree material, thickness, profile, internal corners, slots and cut-edge evidence.
Review service ↓

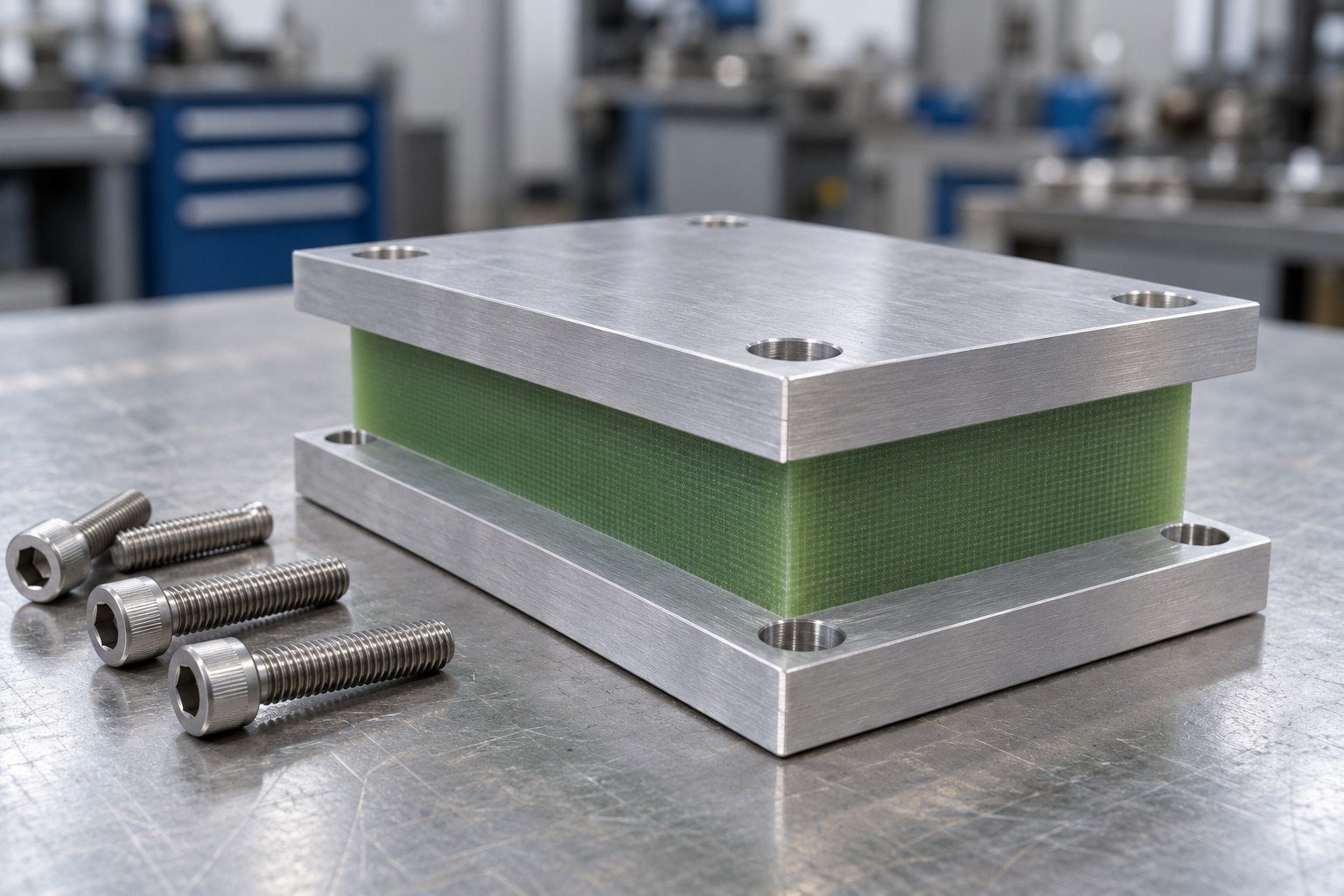

Fit and Assembly Review
Retain mating parts, fasteners, insulating interfaces and agreed fit or functional tests.
Review service →Manufacturing scope and exact stock availability require project confirmation.
Agree 3 Checks for Your Receiving Team
| Your check | Evidence to agree |
|---|---|
| 1 | Producer, complete laminate product, standard, stock form, thickness, fabric direction and lot. |
| 2 | Controlled drawing, critical dimensions, hole locations, flatness and agreed edge condition. |
| 3 | Approved sample, agreed G10 material certification and specified electrical, mechanical or assembly records. |
6 Inputs for Your G10 / FR4 Quote
- 01CAD + controlled drawing
- 02Full laminate + required standard
- 03Stock form + thickness + fabric direction
- 04Quantities + critical dimensions + interfaces
- 05Hole position + flatness + edge acceptance
- 06Material records + required tests + delivery
Material and blank · Machining · Edges · Quantity · Inspection · Delivery
Answers Before You Specify
What should a custom G10 or FR4 machining quote include?
Send CAD and controlled drawing, full laminate product and standard, stock form and thickness, fabric direction, quantities, critical dimensions, edge acceptance and required records. A G10 machining quote should cover the same stock and finished-part scope.
Can FR4 be substituted for G10 without approval?
Do not assume interchangeability. Compare exact product, required standard, resin system, flame requirements, thickness, direction and application evidence, then document any accepted material change.
How should glass fabric orientation be specified for G10 parts?
Show sheet directions relative to part axes and important loads or dimensions. Retain the orientation record through blank preparation, machining and inspection.
What causes deep holes to wander in G10 laminates?
Review material structure, depth, diameter, access, support, tool condition and setup together. Agree the actual positional requirement and measurement at entry and exit where needed.
How should FR4 edge breakout be inspected?
Specify permissible edge and hole condition, including chips, delamination and exposed fibers, with a repeatable inspection method or approved sample. Record final edge acceptance separately from stock certification.
Are PCB FR4 laminates equivalent to industrial insulating stock?
A PCB label alone does not document the full industrial stock specification. Confirm exact product, form, thickness, reinforcement, required standard and applicable flame, electrical and dimensional evidence.
Retain the Full Laminate and Stock Specification
| Reference | What it does and does not identify |
|---|---|
| G10 / G-10 | Retain the required grade standard and exact manufacturer laminate; do not assume FR4 substitution. |
| FR4 / FR-4 | Retain exact product and required flame/electrical evidence for the relevant thickness and condition. |
| Woven glass + epoxy | A reinforcement and resin description, not a complete grade, stock or part specification. |
| NORPLEX NP500A / NP510A | Different named supplier products associated with G10 and FR4 respectively; retain full documents and drawing approval. |
Retain the required standards and manufacturer records rather than inventing an EN/DIN equivalent or an automatic product substitution.
Product references: Norplex-Micarta and Acculam manufacturer information. Generated concepts illustrate geometry, not actual customer parts, certified materials or company records.
