Cooling Manifolds
for Your Ports, Branches & Assembly Interfaces
Build your coolant distribution review around the port schedule, branch layout and installed connections. Define flow requirements, coolant, sealing details, cleanliness and component acceptance before approving your liquid cooling manifold.

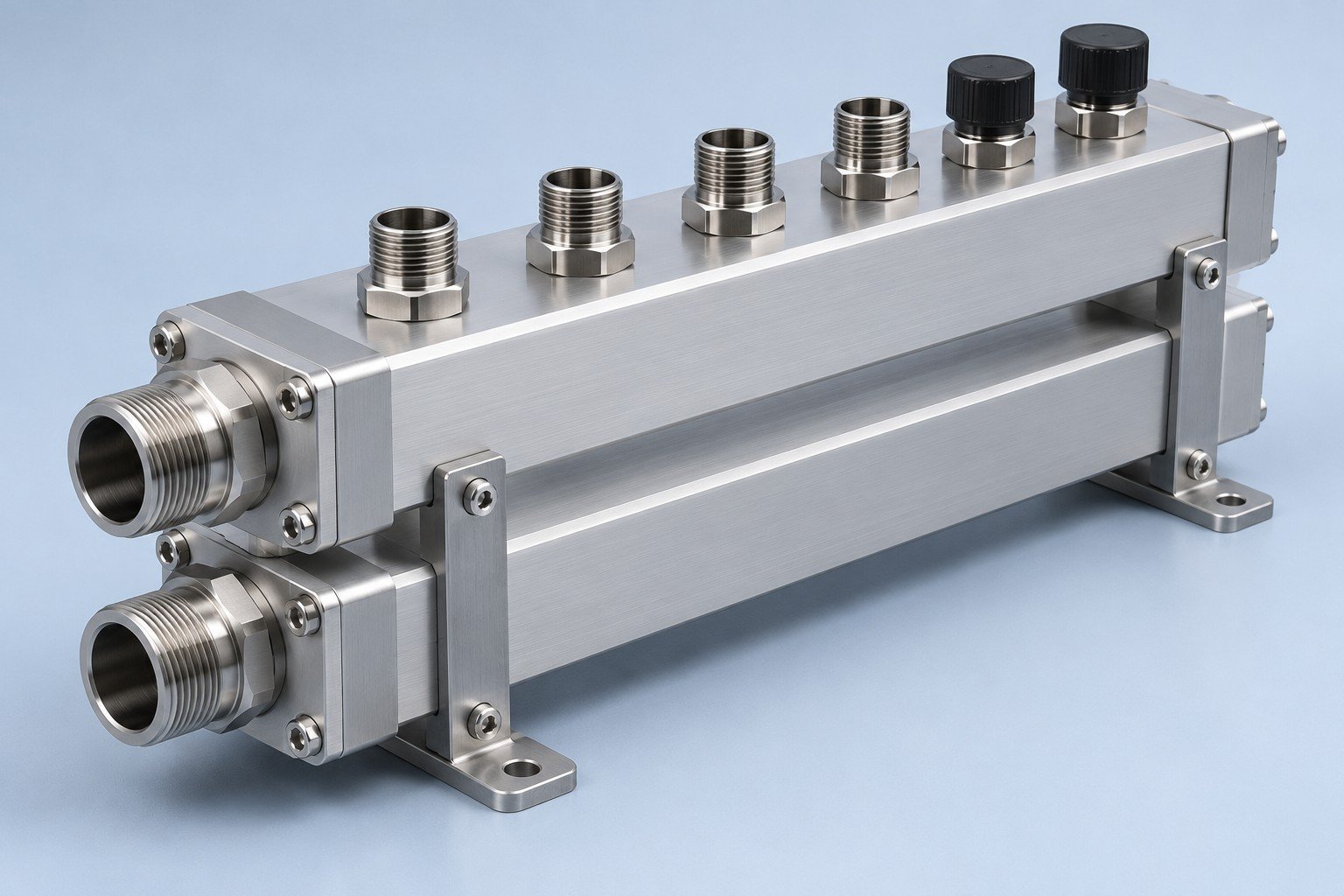

Illustrative component concept
Drawing
Critical geometry & interfaces
Materials
Grades, condition & compatibility
Connections
Defined route & final state
Evidence
Agreed methods & records
Start with Your Port and Distribution Requirements
Review port interfaces, branch targets, wetted materials and component acceptance together before releasing your coolant manifold.
- Define every port and mating seal
- Set branch flow and pressure-loss requirements
- Review coolant and all wetted materials
- Separate leak, proof and flow checks
- Confirm the sample and acceptance evidence

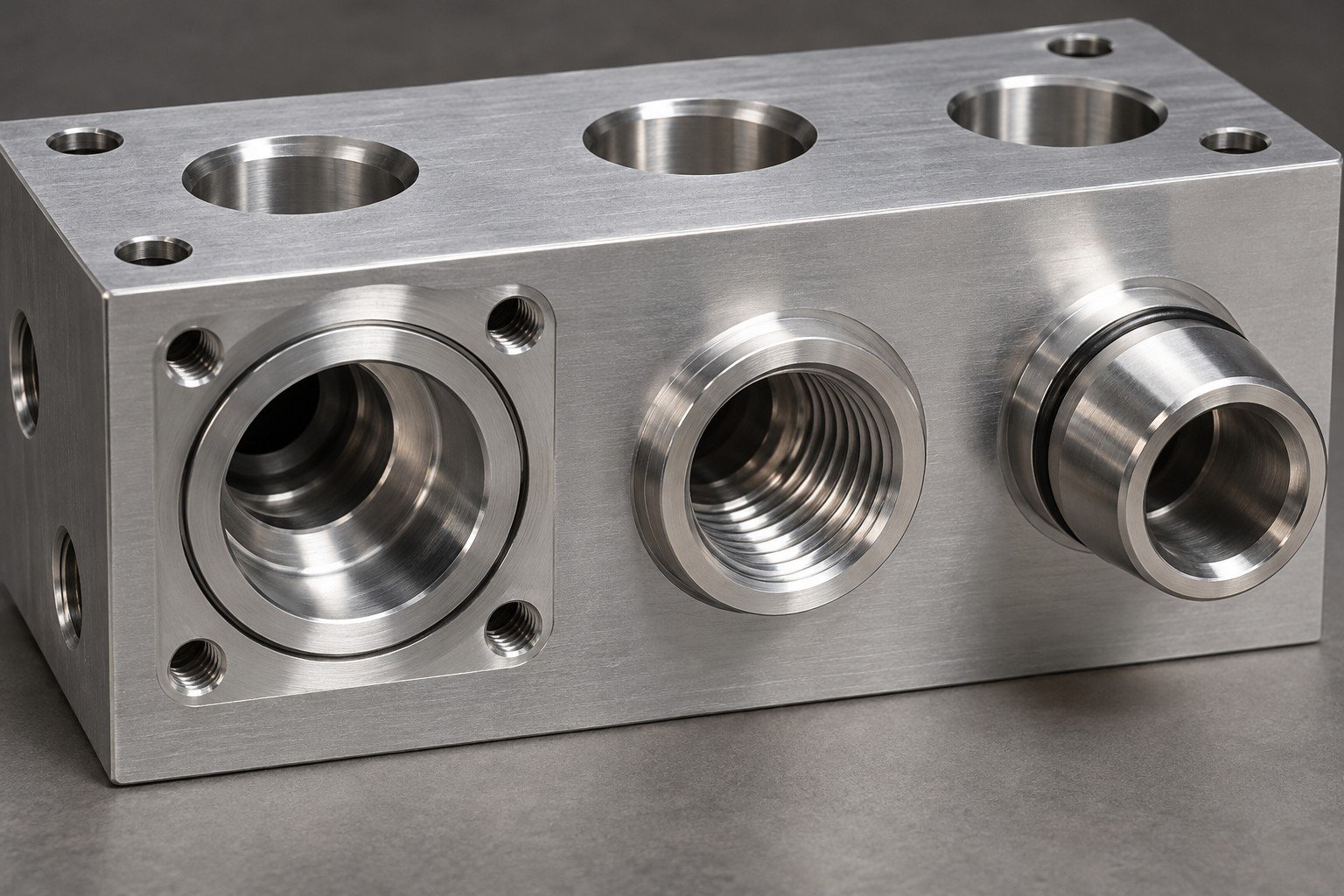

Port schedule
Define cooling manifold port threads, sealing form, port location, orientation and mating fittings in a controlled port schedule.

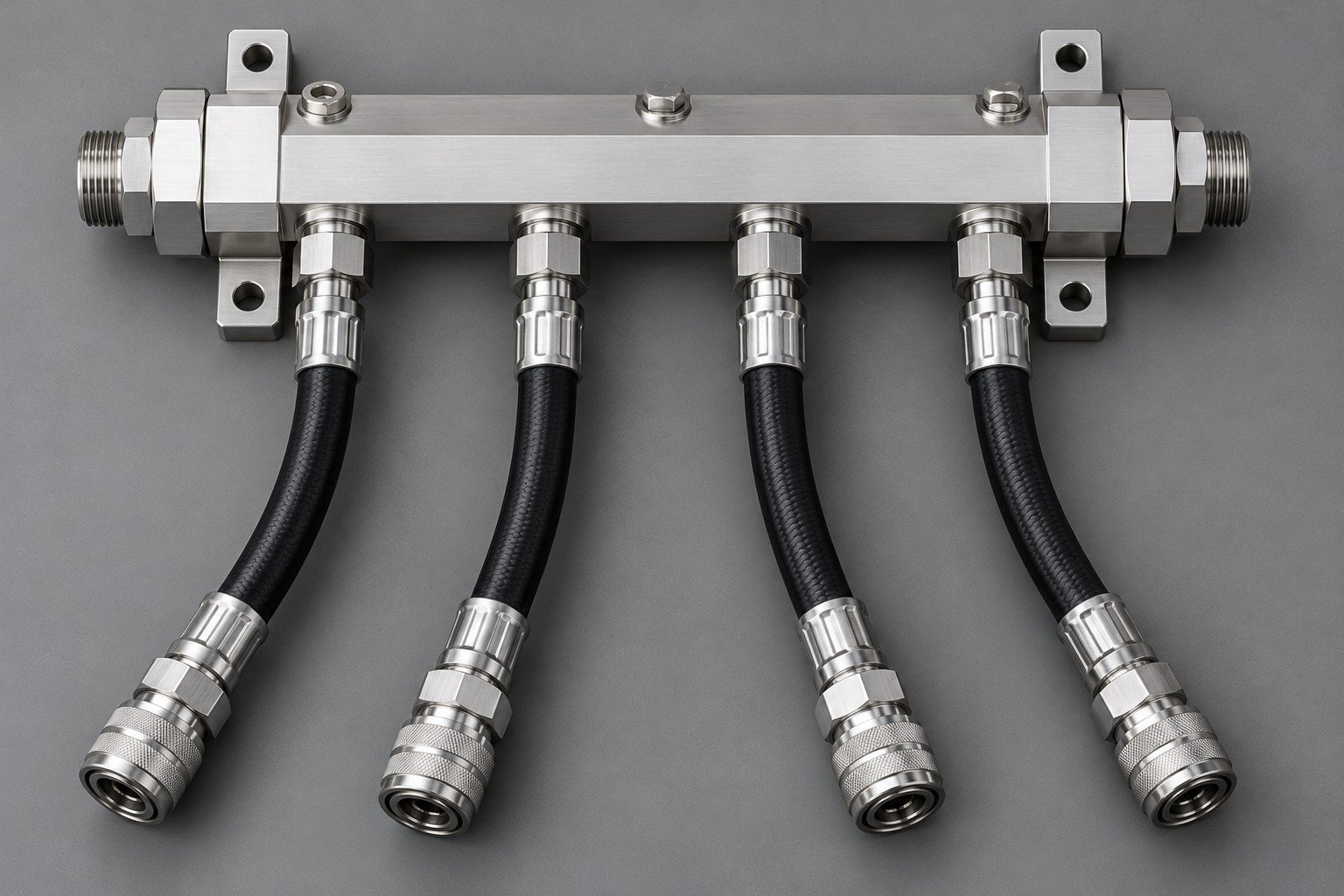

Branch requirements
Set branch flow targets and allowable pressure loss with the actual connected loads; define the basis for cooling manifold flow balancing.

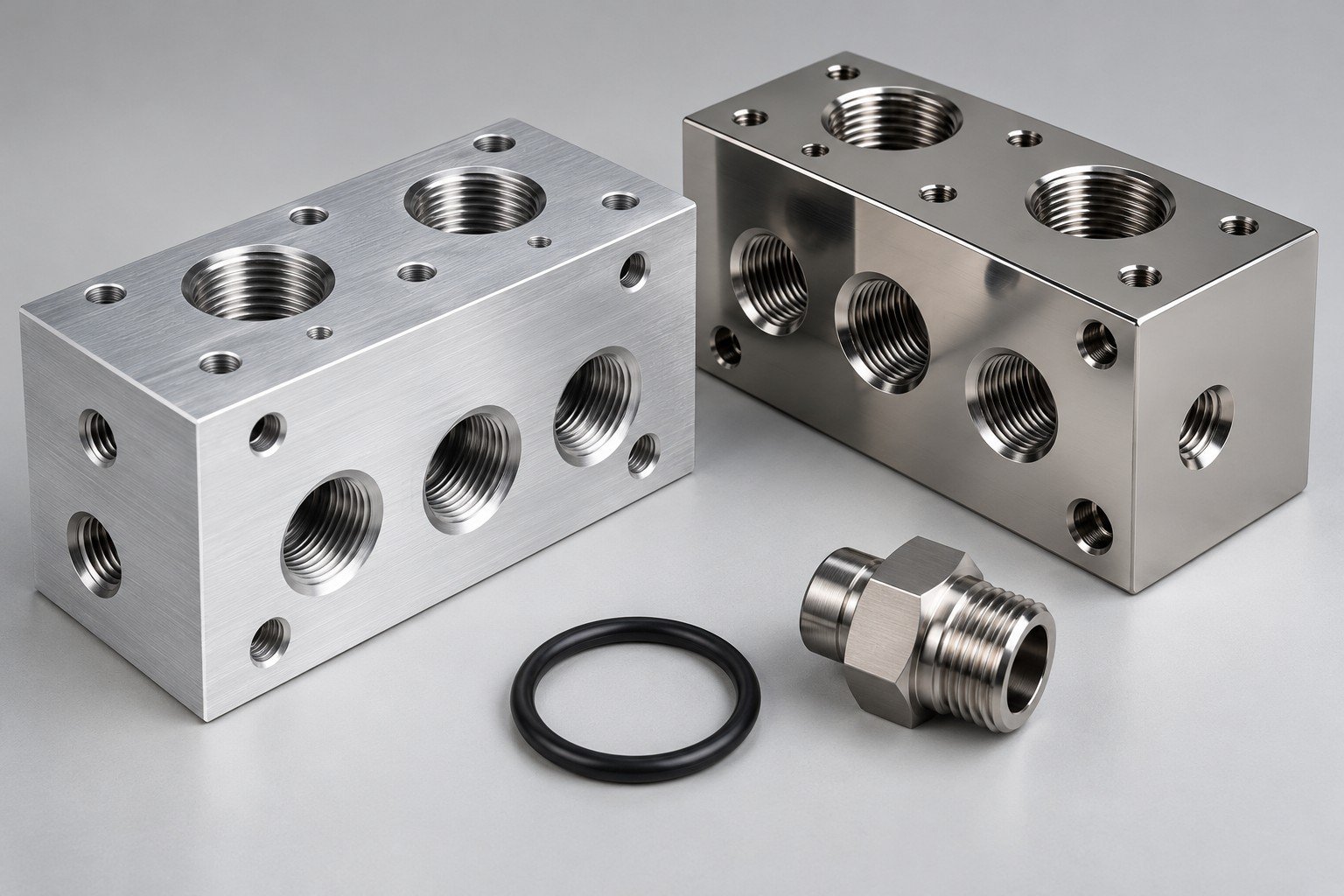

Coolant and materials
Review cooling manifold coolant compatibility across every wetted material, seal, fitting and cleaning residue in your loop.

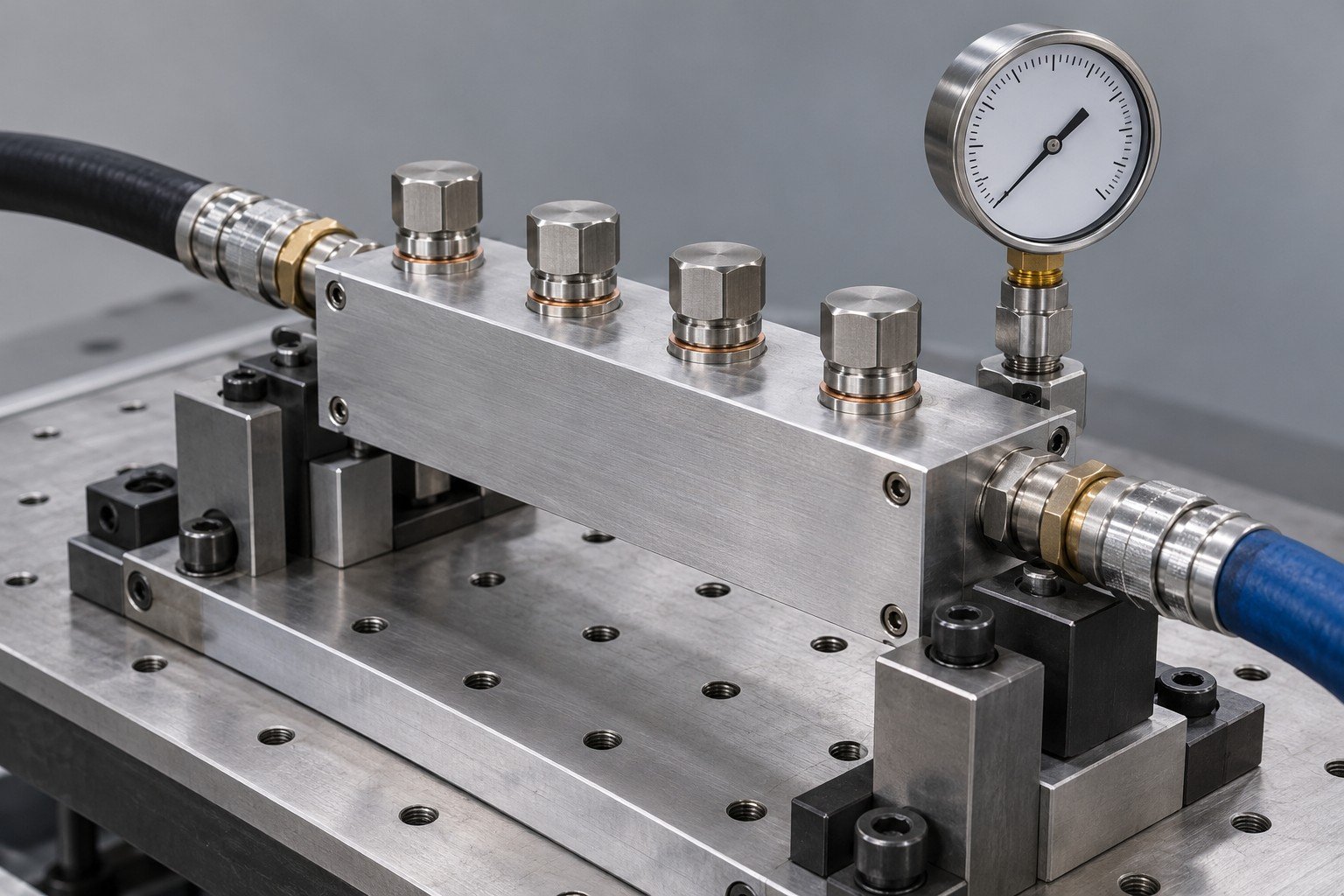

Acceptance boundary
Separate cooling manifold leak testing, cooling manifold pressure testing, dimensional checks and any agreed branch-flow evidence.
Illustrative engineering concepts
Compare 4 Route Decisions for Your Geometry
Review construction and acceptance together. Your drawing and operating conditions determine the feasible route; the images illustrate structures, not confirmed manufacturing or test capability.

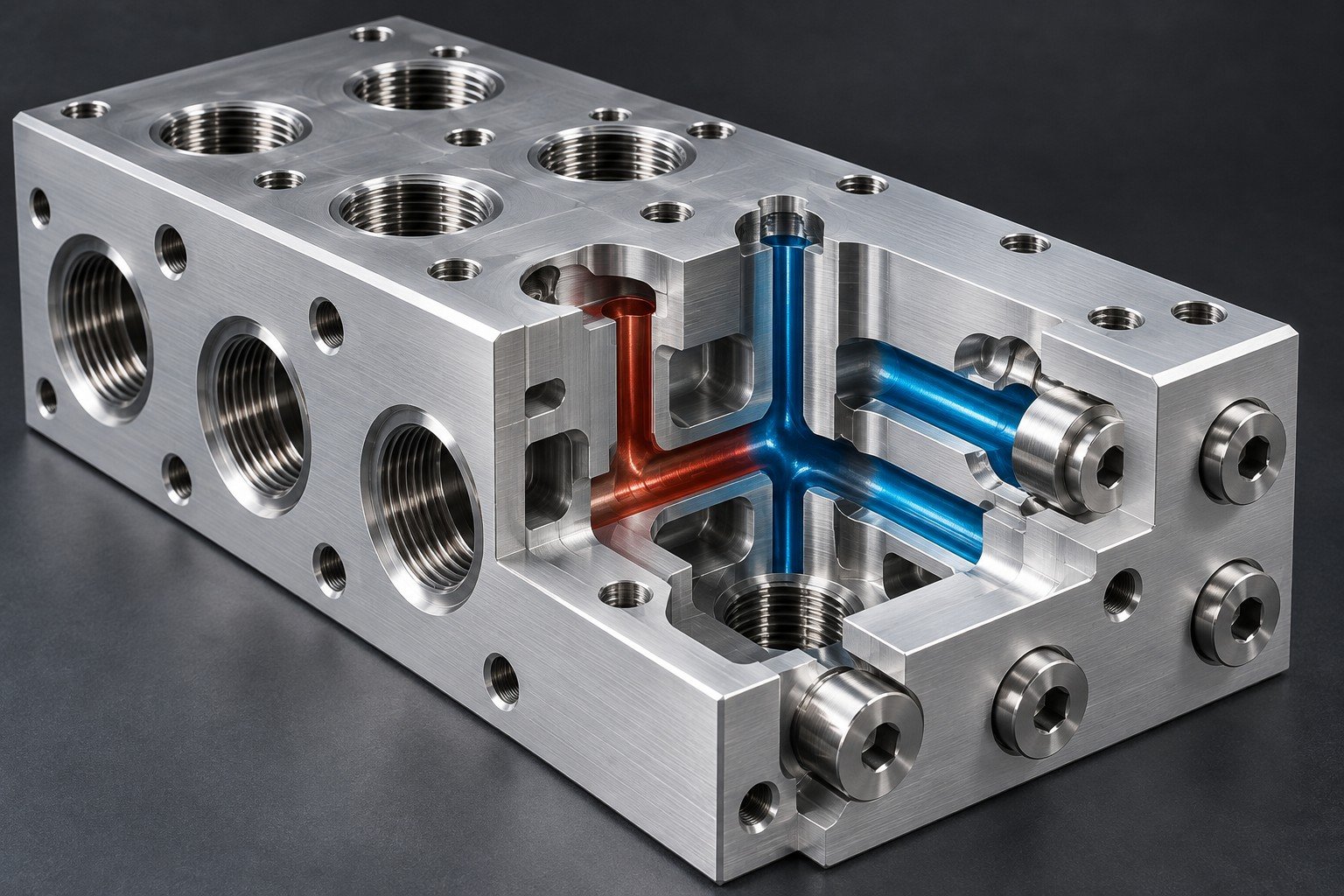

Machined Distribution Block
Review drilled passages, port access and closure details.
Review route requirements →

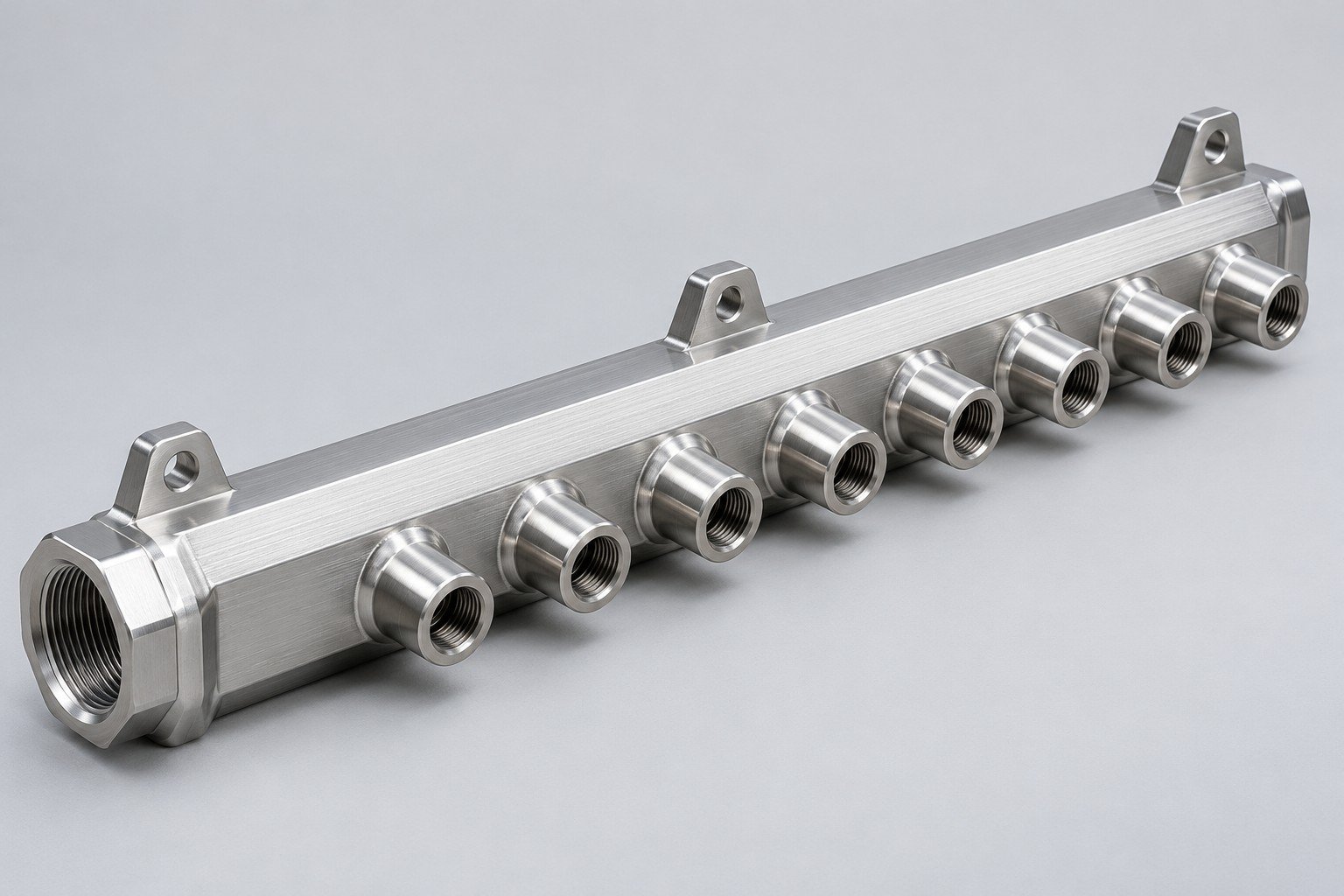

Distribution Header
Review inlet size, branch layout and mounting envelope.
Review route requirements →

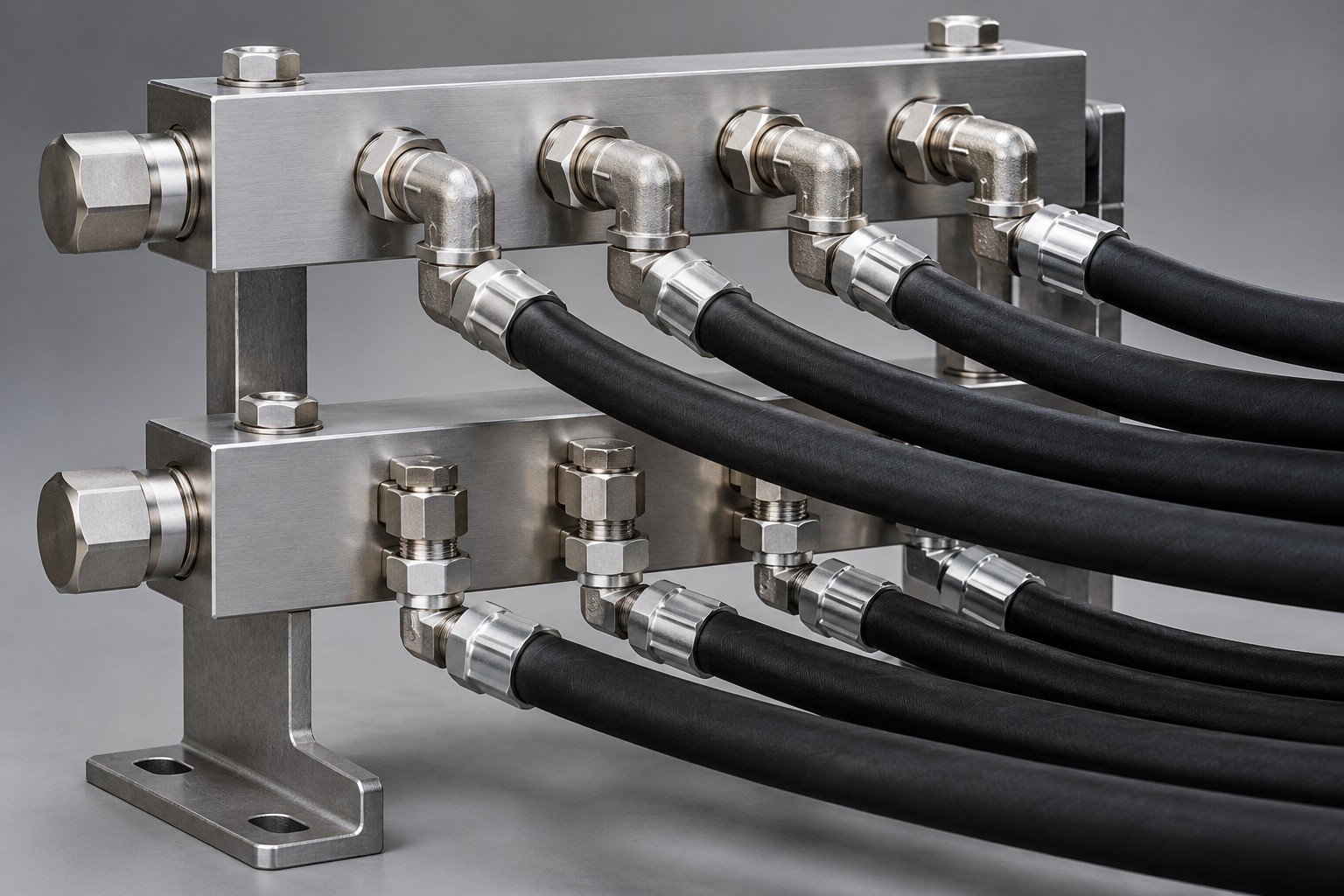

Connected Manifold Assembly
Define the supplied fittings, seals, hoses and assembly boundary.
Review route requirements →

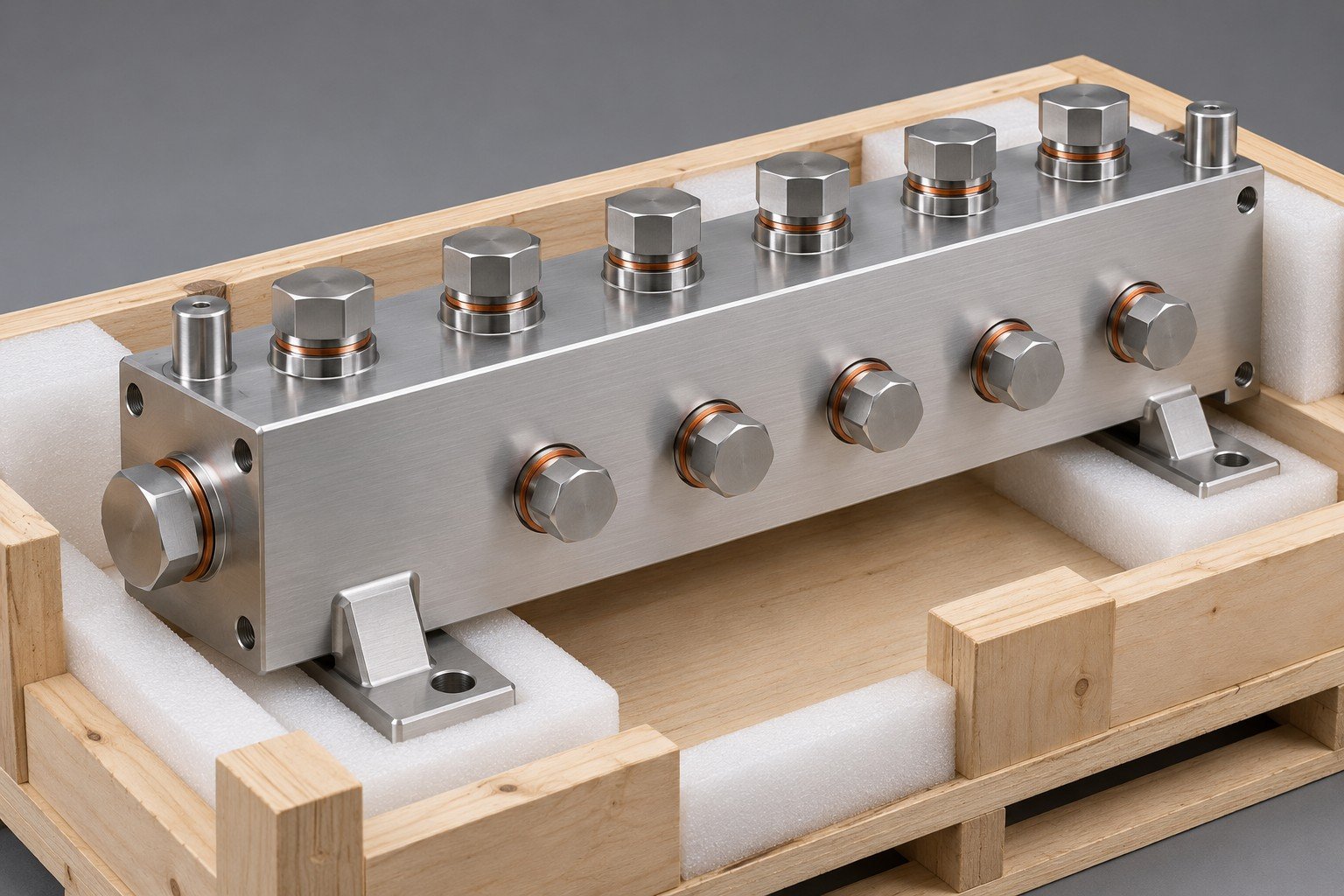

Your Released Component
Record the final port schedule, cleanliness and acceptance evidence.
Review route requirements →Illustrative engineering concepts
Plan Your Distribution Path Around Your Assembly
PORT MAP & BRANCH TARGETS↓PORT SCHEDULE & BRANCHES↓SAMPLE & AGREED CHECKS↓APPROVED FINISHED PART
A manifold connects the common supply or return to several branches. For cooling manifold CNC machining, review internal passages, cross-drill closures, port access and the final cleaning route together. Equal-looking branches do not prove equal flow; your system resistance and operating conditions determine the required distribution.
- Identify every wetted material and installed connection.
- Review your critical interfaces in their final production state.
- Agree sample evidence before repeat-order release.
Distribution background: Eaton rack-manifold overview →. General system context does not establish LK MFG component qualification or test capability.
Compare Your Wetted Material References
Choose material with your coolant, connected metals, seals, mass and manufacturing route in view. These stock references do not establish corrosion compatibility, a pressure rating or manifold flow performance.
Thermal conductivity reference
A header distributes coolant; higher bulk conductivity alone does not make its branches more balanced.
Density reference
Estimate mass using your finished volume. Confirm exact grade, product specification and required condition with the purchasing documents.
| Grade / European reference | Si | Fe | Cu | Mn | Mg | Zn | Al |
|---|---|---|---|---|---|---|---|
| 6061 · EN AW-6061 · AlMg1SiCu | 0.40–0.80 | ≤0.70 | 0.15–0.40 | ≤0.15 | 0.80–1.20 | ≤0.25 | Balance |
6061 additional selected limits: Cr 0.04–0.35%, Ti ≤0.15%; other elements ≤0.05% each / ≤0.15% total. Hydro reference, not a finished manifold certificate.
| Reference grade | European identifier | UNS | C | Cr | Ni | Mo |
|---|---|---|---|---|---|---|
| 304 | EN 1.4301 | S30400 | 0.04 | 18.1 | 8.1 | — |
| 316L | EN 1.4404 | S31603 | 0.02 | 17.2 | 10.1 | 2.1 |
Outokumpu Core/Supra Table 1 typical composition and Table 7 physical references. Dash means not listed in the selected summary, not zero. European identifiers aid drawing review; substitutions and final purchasing limits require approval.
Sources: Hydro 6061 → · Outokumpu Core 304 → · Outokumpu Supra 316L →
3 Views for Your Distribution Review
Use stated inputs to define the distribution problem. These chosen examples are arithmetic, not measured manifold curves or validated flow balance.
1 · Branch target allocation
Chosen example: 6 + 8 + 10 = 24 L/min total target. Adding branch targets does not show that a real manifold or pump will deliver them; confirm the complete circuit and operating point.
2 · Pressure-loss allowance
Chosen subtraction example only. Define available differential pressure and the losses reserved for connected equipment before allocating a manifold allowance. These are not component pressure ratings.
3 · Define your test boundary
INLET + COMMON PASSAGE↓BRANCHES + INSTALLED FITTINGS↓CONNECTED LOADS + RETURN
Separate body leakage, installed-connection leakage, pressure proof, internal cleanliness and branch-flow measurements. No single check establishes all five.

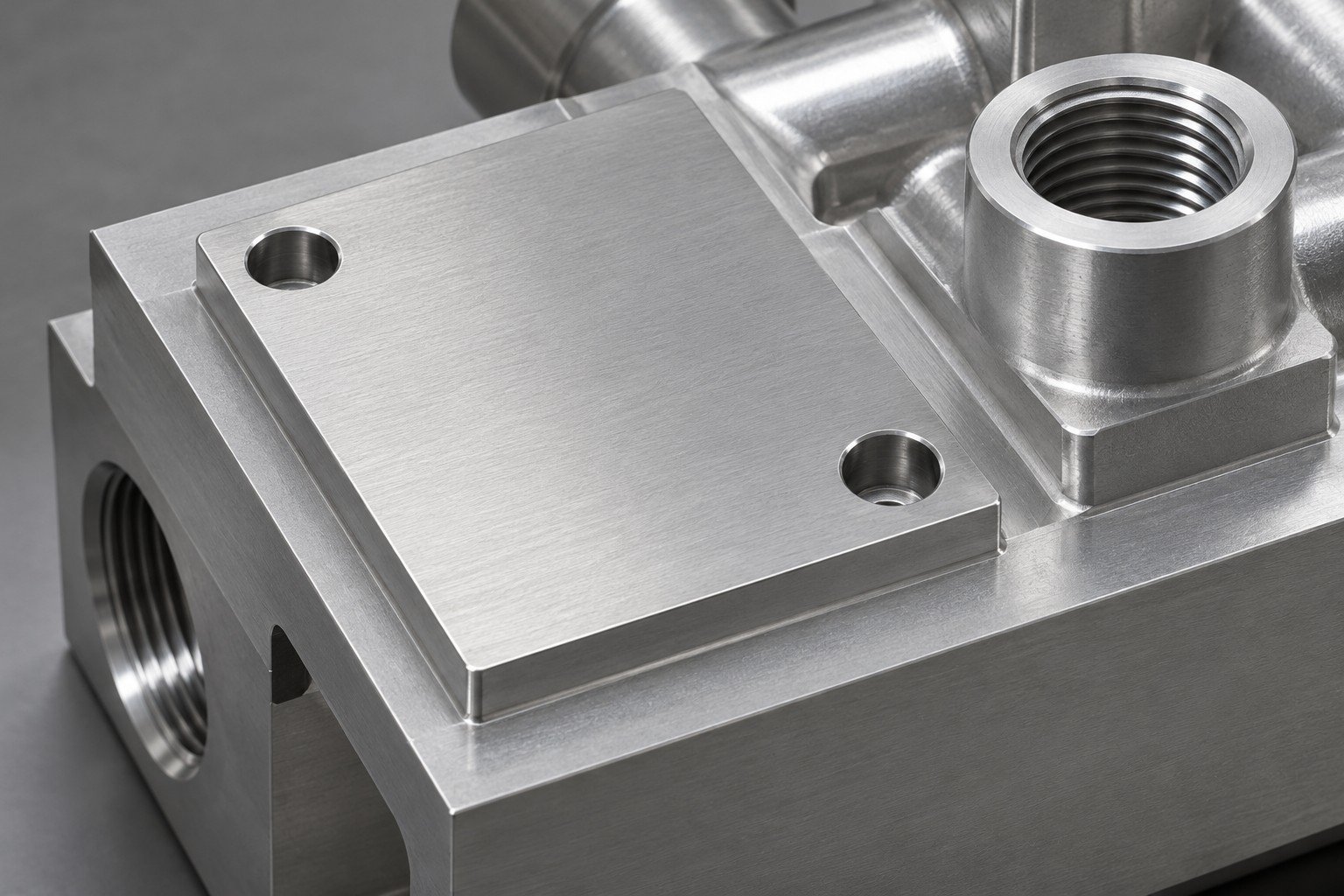

Review Your Surface and Cleanliness Requirements
Separate your mounting faces, sealing interfaces and wetted passages. Confirm the specified final condition with the mating assembly.
Define the mounting area, datums and final inspection state.
Specify the finished thread, fitting engagement and agreed sealing surfaces.
Agree cleaning, residues, port protection and the evidence accessible after joining.
A finish is not a universal cooling improvement. Confirm its purpose, compatibility and inspection state. Review surface finishing options →
Illustrative engineering concepts
Define Your Functional Features
Put port locations, sealing dimensions, mounting datums and installed clearances on your drawing.
Illustrative passage and port concept
Mounting footprint
Bracket datums, mounting holes and installed clearance
Ports and seals
Thread designation, seal land and fitting engagement
Mounting datums
Hole pattern, datum scheme and tool access

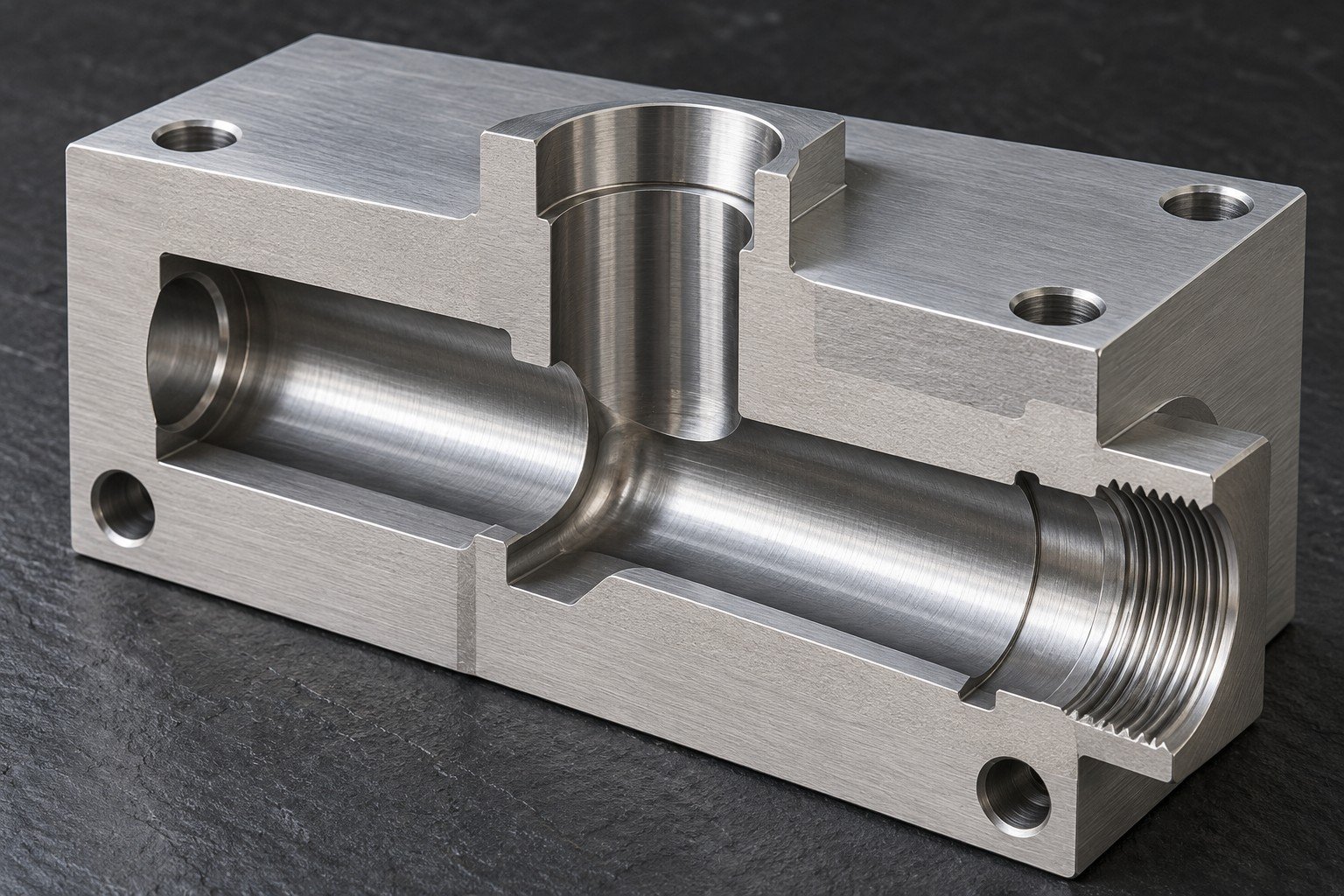

Bores and closures
Passage access, end plugs and cleaning scope

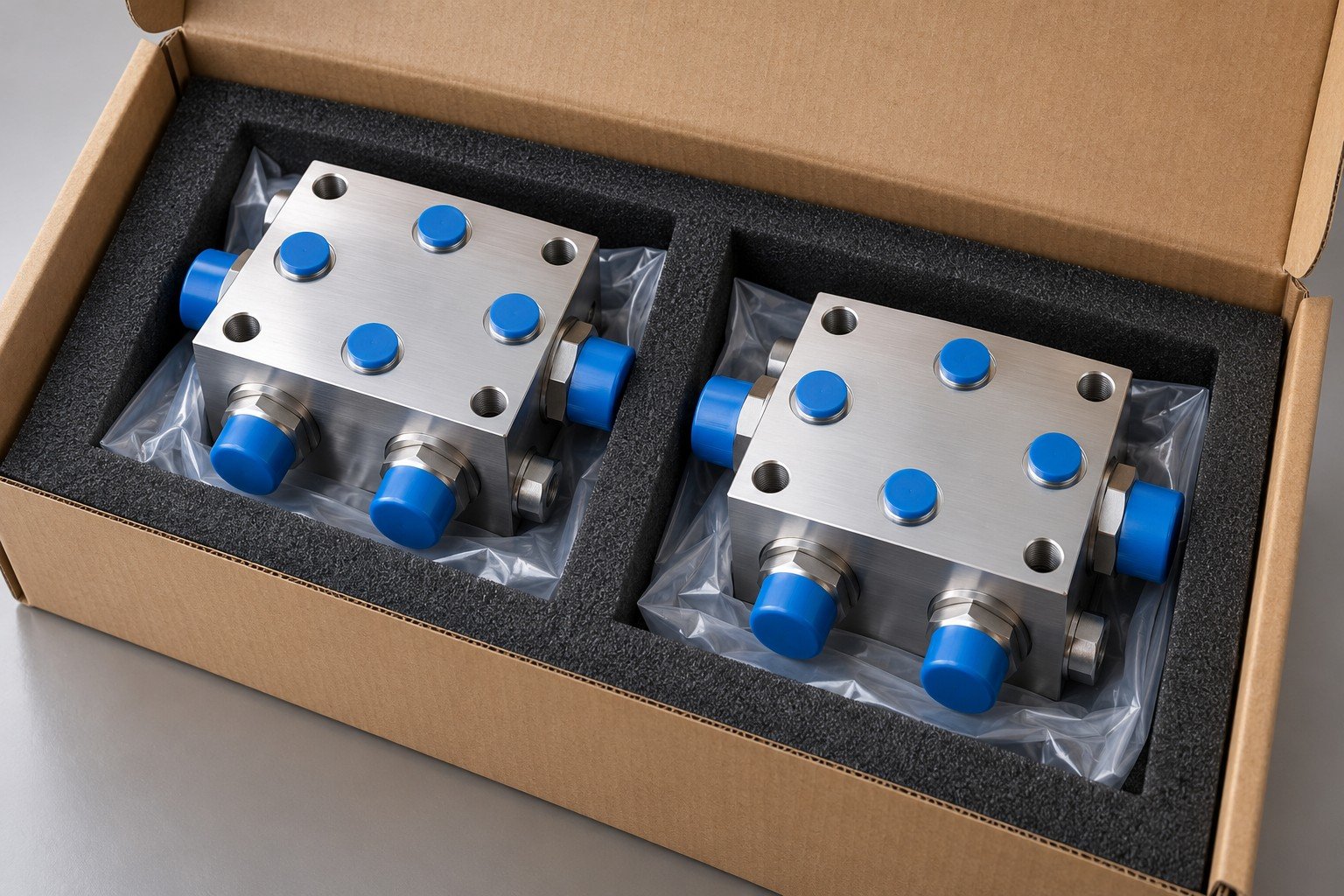

Final condition
Protected ports, masking and final inspection state
Resolve 6 Design Risks Before Your Order
Review your ports, branch requirements, wetted materials, closures and component evidence before production.

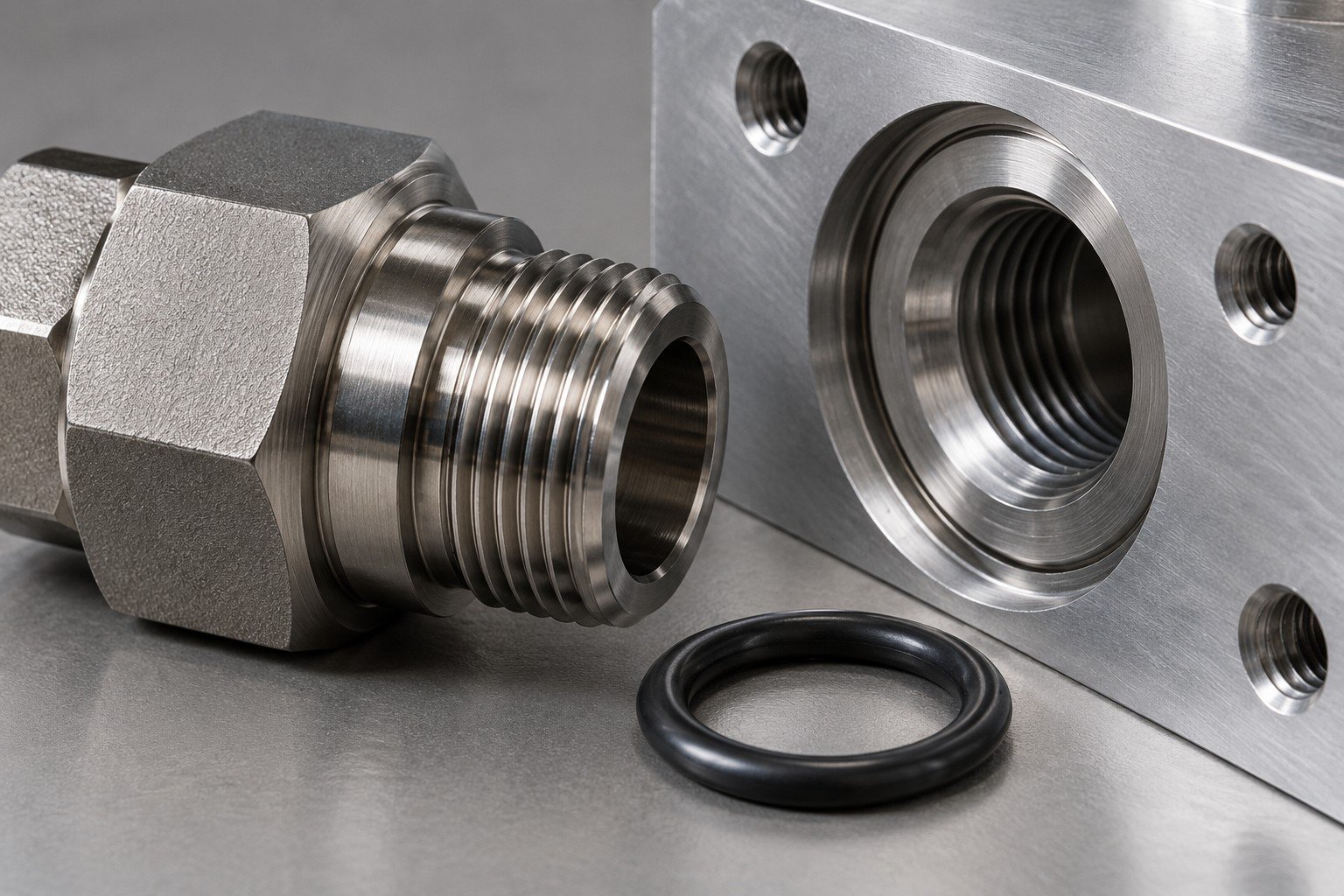

Port and seal mismatch
Thread size alone does not define a seal. Specify thread standard, taper or parallel form, sealing face, engagement and installed fitting clearance.
Your input
Controlled drawing and the relevant service conditions.
Your acceptance
Agreed method, inspection state, limits and required records.
Illustrative engineering concept

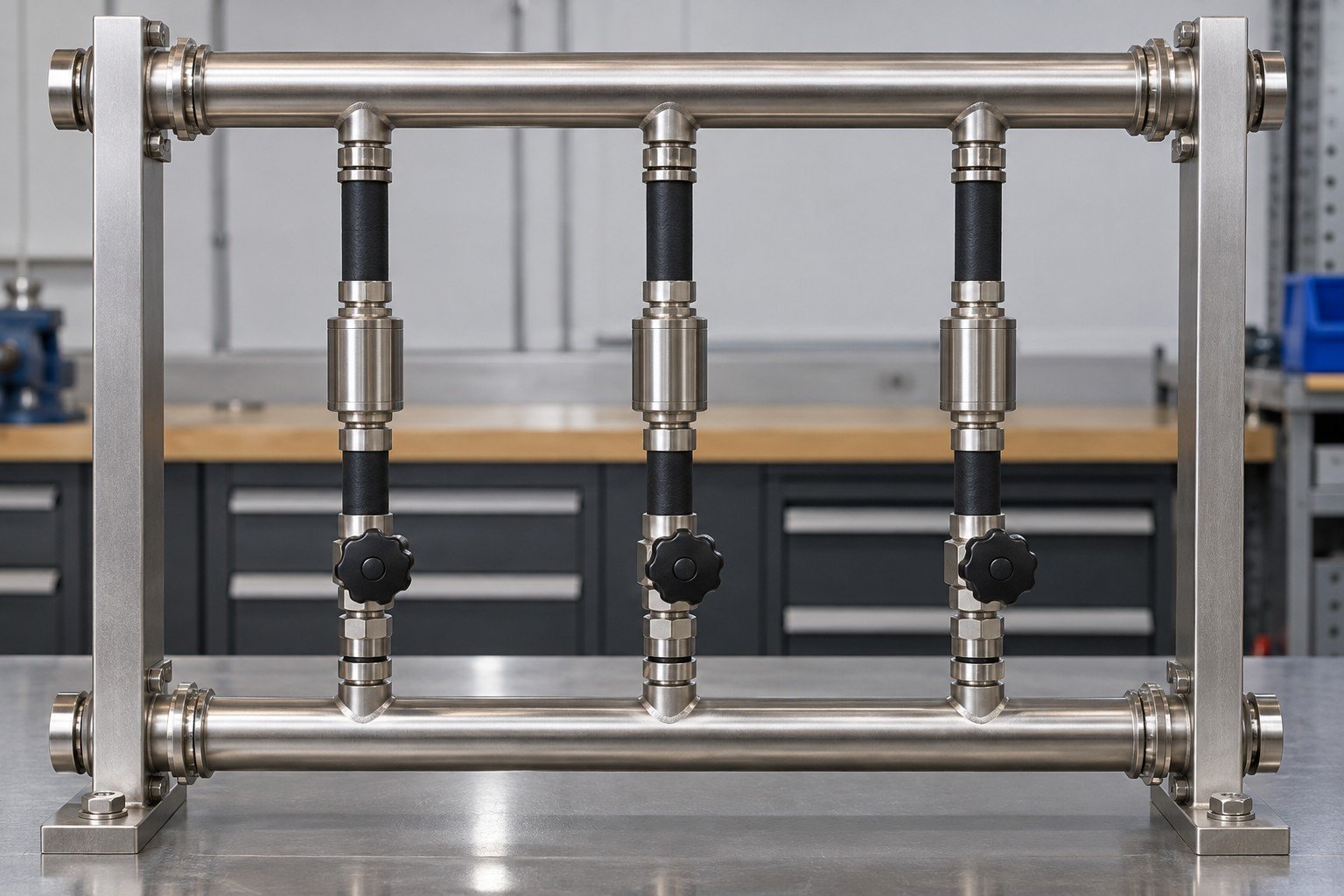

Branch distribution
For cooling manifold flow balancing, provide branch targets, connected component resistance, supply conditions and the intended operating range. A larger header or identical port spacing alone does not demonstrate balance.
Your input
Controlled drawing and the relevant service conditions.
Your acceptance
Agreed method, inspection state, limits and required records.
Illustrative engineering concept

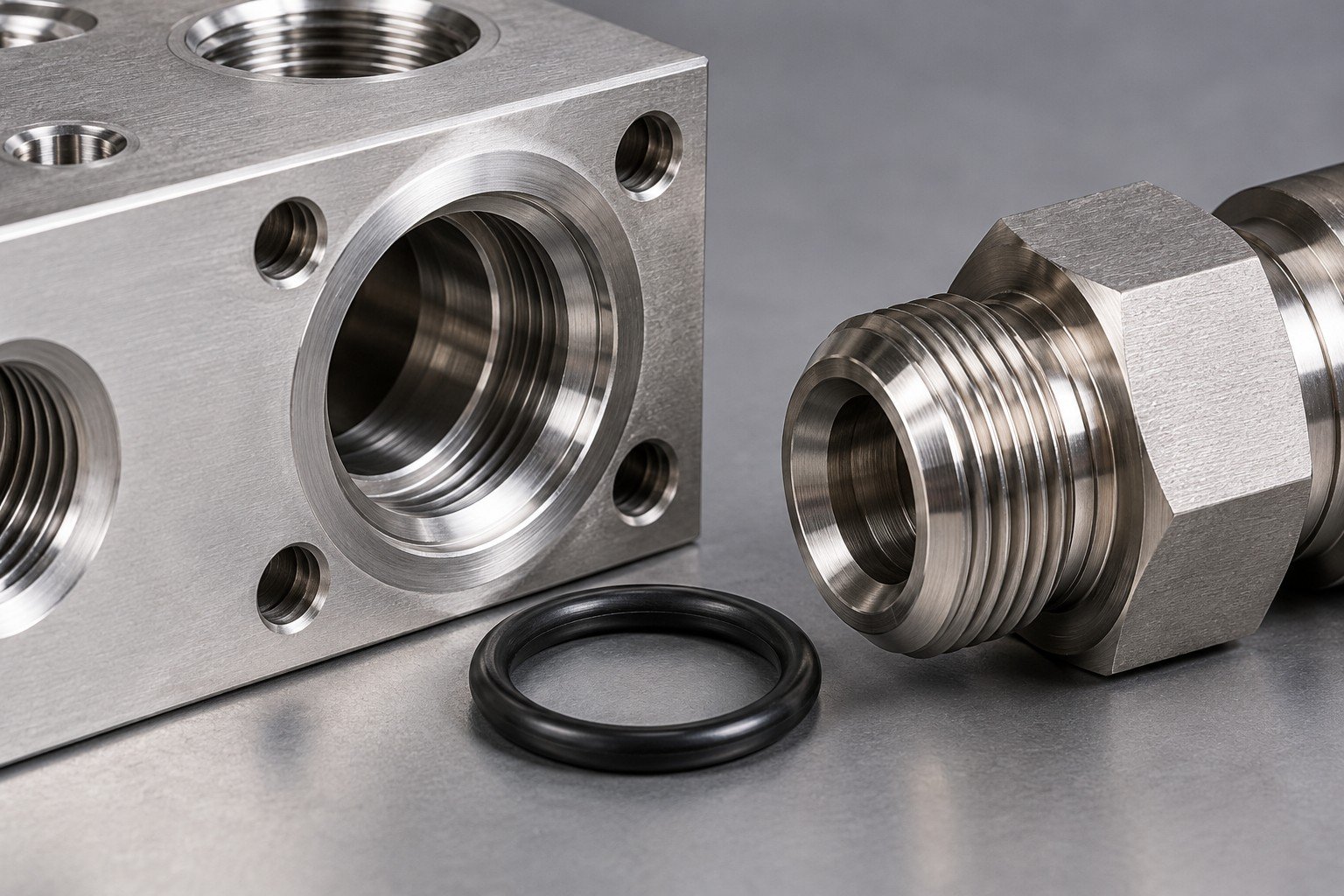

Wetted compatibility
An aluminum liquid cooling manifold and a stainless steel liquid cooling manifold need review against the complete coolant chemistry, temperature, dissimilar metals and seals. Confirm the specified grade and condition; a material label alone is not loop approval.
Your input
Controlled drawing and the relevant service conditions.
Your acceptance
Agreed method, inspection state, limits and required records.
Illustrative engineering concept

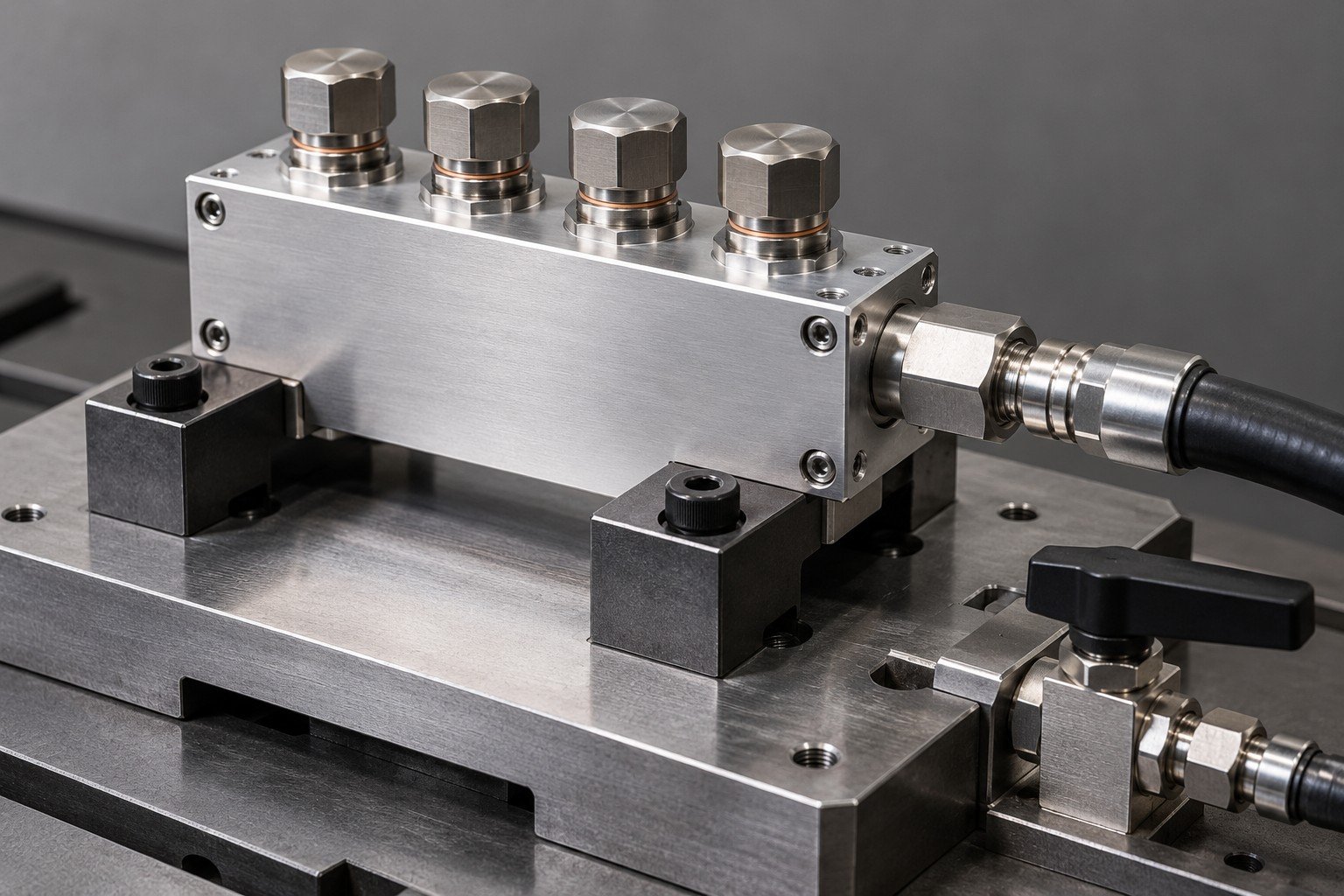

Leak boundary
For cooling manifold leak testing, define the method, medium, units, temperature, acceptance limit and whether fittings, plugs and seals are included. Fixture leakage must be distinguished from component leakage.
Your input
Controlled drawing and the relevant service conditions.
Your acceptance
Agreed method, inspection state, limits and required records.
Illustrative engineering concept

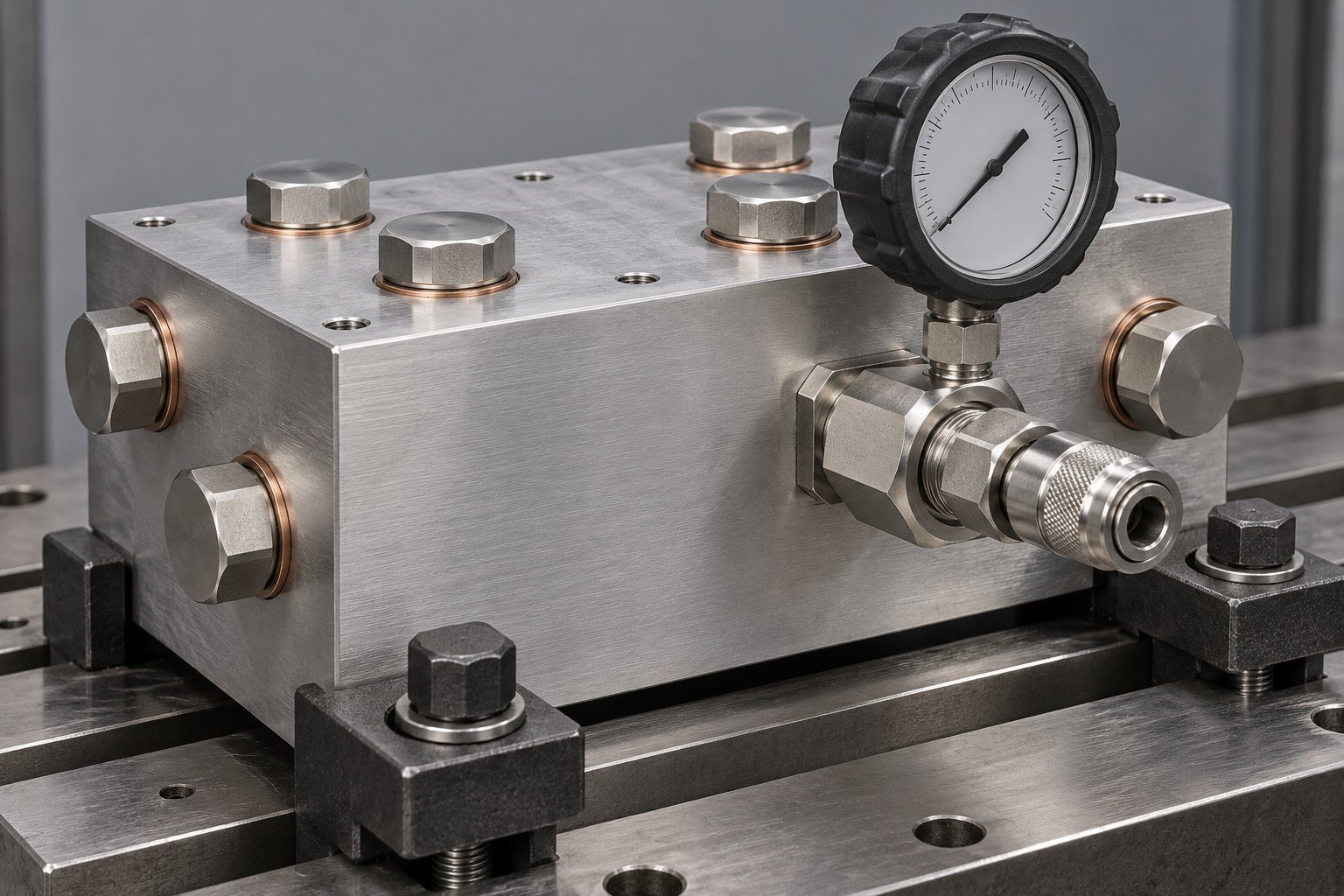

Pressure requirement
For cooling manifold pressure testing, distinguish operating, proof and burst requirements. Agree test temperature, dwell, connections and records; do not infer a universal pressure rating from the illustration.
Your input
Controlled drawing and the relevant service conditions.
Your acceptance
Agreed method, inspection state, limits and required records.
Illustrative engineering concept

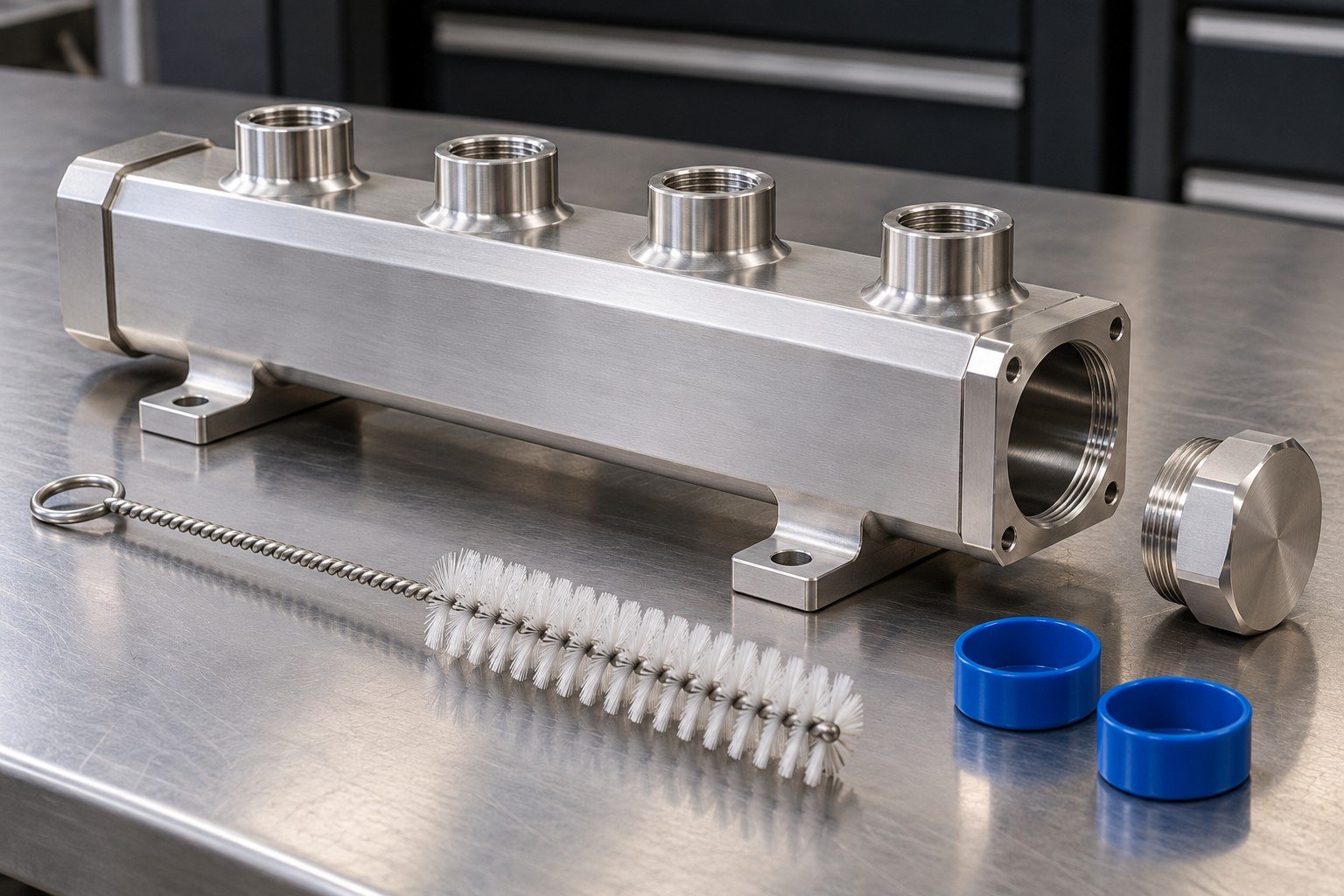

Cleanliness and closures
Define cooling manifold cleanliness requirements for internal passages, cross-drill plugs, deburring, flushing, verification, drying, capping and packaging. Review inaccessible areas before release.
Your input
Controlled drawing and the relevant service conditions.
Your acceptance
Agreed method, inspection state, limits and required records.
Illustrative engineering concept
5 Checkpoints from Drawing to Repeat Supply
Drawing review
Confirm revision, interfaces and operating inputs.
Route review
Agree materials, joining and final machining.
Sample build
Review the finished component and assembly fit.

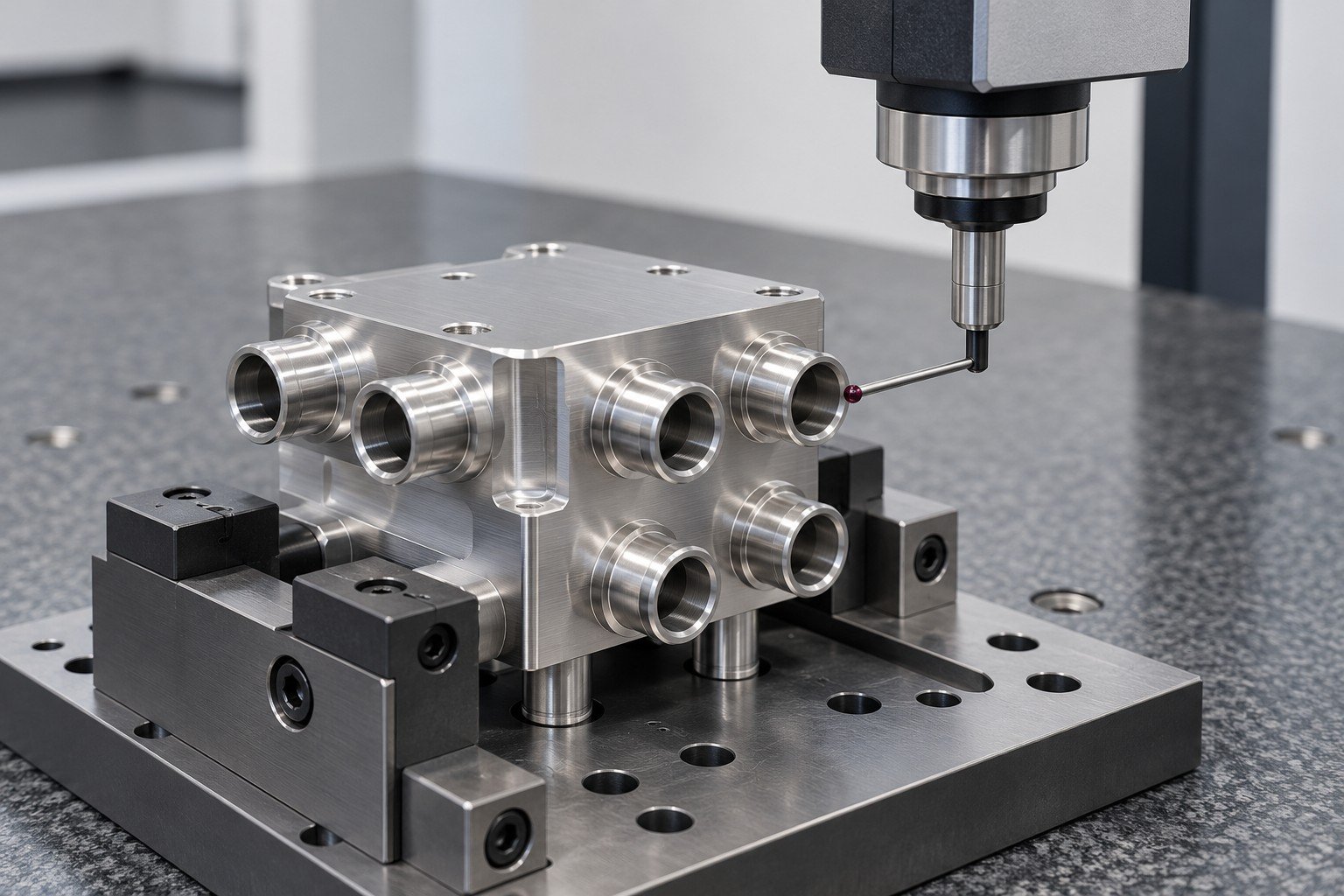

Agreed checks
Assess specified dimensions, joints and test records.
Production release
Release the accepted revision, packaging and repeat-order scope.
Approve Your Port Schedule and Finished Distribution Component

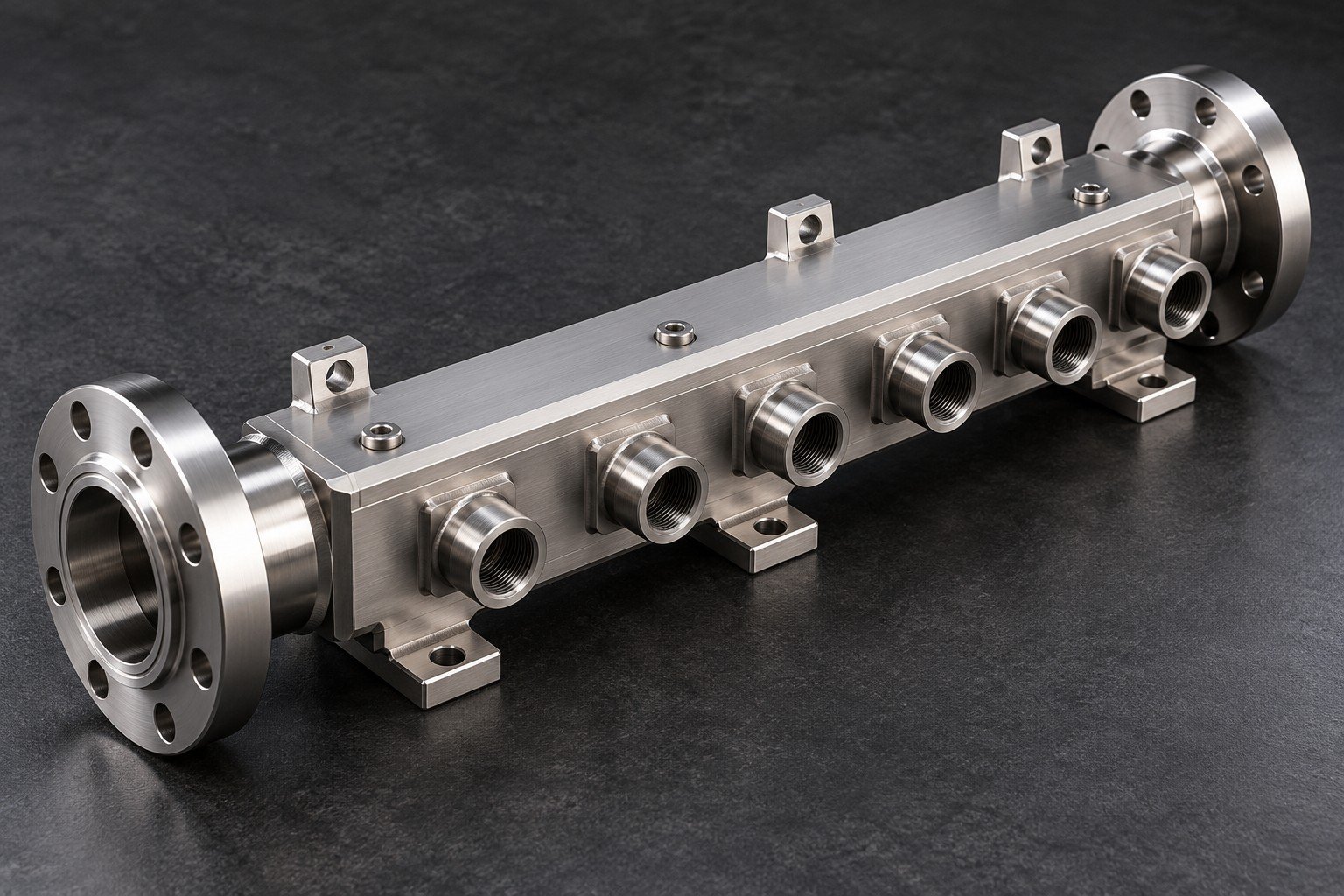

Illustrative component concept
When you compare a data center cooling manifold manufacturer or a battery cooling manifold manufacturer, ask for evidence tied to your actual interfaces and component boundary. Your liquid cooling manifold prototype should establish material identity, port positions and seals, agreed cleaning records and the specified leak or pressure checks before repeat supply.
- Material identity and drawing revision
- Port positions, mounting datums and sealing dimensions
- Specified joining and test evidence
- Port and seal protection and shipment release
Review Your Application and Connection Boundary
These are drawing-review topics, not customer case studies or system certifications. Confirm the actual distribution scope for your equipment.
Data center loops
Define supply/return connections, branch targets and service access.
Battery assemblies
Review pack connections, routing envelope and the component test boundary.
Power electronics
Match branch interfaces, module-loop requirements and available differential pressure.
Laser equipment
Review coolant connections, instrument ports and temperature-control requirements.
Test fixtures
Define repeatable connections, flow measurement points and changeover access.
Industrial equipment
Review maintenance space, vent/drain needs and installed hose routing.
Energy storage
Agree the distribution boundary, materials and specified acceptance records.
Compute assemblies
Identify server connections, mating fittings and the actual supply/return layout.

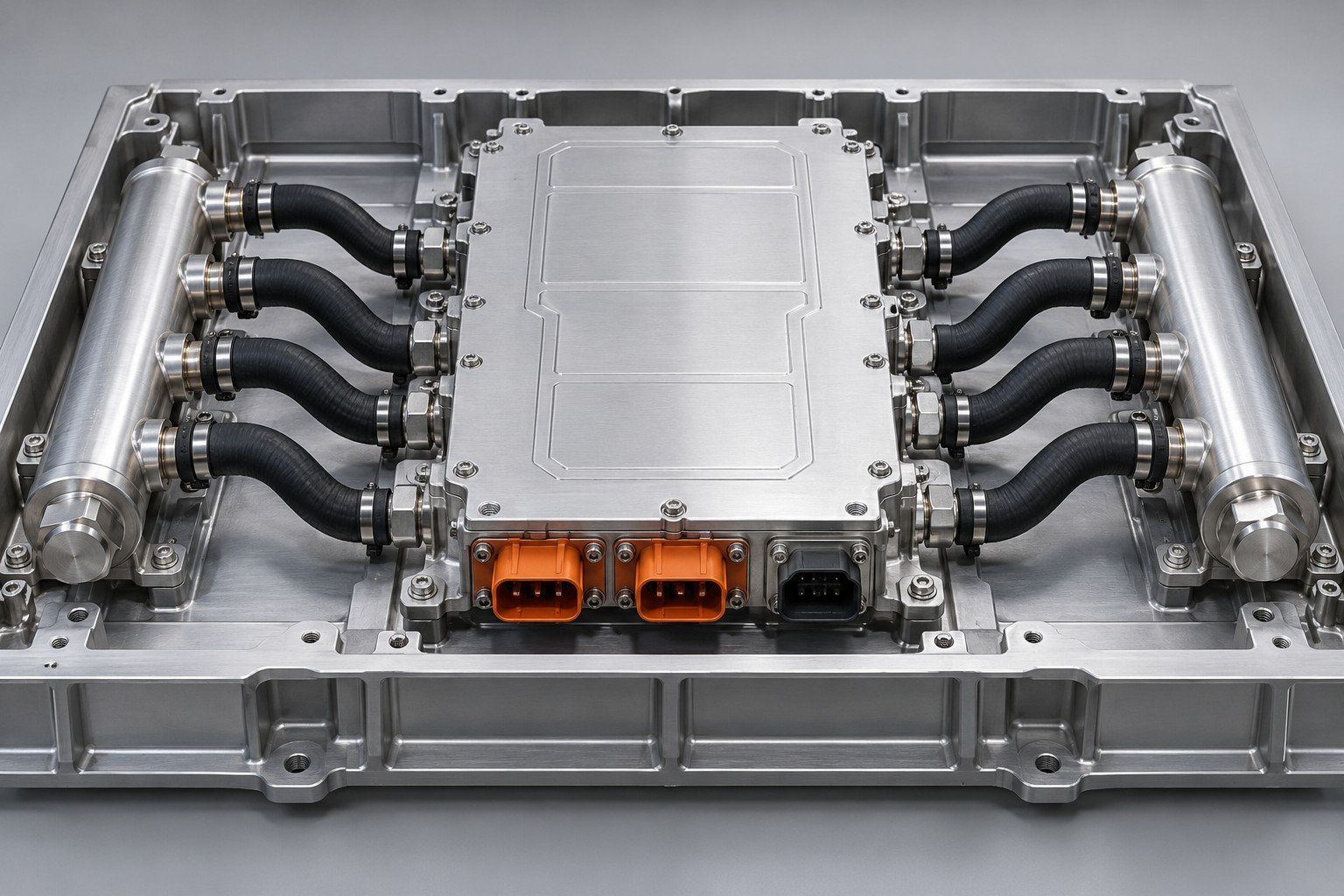

Illustrative assembly concept. Explore application requirements →
6 Inputs for Your Cooling Manifolds Quote
- Controlled CAD + cooling manifold drawing requirements
- Port schedule, thread standards + installed fittings
- Supply/return layout + branch flow targets
- Coolant chemistry, temperature + pressure requirements
- Material grade, seals + cleanliness acceptance
- Sample quantity, repeat demand + required records
Ask your quote to separate component manufacturing, joining, finishing, inspection and any independently agreed validation. The drawing review confirms availability, quantities and delivery scope.
Answers Before You Specify
What port schedule is needed for a custom liquid cooling manifold?
List each port identifier, position and orientation, thread standard and size, sealing method, mating fitting, engagement and access restrictions. Include inlet, outlet, branch, vent, drain and instrument ports where applicable; mark unused ports and their closure requirement.
Should a cooling manifold be leak tested with fittings installed?
Define the acceptance boundary before testing. A bare machined body and a finished assembly with plugs, seals and fittings are different configurations. If installed connections belong to your acceptance scope, identify their assembly procedure, test connections and records.
How should cooling manifold cleanliness be specified?
Specify the contaminant limits and verification method your loop needs, plus flushing medium, accessible passages, drying, port capping and packaging. A visually clean outside surface does not establish internal cleanliness.
Does an equal port layout guarantee equal coolant flow?
No. Branch flow depends on the pressure difference and resistance of each complete path. Share the connected components, branch targets and operating conditions. Any flow-balancing verification needs an agreed test configuration and measurement method.
Can I choose aluminum or stainless steel for my manifold?
Review the exact material grade, product form, coolant chemistry, connected metals, seals and temperature range. Confirm manufacturing feasibility and final condition for your drawing. The example material reference is not a substitute approval or corrosion guarantee.
What is included in a custom cooling manifold quote?
A custom cooling manifold quote should identify body machining, passage closures, fittings or assembly included, finishing, cleaning, inspection and the requested sample records. Share quantities and the released port schedule so tooling and repeat-order scope can be reviewed.
