Industrial Cooling Componentsfor Your Power, Energy & Precision Equipment
Start with your equipment interface and operating case. Compare industrial cooling parts for power electronics, battery assemblies, lasers and telecom modules, then define the manufactured component and the evidence your team needs.

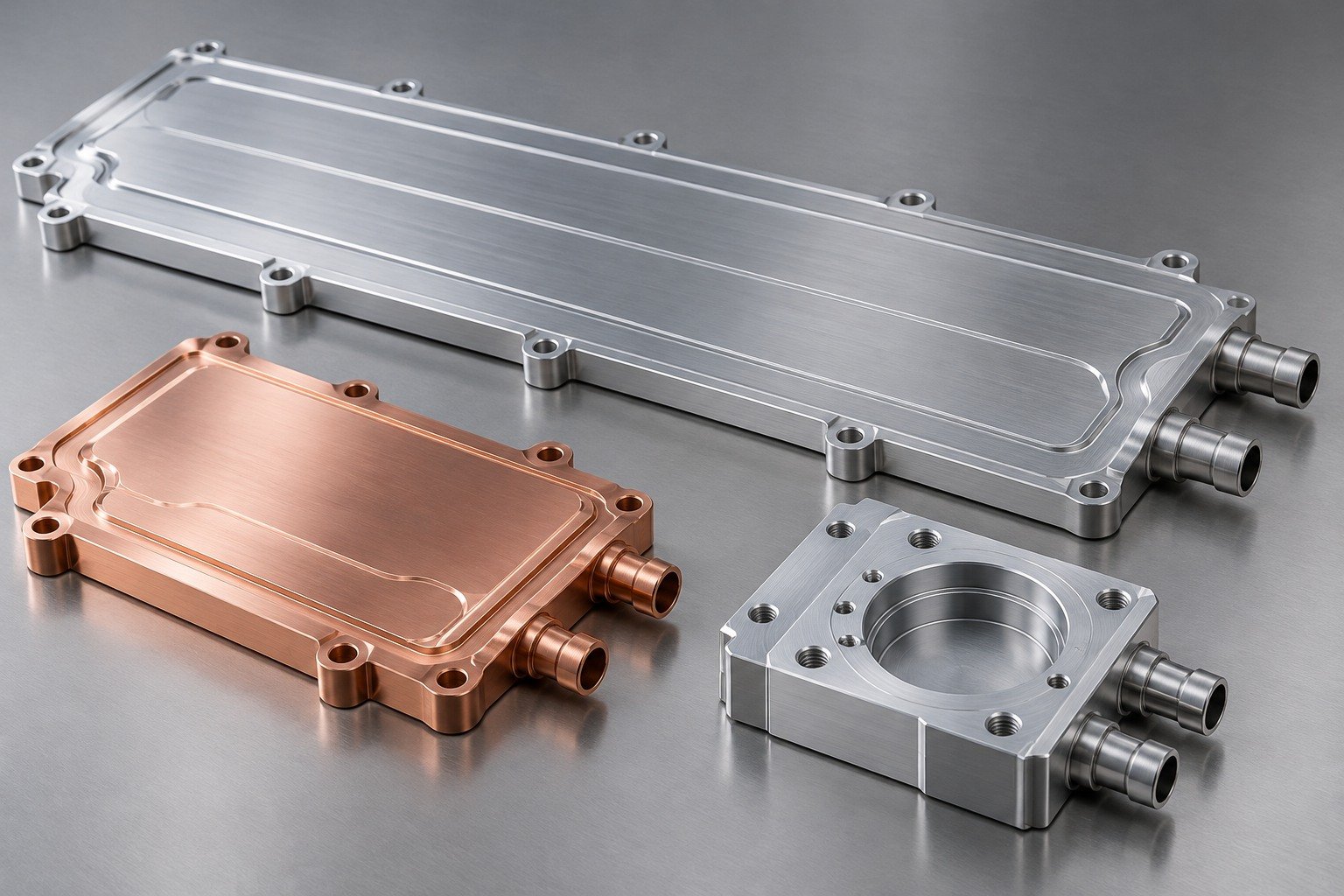

Illustrative manufactured-component concepts
4 Decisions Before You Specify
Part boundary
List what is included
Installed conditions
Name your operating case
Material path
Review all wetted items
Sample acceptance
Assign checks and owners
Power Electronics
IGBT Cooling
Control module contact, electrical isolation and mounting sequence.
Inverter Cooling
Review the loss map, baseplate envelope and connected coolant path.

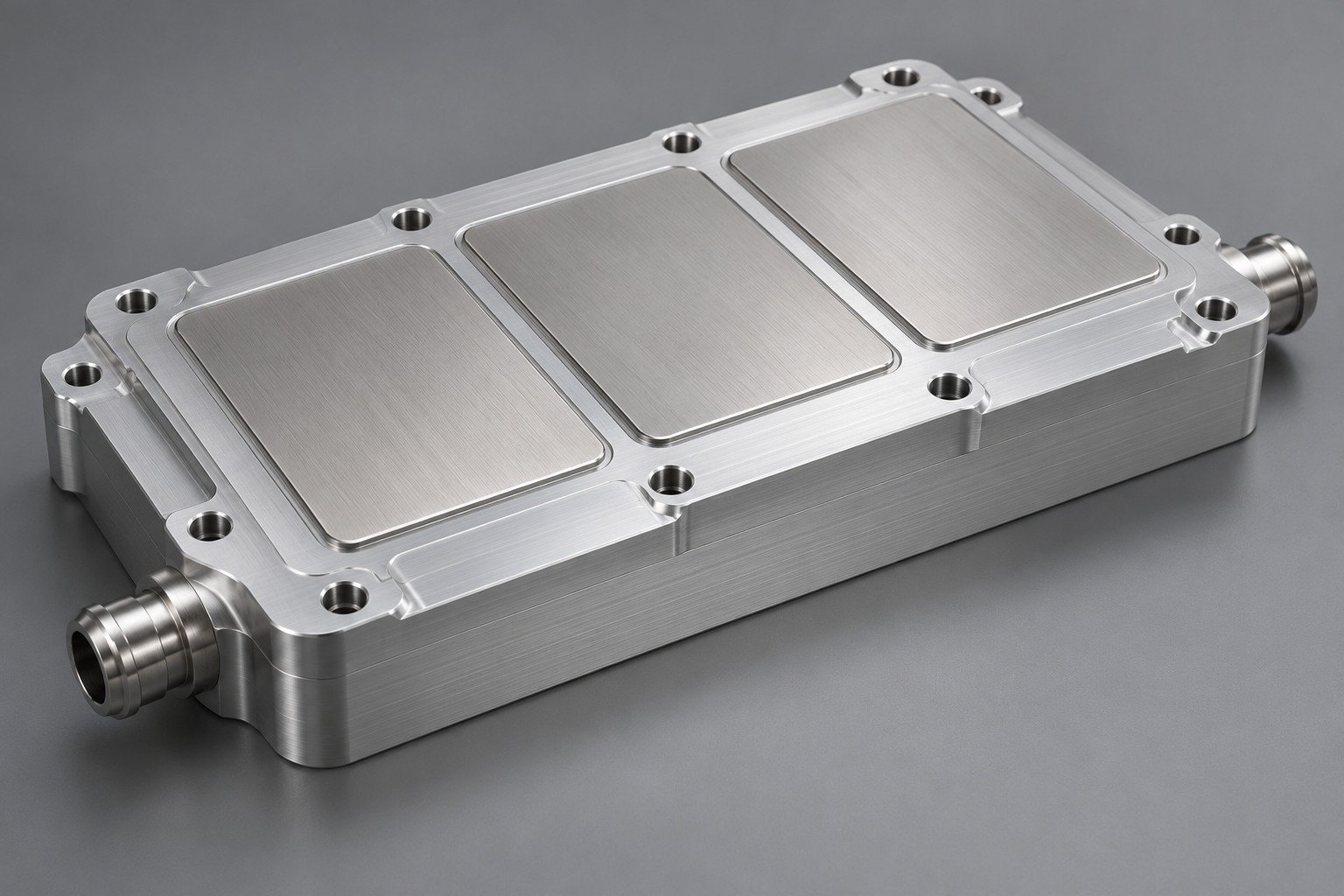

Power Module Cooling
Match contact faces, fastener access and supplied plate scope.
Illustrative concepts; open each topic for drawing-review details
EV & Energy

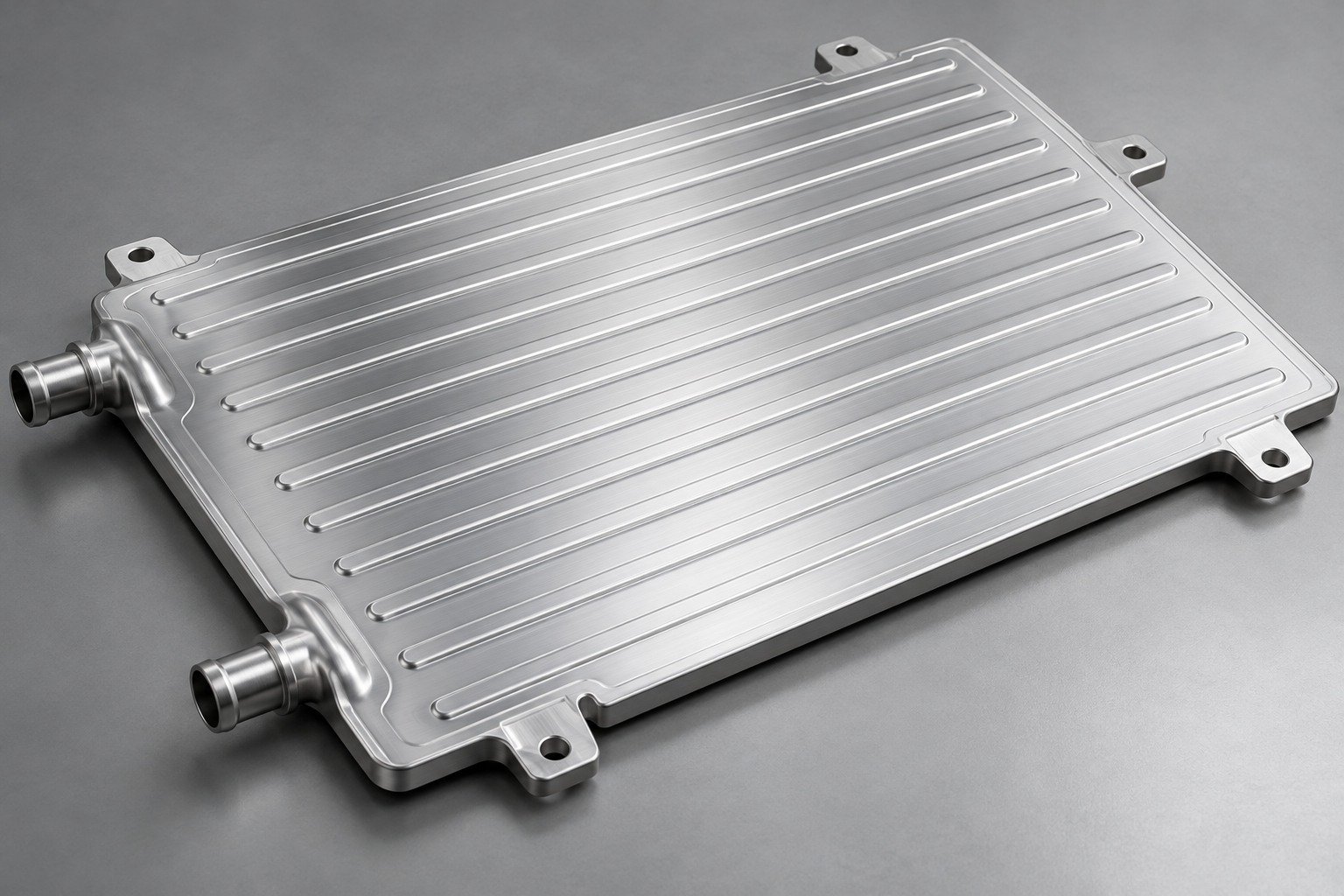

Battery Cooling Plates
Review module support, heat distribution and leak-test boundary.
EV / ESS Cooling
Define duty cycles, environment, coolant and service interfaces.
Illustrative concepts; open each topic for drawing-review details
Laser & Telecom

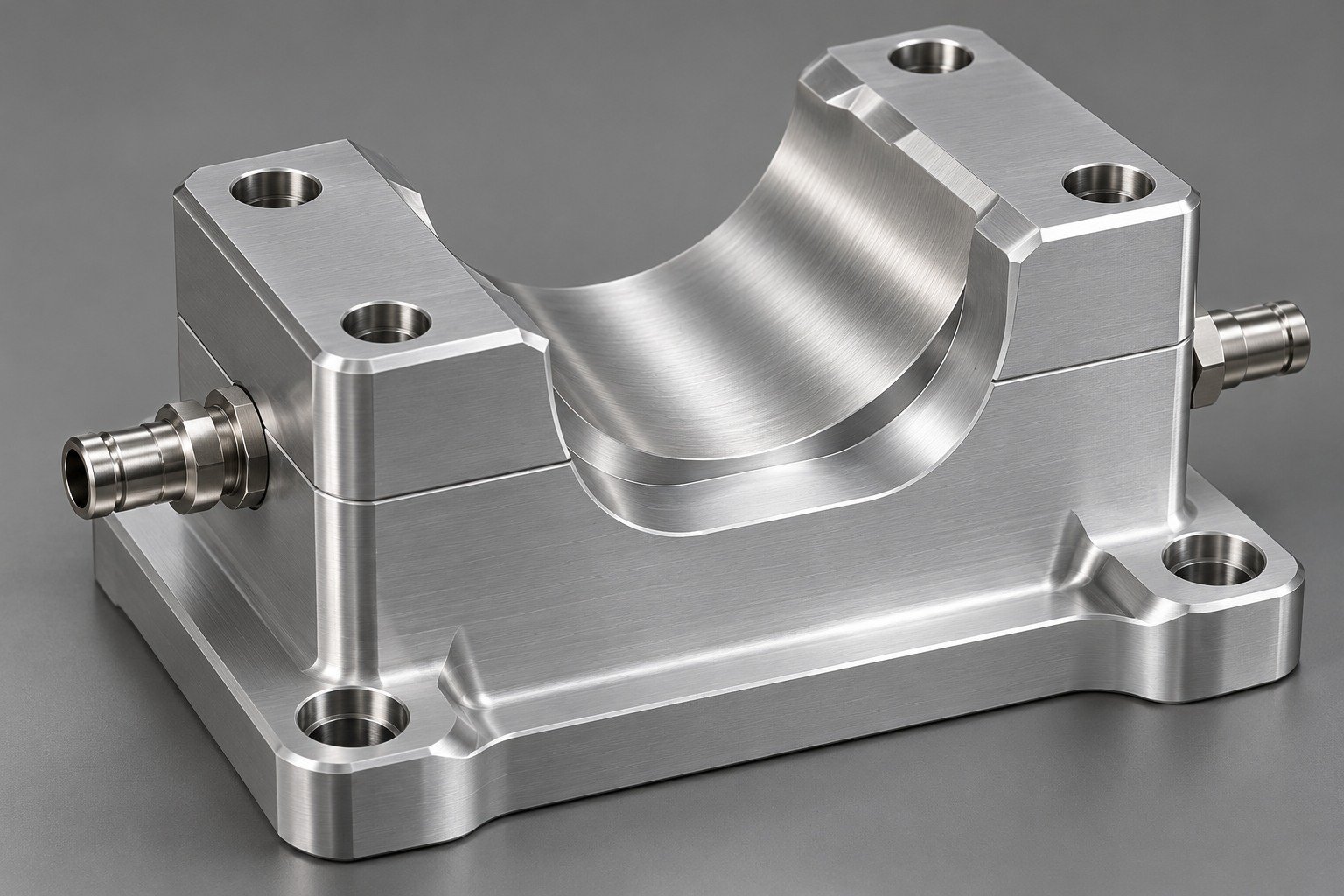

Fiber Laser Cooling
Use equipment-approved coolant and dissipated heat inputs.
Optical / Telecom Cooling
Control alignment datums, module contact and installed airflow or fluid path.
Illustrative concepts; open each topic for drawing-review details
Match Your Part to the Installed Assembly
Illustrative interface review; thermal validation is a separate scope
Your industrial cooling component drawings should state the actual module footprint, contact and isolation stack, mounting loads, duty cycle and environment. Specify coolant, inlet conditions, flow, pressure allowance and service access for the exact connected equipment.

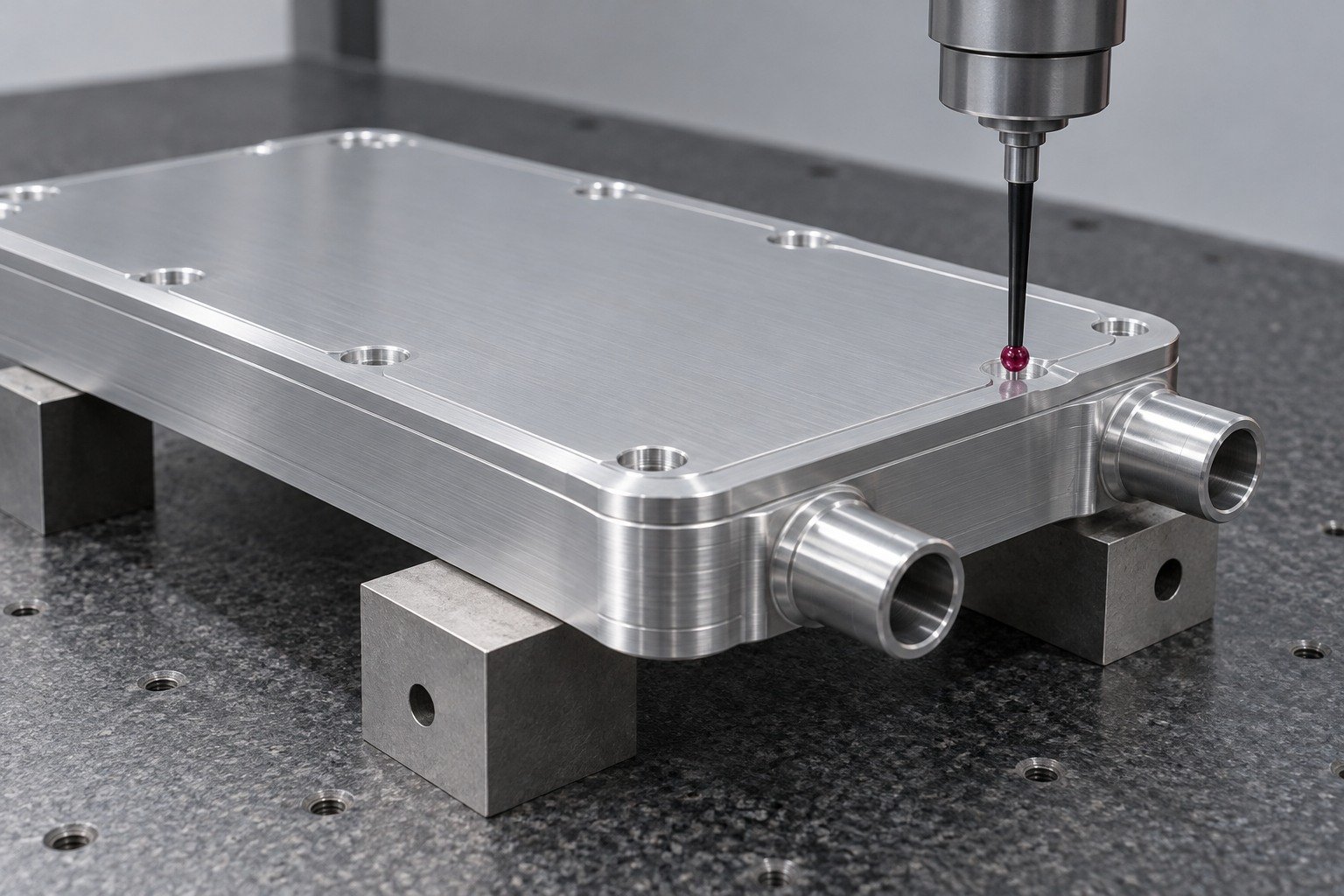

- Controlled mounting and contact datums
- Connection drawings, seals and tool access
- Approved fluid and full wetted-material list
- Assembly revision and service clearance
Compare Your Industrial Cooling Material References
Compare bulk conduction and mass alongside your contact stack, coolant, coatings and manufacturing route. These references are not finished industrial cooling tests or material substitution approvals.
Typical thermal conductivity
Hydro 6061-T6 at 25°C. KME Cu-ETP annealed at 20°C.
Density reference
Calculate finished mass from the actual geometry. A material conductivity difference does not establish a device-temperature reduction.
| Grade | European reference | Si | Fe | Cu | Mn | Mg | Zn | Al |
|---|---|---|---|---|---|---|---|---|
| 6061 | EN AW-6061 · AlMg1SiCu | 0.40–0.80 | ≤0.70 | 0.15–0.40 | ≤0.15 | 0.80–1.20 | ≤0.25 | Balance |
| C11000 | Cu-ETP · CW004A | — | — | ≥99.90 | — | — | — | — |
Selected elements only. Dash means not specified in this summary, not zero. 6061: Cr 0.04–0.35%, Ti ≤0.15%; C11000: O ≤0.040%; do not relabel Cu-ETP as oxygen-free copper. Aluminum other elements ≤0.05% each / ≤0.15% total. The purchasing standard and certificate govern. Confirm product form, temper, joining compatibility and required final condition.
Sources: Hydro 6061 → · KME Cu-ETP →
Agree Your Evidence Before Repeat Manufacture
01 · Drawing
Final contact and locating dimensions
02 · Material
Grade, temper and wetted path
03 · Integrity
Agreed medium, pressure, time and limit
04 · Operation
Your thermal and hydraulic validation
Industrial cooling component sample approval must identify which organization approves each result. No universal temperature reduction or cooling capacity is implied.
6 Inputs for Your Component Review
- CAD + controlled interface drawing
- Dissipated heat map + duty cycle
- Contact stack + named temperature limits
- Airflow or coolant, flow + pressure allowance
- Material, finish, ports + assembly boundary
- Quantities, sample records + approval owners
Review your industrial cooling component prototype against the agreed sample plan before releasing repeat quantities.
Answers Before You Specify
What operating conditions are needed for an industrial cooling part quote?
Provide the controlled drawing, dissipated heat and distribution, duty cycle, temperature nodes, contact/isolation stack, airflow or coolant conditions, environment, ports, quantities and required records.
Does an industrial cooling component manufacturer supply chillers?
A cold plate, cooling block or defined mechanical subassembly is separate from a complete chiller or equipment system. Confirm the exact parts and integration responsibility in writing.
How are industrial cooling component sample tests agreed?
Define the released drawing, material, final assembly state, methods, acceptance limits, sample plan and report. Agree industrial cooling component leak testing separately from thermal validation.
What affects a custom industrial cooling parts quote?
Material and stock form, machining access, channel closure, ports, finish, purchased components, sample quantities and evidence requirements affect the manufacturing scope. Review these inputs before comparing quotations.
5 Checkpoints from Drawing to Repeat Supply
Drawing & inputs
Define the part and operating case.
Route review
Agree material, machining and joining.
Sample build
Trace the controlled revision.
Agreed evidence
Review fit and specified checks.
Repeat release
Approve the part and supply records.
