YOUR DATUMS. YOUR CONTACT FACE. YOUR COOLANT BOUNDARY.

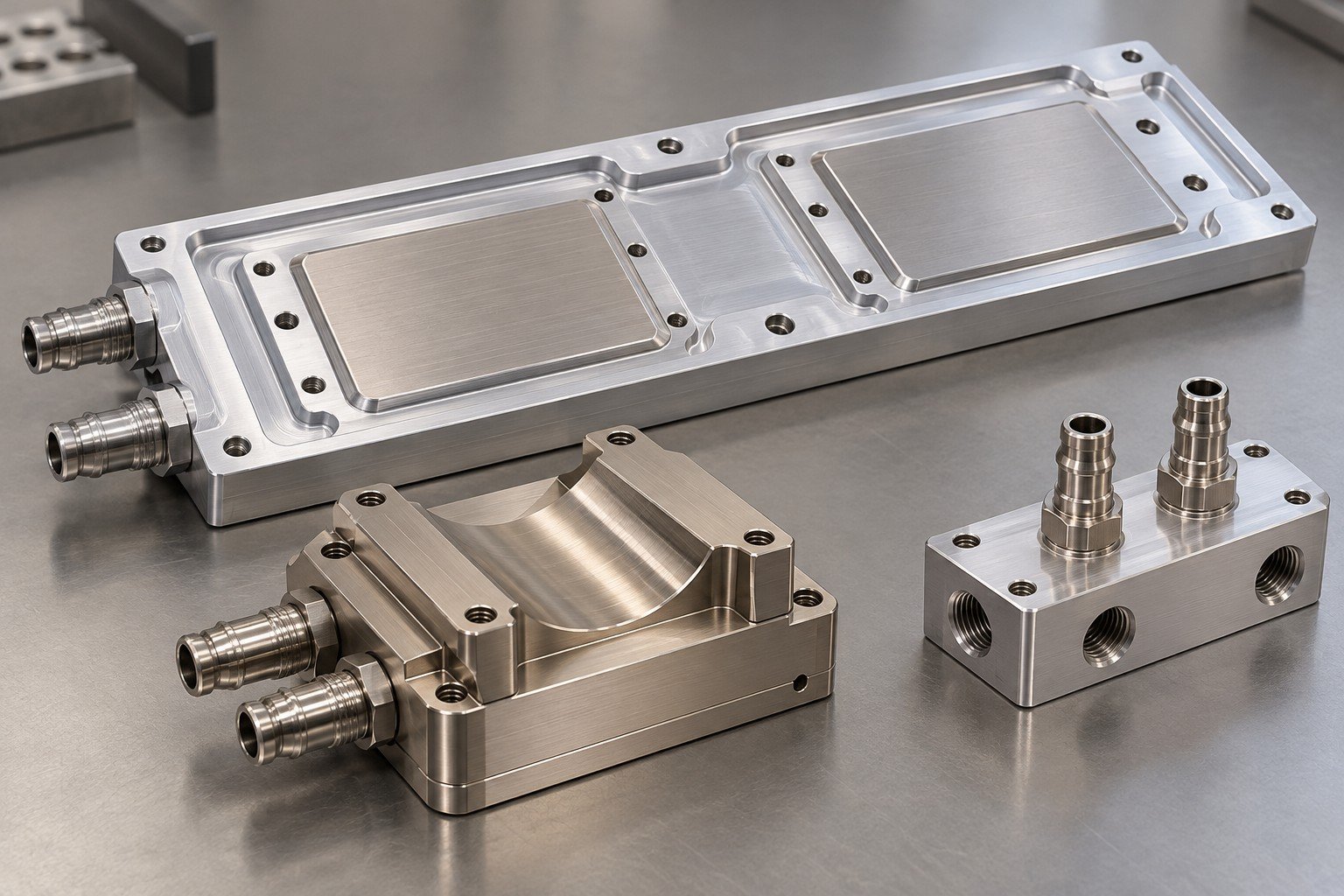

Fiber Laser Coolingfor Your Precision Cold Plates & Cooling Blocks
Define your fiber laser cooling component around the exact module footprint, alignment datums, dissipated heat and approved coolant conditions. Review the manufactured plate or block and its sample evidence before integrating it with your laser and chiller.
Illustrative component concepts; no complete laser or chiller
4 Inputs That Shape Your Cooling Part
Module interfaces
Control datums and contact footprint
Dissipated heat
Separate heat load from optical output
Coolant conditions
Use the exact equipment requirements
Sample evidence
Assign fit, integrity and thermal approval
Start with Your Module, Datums and Operating Inputs
Bring mechanical fit, contact and fluid requirements into the same review before fixing the channel layout.
- Identify the exact module and mounting drawing
- Map dissipated heat and contact conditions
- Specify coolant, ports and operating limits
- Agree sample evidence and approval owners

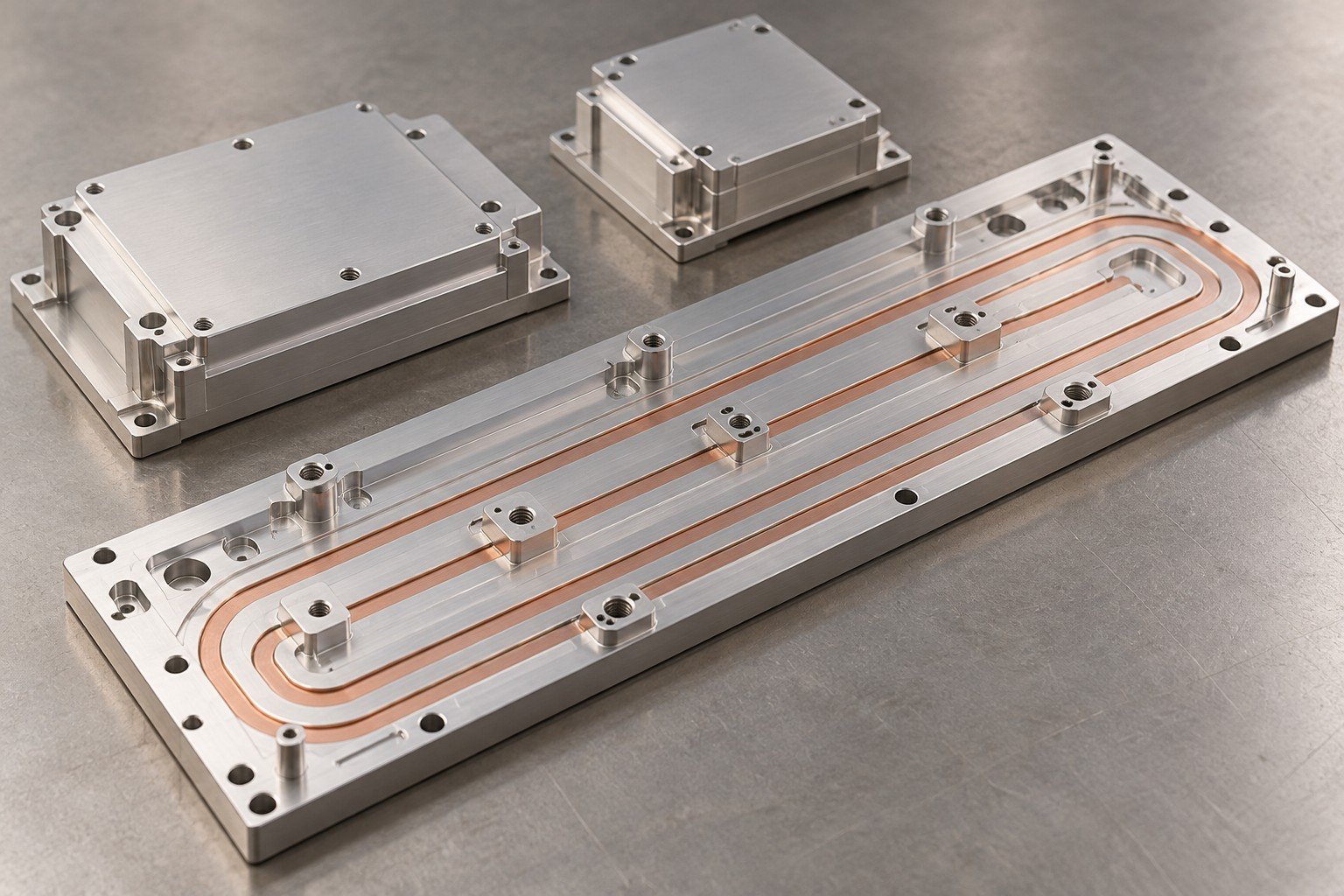

Module drawing and alignment
Define your fiber laser cooling interface using the exact module drawing, locating shoulders, datums and keep-outs. Specify fiber laser cooling plate mounting holes, support points and tool access without inferring optical alignment from a generic part image.

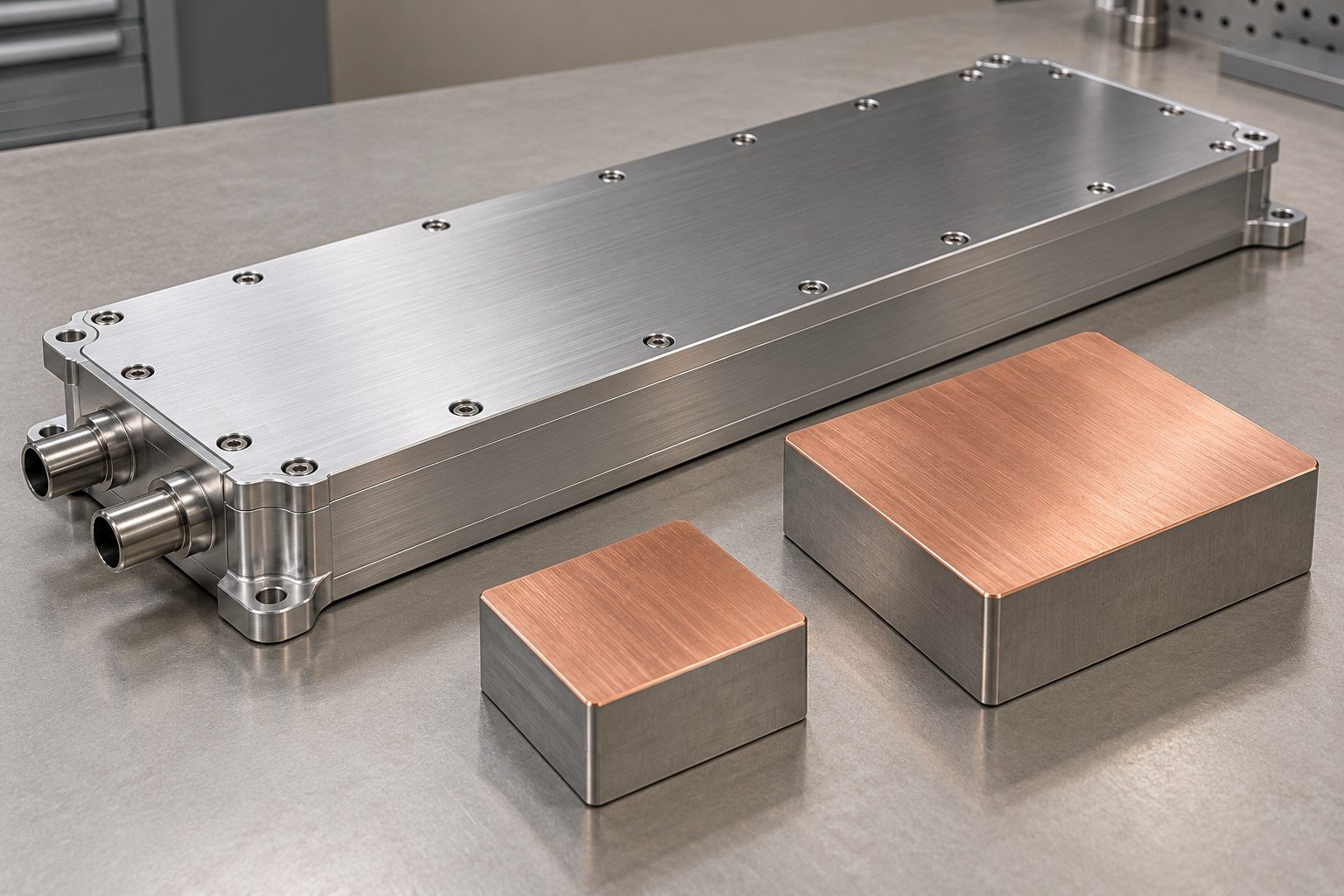

Heat load and contact stack
Share dissipated heat, heat-source distribution, duty cycle, contact material, mounting and temperature nodes. Optical output power alone is not the plate heat load. Control the final contact state and where temperature is measured.
Ports and coolant boundary
Confirm fiber laser cooling coolant compatibility against the exact equipment documentation, all wetted materials, seals and fluid requirements. Define port drawings, connections and the supplied boundary; do not choose a universal fluid recipe from a catalog example.
Quote and sample scope
When comparing a fiber laser cold plate manufacturer, provide the drawing, quantities, operating inputs and required records. A custom fiber laser cooling plate quote should distinguish the manufactured plate or block, purchased fittings and specified checks. Trace the fiber laser cooling plate prototype to its controlled revision.
Compare 4 Laser Cooling-Part Scopes
Match the manufacturing route to your released geometry and installed conditions. These concepts do not establish laser compatibility, an optical power rating or chiller supply.

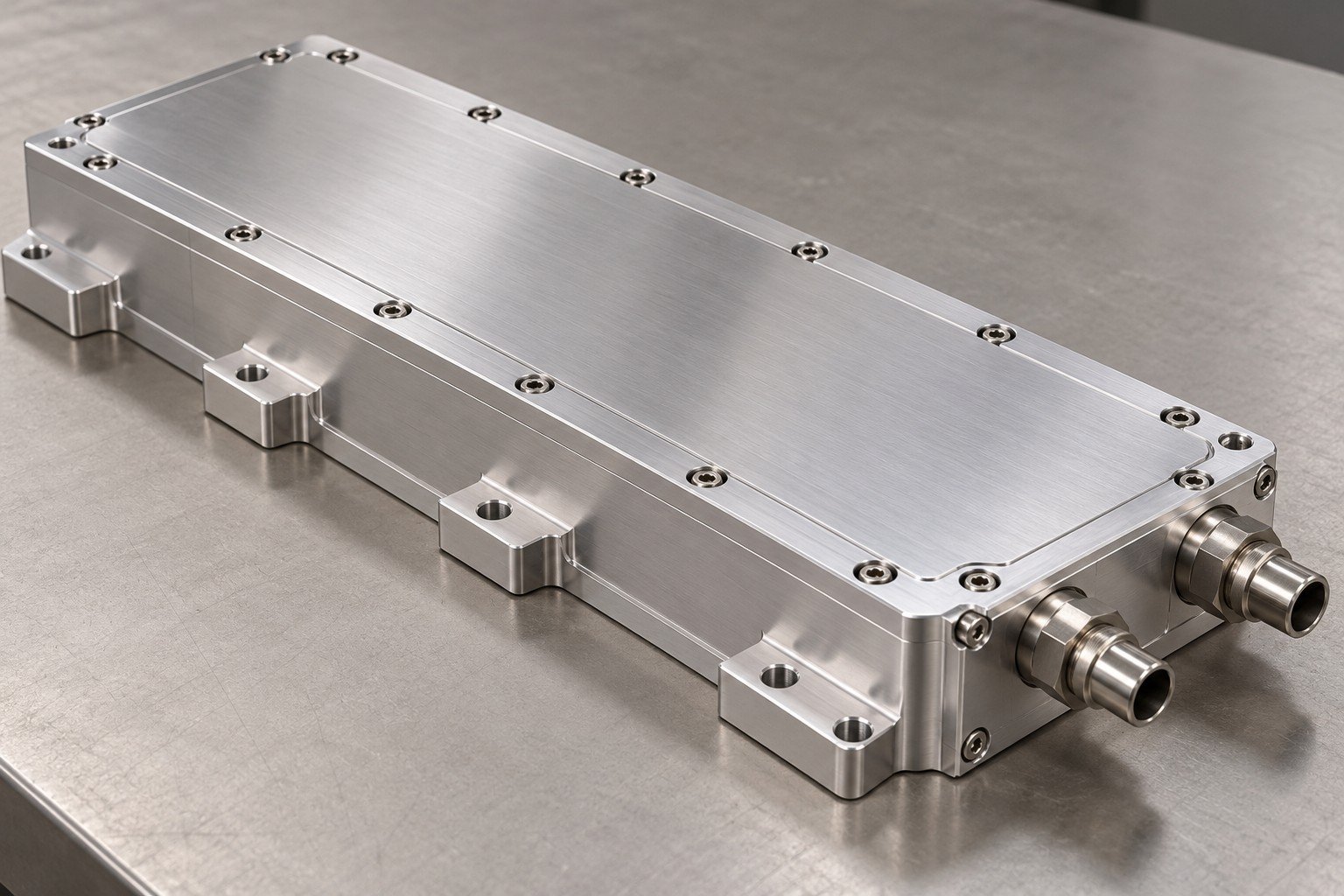

Precision Cold Plates
Review solid contact lands, channel layout, cover joining and final inspection state.
Review this part scope →

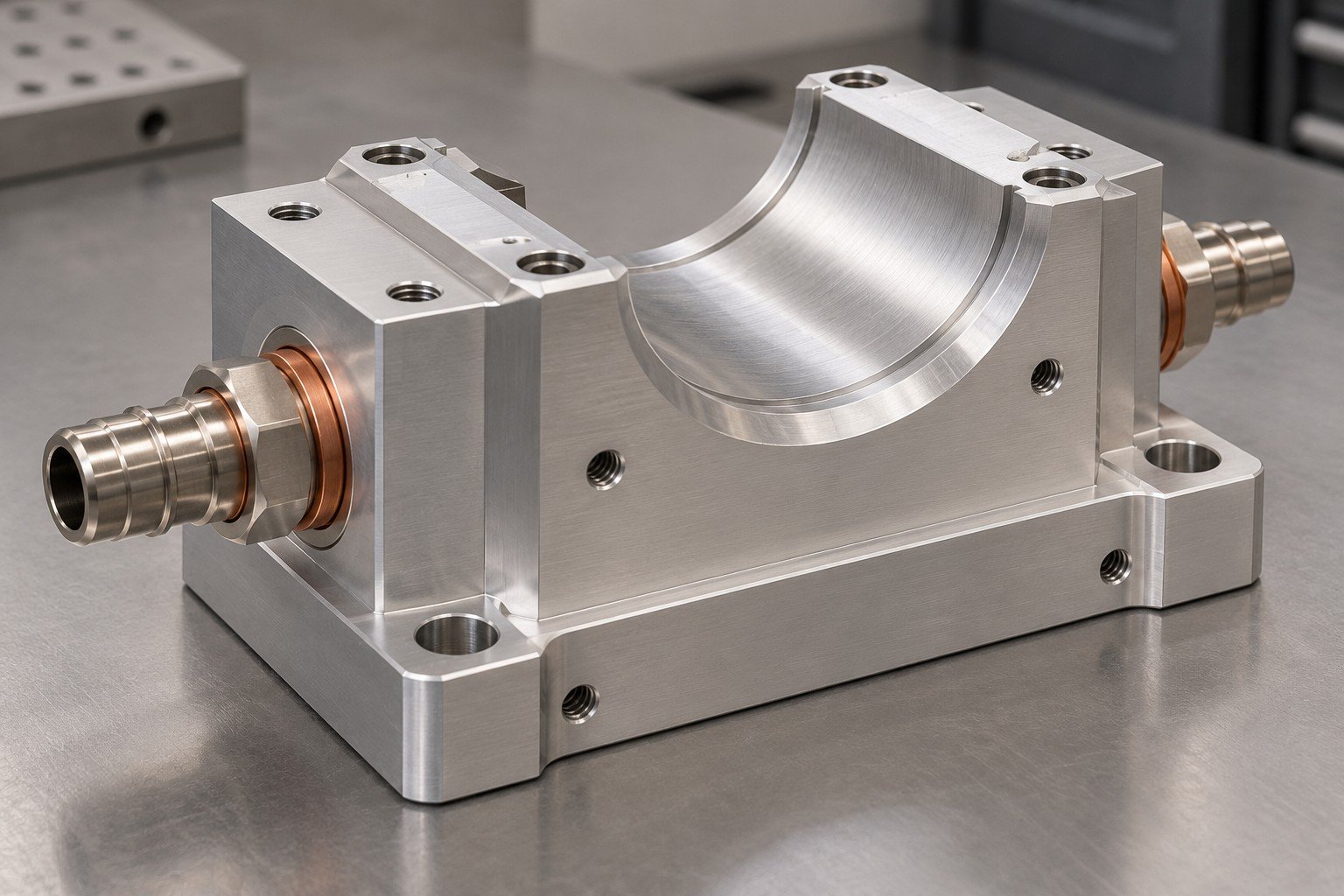

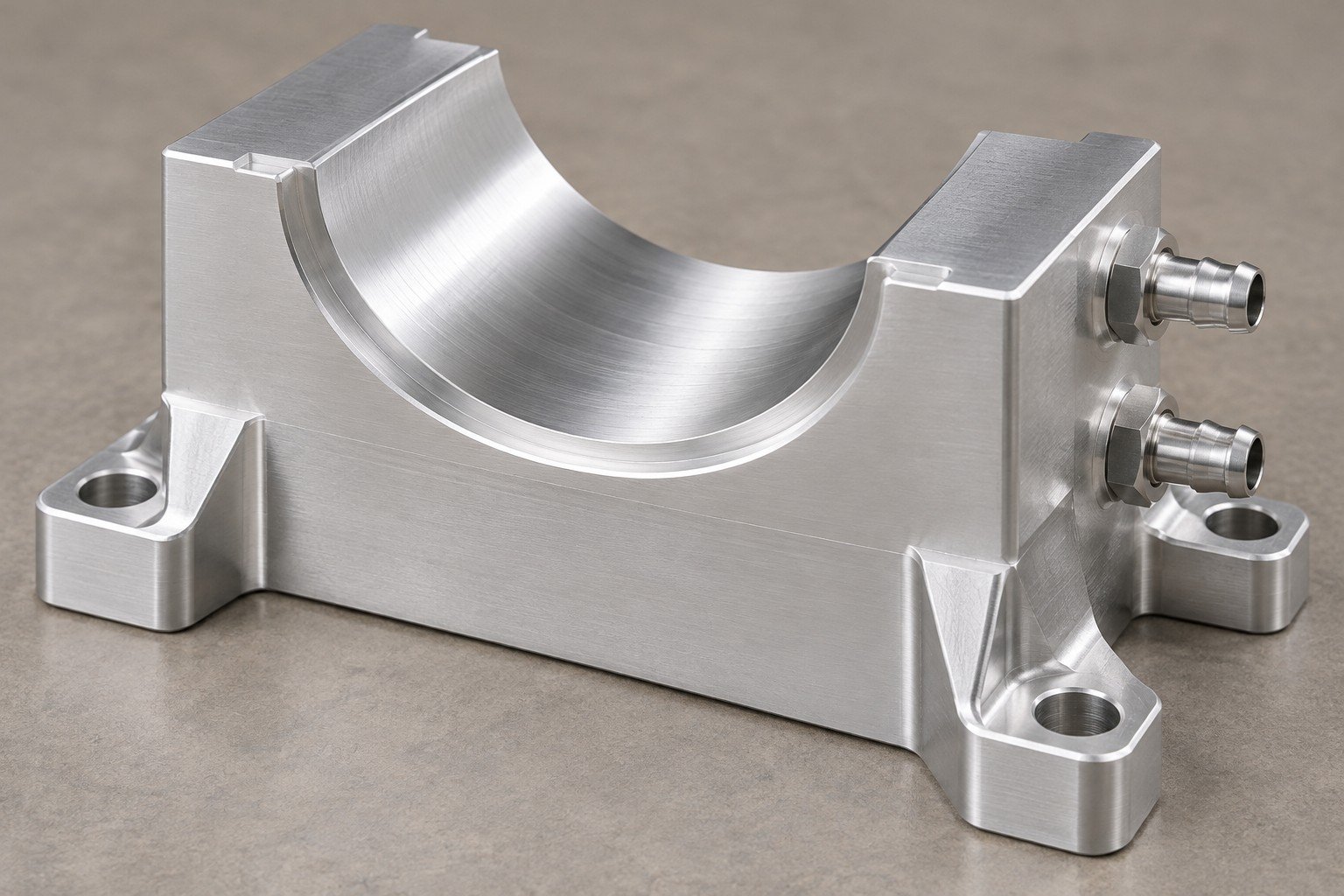

Machined Cooling Blocks
Fiber laser cooling block machining reviews saddle or planar contact geometry, locating features, passages and port access.
Review this part scope →

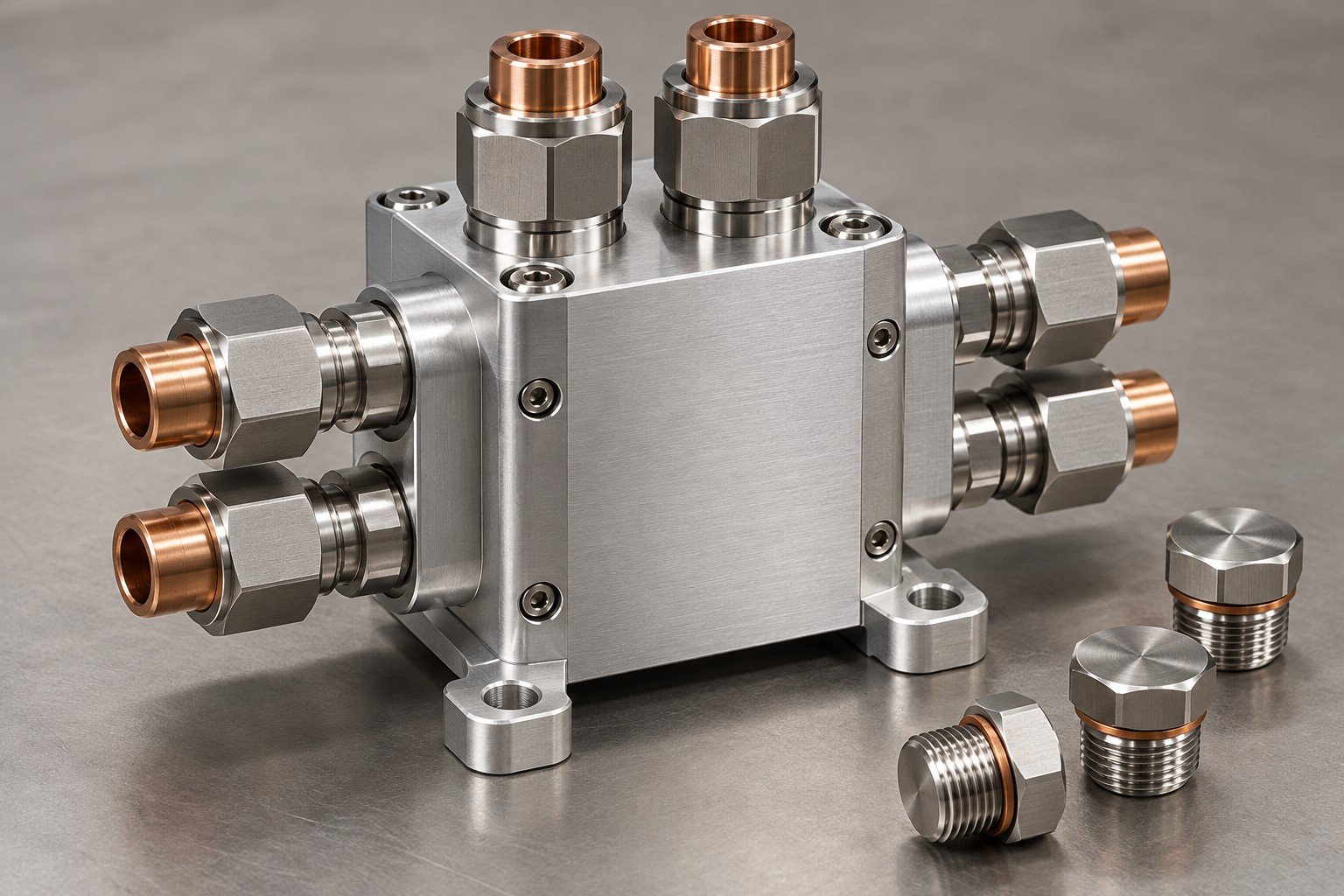

Distribution Interfaces
Define port schedule, flow direction, included fittings and the branch measurement boundary.
Review this part scope →

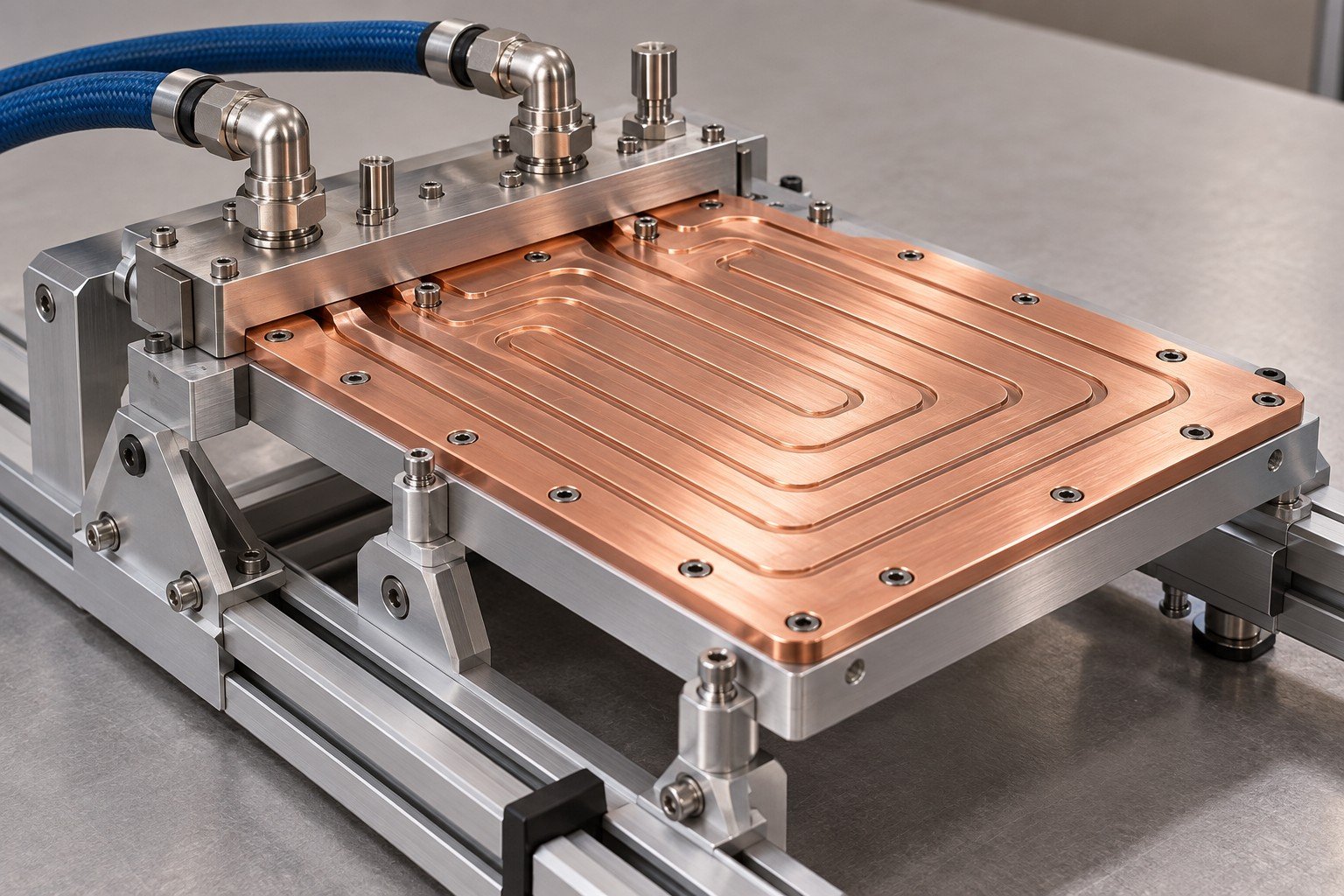

Defined Mechanical Assemblies
List cooling part, bracket, short connections and specified records; laser/chiller integration is separate.
Review this part scope →Illustrative engineering concepts; project-specific suitability requires review
Review Your Contact Face and Fluid Path Together
The final manufactured state must preserve your contact face, alignment datums and defined coolant boundary. Confirm machining access, cover support, plugs and fittings before choosing how passages are closed.
- Separate locating features from clearance holes
- Review contact geometry after joining and finishing
- Define cleaning and accessible inspection features
- Keep optical alignment and system performance approvals explicit
MODULE DRAWING + CONTACT STACK↓DATUMS + PASSAGES + PORTS↓FINAL GEOMETRY + AGREED RECORDS↓YOUR LASER / CHILLER INTEGRATION
Equipment context: Raycus temperature, dew-point and flow discussion → · Coherent water-cooled sensor application note →. Sensor requirements and individual laser instructions are equipment-specific; numerical settings are not generalized here.
Compare Your Cold-Plate Material References
Compare bulk conduction and mass alongside your specified contact stack, coolant, coatings and manufacturing route. These references are not finished laser-cooling tests or material substitution approvals.
Typical thermal conductivity
Hydro 6061-T6 at 25°C. KME Cu-ETP annealed at 20°C.
Density reference
Calculate finished mass from the actual geometry. A material conductivity difference does not establish a device-temperature reduction.
| Grade | European reference | Si | Fe | Cu | Mn | Mg | Zn | Al |
|---|---|---|---|---|---|---|---|---|
| 6061 | EN AW-6061 · AlMg1SiCu | 0.40–0.80 | ≤0.70 | 0.15–0.40 | ≤0.15 | 0.80–1.20 | ≤0.25 | Balance |
| C11000 | Cu-ETP · CW004A | — | — | ≥99.90 | — | — | — | — |
Selected elements only. Dash means not specified in this summary, not zero. 6061: Cr 0.04–0.35%, Ti ≤0.15%; C11000: O ≤0.040%; do not relabel Cu-ETP as oxygen-free copper. Aluminum other elements ≤0.05% each / ≤0.15% total. The purchasing standard and certificate govern. Confirm product form, temper, joining compatibility and required final condition.
Sources: Hydro 6061 → · KME Cu-ETP →
3 Views of Your Thermal Budget and Sample Evidence
Set named temperature nodes and test inputs. The chosen arithmetic below is not a cooling curve, measured result, optical power rating or CFD simulation.
1 · Chosen total-resistance allowance
Chosen example: an 18 K difference between two defined temperature nodes divided by 150, 300 or 600 W gives 0.12, 0.06 or 0.03 K/W total allowance. These are hypothetical inputs, not finished-part ratings. Define which contact and convection paths belong between your actual nodes.
2 · Control your operating inputs
DISSIPATED HEAT + MOUNTING + TIM↓APPROVED COOLANT + INLET + FLOW↓SENSORS + DUTY CYCLE + LIMITS
Your fiber laser cooling thermal test report should identify the hardware revision, heat distribution, contact stack, sensor positions and operating conditions. Specify fiber laser cooling plate pressure drop at the actual fluid, temperature, flow and connection boundary.
3 · Separate the approval records
PART: MATERIAL + DIMENSIONS + JOINTS↓DEFINED LEAK / PRESSURE CHECKS↓THERMAL + OPTICAL SYSTEM APPROVAL
A dimensional or integrity check does not establish optical alignment, laser stability or temperature performance. Name the owner of each requirement and record before releasing repeat parts.
Review Your Surface and Cleanliness Requirements
Separate your thermal contact faces, sealing interfaces and wetted passages. Confirm the specified final condition with the mating assembly.
Define the specified laser-module contact area and final surface inspection state from the released drawing.
Specify the finished thread, fitting engagement and agreed sealing surfaces.
Protect delivered parts, finished contact faces and ports; agree cleaning and shipment condition.
A finish is not a universal cooling improvement. Confirm its purpose, compatibility and inspection state. Review surface finishing options →
Illustrative engineering concepts
Define Your Functional Features
Put the dimensions that control sealing, assembly fit and heat transfer on your drawing.

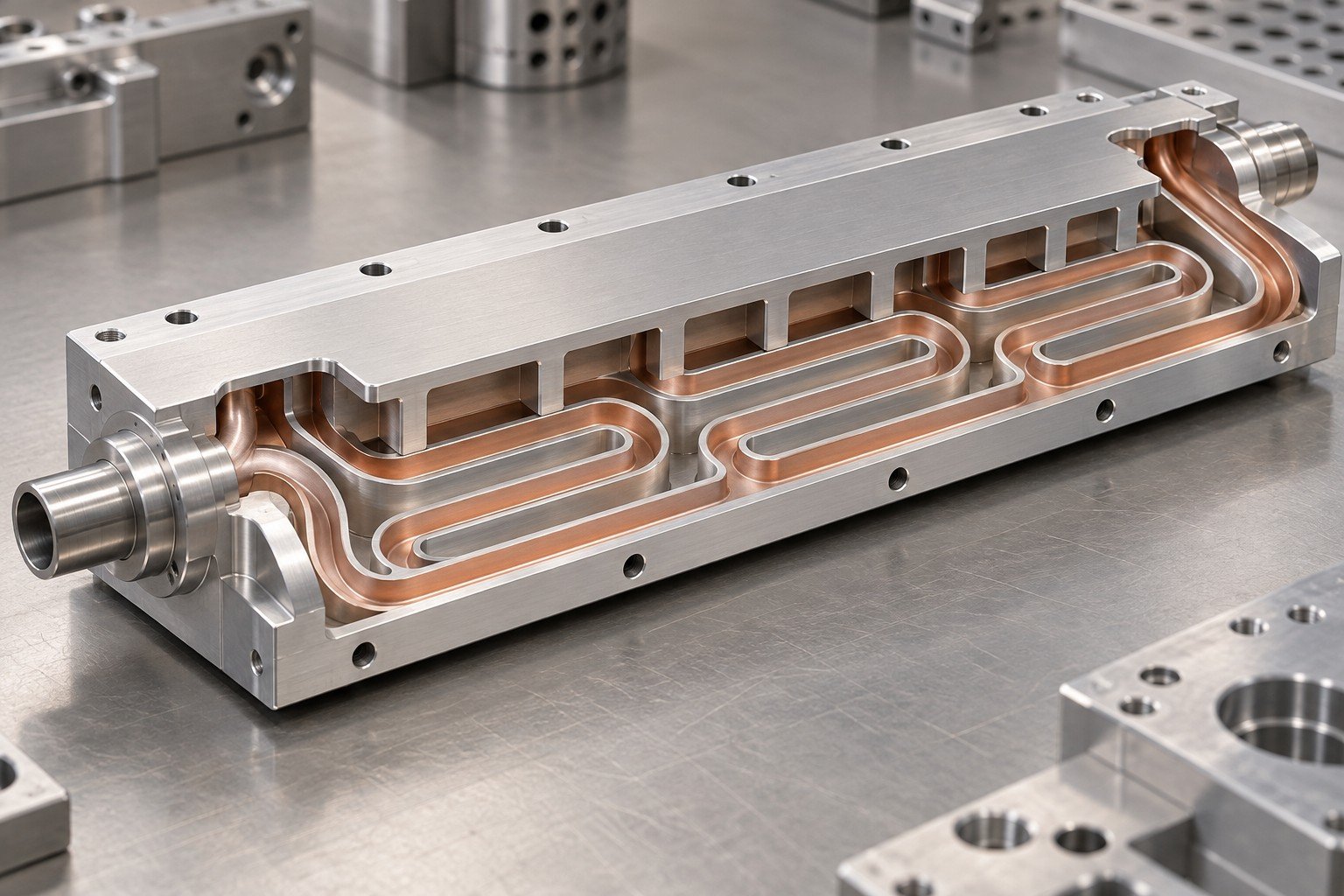

Illustrative fiber laser cooling plate section concept
Contact footprint
Dissipated heat map, specified interface and alignment datums
Ports and seals
Thread designation, seal land and fitting engagement
Mounting datums
Hole pattern, datum scheme and tool access
Cover and passages
Joining access, wall thickness and cleaning scope
Final condition
Flatness, masking, protected interfaces and inspection state
Resolve 6 Laser Cooling Interface Risks
Control the mechanical, fluid and operating boundaries before your prototype is released.

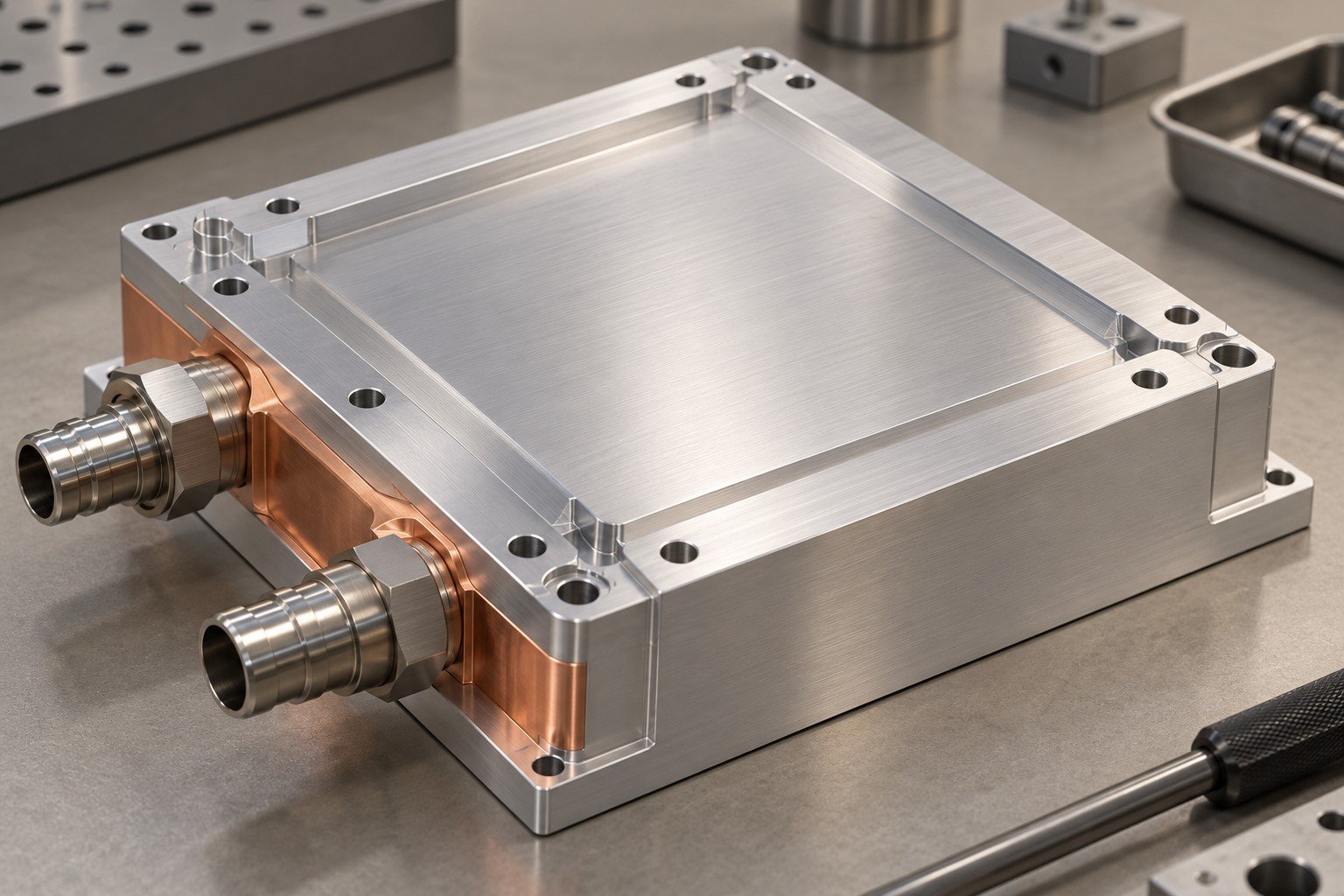

Datums and final contact
Specify fiber laser cooling plate flatness, roughness, inspection area and final state from the module interface and controlled drawing. Establish alignment datums independently from the generic plate outline.
Your drawing
Revision, datums and supplied boundary
Your evidence
Defined method, conditions and approval owner

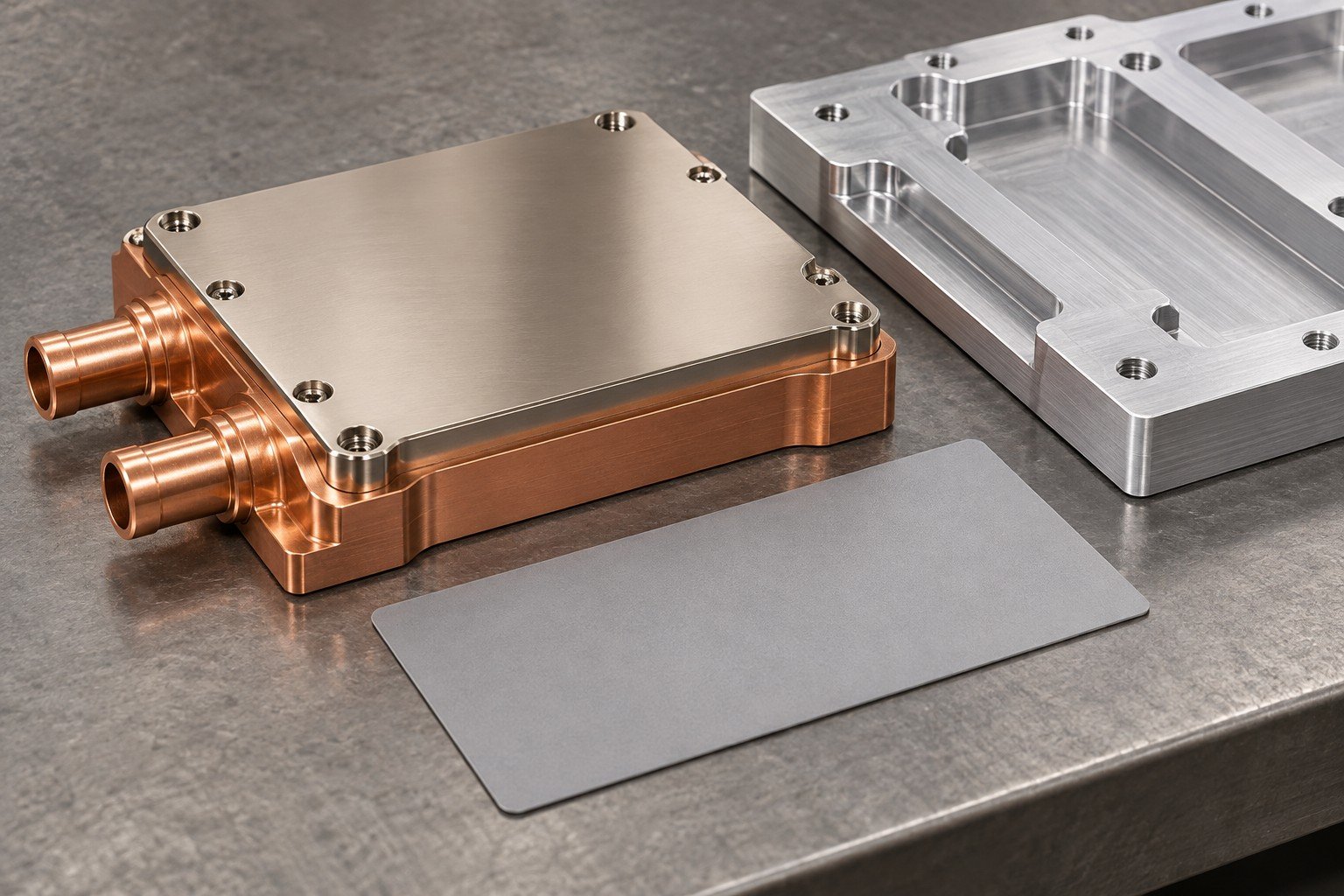

Contact and mounting
Define contact footprint, interface material, clamping and support. Keep mechanical fit, thermal contact and optical alignment as separate acceptance decisions.
Your drawing
Revision, datums and supplied boundary
Your evidence
Defined method, conditions and approval owner

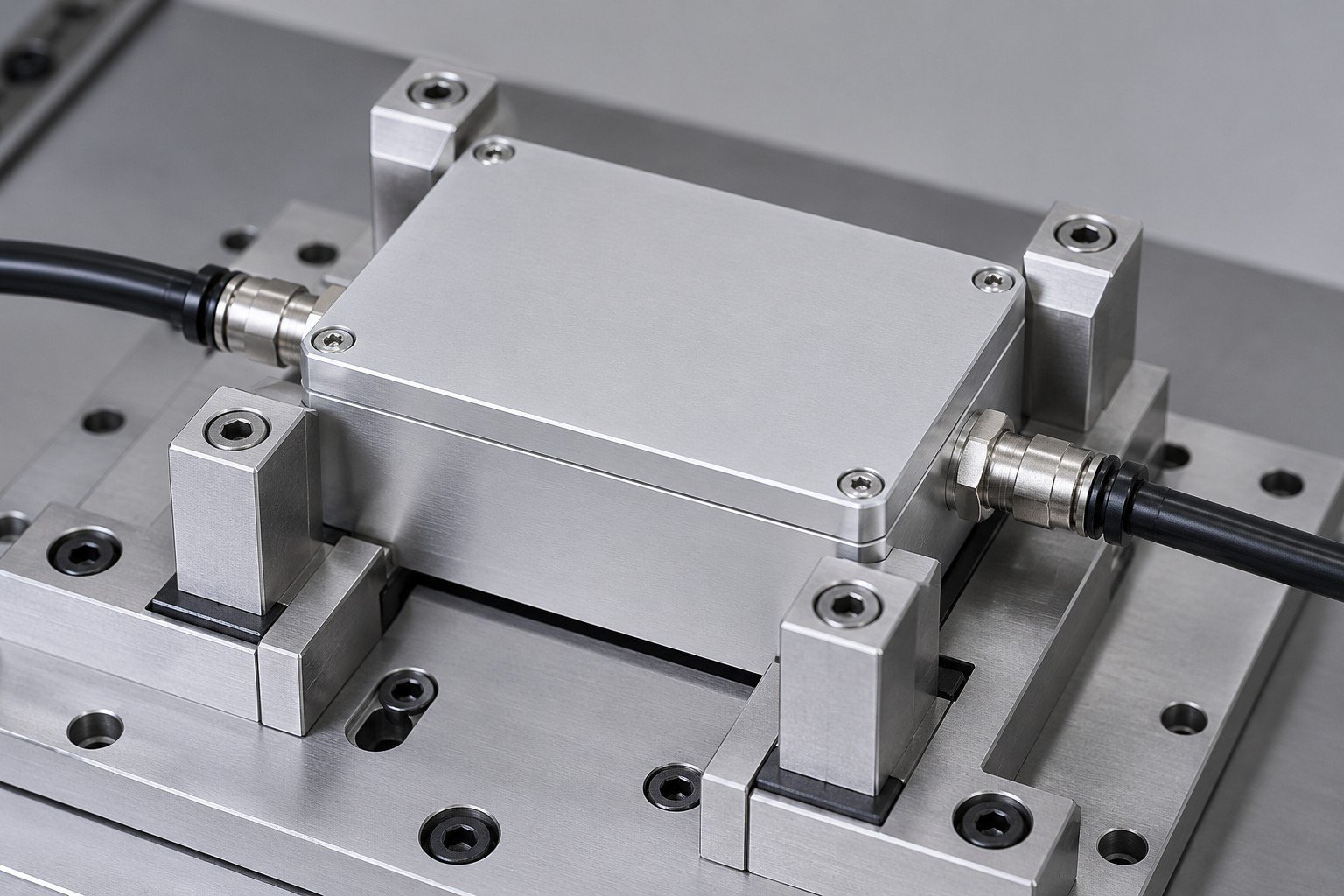

Fluid integrity
Agree fiber laser cooling plate leak testing for the actual plate, cover, plugs and supplied fittings. Specify medium, conditions, limit, duration and records; pressure and thermal evaluation are separate.
Your drawing
Revision, datums and supplied boundary
Your evidence
Defined method, conditions and approval owner

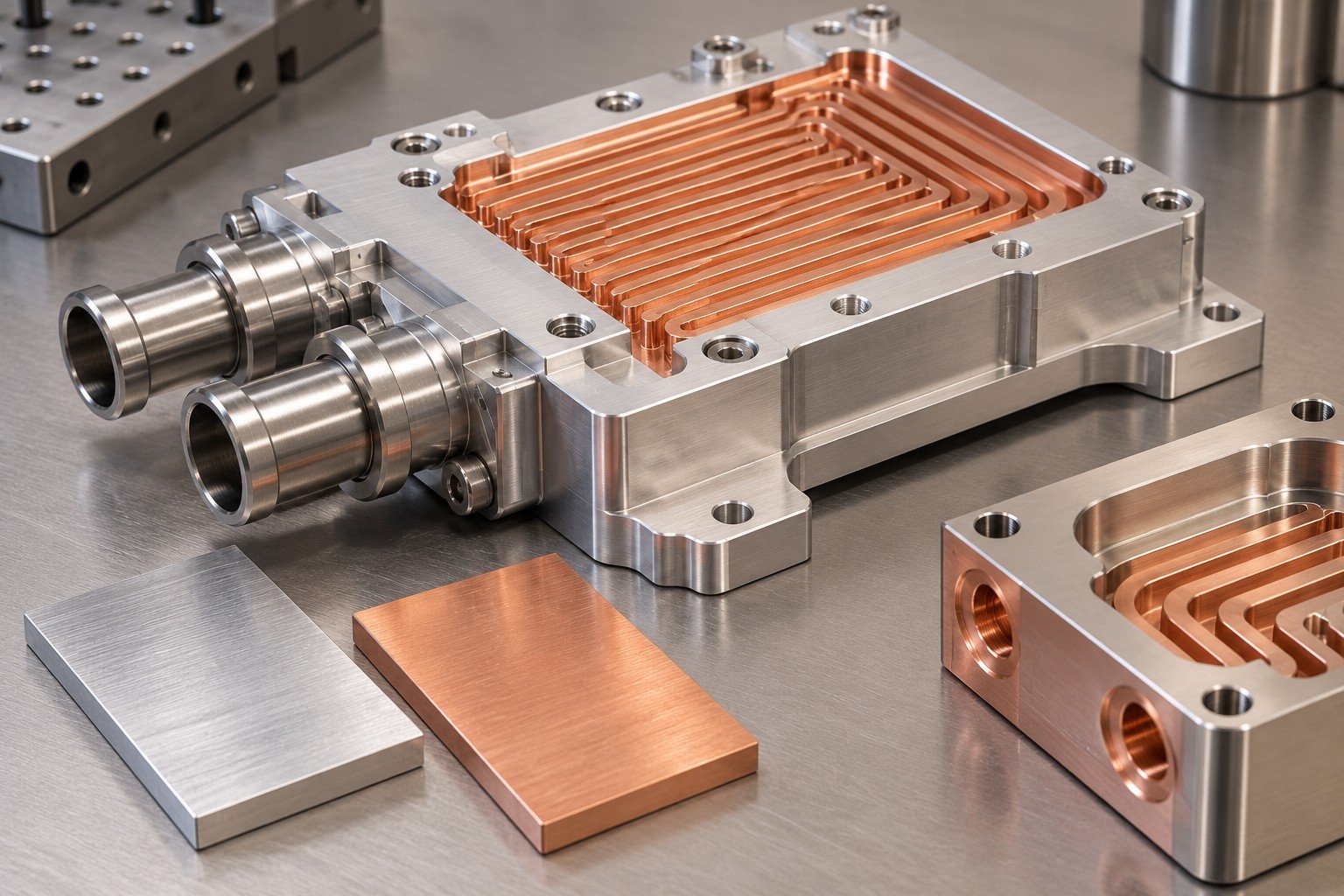

Material and coolant
Fiber laser cooling material selection must consider exact grade/temper, surface treatment, all wetted materials, approved fluid and joining route. A conductivity value does not approve corrosion or coolant chemistry.
Your drawing
Revision, datums and supplied boundary
Your evidence
Defined method, conditions and approval owner

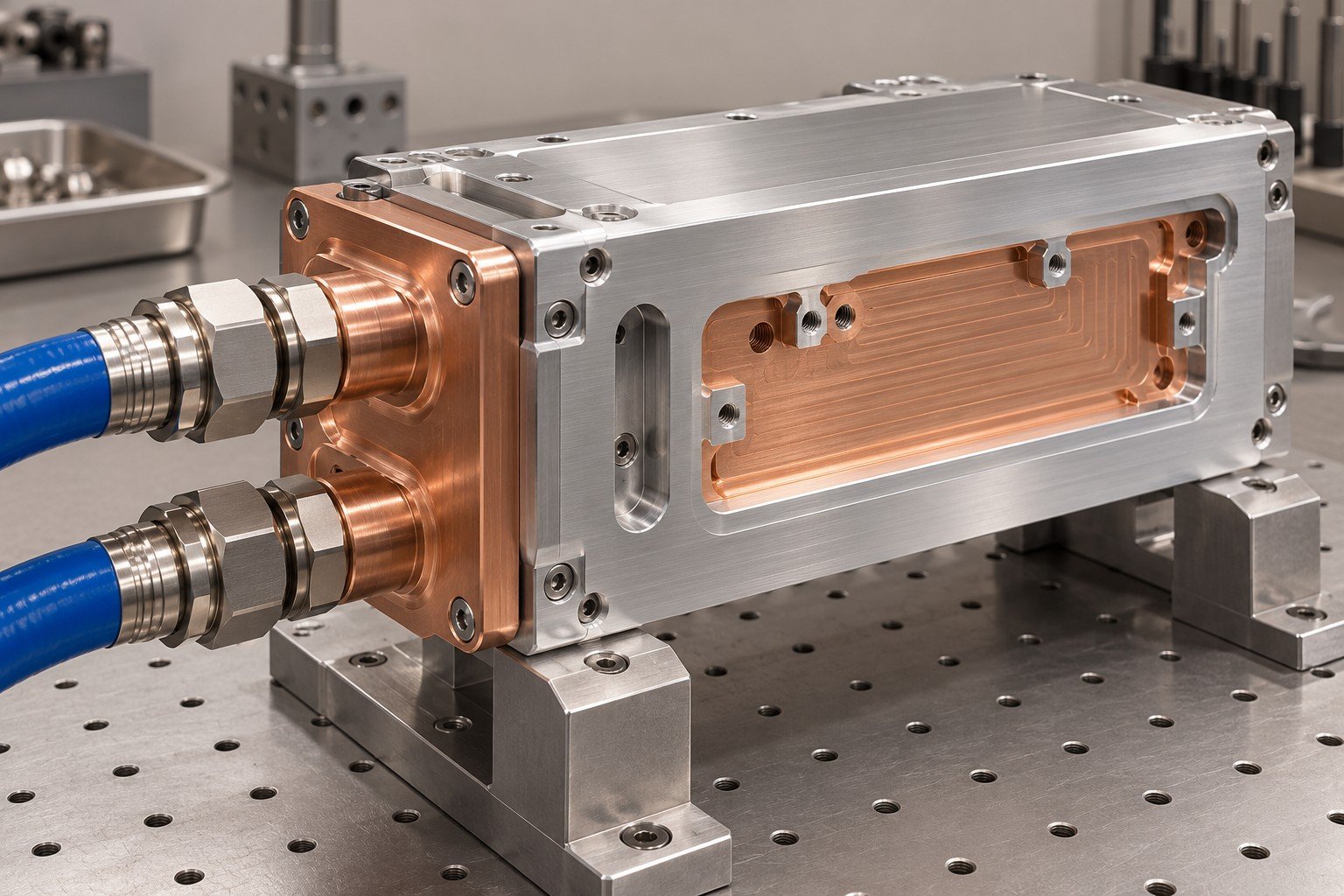

Dew point and operation
Provide equipment-approved inlet conditions, ambient temperature, humidity and relevant operating cases. The laser/chiller owner determines condensation protection and operating settings; colder coolant is not a universal improvement.
Your drawing
Revision, datums and supplied boundary
Your evidence
Defined method, conditions and approval owner
Revision and sample release
Define fiber laser cooling sample approval around the drawing revision, final contact face, locating features, ports and supplied records. Assign thermal, hydraulic and optical-system validation to the responsible owners.
Your drawing
Revision, datums and supplied boundary
Your evidence
Defined method, conditions and approval owner
5 Checkpoints from Drawing to Repeat Supply
Drawing review
Confirm revision, interfaces and operating inputs.
Route review
Agree materials, joining and final machining.
Sample build
Review the finished component and assembly fit.
Agreed checks
Assess specified dimensions, joints and test records.
Production release
Release the accepted revision, packaging and repeat-order scope.
Approve Your Part Evidence Before Repeat Manufacture
Trace your final contact face, locating features, mounting pattern and coolant ports to the controlled module interface. Agree material identity, accessible dimensions, cleanliness, joining evidence and specified integrity checks.
- Current drawing, material and final manufacturing state
- Contact face, alignment datums and mounting holes
- Defined port and joining records
- Protected contact surfaces and capped interfaces

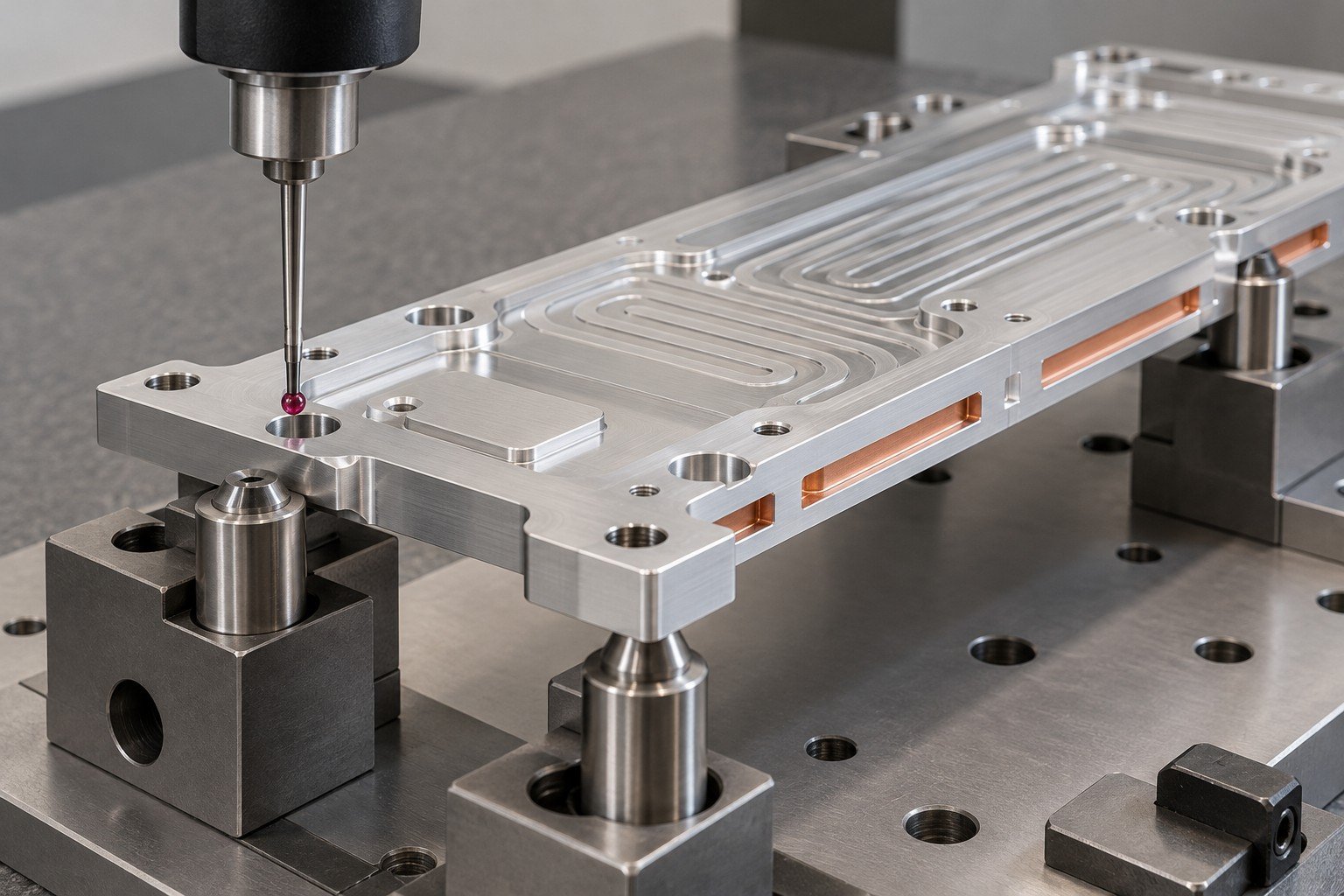

Illustrative inspection concept; not a thermal or optical test
Match Your Cooling Part to the Actual Laser Module
Component review contexts, not customer cases, laser-source products, chiller systems or endorsed optical performance.

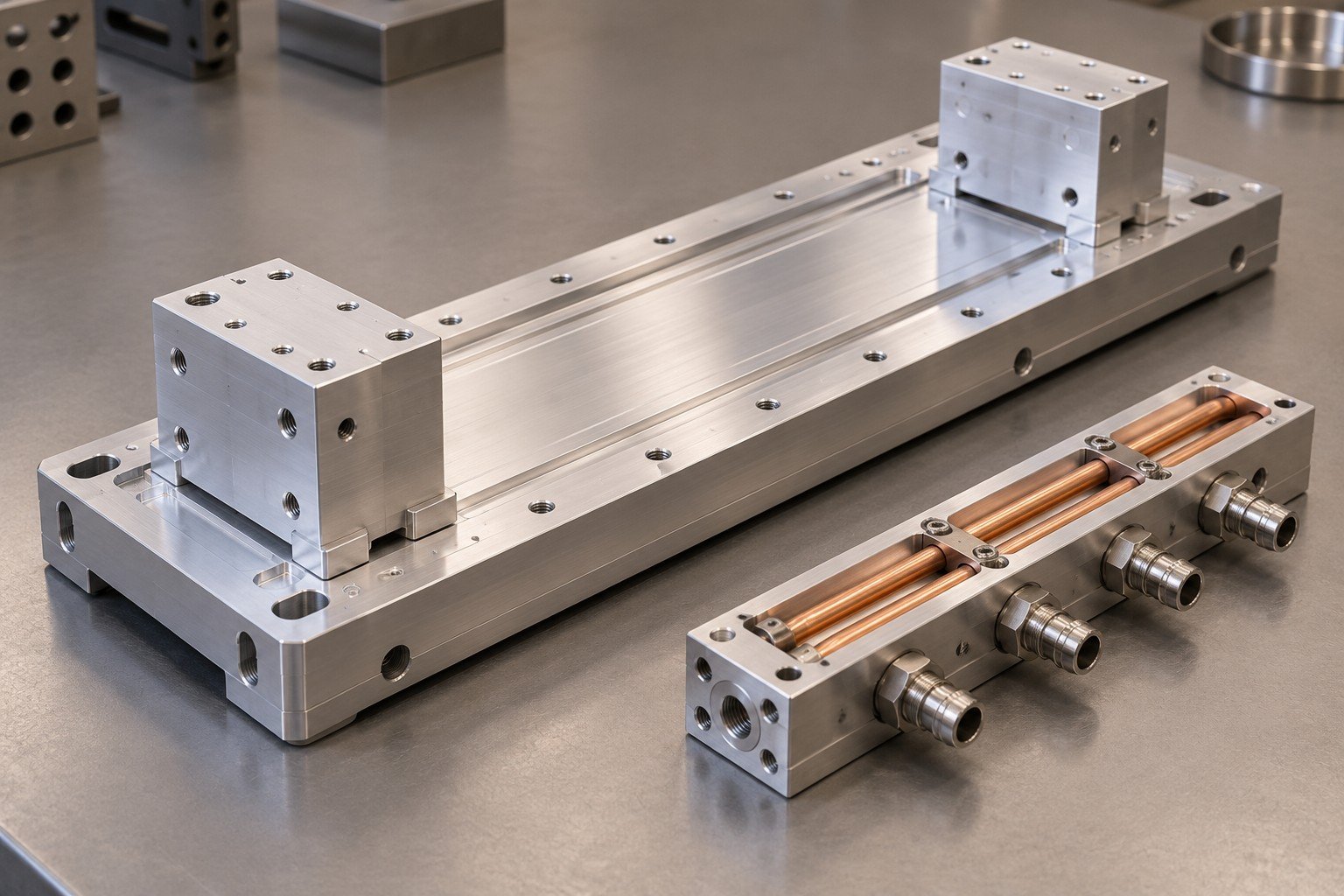

Laser-module baseplates
Review the exact footprint and dissipated heat.
Pump-module interfaces
Control specified contact and locating geometry.
Optomechanical carriers
Define alignment datums and mounting responsibility.
Compact cooling blocks
Review passages, solid lands and connections.
Distribution components
Specify branch ports and connection boundaries.
Integration fixtures
Use controlled dummy loads and sensor locations.
Serviceable subassemblies
Define access, brackets and purchased fittings.
Repeat-part orders
Trace material and accepted sample revisions.
6 Inputs for Your Fiber Laser Cooling Review
- Module interface drawing + alignment datums
- Dissipated heat map + duty cycle
- Contact material, mounting + named temperature nodes
- Approved coolant, inlet, flow + pressure allowance
- Ports, fittings, material + final surface condition
- Quantities, sample records + validation owners
Answers Before You Specify
What information is needed to quote a fiber laser cooling block?
Provide the exact module interface drawing, datums, contact footprint, mounting and keep-outs, dissipated heat map, duty cycle, named temperature nodes, approved coolant/inlet/flow conditions, connections, material, quantities and required sample records.
Does a laser cold plate supplier supply the laser chiller?
A manufactured cold plate or cooling block is a separate scope from the laser source and chiller. State the supplied parts, purchased fittings, assembly and records explicitly. Do not infer complete laser/chiller supply from a component photograph.
Can a laser cooling plate use a generic coolant specification?
Use the current requirements for your exact laser, chiller and connected components. Confirm all wetted materials, seals, coatings and fluid conditions with the responsible equipment owner. Do not copy a coolant recipe from an unrelated laser or sensor.
Which checks should be agreed for a fiber laser cooling prototype?
Agree material identity, final contact geometry, alignment datums, mounting/port dimensions, fit, cleanliness and specified joining or integrity records. Define thermal, hydraulic and optical-system validation separately with controlled inputs and approval owners.
Is optical output power enough to specify the plate heat load?
No. Provide dissipated heat and its distribution under the actual operating cases. Optical output, electrical input and heat transferred to a particular cooling interface are different quantities.
Does lower inlet temperature always improve the application?
No. The exact equipment requirements, environment, humidity and condensation protection must be reviewed by the laser/chiller owner. This page does not prescribe a universal coolant setpoint or operating procedure.
