Cooling Loops & Assemblies
for Your Hose Routing, Connections & Delivered Test State
For your cooling loops and assemblies, list the cold plates, manifolds, machined interfaces, selected hoses and fittings included in the order. Review routing, service access, wetted materials, cleanliness and the delivered assembly checks before release.
Illustrative component concept
Drawing
Critical geometry & interfaces
Materials
Grades, condition & compatibility
Interfaces
Defined route & final state
Evidence
Agreed methods & records
Start with Your BOM and Installed Routing
Define supplied components, selected hoses and fittings, routing, service access and acceptance.
- List supplied parts and purchased items
- Review installed lengths, bends and restraints
- Specify connections and wetted materials
- Agree component and platform acceptance separately
- Confirm the sample and acceptance evidence

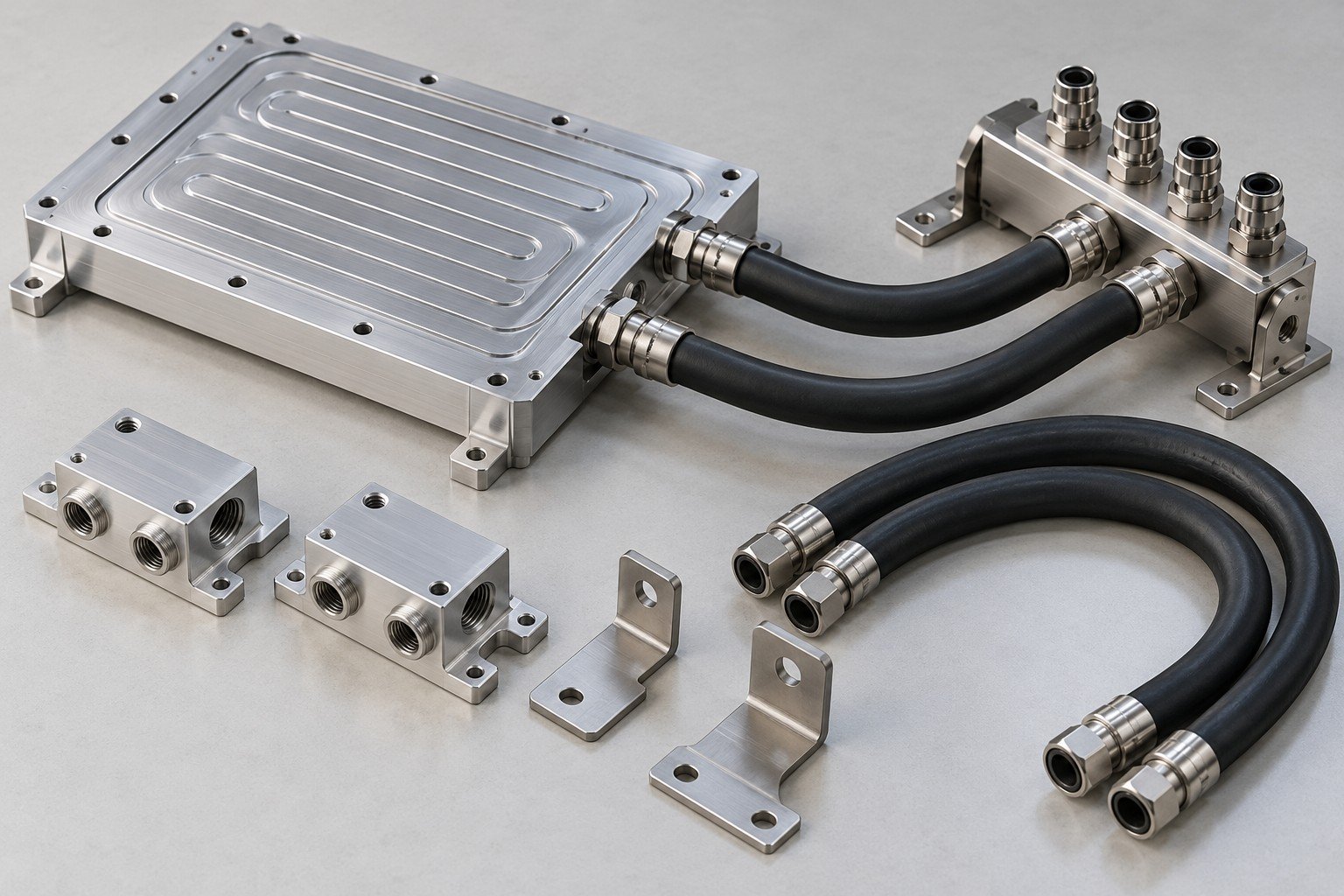

Bill of materials and boundary
Your liquid cooling loop assembly quote should name supplied part numbers, revisions, quantities, purchased hoses and fittings, seals, brackets and the final assembled state. Identify anything provided by your system integrator.
Routing and service access
Define cooling loop hose routing requirements using the selected hose specification, approved bend radius, installed length, restraint, tool access and removal sequence. Review nearby edges, keep-outs and connector operation in the actual assembly.
Coolant and wetted materials
Review cooling loop material compatibility against the actual coolant formulation, concentration, operating temperatures, connected metals, coatings, seals and selected hose materials. Include cleaning and preservation chemicals where relevant.
Controlled assembly information
Your cooling loop assembly drawing requirements should include the released routing layout, connection schedule, BOM, hose and fitting specifications, final condition and acceptance records. A liquid cooling loop prototype assembly should resolve installation and service interfaces before repeat supply.
Illustrative engineering concepts
Define 4 Scopes for Your Cooling Loop Order
Build the quotation around the actual supplied parts and assembly state. Pumps, controls and complete-system validation need a separately defined agreement.
Machined Interfaces
Define adapter ports, seal lands, datums and final condition.
Review this supplied scope →

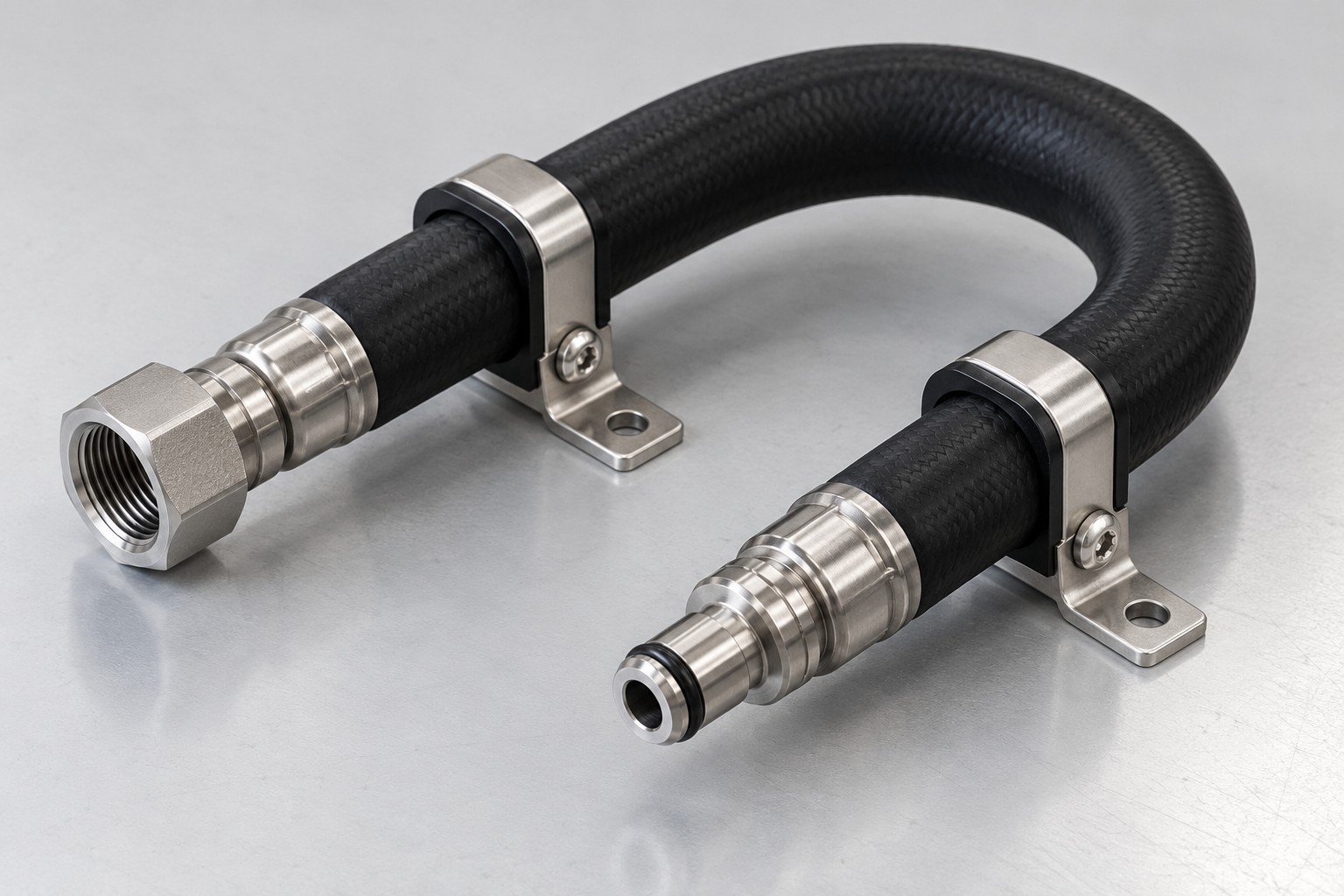

Selected Hose Assemblies
Specify approved hoses, end fittings, lengths, bends and restraints.
Review this supplied scope →
Manifold Subassemblies
List manifold ports, selected fittings, seals and supplied tests.
Review this supplied scope →

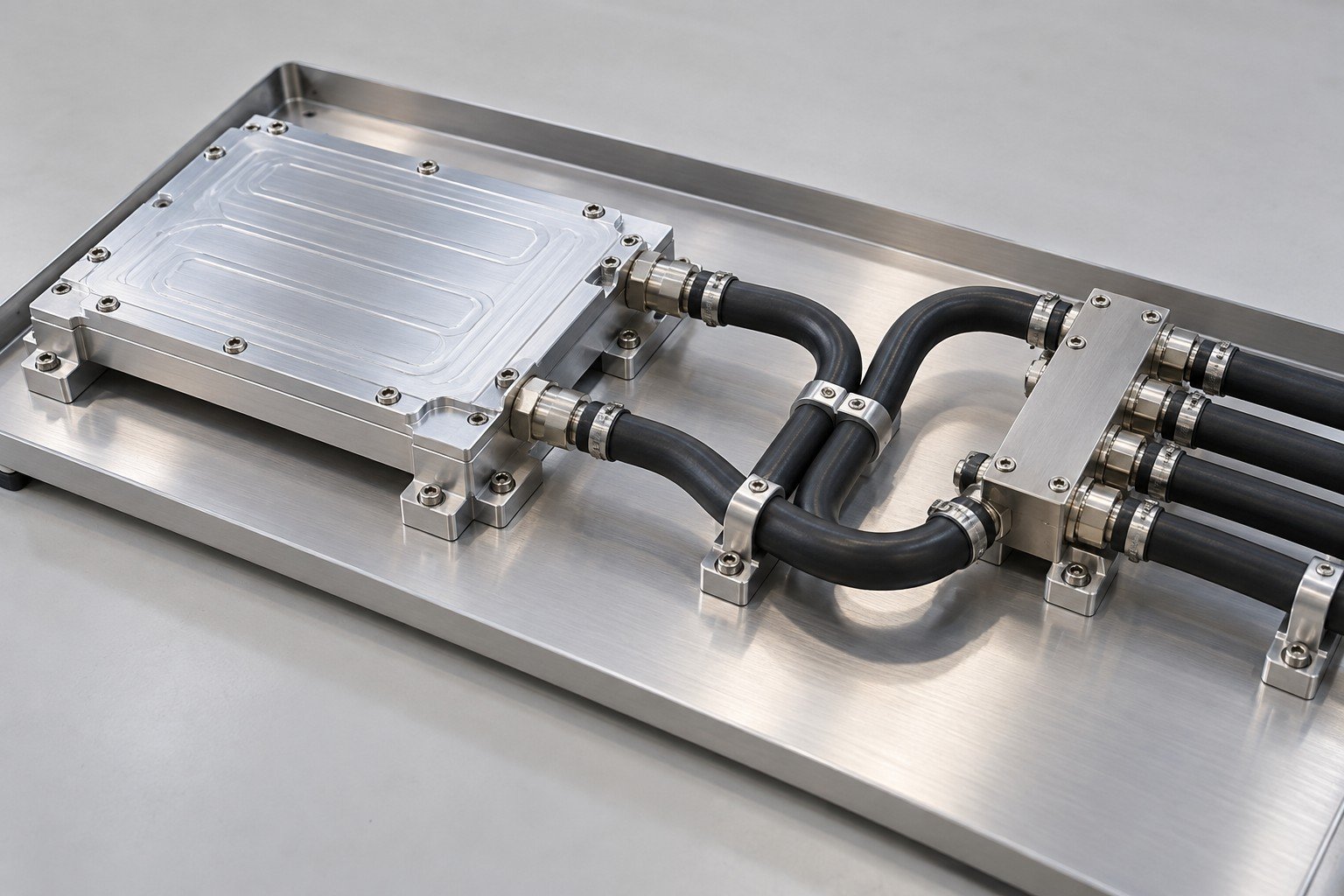

Your Defined Component Loop
Agree cold plates, manifold, hoses, brackets and the supplied boundary.
Review this supplied scope →Illustrative engineering concepts
Build Your Defined Loop from a Controlled Bill of Materials
BOM + ROUTING + CONNECTIONS↓COMPONENTS & CONNECTIONS↓SAMPLE & AGREED CHECKS↓APPROVED FINISHED PART
A custom liquid cooling loop assembly needs a controlled bill of materials and the actual installed geometry. Cooling loop component manufacturing and cooling loop interface machining cover the released parts and final mating features. Your cooling loop manifold assembly should identify selected fittings, seals, hoses, brackets and supplied records; pumps, controls and complete-system validation require a separate defined scope.
- Define the supplied parts, material and connection boundary.
- Review your critical interfaces in their final production state.
- Agree sample evidence before repeat-order release.
Compare Your Wetted Material References
Choose material with your coolant, connected metals, seals, mass and manufacturing route in view. These stock references do not establish corrosion compatibility, a pressure rating or manifold flow performance.
Thermal conductivity reference
Bulk conductivity does not establish the hydraulic or thermal performance of your assembled loop.
Density reference
Estimate mass using your finished volume. Confirm exact grade, product specification and required condition with the purchasing documents.
| Grade / European reference | Si | Fe | Cu | Mn | Mg | Zn | Al |
|---|---|---|---|---|---|---|---|
| 6061 · EN AW-6061 · AlMg1SiCu | 0.40–0.80 | ≤0.70 | 0.15–0.40 | ≤0.15 | 0.80–1.20 | ≤0.25 | Balance |
6061 additional selected limits: Cr 0.04–0.35%, Ti ≤0.15%; other elements ≤0.05% each / ≤0.15% total. Hydro reference, not a finished loop-component certificate.
| Reference grade | European identifier | UNS | C | Cr | Ni | Mo |
|---|---|---|---|---|---|---|
| 304 | EN 1.4301 | S30400 | 0.04 | 18.1 | 8.1 | — |
| 316L | EN 1.4404 | S31603 | 0.02 | 17.2 | 10.1 | 2.1 |
Outokumpu Core/Supra Table 1 typical composition and Table 7 physical references. Dash means not listed in the selected summary, not zero. European identifiers aid drawing review; substitutions and final purchasing limits require approval.
Sources: Hydro 6061 → · Outokumpu Core 304 → · Outokumpu Supra 316L →
3 Views Before Your Loop Assembly Release
Review series-loss bookkeeping, the tested configuration and performance ownership. The numeric example is chosen arithmetic, not a test report, pump recommendation or operating rating.
1 · Chosen series-loss sum
Chosen example at one common flow: 2 + 3 + 5 = 10 kPa across these series elements. The values are illustrative inputs, not measured parts or recommended limits. Actual losses depend on fluid, temperature, geometry and flow; parallel branches require their own network analysis.
2 · Name the delivered test state
CONTROLLED BOM + ROUTING REVISION↓INSTALLED HOSES + FITTINGS + SEALS↓AGREED LEAK / PRESSURE RECORDS
Record which plugs, fittings, seals and hoses are installed during each specified check. Define the medium, conditions, limits and report separately for leak and pressure acceptance.
3 · Assign performance validation
SUPPLIED COMPONENT LOOP ACCEPTANCE↓SYSTEM FLOW + PUMP + CONTROL REVIEW↓THERMAL TEST + APPROVAL OWNER
Agree the actual flow and thermal test configuration and responsible team. A component dimensional report or leak check does not establish complete-system performance.
Review Your Surface and Cleanliness Requirements
Separate mounting datums, sealing interfaces and wetted passages. Confirm the specified final condition with the mating assembly.
Define your mounting datums, machining allowance and final inspection state.
Specify the finished thread, fitting engagement and agreed sealing surfaces.
Protect fins, finished contact faces and ports; agree cleaning and shipment condition.
A finish is not a universal cooling improvement. Confirm its purpose, compatibility and inspection state. Review surface finishing options →
Illustrative engineering concepts
Define Your Functional Features
Put the dimensions that control sealing, installed fit and connection access on your drawing.

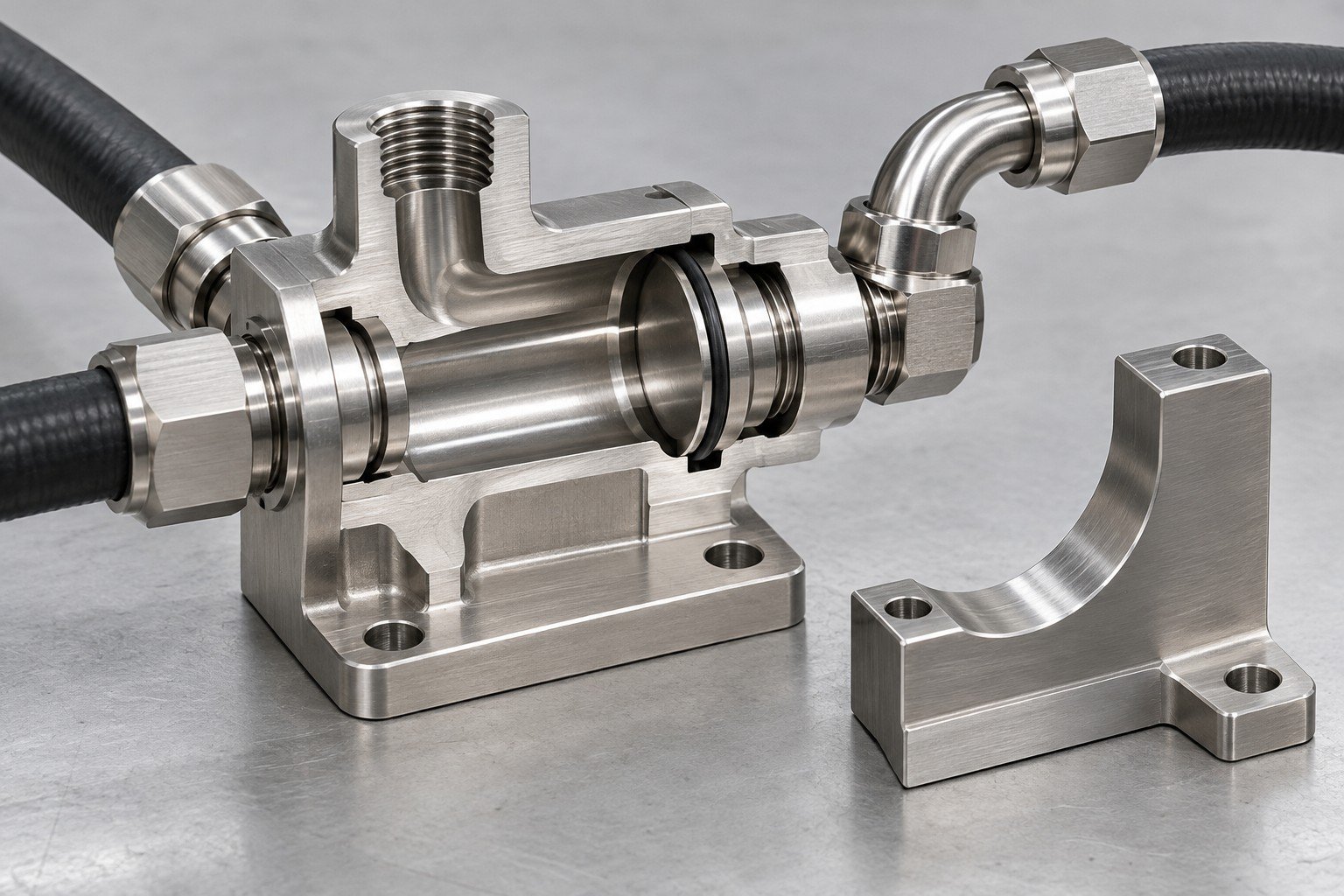

Illustrative loop adapter section concept
Mounting footprint
Datum scheme, installed position and mechanical restraint

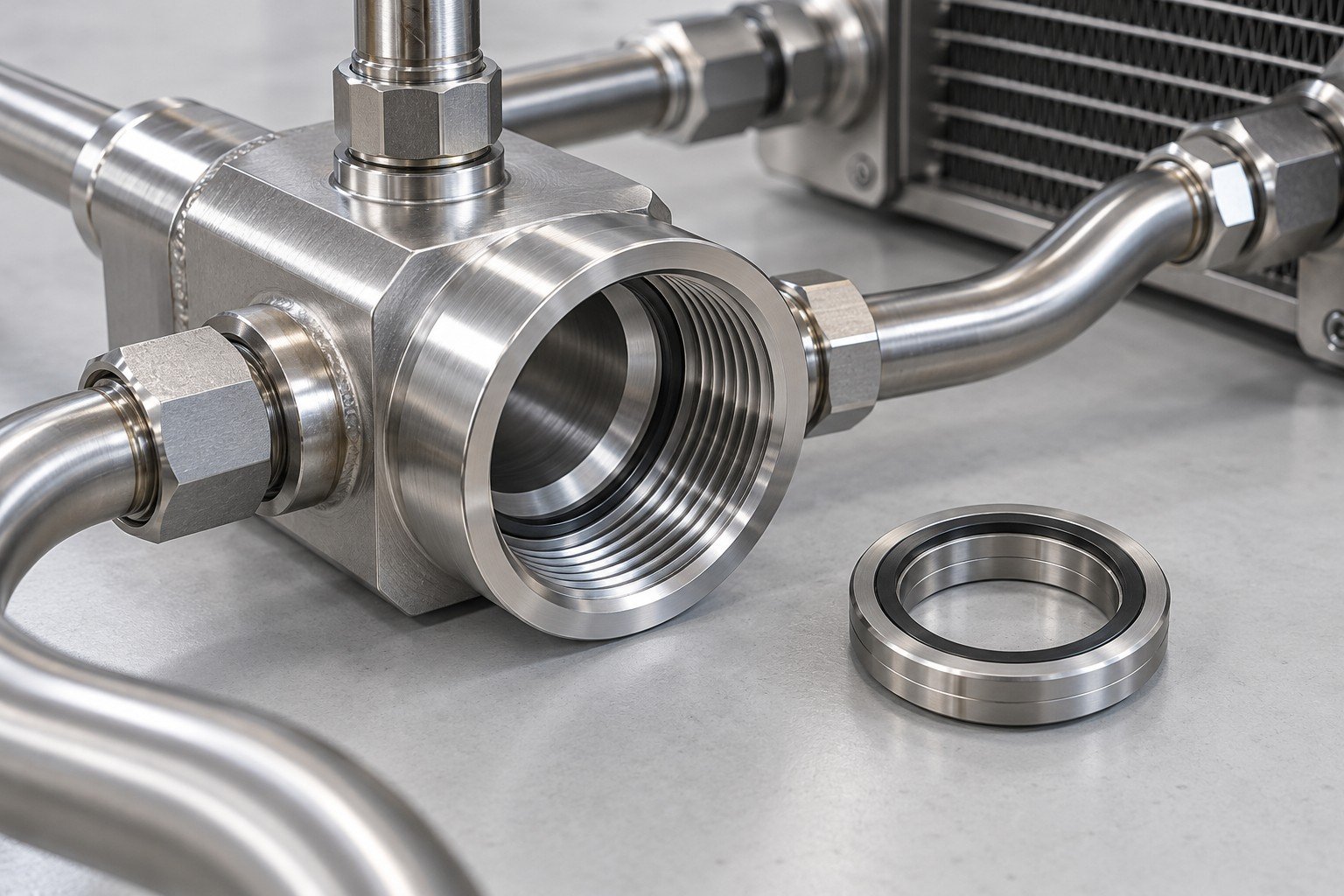

Ports and seals
Thread designation, seal land and fitting engagement
Mounting datums
Hole pattern, datum scheme and tool access
Bores and service access
Passage geometry, tool access and cleaning scope
Final condition
Flatness, masking, protected interfaces and inspection state
Resolve 6 Design Risks Before Your Order
Resolve connections, routing, tests, wetted compatibility, cleanliness and approval ownership before release.

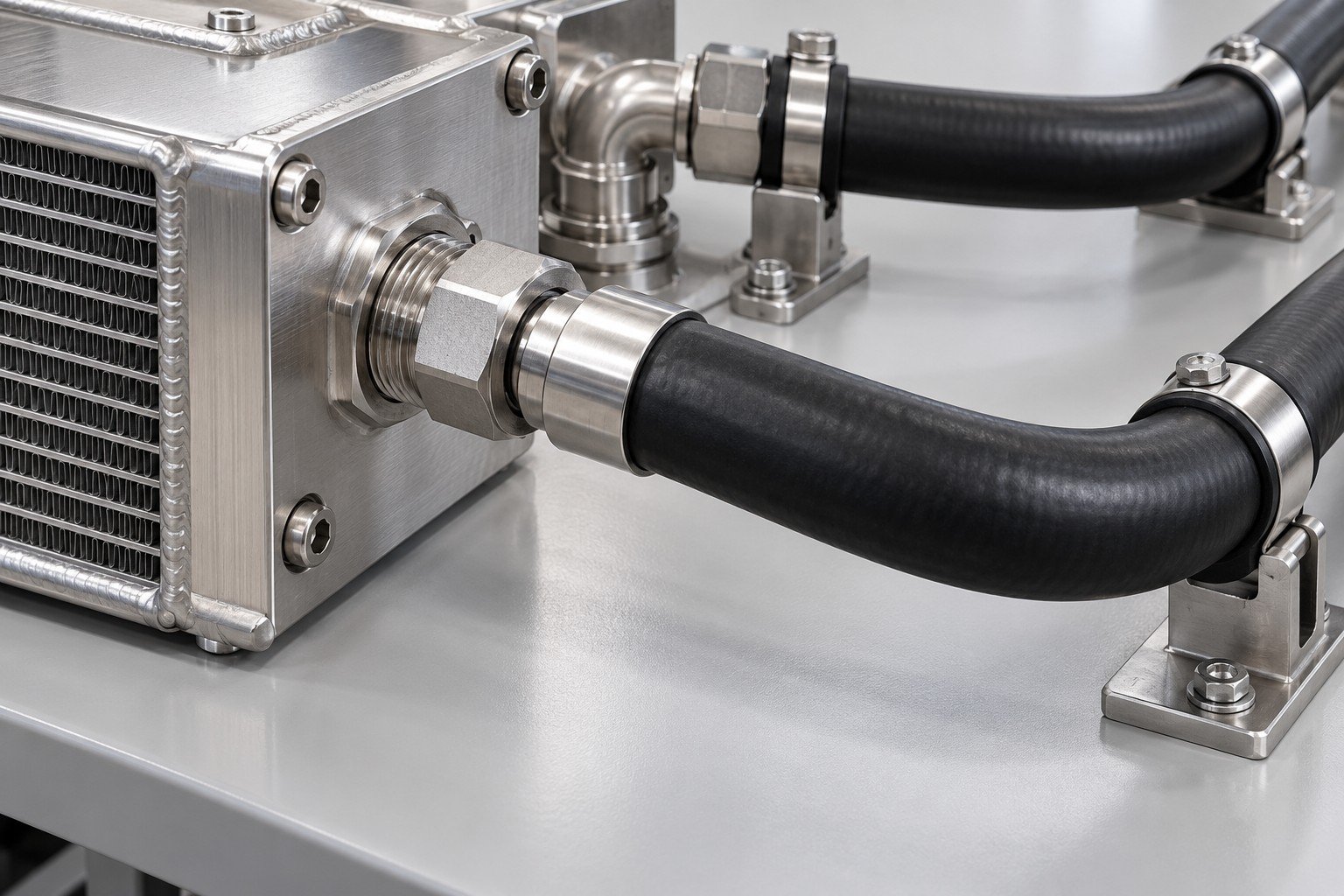

Connections and seal state
Specify mating threads, sealing geometry, selected fittings, seal materials, assembly instructions and any defined tightening requirements. Record the actual supplied connection state rather than inferring compatibility from a matching thread name.
Your input
Controlled drawing and the relevant service conditions.
Your acceptance
Agreed method, inspection state, limits and required records.
Illustrative engineering concept

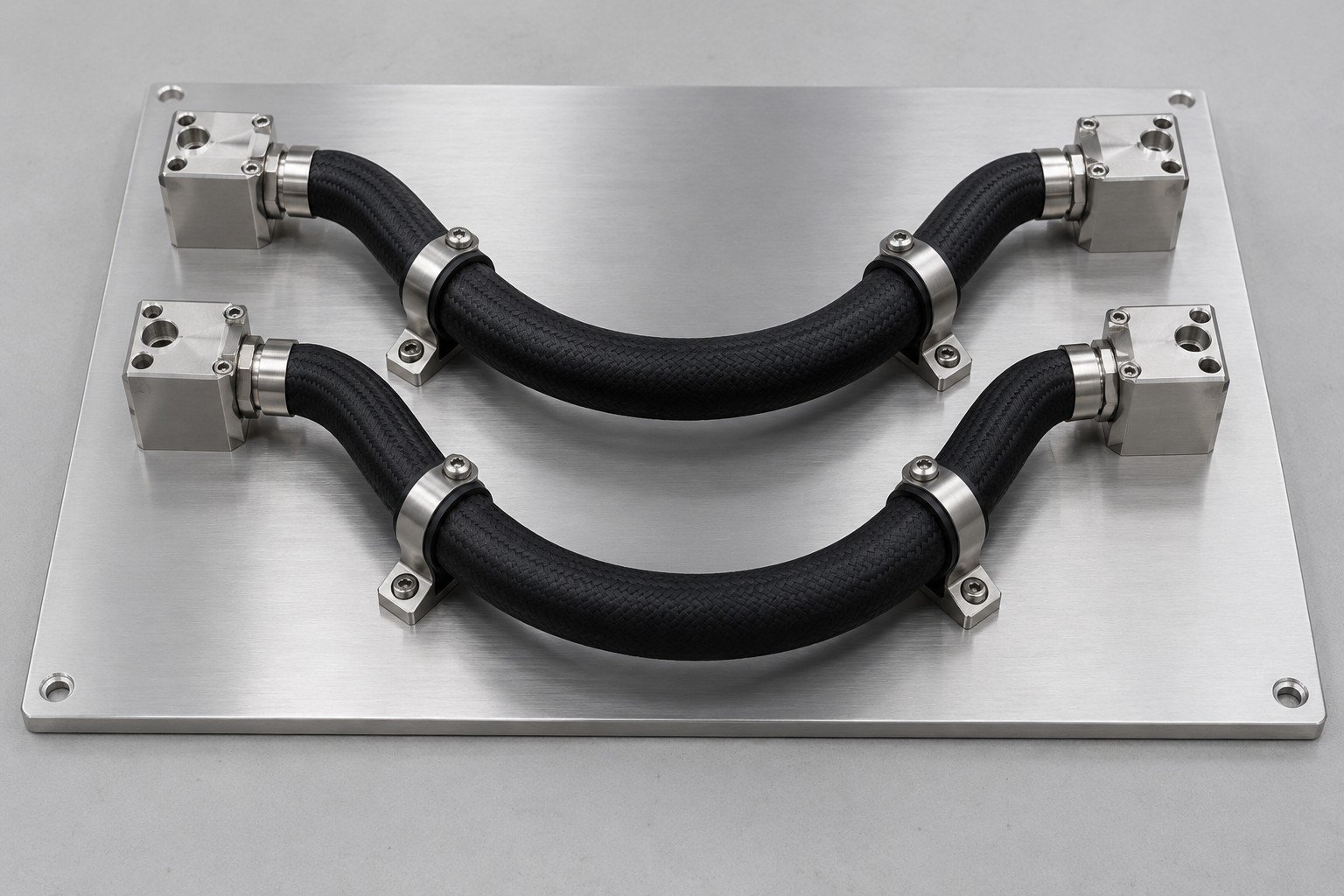

Routing and restraint
Review hose length, bend direction, selected minimum bend requirements, clamps, support and service movement. Keep the loop clear of sharp edges and nearby components; fitting access and removal should remain usable in the installed envelope.
Your input
Controlled drawing and the relevant service conditions.
Your acceptance
Agreed method, inspection state, limits and required records.
Illustrative engineering concept

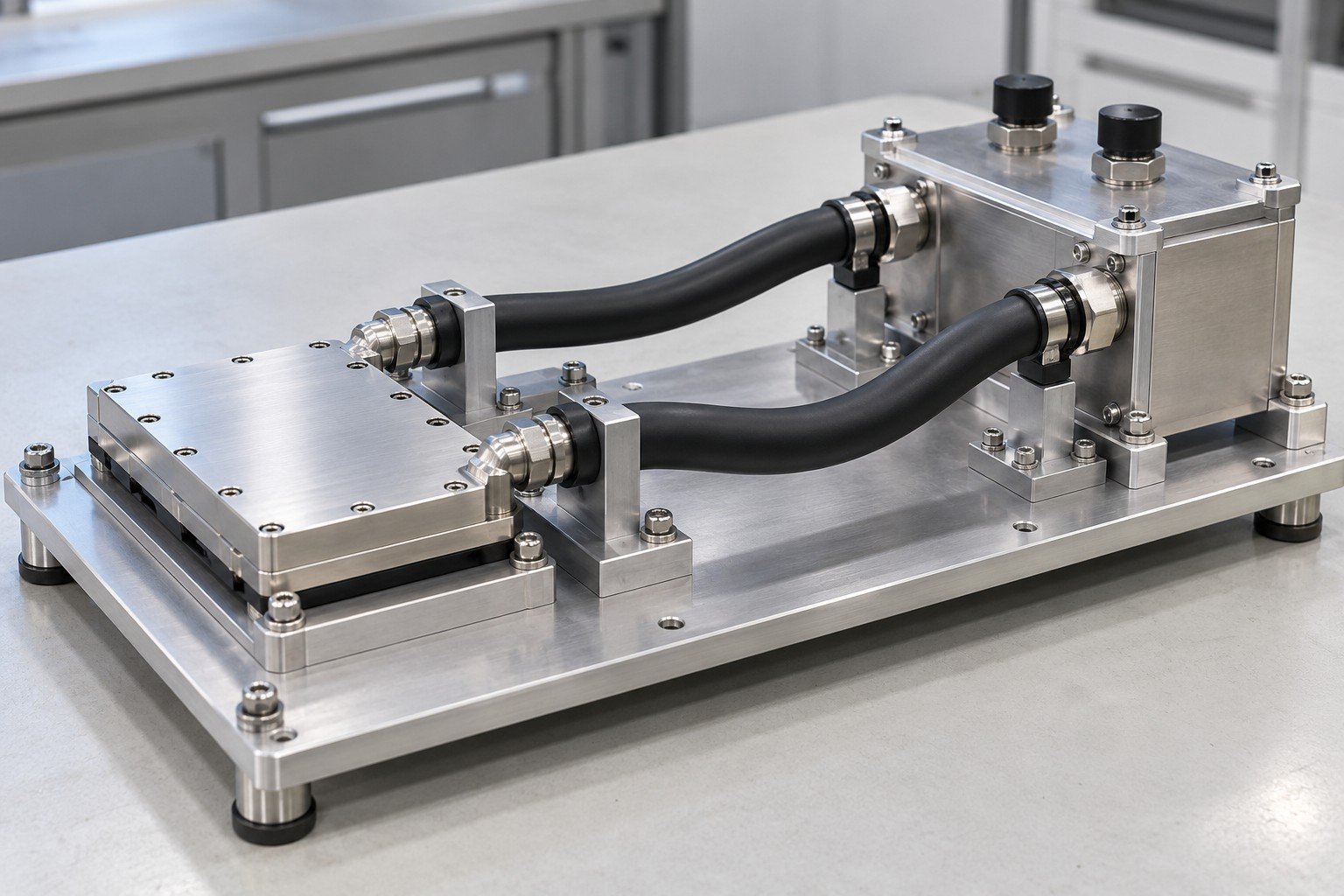

Leak and pressure checks
Agree cooling loop assembly leak testing separately from cooling loop assembly pressure testing. State the installed fittings, plugs, medium, temperature, limits, duration and records. Match the tested configuration to the delivered assembly boundary.
Your input
Controlled drawing and the relevant service conditions.
Your acceptance
Agreed method, inspection state, limits and required records.
Illustrative engineering concept
Wetted material review
Check coolant compatibility across the complete supplied wetted path: metal components, coatings, seals, selected hose and purchased connectors. Assign the owner for confirming compatibility and any separate system qualification.
Your input
Controlled drawing and the relevant service conditions.
Your acceptance
Agreed method, inspection state, limits and required records.
Illustrative engineering concept

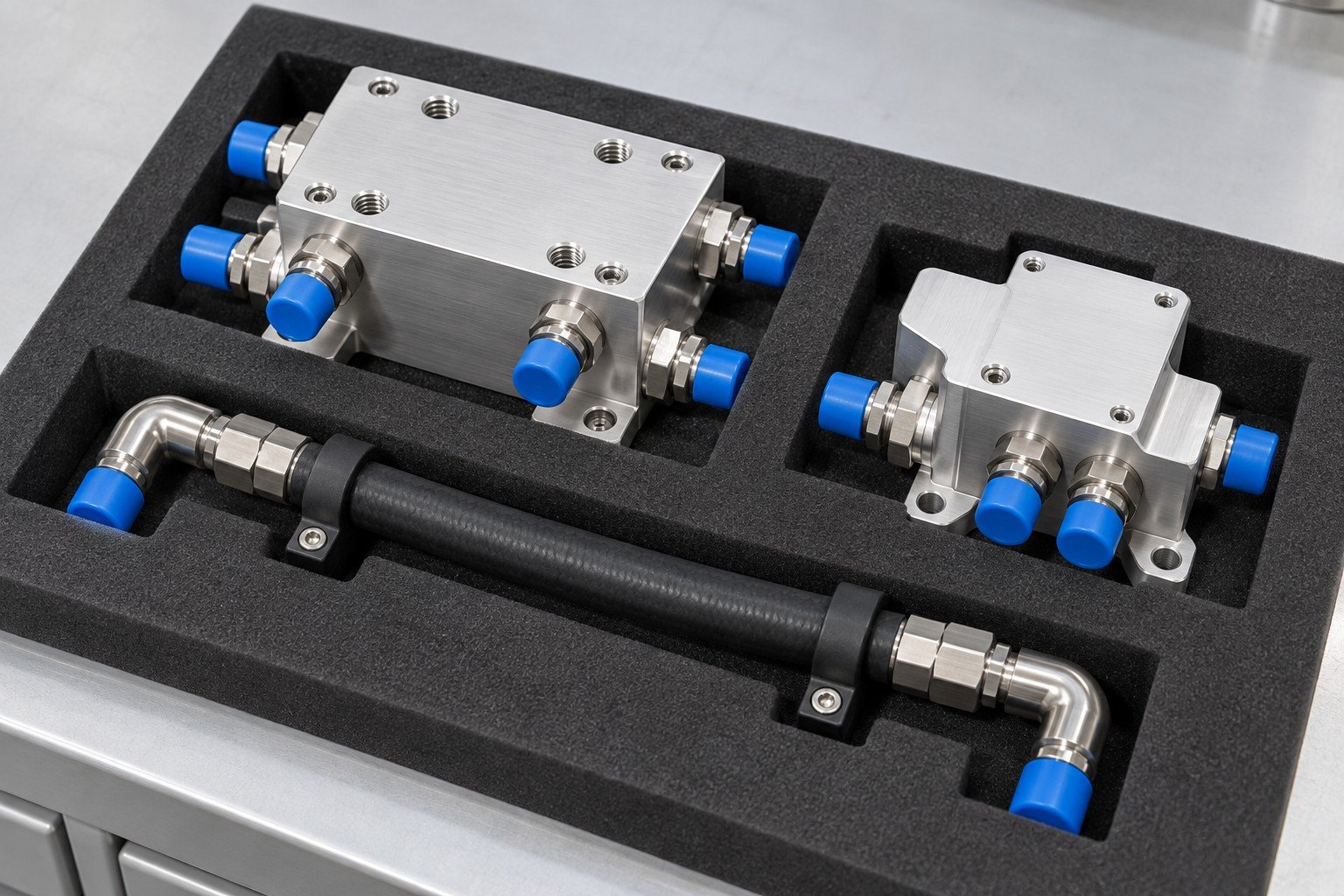

Cleanliness and traceability
Define cooling loop assembly cleanliness by agreed particles or residues, method, cleaning, drying, caps and packaging. Specify cooling loop assembly traceability for part revisions, material identity, purchased items and required assembly or test records.
Your input
Controlled drawing and the relevant service conditions.
Your acceptance
Agreed method, inspection state, limits and required records.
Illustrative engineering concept
Sample and validation
Define cooling loop assembly sample approval around the supplied BOM, routing, installed fit, cleanliness and specified checks. A cooling loop flow test report needs its stated fluid, temperature, flow, pressure measurement locations and test boundary; thermal approval requires its own conditions and owner.
Your input
Controlled drawing and the relevant service conditions.
Your acceptance
Agreed method, inspection state, limits and required records.
Illustrative engineering concept
5 Checkpoints from Drawing to Repeat Supply
Drawing review
Confirm revision, interfaces and operating inputs.
Route review
Agree materials, joining and final machining.
Sample build
Review the finished component and assembly fit.
Agreed checks
Assess specified dimensions, joints and test records.
Production release
Release the accepted revision, packaging and repeat-order scope.
Approve Your Delivered Assembly State and Required Records
Illustrative component concept
Connect each supplied part, hose, fitting and seal to the released bill of materials, routing layout and agreed final condition. Your liquid cooling loop assembly quote should separate manufacturing, purchased components, assembly, cleaning and specified tests. Keep the accepted component loop distinct from pump selection, controls, hydraulic validation and complete-system thermal approval.
- Material identity and drawing revision
- Mounting datum faces, mounting and interface dimensions
- Specified joining and test evidence
- Connection protection, packaging and shipment release
Match Your Loop to Its Installed Assembly
These are review contexts for defined component loops, not complete qualified systems, customer installations or confirmed performance envelopes.
Server tray loops
Review contact hardware, hose restraint and service removal.
Rack connections
Match selected fittings and manifold interface positions.
Prototype fixtures
Confirm the released BOM and routing before repeat supply.
Cold-plate links
Define installed hoses, seals and acceptance state.
Manifold branches
Identify the supplied branch connections and test boundary.
Replacement sets
Match exact revisions, installed lengths and packaging.
Integration handover
Separate assembly records from complete-system approval.
Validation samples
State fluid, flow, temperature and measurement locations.
6 Inputs for Your Cooling Loops & Assemblies Quote
- Controlled BOM, part drawings + revision
- Selected hoses, fittings, seals + supplier specifications
- Installed routing, lengths, restraints + service envelope
- Coolant, wetted materials + cleaning acceptance
- Delivered connection state + specified leak/pressure checks
- Prototype/repeat quantities + reports and validation owner
Ask your quote to separate component manufacturing, joining, finishing, inspection and any independently agreed validation. The drawing review confirms availability, quantities and delivery scope.
Answers Before You Specify
What bill of materials is needed for a cooling loop assembly quote?
List every supplied part, hose, fitting, seal, plug and bracket with its specification, part number, revision and quantity. Include routing drawings, installed lengths, final condition, required records and anything supplied by another party.
Can a cooling loop prototype be supplied without pumps and controls?
Define the prototype boundary in the quotation. A component loop may contain the agreed cold plates, manifold, hoses, fittings and brackets while excluding pumps and controls. Availability and assembly scope require drawing review; the complete system has separate integration and validation responsibilities.
What is included in a cooling loop assembly leak test?
Specify the actual assembly, fittings, seals and plugs, the test method and medium, conditions, leakage limit, duration and supplied record. State whether the check covers a bare component, defined subassembly or final delivered loop.
Who approves cooling loop flow and thermal performance?
Name the system or validation owner and agree the test configuration, fluid, inlet temperature, flow, pressure measurement locations, heat inputs and temperature limits. Manufacturing inspection or a leak check does not by itself establish hydraulic or thermal performance.
How should hose routing be released?
Use the selected hose and fitting specifications, installed lengths, approved bend requirements, restraints, keep-outs and service motion. Review fitting operation, removal access and nearby edges with the actual assembly.
Which records should follow your supplied loop?
Agree the BOM and drawing revisions, material and purchased-component identity, assembly state, cleanliness, dimensional or installation checks and specified test reports. Define who accepts the supplied loop and who validates the complete system.
