Injection Molding
Tooling and molding for your repeat plastic parts.
YOUR COMPOUND. YOUR EXPOSURE. YOUR FINISHED FIT.
PVC for Your Custom Parts
Review your custom PVC parts around rigid stock or the exact molding compound. Define media, temperature, assembly stress and final dimensions before production.
Material availability and manufacturing scope are reviewed for your drawing.
Grade & FormSpecify stock or resin.
Exposure & AssemblyDefine media, load and temperature.
Stability & FitAgree the inspection state.
Material RecordsRetain grade and lot identity.
4 PVC Families to Review First
Start with the full manufacturer product and purchasing form. These are review directions, not interchangeable grades or stock promises.

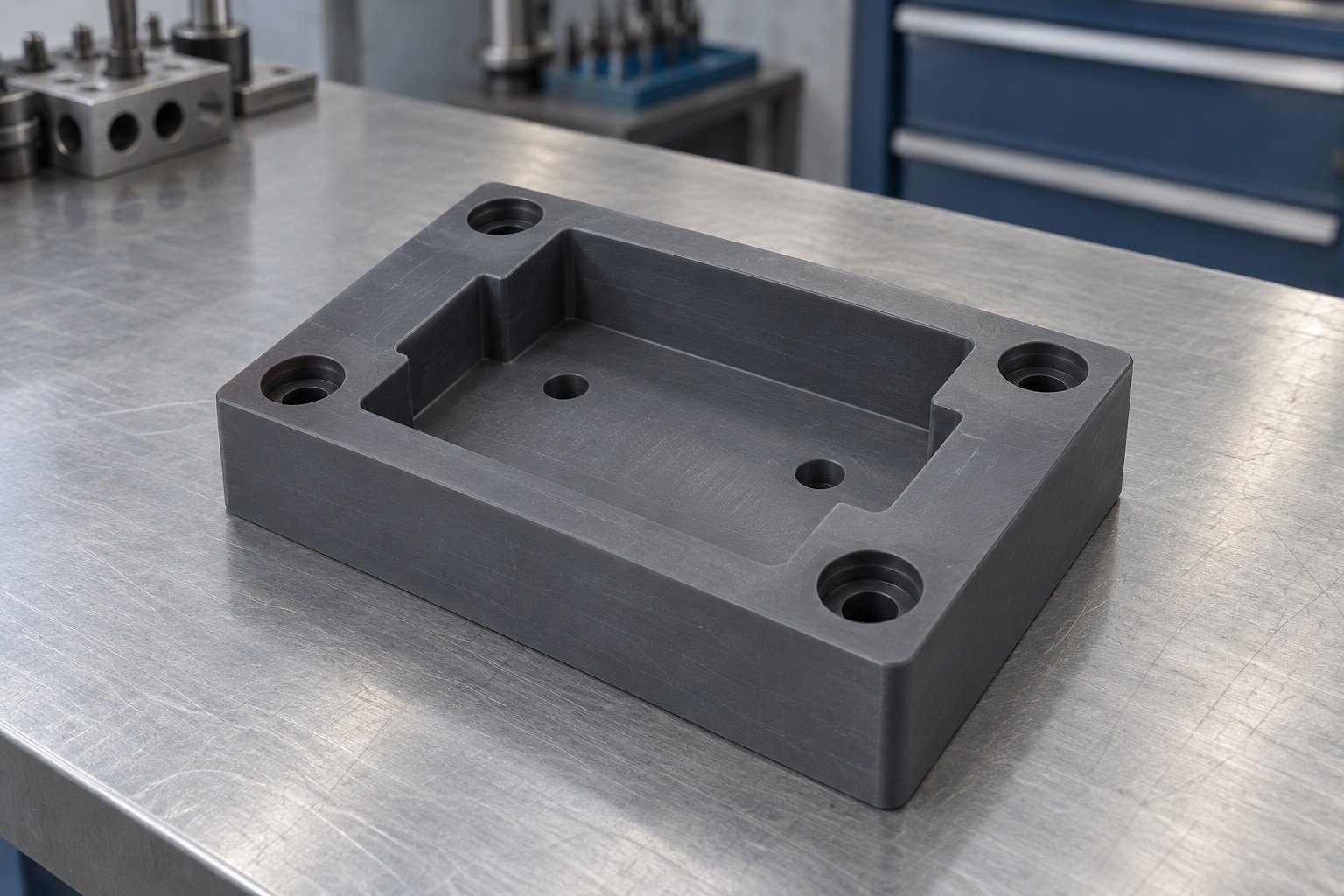

PVC-U machining stock
For rigid PVC components, confirm the sheet, rod or tube product, color and batch. Review support and final dimensions after unclamping.

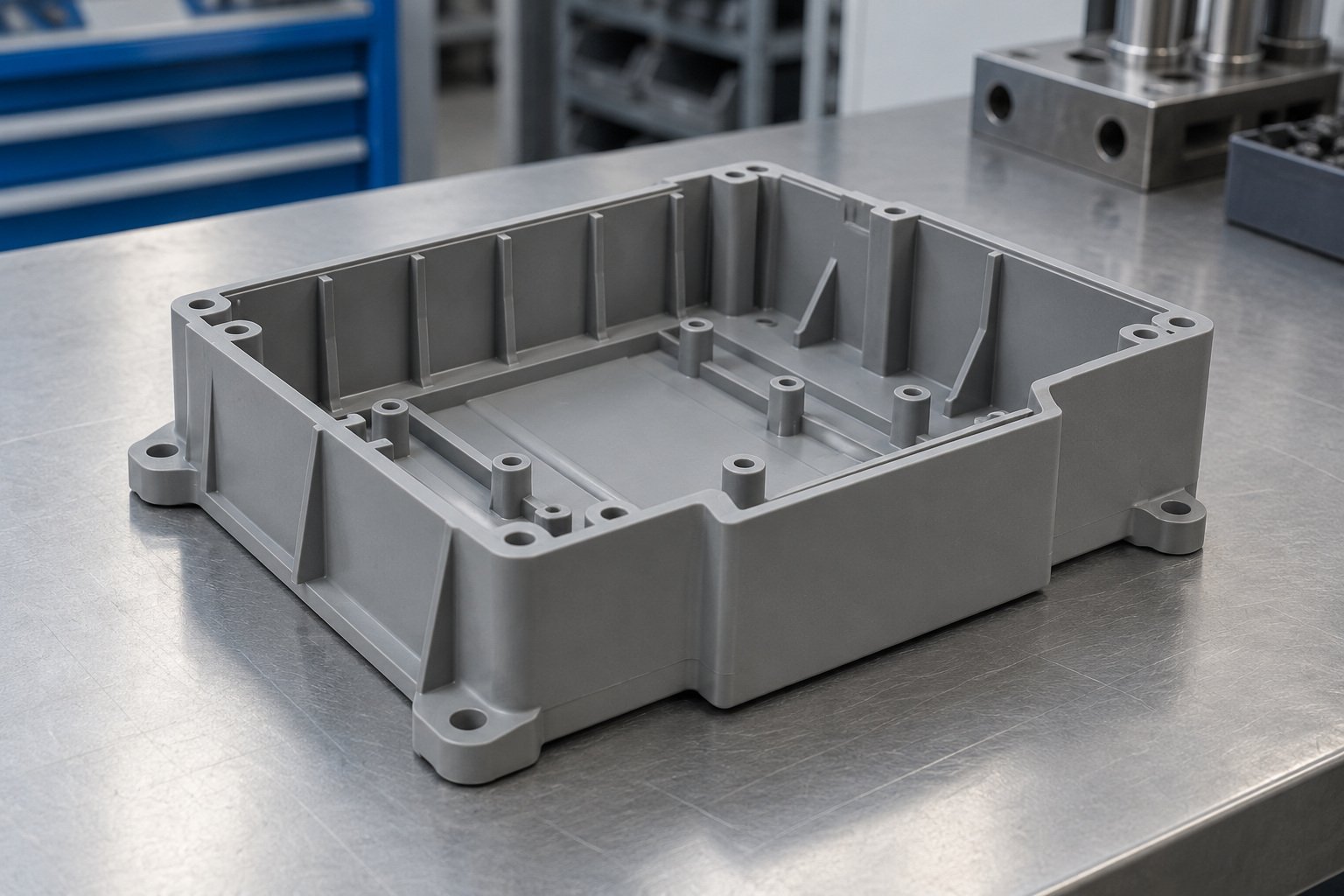

Rigid PVC molding compound
For rigid PVC injection molding, confirm the exact formulation and supplier processing guidance. Stock-shape data does not identify a molding compound.
Plasticized PVC / PVC-P
Flexible PVC uses a different formulation. Specify hardness, plasticizer system and exposure; do not substitute it for rigid PVC-U.

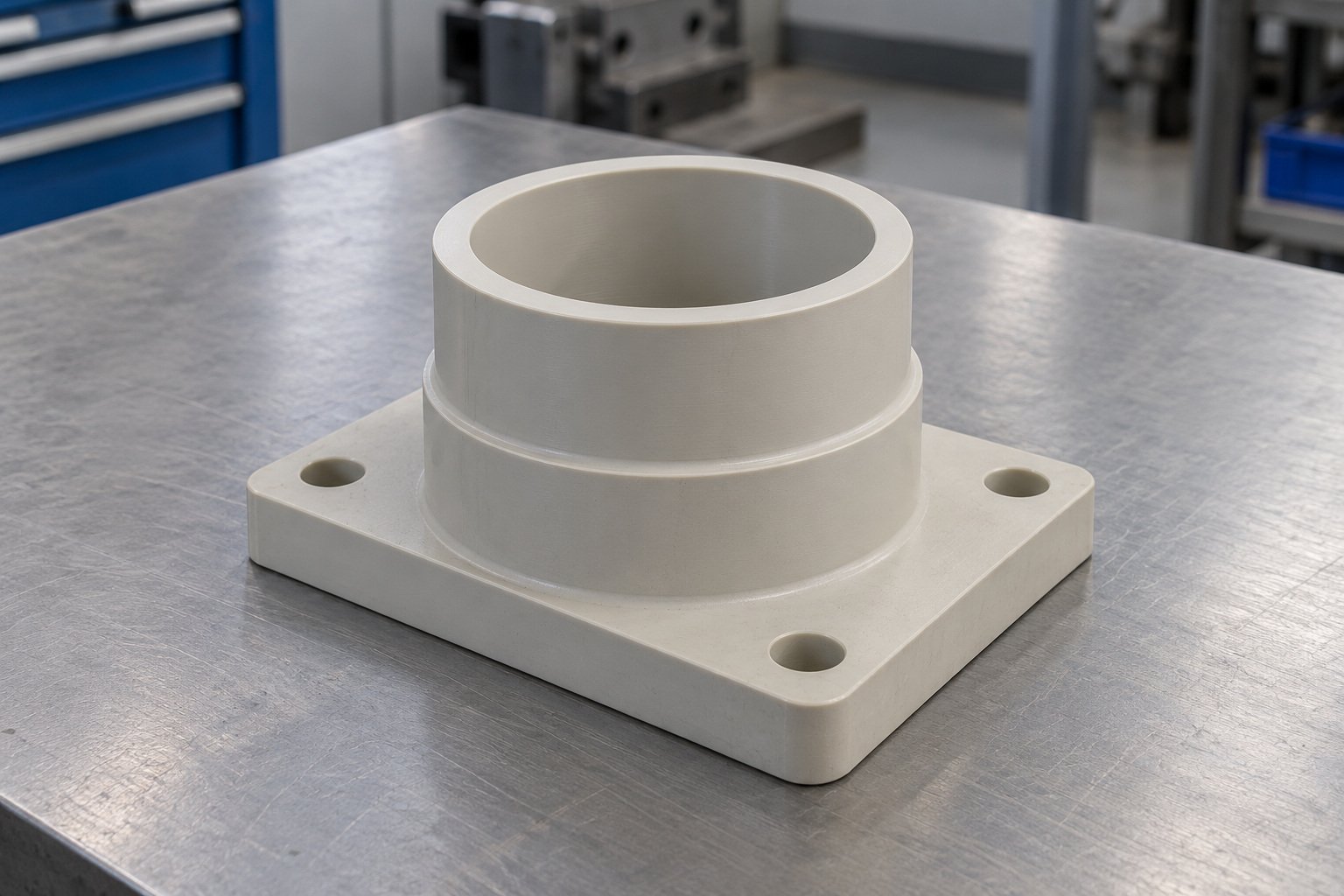

PVC-C / CPVC review
Chlorinated PVC is a distinct material family. Review full product, media, temperature and manufacturing route before approving a change.
Choose Around Your Part’s Requirements
Review PVC-U machining stock for Your Drawing
For rigid PVC components, confirm the sheet, rod or tube product, color and batch. Review support and final dimensions after unclamping.
| Your decision | What to confirm |
|---|---|
| Full product | Manufacturer, grade suffix, color and lot |
| Purchasing form | Stock shapes or molding resin |
| Your approval | Actual load, assembly and sample |
Two Purchasing Routes, Different Evidence
A resin data sheet does not identify unspecified sheet, rod or tube.
| Your decision | What to confirm |
|---|---|
| CNC Stock: Full Product + Form | For your PVC machining quote, identify the exact stock manufacturer, grade, color, size and lot. Agree support, machining allowance and the final inspection state. |
| Molding Compound: Exact Formulation | For your PVC injection molding quote, identify the supplier compound, rigid or plasticized formulation, color and approved sample. No universal molding settings apply across all PVC grades. |
Agree Your Finished Fit
Review geometry, temperature state, support and timing before comparing dimensions.
| Your decision | What to confirm |
|---|---|
| Assembly | Mating parts, contact media and assembly stress |
| Processing | Heat history, cooling and support |
| Inspection | Datums, support and agreed method |
Confirm PVC Material Certification
Material records must correspond to the product and batch actually supplied.
| Your decision | What to confirm |
|---|---|
| Identity | Full stock or resin product, color and batch |
| Finished part | Dimensions and functional sample approval |
| No automatic equivalence | Printed or machined prototypes do not validate molded-part performance |
Review Rigid PVC molding compound for Your Drawing
For rigid PVC injection molding, confirm the exact formulation and supplier processing guidance. Stock-shape data does not identify a molding compound.
| Your decision | What to confirm |
|---|---|
| Full product | Manufacturer, grade suffix, color and lot |
| Purchasing form | Stock shapes or molding resin |
| Your approval | Actual load, assembly and sample |
Two Purchasing Routes, Different Evidence
A resin data sheet does not identify unspecified sheet, rod or tube.
| Your decision | What to confirm |
|---|---|
| CNC Stock: Full Product + Form | For your PVC machining quote, identify the exact stock manufacturer, grade, color, size and lot. Agree support, machining allowance and the final inspection state. |
| Molding Compound: Exact Formulation | For your PVC injection molding quote, identify the supplier compound, rigid or plasticized formulation, color and approved sample. No universal molding settings apply across all PVC grades. |
Agree Your Finished Fit
Review geometry, temperature state, support and timing before comparing dimensions.
| Your decision | What to confirm |
|---|---|
| Assembly | Mating parts, contact media and assembly stress |
| Processing | Heat history, cooling and support |
| Inspection | Datums, support and agreed method |
Confirm PVC Material Certification
Material records must correspond to the product and batch actually supplied.
| Your decision | What to confirm |
|---|---|
| Identity | Full stock or resin product, color and batch |
| Finished part | Dimensions and functional sample approval |
| No automatic equivalence | Printed or machined prototypes do not validate molded-part performance |

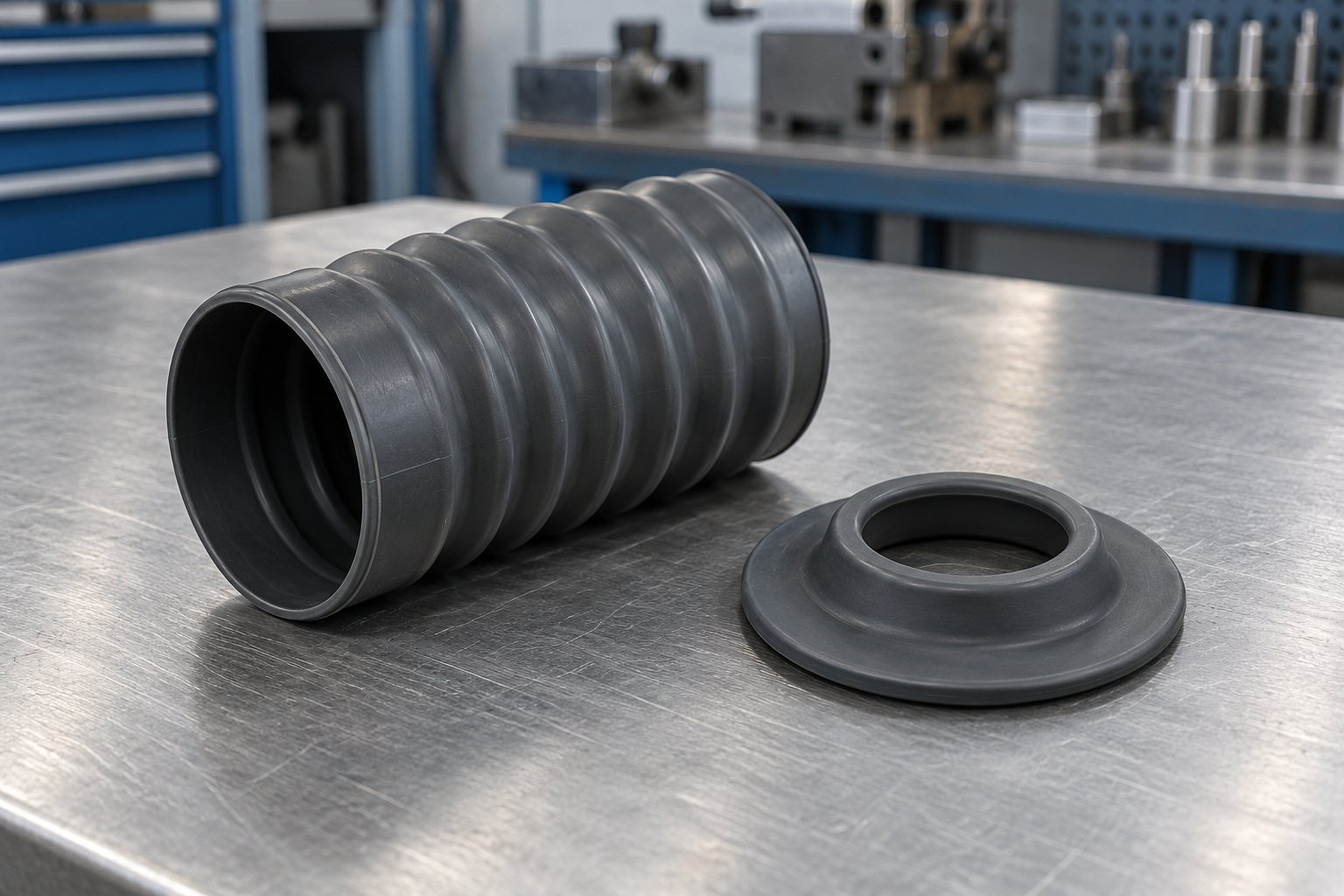

Review Plasticized PVC / PVC-P for Your Drawing
Flexible PVC uses a different formulation. Specify hardness, plasticizer system and exposure; do not substitute it for rigid PVC-U.
| Your decision | What to confirm |
|---|---|
| Full product | Manufacturer, grade suffix, color and lot |
| Purchasing form | Stock shapes or molding resin |
| Your approval | Actual load, assembly and sample |
Two Purchasing Routes, Different Evidence
A resin data sheet does not identify unspecified sheet, rod or tube.
| Your decision | What to confirm |
|---|---|
| CNC Stock: Full Product + Form | For your PVC machining quote, identify the exact stock manufacturer, grade, color, size and lot. Agree support, machining allowance and the final inspection state. |
| Molding Compound: Exact Formulation | For your PVC injection molding quote, identify the supplier compound, rigid or plasticized formulation, color and approved sample. No universal molding settings apply across all PVC grades. |
Agree Your Finished Fit
Review geometry, temperature state, support and timing before comparing dimensions.
| Your decision | What to confirm |
|---|---|
| Assembly | Mating parts, contact media and assembly stress |
| Processing | Heat history, cooling and support |
| Inspection | Datums, support and agreed method |
Confirm PVC Material Certification
Material records must correspond to the product and batch actually supplied.
| Your decision | What to confirm |
|---|---|
| Identity | Full stock or resin product, color and batch |
| Finished part | Dimensions and functional sample approval |
| No automatic equivalence | Printed or machined prototypes do not validate molded-part performance |
Review PVC-C / CPVC review for Your Drawing
Chlorinated PVC is a distinct material family. Review full product, media, temperature and manufacturing route before approving a change.
| Your decision | What to confirm |
|---|---|
| Full product | Manufacturer, grade suffix, color and lot |
| Purchasing form | Stock shapes or molding resin |
| Your approval | Actual load, assembly and sample |
Two Purchasing Routes, Different Evidence
A resin data sheet does not identify unspecified sheet, rod or tube.
| Your decision | What to confirm |
|---|---|
| CNC Stock: Full Product + Form | For your PVC machining quote, identify the exact stock manufacturer, grade, color, size and lot. Agree support, machining allowance and the final inspection state. |
| Molding Compound: Exact Formulation | For your PVC injection molding quote, identify the supplier compound, rigid or plasticized formulation, color and approved sample. No universal molding settings apply across all PVC grades. |
Agree Your Finished Fit
Review geometry, temperature state, support and timing before comparing dimensions.
| Your decision | What to confirm |
|---|---|
| Assembly | Mating parts, contact media and assembly stress |
| Processing | Heat history, cooling and support |
| Inspection | Datums, support and agreed method |
Confirm PVC Material Certification
Material records must correspond to the product and batch actually supplied.
| Your decision | What to confirm |
|---|---|
| Identity | Full stock or resin product, color and batch |
| Finished part | Dimensions and functional sample approval |
| No automatic equivalence | Printed or machined prototypes do not validate molded-part performance |
Compare Published Yield Stress — Not Service Pressure
Two named Röchling stock products; DIN EN ISO 527 guideline values. PVC-U and PVC-C are different materials, not approved substitutes.
Yield Stress (MPa)
Manufacturer guideline data, not a pressure rating, design allowable or finished-part guarantee. Confirm current TDS and your service conditions.
PVC-U source → PHT source →2 Purchasing Routes. Different Material Evidence.

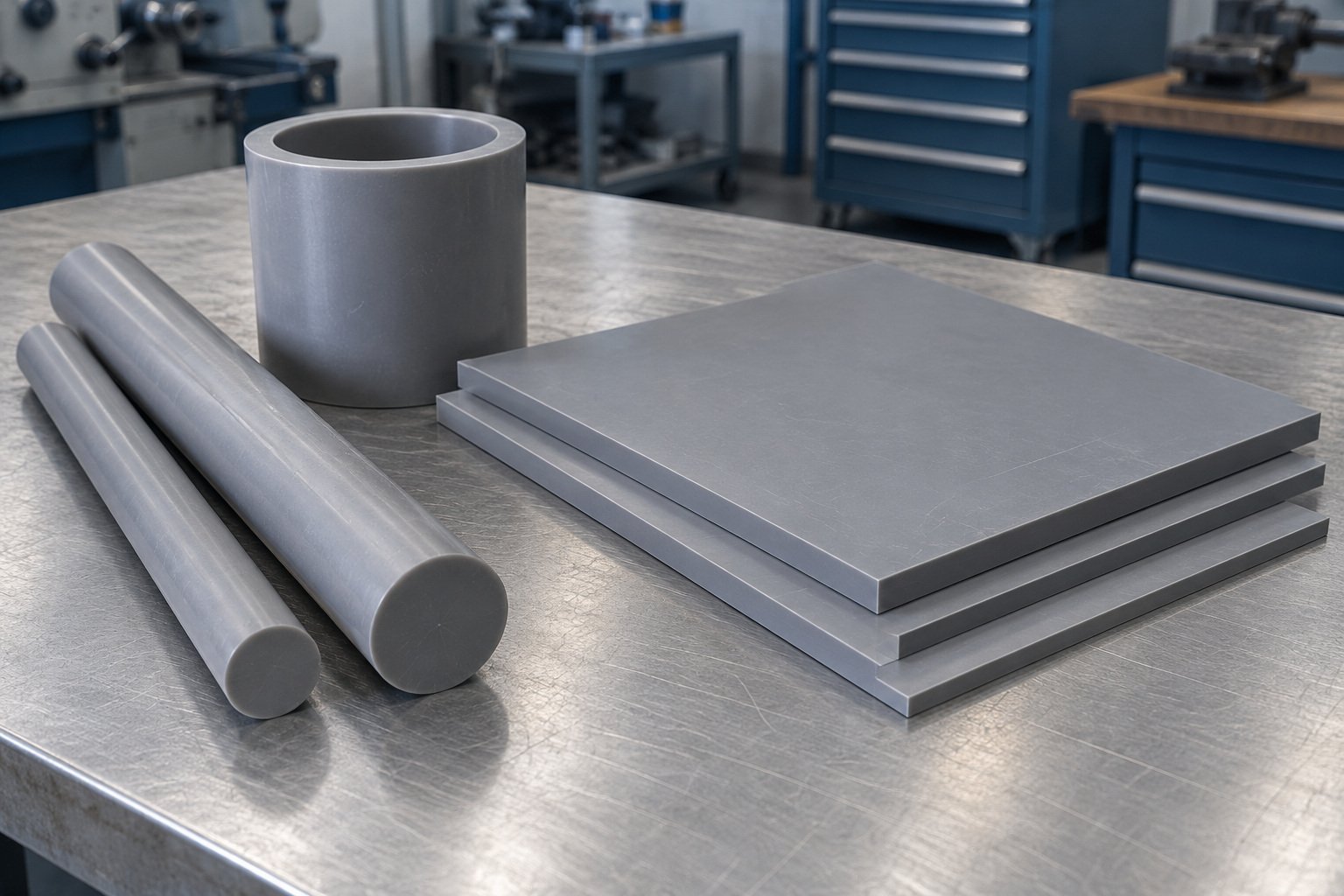

CNC Stock: Full Product + Form
For your PVC machining quote, identify the exact stock manufacturer, grade, color, size and lot. Agree support, machining allowance and the final inspection state.

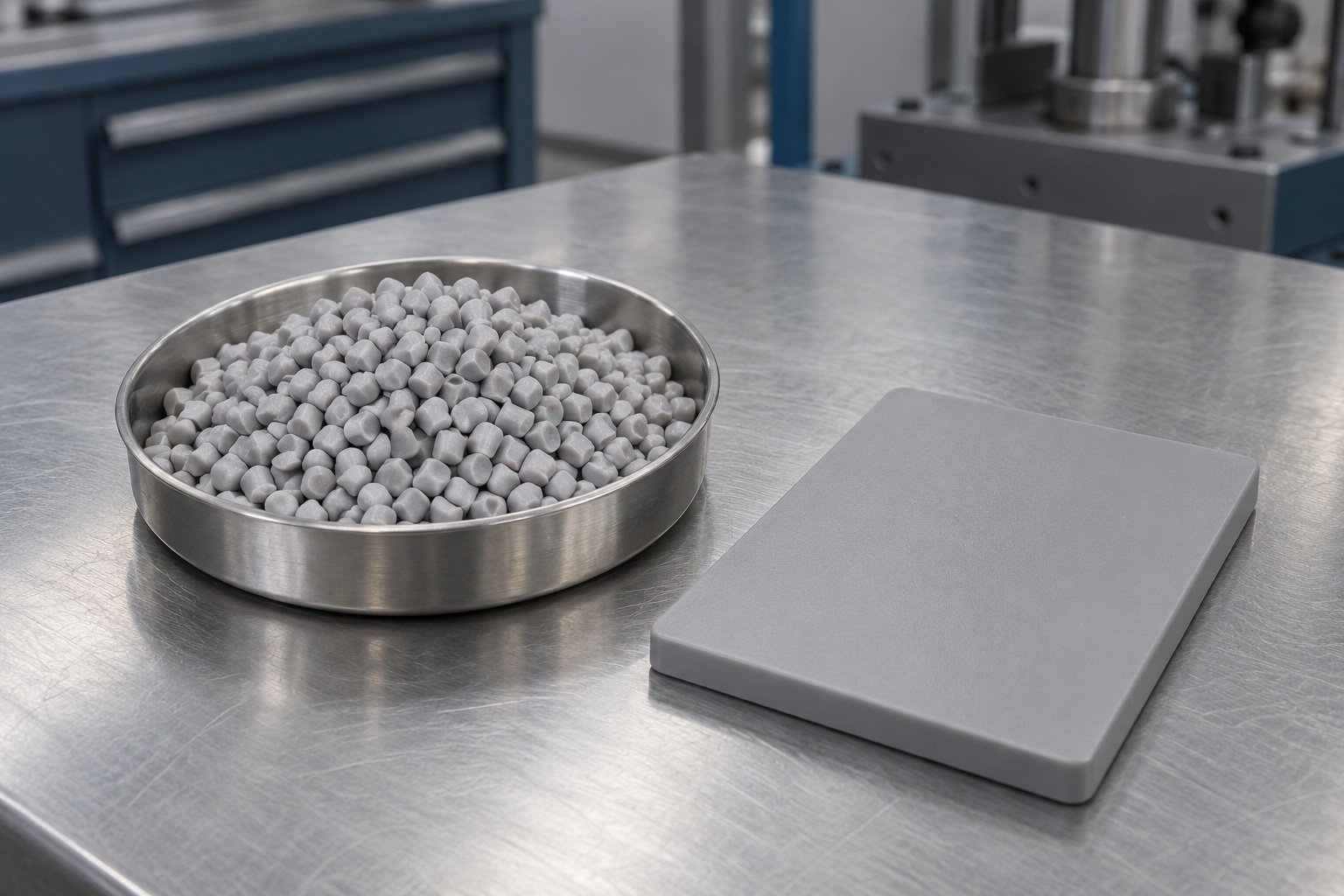

Molding Compound: Exact Formulation
For your PVC injection molding quote, identify the supplier compound, rigid or plasticized formulation, color and approved sample. No universal molding settings apply across all PVC grades.
Resolve 6 PVC Risks Before Production

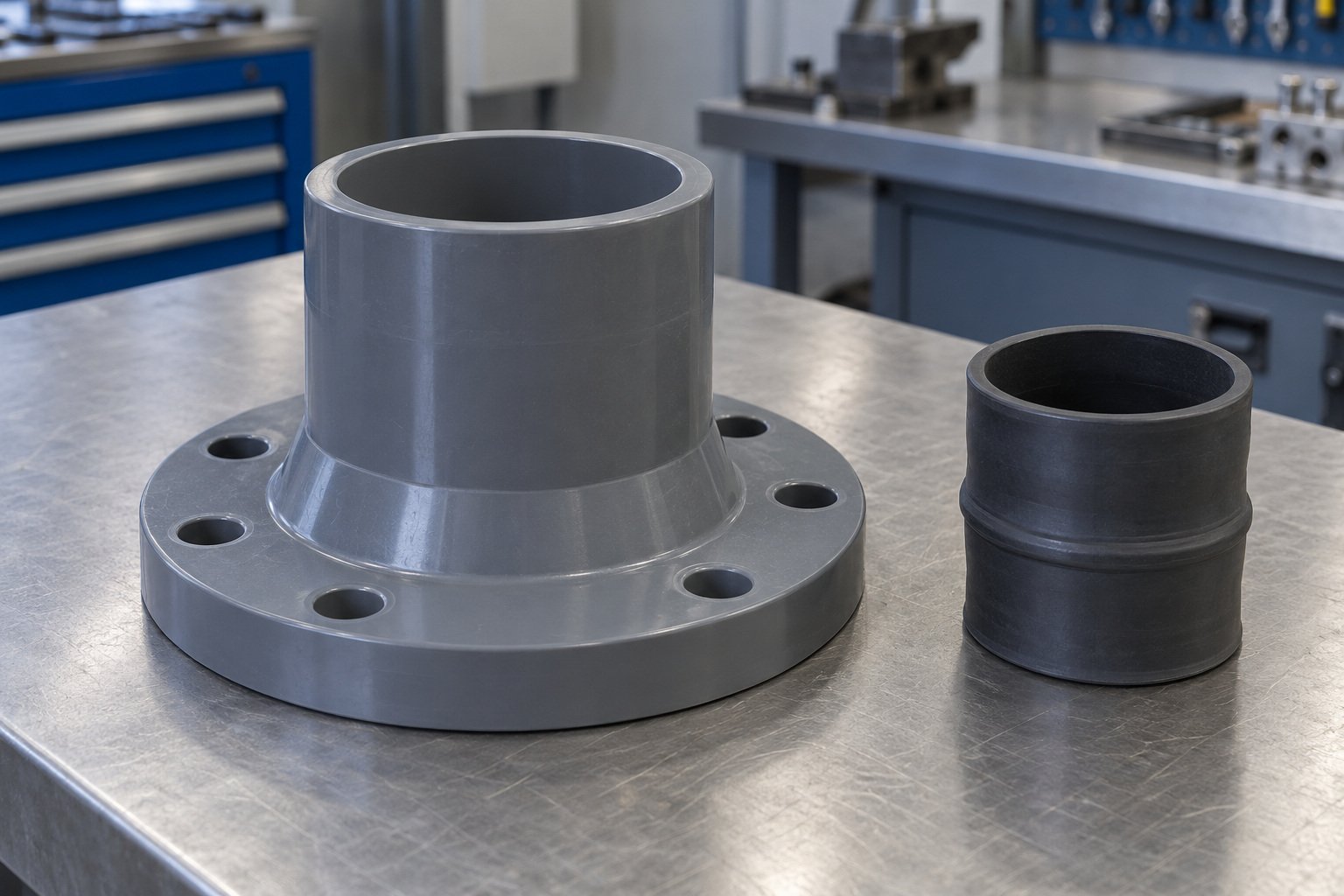

Rigid or flexible for Your Finished Part
For PVC-U vs PVC selection, distinguish unplasticized rigid stock from plasticized flexible compounds. The family name does not confirm hardness or dimensional behavior.

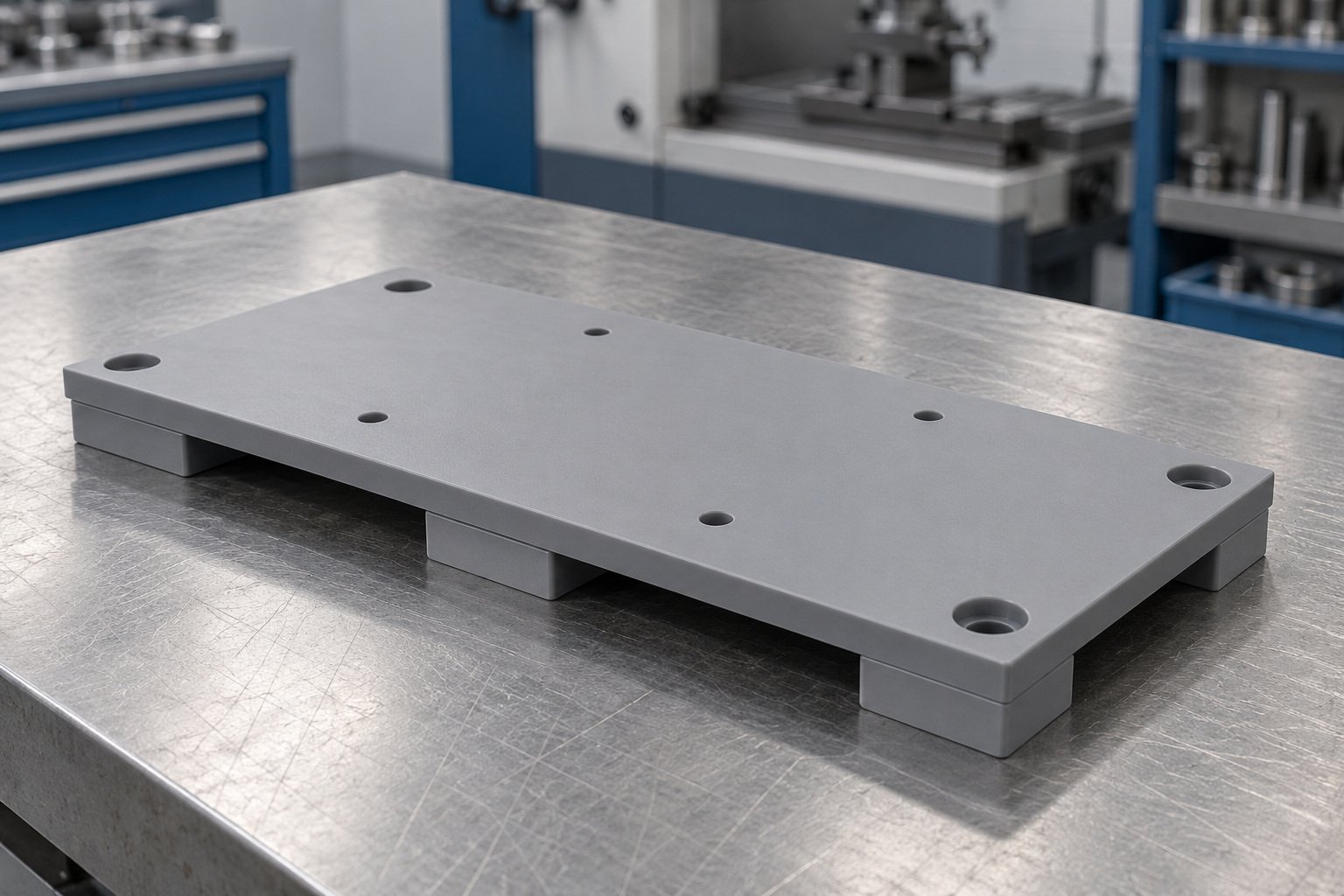

Unclamping & stability for Your Finished Part
For PVC dimensional stability, agree the time after machining, temperature, support and final measurement state. Check critical dimensions after removing clamping loads.

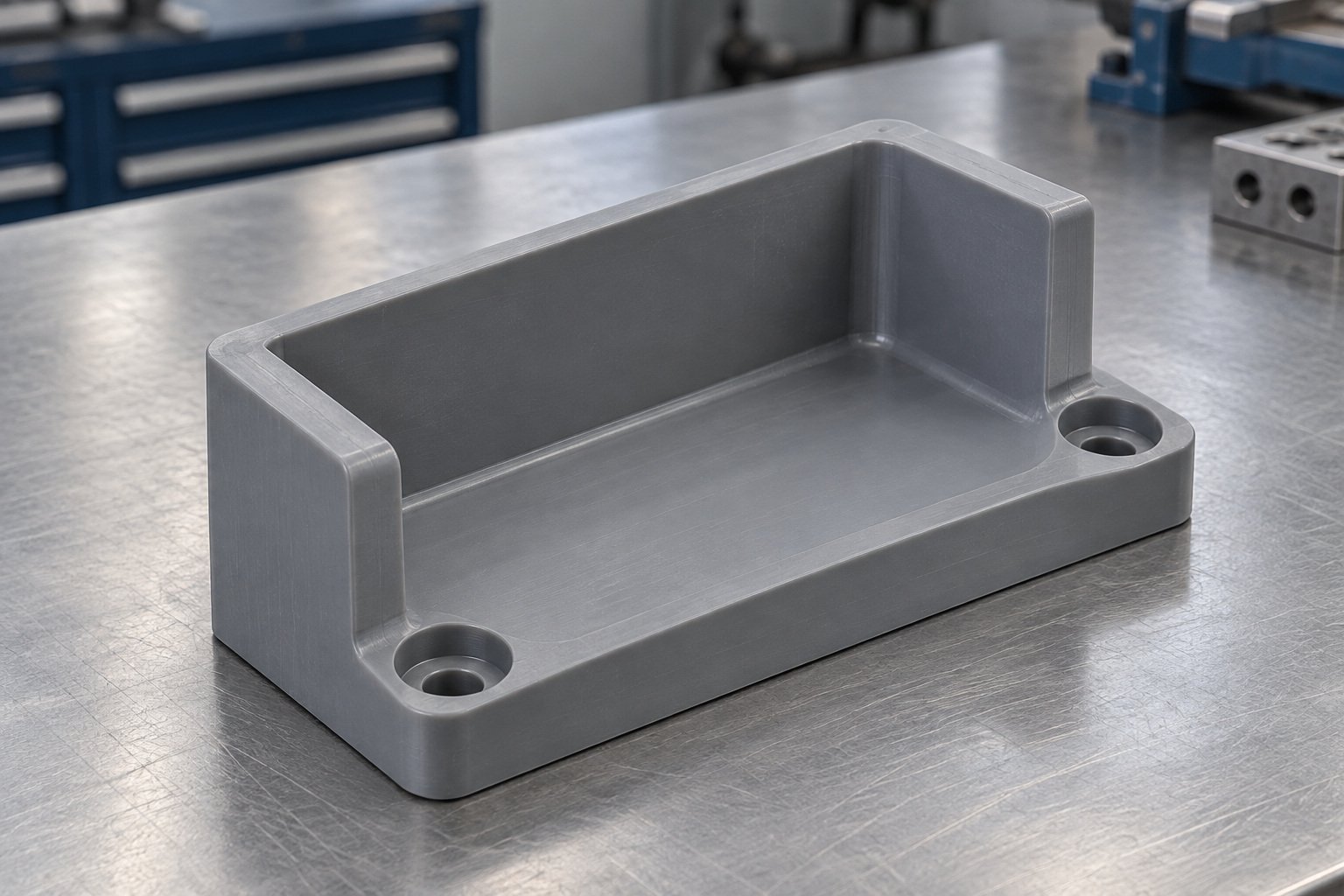

Corners & stress for Your Finished Part
For PVC stress cracking, review corner radii, residual stress, assembly loads and chemical exposure together. An intact sample is not a lifetime guarantee.

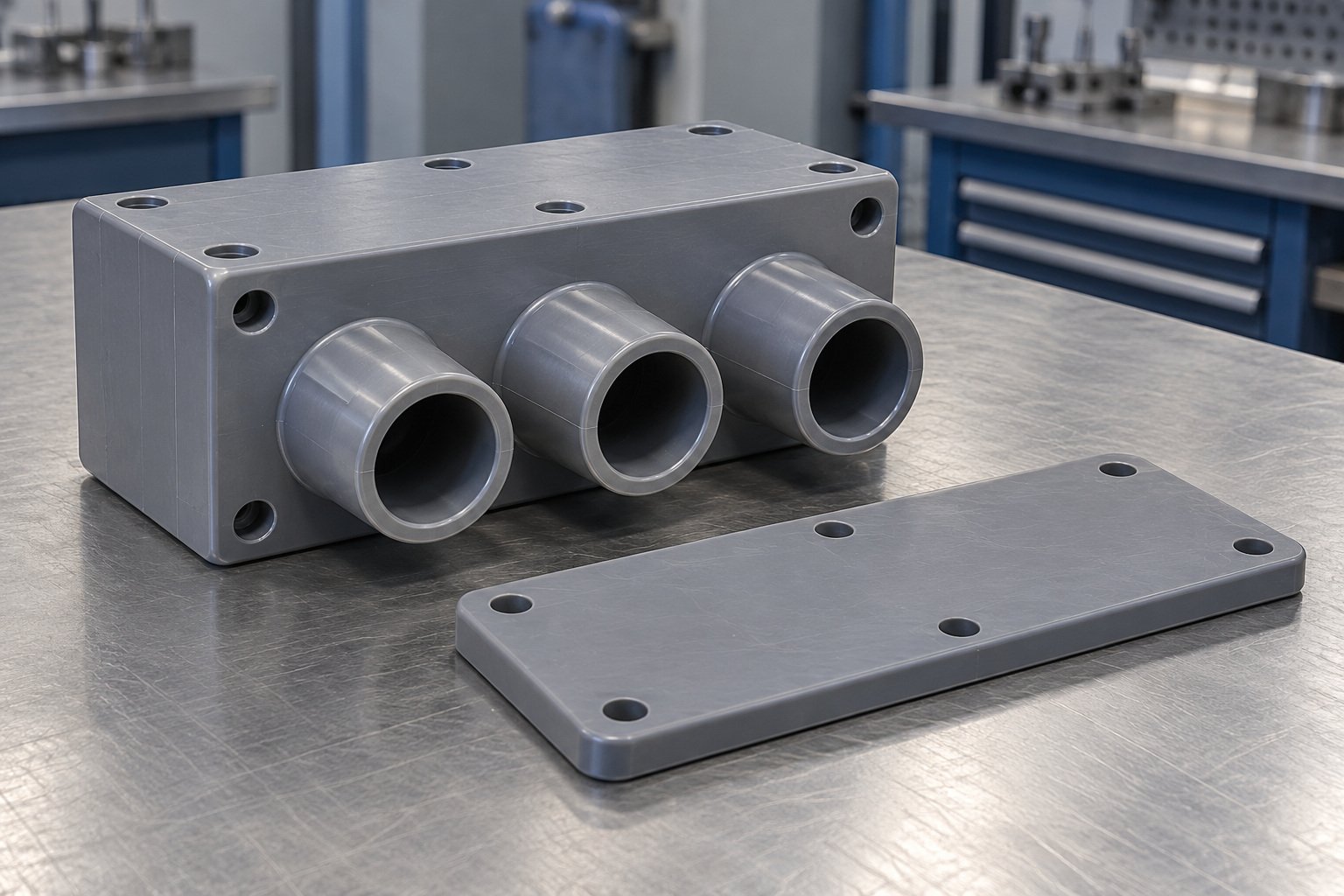

Chemical exposure for Your Finished Part
For PVC chemical resistance, define medium, concentration, temperature, contact duration and mechanical load. Review the exact product before agreeing acceptance.

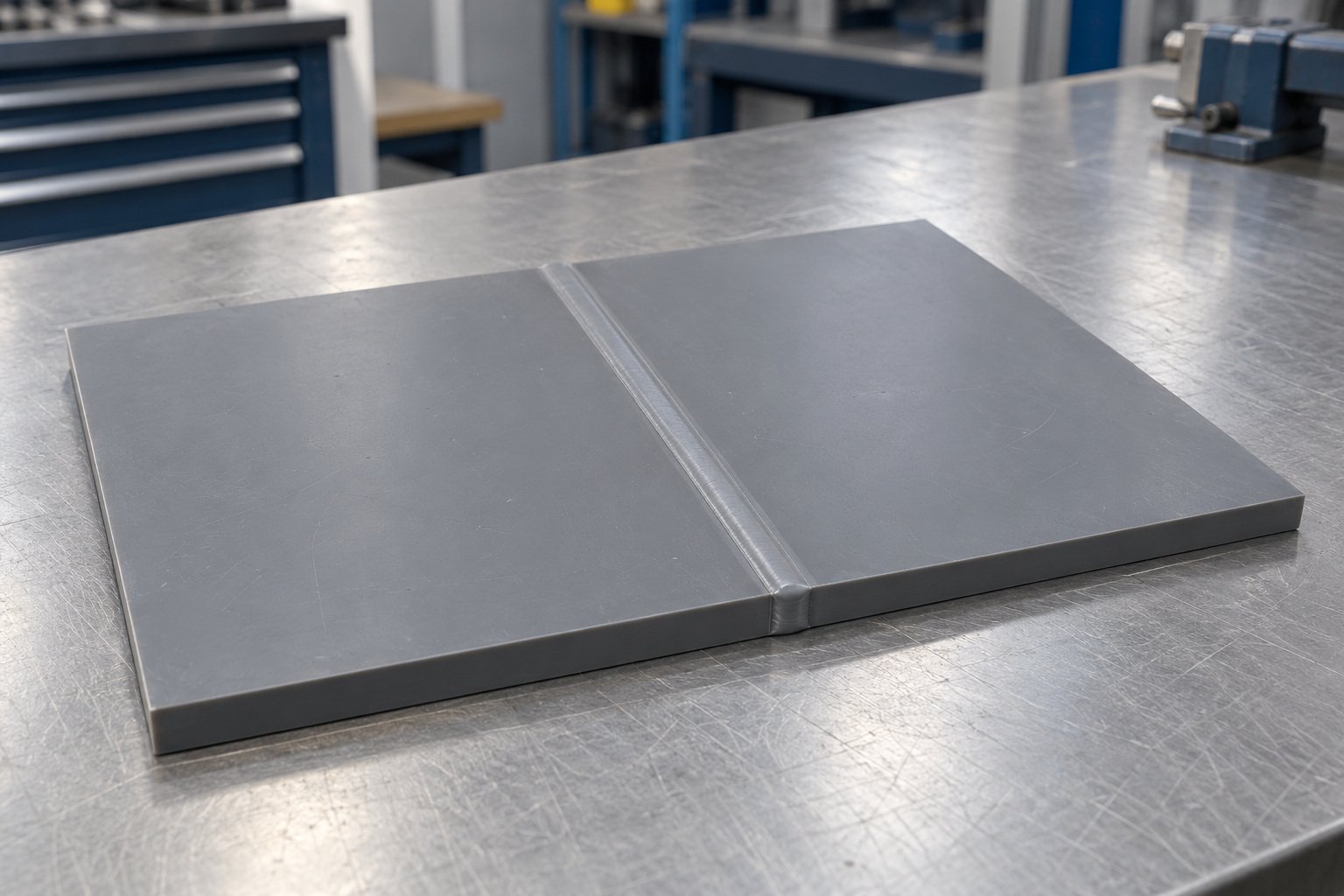

Welding & bonding for Your Finished Part
PVC welding or bonding needs compatible products, joint geometry, preparation, process qualification and an agreed sample. No joining method is approved by the material name alone.

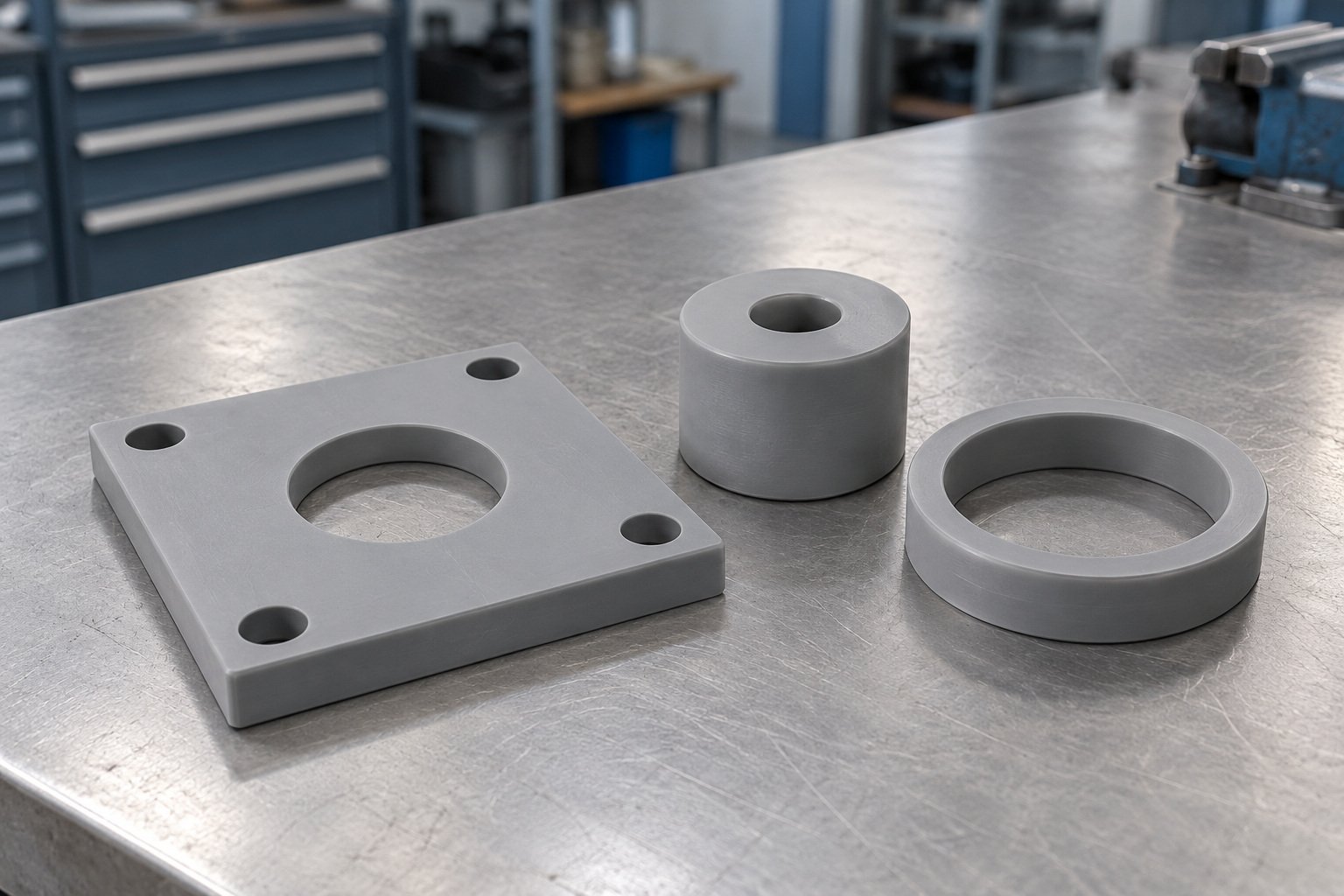

Critical dimensions for Your Finished Part
For PVC machining tolerances, provide datums, geometry, assembly fit and measurement conditions. No single tolerance applies to every wall thickness or size.
Match the Route to Your Finished Part

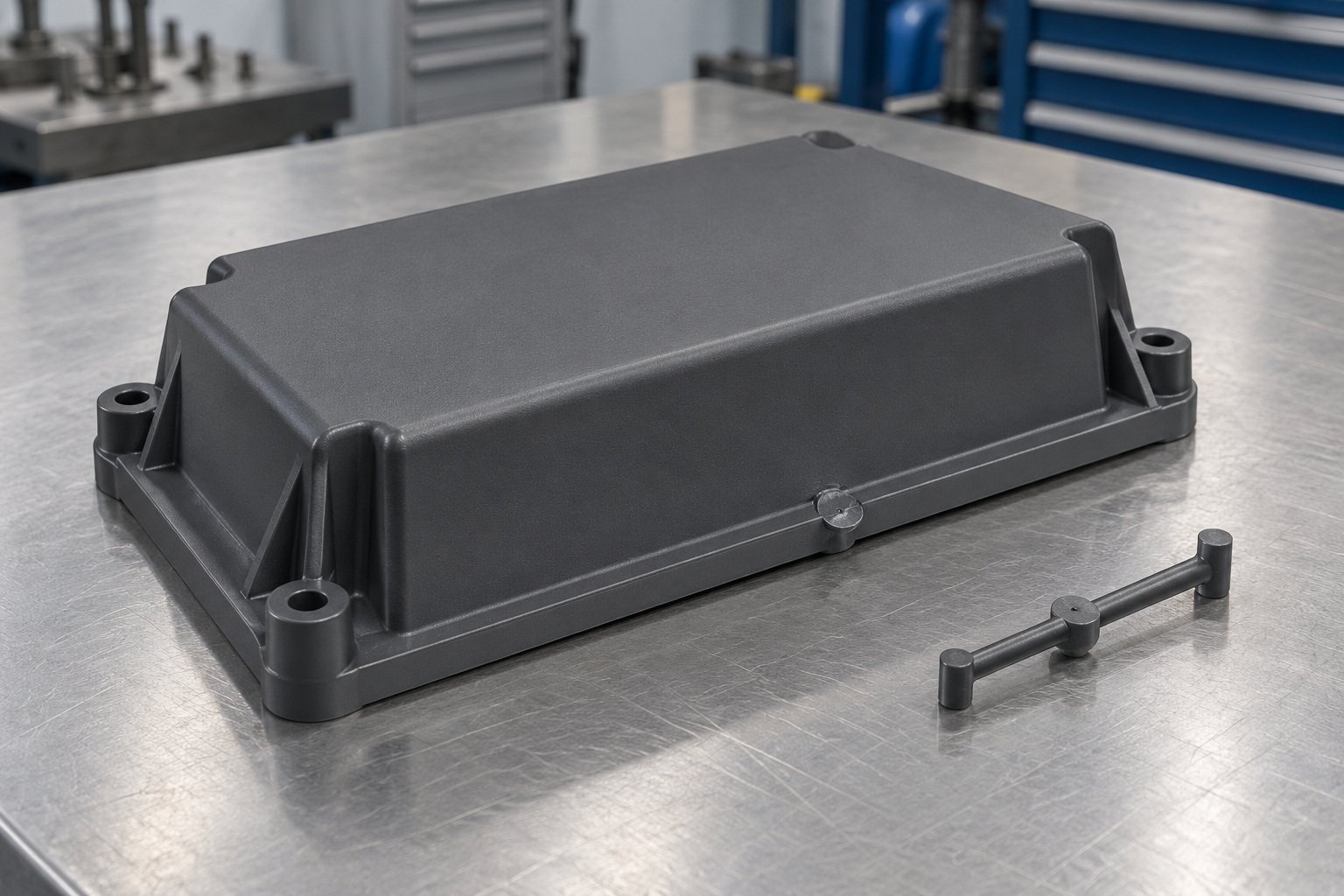

Injection Molding
Review full resin, flow, cooling and the approved production sample.
Review service →
Process availability and material scope require confirmation for your drawing.

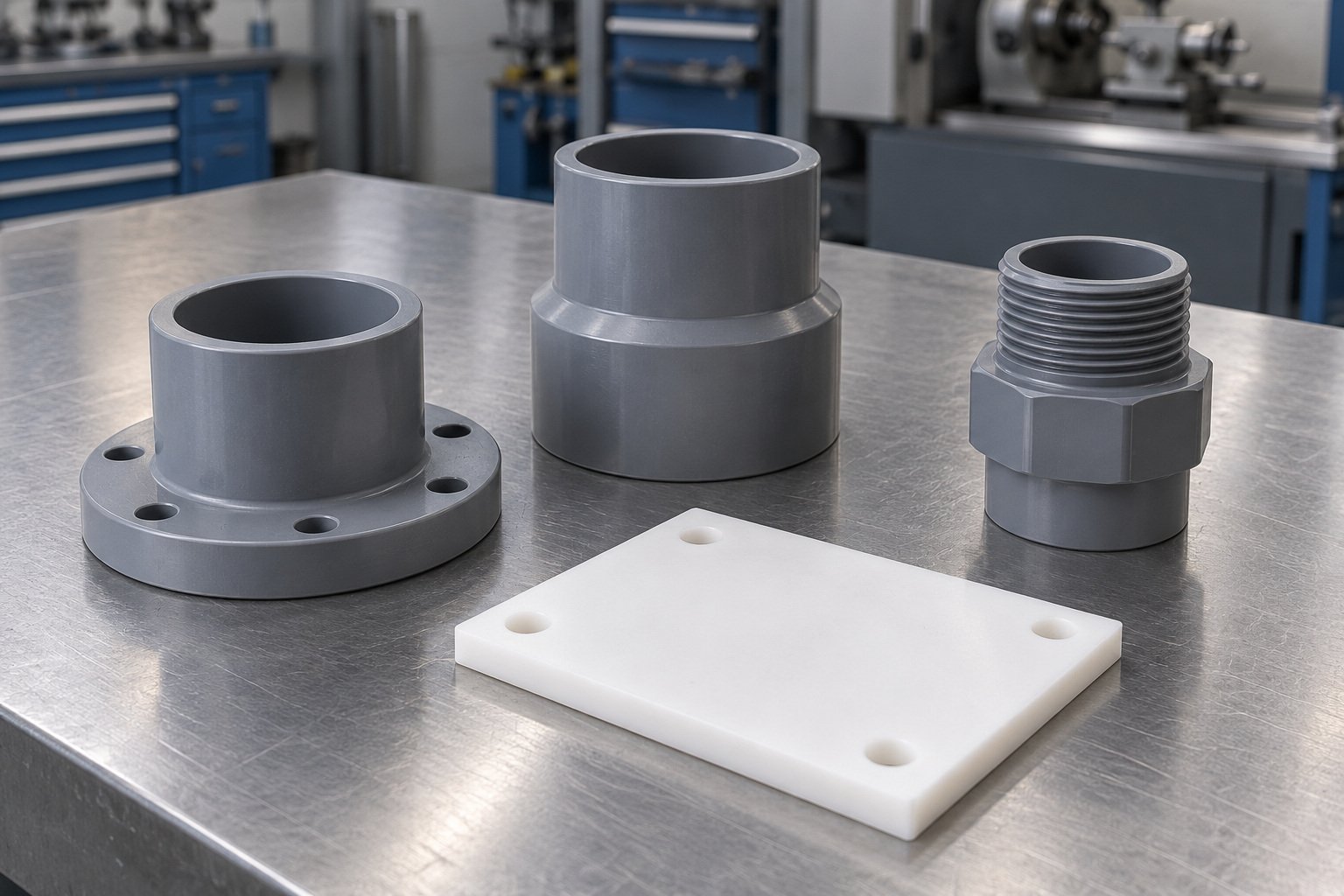

Agree 3 Checks for Your Receiving Team
| Your check | Evidence to agree |
|---|---|
| 1 | Full supplier product, compound or stock form, color and batch |
| 2 | Finished dimensions after unclamping in the agreed supported state |
| 3 | Specified appearance, joining or functional checks and sample approval |
PVC (PVC) finished part inspection requirements must define the final measurement state. Material identity is separate from functional approval.
6 Inputs for Your PVC Quote
- 01CAD + controlled drawing
- 02Full grade + color + purchasing form
- 03Order quantities + production route
- 04Load + chemicals + temperature
- 05Assembly stress + critical fits
- 06Inspection records + delivery
Material · Tooling or machining · Quantity · Inspection · Delivery
Answers Before You Specify
Is rigid PVC-U interchangeable with flexible PVC?
No. PVC-U is unplasticized; flexible PVC uses a plasticized formulation. Confirm stiffness, hardness, exposure and your finished-part requirements before any change.
Can CPVC replace PVC-U in a machined industrial part?
Not automatically. For PVC vs CPVC review, confirm the exact product, media, temperature, geometry and manufacturing route. A family comparison does not approve substitution.
Can molding settings be shared across rigid and soft PVC grades?
Do not assume that they can. Follow the exact compound supplier guidance and confirm equipment and process scope; no universal temperature recipe is supplied here.
How should PVC parts be inspected after unclamping?
Agree stabilization time, temperature, support, datums and measurement force. PVC finished part inspection requirements should distinguish clamped machining dimensions from final free-state fit.
What should buyers specify for a rigid PVC machining quote?
Send CAD, a controlled drawing, full stock product and color, quantities, exposure, critical fits, finish and required records. For PVC prototype parts, define what the sample must validate.
Which records should accompany custom PVC industrial parts?
Agree PVC stock or resin grade traceability, supplier product, batch, dimensions and specified functional records. Flame or other regulated requirements need exact product, color, thickness and test scope; the PVC name alone is not approval.
Material references: LyondellBasell. Candidate material families are not inventory or capability commitments.
Specify the Full PVC Formulation
PVC plastic material contains the base polymer and a product-specific additive system. Stabilizers, pigments, modifiers and any plasticizer depend on the actual compound. Do not infer percentages or compliance from a photograph.
Request a supplier composition or material report only where required for your order. A stock-product data sheet and a resin or compound data sheet identify different purchasing forms.
