C95800 Bronze Machining for Your Valve, Pump & Marine Parts
For your C95800 machining project, connect the casting product to the service environment and final mating geometry. Review custom C95800 parts around port alignment, hub fit, mounting datums and the receiving evidence your assembly needs.
UNS C95800Cast nickel-aluminum-bronze reference.
Al 8.5–9.5%Selected product chemistry.
Fe Must Not Exceed NiRetain this composition constraint.
Your Service InputsDefine fluid, temperature, movement and fit.
Confirm the C95800 Product, Chemistry and Supplied State
C95800 nickel aluminum bronze is a cast-alloy designation. Your C95800 bronze properties and C95800 hardness review needs the ordered product standard, casting route, supplied condition and test basis.
Selected C95800 Chemical Composition
| Element | Selected reference · wt.% |
|---|---|
| Copper | ≥79.0 |
| Aluminum | 8.5–9.5 |
| Iron | 3.5–4.5 |
| Nickel · includes Co where stated | 4.0–5.0 |
| Manganese | 0.8–1.5 |
| Lead | ≤0.03 |
| Silicon | ≤0.10 |
CDA and selected Concast continuous-cast references. Fe must not exceed Ni. Combined Cu + named elements ≥99.5% is not pure-copper content. Retain the exact ordered product standard and revision.
European Names and Final Condition
| Your reference | What to approve |
|---|---|
| CuAl10Fe5Ni5-C / CC333G | ZOLLERN gives an approximate comparison for its C95800 casting product. |
| AB2 | Approximate historical British comparison in the same supplier sheet. |
| US and EN product | Compare full chemistry, casting route, condition and ordered acceptance. |
| As cast or temper annealed | Selected Concast supply states; confirm what your order requires. |
| Any specified treatment | Agree final state, records, allowance and inspection after the last dimension-changing operation. |
Keep Cross-References Qualified
CC333G supplier ranges are broader than the selected C95800 range. A familiar European name does not approve substitution, corrosion life or pressure performance.
Compare Aluminum Range and Cutting Reference Separately
Selected Aluminum Ranges · wt.%
Common scale 0–12
C95800
8.5–9.5
C95500
10–11.5
0612
Indicative Machinability · brass = 100
Common scale 0–100
C95800
20
C95500
50
C95400
60
050100
Selected Concast product references. Your C95800 machinability review uses a relative cutting index, not a machining-time ratio, corrosion-life prediction or finished pressure rating. These are reference charts, not your material-lot analysis.
CDA C95800 ↗ Concast C95800 ↗ Wisco C95800 ↗ Concast C95500 ↗ Concast C95400 ↗ ZOLLERN European comparison ↗
Match Your C95800 Geometry to the Service Interface
For your C95800 CNC machining review, identify fluid or environment, mating parts and final measurement state before repeating the route.

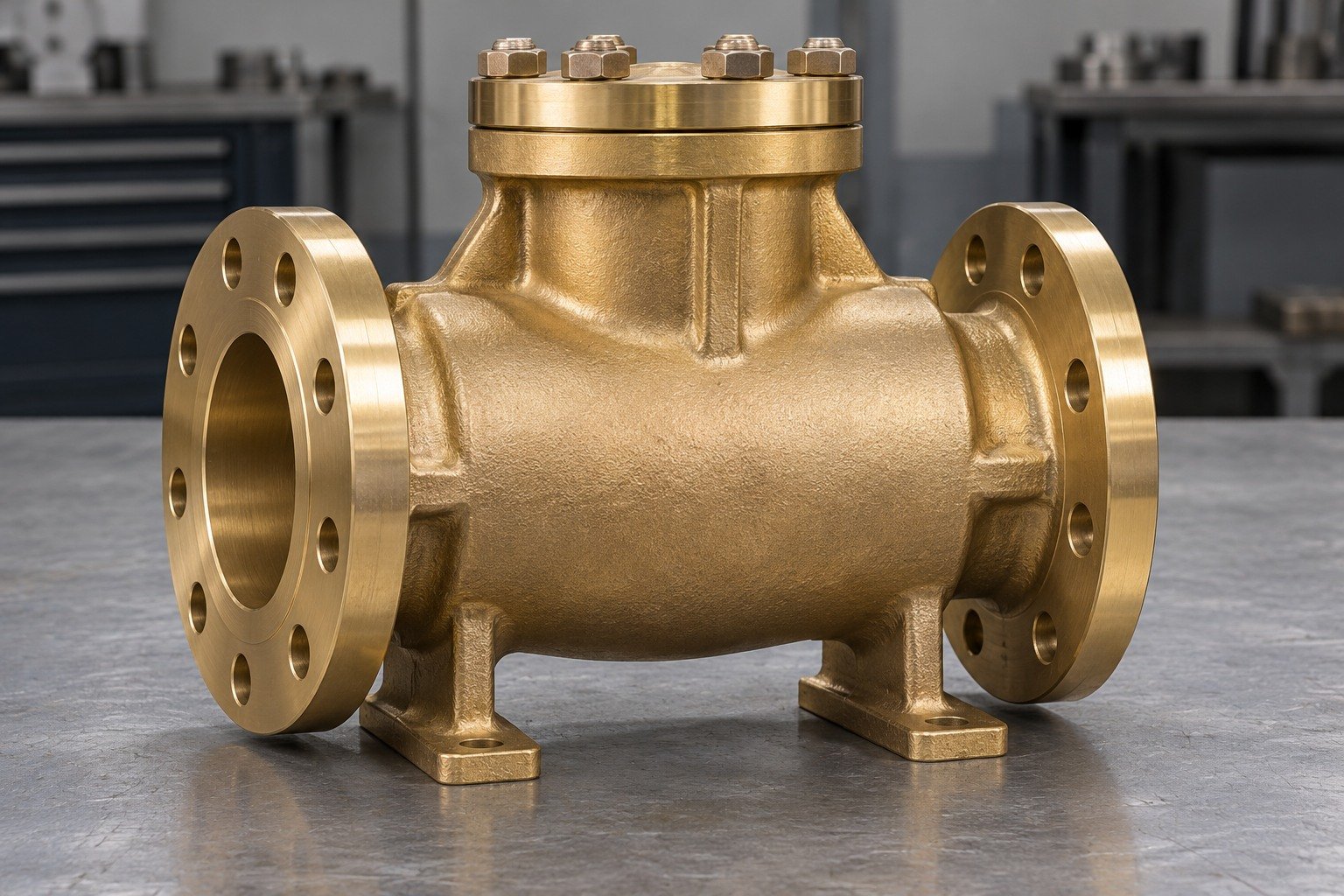

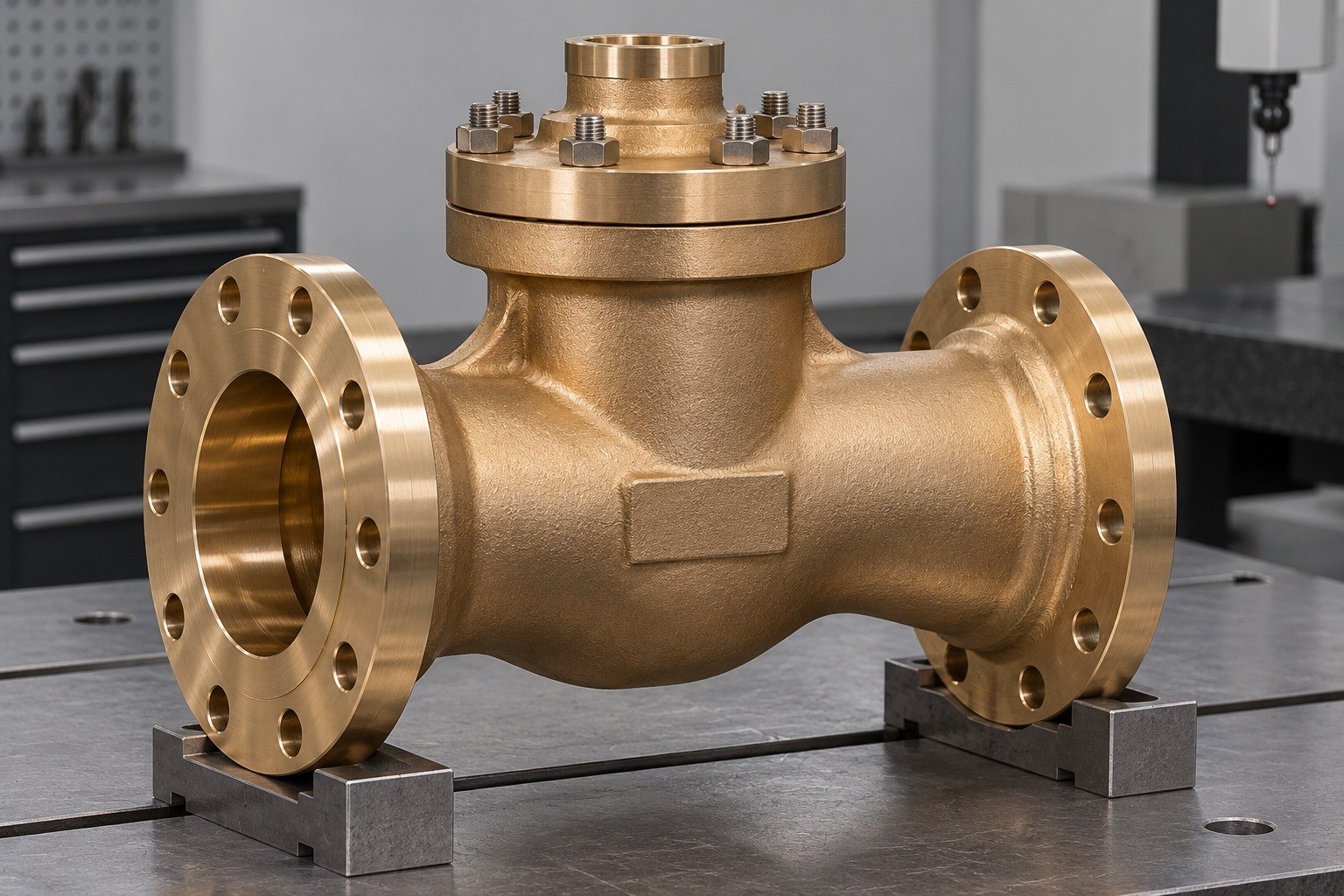

Define Your Valve Bodies
For your C95800 valve bodies, connect flange and port geometry, bonnet access and mounting datums. Define any pressure or leak test separately. Review custom C95800 valve bodies against the controlled assembly.
| Your fit | What to define |
|---|---|
| Working interface | Ports, flange faces, bonnet opening and mounting relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Agree Your Support and Access
Your C95800 machining services review should identify locating support, usable allowance and the surfaces inspected after the final operation.
| Your fit | What to define |
|---|---|
| Working interface | Ports, flange faces, bonnet opening and mounting relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Confirm the Supplied and Final State
Specify casting route, supplied condition, any required treatment and usable allowance. Agree final inspection after the last dimension-changing operation.
| Your fit | What to define |
|---|---|
| Working interface | Ports, flange faces, bonnet opening and mounting relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Receive Parts with the Right Evidence
For your C95800 machined parts, identify required material records, final dimensions, accepted edges, cleanliness and individual protection.
| Your fit | What to define |
|---|---|
| Working interface | Ports, flange faces, bonnet opening and mounting relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |

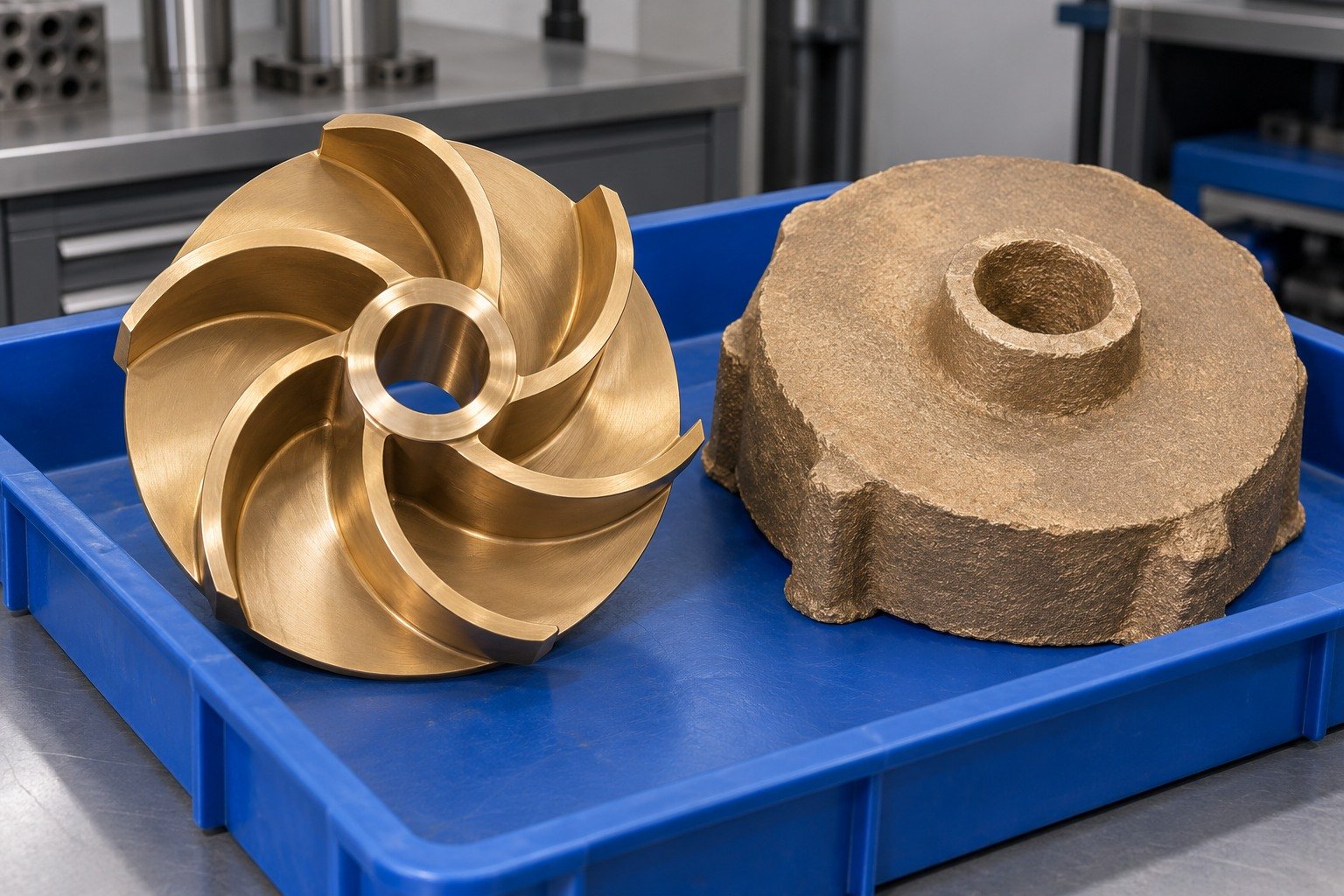

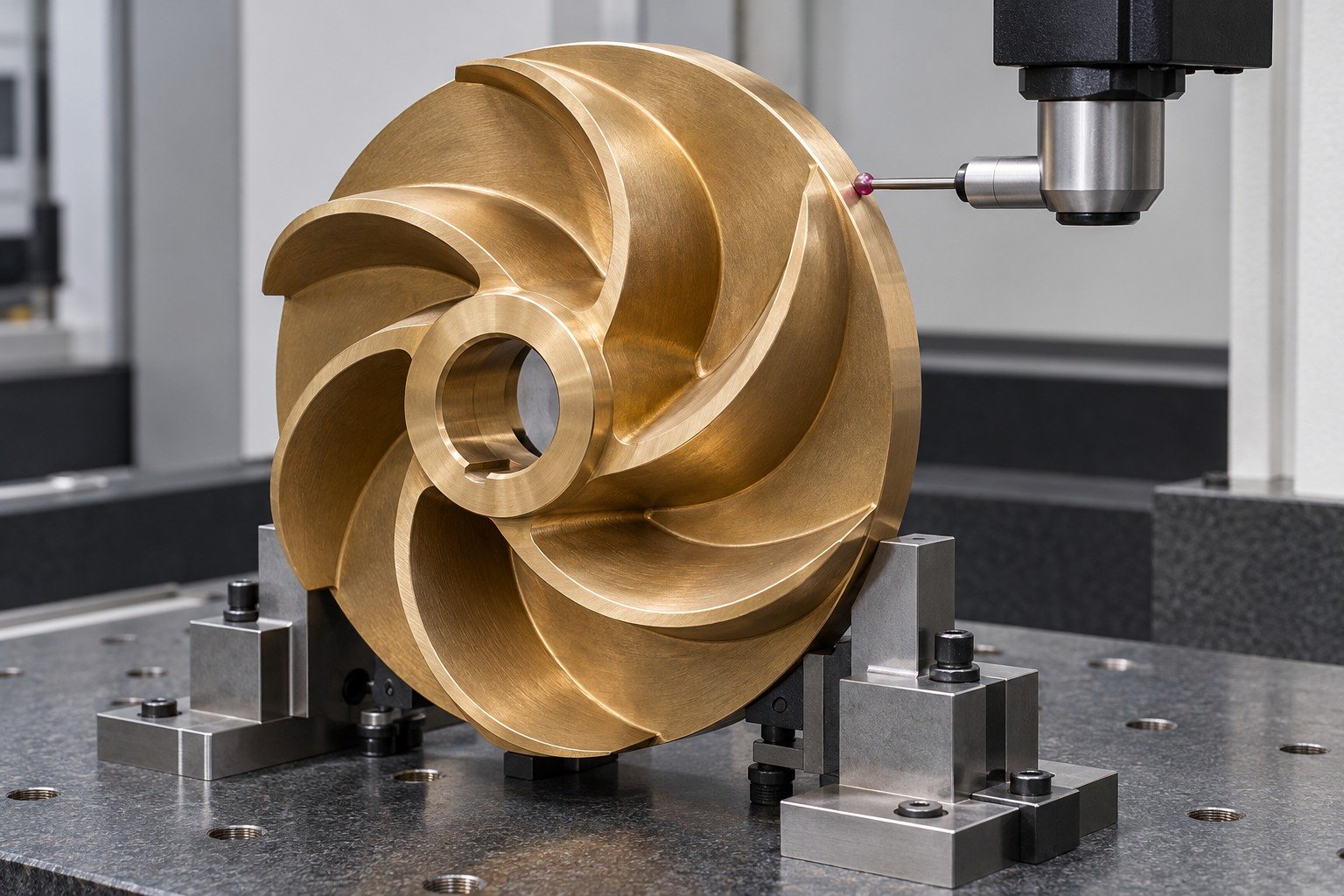

Define Your Pump Impellers
For your C95800 pump impellers, define hub bore, rear datum, vane clearances and accepted edges. Agree balance or flow testing separately. Review custom C95800 pump impellers against the controlled assembly.
| Your fit | What to define |
|---|---|
| Working interface | Hub, rear datum, vanes and mounting relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Agree Your Support and Access
Your C95800 machining services review should identify locating support, usable allowance and the surfaces inspected after the final operation.
| Your fit | What to define |
|---|---|
| Working interface | Hub, rear datum, vanes and mounting relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Confirm the Supplied and Final State
Specify casting route, supplied condition, any required treatment and usable allowance. Agree final inspection after the last dimension-changing operation.
| Your fit | What to define |
|---|---|
| Working interface | Hub, rear datum, vanes and mounting relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Receive Parts with the Right Evidence
For your C95800 machined parts, identify required material records, final dimensions, accepted edges, cleanliness and individual protection.
| Your fit | What to define |
|---|---|
| Working interface | Hub, rear datum, vanes and mounting relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |

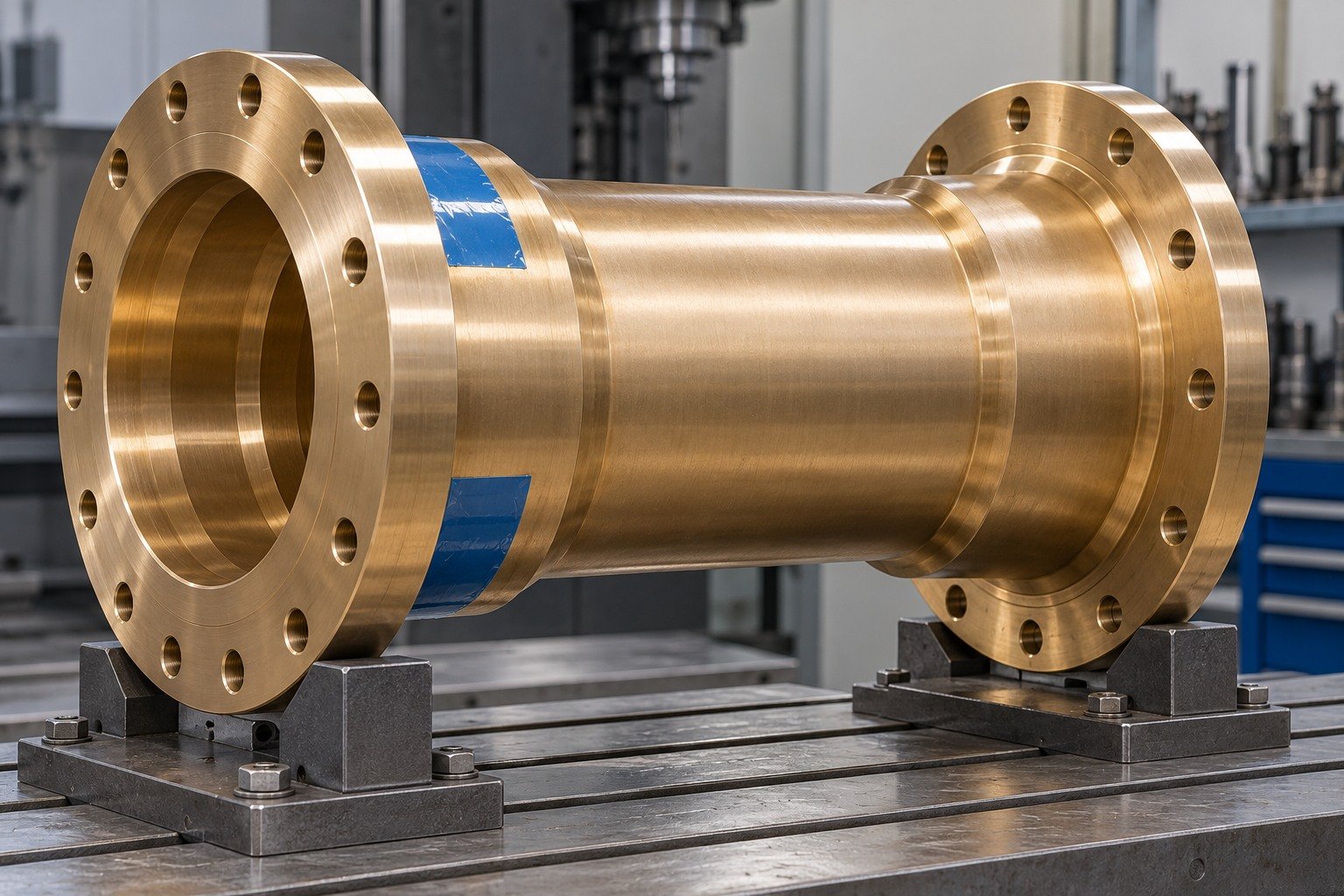

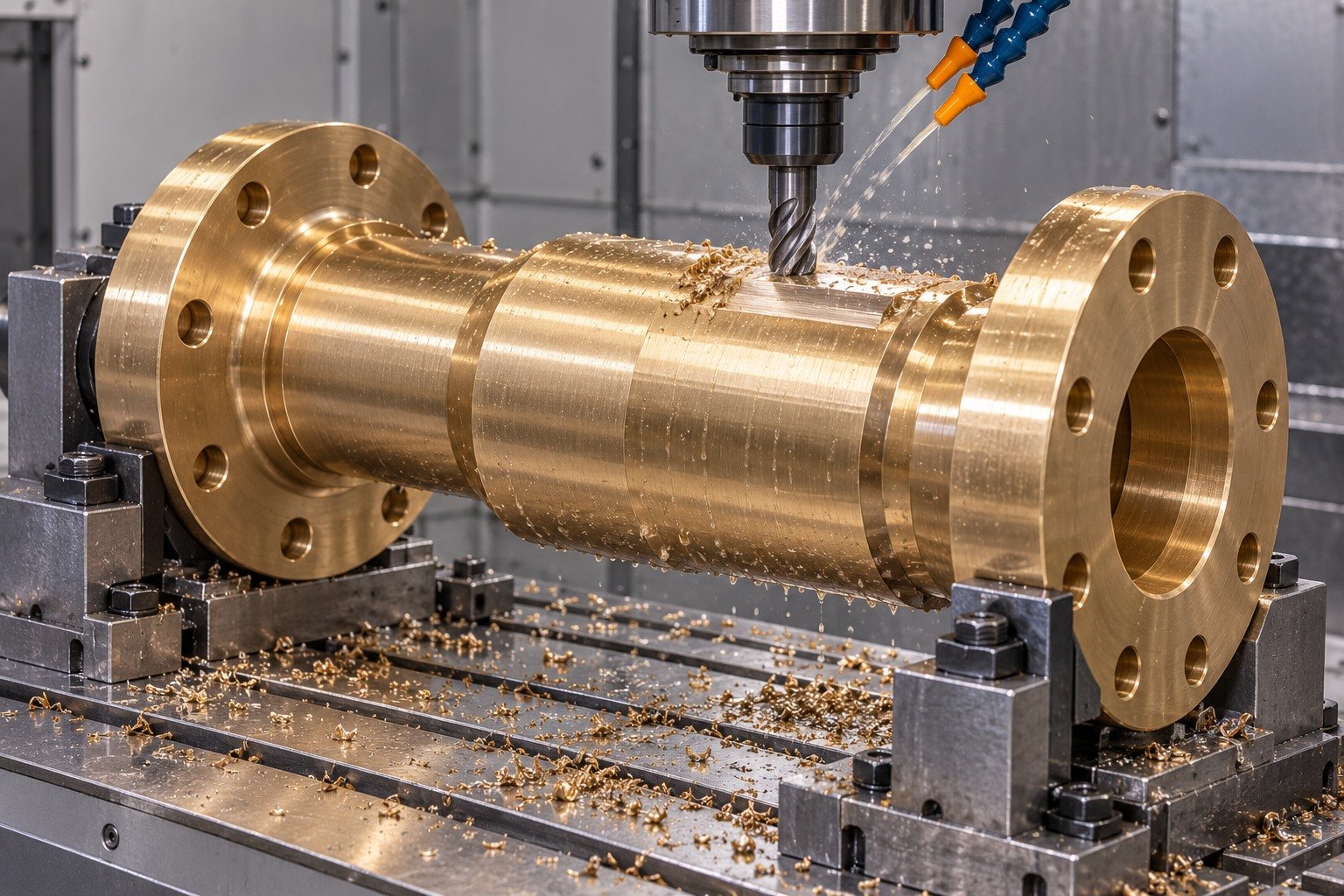

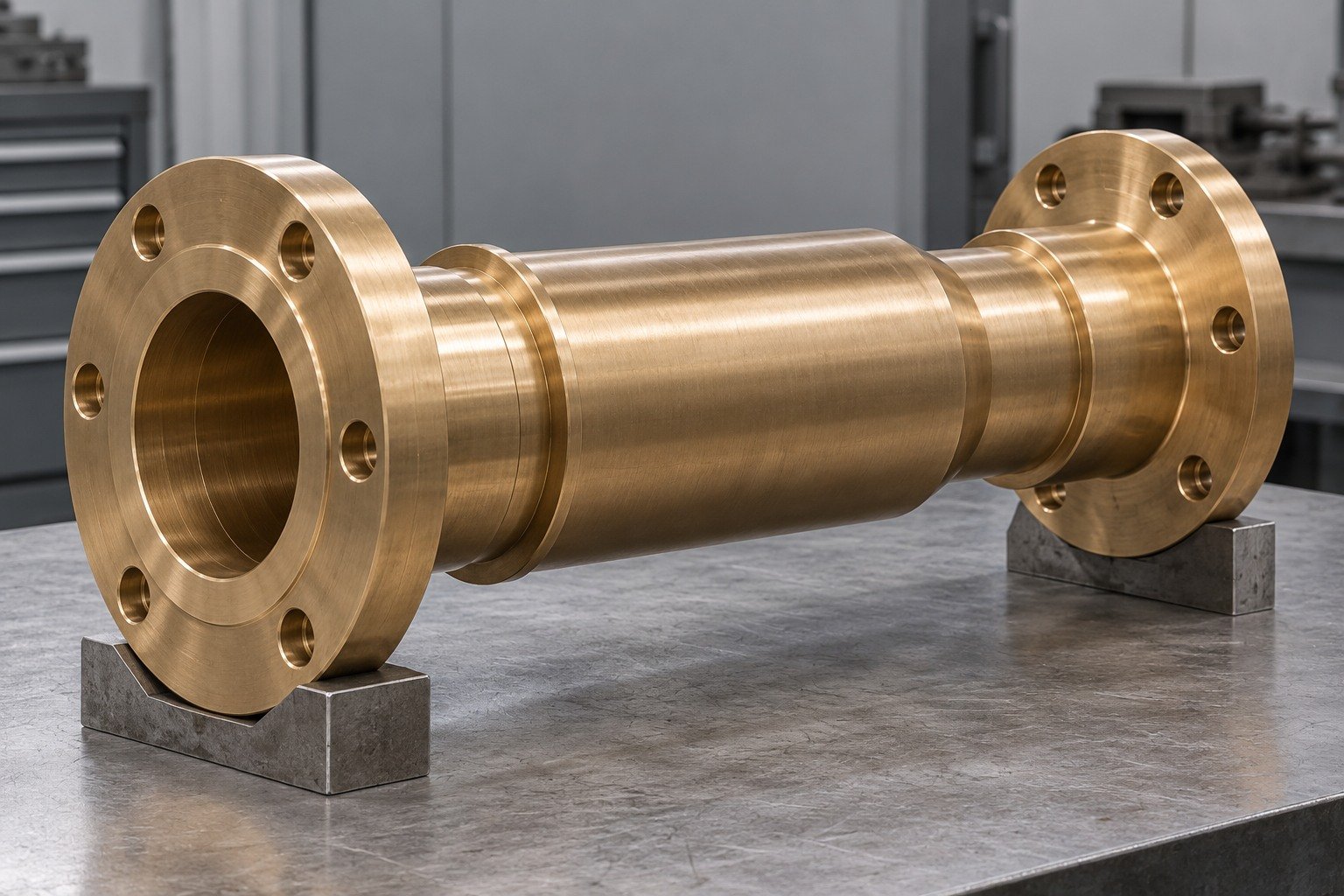

Define Your Marine Hubs
Review C95800 marine components around the actual environment, mating shaft, hub fit and attachment geometry. A material name does not approve every seawater duty. Review custom C95800 marine components against the controlled assembly.
| Your fit | What to define |
|---|---|
| Working interface | Hub bore, shaft, locating faces and attachment flanges. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Agree Your Support and Access
Your C95800 machining services review should identify locating support, usable allowance and the surfaces inspected after the final operation.
| Your fit | What to define |
|---|---|
| Working interface | Hub bore, shaft, locating faces and attachment flanges. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Confirm the Supplied and Final State
Specify casting route, supplied condition, any required treatment and usable allowance. Agree final inspection after the last dimension-changing operation.
| Your fit | What to define |
|---|---|
| Working interface | Hub bore, shaft, locating faces and attachment flanges. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Receive Parts with the Right Evidence
For your C95800 machined parts, identify required material records, final dimensions, accepted edges, cleanliness and individual protection.
| Your fit | What to define |
|---|---|
| Working interface | Hub bore, shaft, locating faces and attachment flanges. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |

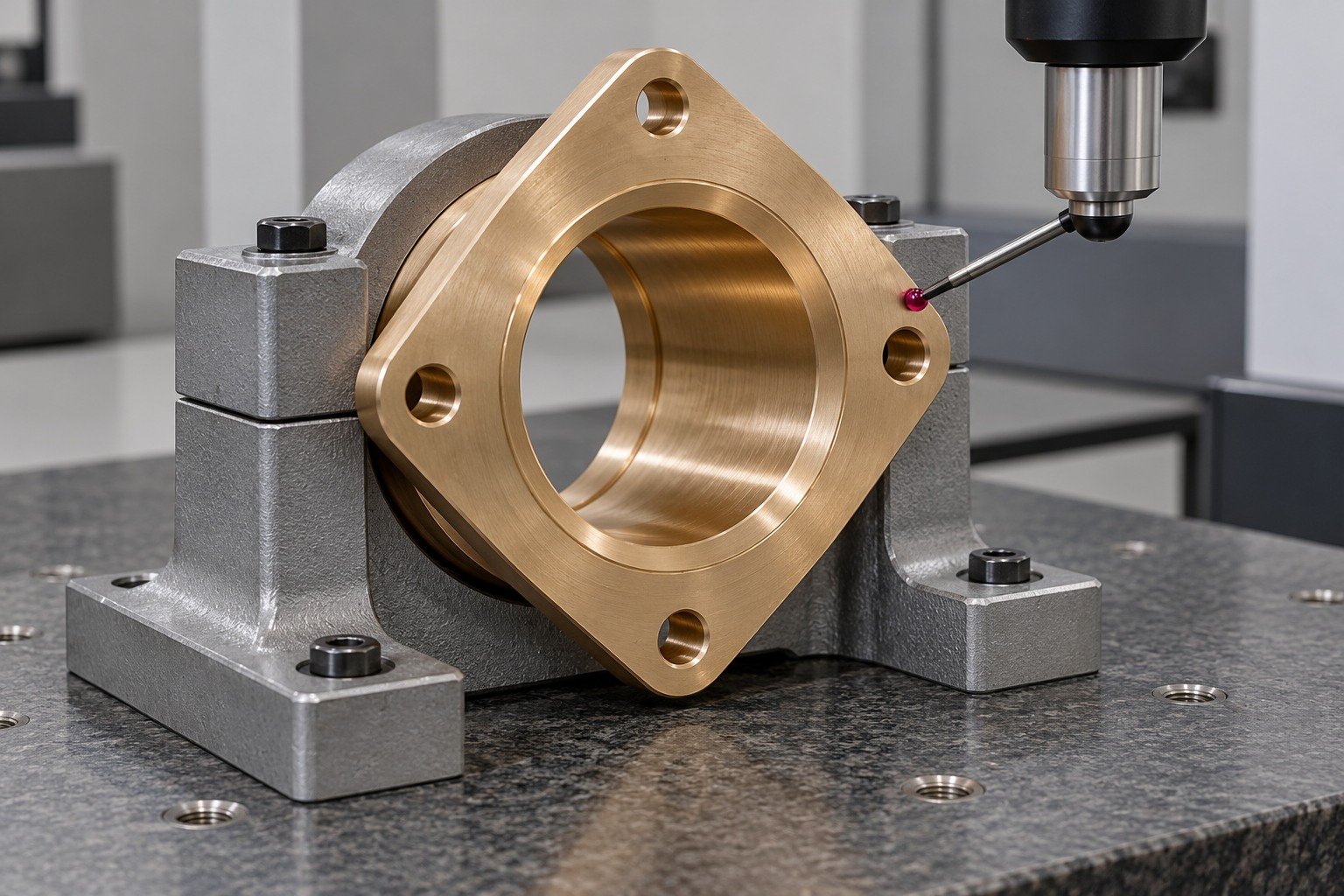

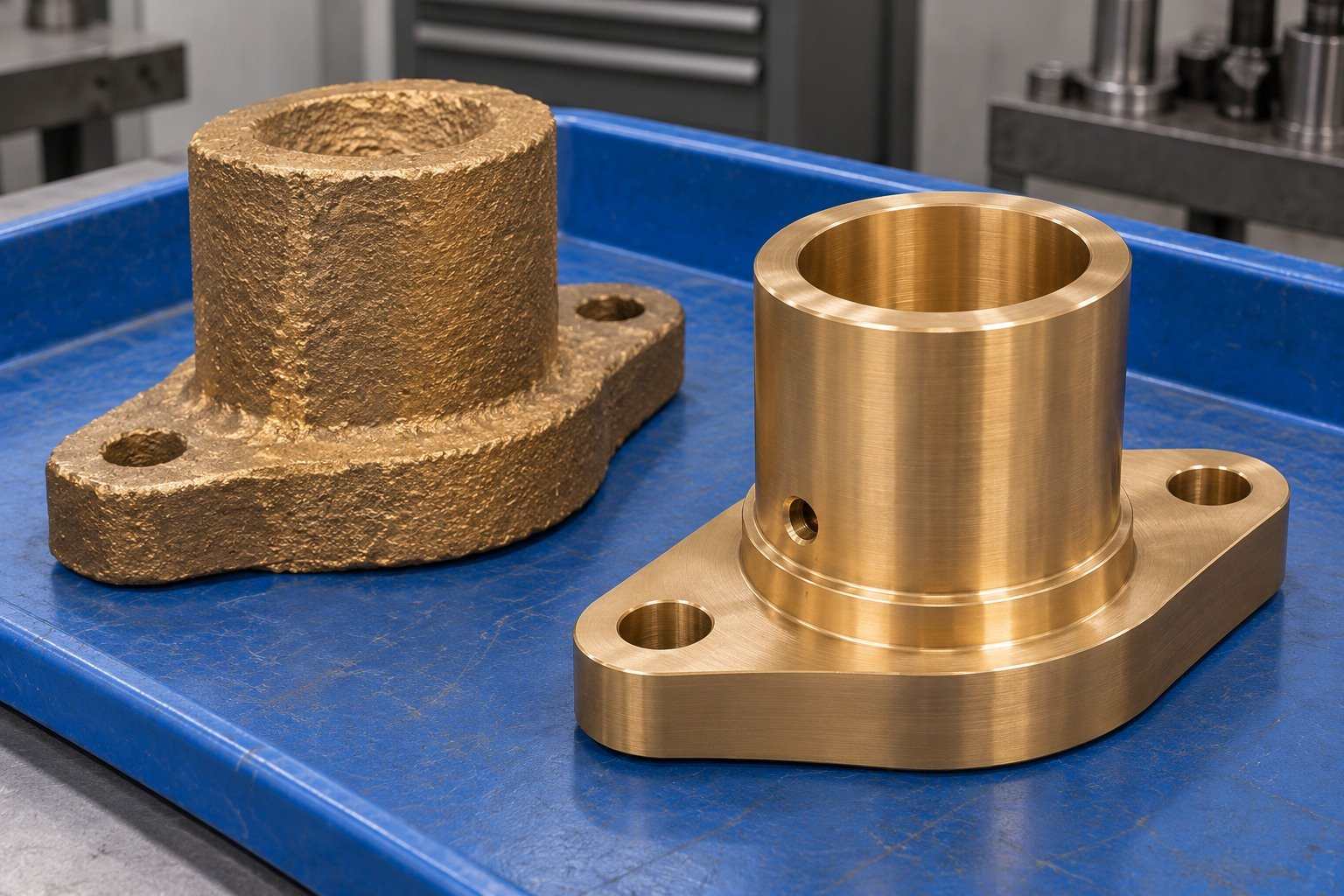

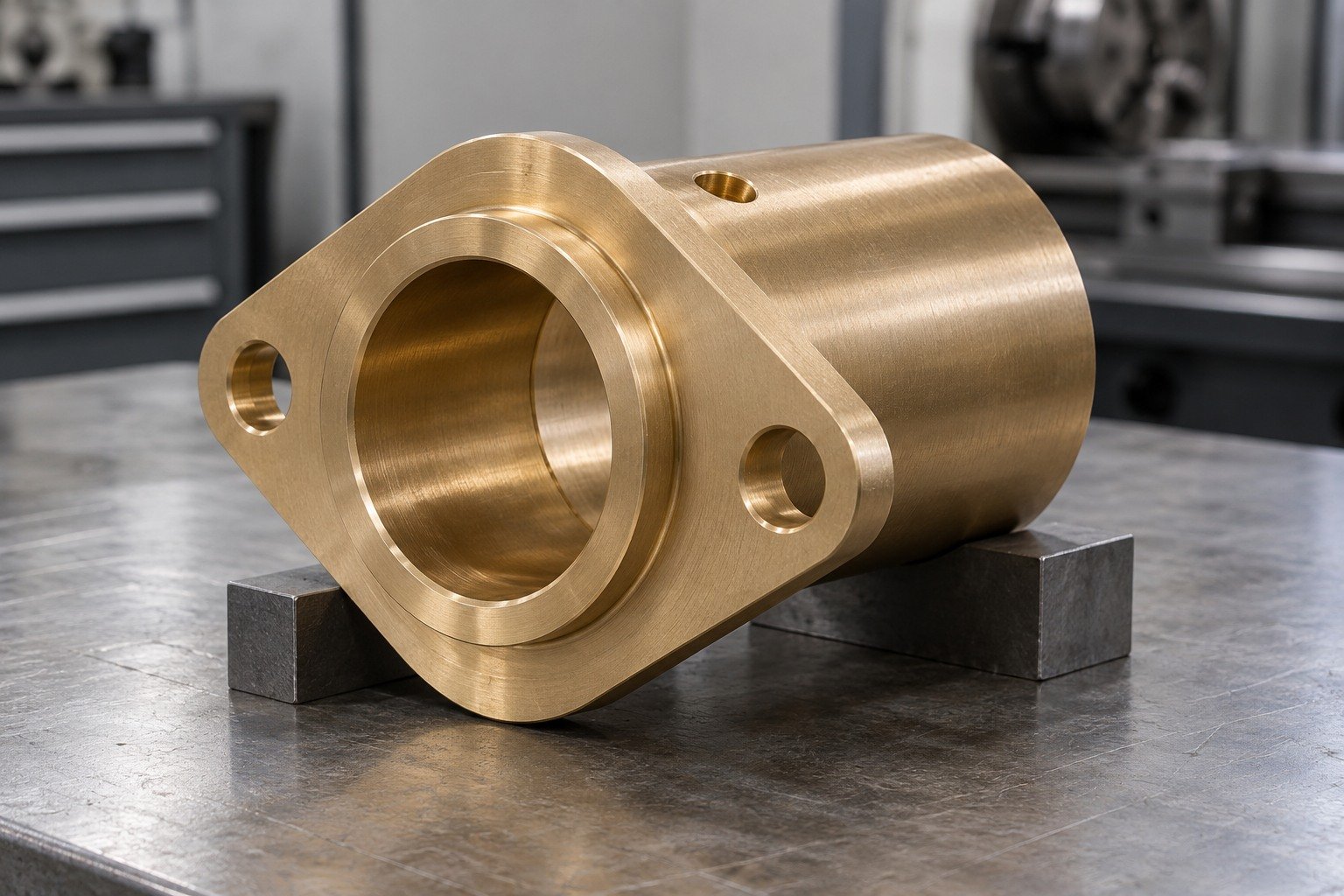

Define Your Flanged Bushings
For your C95800 bushings, connect bore, flange, locating step and oil-port position to the housing and mating shaft. Review custom C95800 bushings against the controlled assembly.
| Your fit | What to define |
|---|---|
| Working interface | Bore, flange datum, locating shoulder and housing fit. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Agree Your Support and Access
Your C95800 machining services review should identify locating support, usable allowance and the surfaces inspected after the final operation.
| Your fit | What to define |
|---|---|
| Working interface | Bore, flange datum, locating shoulder and housing fit. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Confirm the Supplied and Final State
Specify casting route, supplied condition, any required treatment and usable allowance. Agree final inspection after the last dimension-changing operation.
| Your fit | What to define |
|---|---|
| Working interface | Bore, flange datum, locating shoulder and housing fit. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Receive Parts with the Right Evidence
For your C95800 machined parts, identify required material records, final dimensions, accepted edges, cleanliness and individual protection.
| Your fit | What to define |
|---|---|
| Working interface | Bore, flange datum, locating shoulder and housing fit. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |

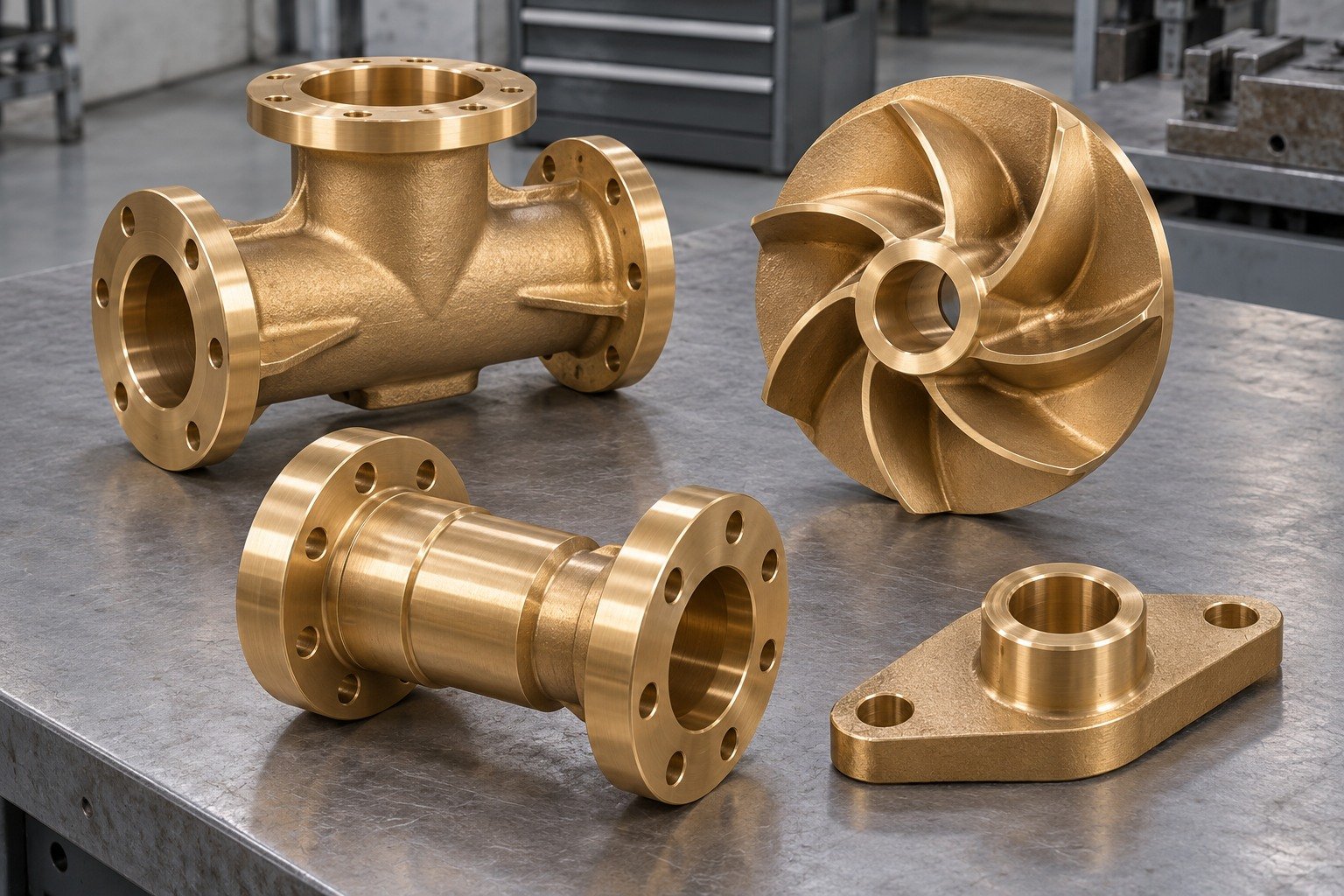

Connect Cast Stock to Your Finished Fluid or Marine Interface
Review supported machining, accepted edges and any separate functional test before release.
C95800 Turning & Boring
For C95800 turning and C95800 boring, review supported length, bore access and locating shoulders.
Review the Process →

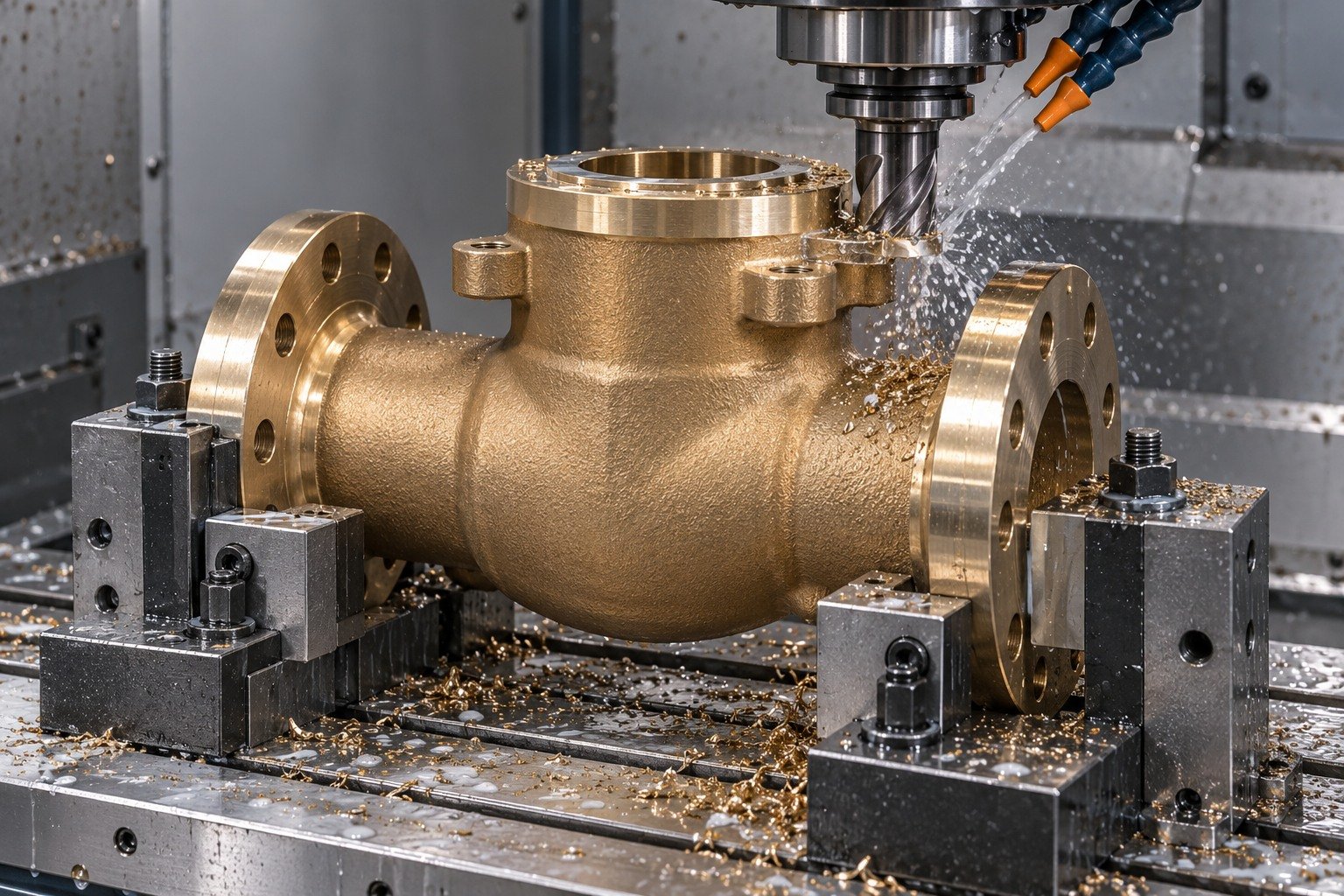

C95800 Milling
Connect valve flange, bonnet and mounting datums to one fixture plan.
Review the Process →

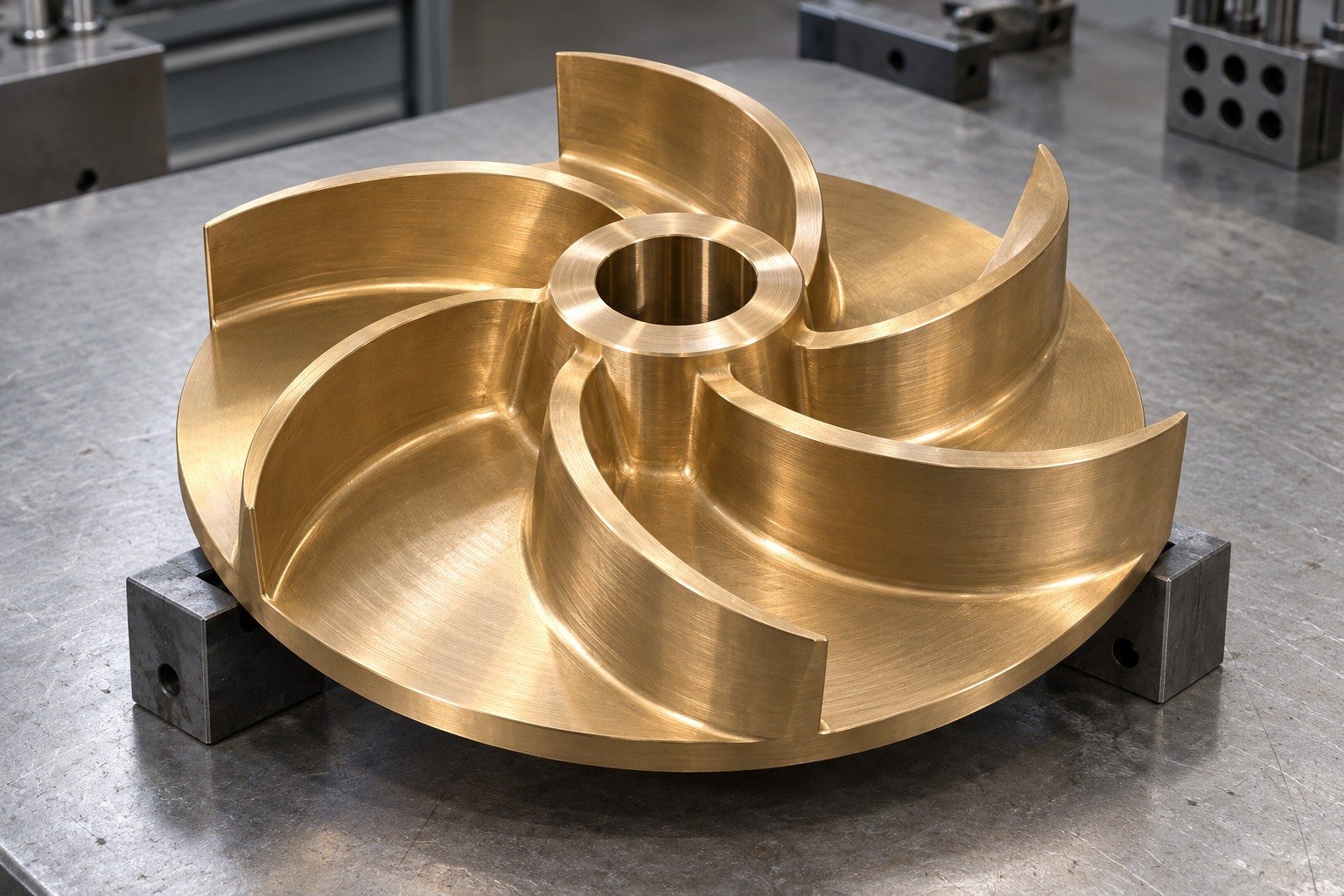

Hub & Working-Land Review
Connect the impeller bore and locating land to the actual pump assembly; agree balance and flow acceptance separately.

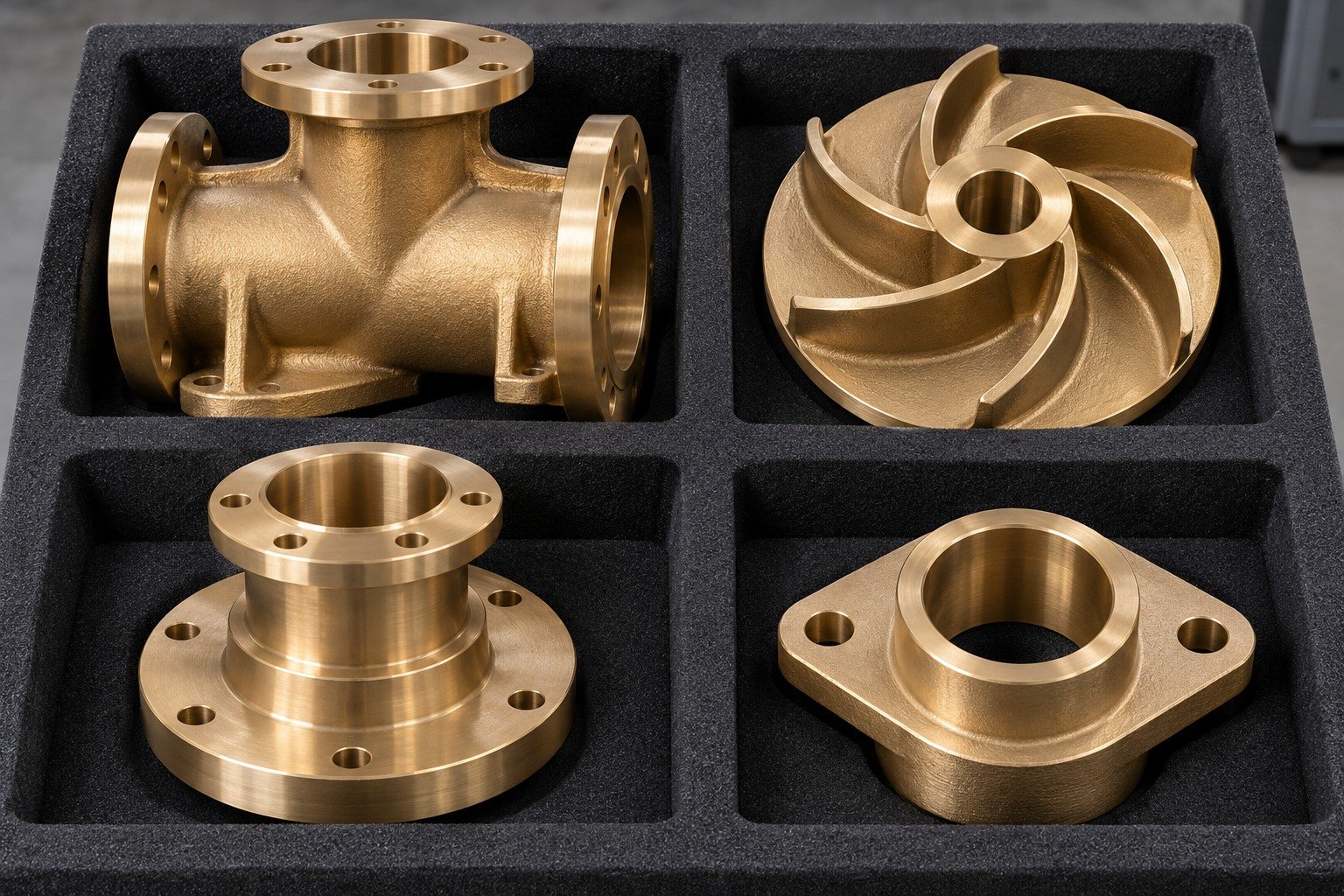

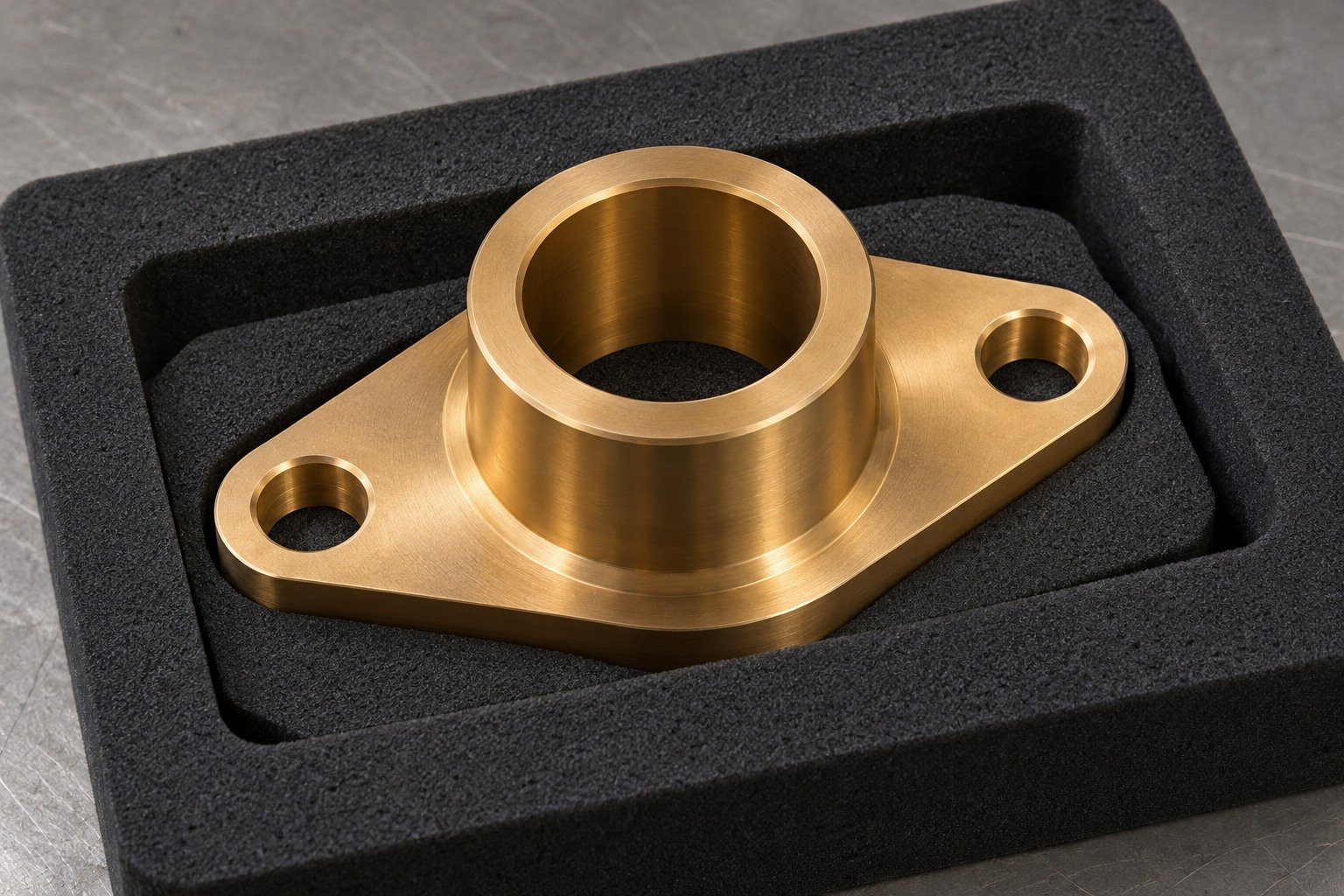

Review the Process →Protect Your Final Mating and Handling Surfaces
Agree cleanliness, accepted marks, final dimensions and individual protection. Review any finish around the working and mating surfaces.
Surface Finishing →Compare the Same Service and Acceptance Requirement
| Your review | What to approve |
|---|---|
| C95800 or C95500 | Compare complete chemistry, product, condition and service requirements. |
| Valve or pump component | Define any separate pressure, leak, flow or balance procedure. |
| Marine component | State environment, actual duty and required acceptance. |
| Material change | Obtain drawing-authority approval before substitution. |
A material designation does not establish universal corrosion life, propeller duty or pressure capacity.
Review C95500 →Resolve 6 Service and Machining Decisions Before Release
Define the assembly inputs before repeating quantities.
Confirm Your Casting Product and Usable Stock
For C95800 machining services, identify the exact casting product, usable allowance, supplied state and supporting datums.
01 · Assembly
Define shaft, housing and working surface.
02 · Route
Agree stock, support and lubrication access.
03 · Acceptance
Inspect the defined final state.
Confirm materialMachineFinish if specifiedInspect
Connect Your Fluid and Assembly Interfaces
Define port alignment, flange faces, shaft or housing fit and inspection access. For C95800 threading, specify form, fit, usable length and access. Any pressure or leak acceptance needs a separate agreed procedure.
01 · Assembly
Define shaft, housing and working surface.
02 · Route
Agree stock, support and lubrication access.
03 · Acceptance
Inspect the defined final state.
Confirm materialMachineFinish if specifiedInspect
Agree Your Supplied and Final State
Confirm the ordered state and any required treatment with its evidence. Do not automatically apply another aluminum-bronze treatment or property value to C95800.
01 · Assembly
Define shaft, housing and working surface.
02 · Route
Agree stock, support and lubrication access.
03 · Acceptance
Inspect the defined final state.
Confirm materialMachineFinish if specifiedInspect
Protect Your Pump Geometry
Define vane roots, clearances, accepted edges and handling surfaces. Hub machining and dimensional checks do not establish pump balance or flow performance.
01 · Assembly
Define shaft, housing and working surface.
02 · Route
Agree stock, support and lubrication access.
03 · Acceptance
Inspect the defined final state.
Confirm materialMachineFinish if specifiedInspect
Review Service Conditions and Final Surfaces
State the fluid, chloride exposure, temperature, movement and contact materials. Agree cleaning, finish or masking around the actual mating geometry.
01 · Assembly
Define shaft, housing and working surface.
02 · Route
Agree stock, support and lubrication access.
03 · Acceptance
Inspect the defined final state.
Confirm materialMachineFinish if specifiedInspect
Inspect Your Defined Final Condition
Your C95800 machined parts manufacturer review should connect material records and condition evidence to final geometry, sampling and receiving requirements.
01 · Assembly
Define shaft, housing and working surface.
02 · Route
Agree stock, support and lubrication access.
03 · Acceptance
Inspect the defined final state.
Confirm materialMachineFinish if specifiedInspect
Check Your C95800 Parts at 3 Release Stages
01 · Stock
Product identity and ordered requirements.
02 · Sample
Complete route and locating relationship.
03 · Release
Final working surfaces and evidence.

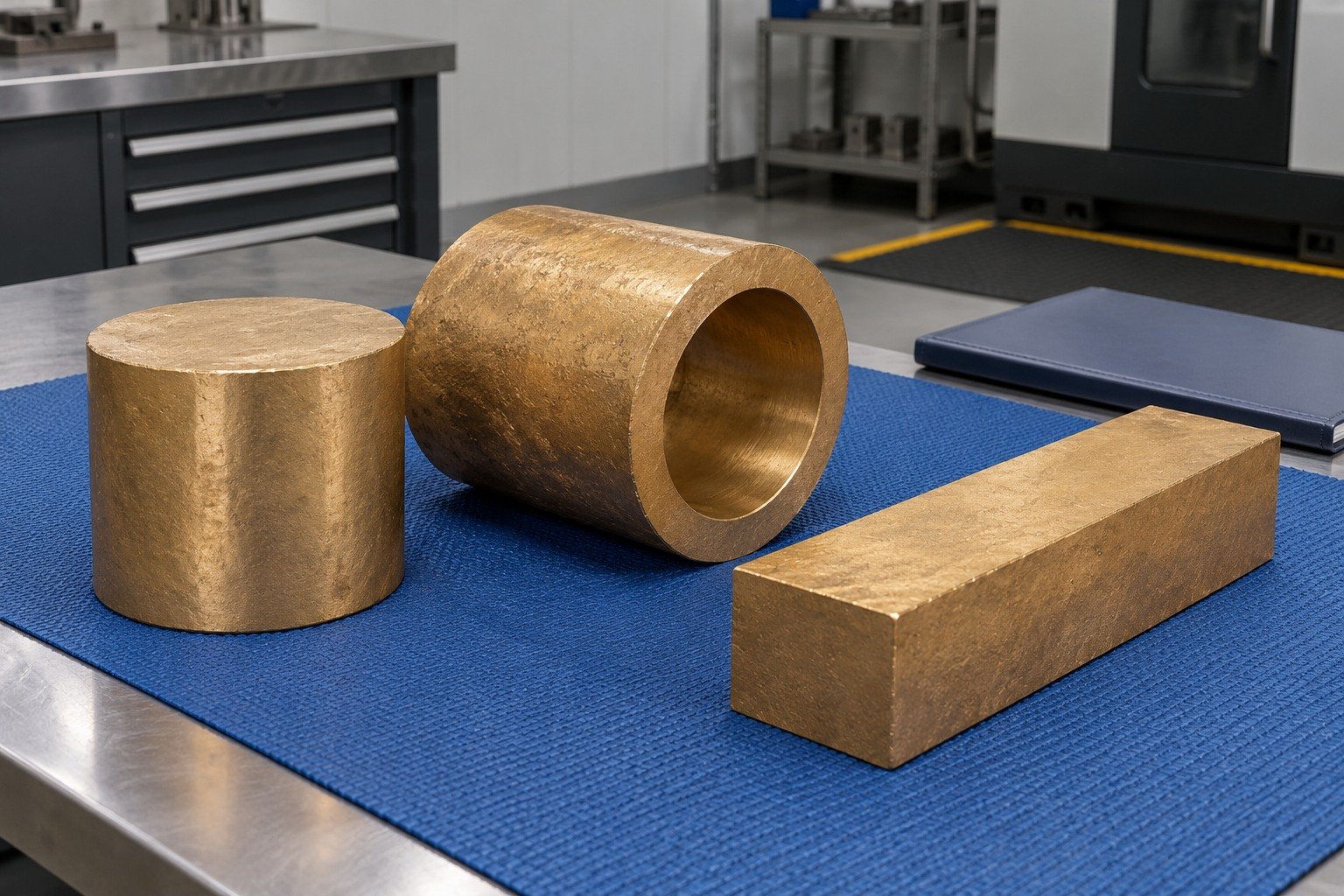

Receive the Right Casting Product and Condition
Identify ordered specification, revision, casting route, supplied condition, lot identity and certificate contents.
- Exact product, casting route and supplied state.
- Controlled datums, accepted edges and working surfaces.
- Agreed sampling, measurement state and test scope.
Approve the Complete First-Route Geometry
Check complete flange, hub, bore or mounting geometry on the first sample. Confirm final condition and any separately agreed test scope.
- Exact product, casting route and supplied state.
- Controlled datums, accepted edges and working surfaces.
- Agreed sampling, measurement state and test scope.
Inspect Your Actual Working Interface
Verify the final flange, hub, port or bore in the agreed material and measurement state. Dimensional records and functional tests answer different questions.
- Exact product, casting route and supplied state.
- Controlled datums, accepted edges and working surfaces.
- Agreed sampling, measurement state and test scope.
Match Protected Parts to Their Records
Agree protection, cleanliness, lot identity and receiving documents for your actual mating surfaces.
- Exact product, casting route and supplied state.
- Controlled datums, accepted edges and working surfaces.
- Agreed sampling, measurement state and test scope.
Coordinate Your Drawing and Receiving Requirements
Connect China manufacturing with Dallas-area coordination for drawing review, sample decisions and delivery requirements.
6 Inputs for Your C95800 Quote
01CAD + controlled drawing + mating parts
02C95800 + ordered standard and revision
03Casting route + supplied and final condition + allowance
04First order + repeat quantities
05Mating parts + fluid or environment + final surfaces
06Records + final measurement state + inspection
Compare the Same Assembly Requirement
Your C95800 machining quote should compare the same stock route, drawing revision, free or installed acceptance and receiving evidence.
Answers Before You Specify C95800
What is C95800 bronze?
C95800 is a cast nickel-aluminum-bronze designation. Identify the ordered product standard, casting route and supplied state before defining the final valve, pump, marine or bushing interface.
Is C95800 difficult to machine?
Selected Concast data gives an indicative cutting index of 20. It does not predict your cycle time, tool life or quote cost; review actual stock, support, geometry and surface.
What information is needed for a C95800 machining quote?
Provide CAD and controlled drawing, exact casting specification and state, stock, quantities, mating parts, fluid or environment, final surface and receiving evidence.
What tolerances can be achieved machining C95800?
State feature limits, datums, support and final measurement state. Your quote confirms reviewed geometry and inspection scope; no universal tolerance is promised.
How to specify C95800 material certification?
State ordered standard and revision, casting route, product form, supplied and final condition, lot identity, certificate contents and required treatment records. Keep material and dimensional evidence separate.
What heat treatment is required for C95800?
Use the ordered product specification and service requirement. Selected Concast data lists as-cast or temper-annealed supply; agree any required treatment, records and final inspection rather than applying a universal recipe.
Does a marine material name approve every seawater application?
No. Define fluid, temperature, flow, mating materials, actual duty and acceptance. Material identity alone does not establish corrosion life, pump performance or pressure capacity.
What European name should your purchasing team review?
ZOLLERN gives approximate CuAl10Fe5Ni5-C / CC333G and historical AB2 comparisons for its C95800 casting. Review full chemistry, route and condition; these references do not approve substitution automatically.
