C95500 Bronze Machining for Your Working Interfaces
For your C95500 machining project, bring material condition, supporting geometry and final assembly requirements into one review. Define custom C95500 parts around the bore, bearing face, gear-blank scope or pump mounting datum your drawing controls.
UNS C95500Cast nickel-aluminum-bronze reference.
Ni 3–5.5%Selected continuous-cast chemistry.
CC333G ComparisonVerify the complete European specification.
Your Final StateConnect condition, fit and receiving evidence.

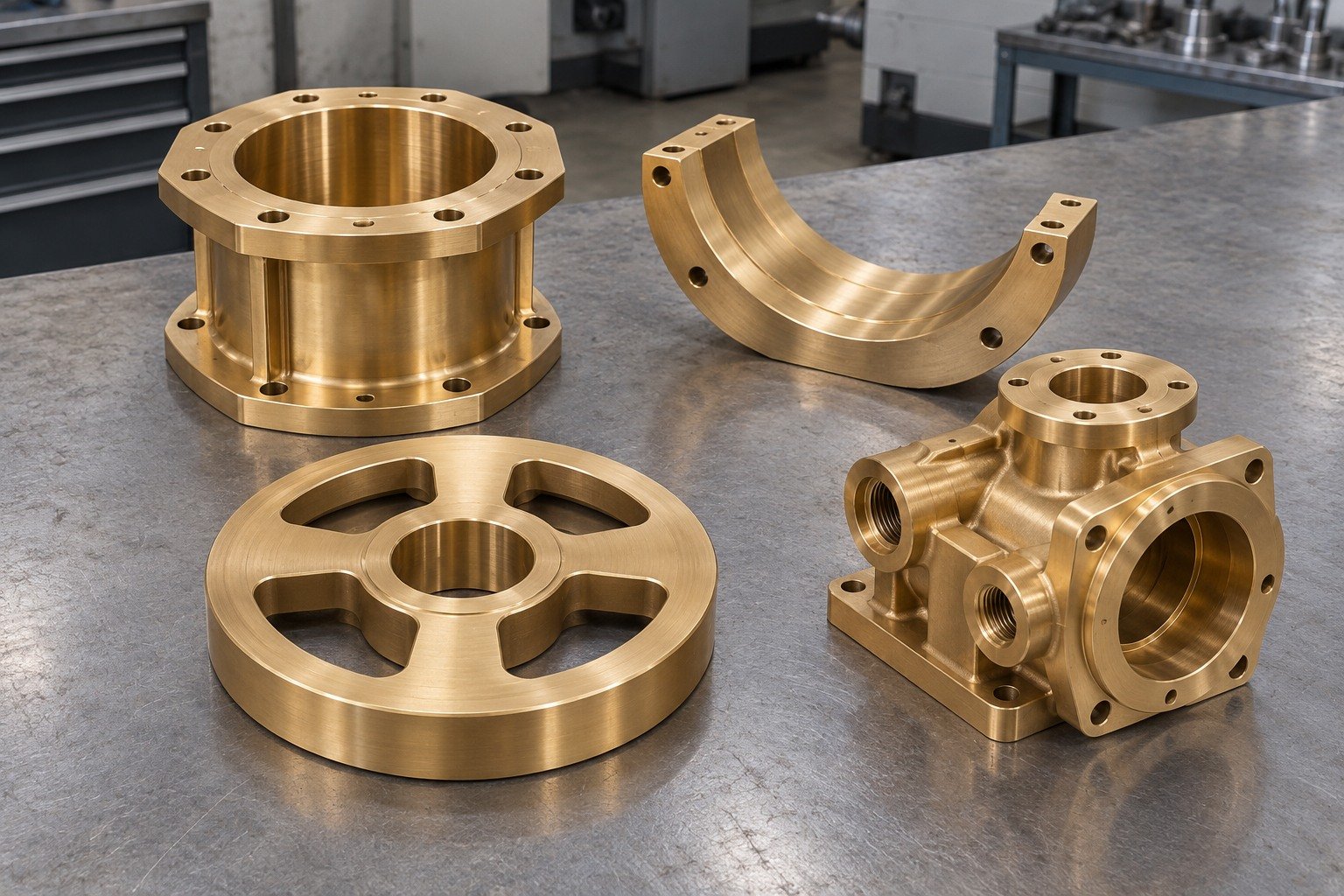

Connect Your C95500 Part to the Actual Assembly
For your C95500 CNC machining review, identify the component, then define support, final geometry and the evidence needed before repeating quantities.

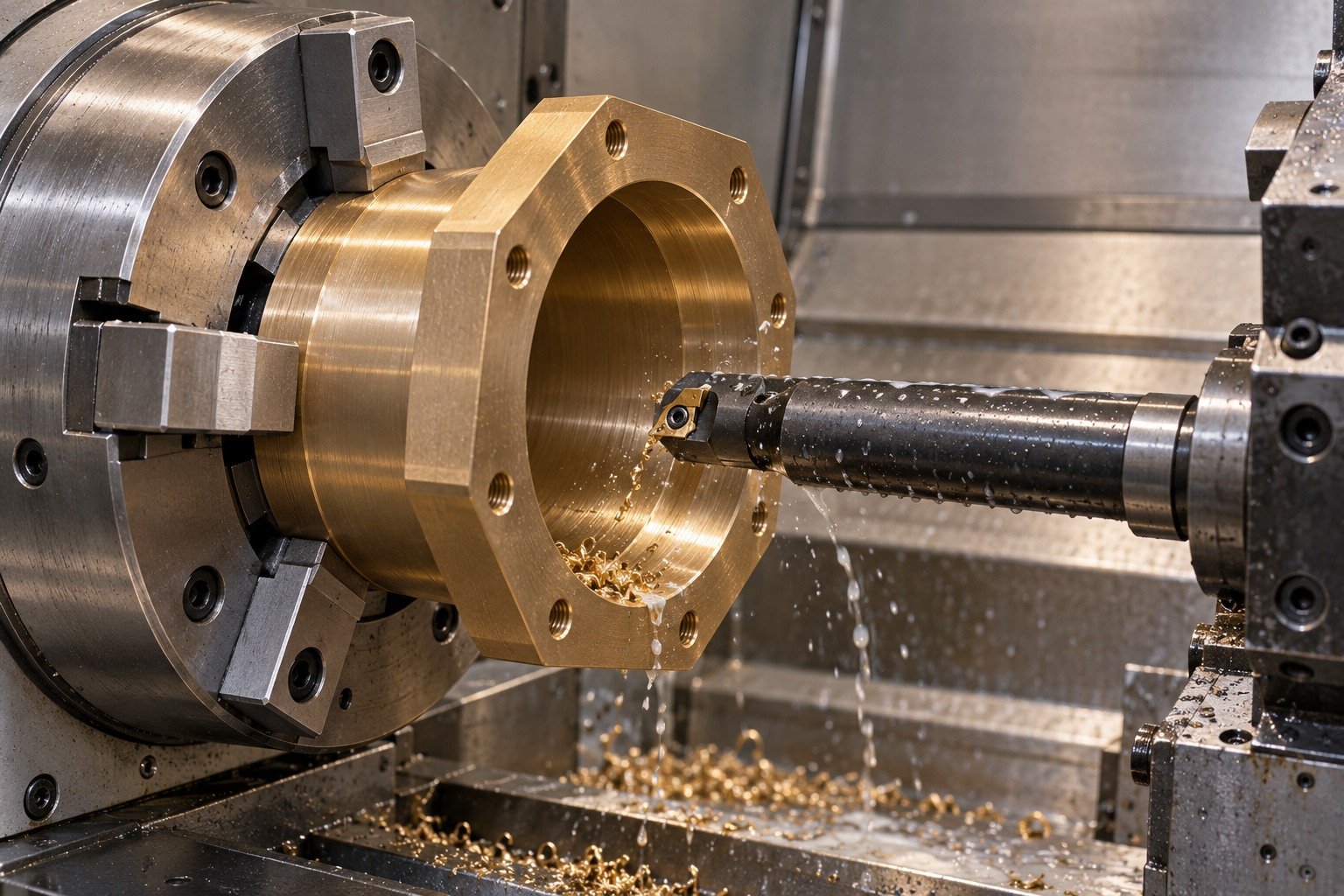

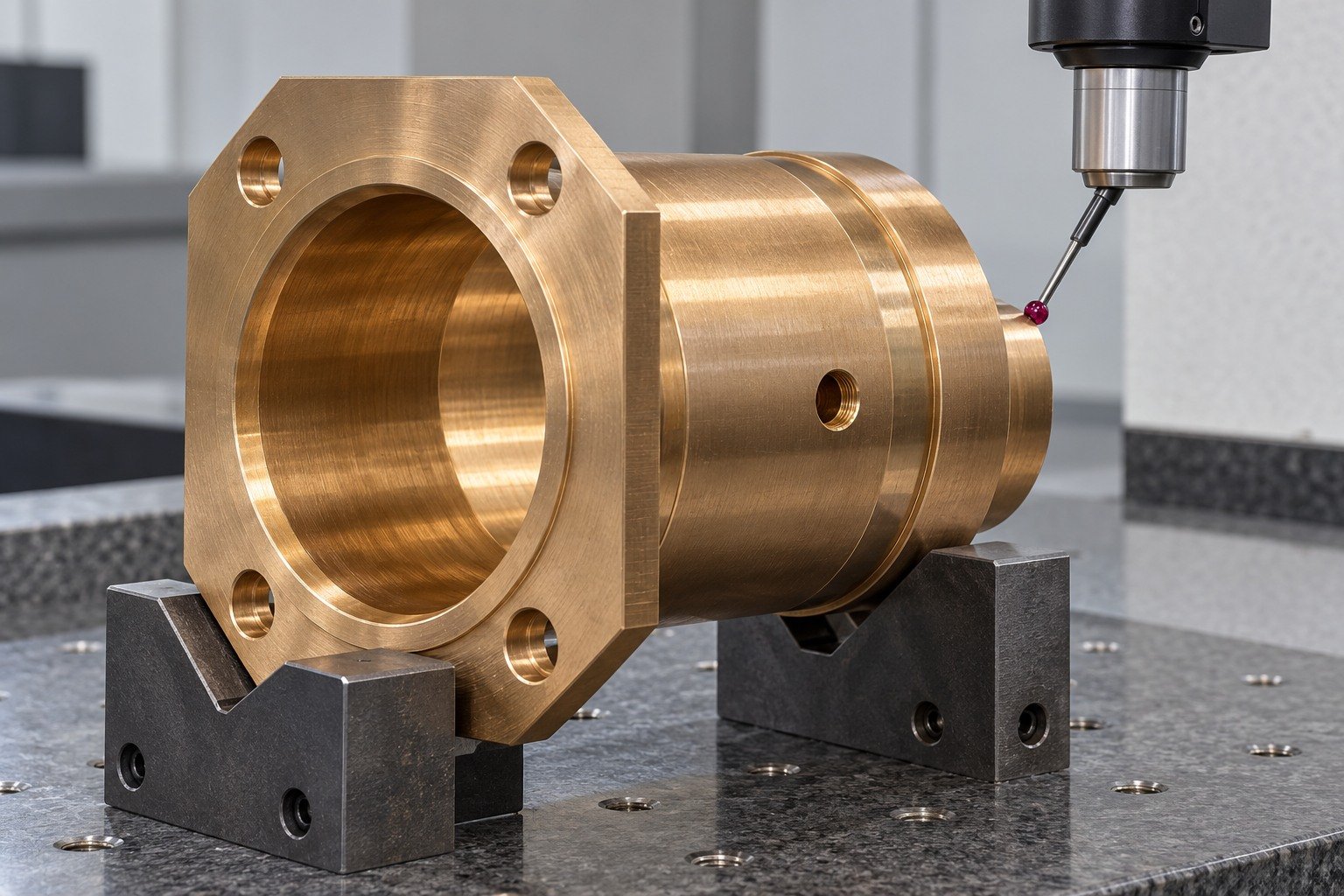

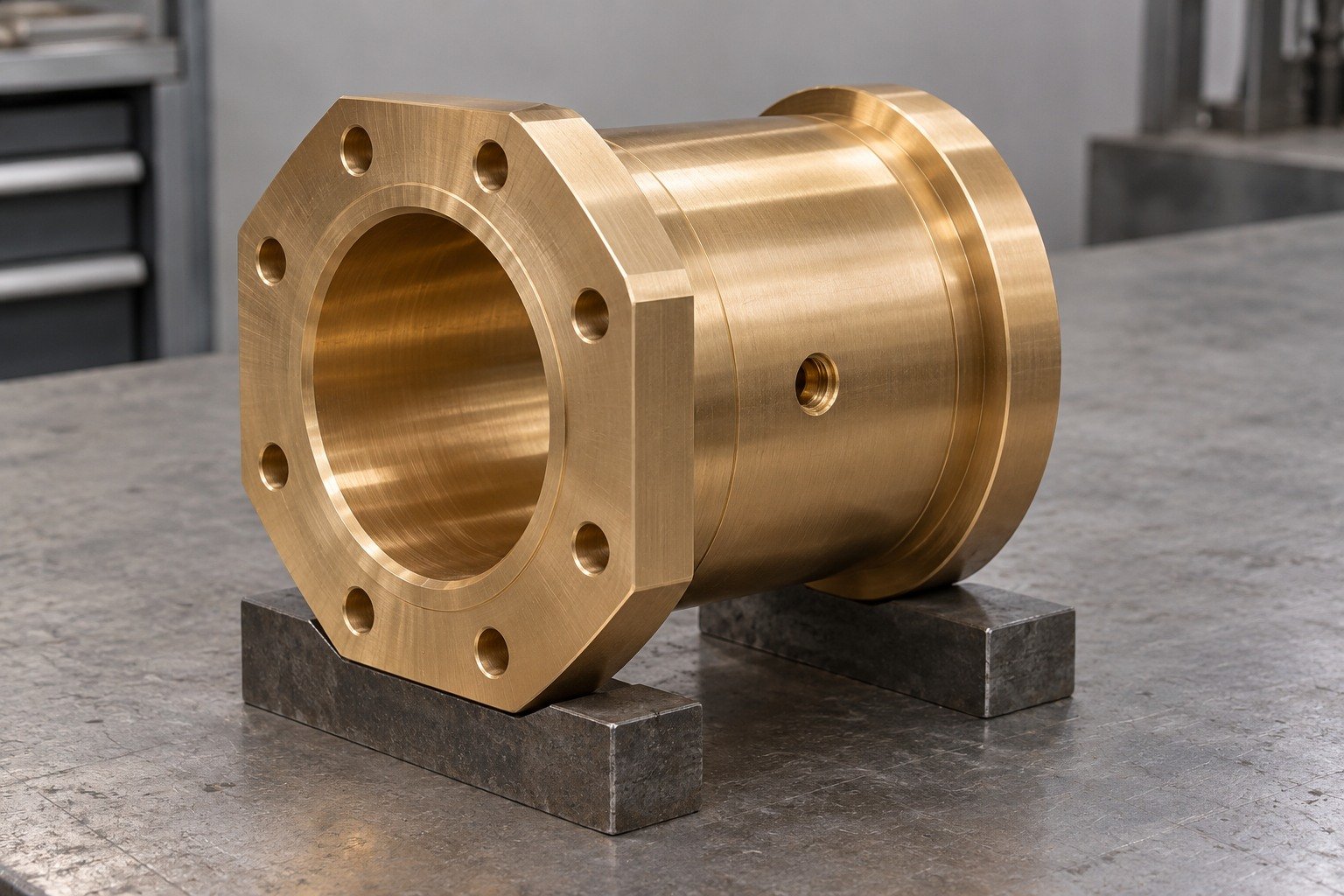

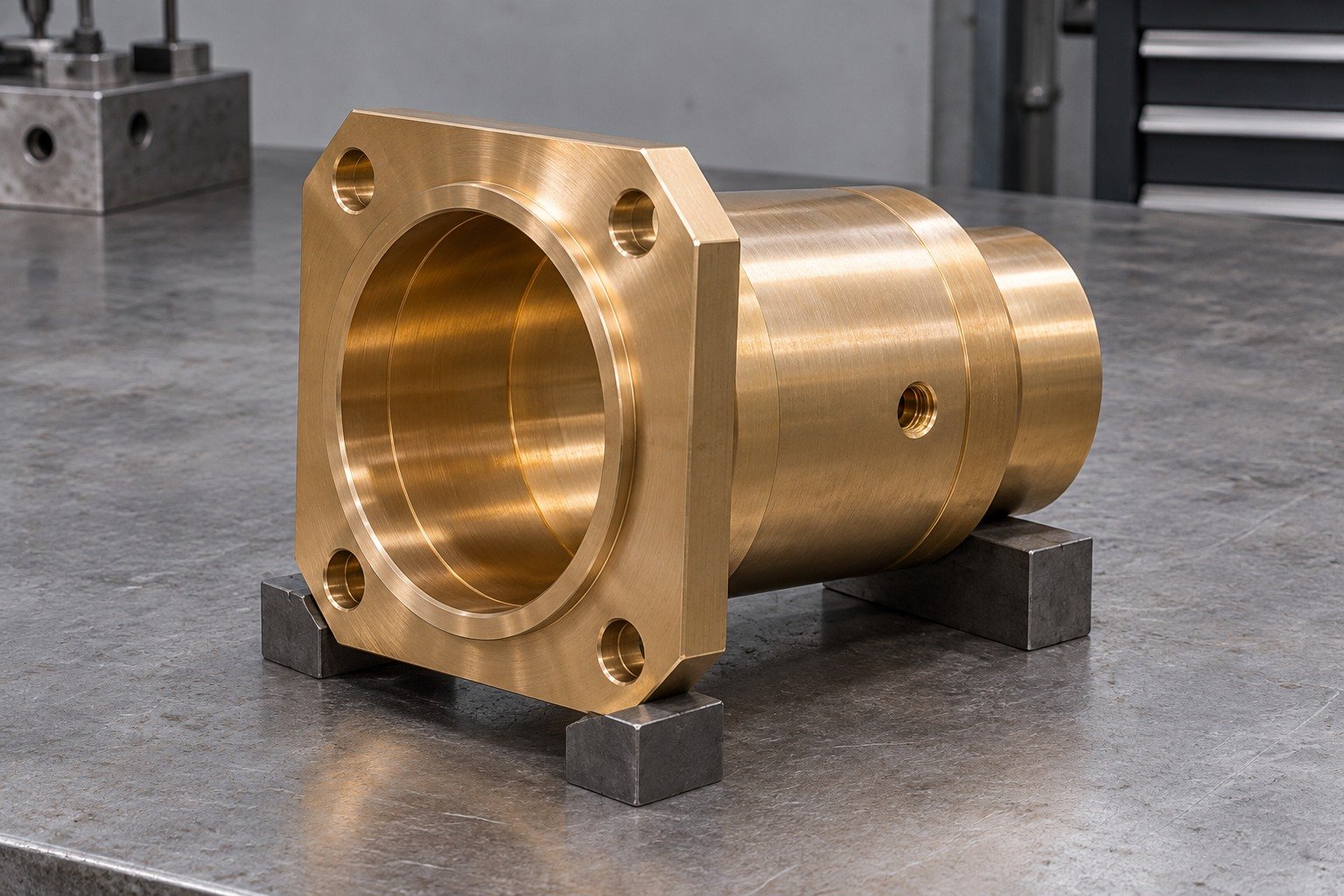

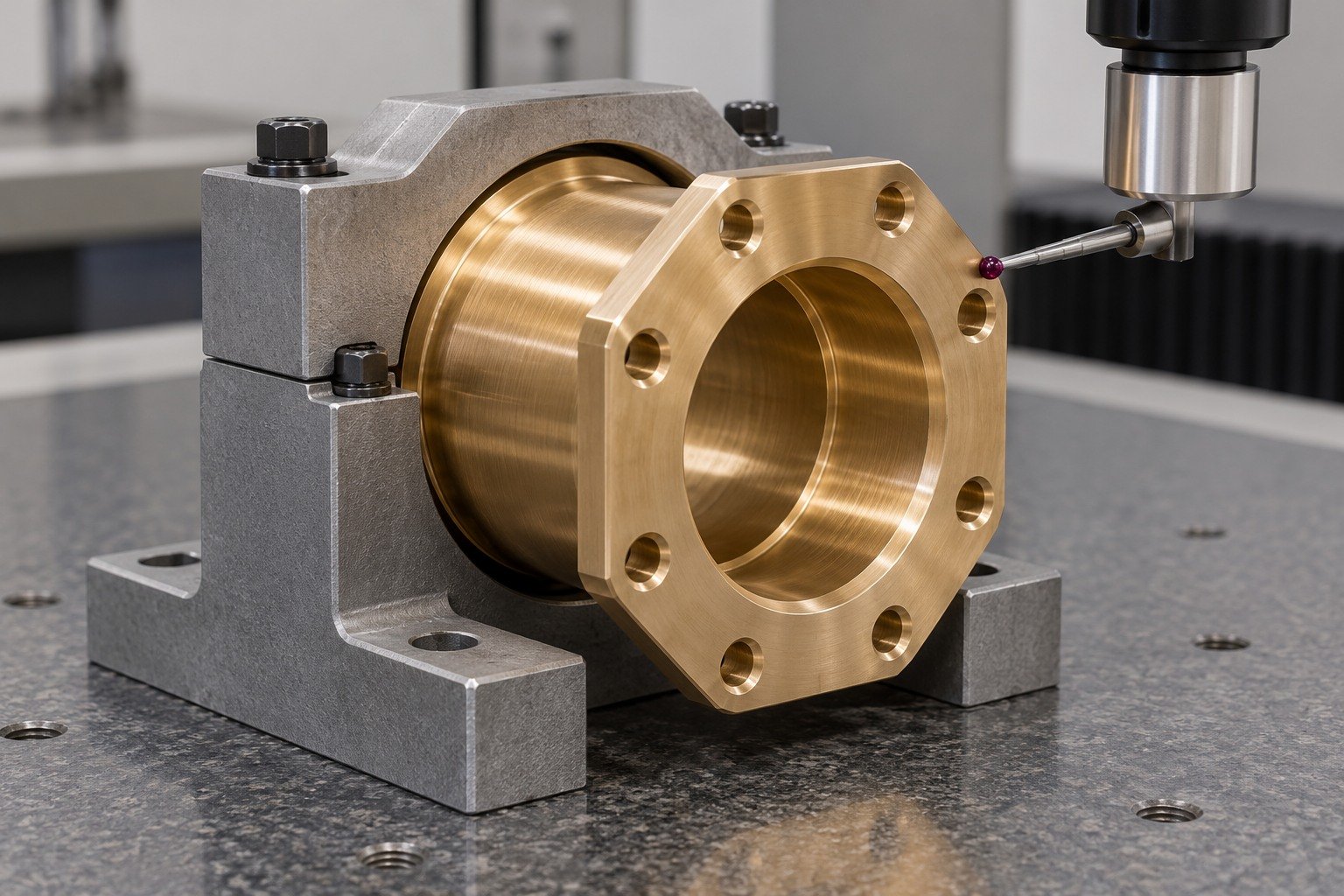

Define Your Flanged Bushings
For your C95500 bushings, connect the bore, flange datum, outside steps and oil-port position to the housing and mating shaft. Review custom C95500 bushings against the controlled assembly.
| Your fit | What to define |
|---|---|
| Working interface | Bore, flange, locating shoulders and housing relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |

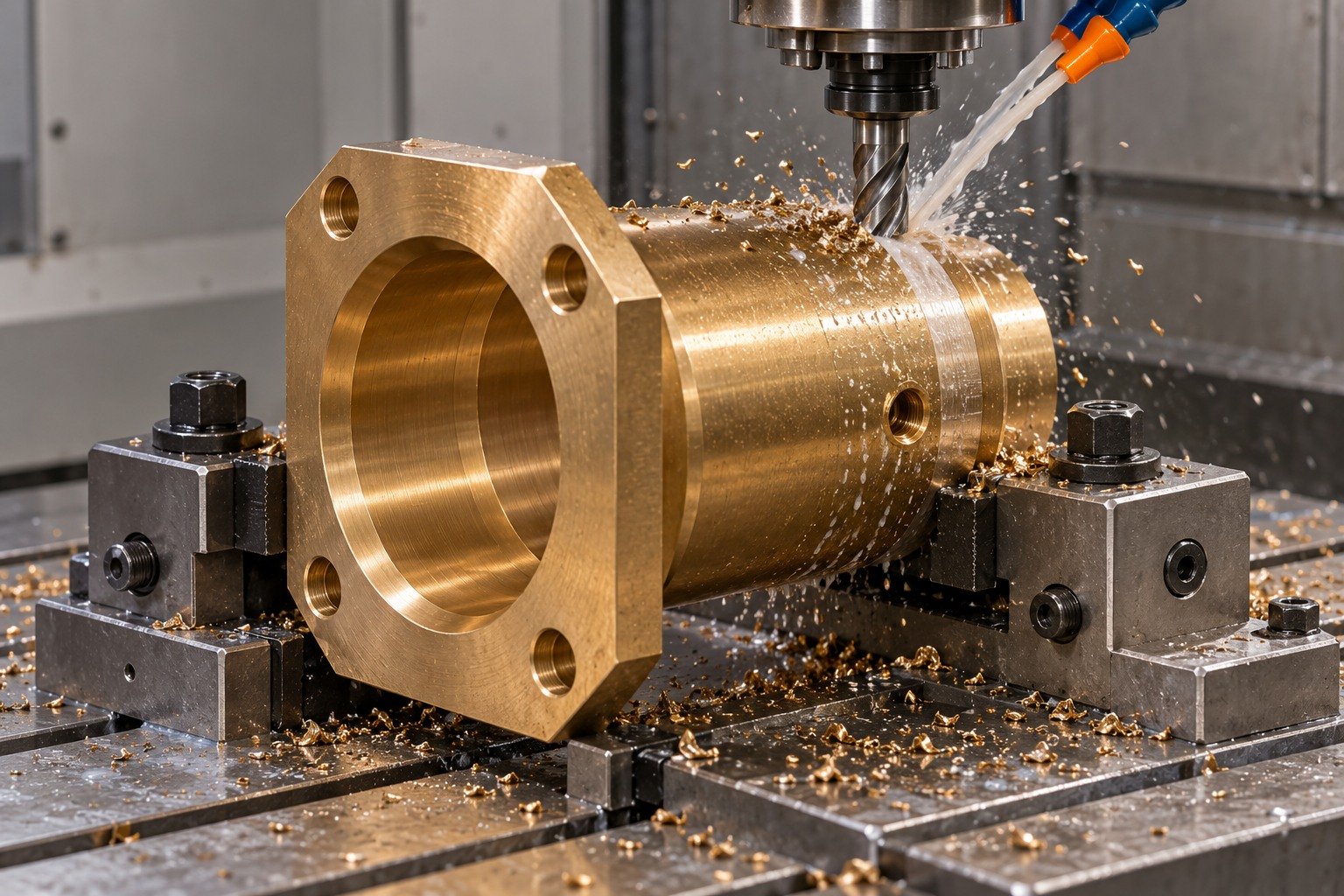

Agree Your Support and Access
Your C95500 machining services review should identify locating support, usable allowance and the surfaces inspected after the final operation.
| Your fit | What to define |
|---|---|
| Working interface | Bore, flange, locating shoulders and housing relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |

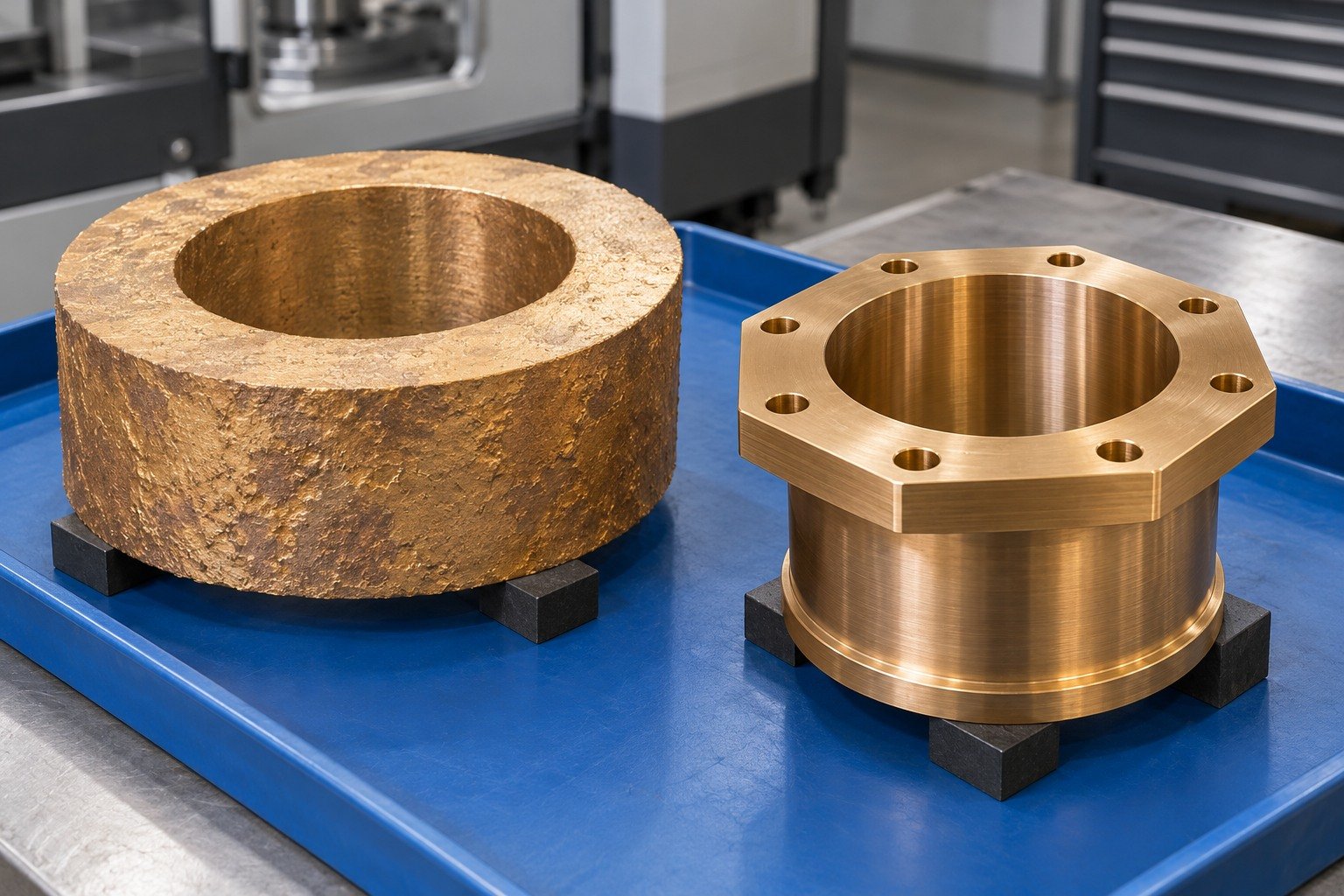

Confirm the Supplied and Final State
Specify casting route, supplied condition, any required treatment and usable allowance. Agree final inspection after the last dimension-changing operation.
| Your fit | What to define |
|---|---|
| Working interface | Bore, flange, locating shoulders and housing relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Receive Parts with the Right Evidence
For your C95500 machined parts, identify required material records, final dimensions, accepted edges, cleanliness and individual protection.
| Your fit | What to define |
|---|---|
| Working interface | Bore, flange, locating shoulders and housing relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |

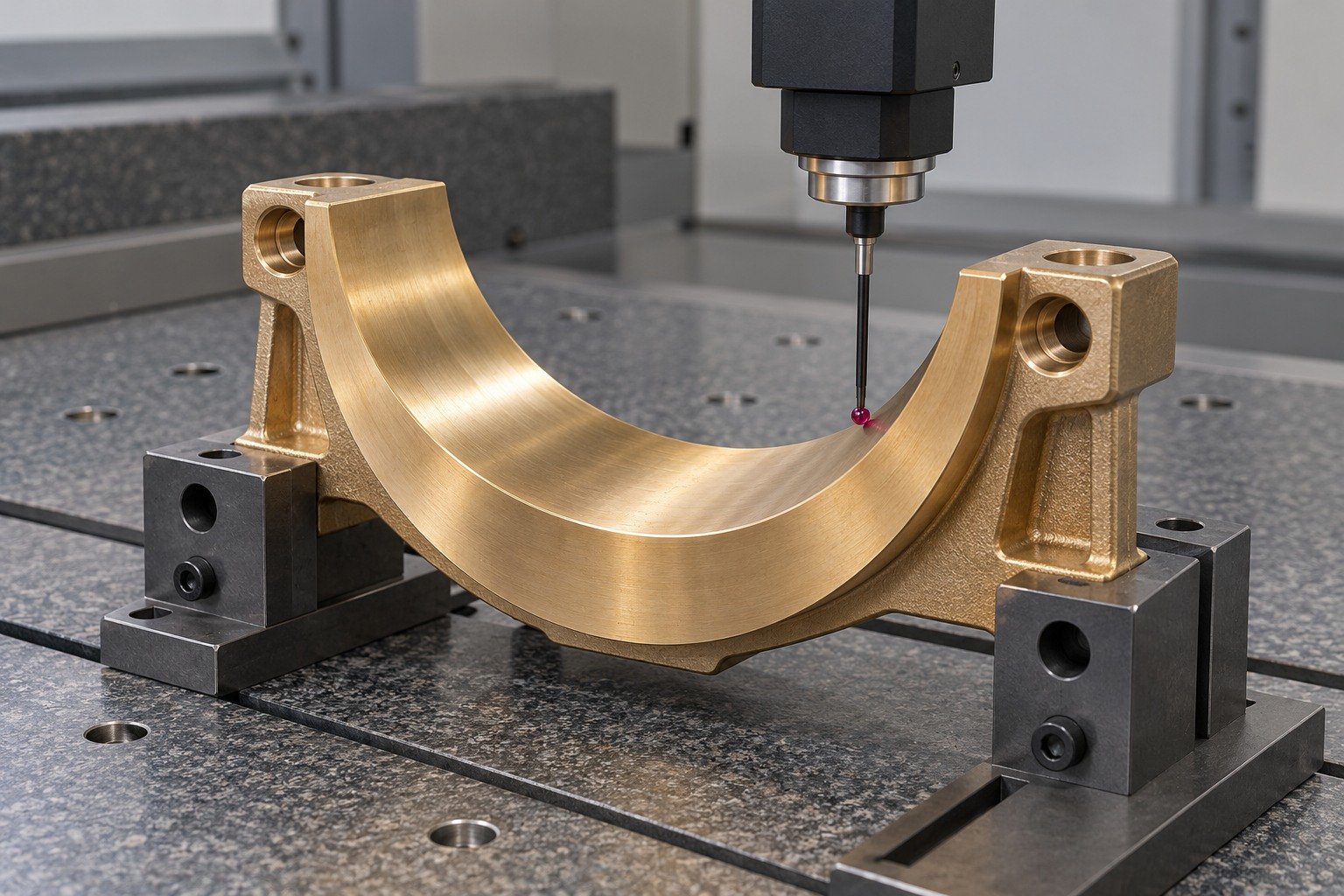

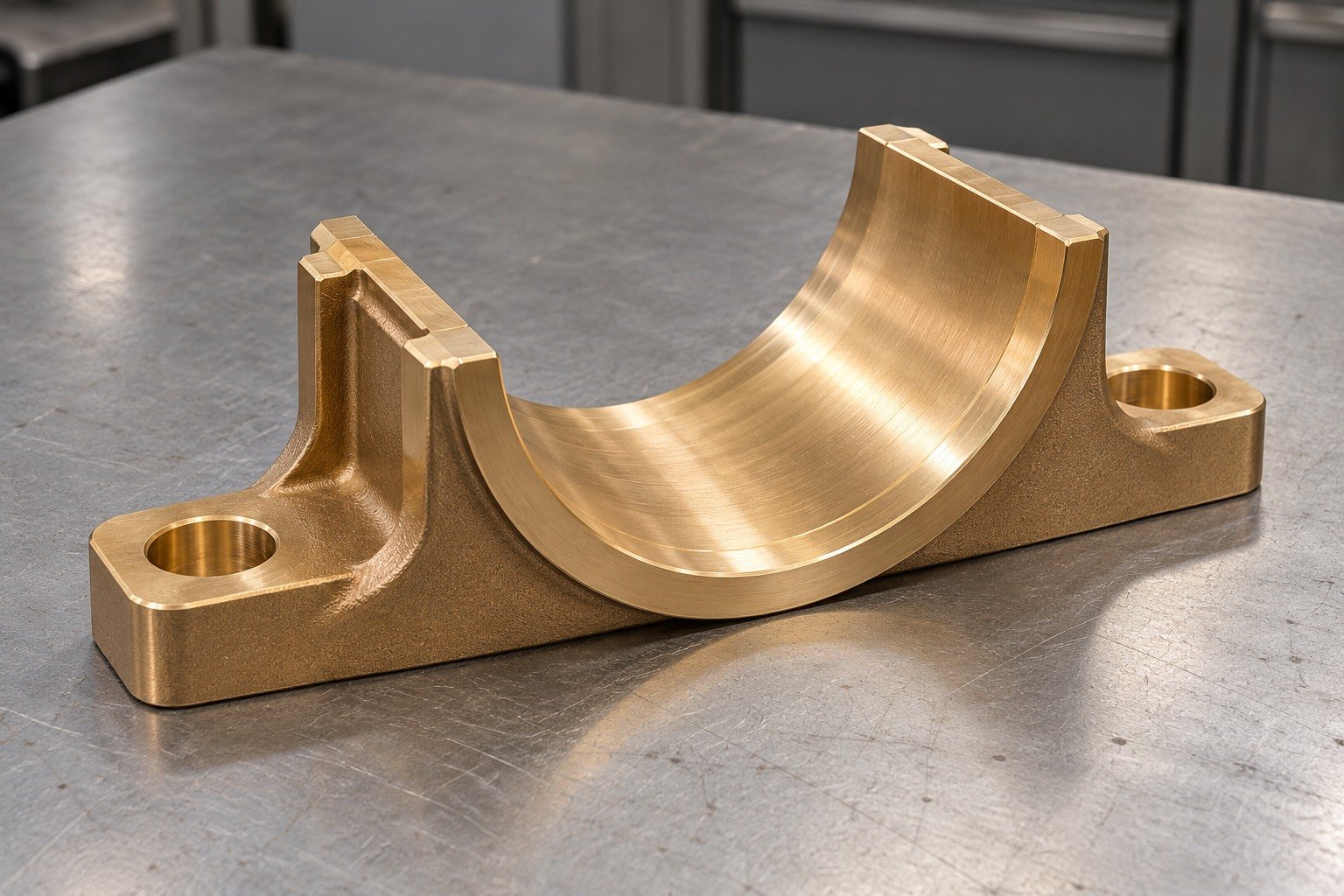

Define Your Bearing Segments
Review C95500 bearings around the curved working surface, supported segment, mounting lugs and lubrication access. Review custom C95500 bearings against the controlled assembly.
| Your fit | What to define |
|---|---|
| Working interface | Curved working face, support and mounting relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |

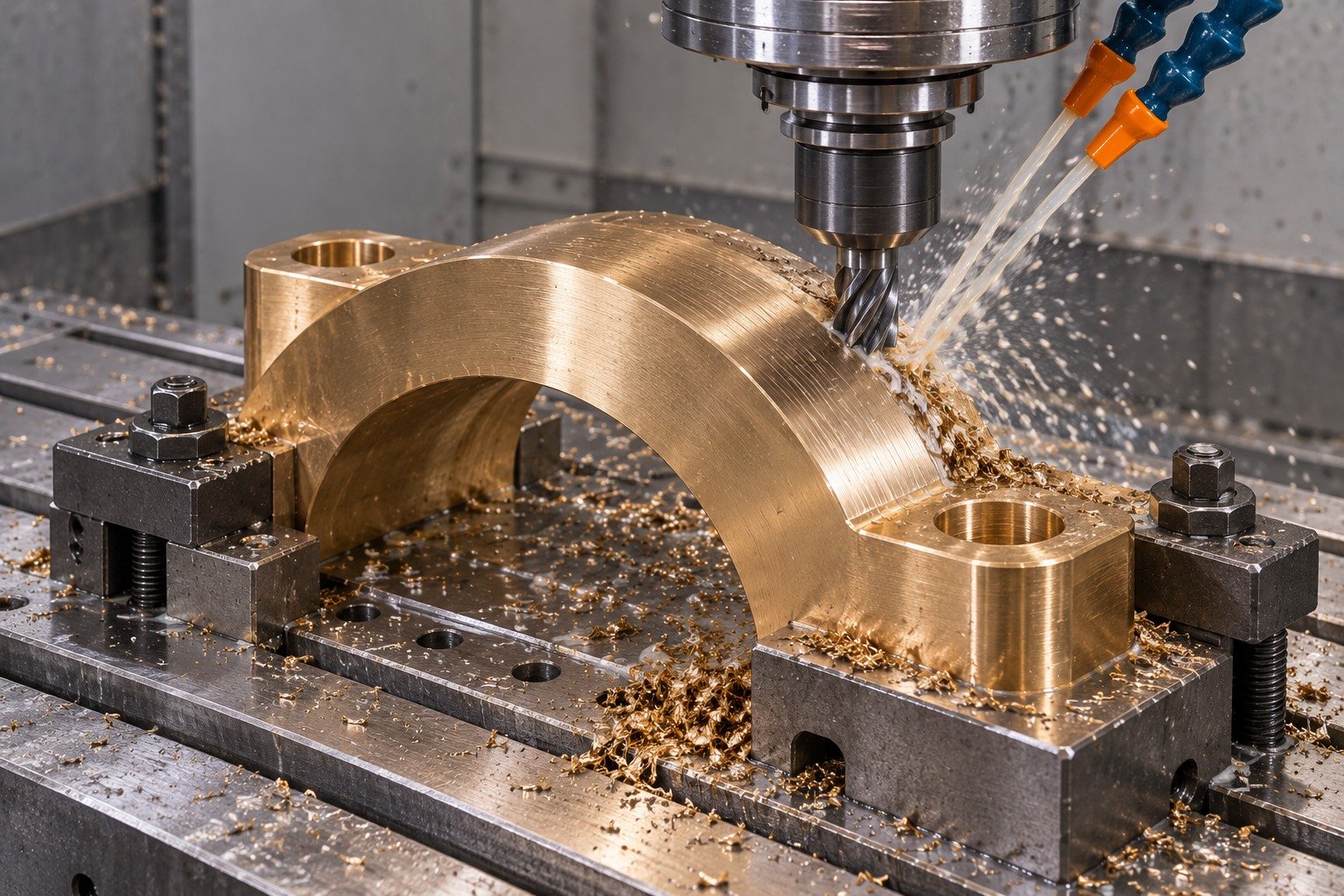

Agree Your Support and Access
Your C95500 machining services review should identify locating support, usable allowance and the surfaces inspected after the final operation.
| Your fit | What to define |
|---|---|
| Working interface | Curved working face, support and mounting relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |

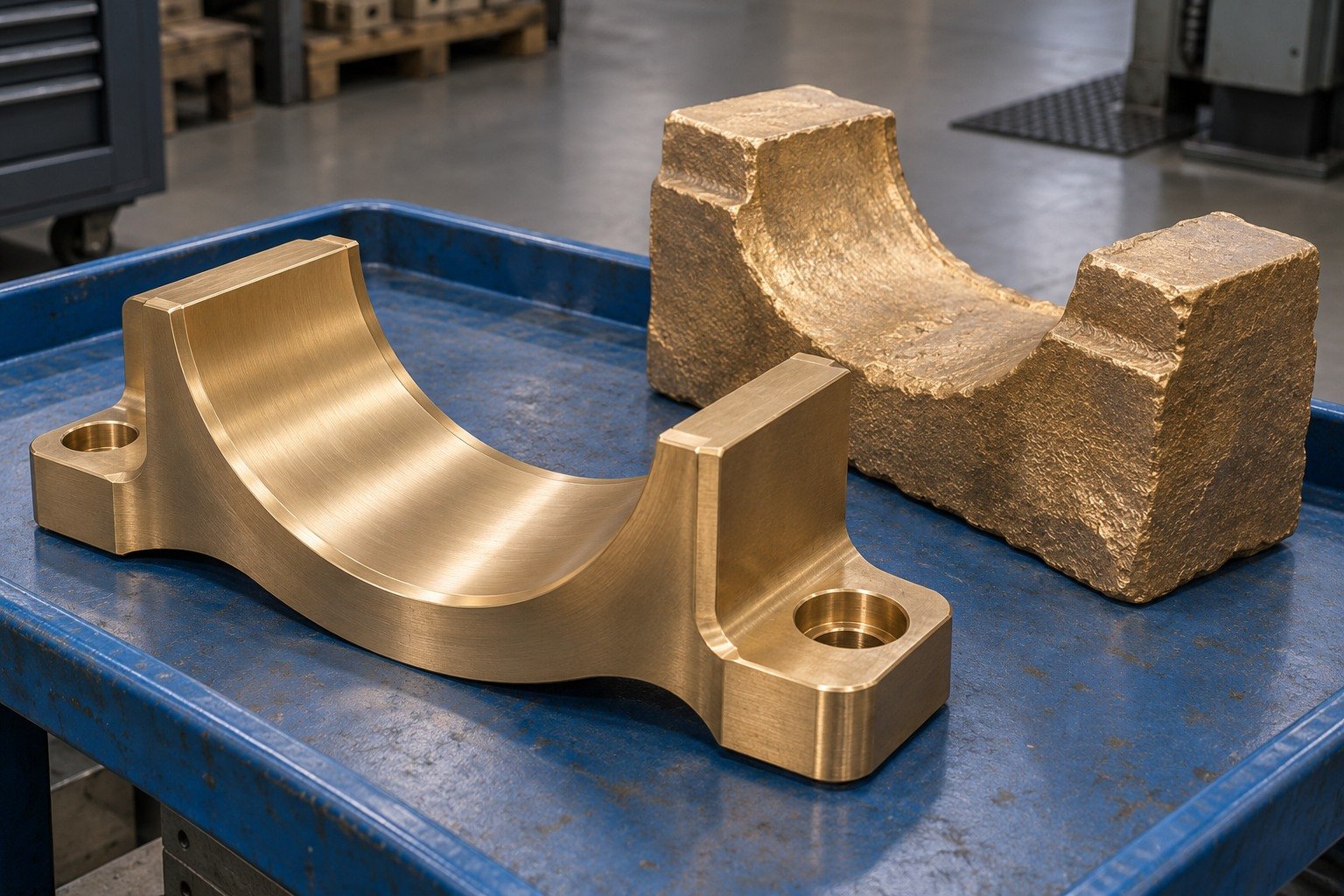

Confirm the Supplied and Final State
Specify casting route, supplied condition, any required treatment and usable allowance. Agree final inspection after the last dimension-changing operation.
| Your fit | What to define |
|---|---|
| Working interface | Curved working face, support and mounting relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Receive Parts with the Right Evidence
For your C95500 machined parts, identify required material records, final dimensions, accepted edges, cleanliness and individual protection.
| Your fit | What to define |
|---|---|
| Working interface | Curved working face, support and mounting relationship. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |

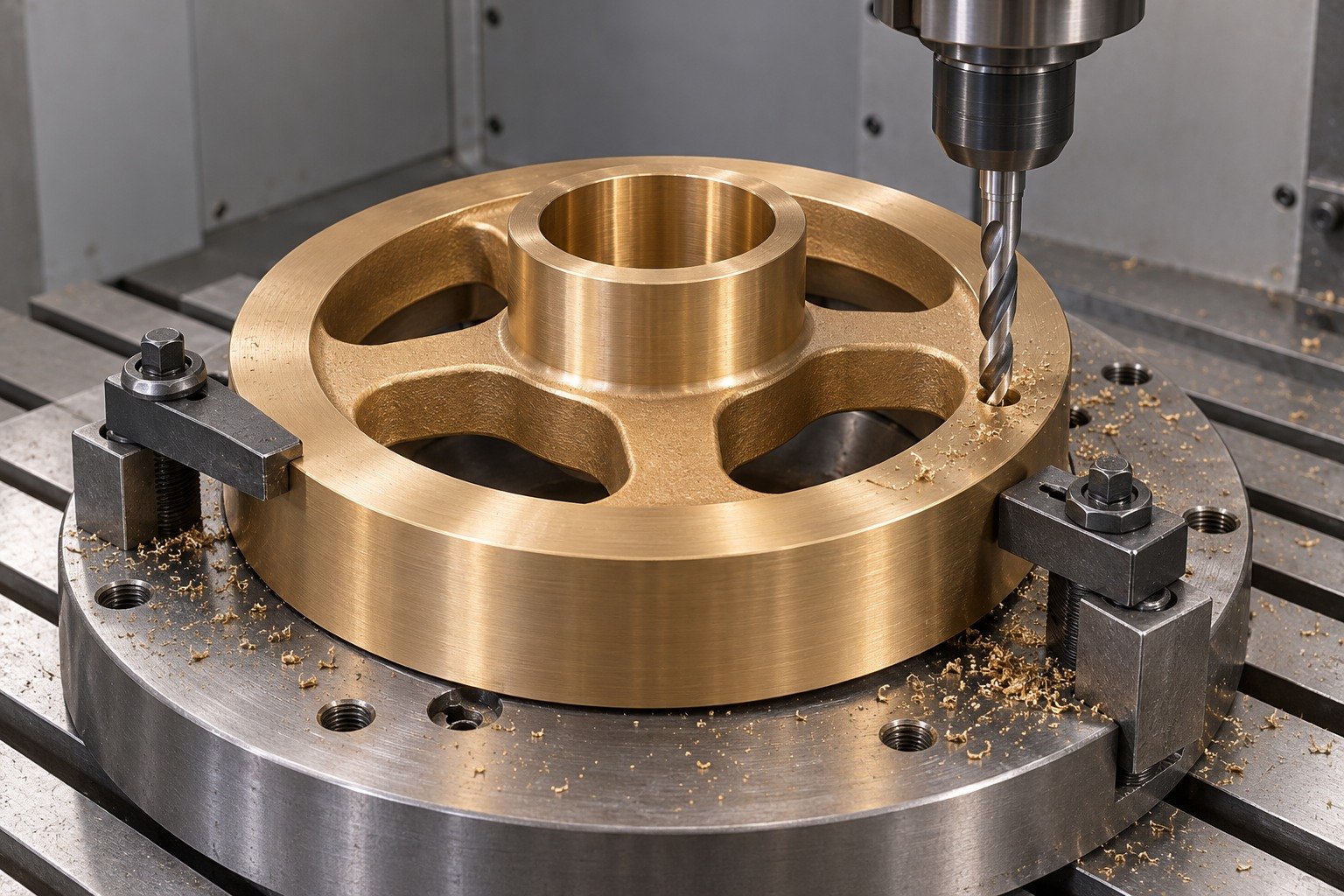

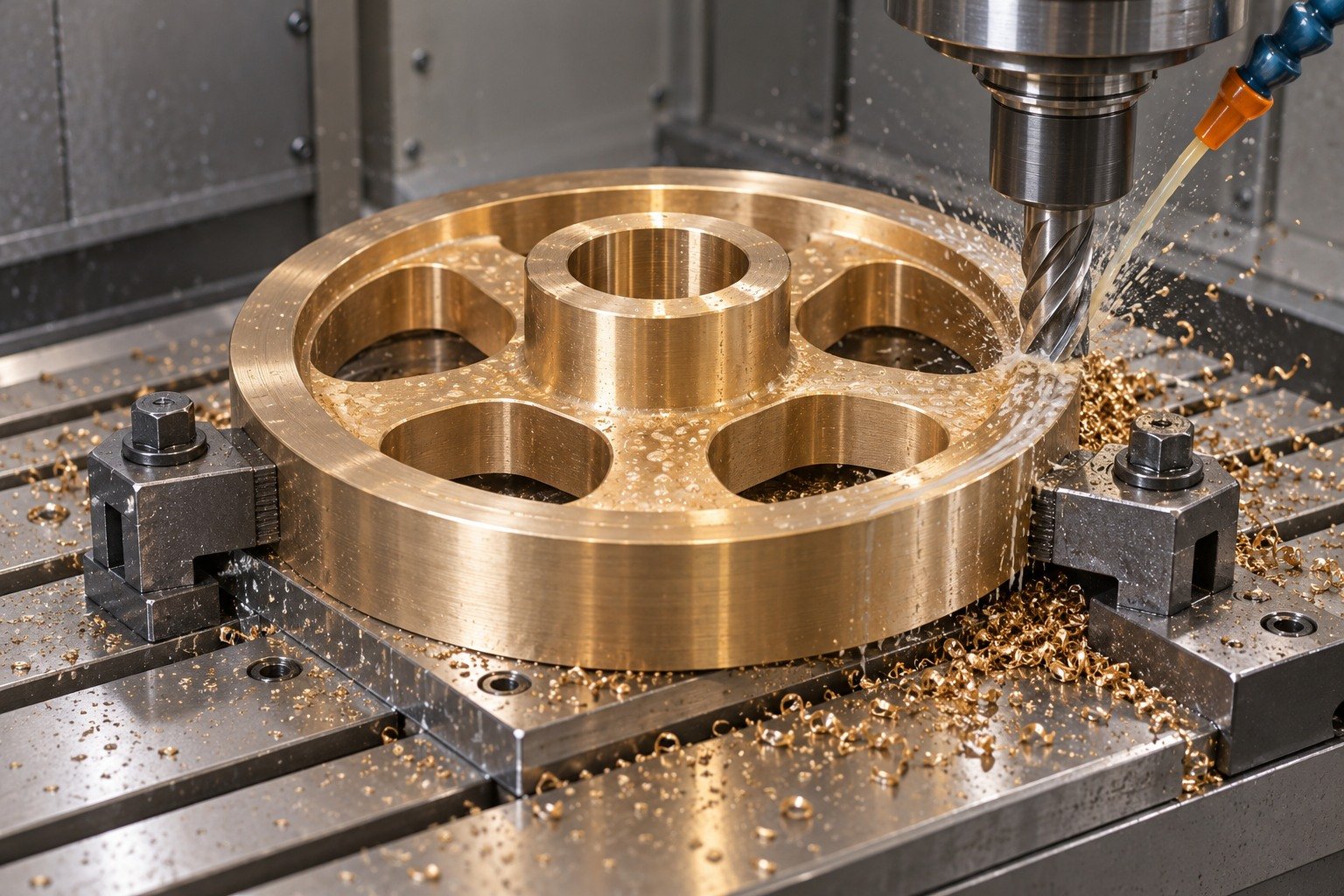

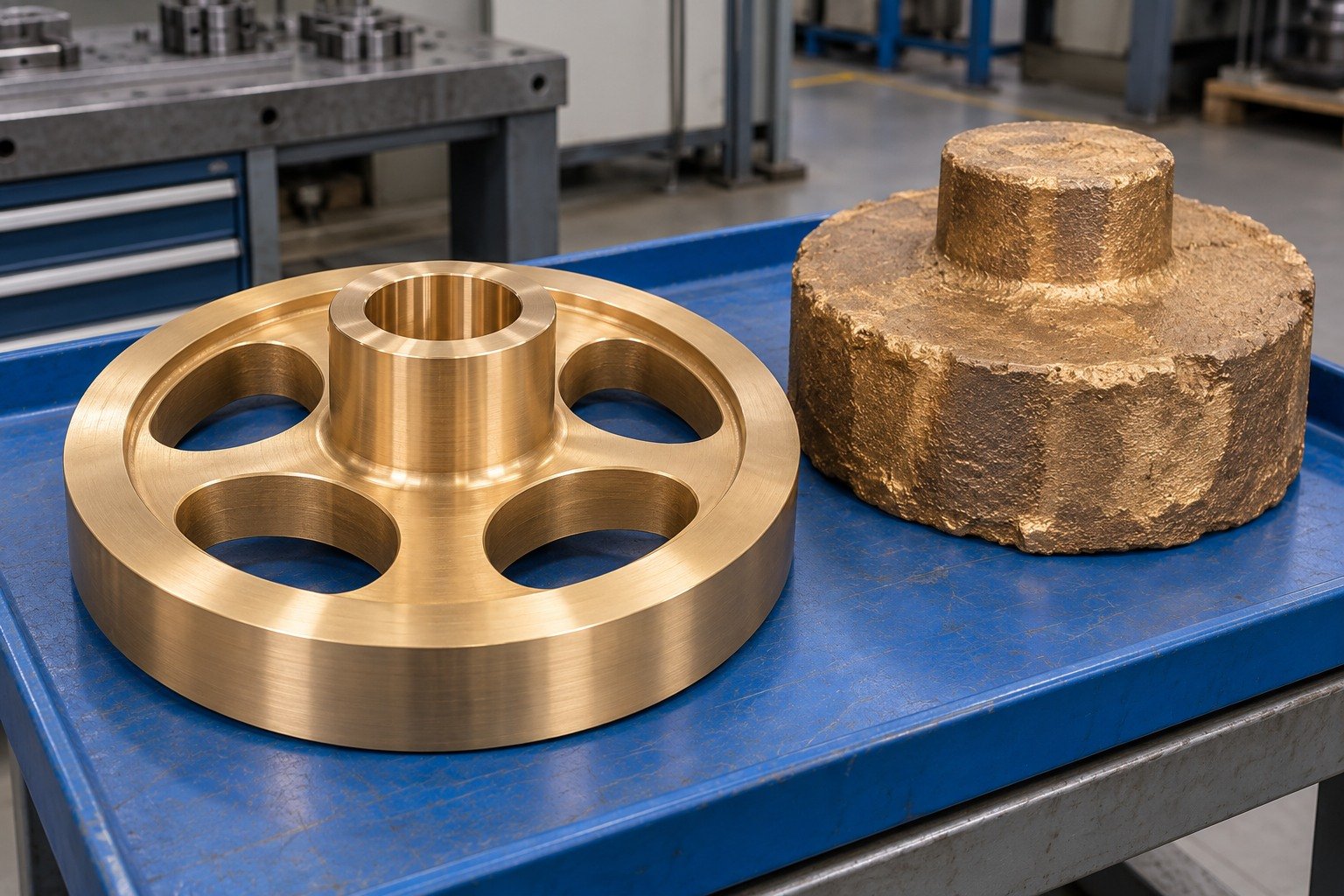

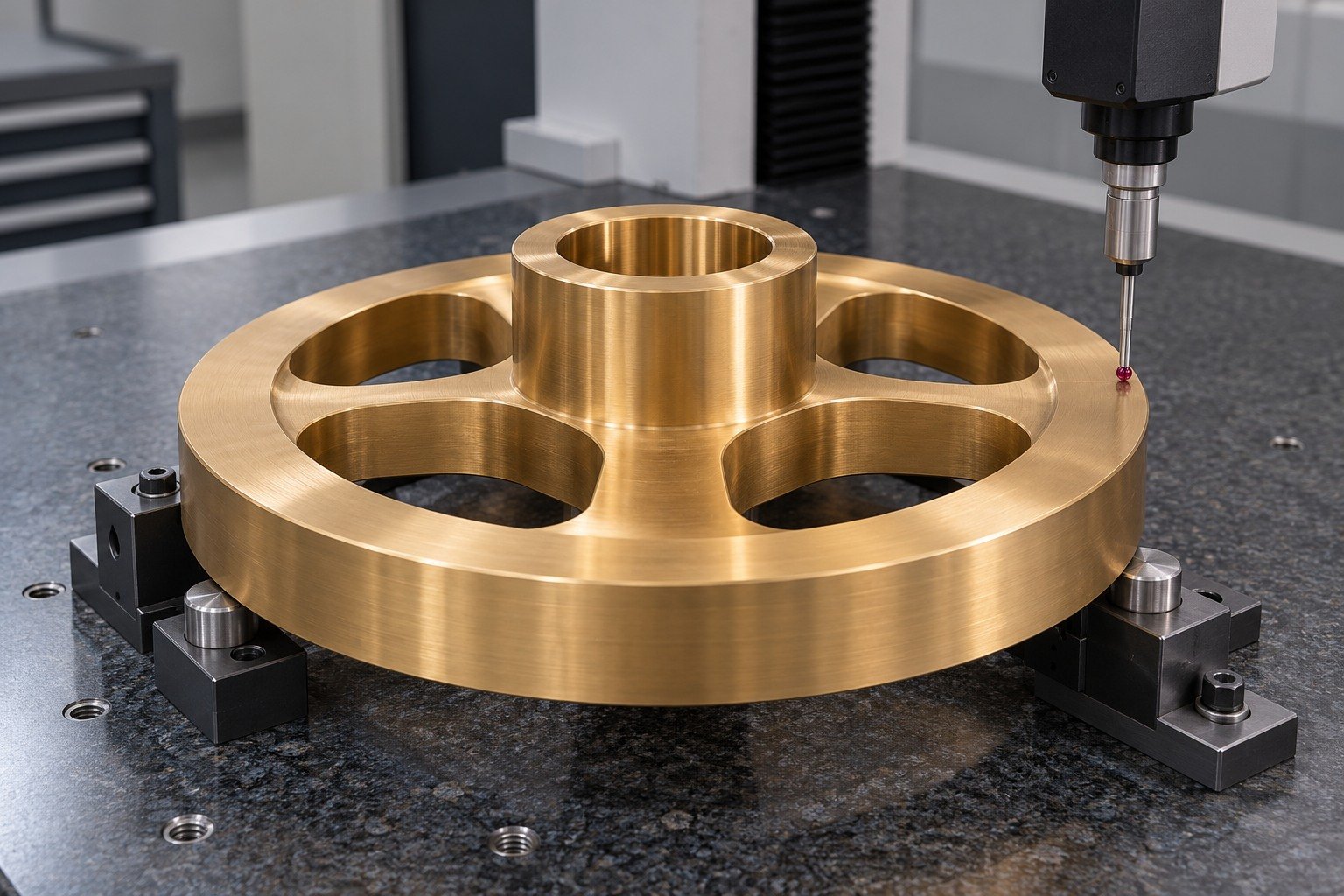

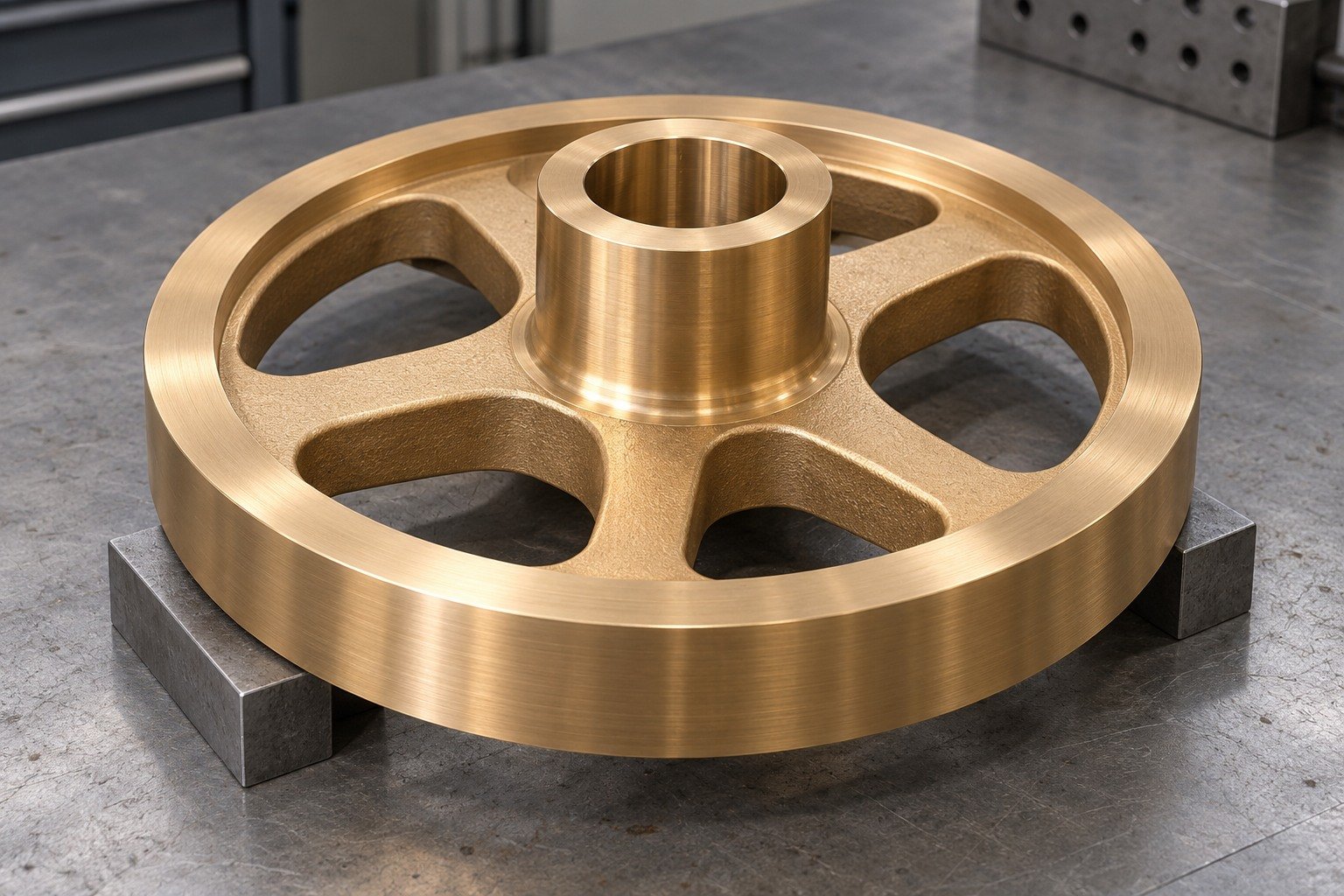

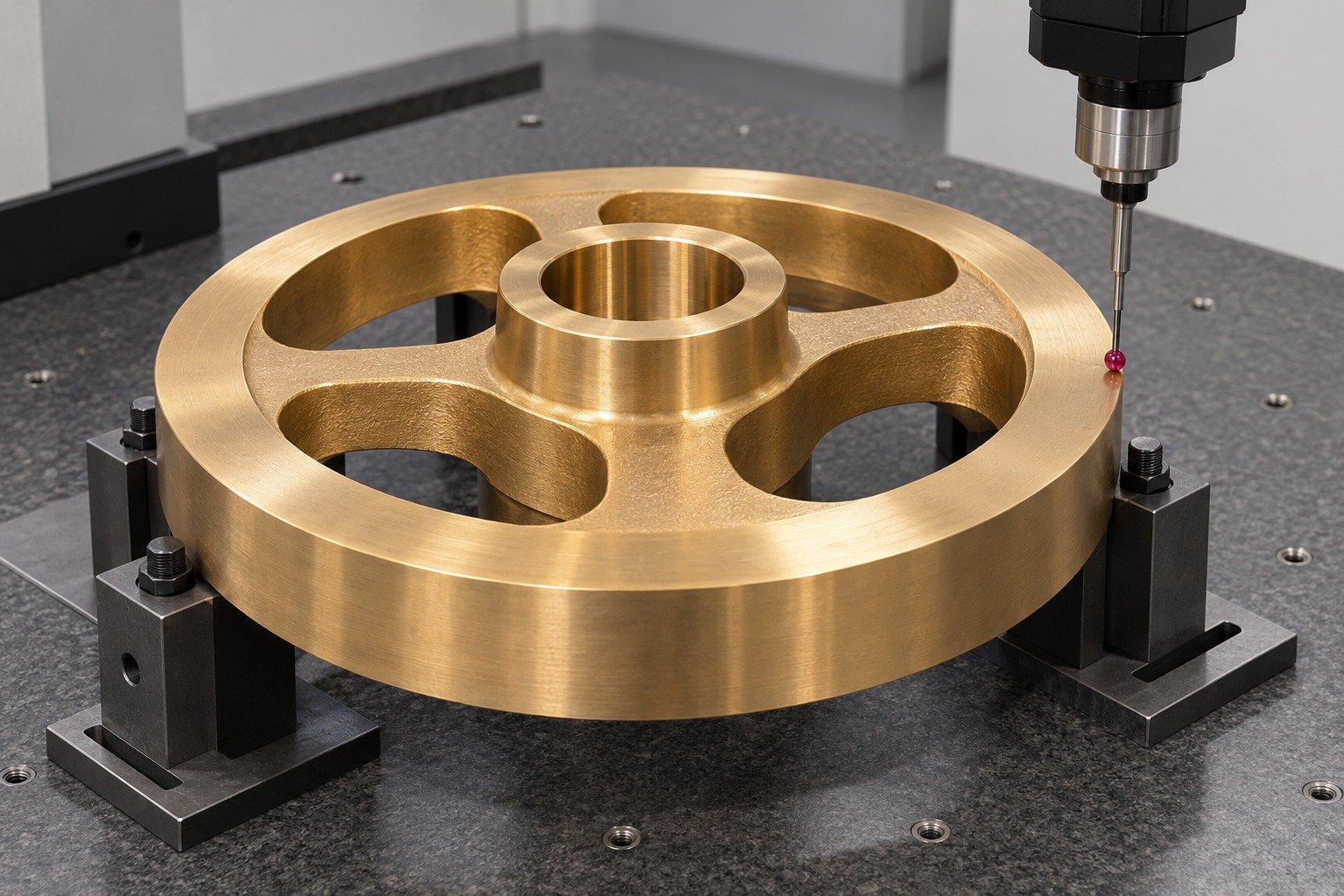

Define Your Gear Blanks
For your C95500 gears requirement, define whether the order covers the plain webbed blank or separately approved tooth cutting and gear acceptance. Review custom C95500 gears against the controlled assembly.
| Your fit | What to define |
|---|---|
| Working interface | Hub, web, bore, rim and later tooth-cutting scope. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Agree Your Support and Access
Your C95500 machining services review should identify locating support, usable allowance and the surfaces inspected after the final operation.
| Your fit | What to define |
|---|---|
| Working interface | Hub, web, bore, rim and later tooth-cutting scope. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Confirm the Supplied and Final State
Specify casting route, supplied condition, any required treatment and usable allowance. Agree final inspection after the last dimension-changing operation.
| Your fit | What to define |
|---|---|
| Working interface | Hub, web, bore, rim and later tooth-cutting scope. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Receive Parts with the Right Evidence
For your C95500 machined parts, identify required material records, final dimensions, accepted edges, cleanliness and individual protection.
| Your fit | What to define |
|---|---|
| Working interface | Hub, web, bore, rim and later tooth-cutting scope. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |

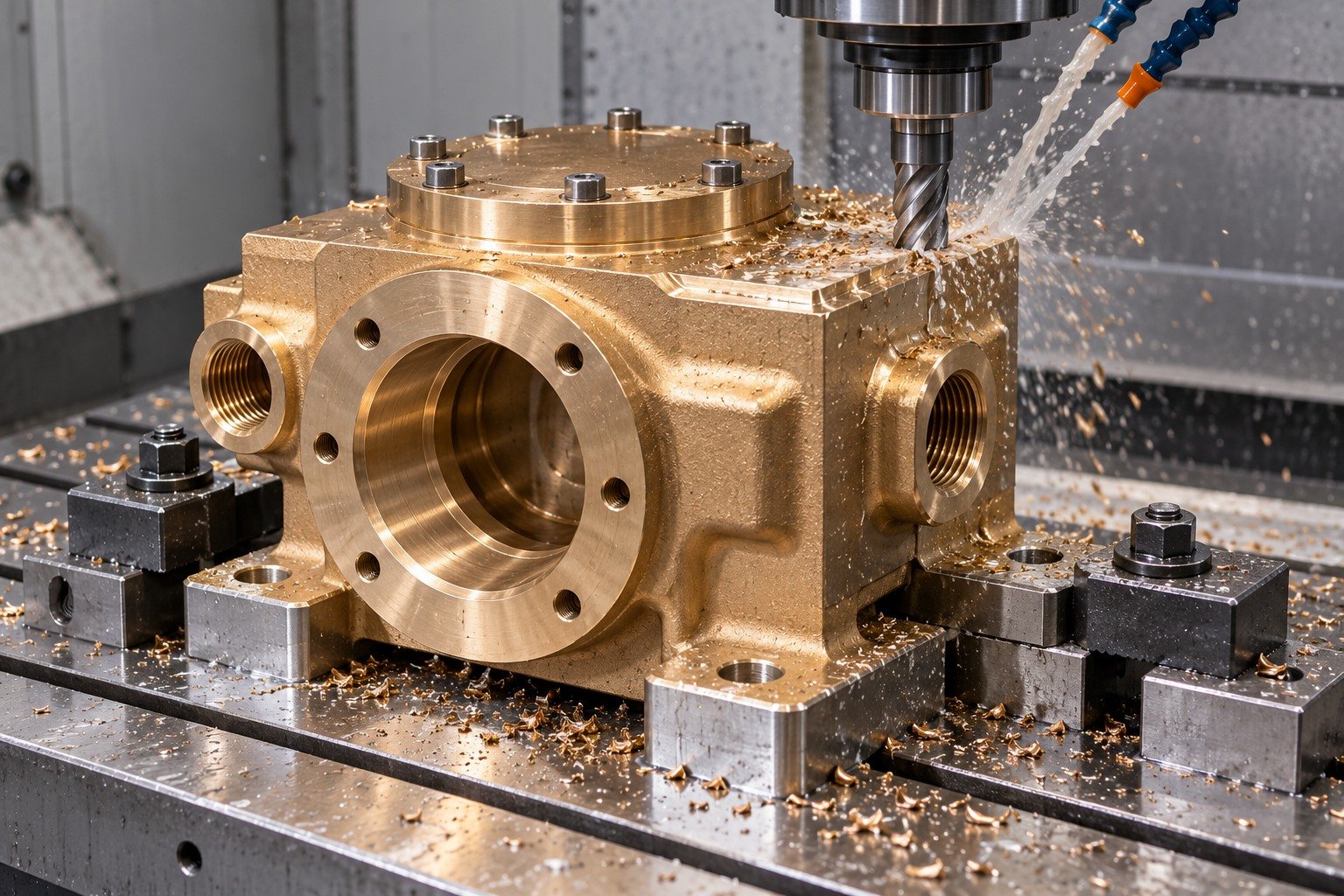

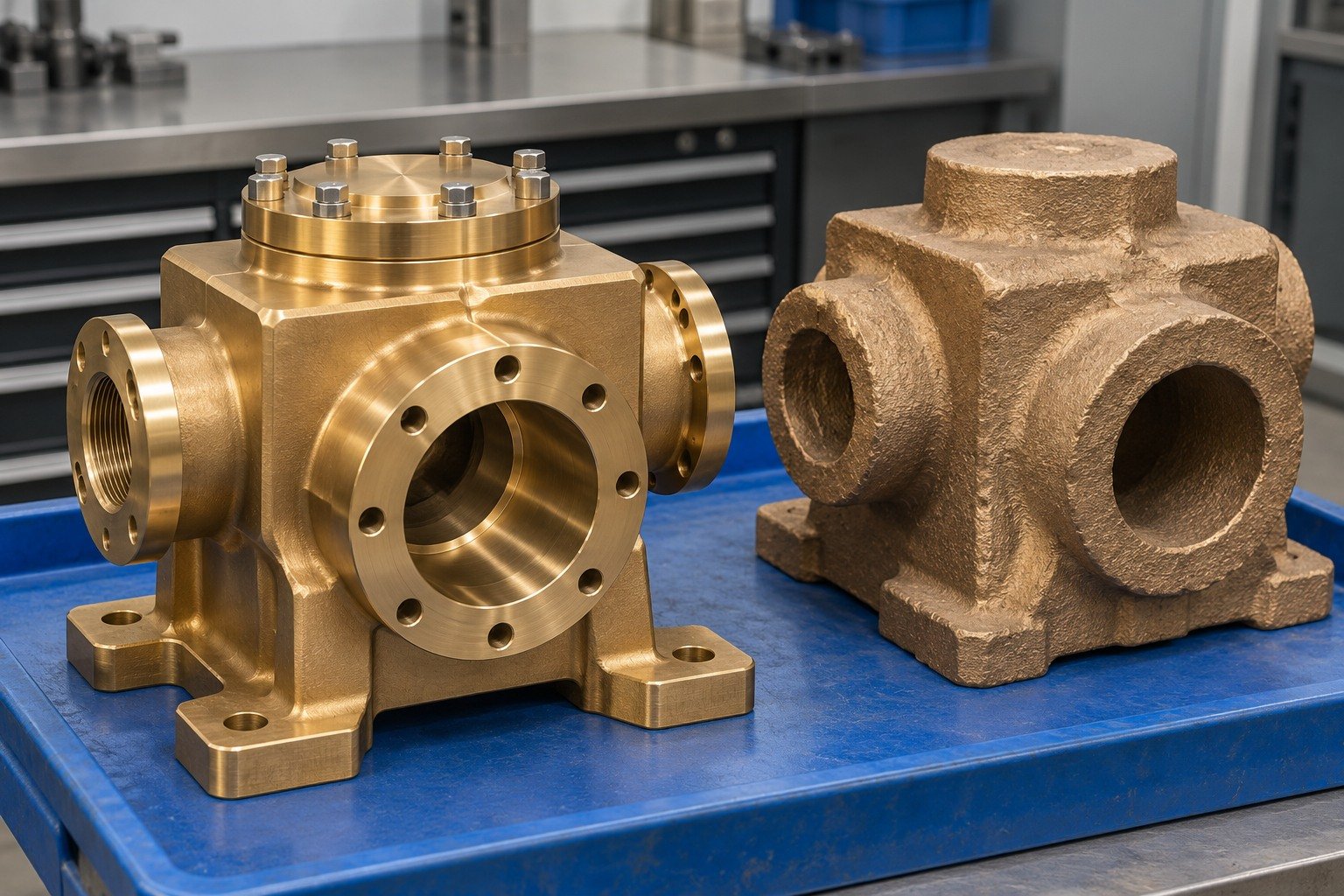

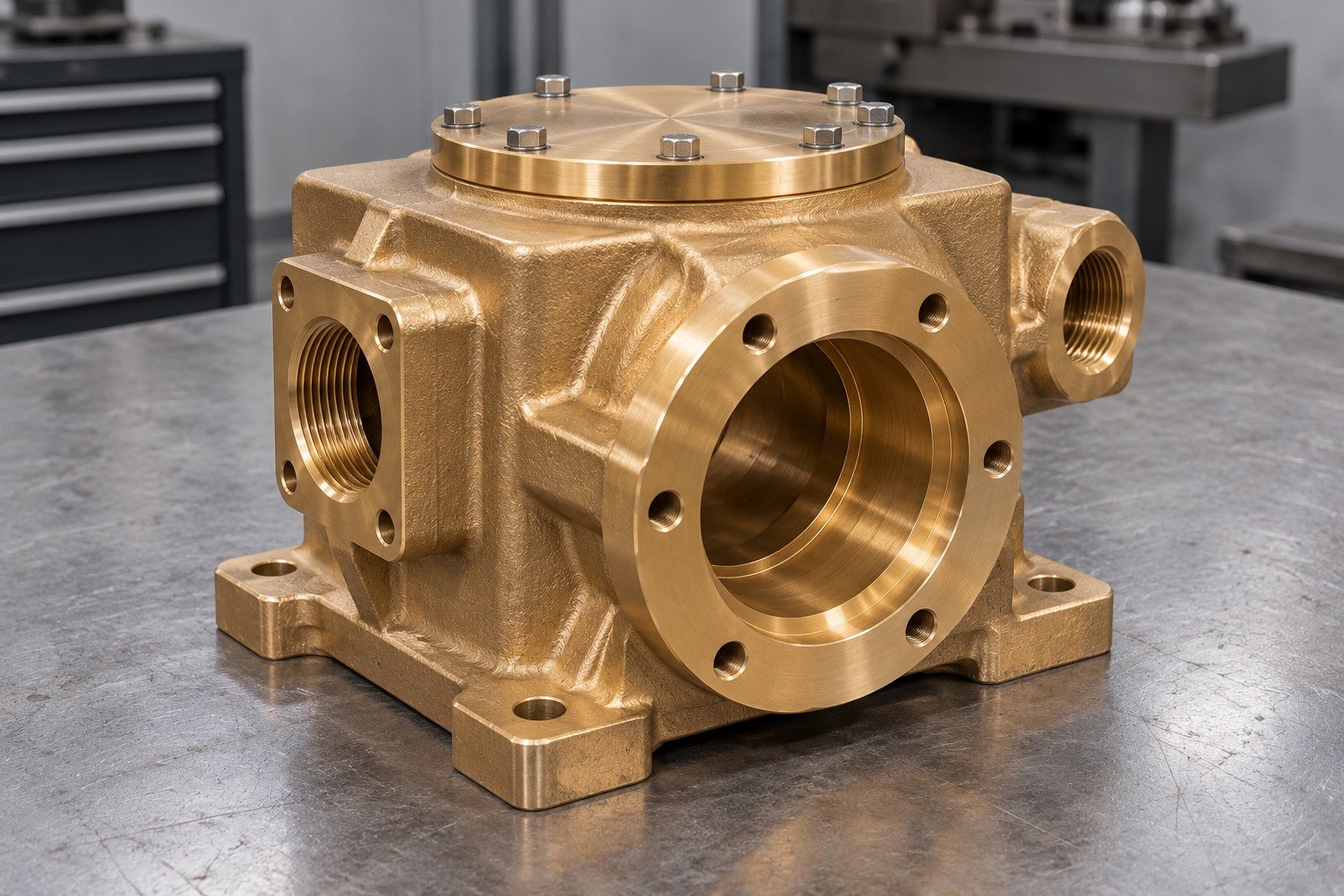

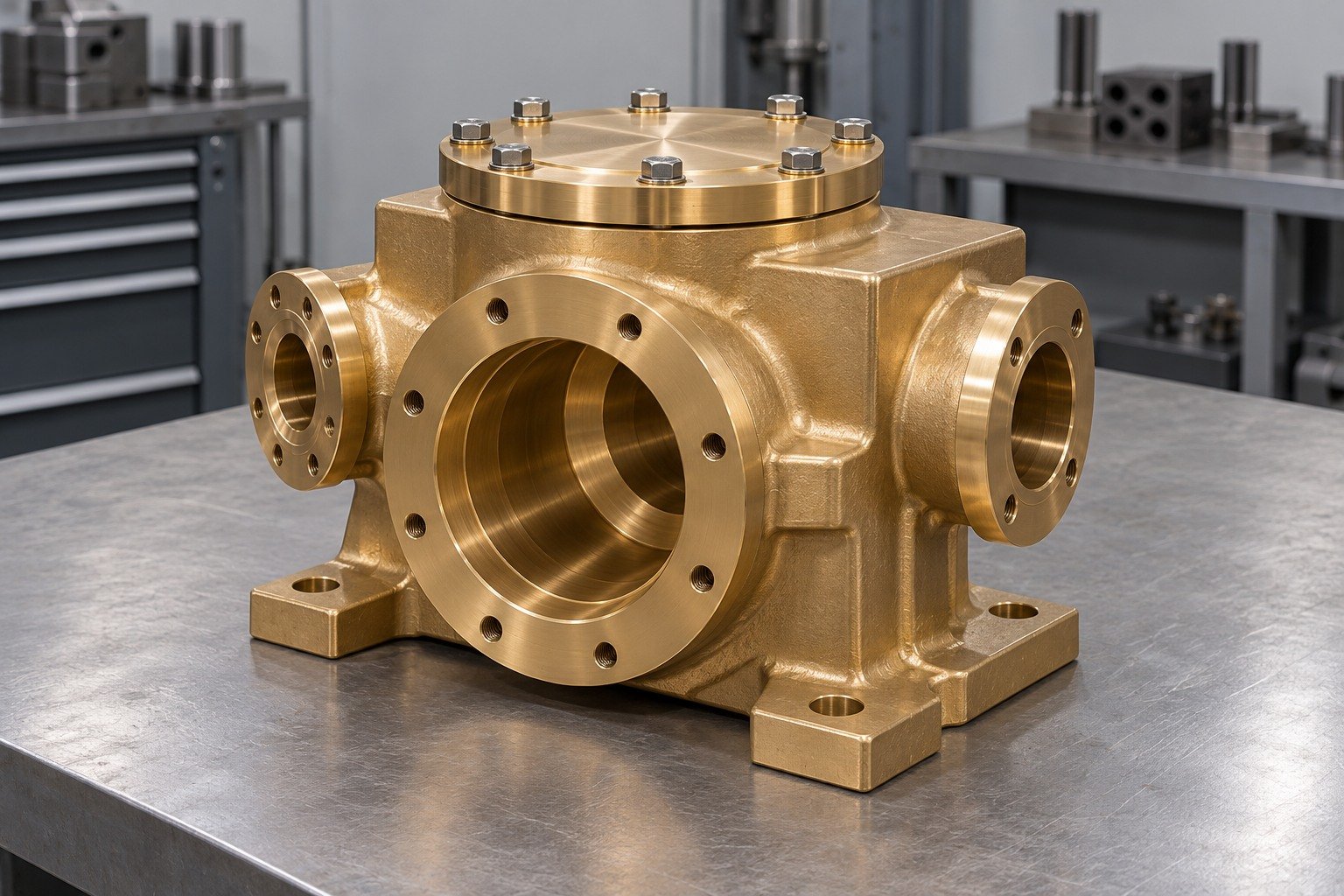

Define Your Pump Fluid Ends

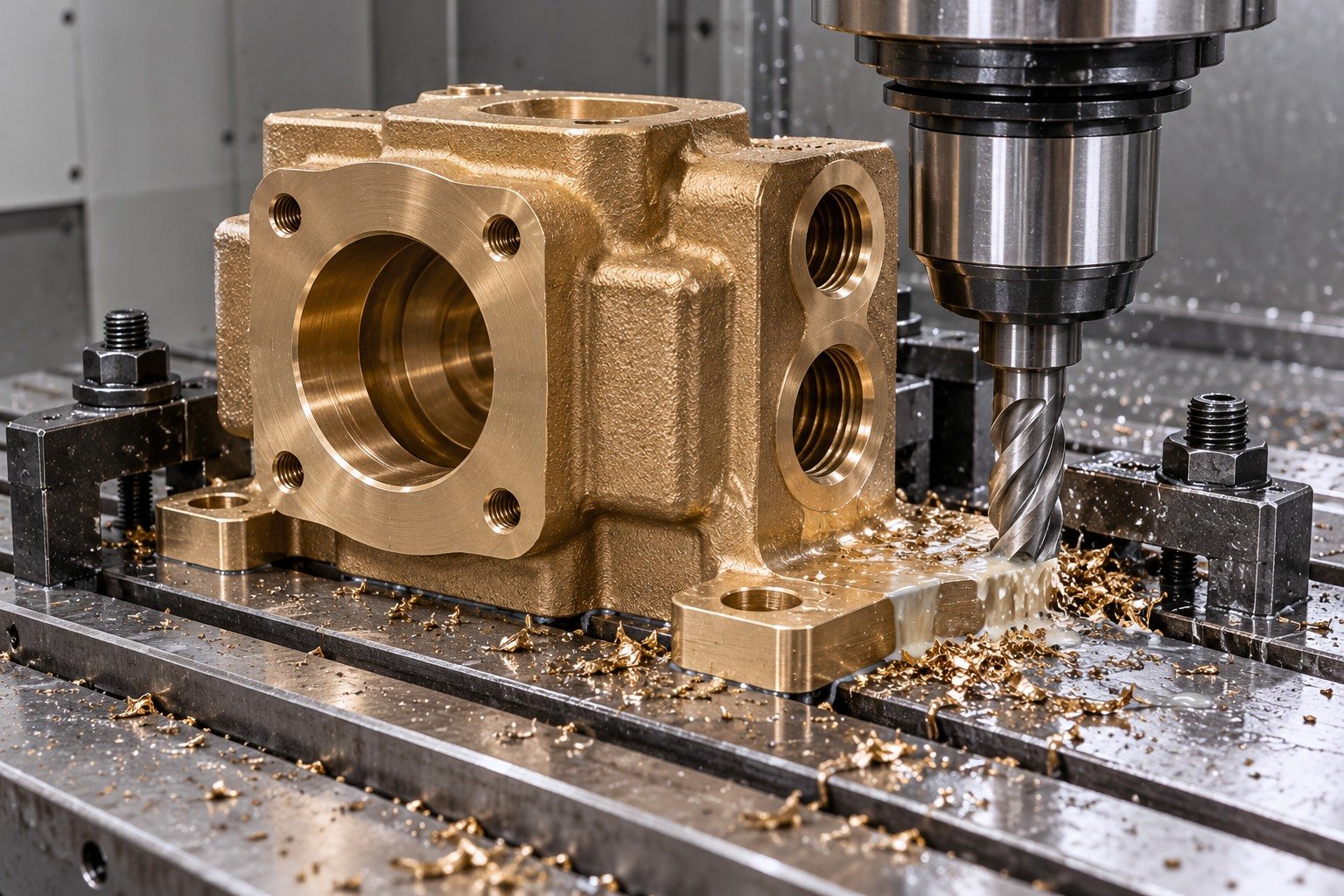

For your C95500 pump parts, connect port relationships, mounting foot and access faces. Define pressure, leak or flow tests separately from dimensional acceptance. Review custom C95500 pump parts against the controlled assembly.
| Your fit | What to define |
|---|---|
| Working interface | Ports, access face, mounting foot and final inspection access. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Agree Your Support and Access
Your C95500 machining services review should identify locating support, usable allowance and the surfaces inspected after the final operation.
| Your fit | What to define |
|---|---|
| Working interface | Ports, access face, mounting foot and final inspection access. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Confirm the Supplied and Final State
Specify casting route, supplied condition, any required treatment and usable allowance. Agree final inspection after the last dimension-changing operation.
| Your fit | What to define |
|---|---|
| Working interface | Ports, access face, mounting foot and final inspection access. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Receive Parts with the Right Evidence
For your C95500 machined parts, identify required material records, final dimensions, accepted edges, cleanliness and individual protection.
| Your fit | What to define |
|---|---|
| Working interface | Ports, access face, mounting foot and final inspection access. |
| Your route | Casting product, usable stock and supported machining. |
| Your approval | Final measurement state, surface and receiving evidence. |
Confirm the C95500 Product Behind Your Drawing
C95500 nickel aluminum bronze is a cast-alloy designation. Your C95500 bronze properties and C95500 hardness review needs the actual product standard, casting route, supplied condition and test basis.
Selected C95500 Chemical Composition
| Element | Concast continuous-cast reference · wt.% |
|---|---|
| Copper | ≥78.0 |
| Aluminum | 10.0–11.5 |
| Iron | 3.0–5.0 |
| Nickel · includes Co | 3.0–5.5 |
| Manganese | ≤3.50 |
Selected ASTM B505/B505M-23 product reference. Combined Cu + named elements ≥99.5% is not pure-copper content. Other supplier or standard revisions may use different ranges; keep the ordered specification.
European Name and Nearby US Designations
| Your reference | What to approve |
|---|---|
| CuAl10Fe5Ni5-C / CC333G | Wisco lists this as a closest EN 1982 comparison, not automatic substitution. |
| C95500 supplied condition | Confirm stock state and any specified final treatment. |
| C95510 / AMS 4880 | Separate designation and ordered product; do not shorten it to C95500. |
| Receiving evidence | Material identity, condition and final dimensions answer different questions. |
Keep C95500 and C95510 Separate
Concast lists C95500 continuous-cast stock and an AMS 4880-C95510 offering separately. Confirm the drawing designation and full requirements before approving an alternative.
Compare Chemistry Separately from the Cutting Reference
Selected Chemistry Ranges · wt.%
Common scale 0–6
Nickel
3–5.5
Iron
3–5
036
Indicative Machinability · brass = 100
Common scale 0–100
C95500
50
C95400
60
C63000
30
050100
Selected Concast product references, including AMS4640 C63000. Your C95500 machinability review uses a relative cutting index, not a cycle-time ratio or finished bearing, gear or pressure rating. These are reference charts, not your material-lot analysis.
Concast C95500 ↗ Concast AMS4880-C95510 ↗ Wisco CC333G comparison ↗ Concast C95400 ↗ Concast C63000 ↗
Check Your C95500 Parts at 3 Release Stages
01 · Stock
Product identity and ordered requirements.
02 · Sample
Complete route and locating relationship.
03 · Release
Final working surfaces and evidence.

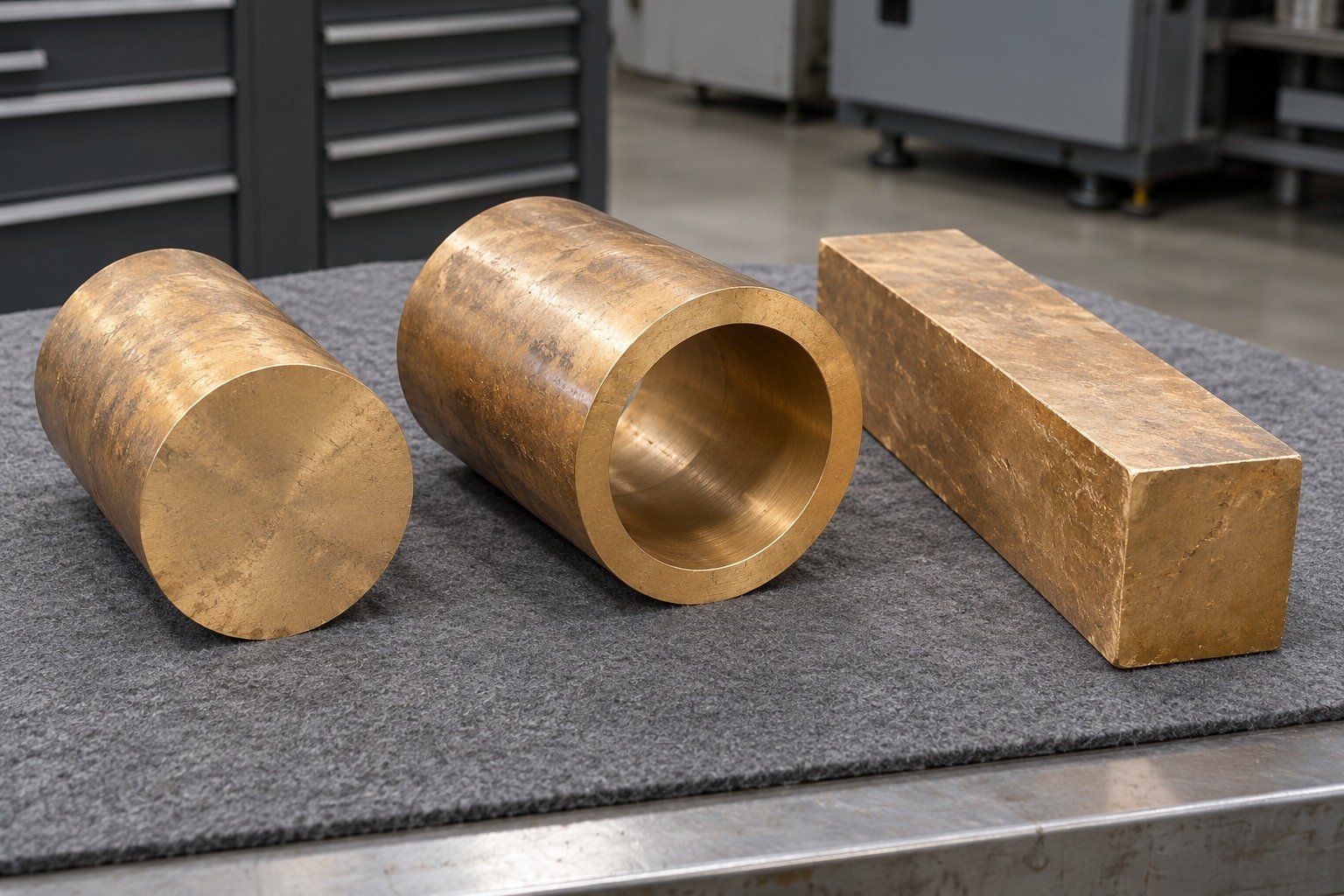

Receive the Right Casting Product and Condition
Identify ordered specification, revision, casting route, supplied condition, lot identity and certificate contents.
- Exact product, casting route and supplied state.
- Controlled datums, accepted edges and working surfaces.
- Agreed sampling, measurement state and test scope.
Approve the Complete First-Route Geometry
Check hub, bore, working face or mounting datum against the complete first sample. Confirm any remaining later-operation scope.
- Exact product, casting route and supplied state.
- Controlled datums, accepted edges and working surfaces.
- Agreed sampling, measurement state and test scope.
Inspect Your Actual Working Interface
Verify the final bore, curved face, port or mounting datum in the agreed material and measurement state. Dimensional records and functional tests answer different questions.
- Exact product, casting route and supplied state.
- Controlled datums, accepted edges and working surfaces.
- Agreed sampling, measurement state and test scope.

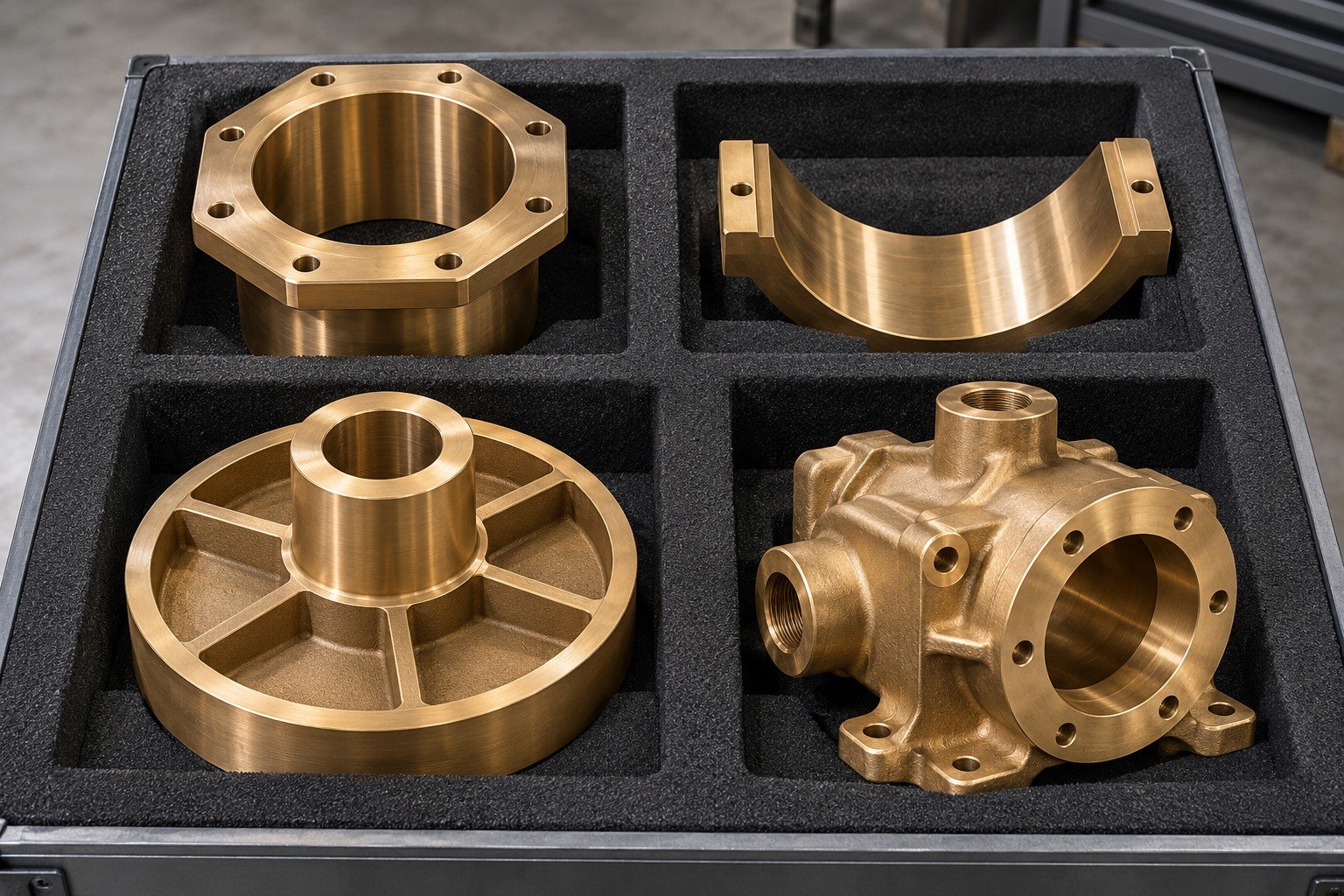

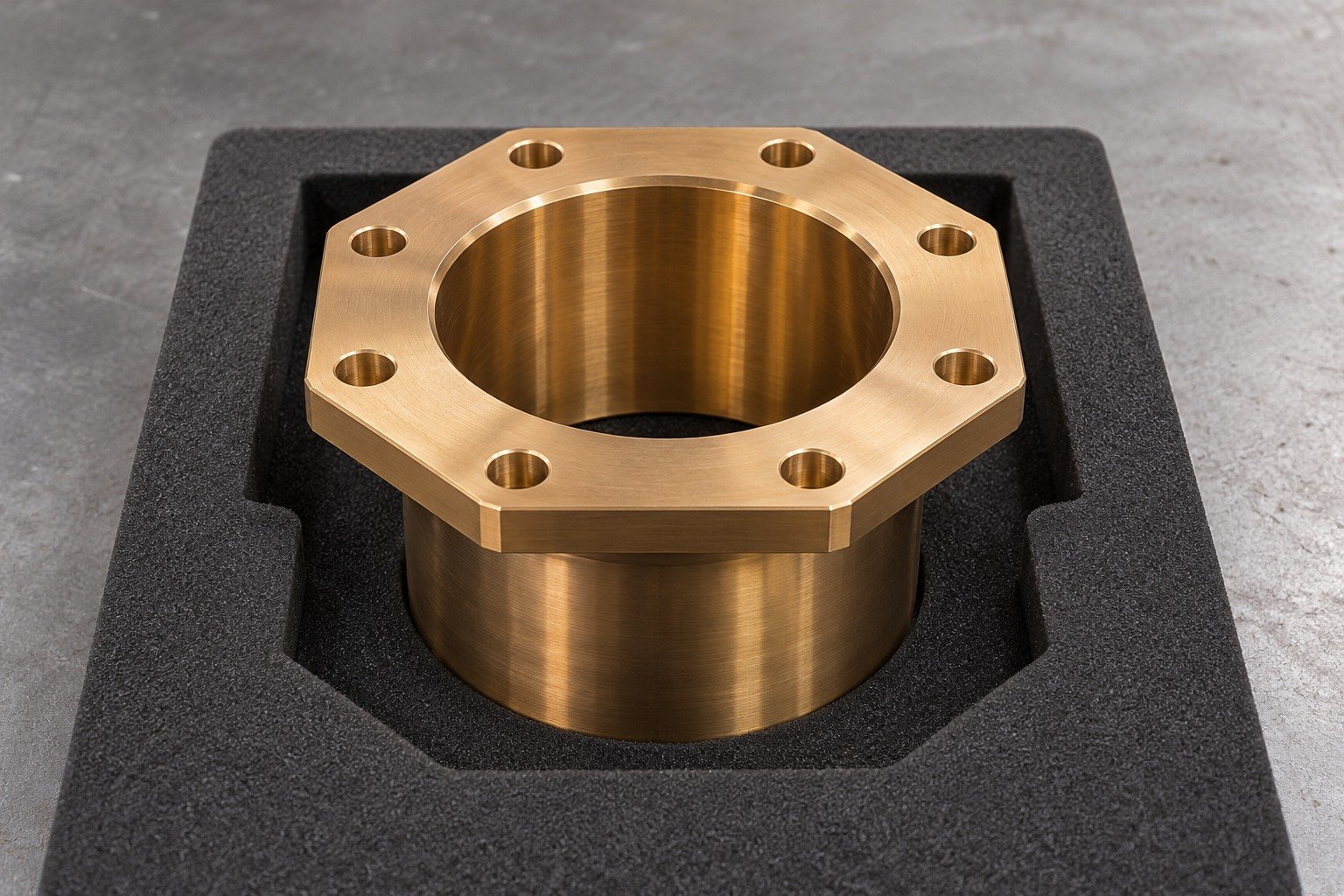

Match Protected Parts to Their Records
Agree protection, cleanliness, lot identity and receiving documents for your actual mating surfaces.
- Exact product, casting route and supplied state.
- Controlled datums, accepted edges and working surfaces.
- Agreed sampling, measurement state and test scope.
Resolve 6 Drawing and Route Decisions Before Production
Define the assembly inputs before repeating quantities.
Agree Your Usable Product and Fixture Datum
For C95500 machining services, identify the exact casting product, usable allowance and supporting geometry before defining final surfaces.
01 · Assembly
Define shaft, housing and working surface.
02 · Route
Agree stock, support and lubrication access.
03 · Acceptance
Inspect the defined final state.
Confirm materialMachineFinish if specifiedInspect

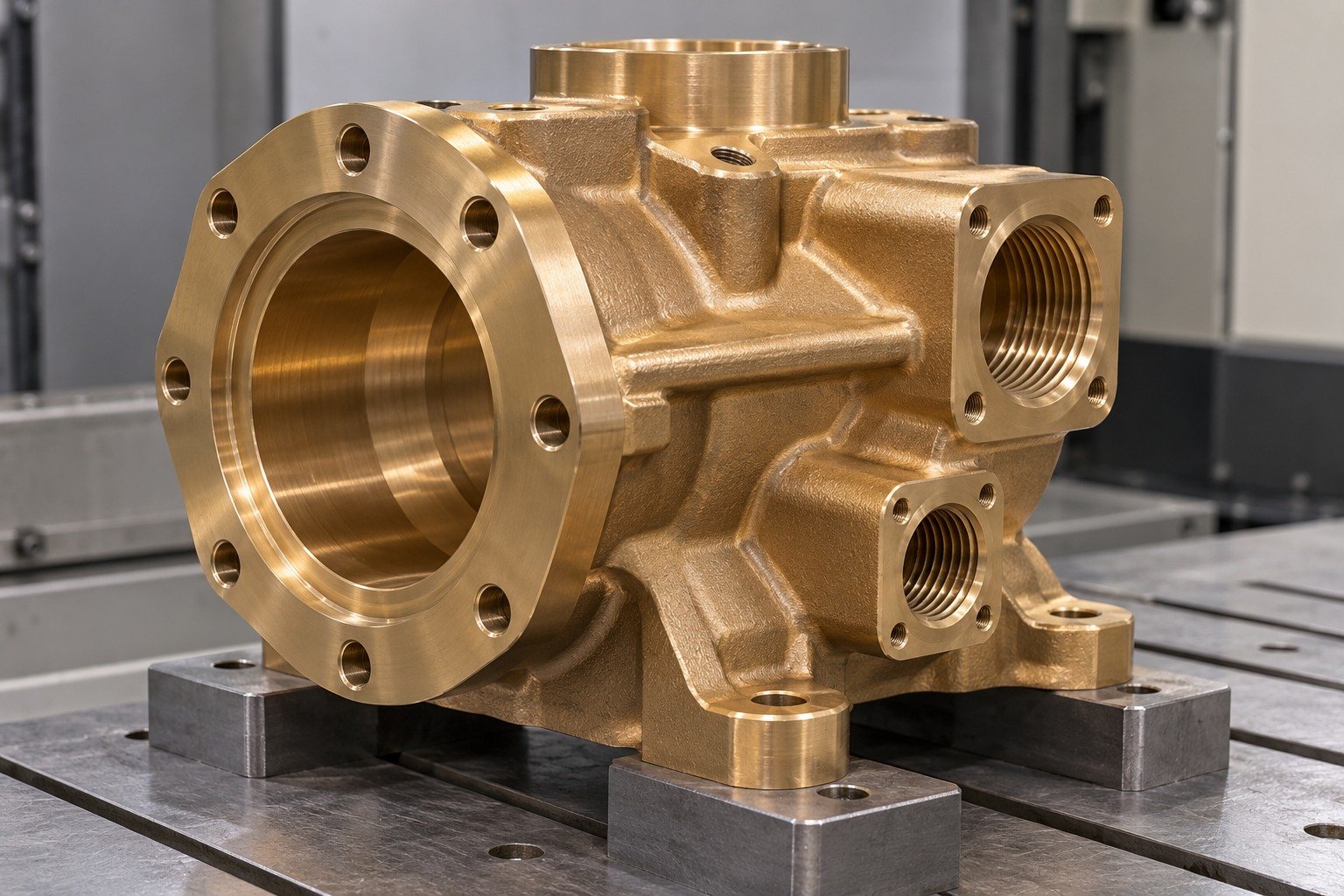

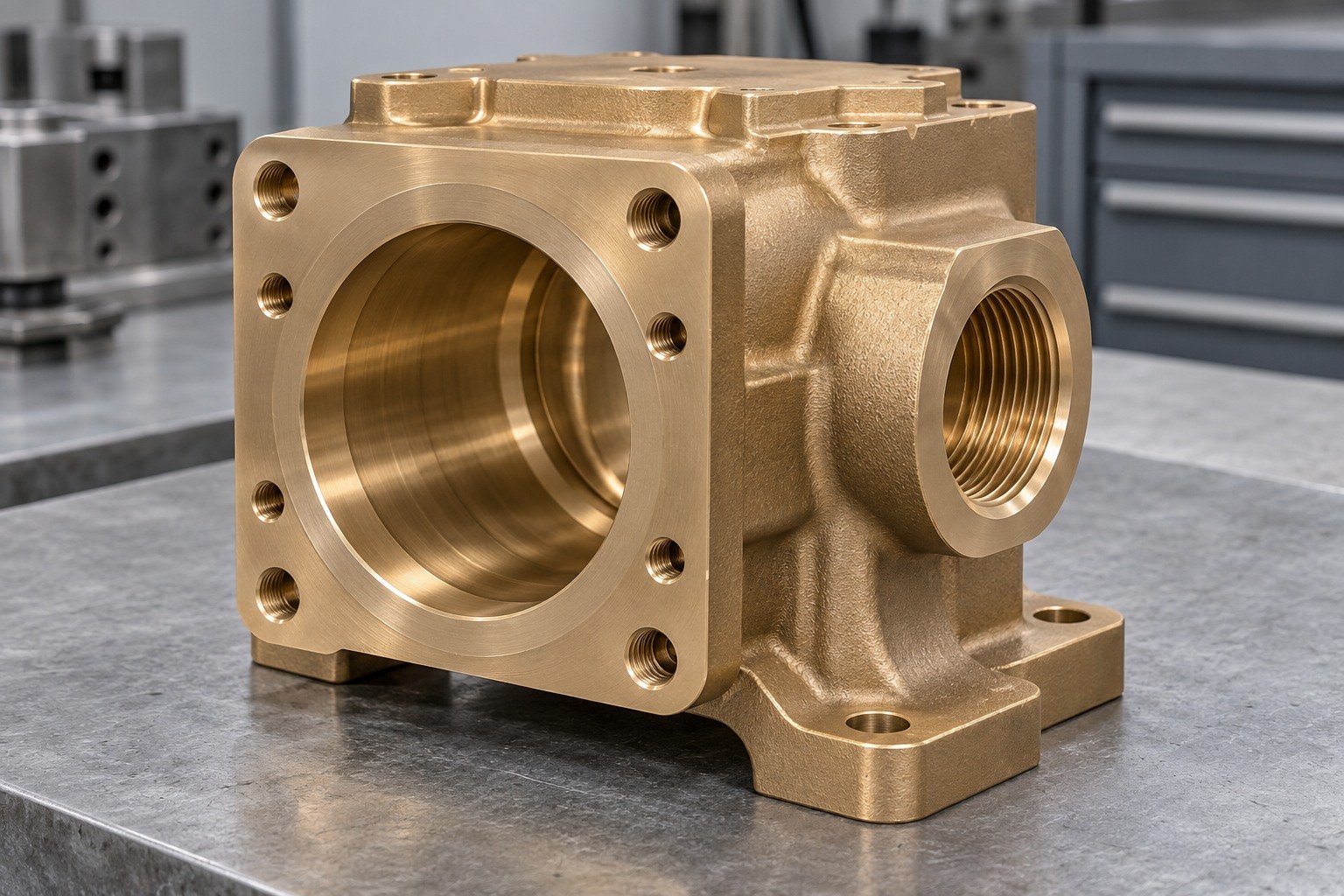

Connect Access to Final Mating Features
Define shaft and housing, port intersections, thread form and accepted exits. Keep dimensional inspection separate from any pressure or leak test.
01 · Assembly
Define shaft, housing and working surface.
02 · Route
Agree stock, support and lubrication access.
03 · Acceptance
Inspect the defined final state.
Confirm materialMachineFinish if specifiedInspect
Confirm the Condition You Are Ordering
Agree supplied condition, any specified treatment, remaining allowance and final inspection state. Do not infer a universal hardness or strength from the grade alone.
01 · Assembly
Define shaft, housing and working surface.
02 · Route
Agree stock, support and lubrication access.
03 · Acceptance
Inspect the defined final state.
Confirm materialMachineFinish if specifiedInspect

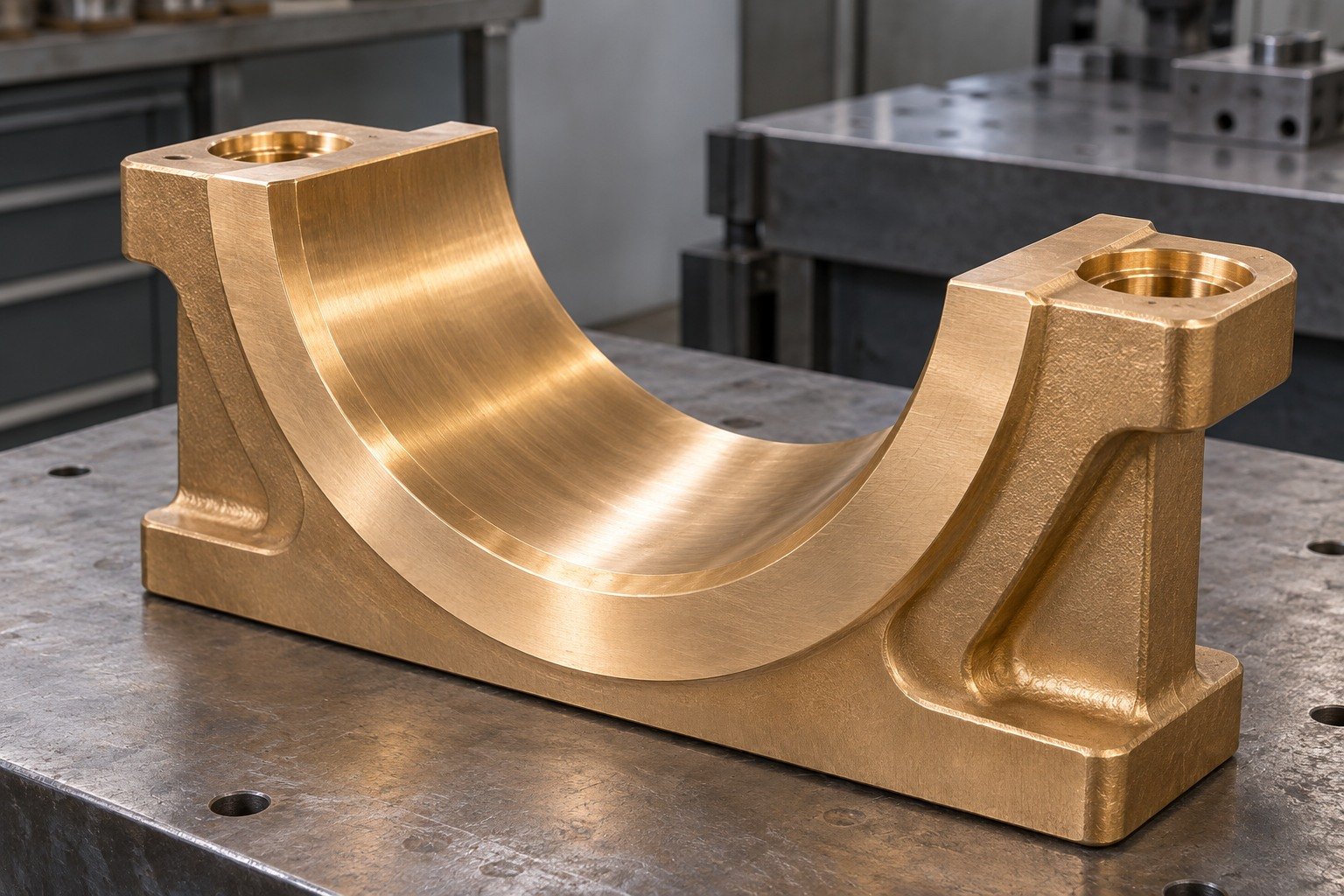

Protect Your Bearing and Mounting Surfaces
Identify working lands, mounting lugs, recess exits and accepted edges. Material identity does not establish bearing life or allowed duty.
01 · Assembly
Define shaft, housing and working surface.
02 · Route
Agree stock, support and lubrication access.
03 · Acceptance
Inspect the defined final state.
Confirm materialMachineFinish if specifiedInspect
Review the Final Contact Face
Agree accepted marks, coating or masking, cleanliness and final dimensions. Keep protection aligned with actual mating and handling surfaces.
01 · Assembly
Define shaft, housing and working surface.
02 · Route
Agree stock, support and lubrication access.
03 · Acceptance
Inspect the defined final state.
Confirm materialMachineFinish if specifiedInspect
Inspect the State Your Assembly Uses
Your C95500 machined parts manufacturer review should connect material and condition records to final geometry, sampling and receiving evidence.
01 · Assembly
Define shaft, housing and working surface.
02 · Route
Agree stock, support and lubrication access.
03 · Acceptance
Inspect the defined final state.
Confirm materialMachineFinish if specifiedInspect
C95500 vs C95800: Review the Complete Requirement
| Your check | What to approve |
|---|---|
| Alloy and product | Compare full chemistry, casting route and supplied condition. |
| Working interface | Define duty, environment, mating geometry and lubrication. |
| Required evidence | Separate dimensional records from any functional test. |
| Drawing change | Obtain approval before material substitution. |
A similar family name or a relative cutting index does not establish equivalent bearing life, gear capacity or pressure performance.
Compare Bronze Alloys →Protect Your Machined Working Surfaces
Agree accepted marks, cleanliness, final dimensions and individual protection around the actual working interface.
Surface Finishing →From Your Cast Product to the Finished Interface
Review support, tool access and final acceptance together.
C95500 Turning & Boring
For C95500 turning and C95500 boring, review supported length, bore access and shoulder datums.
Review the Process →
C95500 Drilling
Define bolt-hole access and backing around the plain gear-blank rim.
Review the Process →
C95500 Threading
Specify port thread form, fit, usable length and accepted entry or exit.
Review the Process →
Coordinate Your Drawing and Receiving Requirements
Connect China manufacturing with Dallas-area coordination for drawing review, sample decisions and delivery requirements.
6 Inputs for Your C95500 Quote
01CAD + controlled drawing + mating parts
02C95500 + ordered standard and revision
03Casting route + supplied and final condition + allowance
04First order + repeat quantities
05Mating parts + lubrication + port or gear requirements
06Records + final measurement state + inspection
Compare the Same Assembly Requirement
Your C95500 machining quote should compare the same stock route, drawing revision, free or installed acceptance and receiving evidence.
Answers Before You Specify C95500
What is C95500 bronze?
C95500 is a cast nickel-aluminum-bronze designation. State the ordered product standard, casting route and supplied condition before defining your final bearing, gear-blank or pump interface.
Is C95500 difficult to machine?
Selected Concast data gives an indicative cutting index of 50. It does not predict your cycle time, tool life or quote cost; review actual stock, support, geometry and final surface.
What information is needed for a C95500 machining quote?
Provide CAD and controlled drawing, material and casting specification, supplied and final state, usable stock, quantities, mating details, finish and required receiving evidence.
What tolerances can be achieved machining C95500?
Specify feature limits, datums, support and final measurement state. Your quote confirms reviewed geometry and inspection scope; no universal tolerance is promised.
How to specify C95500 material certification?
State the ordered standard and revision, casting route, product form, supplied and final condition, lot identity and certificate contents. Keep material and dimensional evidence separate.
Is C95500 the same as C95510?
No. Concast lists C95500 and AMS 4880-C95510 as separate products with different specified requirements. Retain the full drawing designation and obtain approval before substitution.
Does a material certificate establish pump or gear performance?
No. Define any pressure, leak, flow, tooth-quality or other functional procedure separately. Material identity and dimensional records answer different acceptance questions.
Which European name should your purchasing team review?
Wisco lists CuAl10Fe5Ni5-C / CC333G as a closest EN1982 comparison. Confirm full chemistry, casting route and condition; the reference does not approve substitution automatically.
