C69300 Lead-Free Brass Machining for Your Parts
For your C69300 lead free brass machining inquiry, connect valve ports, sealing lands and final fit to the exact stock specification. State your material records and end-use approval needs before comparing the route.
UNS C69300Lead-free silicon brass reference.
≤0.09% PbSelected producer composition limit.
CuZn21Si3PCW724R · qualified comparison.
Ports & RecordsDefine final fit and acceptance.
Know Your Silicon Brass Before Ordering Stock
For lead free silicon brass machining, identify UNS C69300, the stock form and required condition. For your silicon brass C69300 specification, compare the complete ordered requirements rather than relying on a trade name.
Identify Your Ordered Material
| Purchasing identifier | Your reference |
|---|---|
| United States | UNS C69300 · wrought silicon brass |
| European comparison | CuZn21Si3P / CW724R · confirm product standard |
| Stock and route | Specify machining stock or forging stock and final supplied condition |
Connect C69300 Brass Properties to Your Route
Mueller lists a relative machinability index of 85 with C36000 at 100. For C69300 brass machinability, review chip control, stock condition and your actual geometry; an index is not a cycle-time or cost ratio. European producer data may use a different reference basis.
C69300 Brass Composition
| Selected element | Mueller reference · wt.% |
|---|---|
| Copper | 73.0–77.0 |
| Silicon | 2.7–3.4 |
| Phosphorus | 0.04–0.15 |
| Lead | ≤0.09 |
| Iron | ≤0.10 |
| Zinc | Remainder |
Selected producer limits only; remaining elements and the ordered specification apply. Not a material-lot analysis.
Compare Before Substituting Your Brass
Selected Lead Limits and Ranges
Mueller chemistry · wt.% · common scale 0–3.5
C69300
≤0.09
C36000
2.5–3.0
C37700
1.5–2.5
01.753.5
Relative Machinability Reference
Mueller index · common scale 0–100
C69300
85
C36000
100
050100
The lead chart distinguishes a maximum limit from bounded composition ranges. For C69300 brass lead content, ≤0.09% is a selected material limit, not a claim of zero lead or finished-product certification. The relative cutting index does not predict your assembly performance or quote.
Mueller C69300 ↗ Mueller C36000 ↗ Mueller C37700 ↗ Diehl · CW724R comparison ↗

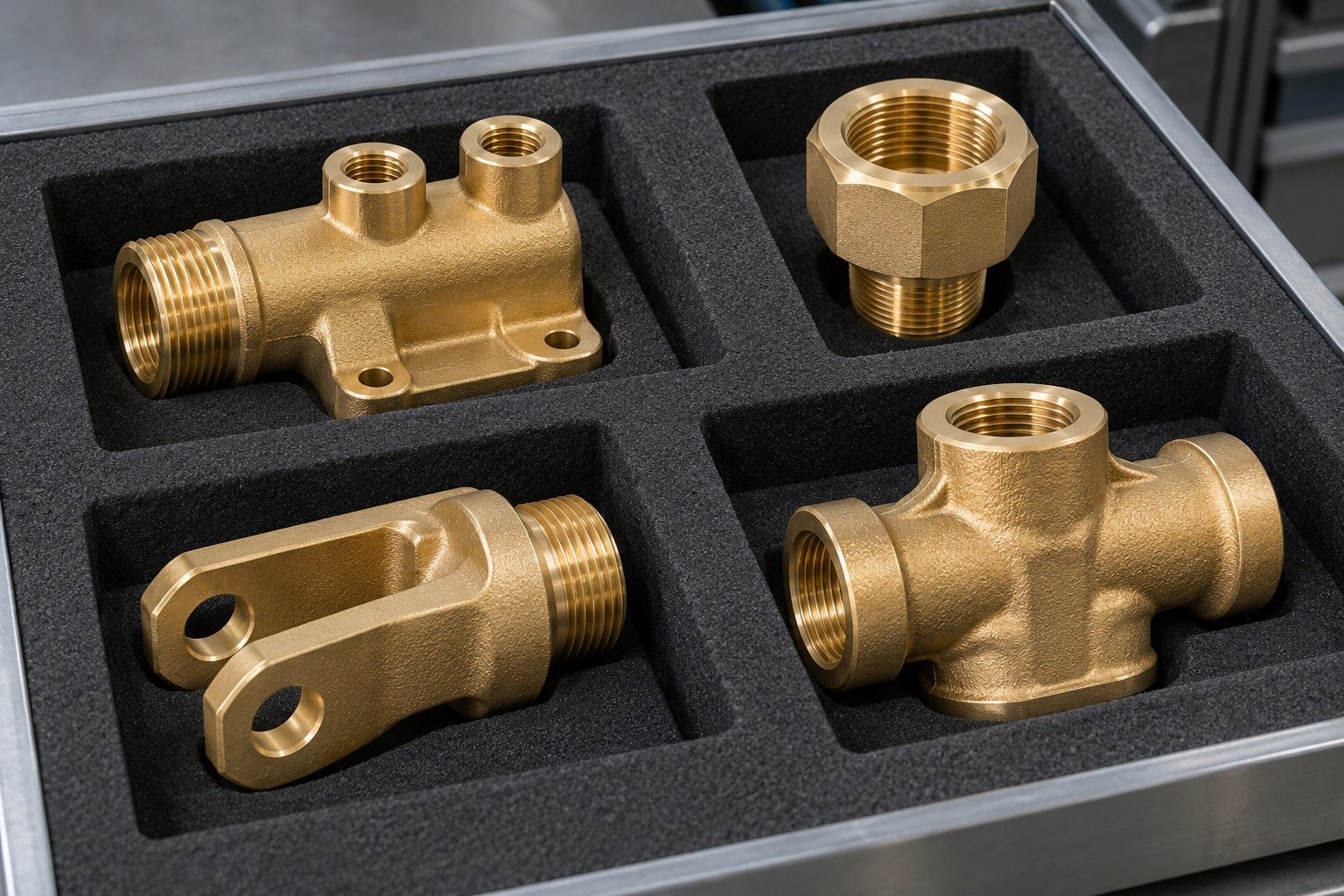

Match Your C69300 Part to the Working Requirement
Select your valve, fitting, connector or forged-style body, then review its manufacturing and receiving decisions.
Start with Your Mating Features

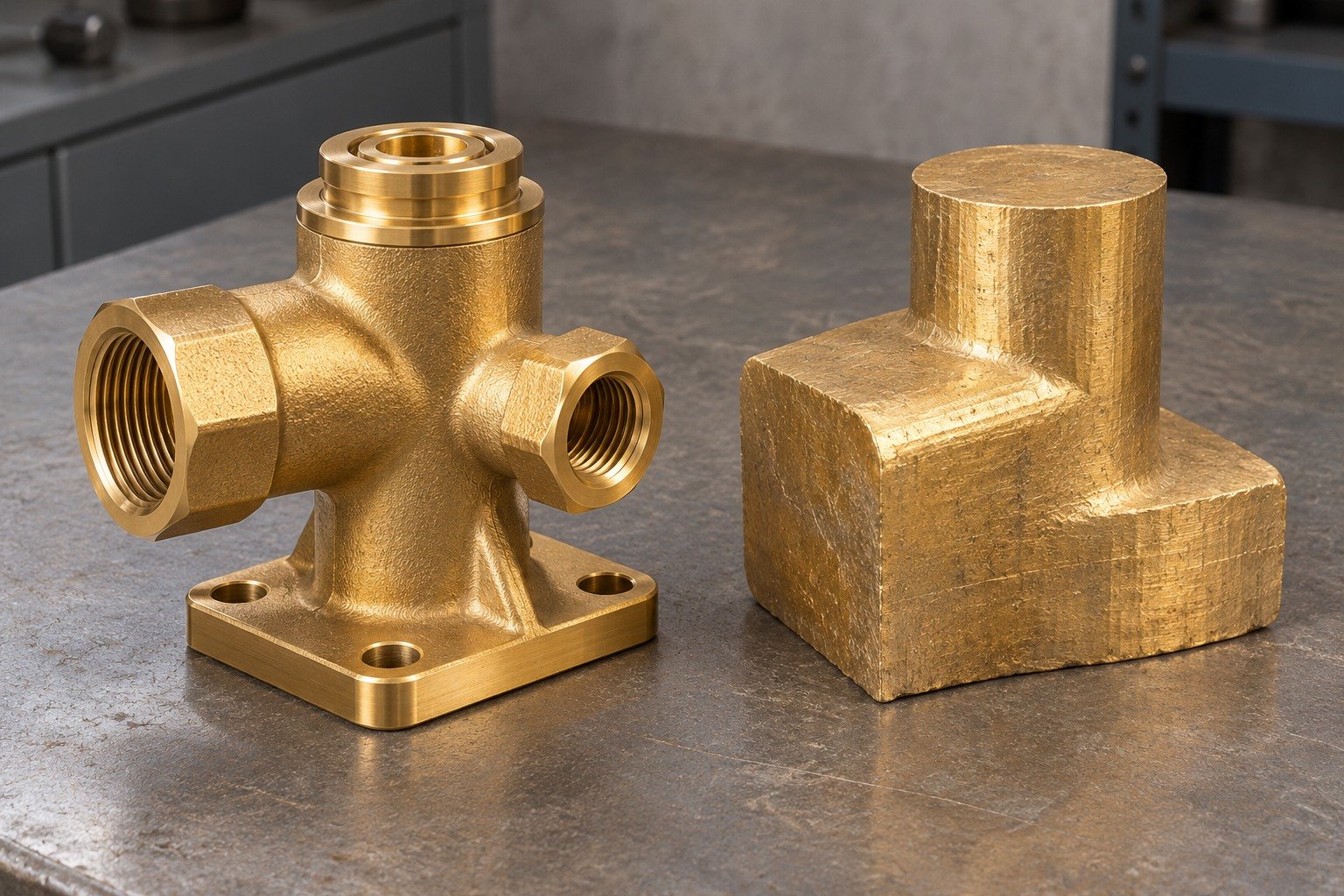

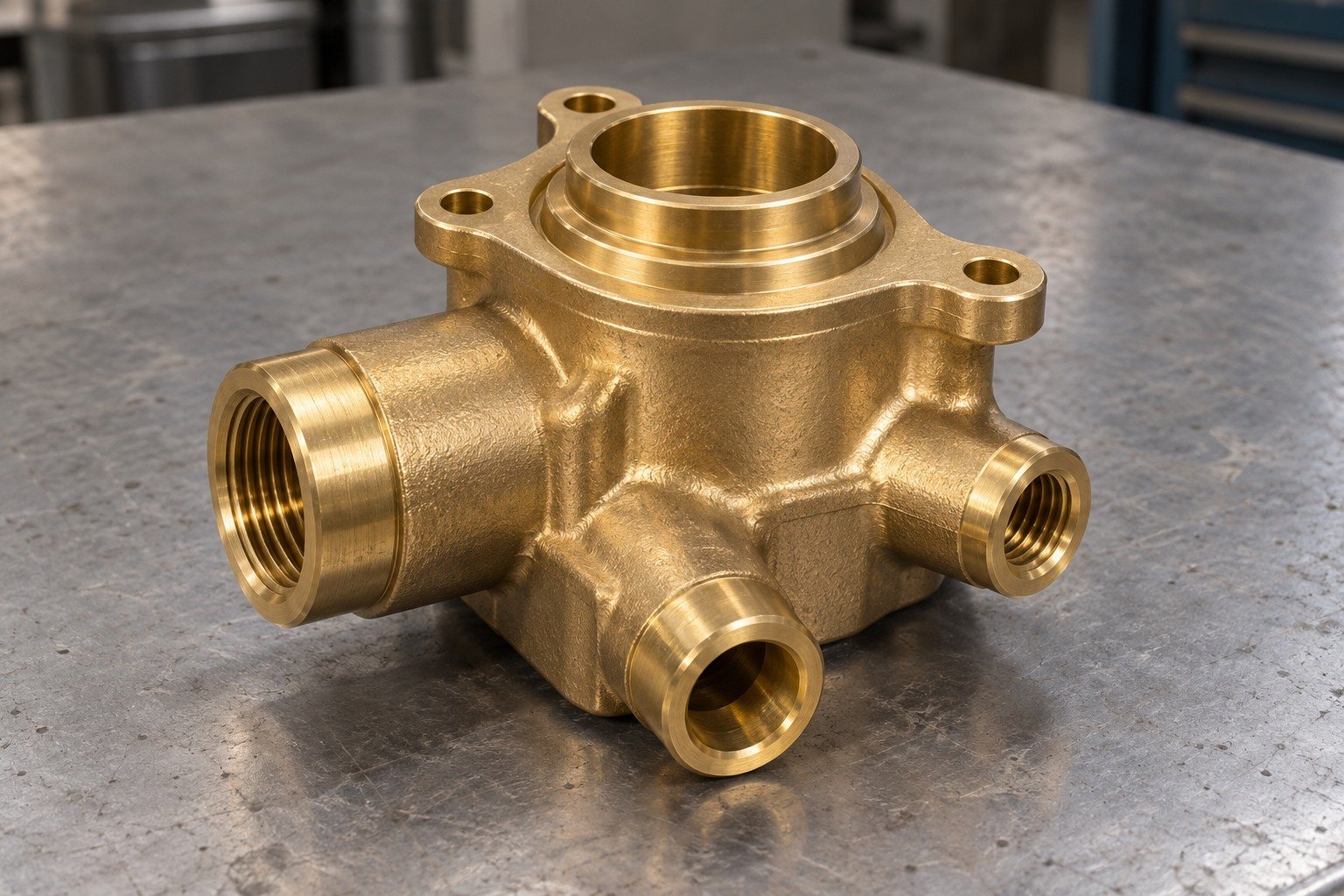

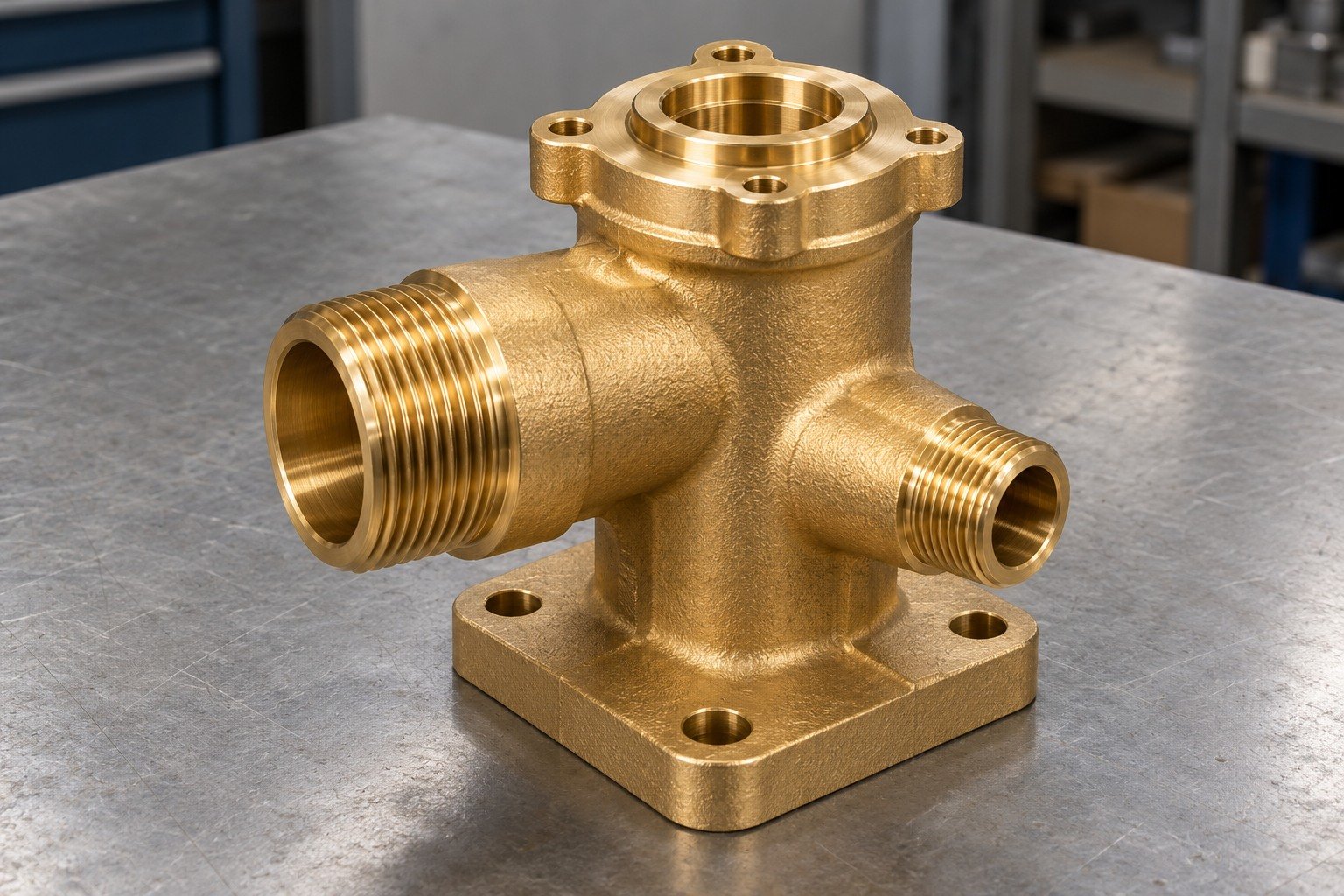

For your C69300 brass valve components, identify the seat, port relationships and mounting datum. Specify any pressure, leak or end-use approval separately from dimensional acceptance.
| Your decision | What to define |
|---|---|
| Your fit | Valve-seat geometry, port axes, mounting pattern and sealing land. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |
Review Support and Tool Access

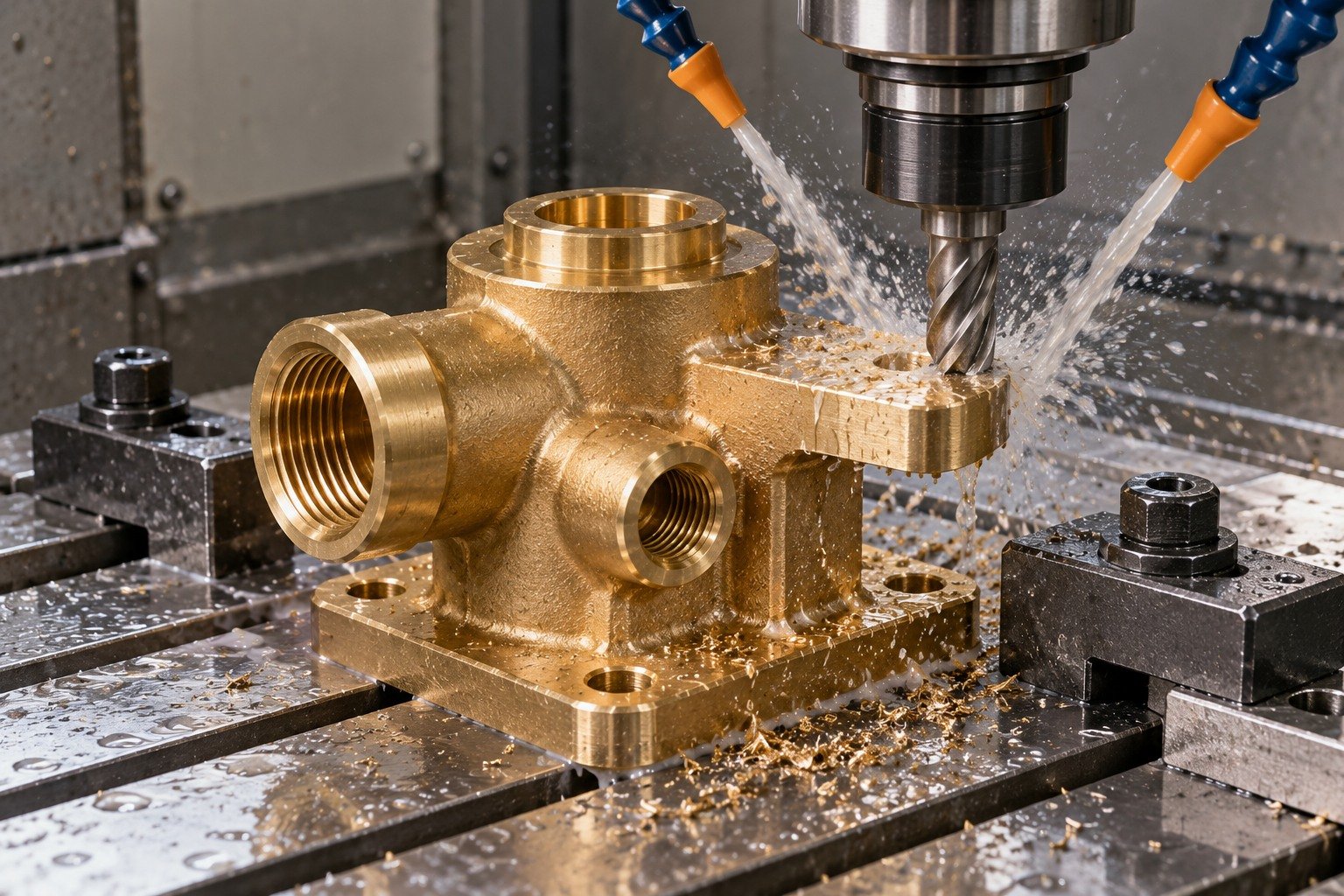

For C69300 brass milling, review support beneath the valve body and access to the external mounting pad.
| Your decision | What to define |
|---|---|
| Your fit | Valve-seat geometry, port axes, mounting pattern and sealing land. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |

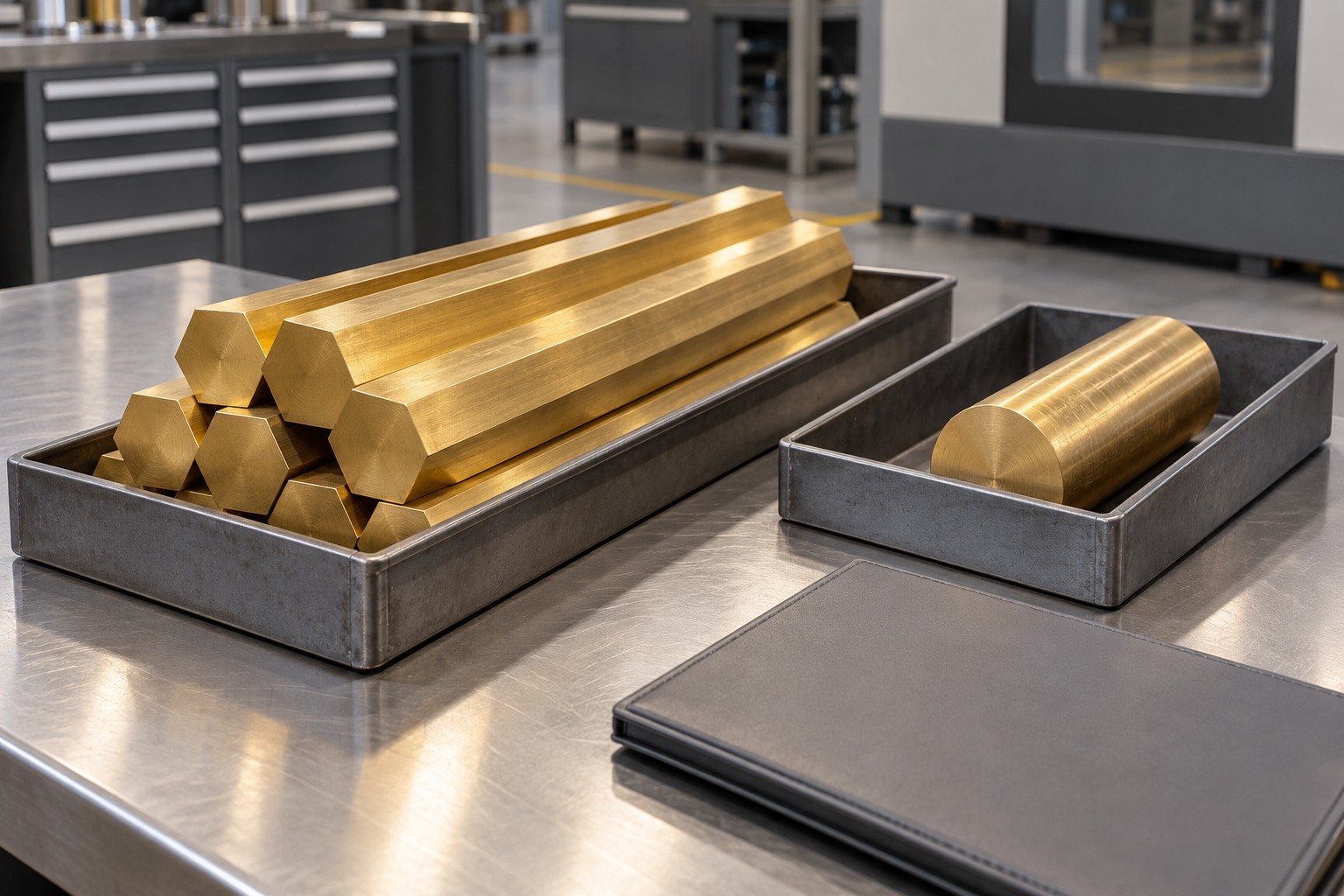

Confirm Your Ordered Stock State
Confirm machining stock or a separately agreed forging route and supplied condition.
| Your decision | What to define |
|---|---|
| Your fit | Valve-seat geometry, port axes, mounting pattern and sealing land. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |

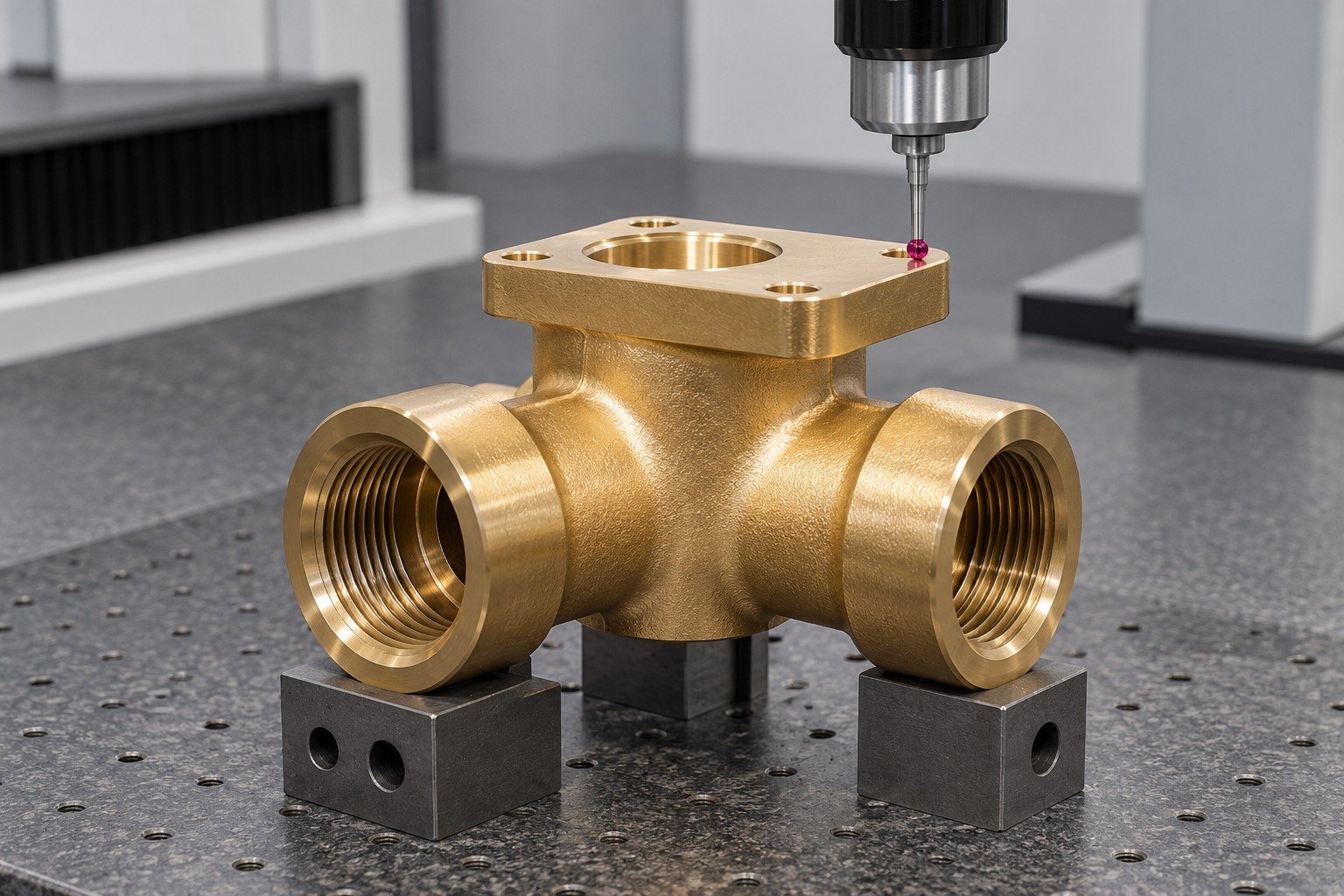

Release Your Receiving Evidence

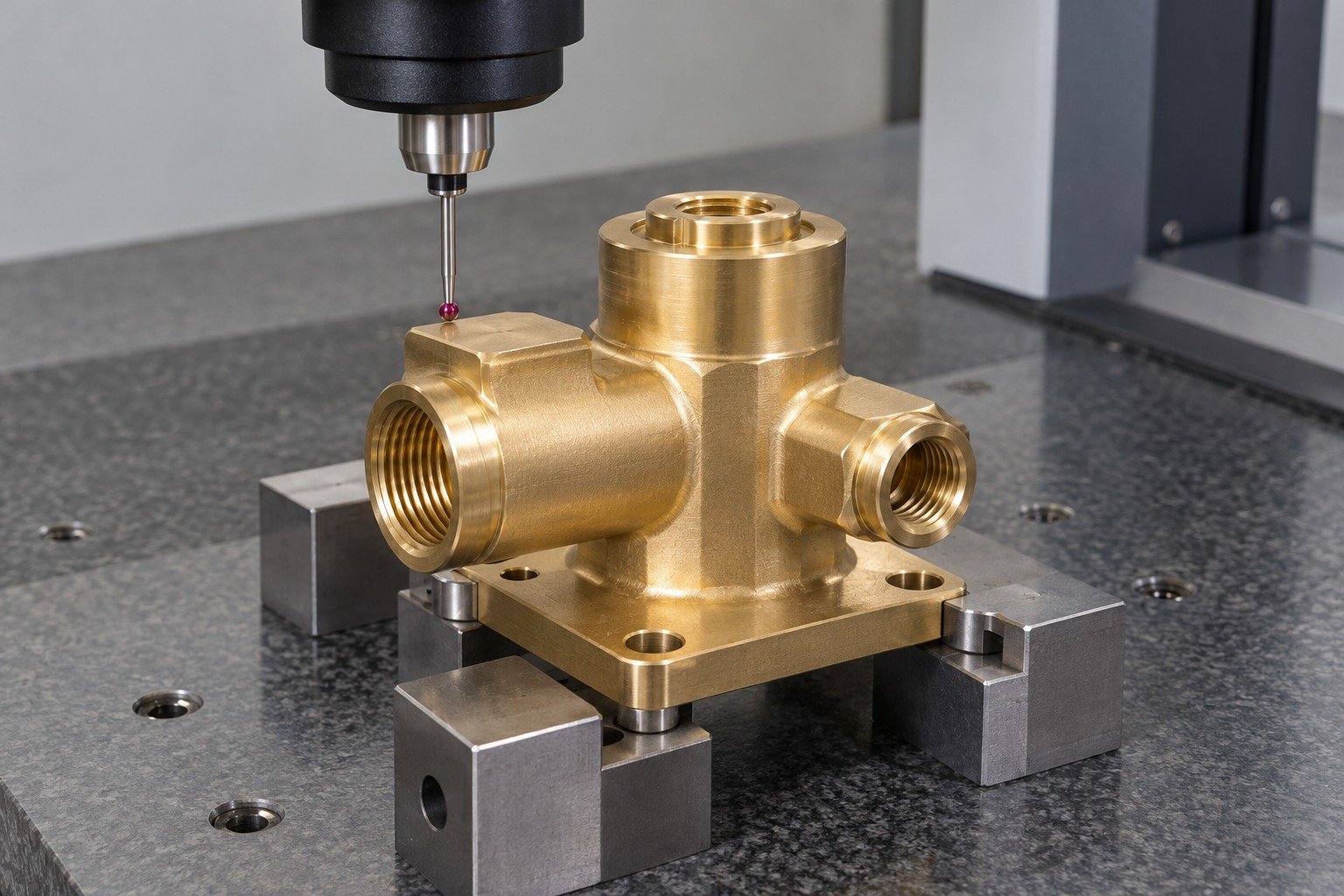

Inspect final seat and port relationships. Any leak or pressure test needs an agreed procedure.
| Your decision | What to define |
|---|---|
| Your fit | Valve-seat geometry, port axes, mounting pattern and sealing land. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |

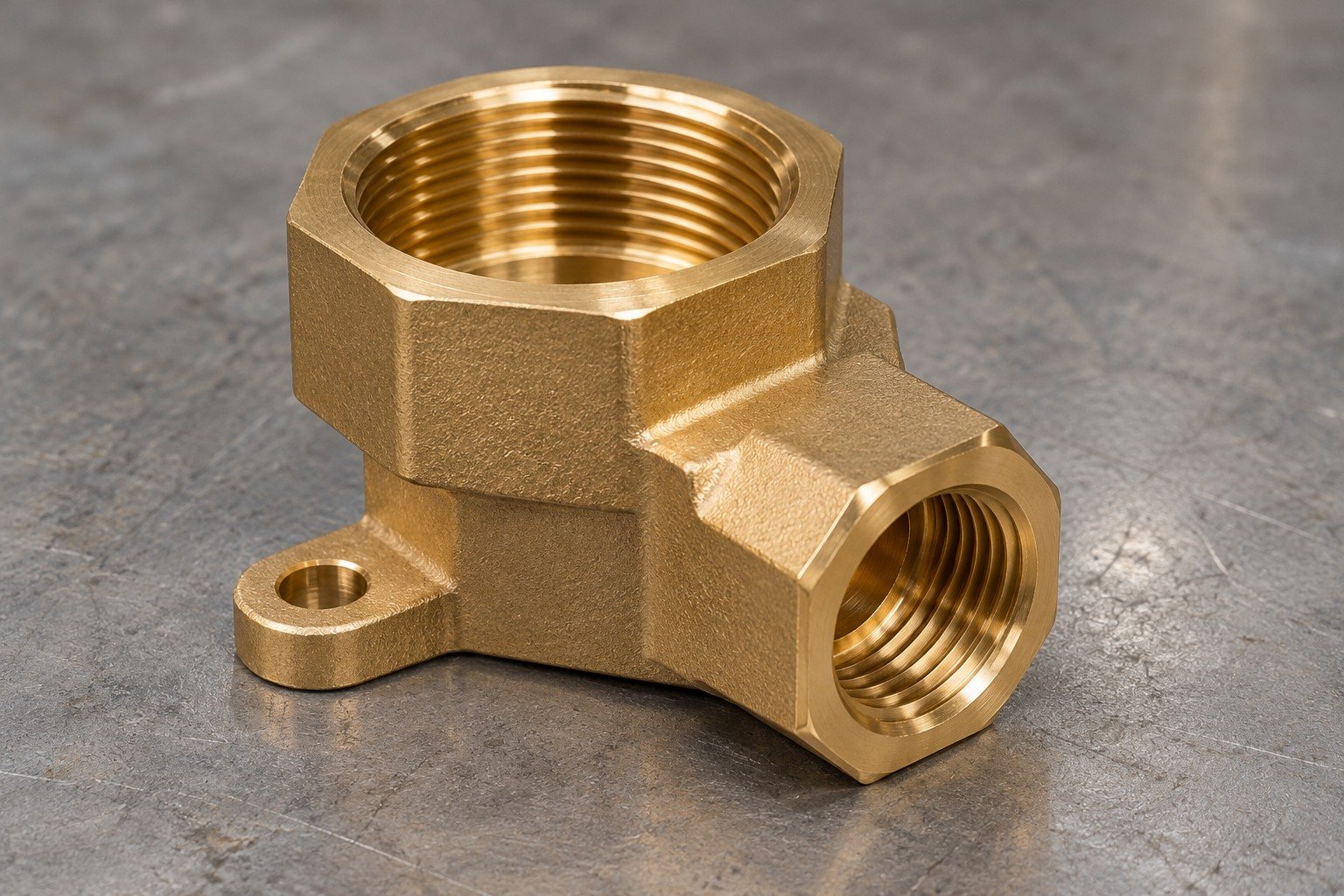

Start with Your Mating Features
For your C69300 brass fittings, define thread system, sealing method and wrench engagement. A similar-looking adapter is not an approved substitute.
| Your decision | What to define |
|---|---|
| Your fit | Thread standard, sealing shoulder, port relationship and wrench access. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |
Review Support and Tool Access
For C69300 brass turning and C69300 brass threading, agree run-out, chip removal and final gauge access.
| Your decision | What to define |
|---|---|
| Your fit | Thread standard, sealing shoulder, port relationship and wrench access. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |
Confirm Your Ordered Stock State

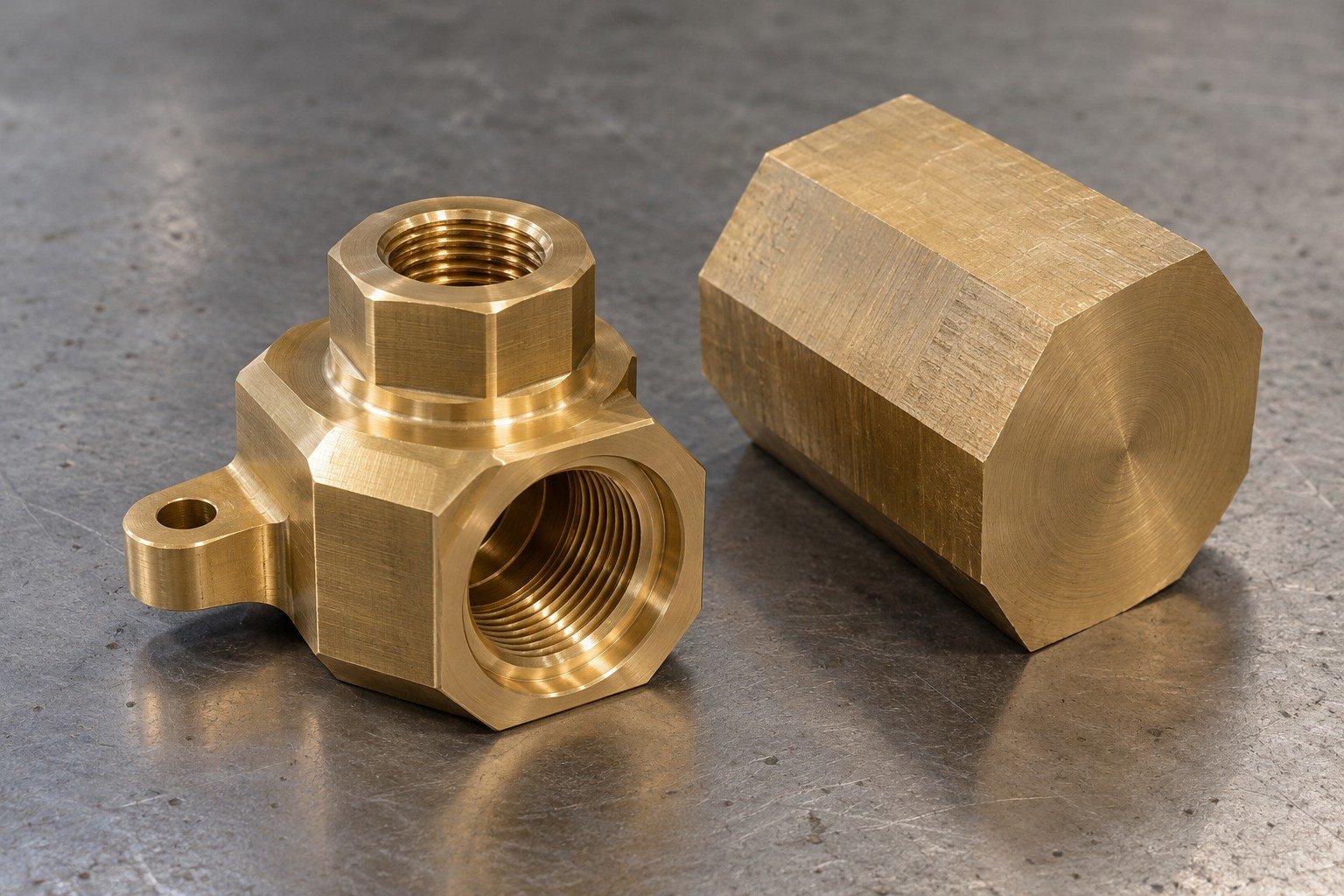

Specify stock form, supplied condition and coating allowance where needed.
| Your decision | What to define |
|---|---|
| Your fit | Thread standard, sealing shoulder, port relationship and wrench access. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |

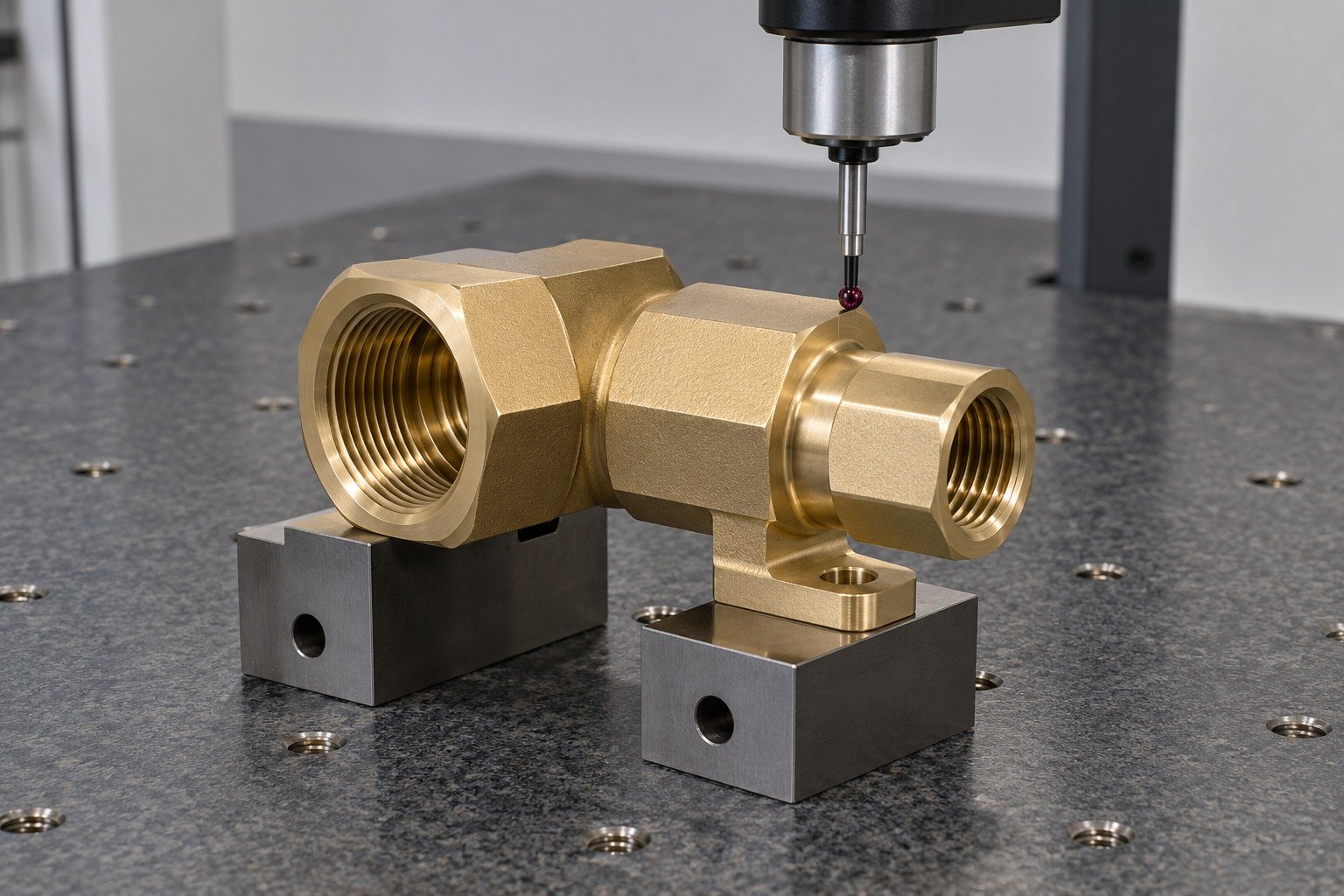

Release Your Receiving Evidence

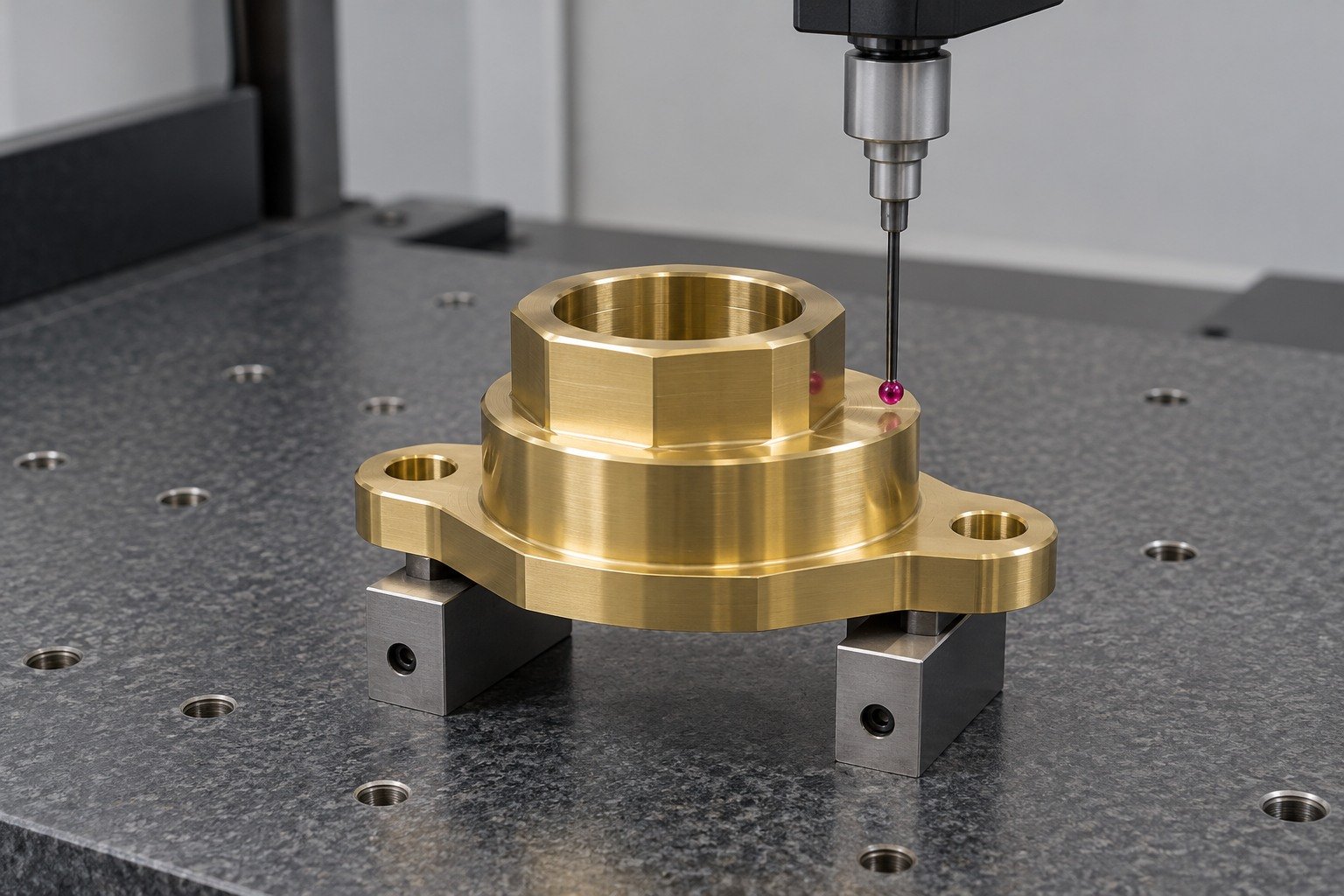

Verify final threads, shoulder and locating features; state any functional-test scope.
| Your decision | What to define |
|---|---|
| Your fit | Thread standard, sealing shoulder, port relationship and wrench access. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |

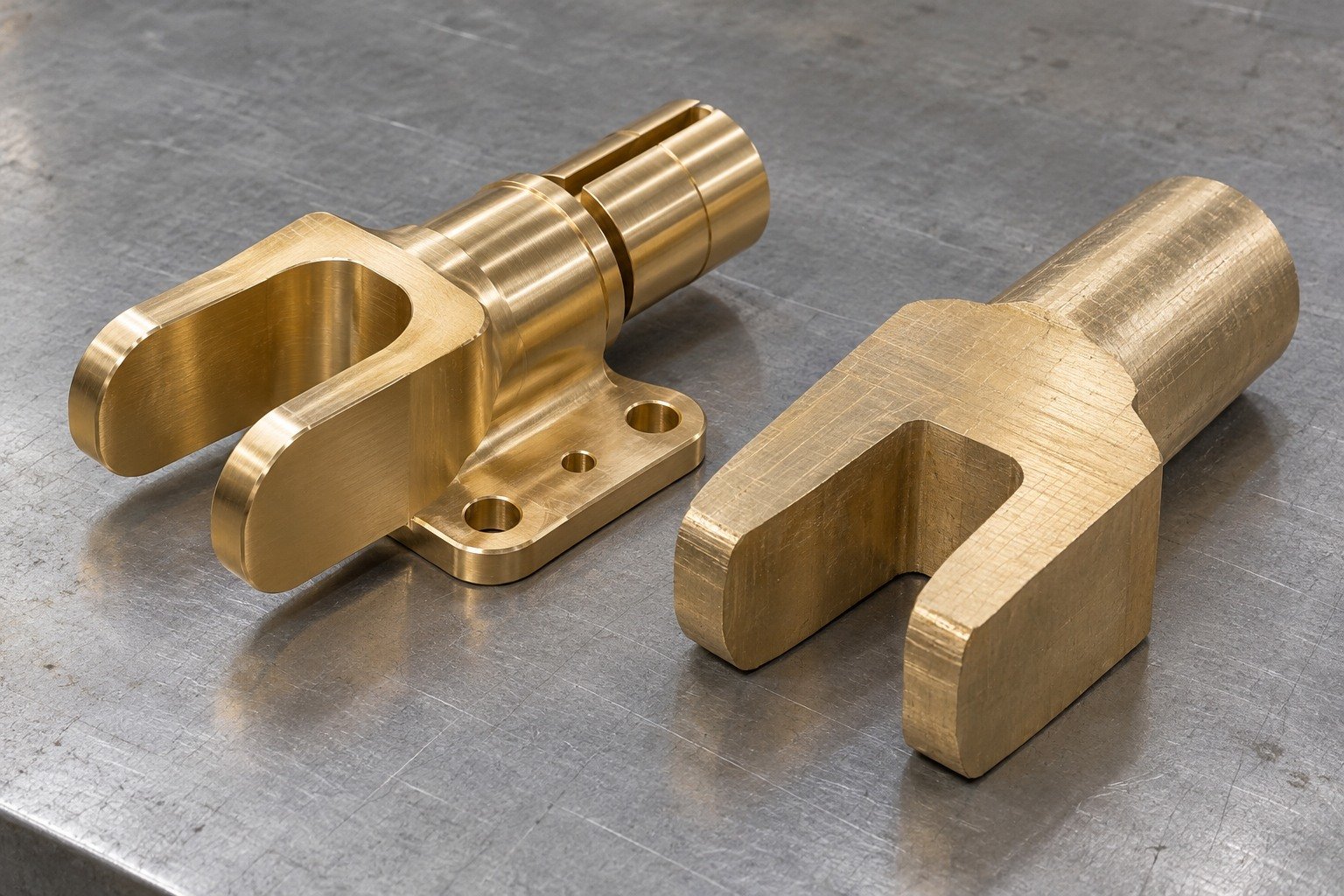

Start with Your Mating Features

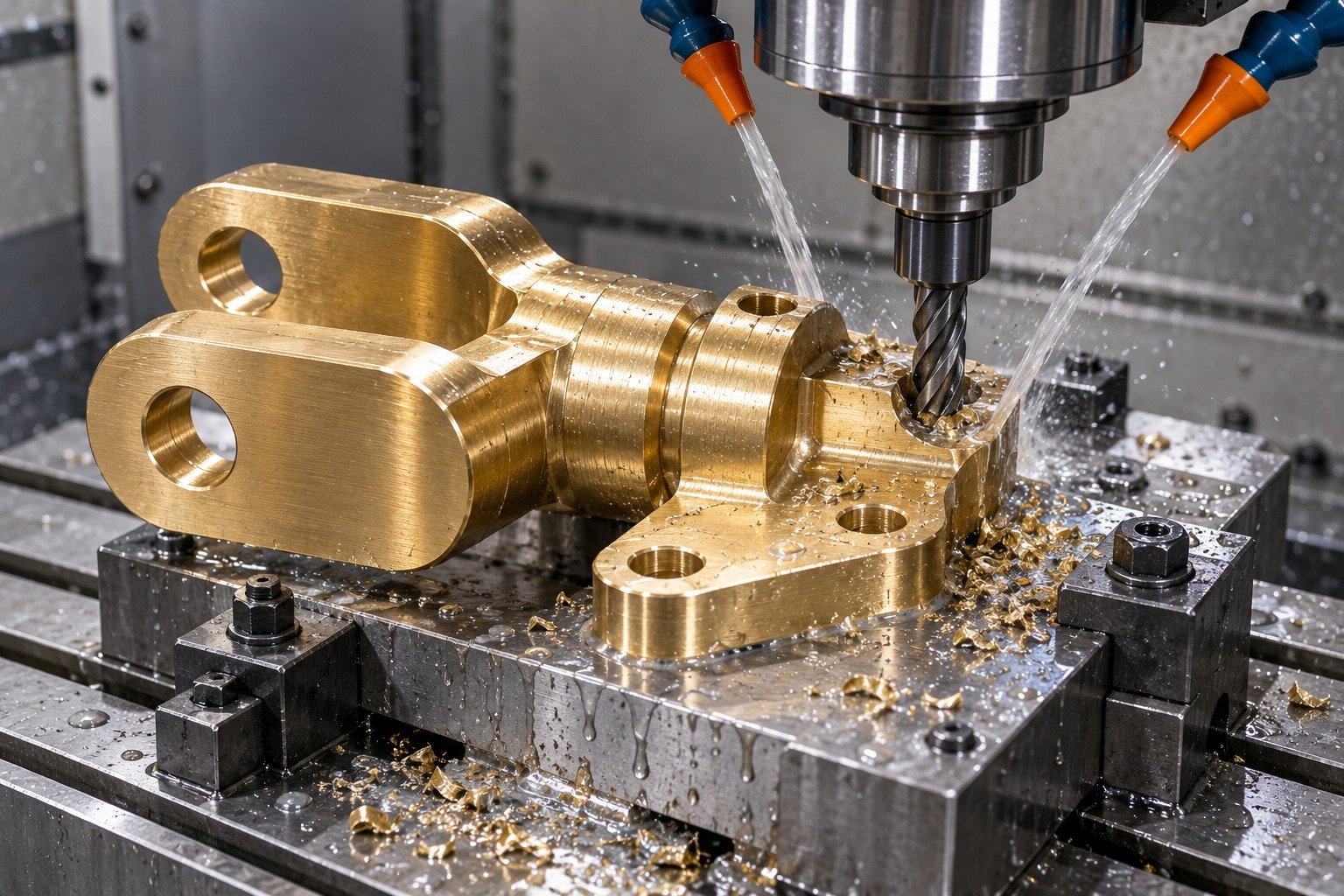

For C69300 brass electrical connectors, define the contact region, prong geometry and mounting relationship. The alloy designation does not establish current capacity or contact resistance.
| Your decision | What to define |
|---|---|
| Your fit | Contact lands, slot width, mounting datums and attachment geometry. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |
Review Support and Tool Access

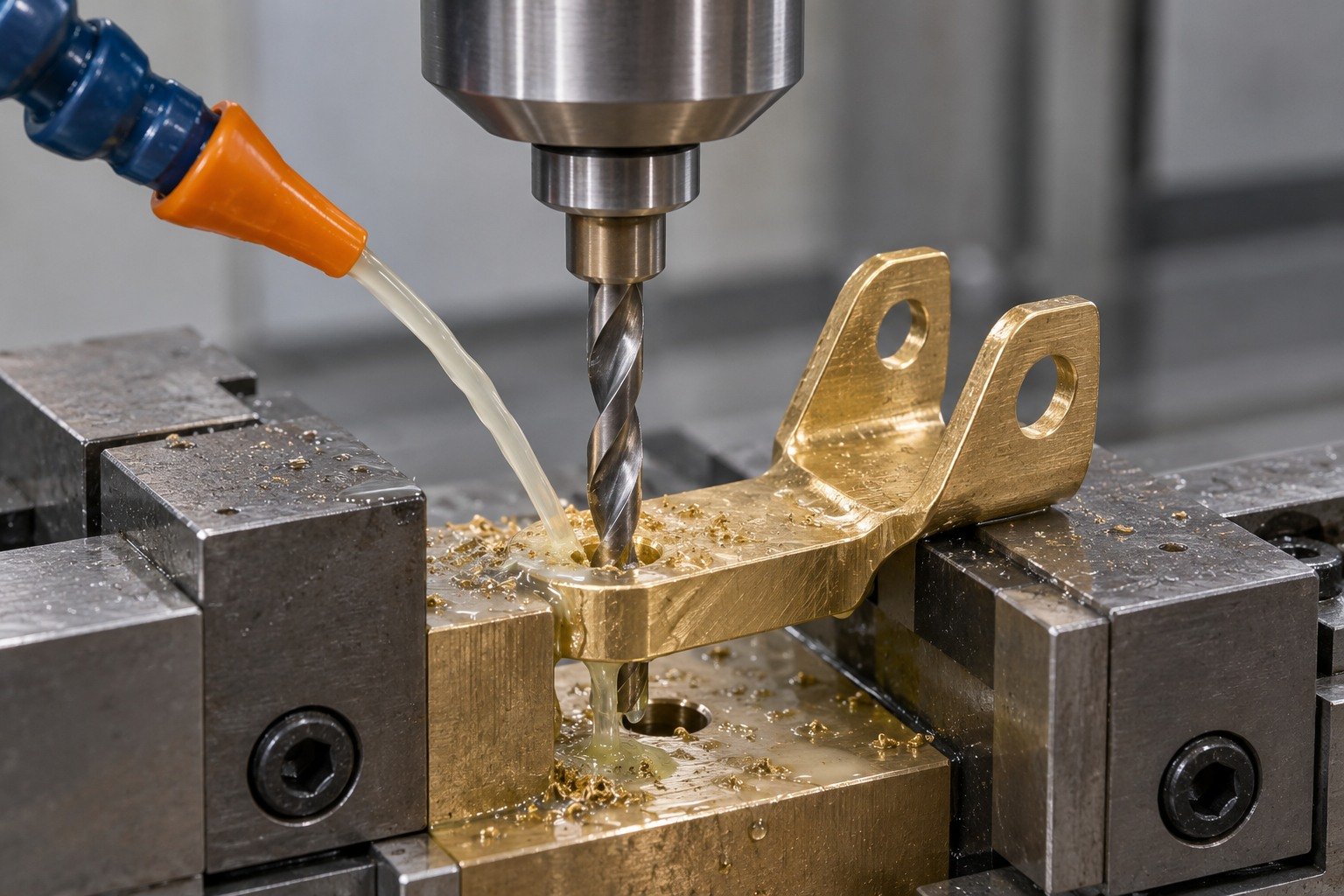

For C69300 brass drilling, support the mounting foot and keep hole-exit edges accessible.
| Your decision | What to define |
|---|---|
| Your fit | Contact lands, slot width, mounting datums and attachment geometry. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |
Confirm Your Ordered Stock State
Confirm actual stock identity and condition. Keep conductivity requirements explicit for the assembly.
| Your decision | What to define |
|---|---|
| Your fit | Contact lands, slot width, mounting datums and attachment geometry. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |

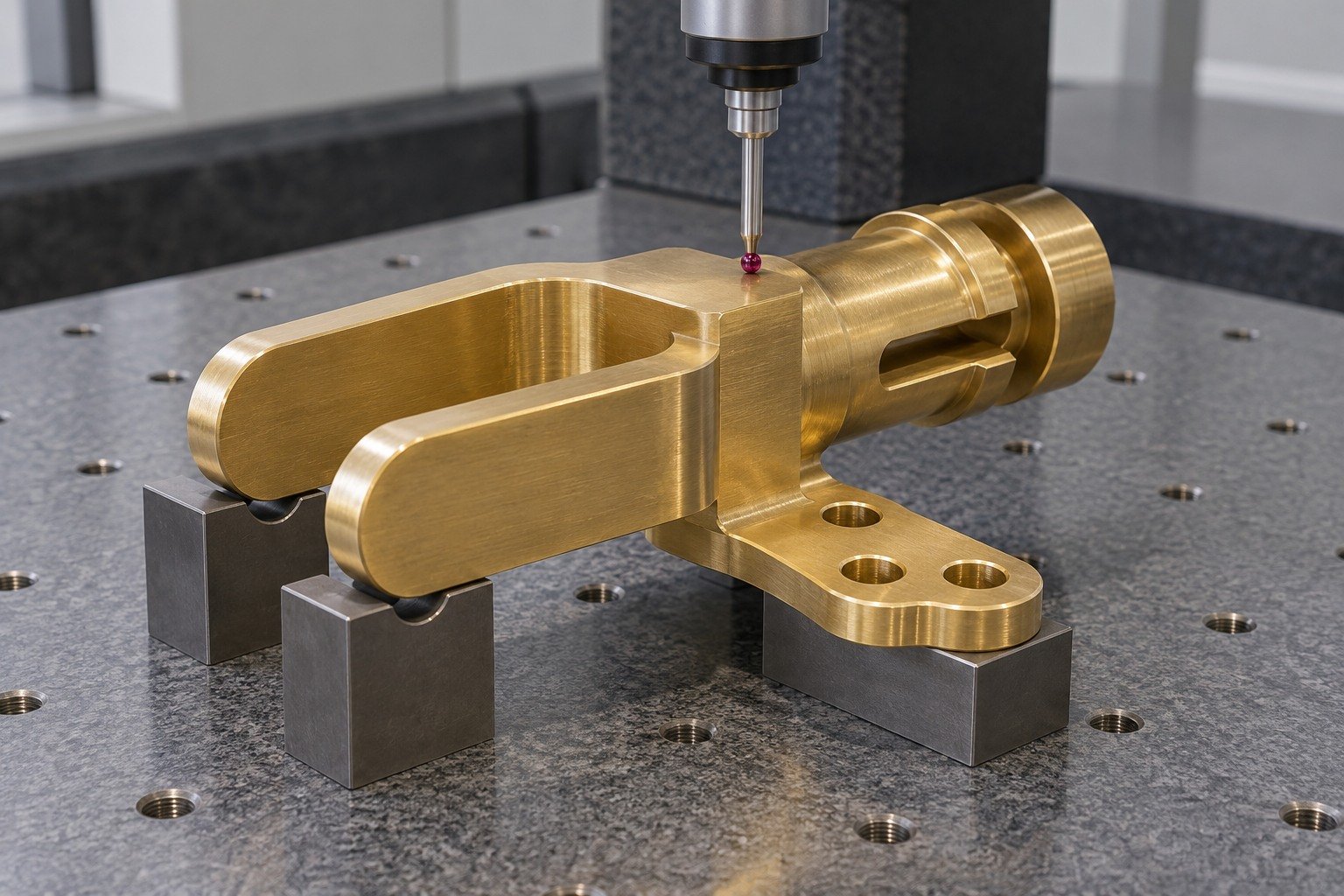

Release Your Receiving Evidence
Inspect final contact and mounting geometry; electrical qualification requires a separate procedure.
| Your decision | What to define |
|---|---|
| Your fit | Contact lands, slot width, mounting datums and attachment geometry. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |
Start with Your Mating Features

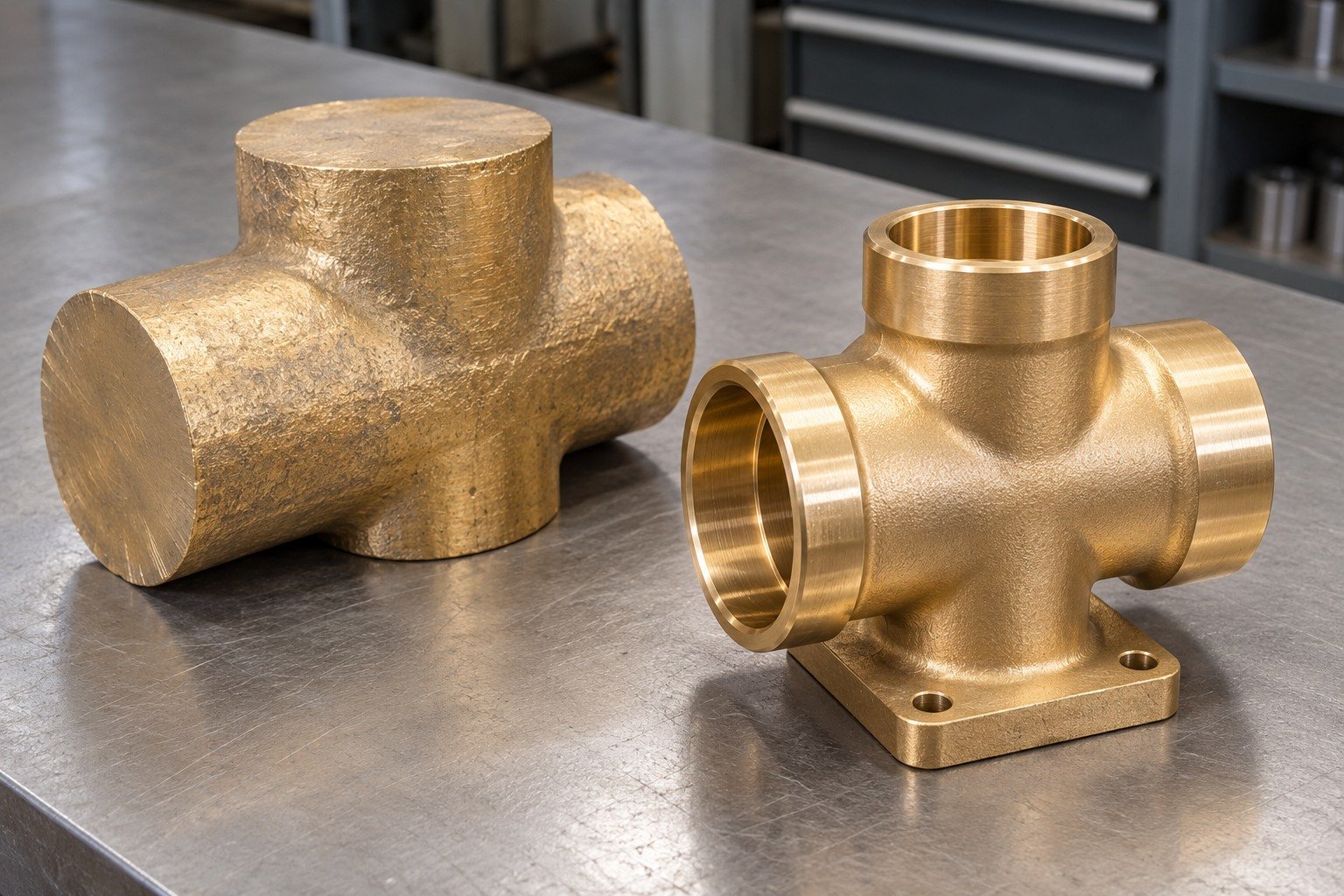

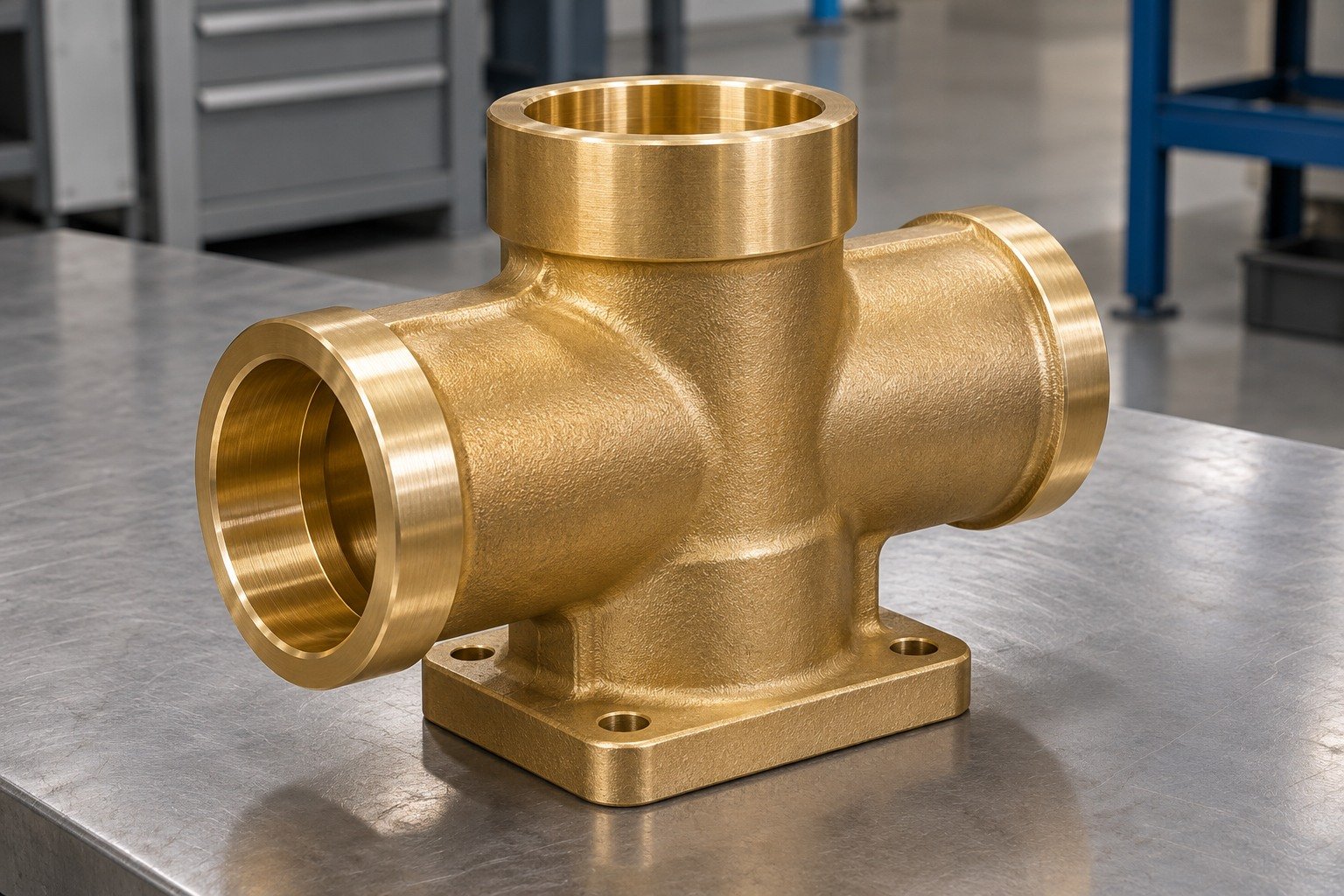

For your C69300 brass forged parts inquiry, define the near-net blank and the finished port datums. Your quote confirms forging availability, tooling and machining scope.
| Your decision | What to define |
|---|---|
| Your fit | Blank envelope, port relationship, mounting allowance and final datums. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |
Review Support and Tool Access
For C69300 brass forging machining, agree locating features, clamping and stock allowance before cutting.
| Your decision | What to define |
|---|---|
| Your fit | Blank envelope, port relationship, mounting allowance and final datums. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |
Confirm Your Ordered Stock State

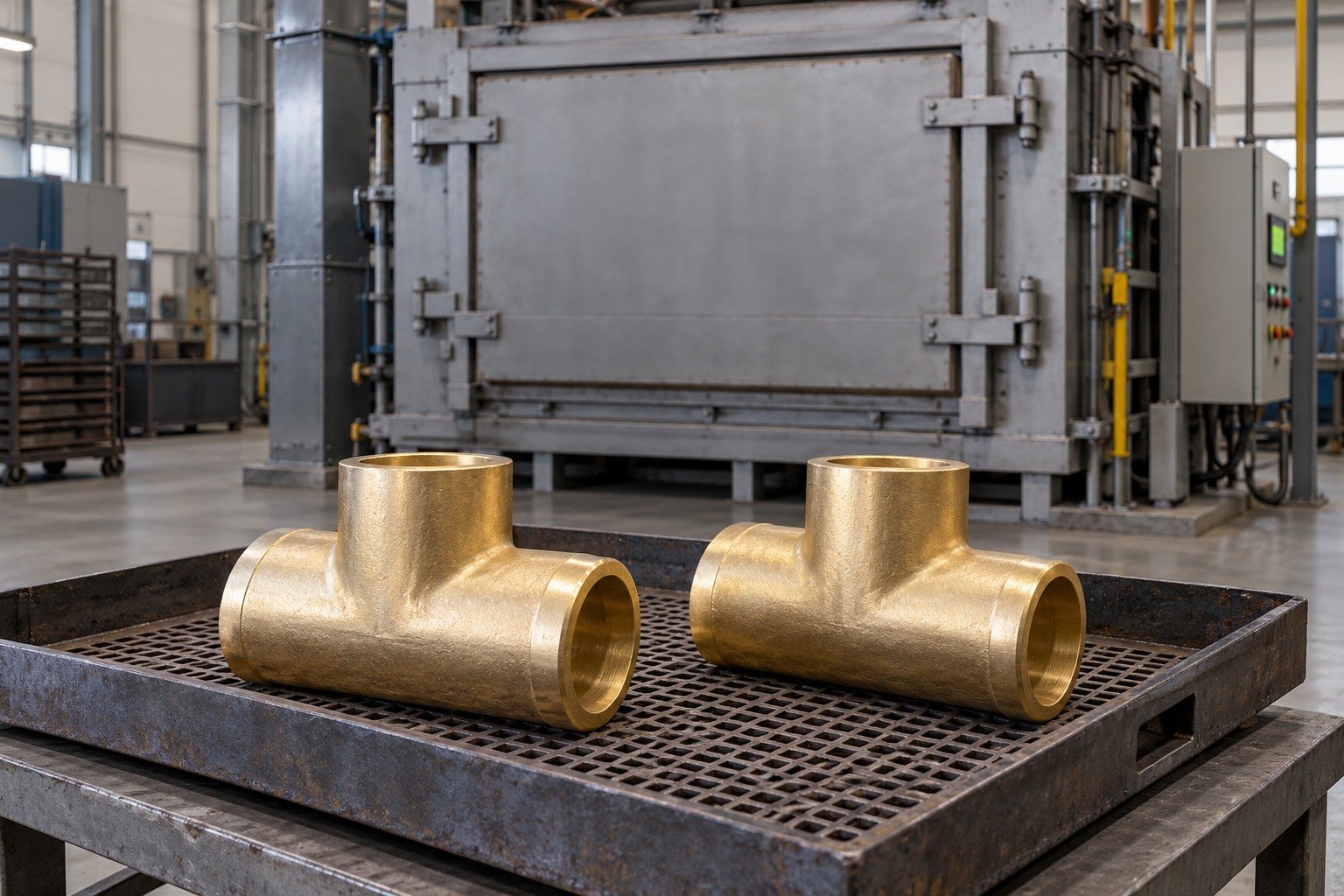

For C69300 brass hot forging, agree the complete thermal route with the material supplier, including final condition and corrosion evidence.
| Your decision | What to define |
|---|---|
| Your fit | Blank envelope, port relationship, mounting allowance and final datums. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |
Release Your Receiving Evidence
Inspect final features after the agreed route. Review any required material, corrosion or functional evidence separately.
| Your decision | What to define |
|---|---|
| Your fit | Blank envelope, port relationship, mounting allowance and final datums. |
| Your route | Stock condition, support and finishing sequence. |
| Your approval | Final geometry, surface and receiving evidence. |
From Your C69300 Stock to the Finished Part
For your C69300 brass machining services review, connect cutting, edge removal, finishing and inspection to the same drawing revision. Your quote confirms the accepted operations and receiving scope.

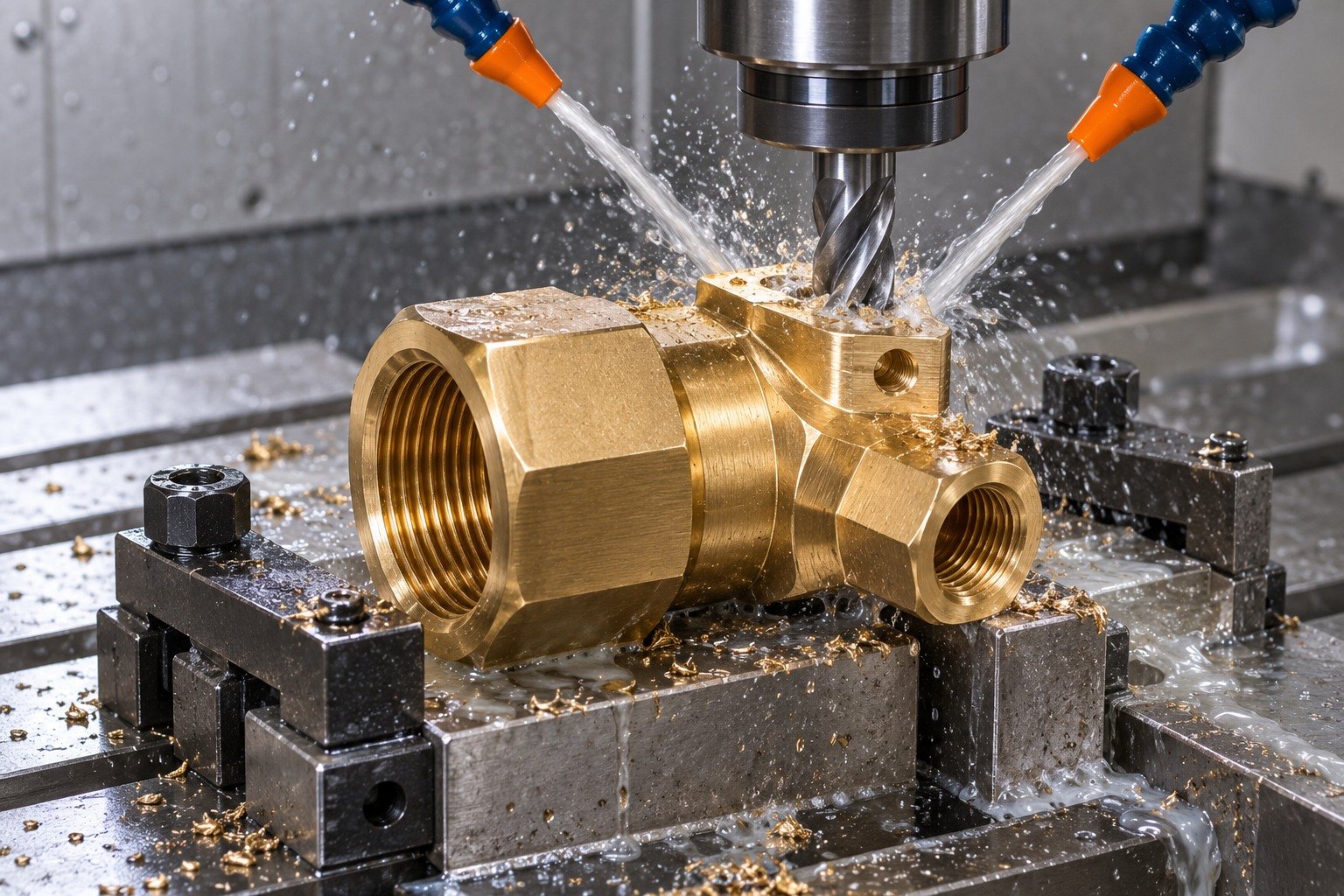

C69300 Brass Turning Services

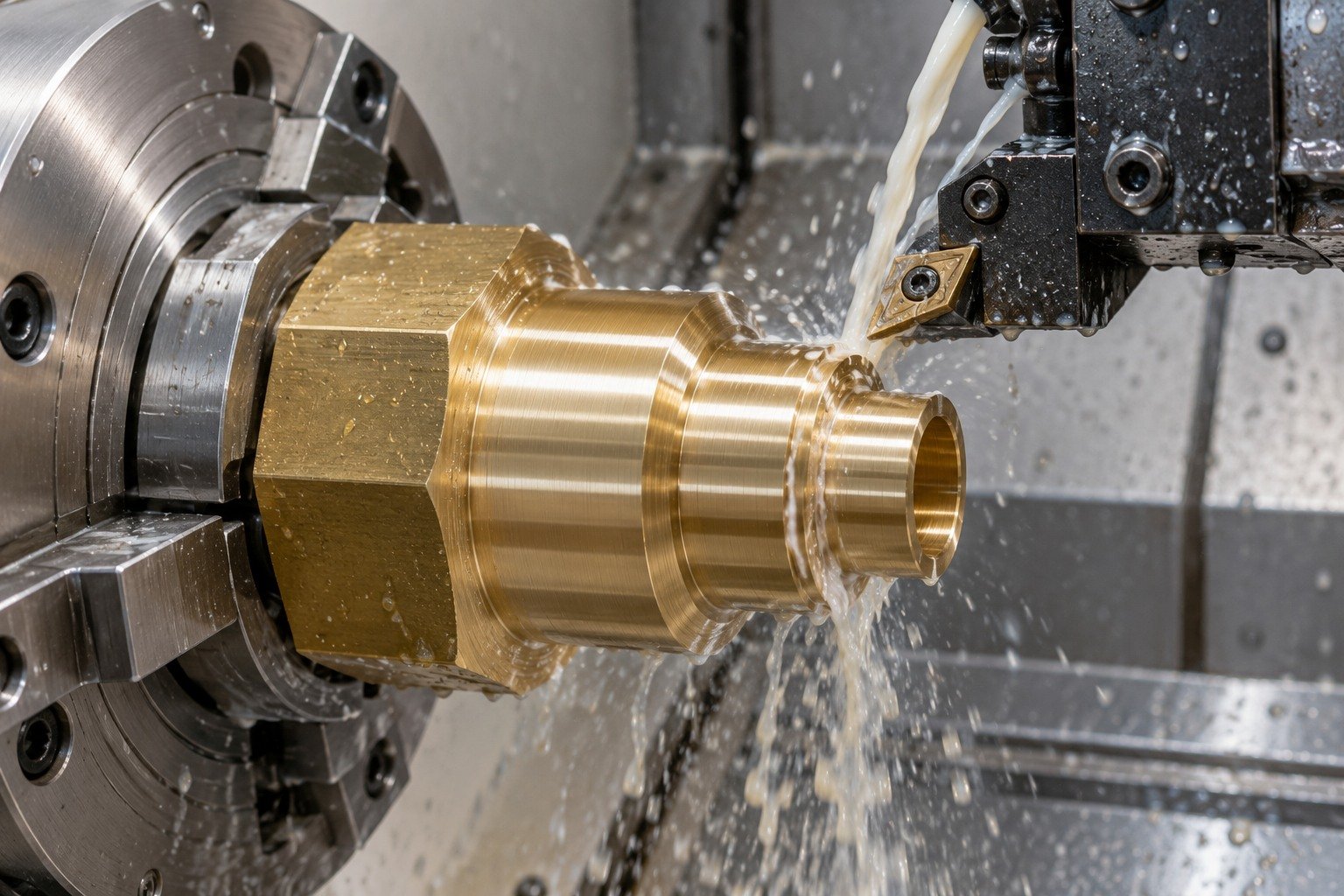

Review port shoulders, thread run-out and supported engagement.
Explore the Process →

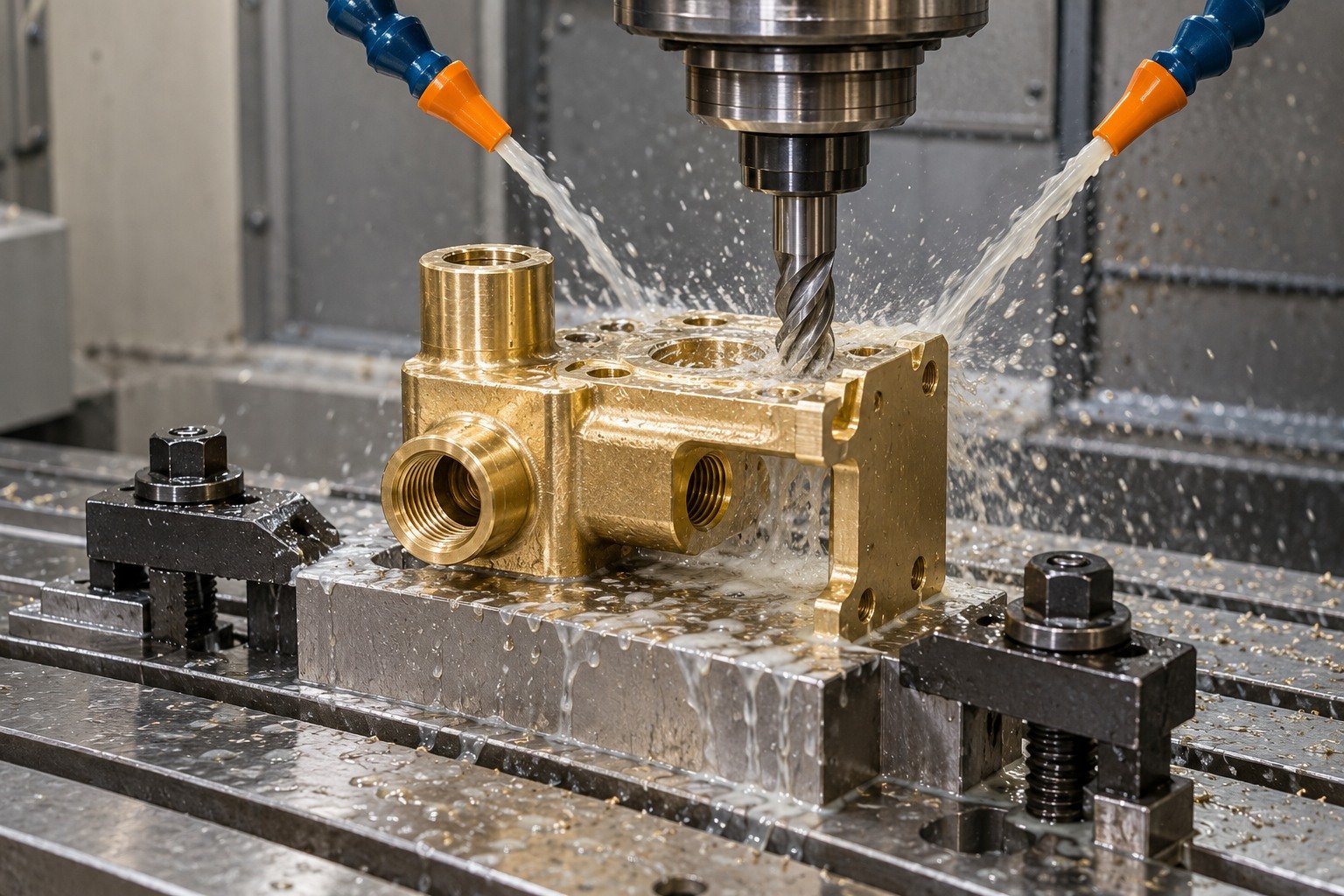

C69300 Brass Milling Services
Plan valve mounting pads and locating faces around your final datums.
Explore the Process →
Drilling & Thread Access
Support the mounting foot and define internal-edge and gauge access.
Explore the Process →

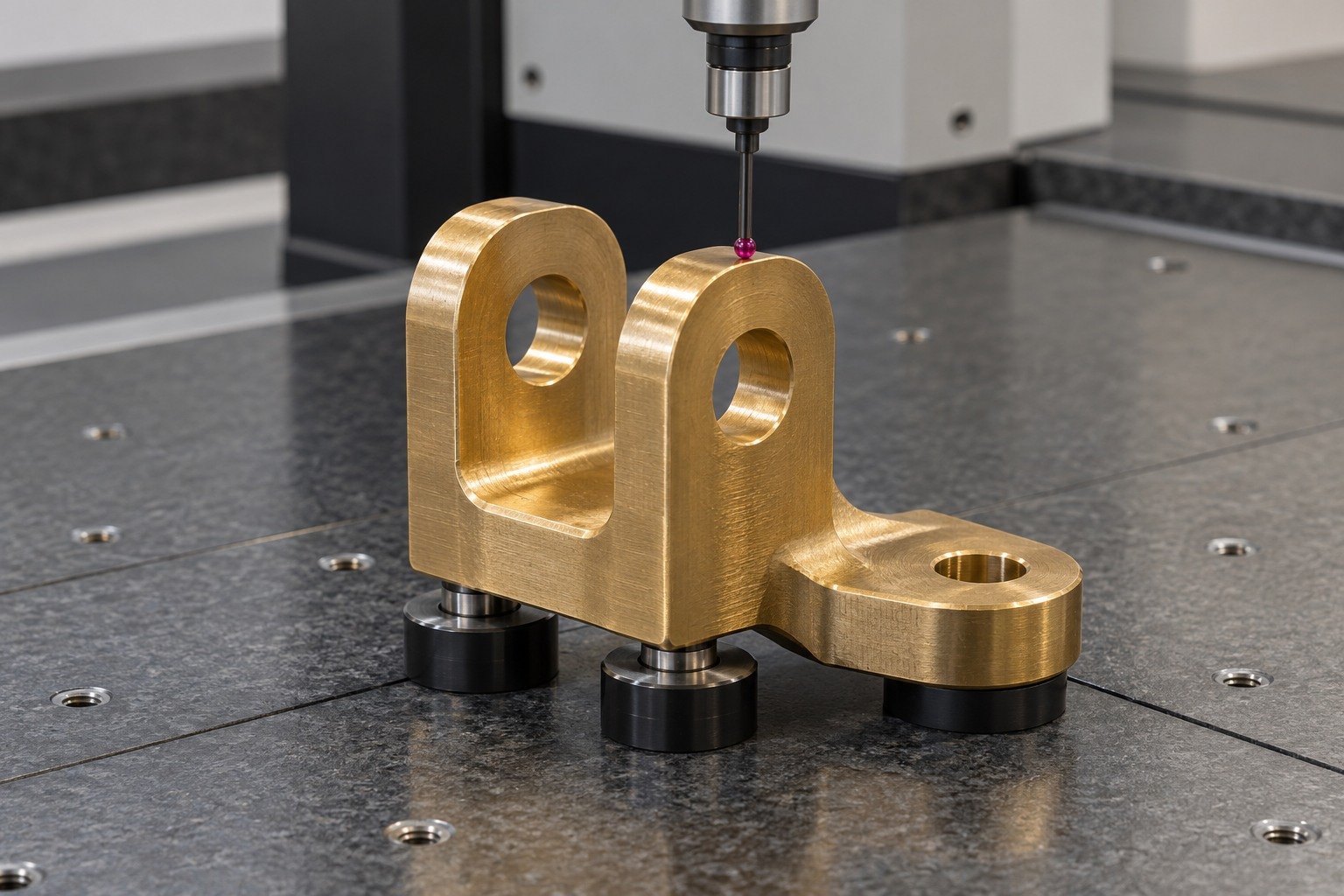

Finished-Feature Inspection
Verify port, sealing-land and mounting relationships.
Explore the Process →Resolve 6 Risks Before Releasing Your C69300 Drawing
Resolve these six drawing decisions before repeating the manufacturing route.

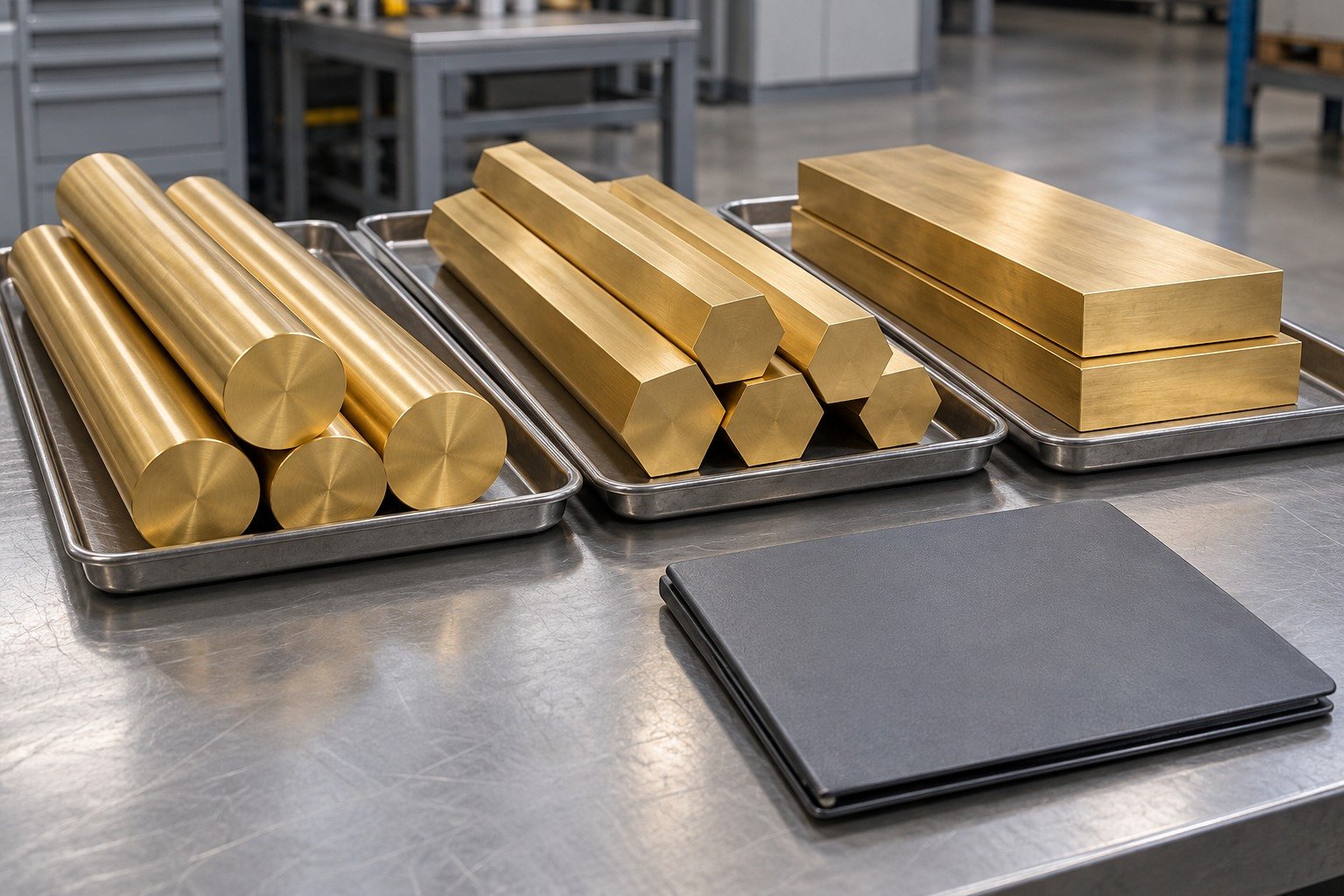

Keep Your Material Identity Traceable
For C69300 brass CNC machining, define the exact grade, stock form and material-record scope. Agree segregation and identification through cutting, cleaning and delivery.
01 · Requirement
Show the working feature and allowed edge condition.
02 · Route
Agree stock, support and final surface.
03 · Evidence
Inspect the actual finished state.
Confirm stockMachineFinish if specifiedInspect

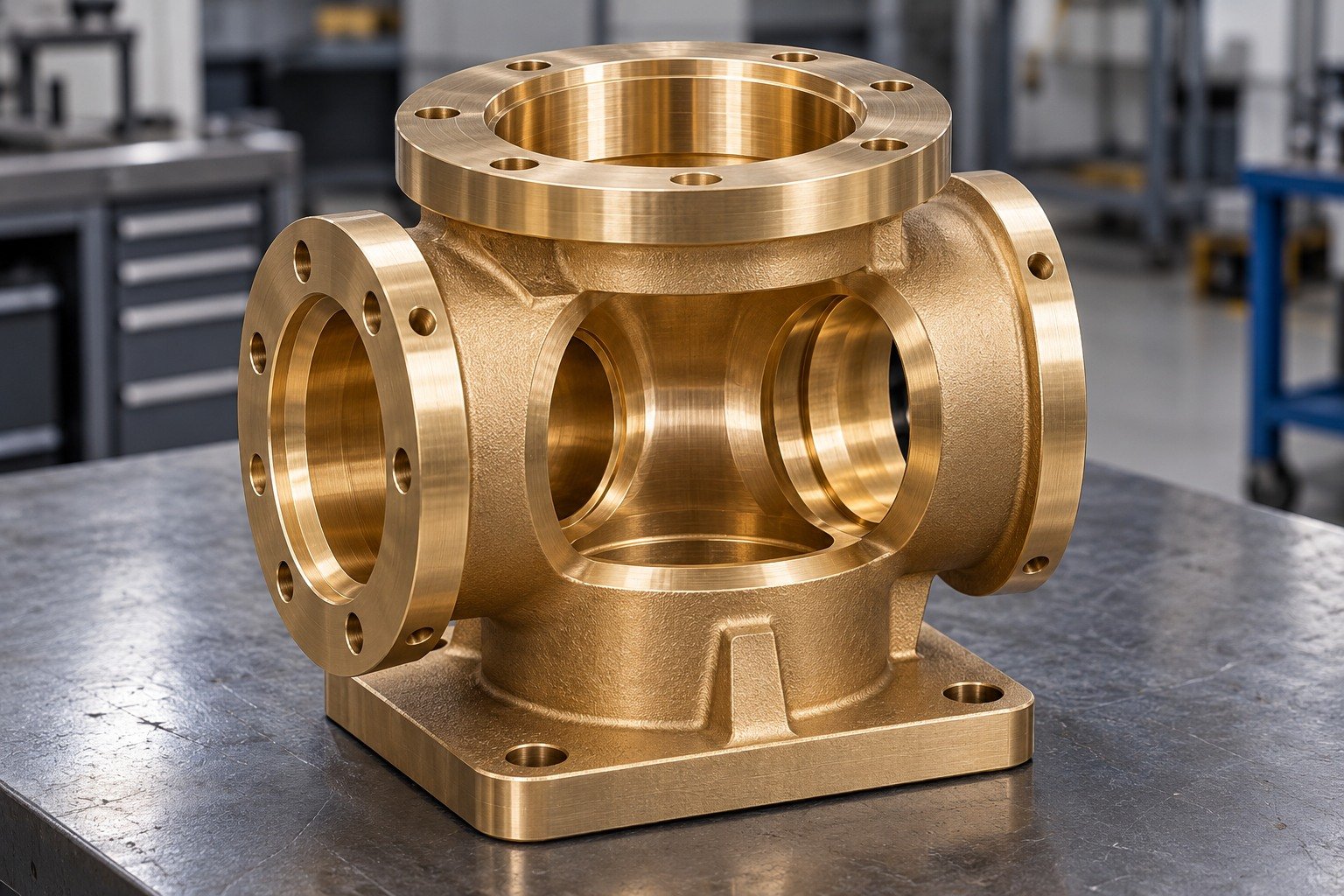

Make Internal Edges Accessible
Mark cross ports, thread starts and hidden edges. Agree chip removal, internal-edge acceptance and measurement access before releasing repeat quantities.
01 · Requirement
Show the working feature and allowed edge condition.
02 · Route
Agree stock, support and final surface.
03 · Evidence
Inspect the actual finished state.
Confirm stockMachineFinish if specifiedInspect
Review the Complete Thermal Route
For C69300 brass dezincification resistance, the final processing route matters. Diehl warns that elevated-temperature processing can impair resistance. Agree the supplier-qualified route and final evidence; do not treat stock data as a finished-part result.
01 · Requirement
Show the working feature and allowed edge condition.
02 · Route
Agree stock, support and final surface.
03 · Evidence
Inspect the actual finished state.
Confirm stockMachineFinish if specifiedInspect

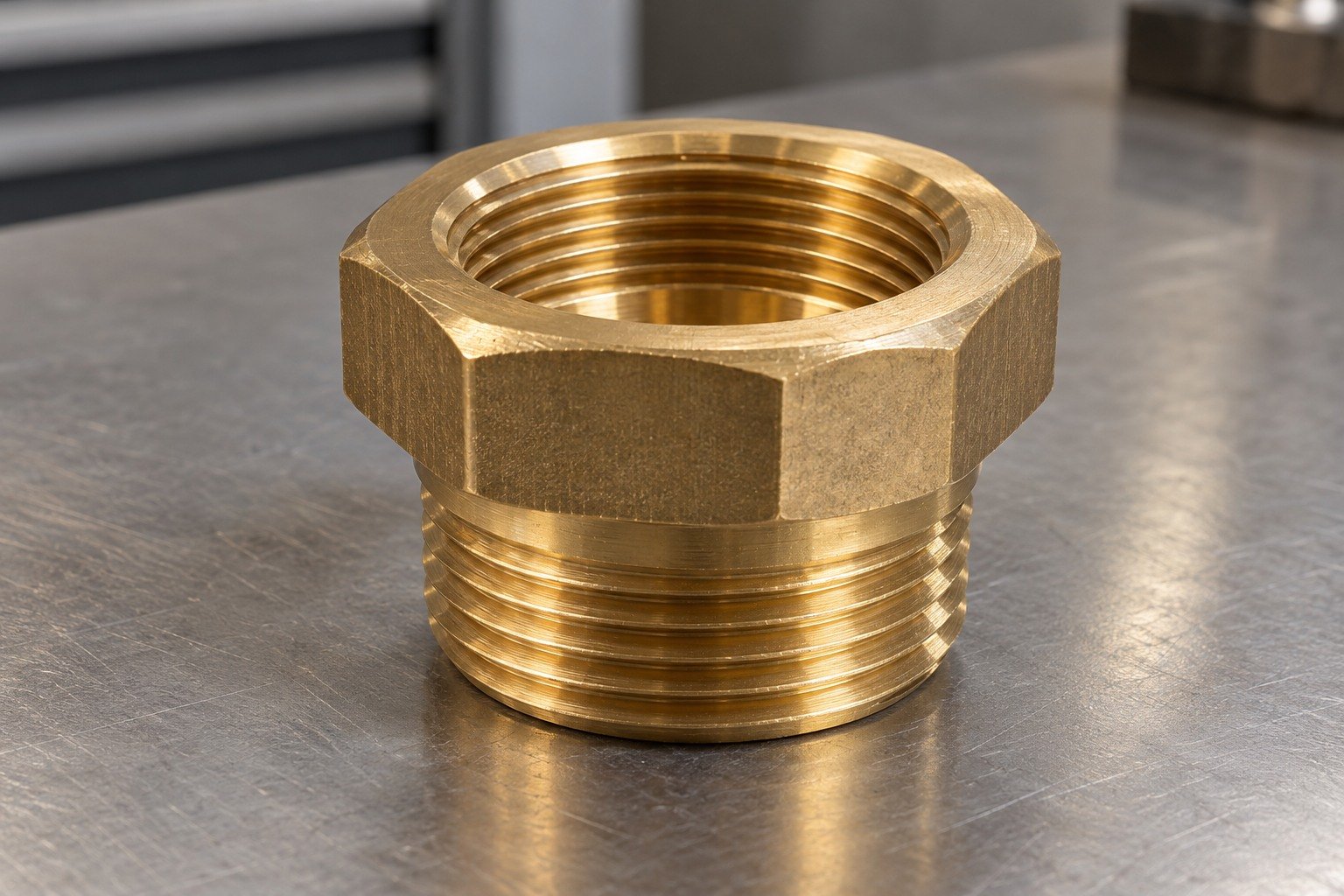

Define Your C69300 Brass Deburring Requirement
Show allowed edge breaks, thread entrances and seats that must retain their geometry. Agree first-sample acceptance for accessible and internal edges.
01 · Requirement
Show the working feature and allowed edge condition.
02 · Route
Agree stock, support and final surface.
03 · Evidence
Inspect the actual finished state.
Confirm stockMachineFinish if specifiedInspect

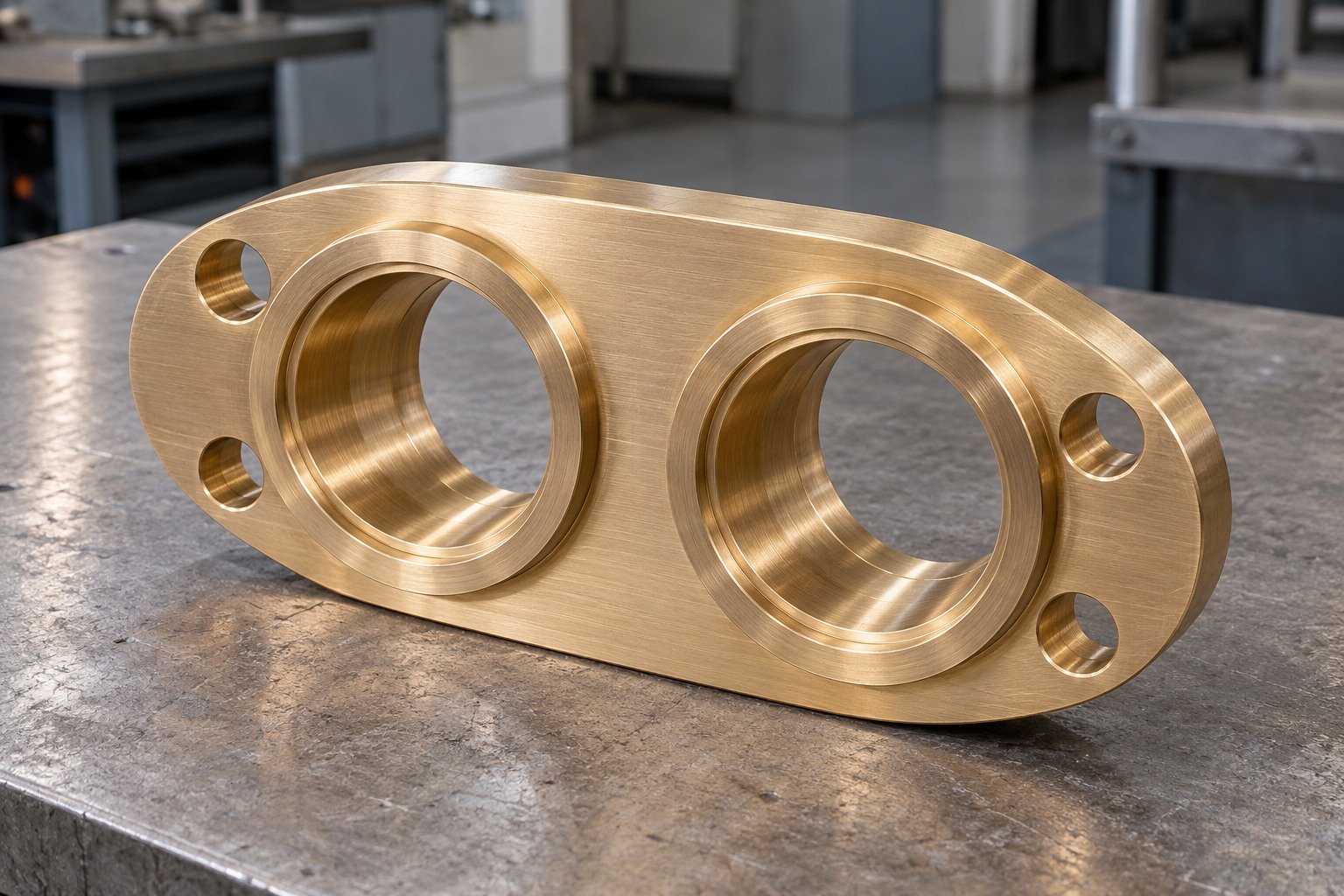

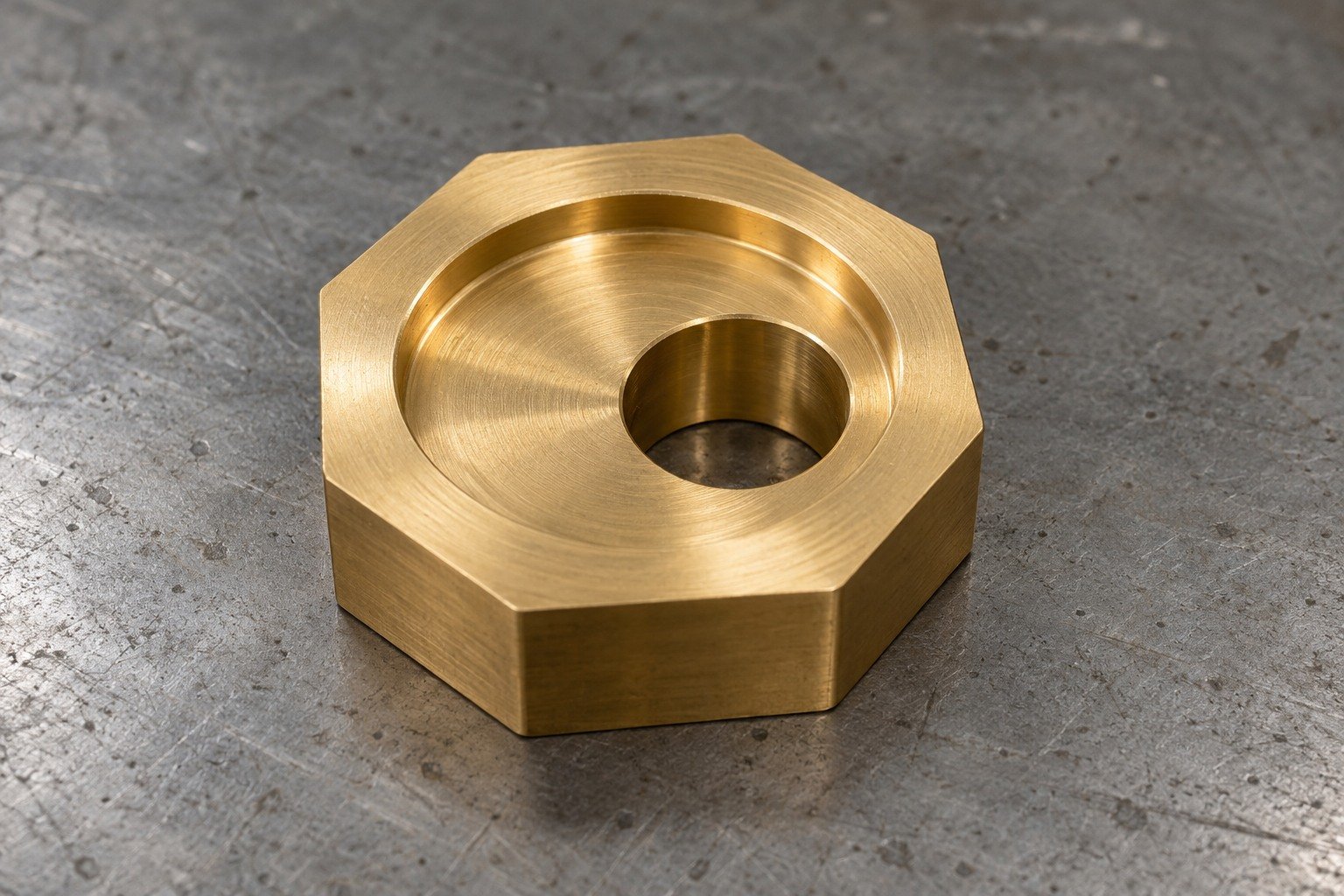

Specify Your C69300 Brass Surface Finish
Separate sealing, contact and cosmetic faces. Define roughness, accepted tool marks, cleaning, masking and protection; review any coating allowance against final fit.
01 · Requirement
Show the working feature and allowed edge condition.
02 · Route
Agree stock, support and final surface.
03 · Evidence
Inspect the actual finished state.
Confirm stockMachineFinish if specifiedInspect
Measure the State You Receive
For your C69300 brass machining tolerances, provide feature-specific limits, datums and measurement access. Your quotation confirms acceptance for the actual finished geometry.
01 · Requirement
Show the working feature and allowed edge condition.
02 · Route
Agree stock, support and final surface.
03 · Evidence
Inspect the actual finished state.
Confirm stockMachineFinish if specifiedInspect
Compare Before Changing Your Grade
| Your comparison | What your drawing must resolve |
|---|---|
| C69300 vs C360 brass | Lead requirement, silicon-bearing chemistry, stock form and the accepted cutting route. |
| C69300 vs C377 brass | Forging route, final thermal state, working features and required material evidence. |
| CuZn21Si3P / CW724R | Qualified European comparison; approve full specification and product form. |
| C69300 brass plumbing parts | State end use, wetted surfaces and exact certification or testing requirements. |
A grade name alone does not approve substitution or a finished plumbing product.
C360 Brass → C377 Brass →Agree Your Finished Working Surface

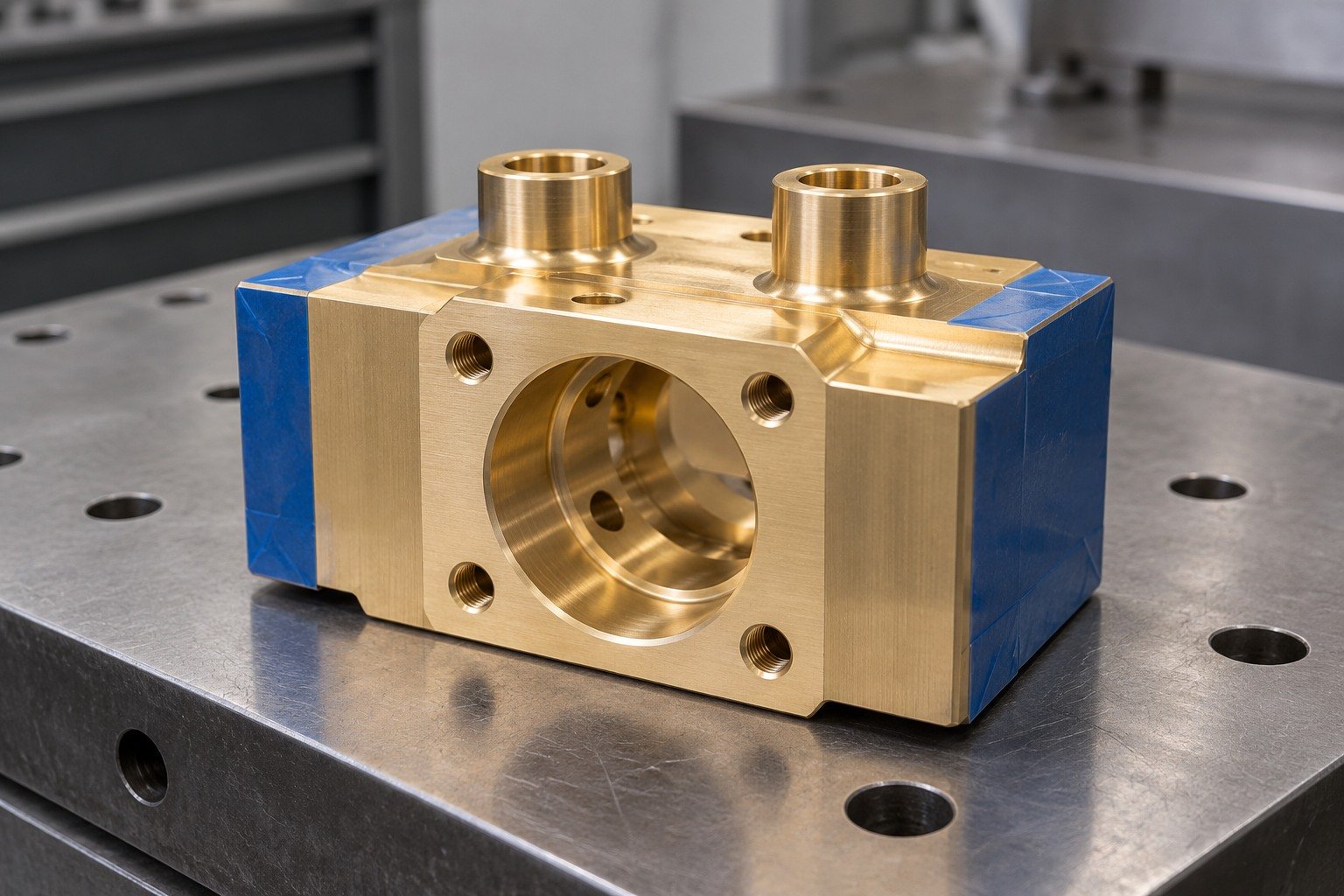

Illustrative appearances. Define cleaning, accepted tool marks, masking and contact protection. Any plating needs review of preparation, adhesion, thickness and final function.
Surface Finishing →Check Your C69300 Part at 3 Stages
01 · Incoming material
Grade, product form, temper and lot.

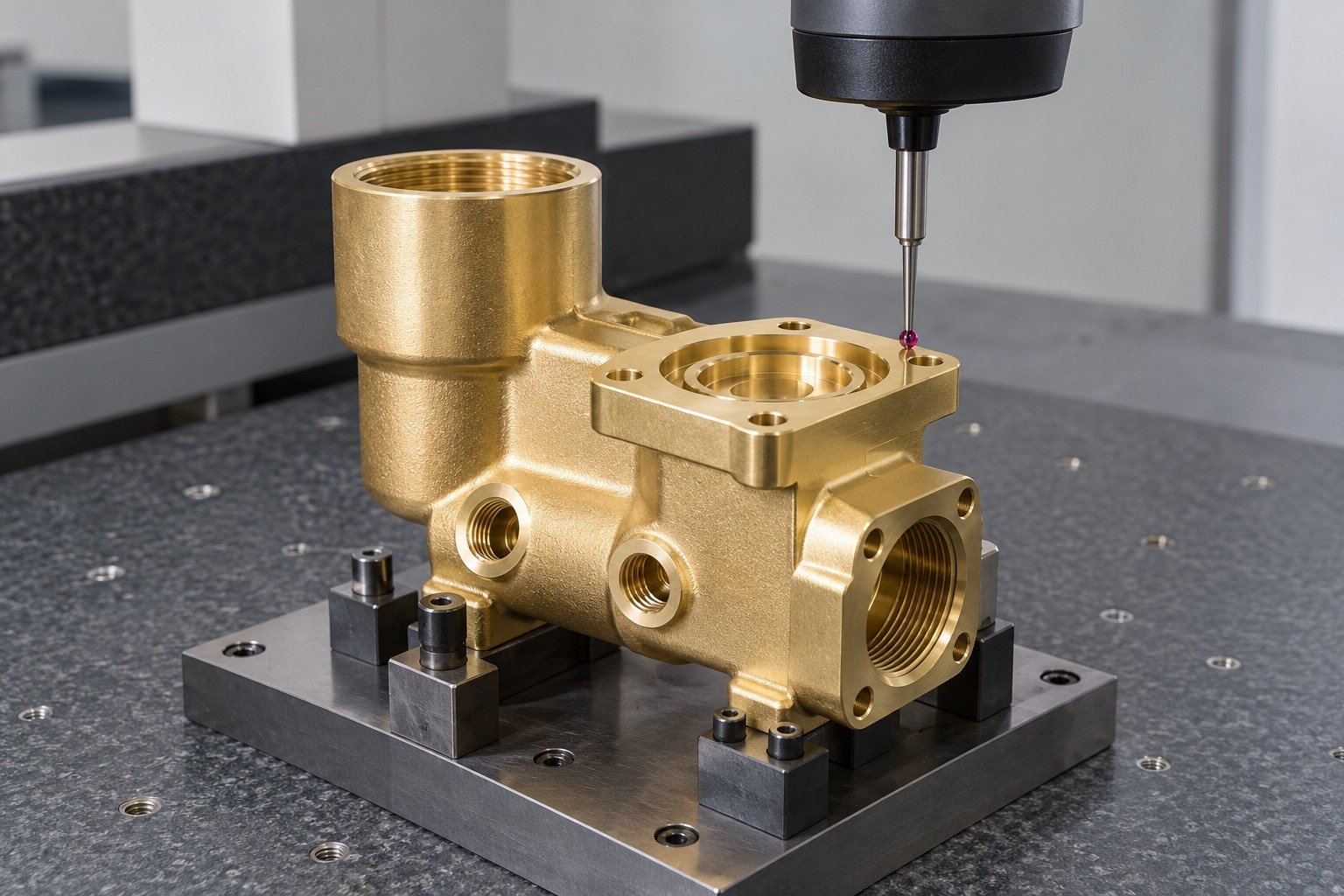

02 · First route sample
Threads, locating faces and accepted edges.
03 · Finished part
Final fit, surface and records.
Match the Grade to Your Material Records
For your custom C69300 brass parts, agree product specification, supplied condition and lot identity. Define your C69300 brass material certificate scope before buying stock.
- Material identity, stock form and supplied condition.
- Controlled working and locating geometry.

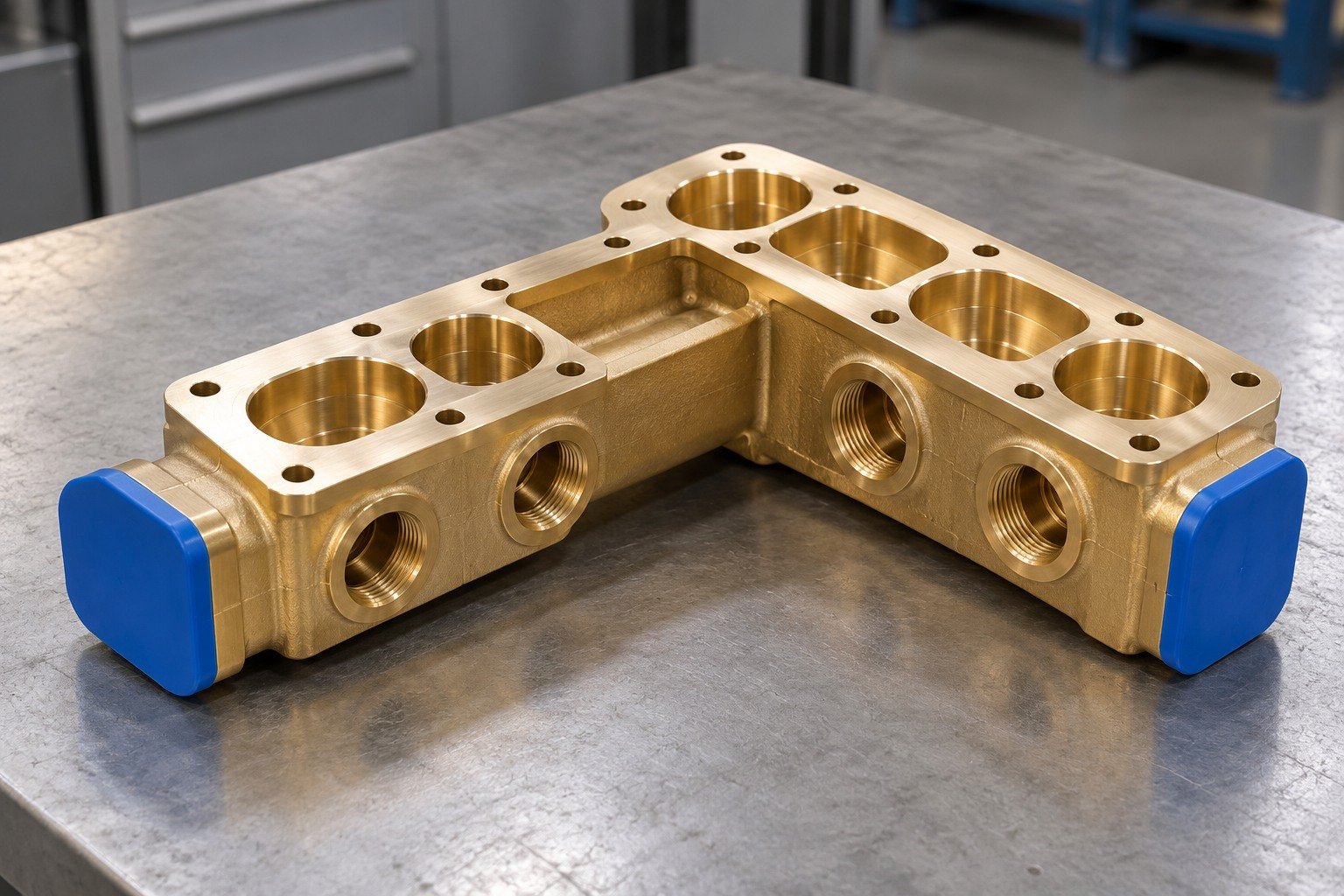

- Agreed surface protection and receiving records.
Sampling and evidence scope are agreed with your quote.
Quality Assurance →
Approve Your Working Features
For C69300 brass prototype machining, review seats, port relationships, threads and accepted edges on a complete first sample before repeat quantities.
- Material identity, stock form and supplied condition.
- Controlled working and locating geometry.
- Agreed surface protection and receiving records.
Sampling and evidence scope are agreed with your quote.
Quality Assurance →
Separate Dimensional and Certification Evidence
Inspect final sealing lands and mounting datums. Functional tests, corrosion evidence and any product certification require their own agreed procedures and scope.
- Material identity, stock form and supplied condition.
- Controlled working and locating geometry.
- Agreed surface protection and receiving records.
Sampling and evidence scope are agreed with your quote.
Quality Assurance →
Keep Parts and Records Matched
Your C69300 brass parts manufacturer review should define surface protection, individual separation, lot identity and the documents your receiving team needs.
- Material identity, stock form and supplied condition.
- Controlled working and locating geometry.
- Agreed surface protection and receiving records.
Sampling and evidence scope are agreed with your quote.
Quality Assurance →
Coordinate Your Drawing and Receiving Requirements
Connect China manufacturing with Dallas-area coordination for drawing review, sample decisions and delivery requirements.
6 Inputs for Your C69300 Quote
01CAD and controlled drawing
02UNS C36000, stock form and product standard
03Supplied condition and final fit
04Trial and repeat quantities
05Threads, working surfaces and accepted edges
06Material records, inspection and delivery needs
Answers Before You Specify C69300
Is C69300 brass lead free?
C69300 lead free brass is a silicon-brass material designation; the selected Mueller lead limit is ≤0.09 wt.%. Lead-free does not mean zero lead or automatically certify your finished product.
Is C69300 brass NSF 61 certified?
Do not infer certification from the alloy designation. Identify the actual listed material or finished product, manufacturer, certification body and scope. NSF/ANSI/CAN 61 addresses health effects; verify the relevant listing and requirements for your product.
What does C69300 brass NSF 372 mean for my part?
NSF/ANSI/CAN 372 concerns lead content in drinking-water system components. A selected alloy composition limit is not a certificate for your assembled product. State the exact product, wetted surfaces, required listing and evidence.
How should I review C69300 brass RoHS compliance?
Provide the applicable product category, destination market, requested declaration and evidence scope. Review the actual material, finish and complete product requirements; no blanket compliance declaration is made on this page.
How much does C69300 brass machining cost?
Compare the same drawing, stock form, trial and repeat quantities, tooling, setups, finishing and inspection scope. Your C69300 brass machining quote confirms the actual route and commercial terms; no fixed alloy-to-alloy cost ratio is assumed.
What changes after forging or joining?
Review the complete thermal history and final material condition with the stock supplier and responsible processor. Diehl notes that elevated-temperature processing can impair dezincification resistance; agree the qualified route and final evidence.
What should I send for C69300 brass machining services?
Send CAD and a controlled drawing, UNS grade and product standard, supplied condition, trial and repeat quantities, working surfaces and receiving requirements. Include any separate end-use, corrosion or certification scope.
Can the European name replace the UNS specification?
CuZn21Si3P / CW724R is a qualified comparison for C69300. Confirm full chemistry, product standard, stock form and supplied state, and obtain drawing-authority approval before substitution.
NSF · certification scope ↗ EPA · verify product certification marks ↗
