Other Carbon & Alloy Steel for Your Custom Machined Parts
Compare 1117, 1144, 52100 and 9310 for your actual drawing, stock condition and final acceptance. Separate free-machining, bearing and carburizing requirements before choosing the manufacturing route.
1 part model + 1 controlled drawing · Material condition · Quantity
Grade & specificationConfirm grade and product standard.
Stock conditionConfirm bar, billet and the actual supplied condition.
Final-fit reviewDefine datums, fits and thermal sequence.
Material recordsAgree receiving and inspection evidence.
Choose Your Material by the Requirement That Controls the Part
These four grades serve different selection questions. Start with the final fit, required condition and records, then review the exact material standard for your part.
Specify the requested grade with product form and condition.
Compare chemistry, condition and acceptance separately.
Product form, section and annealed or pre-hardened state.
Specified treatment, protection and final-fit dimensions.
Material identity, lot records and agreed inspection.
Select Your Grade and Review the Finished Part
Select your part family, then review the four decisions that control your order.

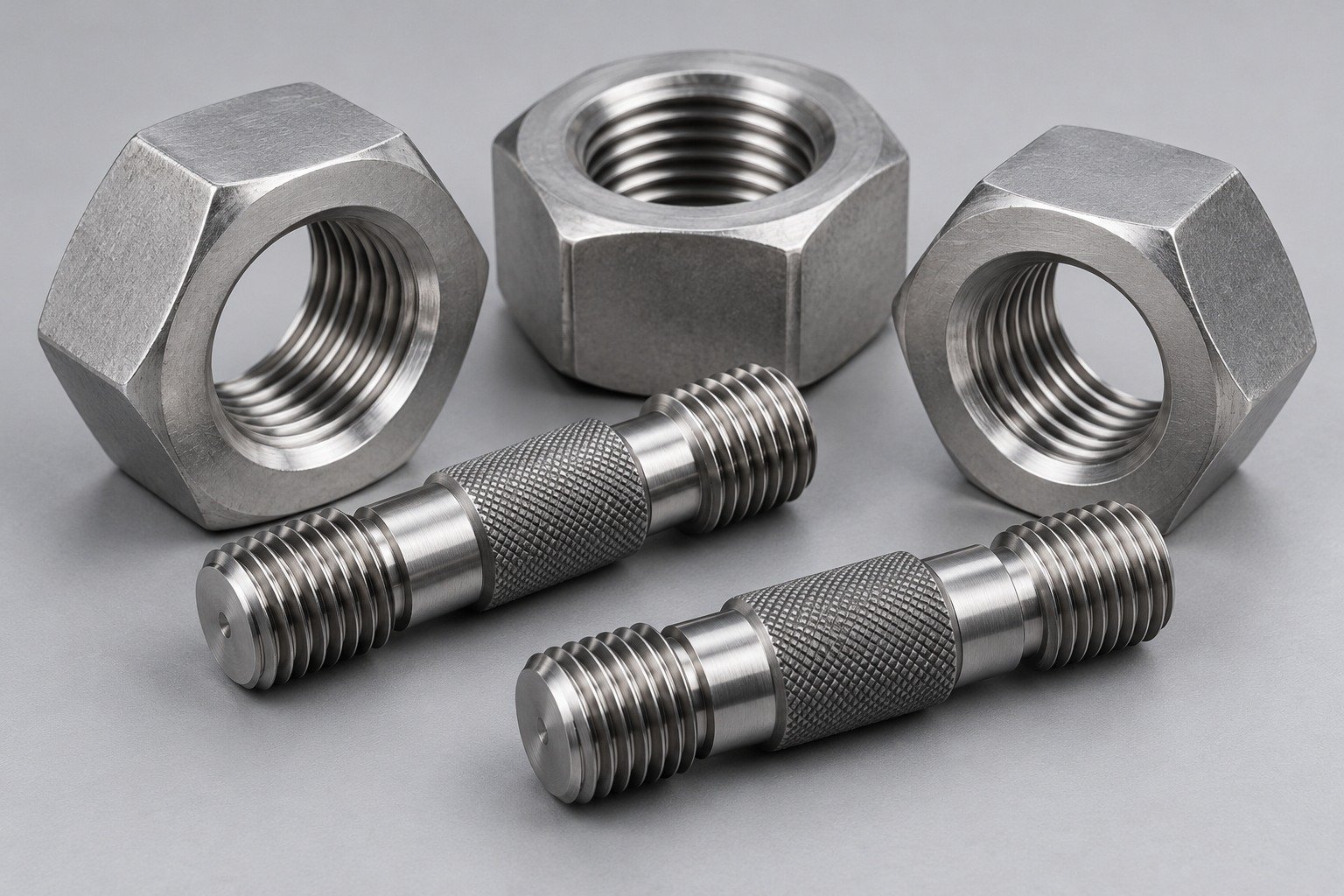

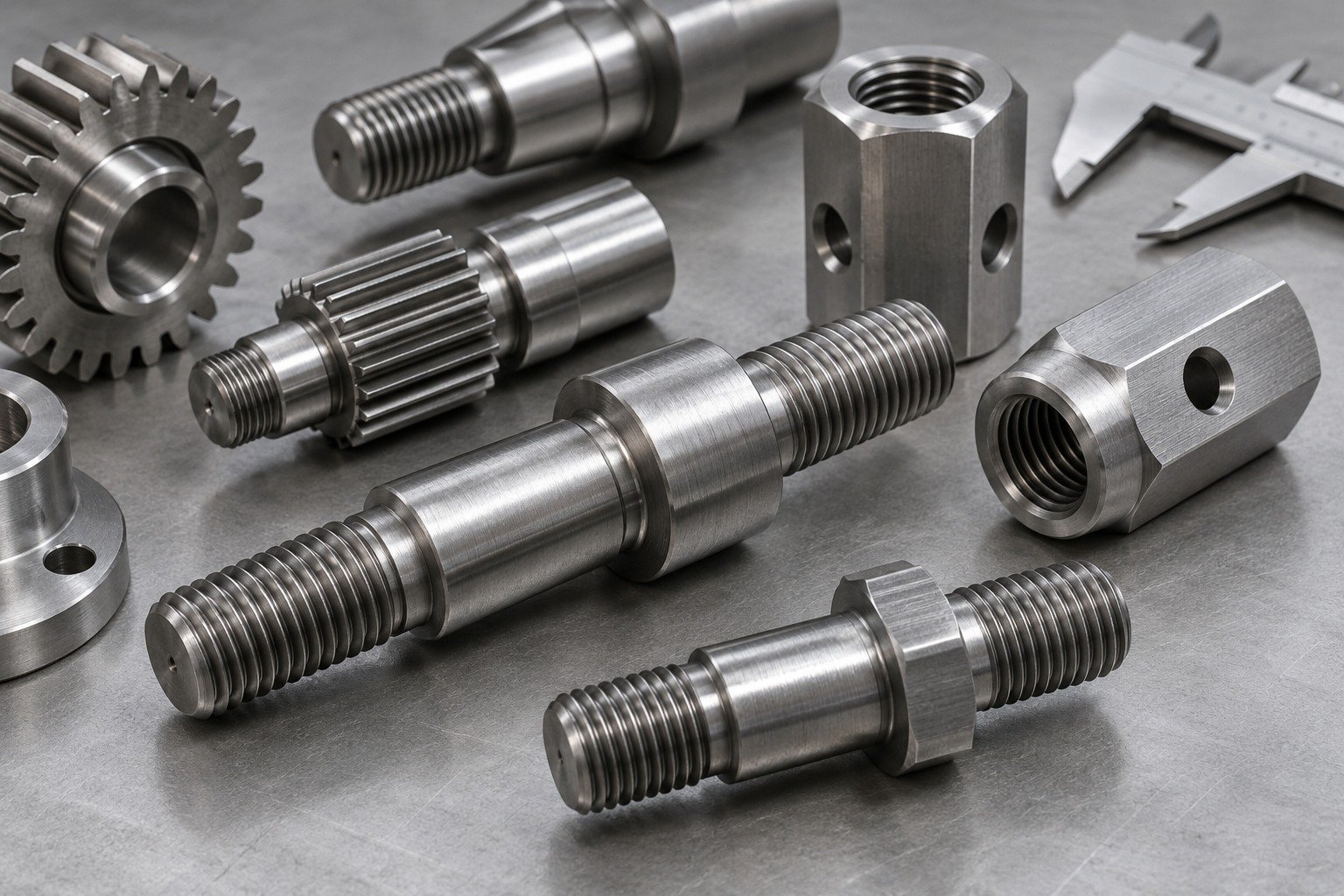

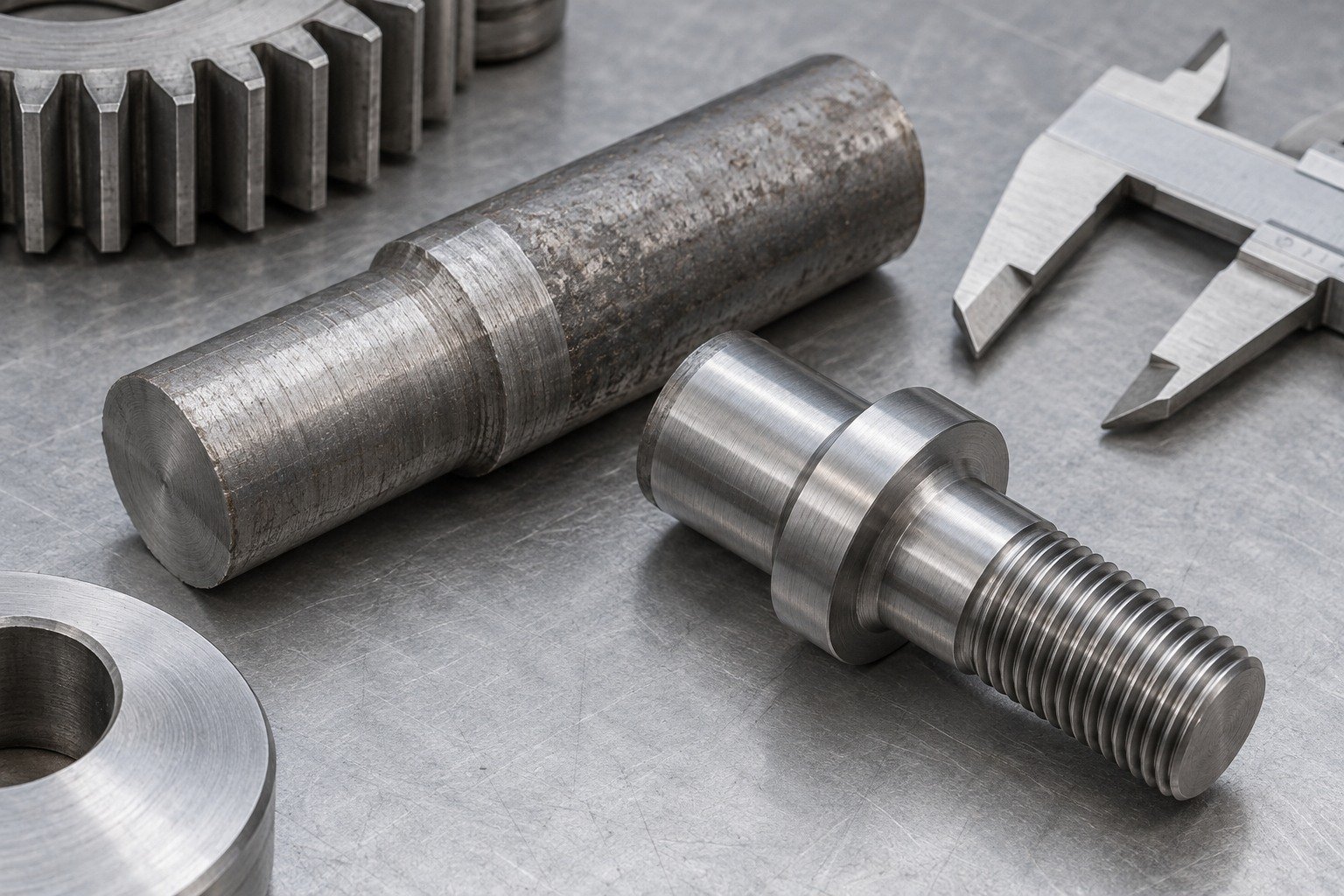

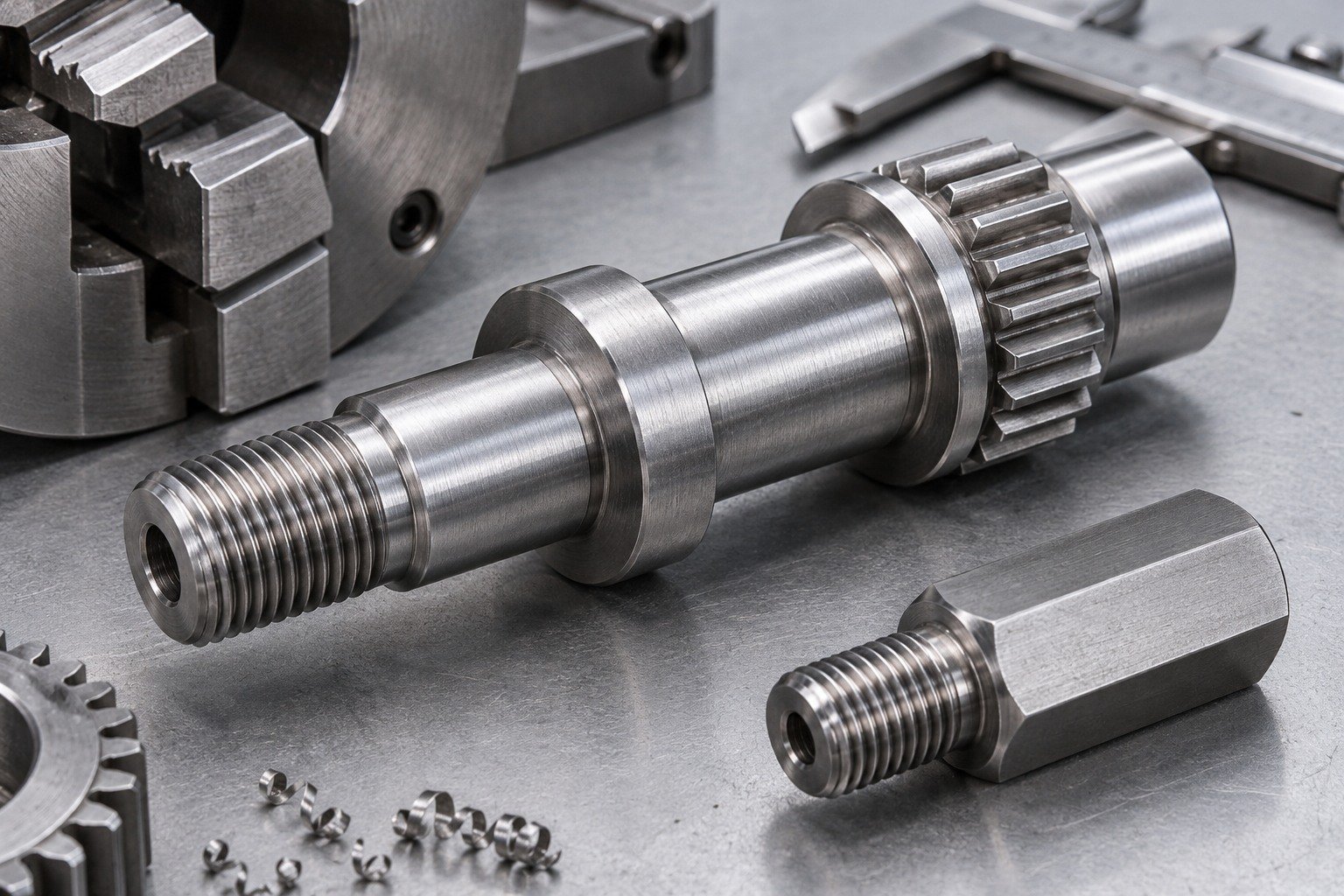

Define Your 1117 Part Before Choosing Stock
For your 1117 steel machining inquiry, identify threads, shoulders, bores and any specified case requirement. Keep the 1117 carbon steel product specification and supplied state with the drawing.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

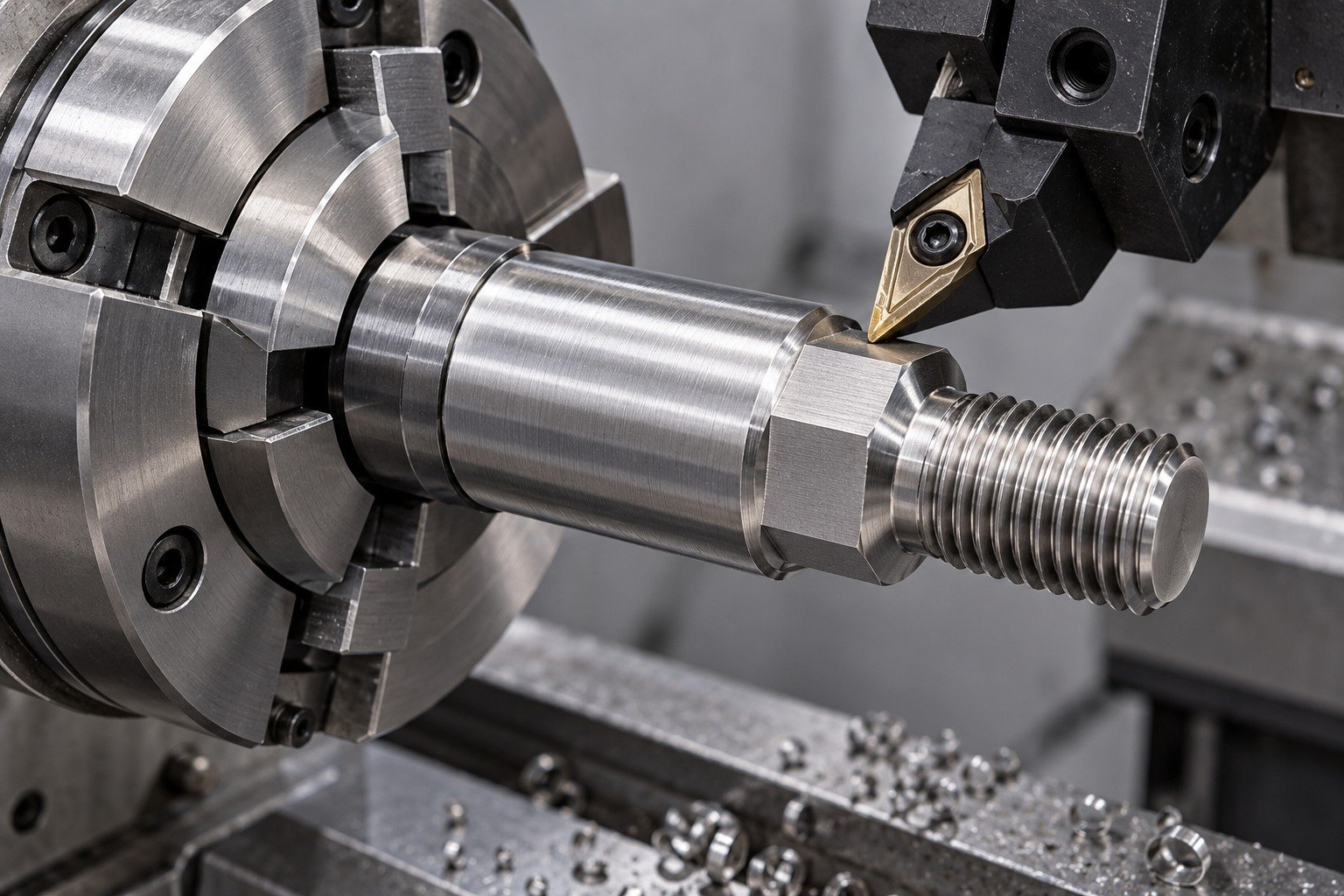

Sequence Turning and Secondary Features
Review thread relief, useful engagement and burr access. Separate primary turning from cross-holes, flats and any finishing requirements.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Specify Case Requirements Where Needed
For 1117 steel carburizing, agree the case-depth definition, core requirement, masking and final dimensional acceptance. The grade name does not establish one treatment result.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Agree the Thread and Bore Evidence
Define final gauging, burr acceptance, mating fits and required records. For 1117 vs 1018 steel, approve the complete standard and condition before substitution.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

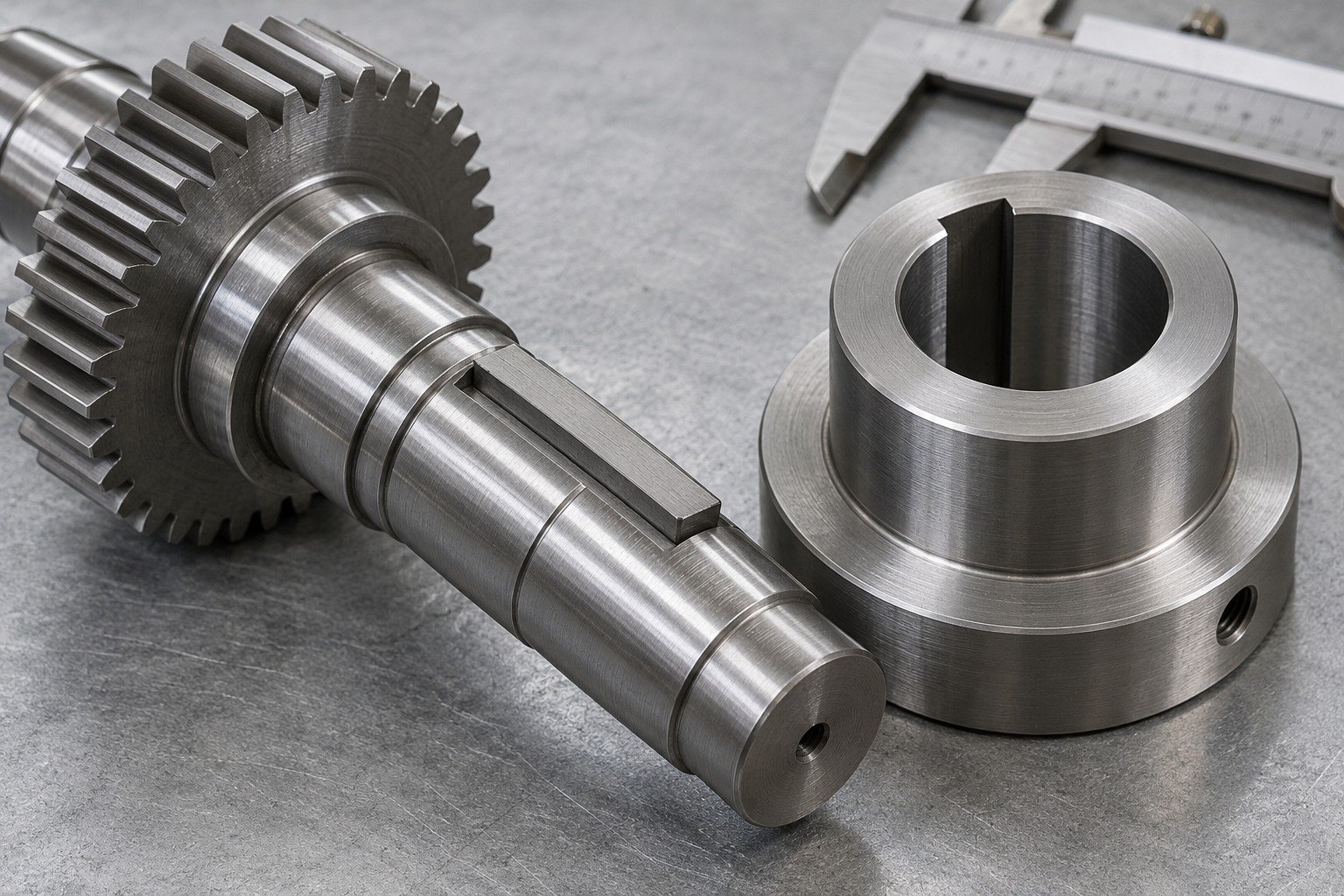

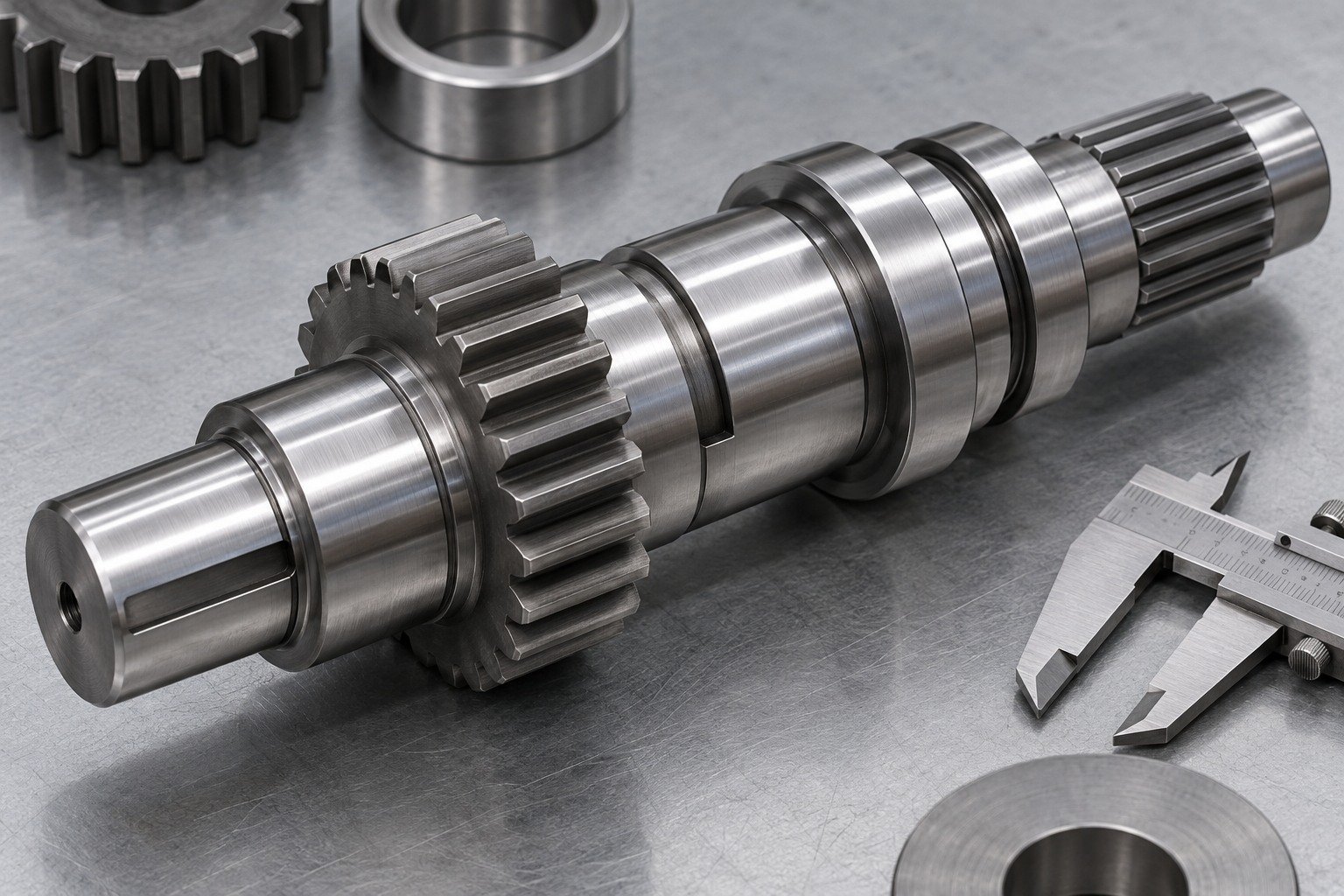

Connect the Shaft Fit to the Supplied Product
For your 1144 steel machining and custom 1144 steel shafts, identify journal fits, shoulders, keyways and the exact supplied condition. Do not treat every 1144 product as a branded stress-relieved product.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

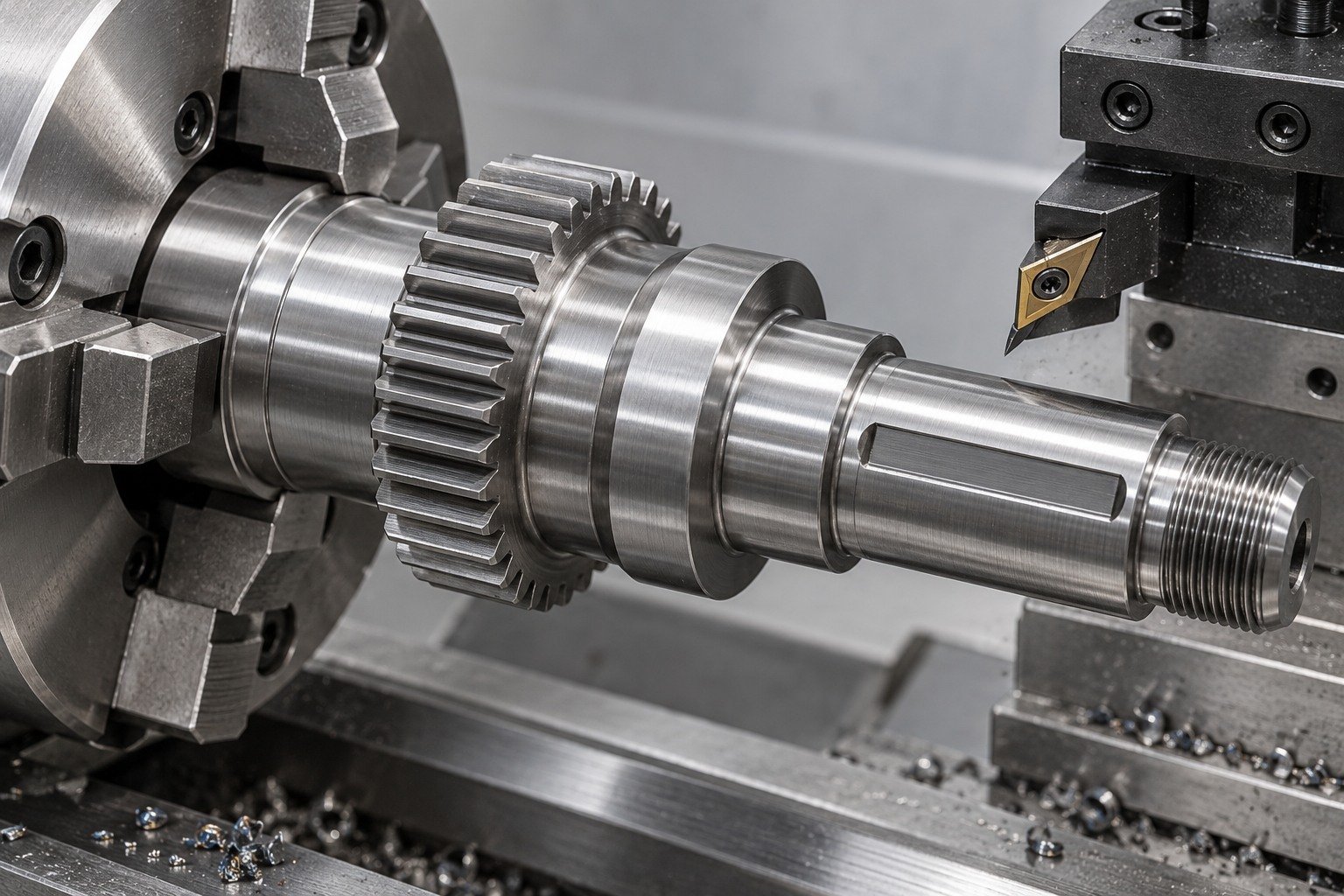

Plan Turning from the Functional Datum
For 1144 steel turning, connect diameters, shoulders and radial features to the assembly datum. Review slender sections and clamping stock before the first setup.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

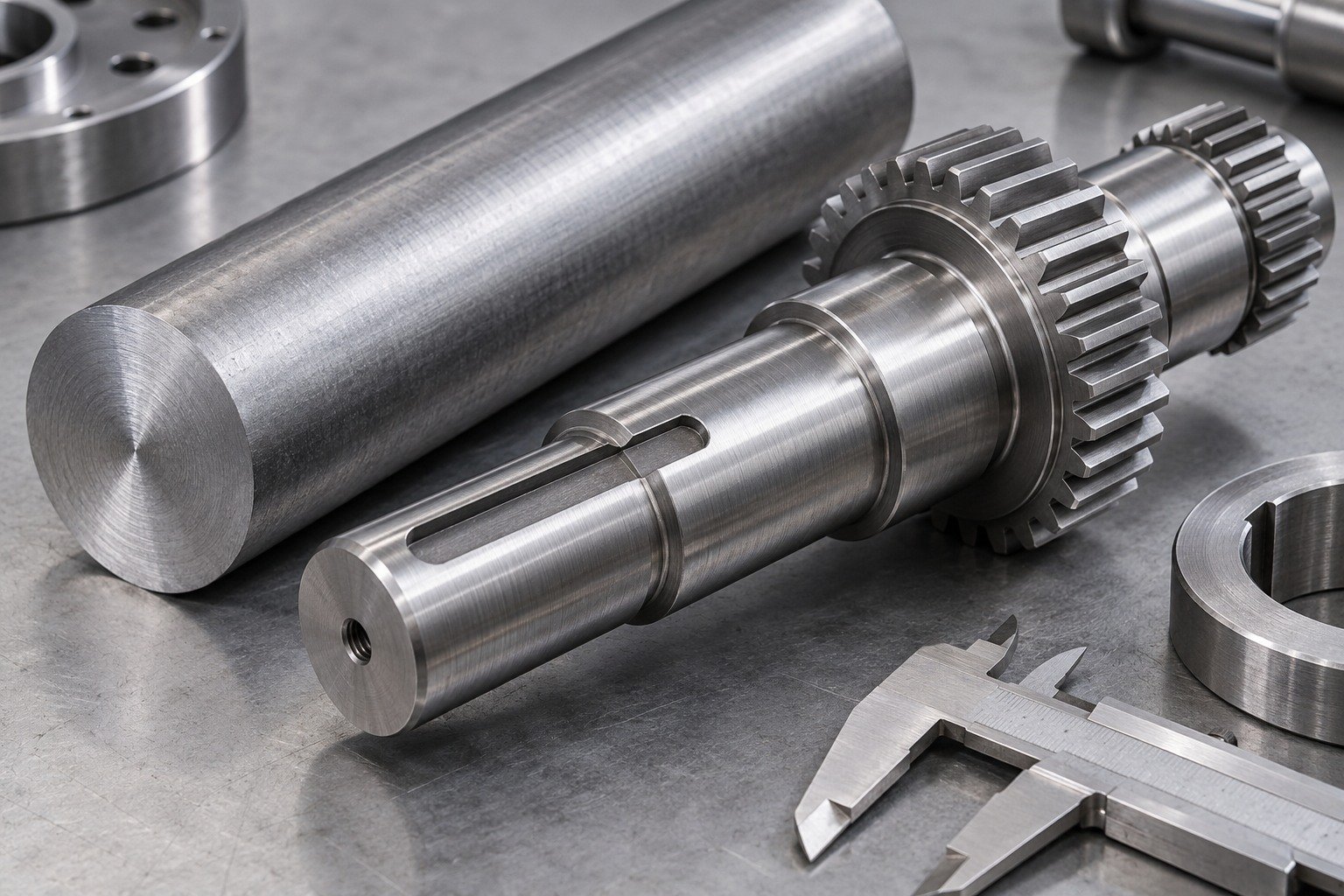

Keep the Manufacturing Condition Explicit
1144 carbon steel references may describe different drawn or treated products. Agree product standard, section and required final evidence instead of assuming one hardness or strength.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

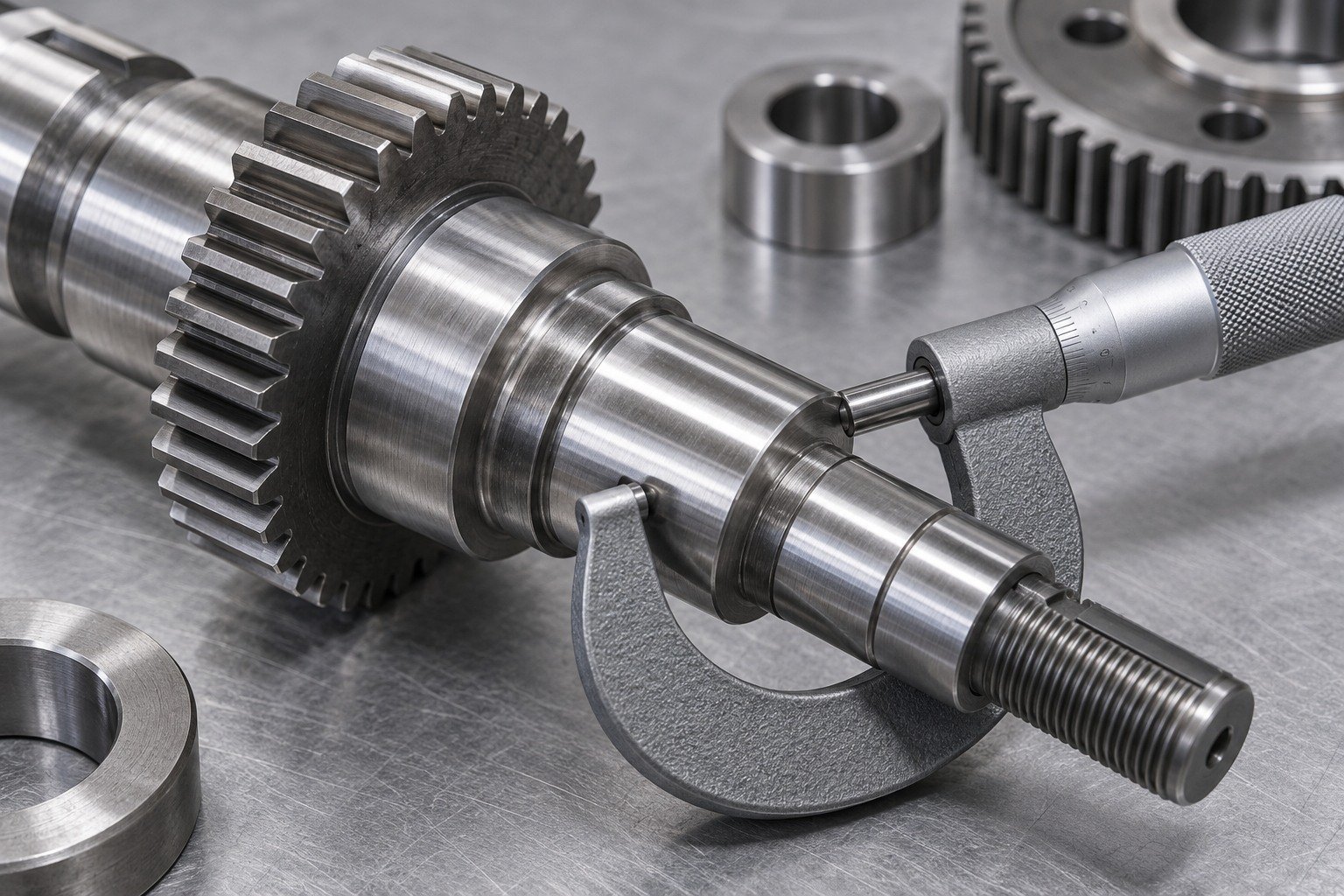

Inspect After the Final Finishing Route
For 1144 steel centerless grinding review, define geometry, acceptance and the actual finishing route. For 1144 vs 1045 steel, compare chemistry and condition before approving a change.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

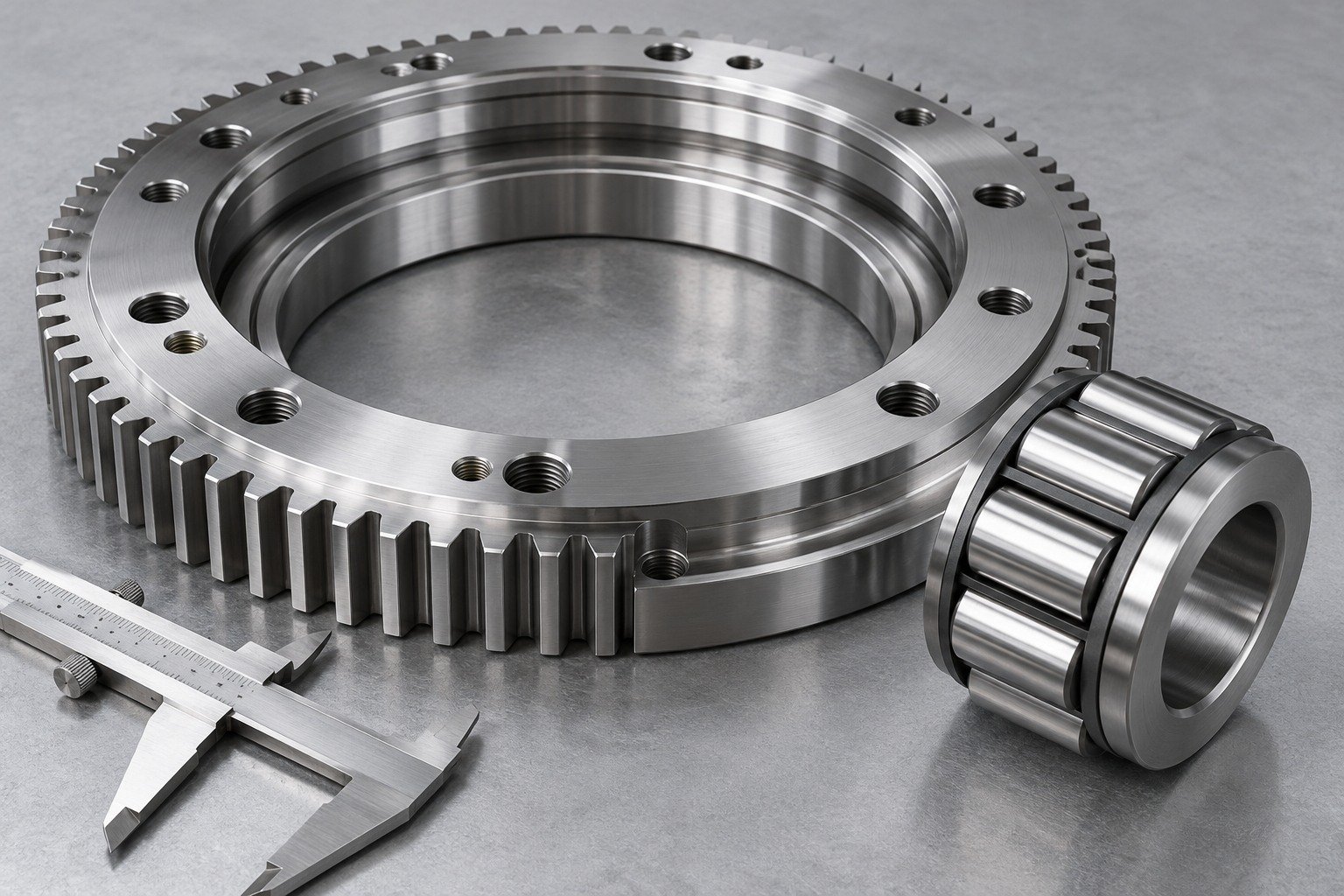

Start with the Bearing Interface
For your 52100 steel machining and custom 52100 steel parts, identify raceway or bore geometry, mating lands and required final condition. Separate bearing material selection from bearing design approval.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

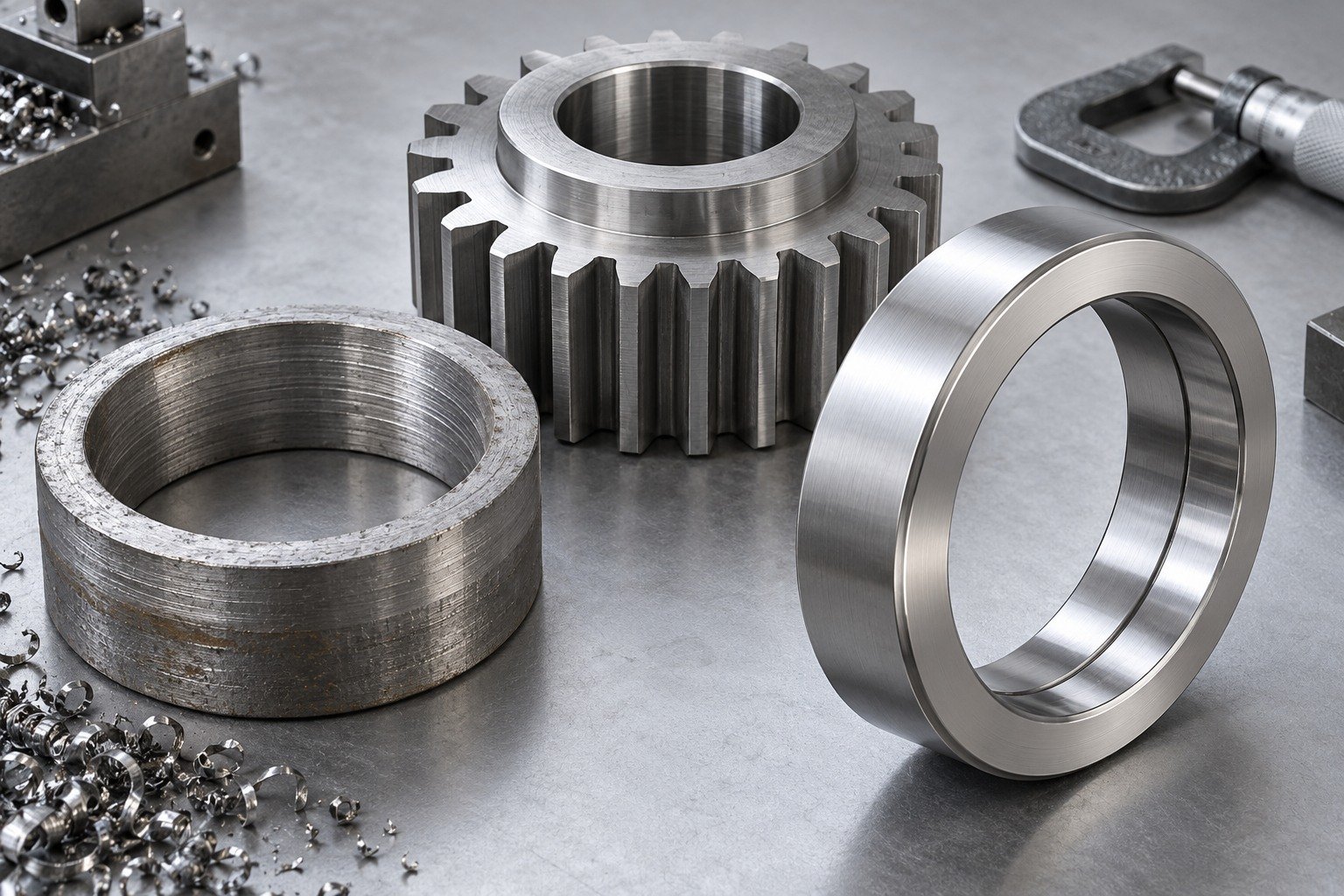

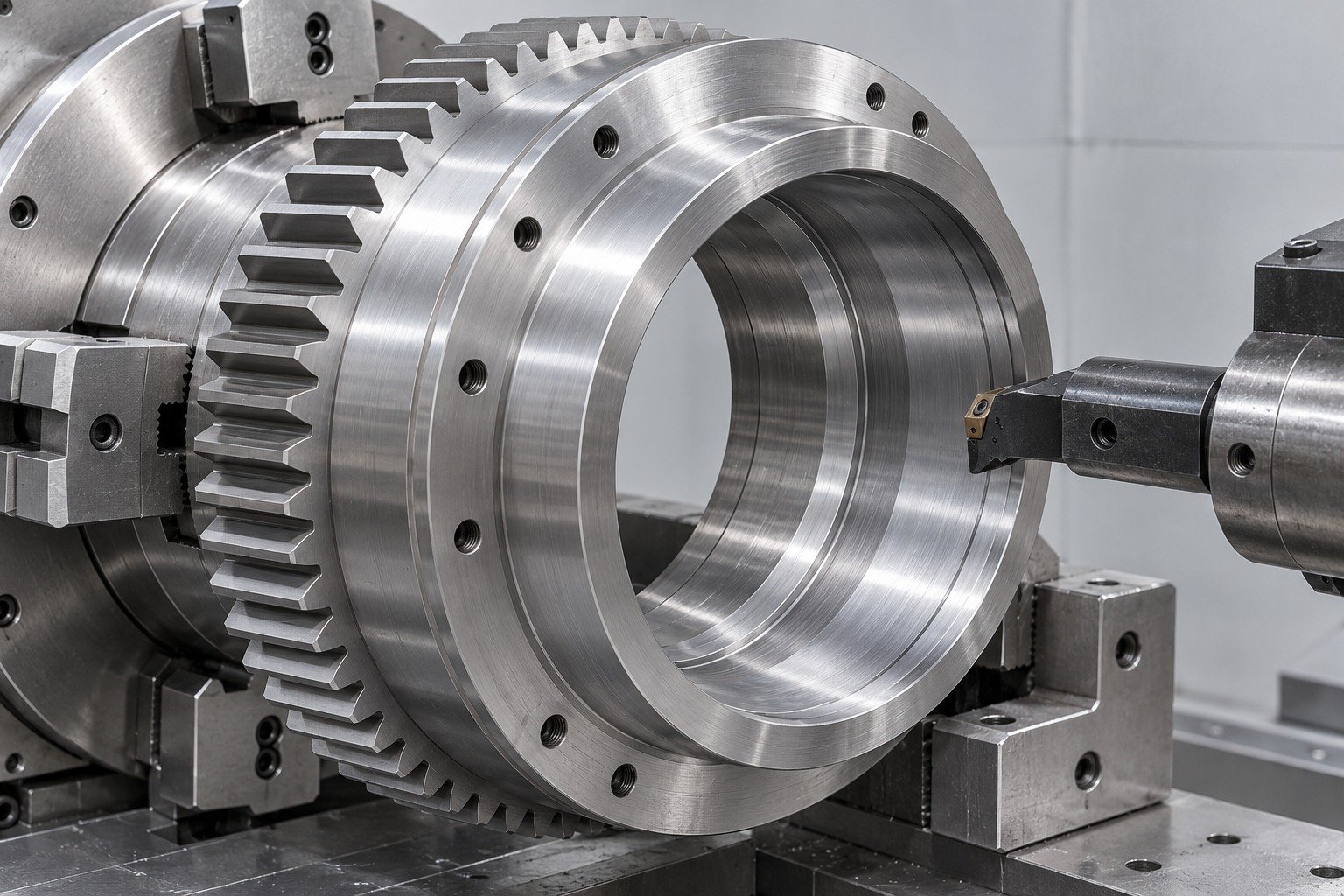

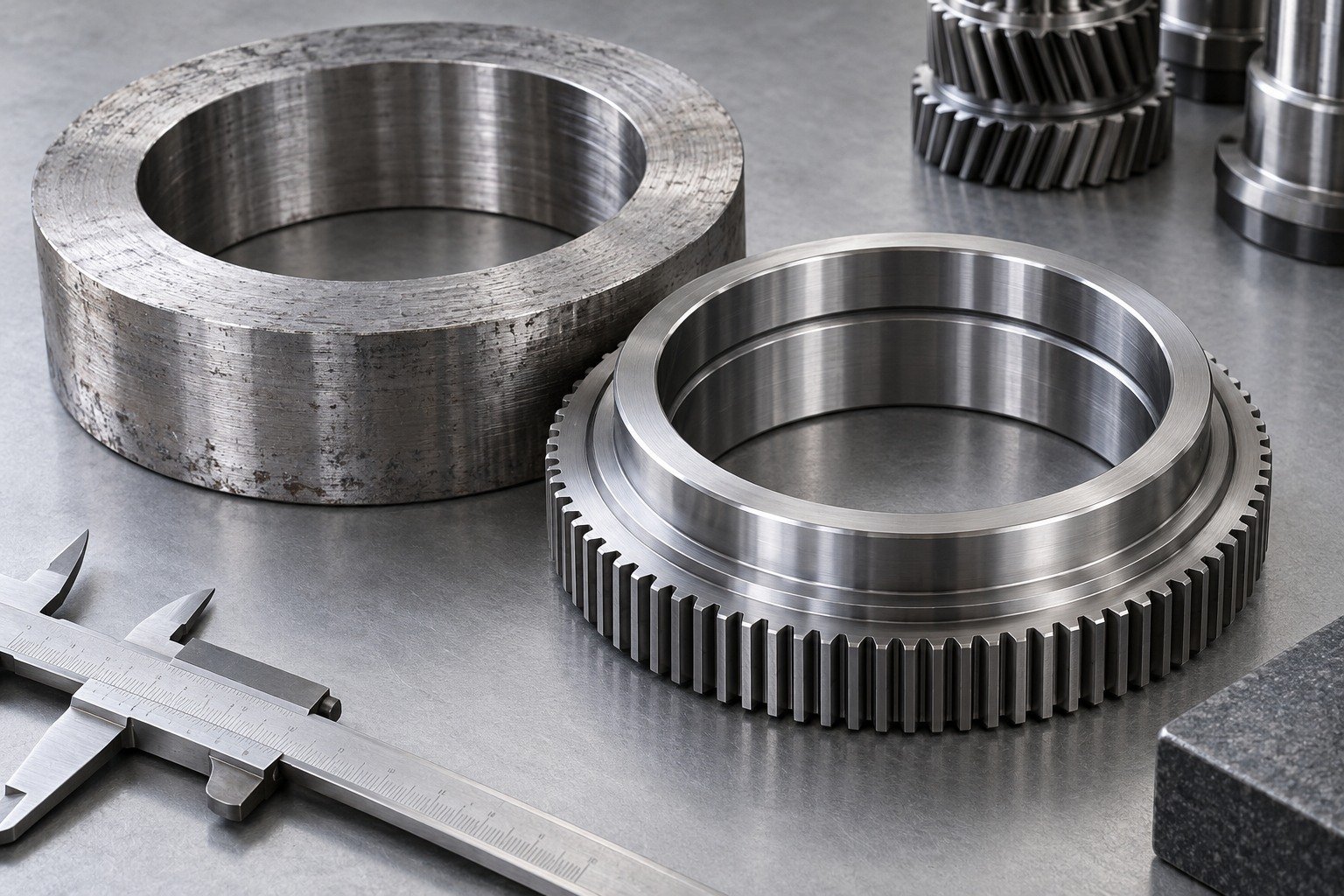

Plan Machining Around the Incoming Condition
State whether the 52100 alloy steel stock is supplied annealed or in another specified condition. Review tool access and the route before assuming hardened machining is suitable.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Define Treatment and Remaining Allowance
For 52100 steel heat treatment, agree section, target condition, locations and final acceptance. Keep distortion and permitted finishing allowance explicit.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

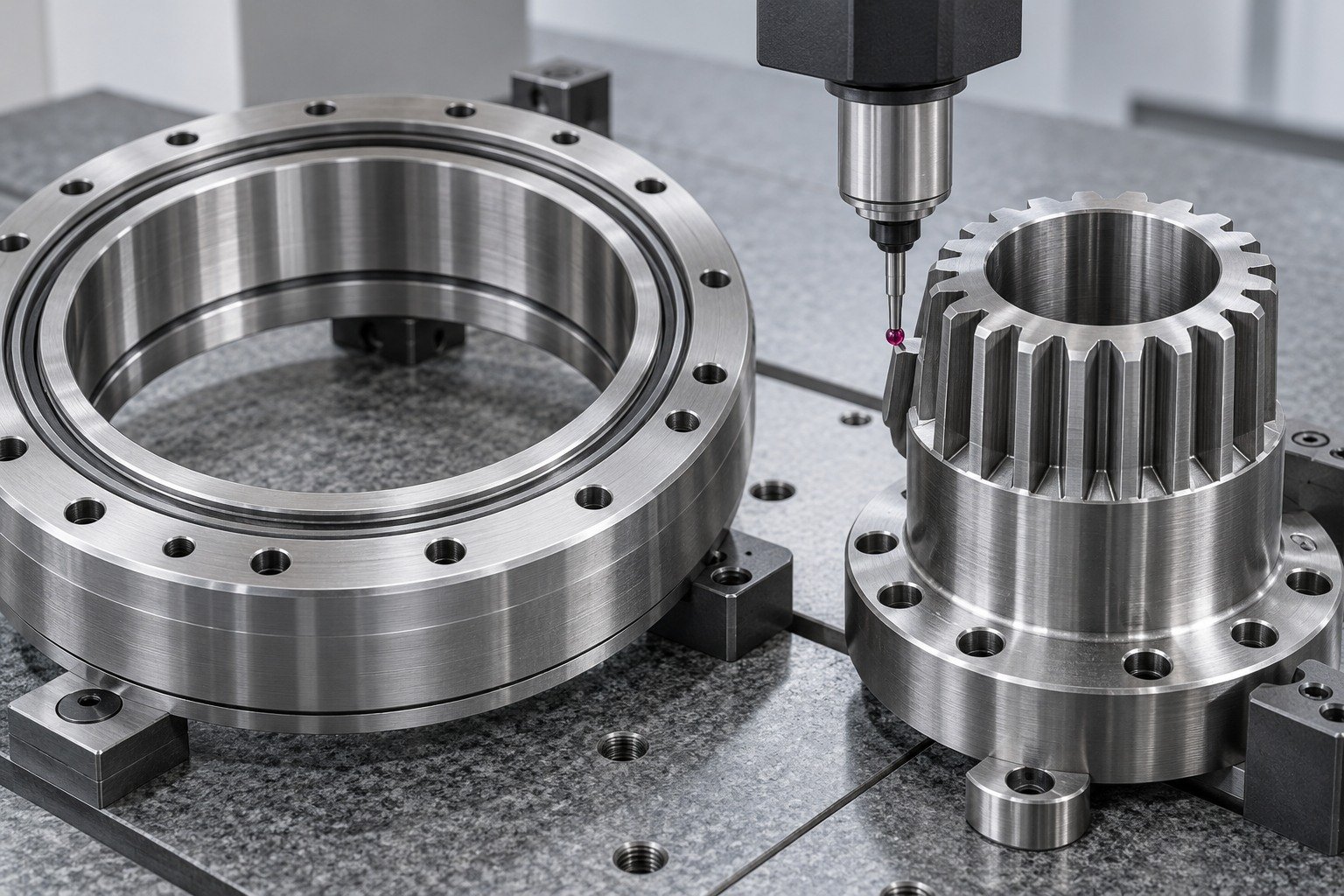

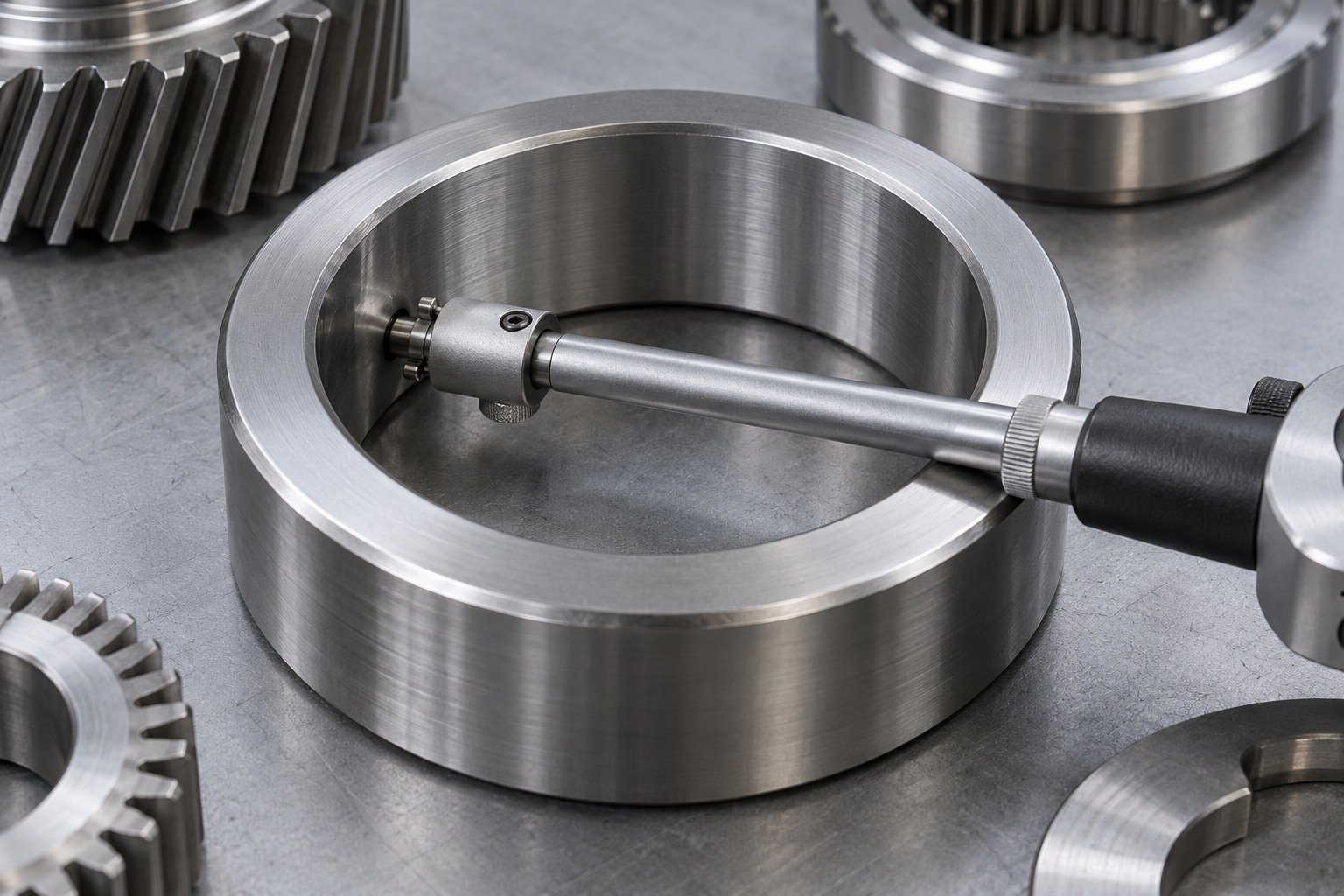

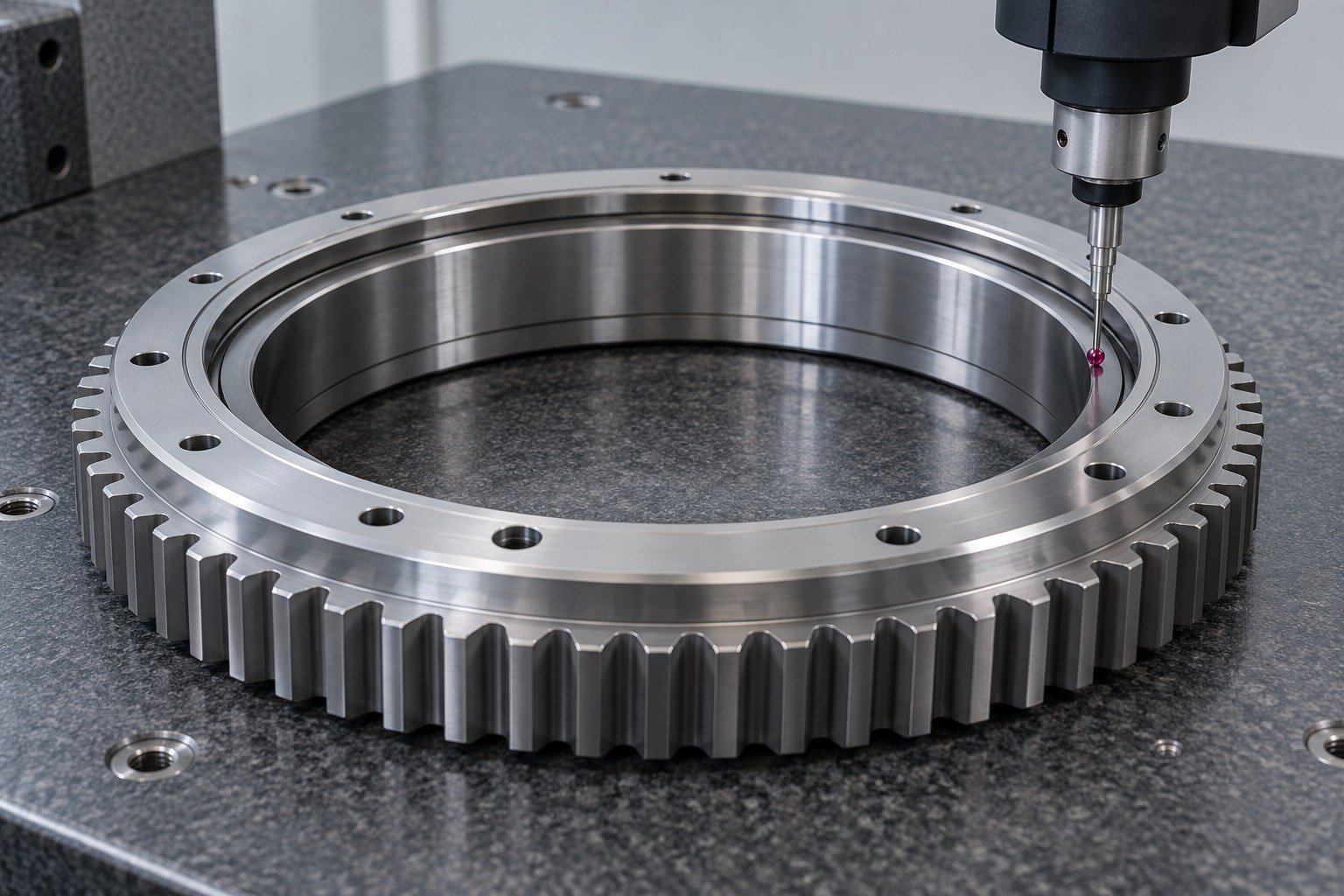

Verify the Finished Bearing Geometry
For 52100 steel grinding, define the finished surface, bore or raceway relationships and inspection method. For 52100 vs 4140 steel, review the different chemistry and condition requirements.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

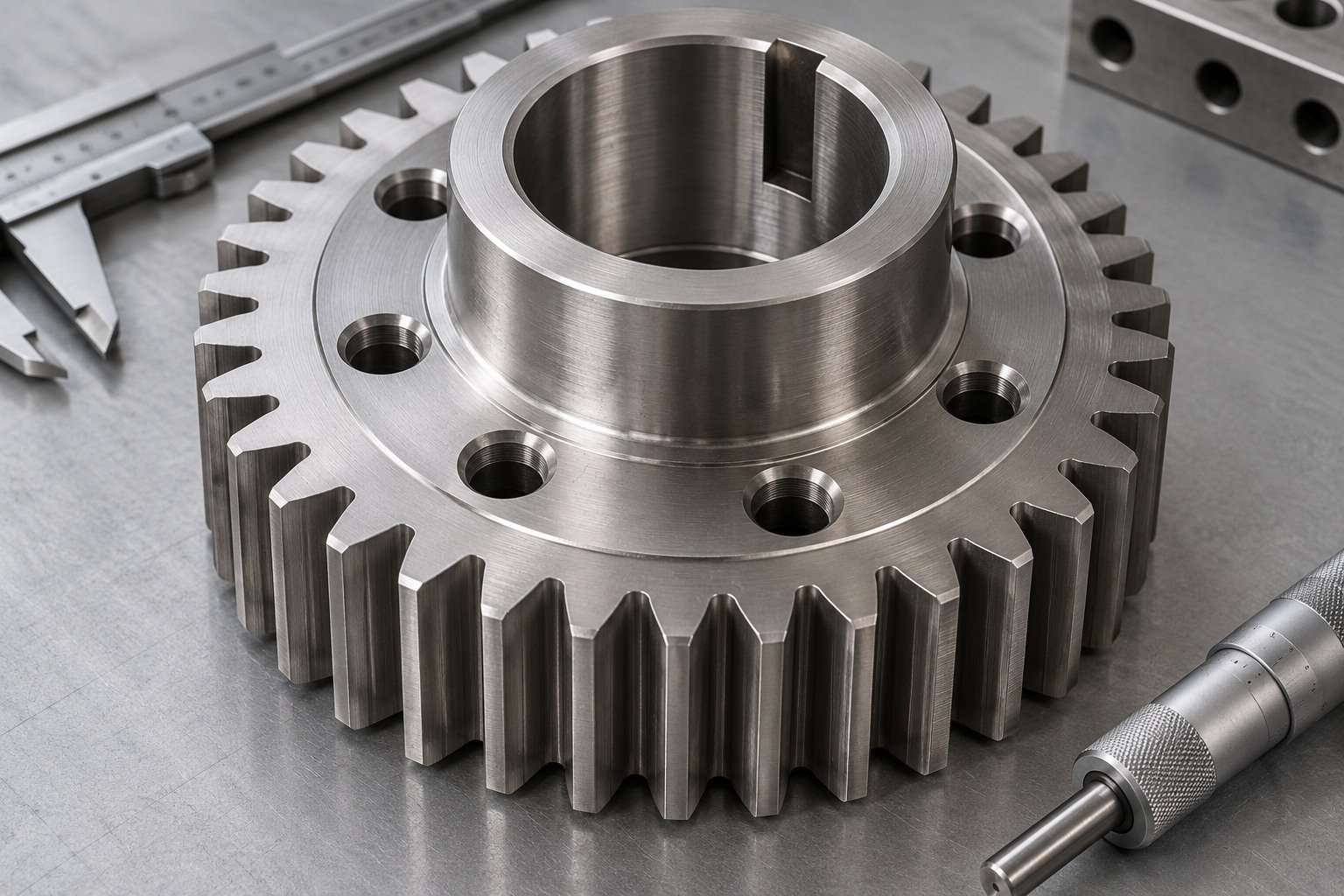

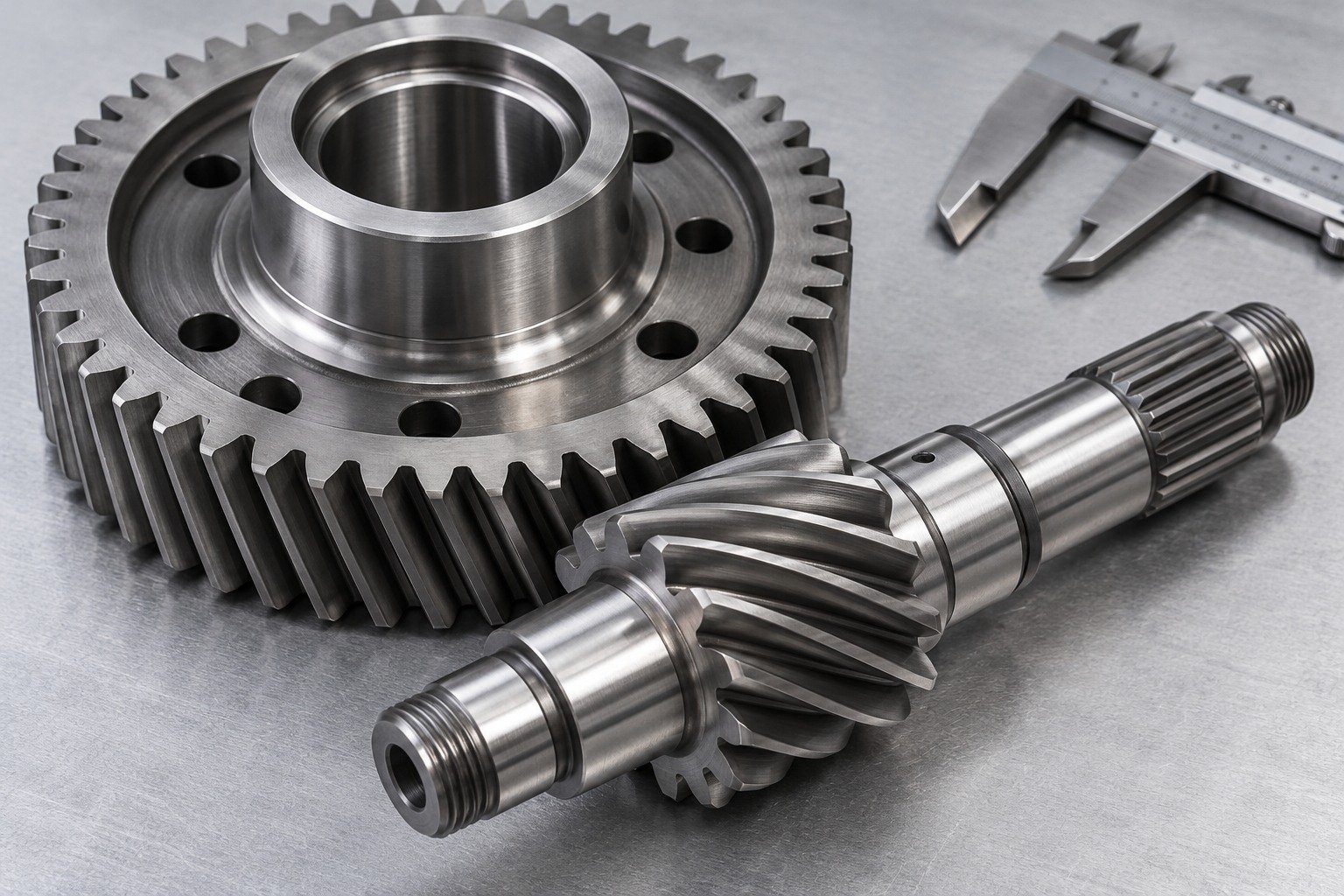

Connect Your Gear Drawing to Case and Core
For your 9310 steel machining and custom 9310 steel gears, specify tooth geometry, locating interfaces and required case/core condition. The actual tooth process and inspection scope require review.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

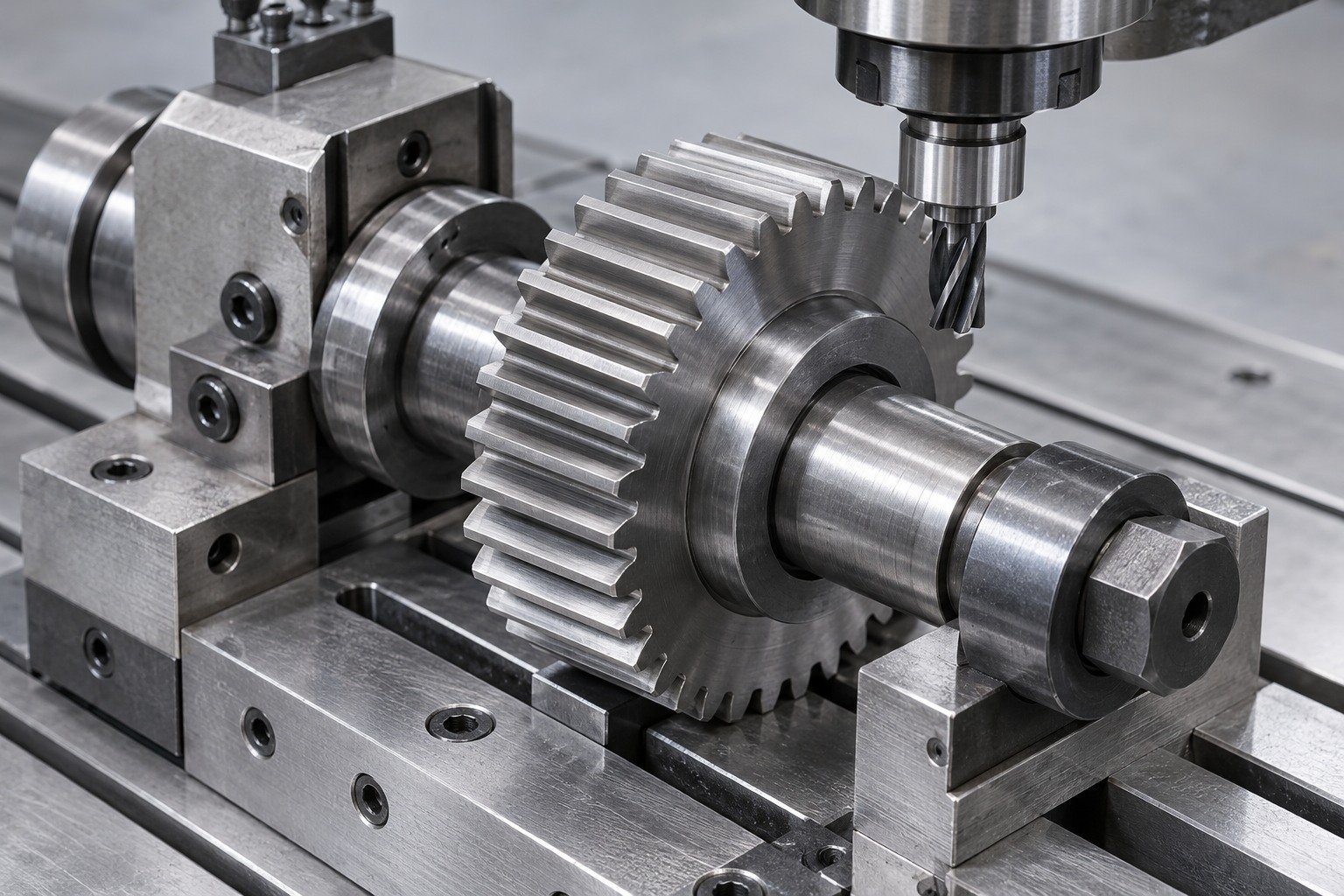

Separate Blank Machining from Tooth Work
For your 9310 alloy steel inquiry, identify blank, hub and bore work separately from tooth generation. Agree the complete manufacturing and acceptance route.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

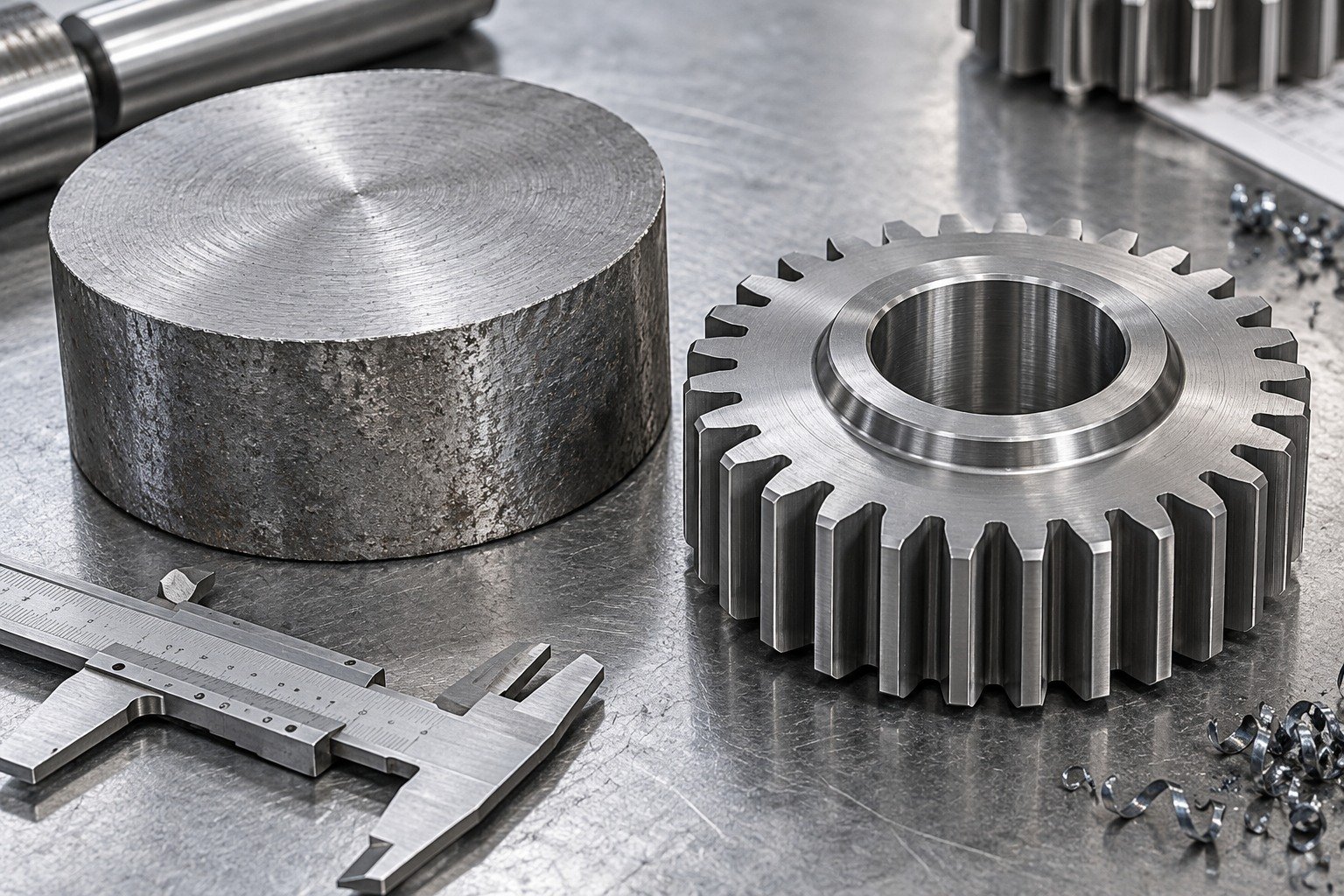

Define the Case Before Carburizing
For 9310 steel carburizing, specify effective or total case depth, test locations, core requirements and protected areas. Do not select a depth from a generic gear example.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

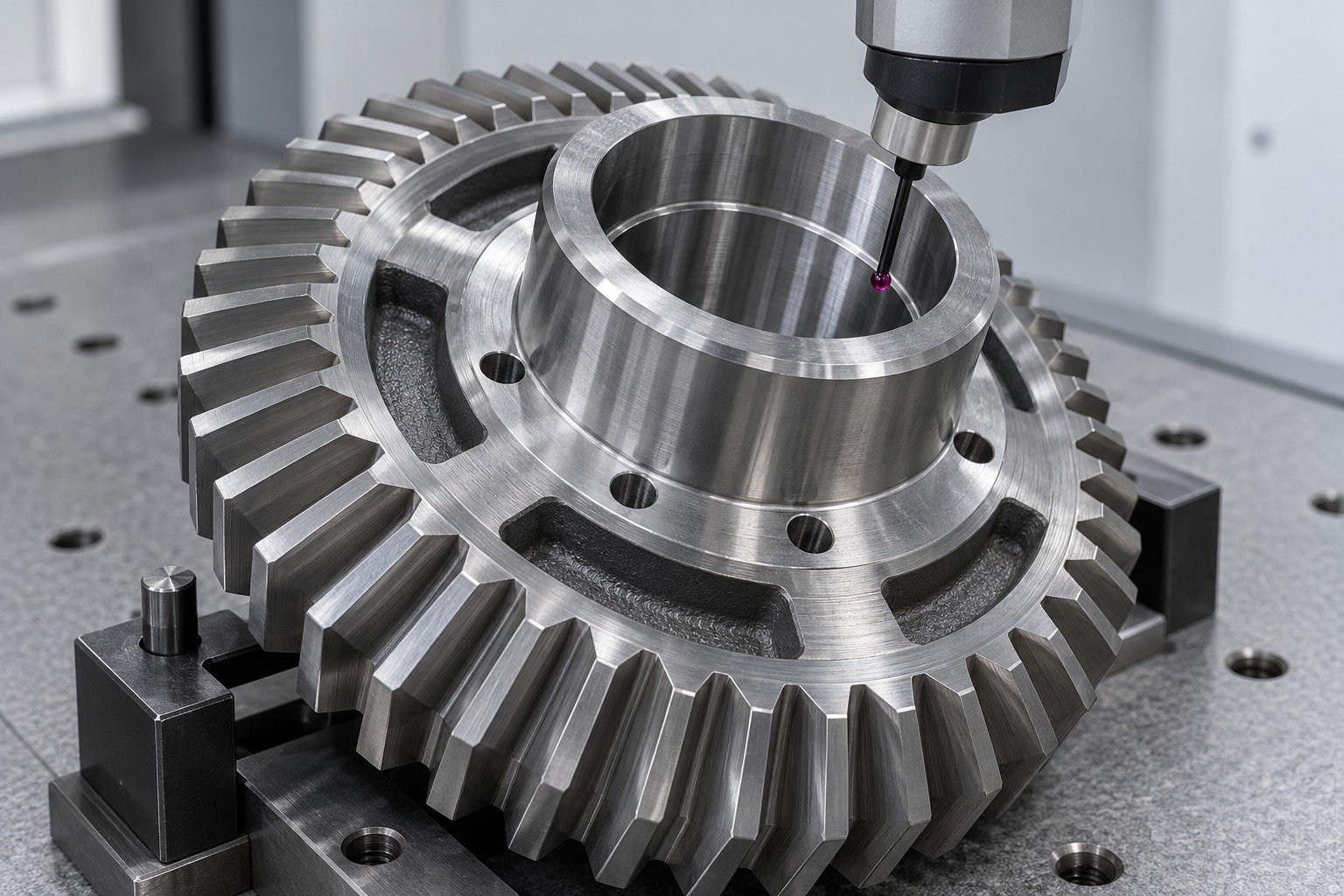

Limit Finishing Removal and Verify the Final Part
For 9310 steel grinding, agree allowance and final case verification. For 9310 vs 4340 steel, compare the required route and complete specification before substitution.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Match the Grade to Your Final Requirement
A grade comparison is useful only when the product and final condition are explicit.
| Selection question | What to confirm |
|---|---|
| 1117 or 1144 turned part | Chemistry, product route, stock condition and final fit |
| 52100 bearing feature | Incoming state, treatment, finishing and bearing geometry |
| 9310 carburized component | Case/core definitions, tooth route and final evidence |
Material names are not interchangeable process plans.
Keep the ordered standard, section and supplied state explicit.
Other grade required?
For 1040 carbon steel or another callout, send the exact specification and required condition for review before availability and process scope are confirmed.
Compare Composition and European Material Names
Selected producer references help you frame the comparison. Your ordered specification and material record govern acceptance.
Carbon: Compare Ranges with the Nominal Reference
Mass % · common axis 0–1.20%
1117 · Eaton range
0.14–0.2%
1144 A311 · Eaton range
0.4–0.48%
52100 · Sullivan range
0.98–1.1%
9310 · Sullivan nominal
0.10% nominal
00.60%1.20%
Ranges and a nominal point are labelled separately. This is not a lot analysis, hardness score or grade ranking.
| Selected mass % | 1117 · Eaton | 1144 A311 · Eaton | 52100 · Sullivan | 9310 · Sullivan nominal |
|---|---|---|---|---|
| C | 0.14–0.20 | 0.40–0.48 | 0.98–1.10 | 0.10 nominal |
| Mn | 1.00–1.30 | 1.35–1.65 | 0.25–0.45 | 0.50 nominal |
| S | 0.08–0.13 | 0.24–0.33 | <0.03 | Not reported here |
| Cr | Not reported here | Not reported here | 1.30–1.60 | 1.20 nominal |
| Ni | Not reported here | Not reported here | Not reported here | 3.25 nominal |
Selected elements only. “Not reported here” does not mean zero.
| US grade | European search / comparison name | Review before substitution |
|---|---|---|
| 1117 | 15SMn13 / 1.0725 | Producer comparison; limits and product route require approval |
| 1144 | 44SMn28 / 1.0762 | Historical producer comparison; ordered condition still governs |
| 52100 | 100Cr6 / 1.3505 | Bearing-steel reference; exact standard and variant must match |
| 9310 | 10NiCrMo13-5 | Producer-listed designation; do not assume blanket equivalence |
Eaton: 1117 ↗ · Eaton: 1144 A311 ↗ · Sullivan: 52100 ↗ · Sullivan: 9310 ↗
European-name references: Rodacciai 15SMn13 sheet; Roda 44SMn28 sheet rev.04/2013; Saarstahl 100Cr6 sheet. Comparison names are navigation aids, not substitution approval.
Resolve 6 Risks Before You Release the Drawing
Review geometry, material condition and the final route before selecting another steel grade.
Confirm the Full Grade and Product Standard
Keep the exact grade, product form, section, supplied condition and material identity together. A family name alone does not establish your final properties.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect
Plan the Route from the Actual Incoming State
Compare drawn, annealed or specified treated stock. Agree any 1040 steel heat treatment or another requested thermal route separately from the general grade inquiry.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect
Protect the Features That Control Assembly
Identify journals, bores, thread engagement, keyways and final surface requirements. Define datums before choosing setups.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect
Define the Case, Core and Finishing Limits
For a carburized gear or pin, specify case-depth type, test locations, protected areas and permitted finishing removal. Keep the requirement with the controlled drawing.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect

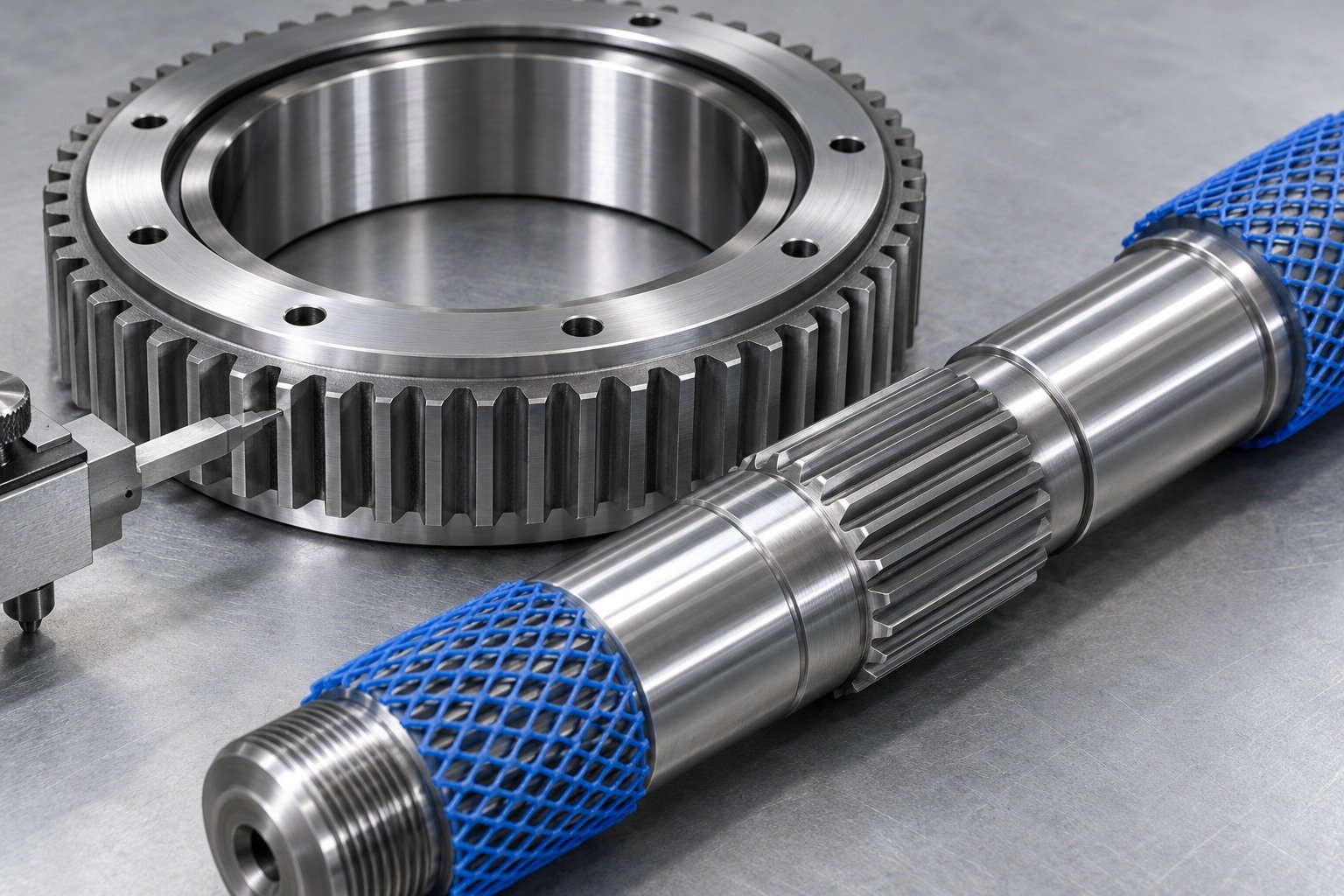

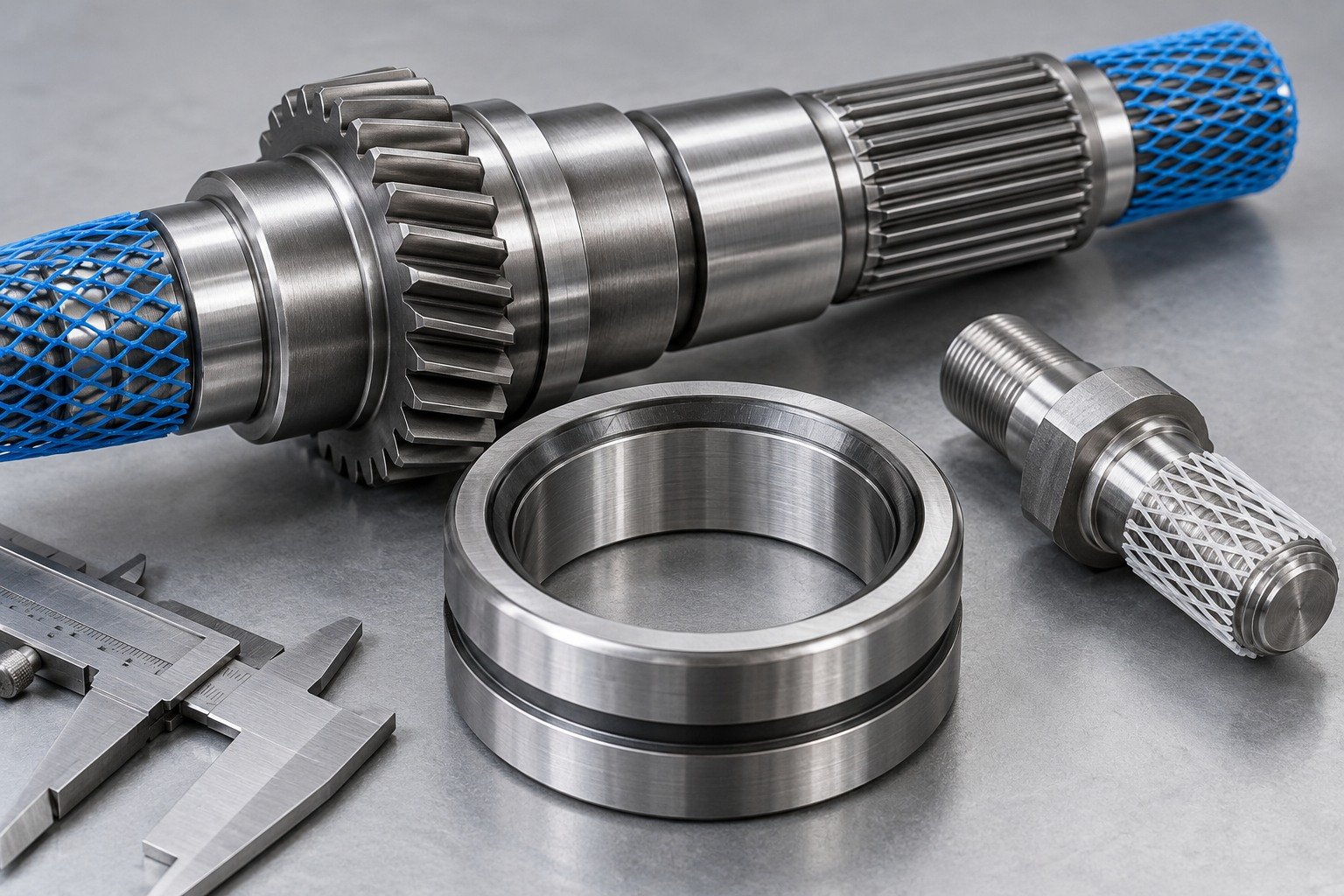

Choose Protection for the Actual Environment
Agree exposure, coating specification, masked fits and shipping protection. None of these carbon/alloy grades should be treated as stainless steel.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect
Agree Evidence for the Finished Condition
Connect material identity, process records and final dimensions. Define the methods, locations and document scope your receiving team requires.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect

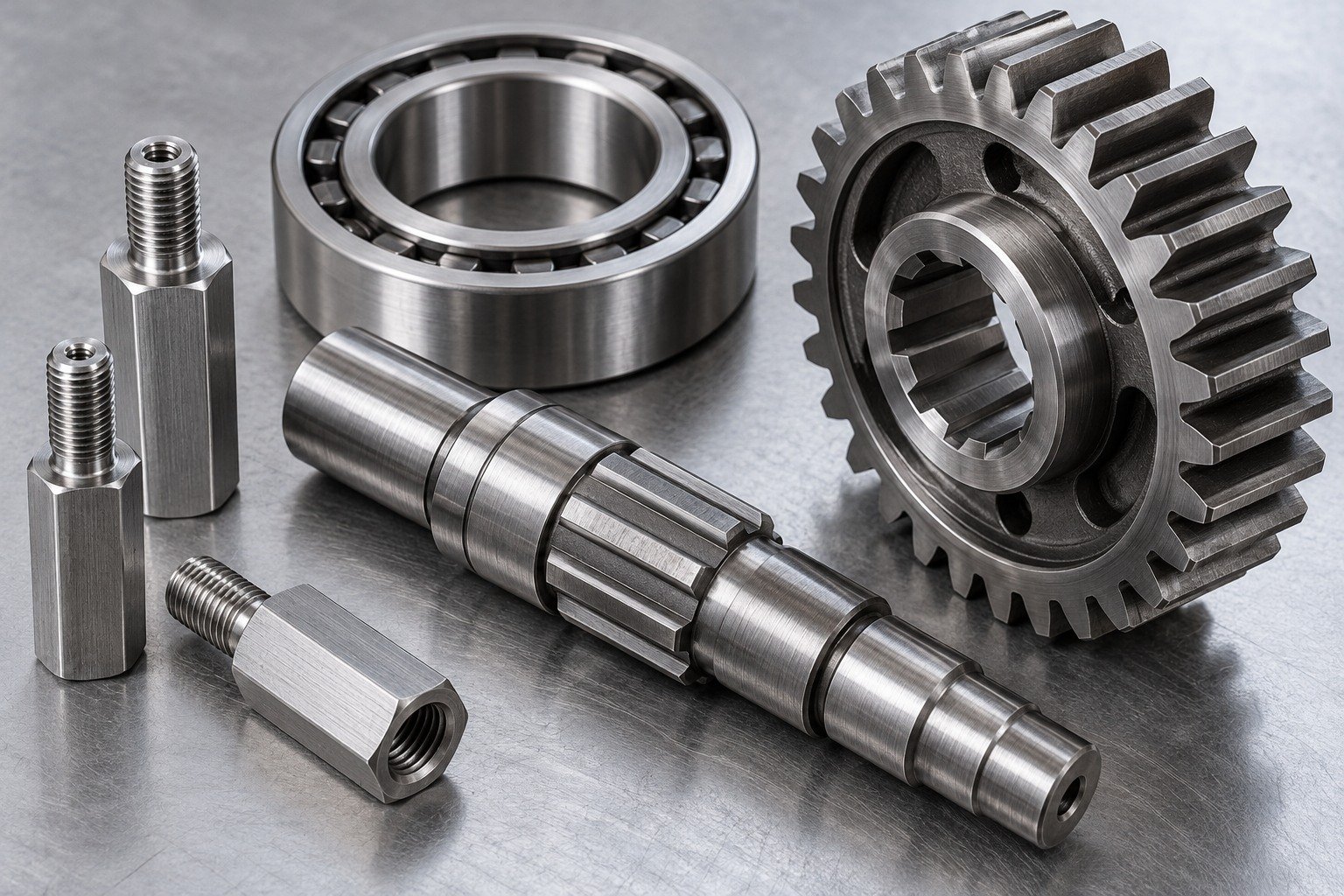

From Your Material to a Finished Component

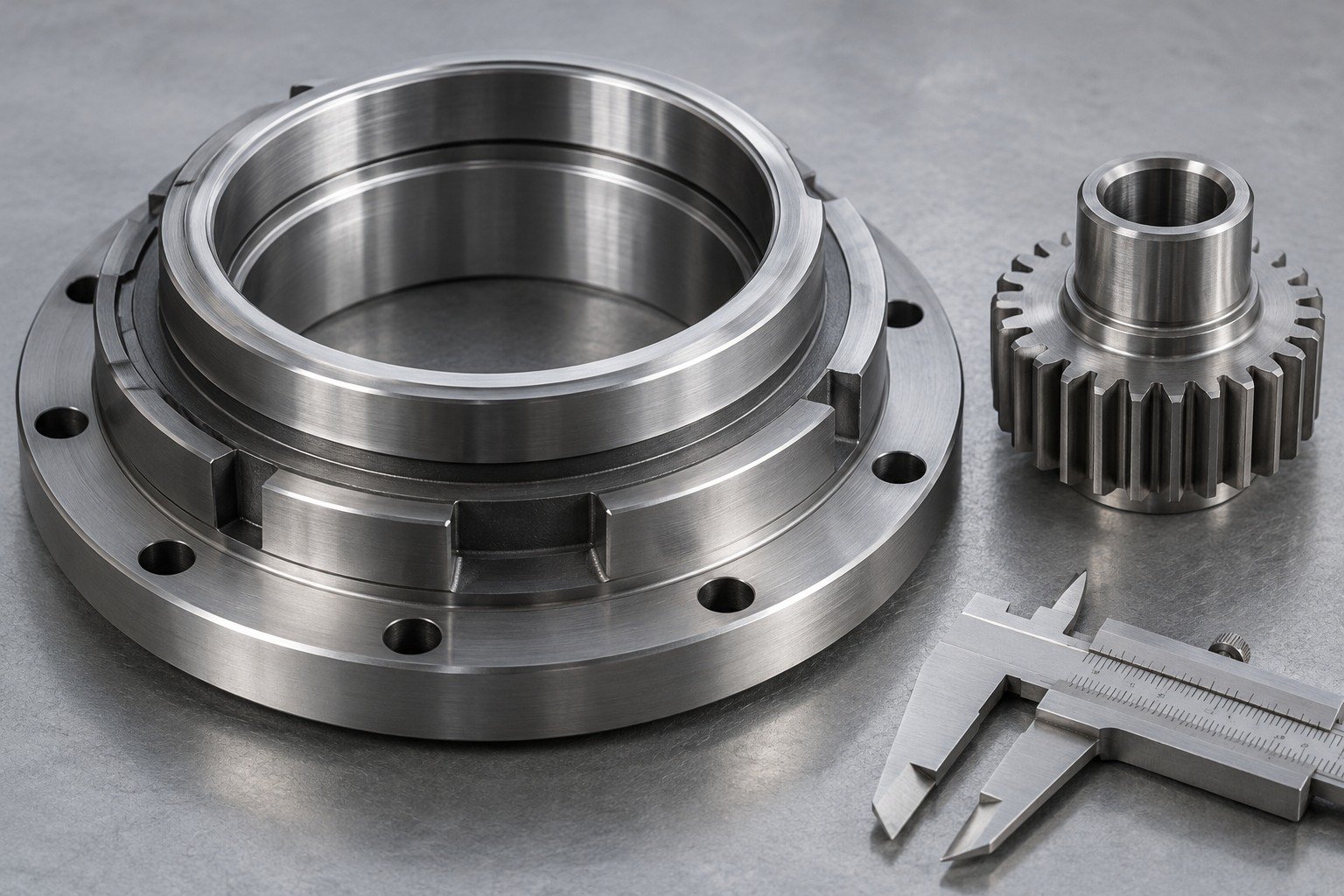

Illustrative components. Operations and availability are confirmed for your drawing.
3 Part States. One Acceptance Drawing.
01 · Incoming material
Grade, product form, section, condition and lot identity.
02 · After specified processing
Specified thermal route, distortion and remaining finishing allowance.
03 · Finished part
Final fits, surface protection and agreed acceptance evidence.
Agree the Evidence Your Receiving Team Needs

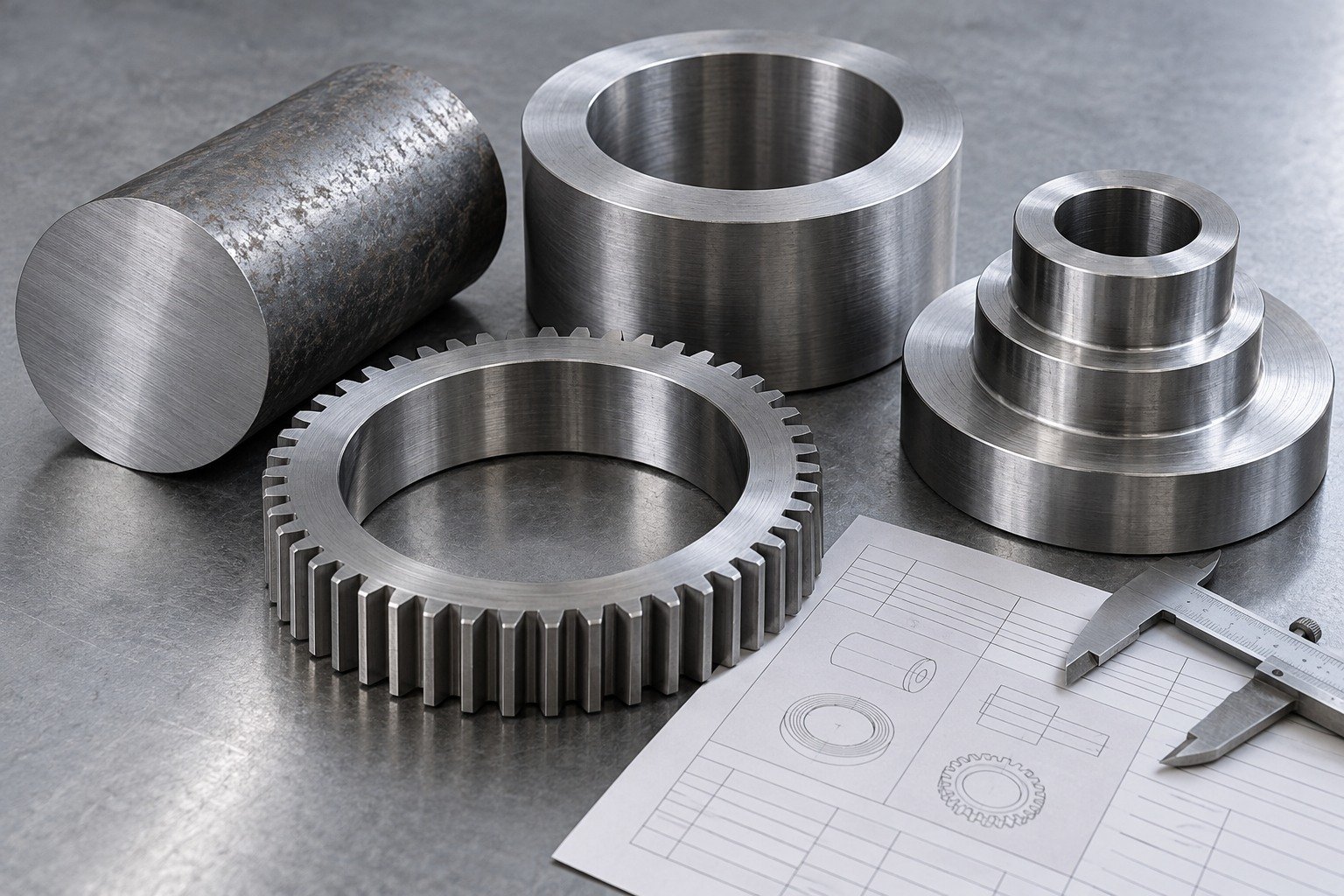

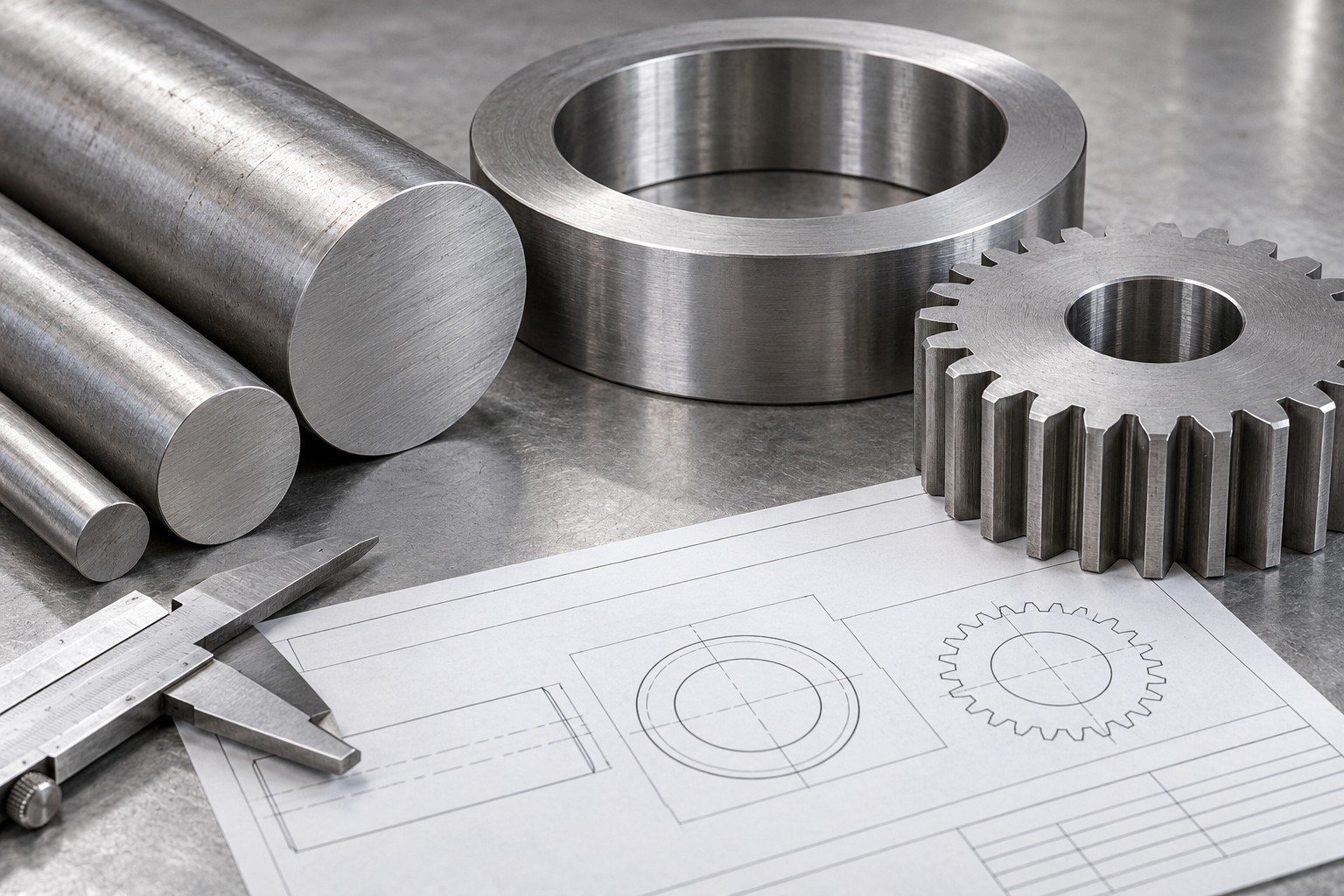

Confirm Your Stock Before the First Setup
Review grade, product standard, form, condition and lot identity. Agree any required material declarations at inquiry.
- Material identity and traceability.
- Critical dimensions and assembly fit.
- Process and finish records, where specified.
Sampling, methods and document scope are agreed with your quotation.
Quality Assurance →

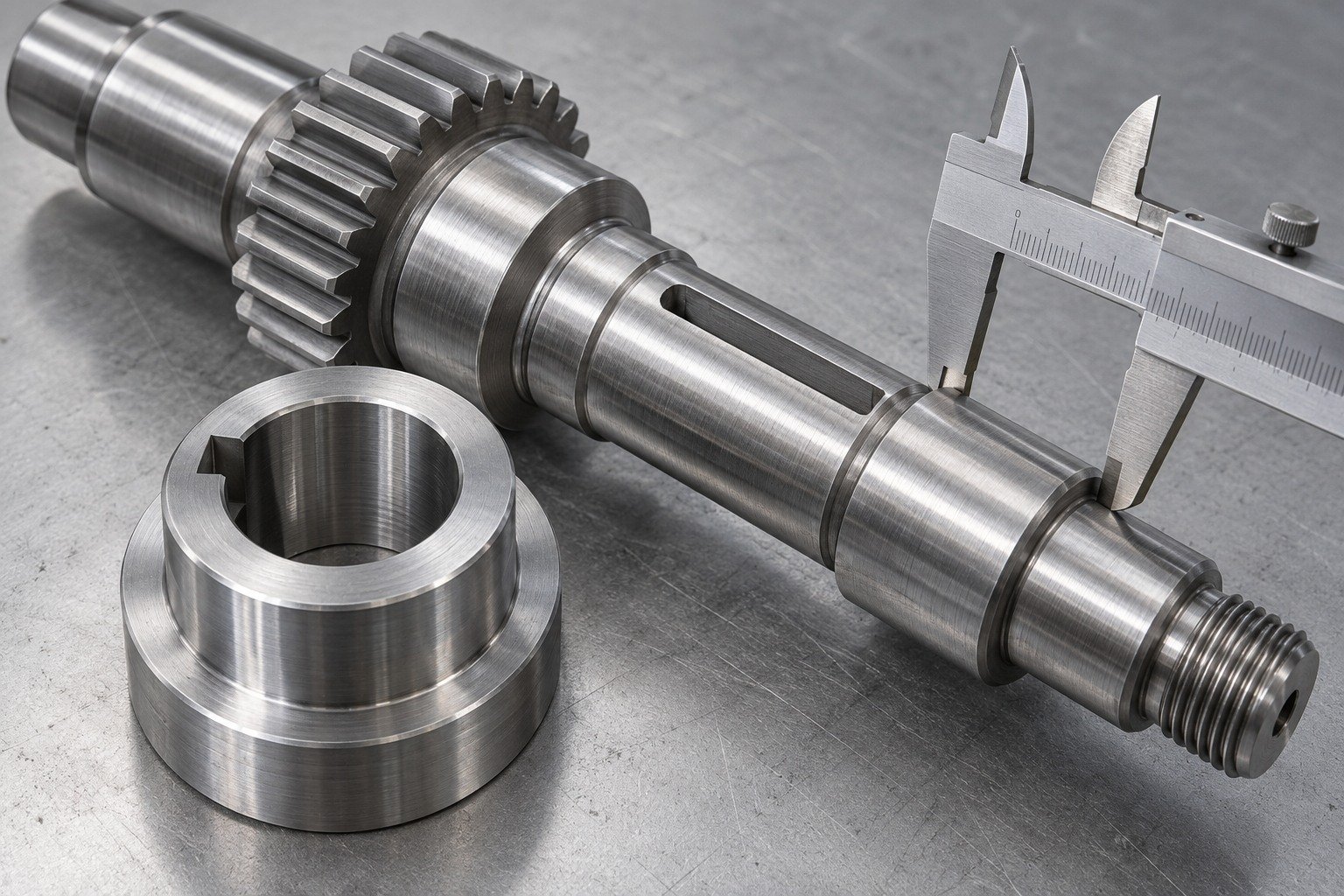

Approve the Finished Condition, Not Just the First Cut
Connect critical journal and bore fits to the ordered stock condition, planned treatment and final finishing sequence.
- Material identity and traceability.
- Critical dimensions and assembly fit.
- Process and finish records, where specified.
Sampling, methods and document scope are agreed with your quotation.
Quality Assurance →
Verify the Features That Control Assembly
Identify bores, thread fits, datum relationships and final inspection scope. Keep the approved drawing revision with the records.
- Material identity and traceability.
- Critical dimensions and assembly fit.
- Process and finish records, where specified.
Sampling, methods and document scope are agreed with your quotation.
Quality Assurance →

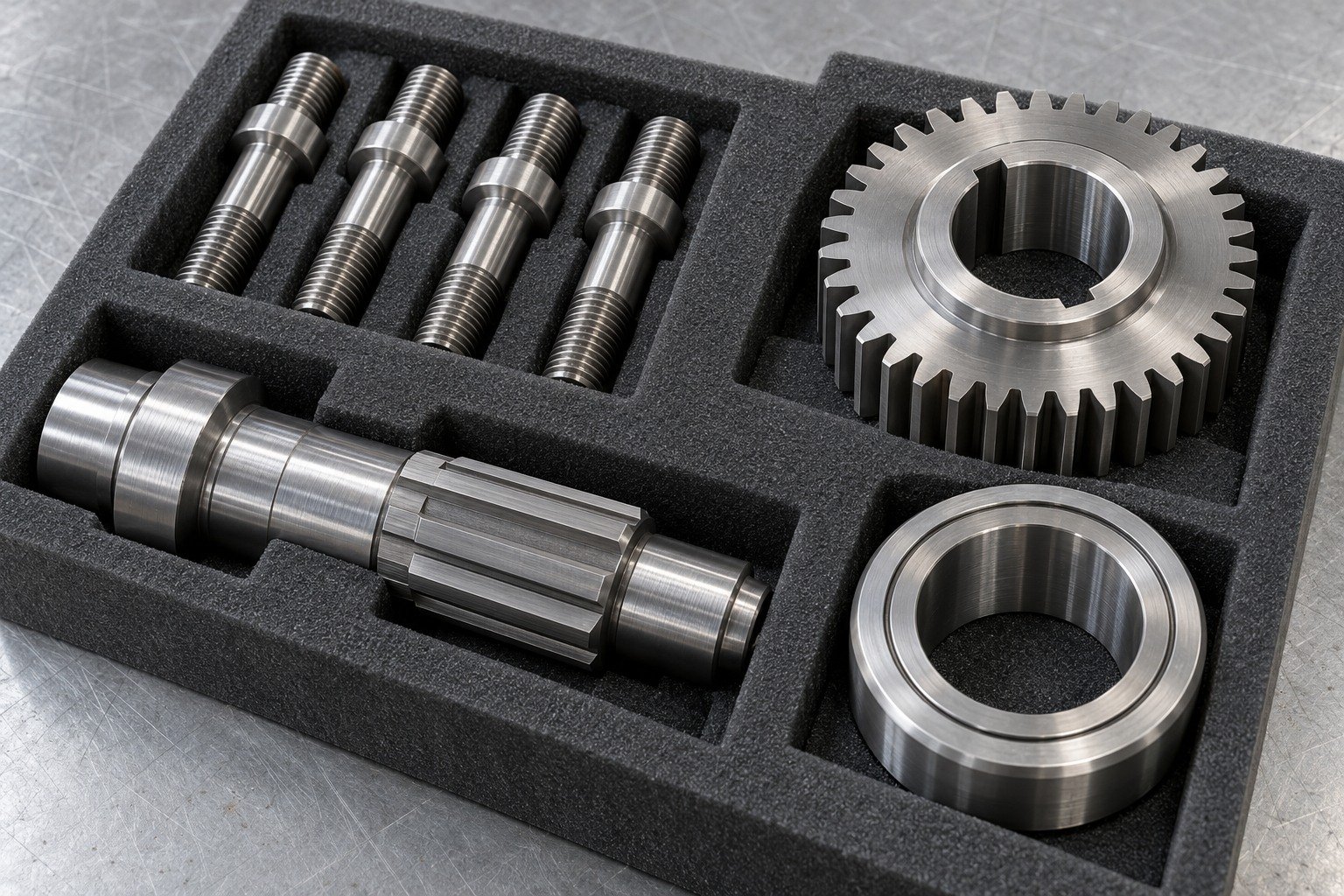

Agree Protection and Receiving Evidence
Confirm handling protection, packaging, part identification and the documents needed by your receiving team.
- Material identity and traceability.
- Critical dimensions and assembly fit.
- Process and finish records, where specified.
Sampling, methods and document scope are agreed with your quotation.
Quality Assurance →
6 Inputs for Your Other Steel Grade Quote
01CAD and controlled drawing
02Exact grade, product standard and supplied condition
03First-order and repeat quantities
04Critical dimensions and surface finish
05Case or treatment requirements, finish and protection
06Inspection records and delivery needs
China Manufacturing. Dallas-Area Coordination.
Coordinate your drawing review, material condition, sample decisions and receiving requirements.
Answers Before You Specify
How do I choose steel for custom machined parts?
Start with load, final fits, exposure, required condition and records. Then compare the complete grade and product specification against your manufacturing route.
Can 1144 steel be welded?
Do not assume weldability from a free-machining grade name. Review exact chemistry, stock condition, joint and procedure before selecting a welded route.
Can 52100 steel be machined after hardening?
Review hardness, geometry, access and surface requirements before choosing hard machining or grinding. Confirm the actual route and acceptance for your part.
How should I specify case depth for 9310 gears?
State effective or total case depth, test method, locations, core requirement and permitted finishing removal. Keep the tooth and final-fit requirements on the same drawing.
Does 52100 steel rust?
It is bearing steel, not stainless steel. Define exposure, handling, protection and storage for your finished part.
How much does 9310 steel machining cost?
Send the controlled drawing, stock condition, quantity, case/core requirements, tooth-processing scope, finish and inspection needs.
Can you review a grade not listed here?
Send the exact material standard, product form and condition, including an 1040 steel callout if required. Availability and manufacturing scope are confirmed for your drawing.
Compare Carbon & Alloy Steel →
References support material selection. Your order specification and material records govern.
