A360 Aluminum for Your Exposure-Sensitive Cast Parts
Connect your operating environment to the alloy, protective system and assembly details. A360 die casting services should review the complete finished part, rather than promise corrosion performance from an alloy name alone.
For custom A360 die cast parts, send your drawing, exposure conditions, quantities and acceptance requirements together.
A360 Corrosion Resistance Starts with Your Actual Exposure
The A360 aluminum alloy is an Al-Si-Mg die-casting material with restricted copper. Review A360 corrosion resistance alongside your coating, mating metals, retained moisture and intended service.
Define exposure
Identify humidity, salt, chemicals, temperature and cleaning conditions.
Review the joint
Name mating metals, contact areas, crevices and drainage needs.
Specify acceptance
Agree any test method, duration, sample preparation and pass/fail criteria.
Material guidance is not a salt-spray result, outdoor lifetime prediction or sealed-enclosure rating.
A360 Aluminum Composition: Selected Die-Cast Limits
Use this A360 aluminum composition reference to review the complete purchase specification. Do not confuse A360.0 with a similarly named alloy or a different product form.
| Element | Published reference · wt% |
|---|---|
| Silicon · Si | 9.0–10.0 |
| Magnesium · Mg | 0.40–0.60 |
| Copper · Cu | ≤0.60 |
| Iron · Fe | ≤1.30 |
| Manganese · Mn | ≤0.35 |
| Nickel · Ni | ≤0.50 |
| Zinc · Zn | ≤0.50 |
| Tin · Sn | ≤0.15 |
| Other elements · total | ≤0.25 |
| Aluminum · Al | Balance |
NADCA 2021 Table A-3-1, selected A360.0 limits. Verify the governing specification and any additional restrictions. This is not a chemical analysis of your delivered lot.
Composition source →SAME TYPICAL AS-CAST TEST BASIS
A360 vs A380 · Yield Strength
A360 Aluminum Properties with Their Reference Conditions
A360 aluminium is an alternate spelling of A360 aluminum. State the exact registered grade and product specification when sourcing your casting.
| A360 typical reference | Value |
|---|---|
| Ultimate tensile strength | 317 MPa |
| Yield strength | 165 MPa |
| Elongation | 3.5% |
| Brinell hardness | 75 HB |
| Density | 2.63 g/cm³ |
The same NADCA typical-data table supplies these values. Component geometry, casting conditions and test basis affect actual results; published values are not design allowables.
A360 vs A380 and A383: Compare the Requirement That Controls
A360 vs A380
Review exposure, protective finish and casting feasibility together. Similar typical strength does not make the finished parts interchangeable.
A360 vs A383
Balance environmental requirements against filling-sensitive geometry. Check the complete chemistry and agreed acceptance basis.
Your approved change
Retain the controlled drawing and document any material, tooling or process substitution before production.
Review A360 High Pressure Die Casting Around Your Geometry
The A360 alloy needs a route-specific manufacturing review. For your A360 precision die casting, agree cast tolerances, machined dimensions and the final supplied condition.
Tool opening
Check parting, draft, core actions and ejection.
Local geometry
Review walls, ribs, bosses and changes in section.
Filling and quality
Agree filling, venting and any internal-quality acceptance.
Finished scope
Connect trimming, machining, coating and inspection.

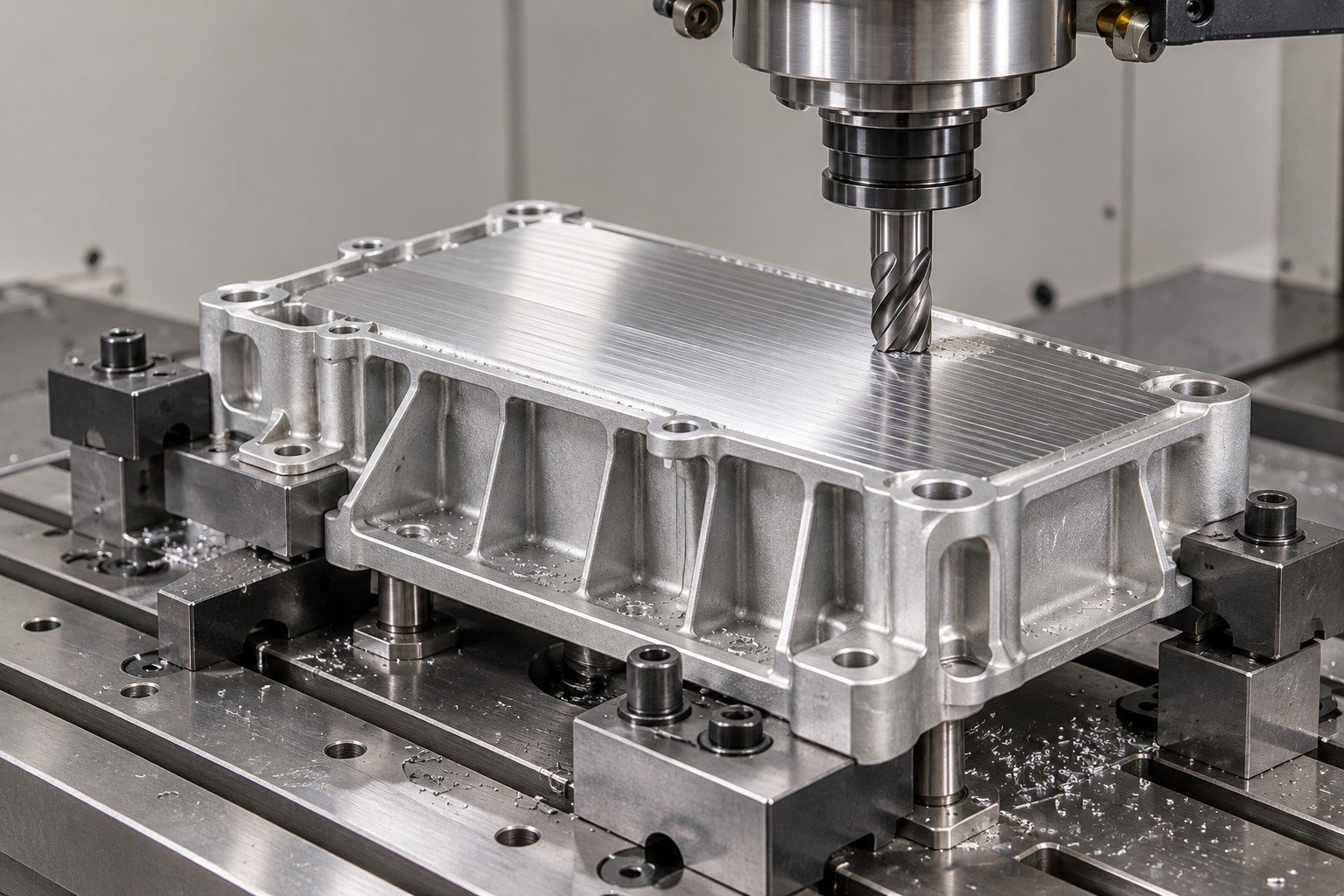

A360 CNC Machining for Your Sealing and Locating Features
A360 machining services should connect casting allowance, support and datums to your finished assembly. Define which features must be inspected after machining and after the protective finish.
For A360 aluminum casting parts, identify critical bores, gasket faces, threads and mating relationships. Inspection scope follows the drawing, not a generic tolerance claim.
CNC machining →

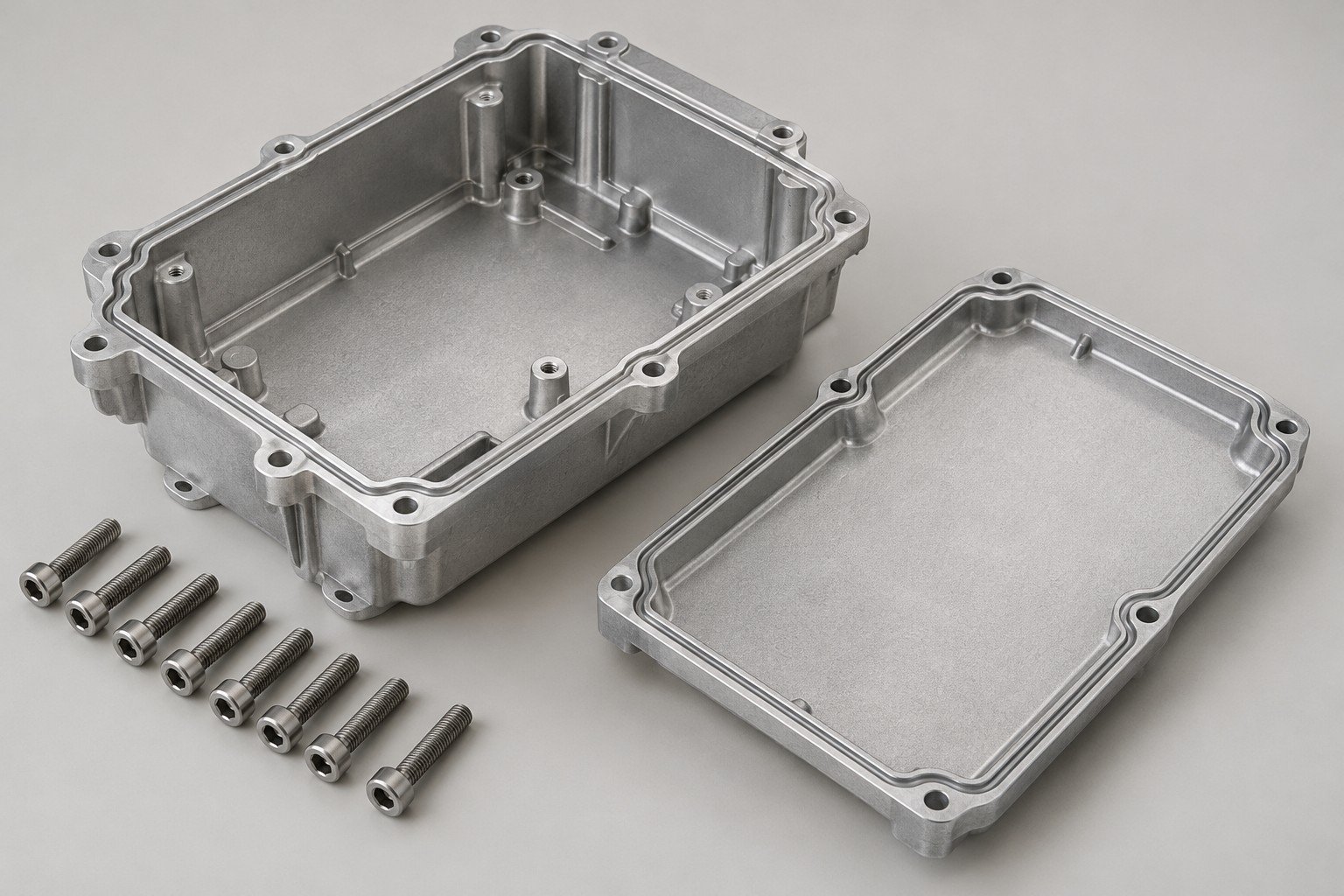

4 Assembly Details to Resolve Before Tooling
Mating materials
Identify fasteners, inserts and adjoining metals.
Contact surfaces
Mark electrical contacts, bearing seats and sealing lands.
Moisture paths
Review drainage, pockets and crevice geometry for the actual assembly.
Coating allowance
Define masks and final dimensional acceptance around the finish.
When choosing an A360 die casting manufacturer or A360 die casting supplier, compare the same assembly conditions and acceptance requirements.
DFM and drawing review →
YOUR APPEARANCE + YOUR PROTECTIVE SYSTEM

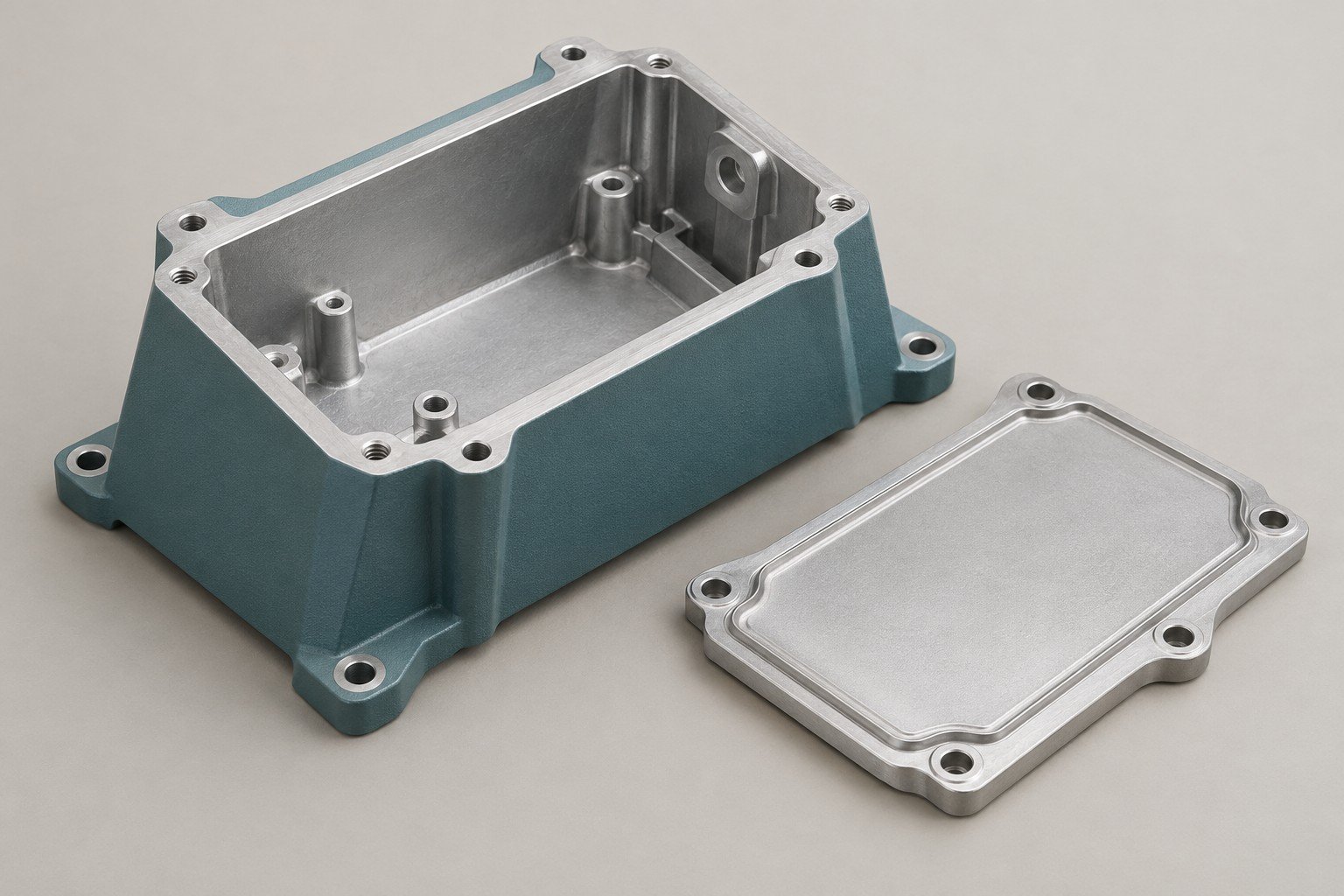

A360 Powder Coating and Anodizing: Approve the Finished Surface
A360 powder coating requires agreed preparation, color, gloss, masks and handling protection. Include the intended environment and any required performance test.
For A360 anodizing, review the actual cast surface and functional purpose. Approve the representative sample; do not assume the appearance will match a wrought-alloy part.
Visible faces
Define show surfaces and appearance acceptance.
Functional faces
Retain the specified fit, seal or electrical contact after finishing.

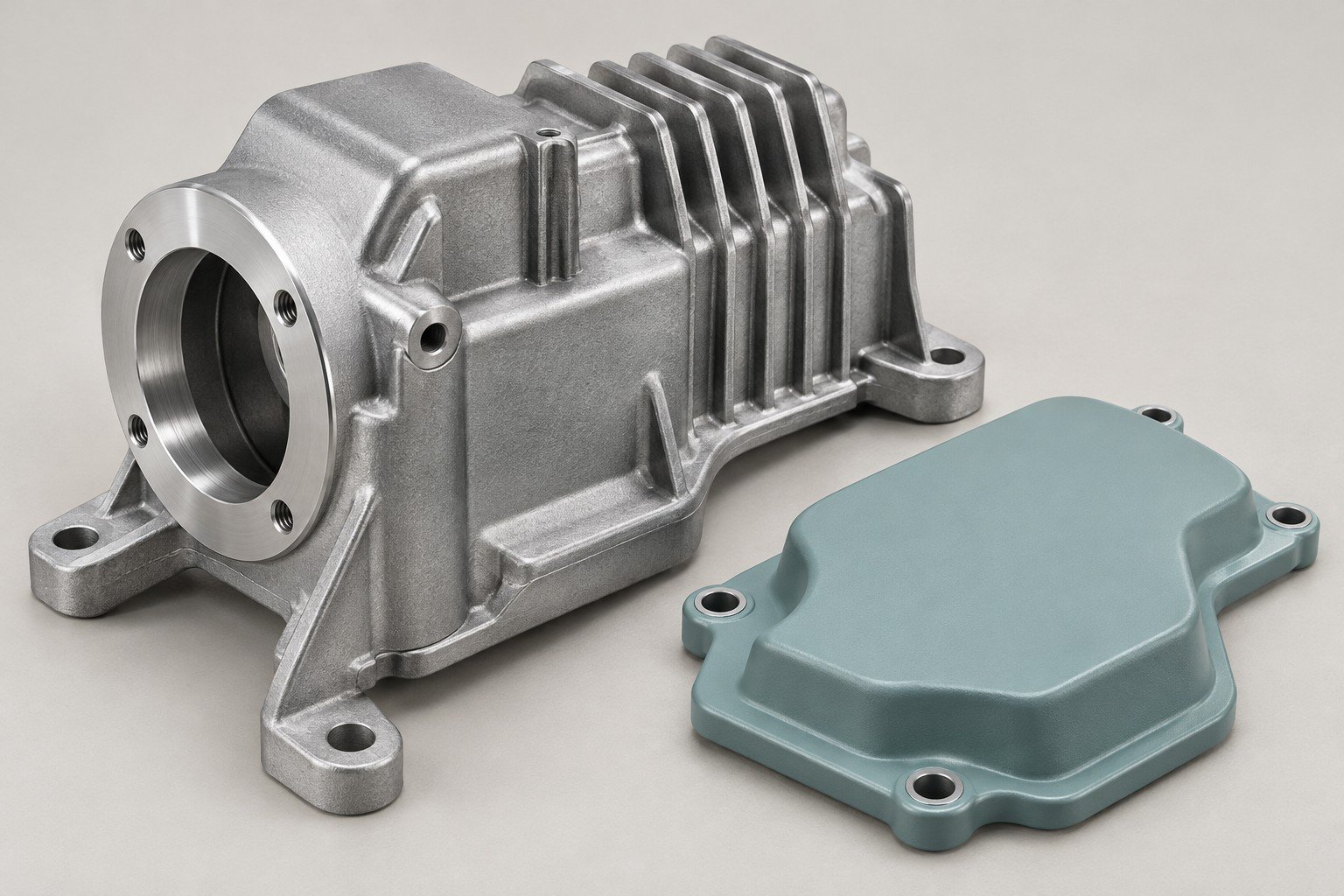

4 Application Reviews for Your A360 Part
A360 Marine Castings
State the actual exposure, mating metals and agreed protective system. A grade name does not establish marine qualification.

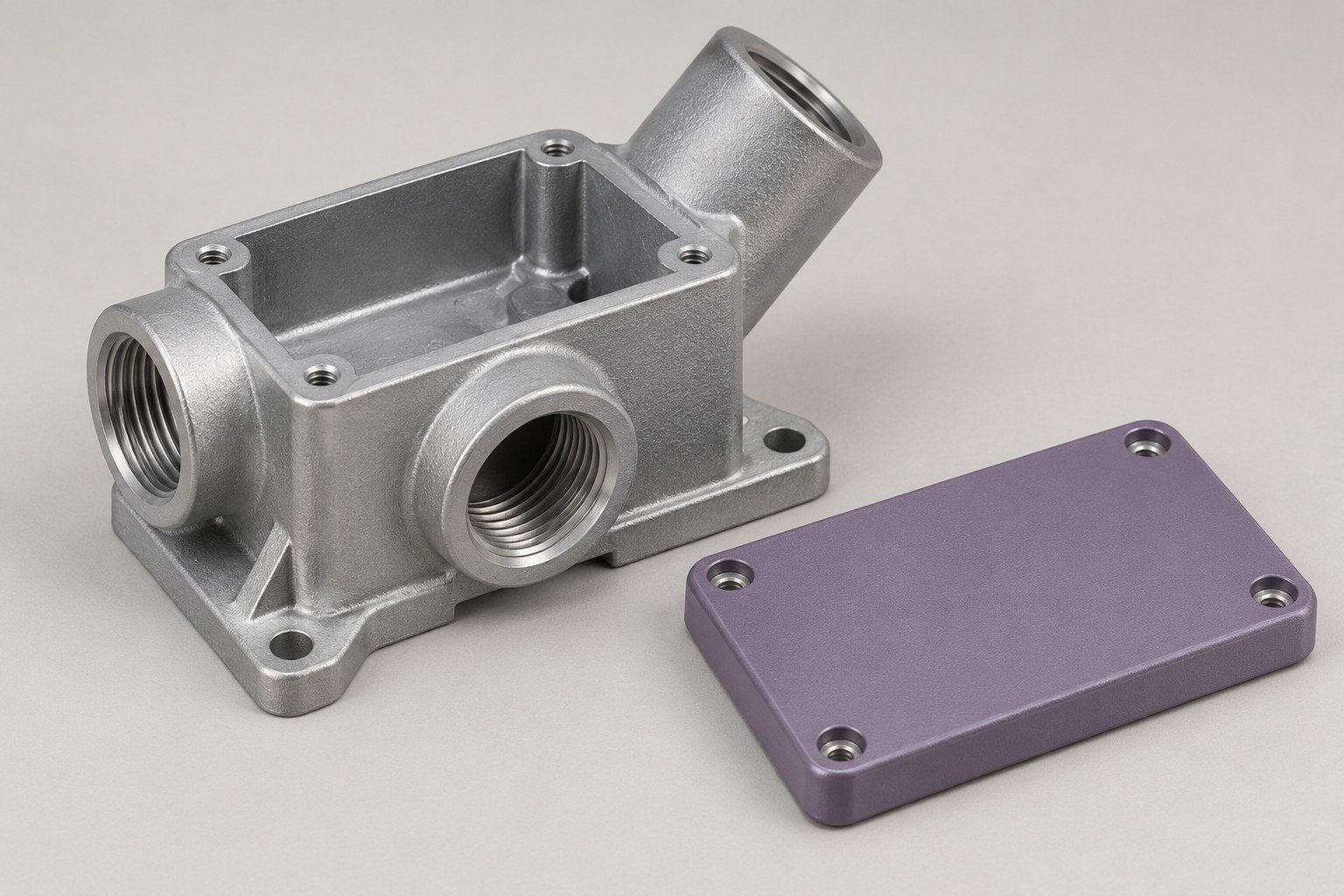

A360 Electronic Enclosure
Define cover alignment, gasket lands, cable interfaces and any system test.

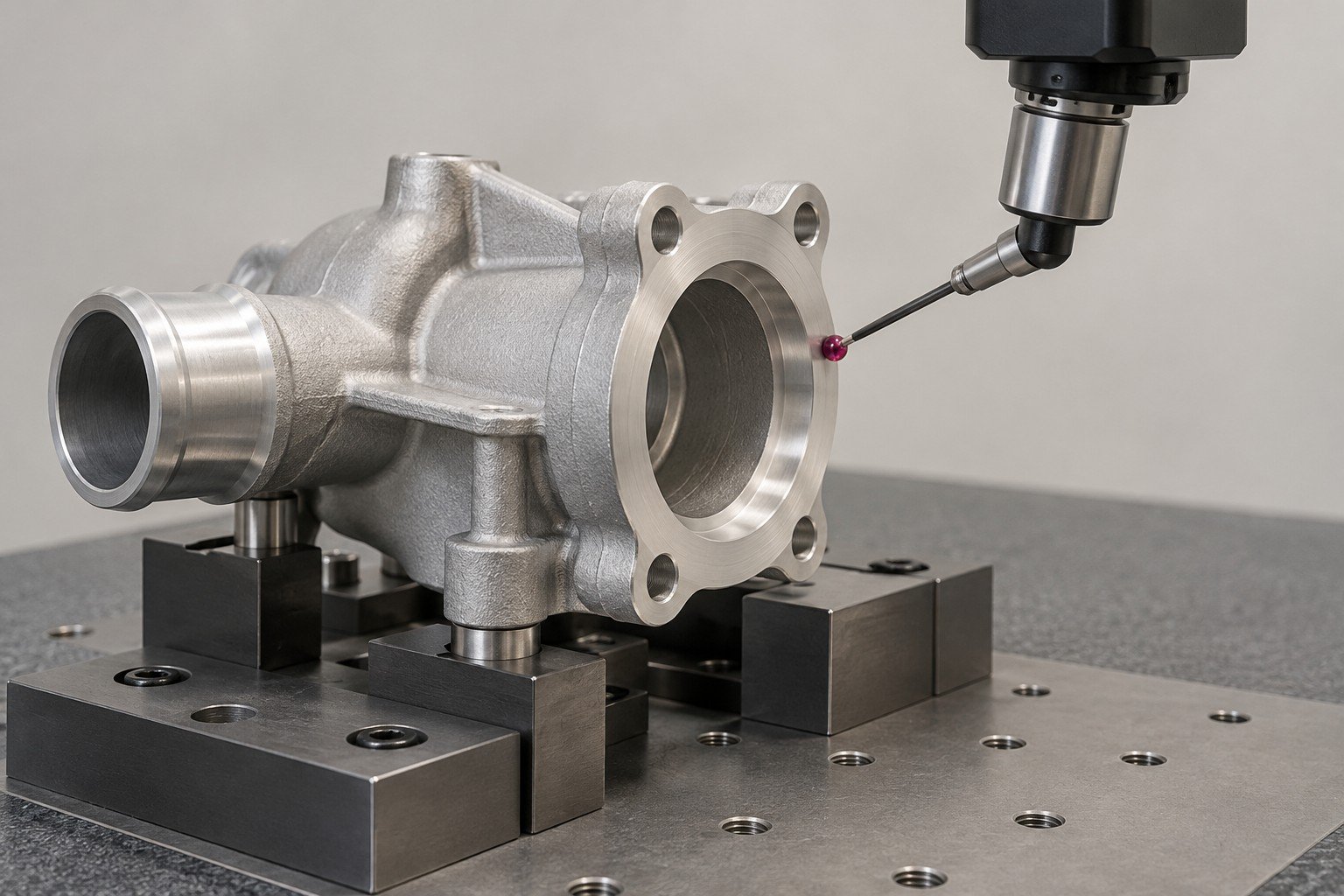

A360 Pump Housing
Agree medium, pressure, machined interfaces and any leakage acceptance.
A360 Automotive Parts
Keep program-specific material, validation and release requirements explicit.
Application planning scenarios, not customer cases or evidence of a qualified finished assembly.

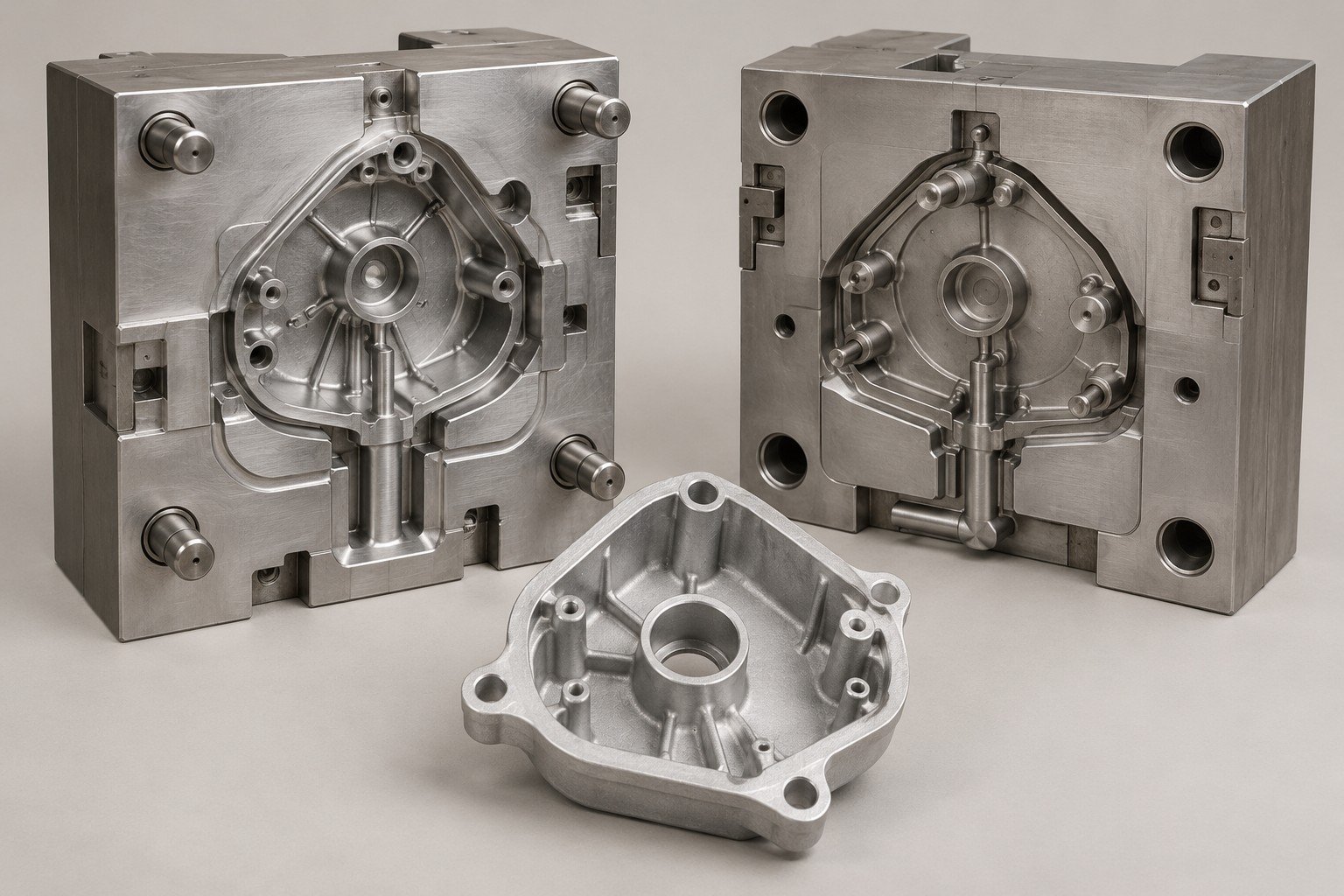

Plan Your A360 Die Casting Mold as a Controlled Asset
Your A360 die casting tooling review should cover cavity scope, core actions, trials, ownership, maintenance and change control. Do not leave repeat-supply responsibilities implicit.
Before trials
Agree the controlled drawing and sample acceptance.
After approval
Retain the tool baseline, part revision and finish reference.
4 Records for Your Material and Finished-Part Review
Material identity
Specified alloy and agreed lot/chemistry record.
Dimensions
Critical-feature inspection in the supplied state.
Finish approval
Agreed coating, masks and representative sample.
Special verification
Any specified corrosion, internal-quality or leak-test scope.
Agree test availability, methods, samples and acceptance before quotation. General material data is not a substitute for your order evidence.
Quality documentation →Keep A360 Aluminum ASTM B85 Requirements with the Drawing
For A360 aluminum ASTM B85 requirements, state the full B85/B85M edition, exact alloy designation and any added tests or acceptance limits. The material page does not reproduce the complete standard.
For OEM A360 die casting, identify who approves changes to the alloy, protective system or manufacturing route.
ASTM die-casting standard scope →5 Inputs for Your A360 Aluminum Die Casting Quote
Tool and trials
Cavities, core actions, sampling and ownership.
Geometry
Cast envelope, filling, trimming and finish access.
Machining
Critical faces, bores, threads and measurement.
Protective system
Preparation, masks, color and approval samples.
Release scope
Quantities, tests, records and packing.
Send the Requirements Your Part Must Meet
Your A360 aluminum die casting quote needs CAD, a controlled drawing, exact material, quantities, exposure, finish and acceptance criteria. Compare the same supplied-part scope.
Your A360 Questions Before Ordering
What is A360 aluminum?
A360 is an aluminum-silicon-magnesium die-casting alloy. Specify the exact grade, product standard, geometry and supplied condition for your part.
Can A360 be CNC machined?
Plan secondary machining for the required bores, sealing faces and threads. Retain casting allowance, stable datums and the final inspection condition.
Can A360 be anodized?
Review the process against the actual cast surface and intended function. Approve a representative sample for any visual requirement.
How much does A360 die casting cost?
Tooling, geometry, quantities, machining, finish and required verification determine the finished-part quote.
Does A360 guarantee corrosion-test performance?
No. Define the complete protective system, assembly, test preparation and acceptance criteria. General alloy guidance is not a finished-part test result.
Is A360 the same as 360?
The complete registered designations and chemical limits matter. Do not drop the prefix or approve a substitution from a shortened name.
Can the property chart approve my design?
No. Typical separately cast specimen data is a reference, not a design allowable or report for your delivered component.
Does a marine application need extra approval?
State the specific exposure, standards, qualification and verification required by your design or end customer before sourcing.
