A383 Aluminum for Your Intricate Die Cast Parts
Review A383 die casting services around the ribs, bosses and cavities your assembly needs. Connect the cast geometry to machining, protective finish and acceptance before committing to a die.
For custom A383 die cast parts, send the controlled drawing, expected quantities and critical surfaces together.
3 Decisions Before You Specify A383
Your geometry
For A383 thin wall die casting, review flow length, local transitions, filling and ejection. A universal minimum wall does not describe every component.
Your interfaces
For A383 precision die casting, define which dimensions remain cast and which need machining. Agree datums and acceptance in the supplied finish.
Your evidence
When selecting an A383 die casting manufacturer or A383 die casting supplier, compare the same tool scope, drawing revision and verification requirements.
A383 Aluminum Properties: Read the Test Basis
The A383 aluminum alloy is an Al-Si-Cu casting material. A383 aluminium is an alternate spelling; the purchase order still needs the exact alloy designation and product standard.
| A383 reference | Typical value |
|---|---|
| Ultimate tensile strength | 310 MPa |
| Yield strength | 152 MPa |
| Elongation | 3.5% |
| Brinell hardness | 75 HB |
| Density | 2.74 g/cm³ |
Eastern Alloys publishes these typical die-cast values. Actual component properties depend on the casting and test conditions. Typical numbers are not design allowables.
Alloy supplier reference →TYPICAL AS-CAST REFERENCE
A383 and A380 · Tensile Strength
A383 Aluminum Composition: Die-Cast Limits
Use the die-cast row when reviewing your A383 aluminum composition. Ingot limits and finished-casting limits are different purchasing references.
| Element · wt% | A383 die-cast reference | Your purchasing check |
|---|---|---|
| Silicon · Si | 9.5–11.5 | Retain the specified alloy identity |
| Copper · Cu | 2.0–3.0 | Review complete chemistry before substitution |
| Iron · Fe | ≤1.30 | Do not replace with the ingot limit |
| Manganese · Mn | ≤0.50 | Check the governing specification |
| Magnesium · Mg | ≤0.10 | Confirm the exact registered grade |
| Nickel · Ni | ≤0.30 | Include required certificate scope |
| Zinc · Zn | ≤3.0 | Retain lot linkage |
| Tin · Sn | ≤0.15 | Agree any additional residual limits |
| Aluminum · Al | Balance | Use the complete contractual specification |
Selected published die-cast chemistry from Eastern Alloys. Not a delivered-lot chemical analysis or a reproduction of the full product standard.
Chemistry source →YOUR TOOL + YOUR FILLING PATH
A383 High Pressure Die Casting for Your Detailed Shape
A383 aluminum die casting is worth reviewing when intricate geometry makes filling a central design decision. The A383 alloy name cannot correct an unsuitable gate, vent or local wall transition.
Fill
Review metal flow, venting and difficult-to-fill features.
Release
Agree draft, parting lines, side actions and ejector locations.
Finish
Retain stock and access for your final machined surfaces.
A383 vs A380 or ADC12: Approve the Complete Change
A383 and A380
Compare filling-sensitive geometry with the mechanical, environmental and finish requirements. The small difference in typical tensile values is not a universal winner.
A383 and ADC12
Similar application families do not establish identical chemistry or automatic interchangeability. Review the actual standard and allowable limits.
Your substitution approval
Confirm stock identity, tool/process effects, drawings and verification before changing the specified material.

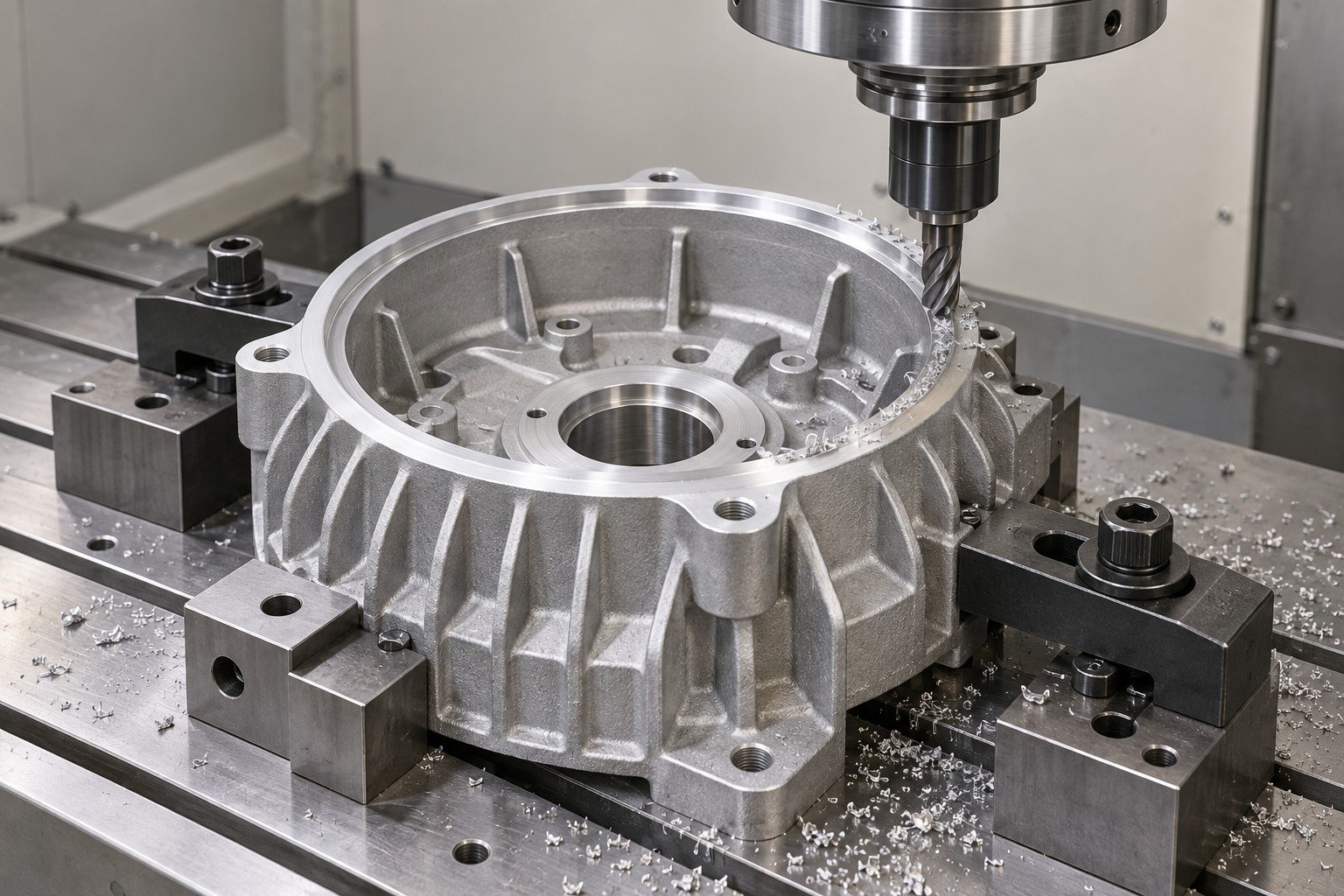

A383 CNC Machining: Preserve What Your Assembly Locates On
A383 machining services should start with your casting datum scheme and finished-part requirements. Define machining allowance, support and the surfaces inspected after unclamping.
For your A383 aluminum casting parts, separate the cast envelope from the bearing fits, sealing faces and threaded features that need secondary work.
Before machining
Confirm incoming casting condition and any internal-quality acceptance.
After machining
Check exposed features and dimensions in the specified finishing state.
4 Checks for Your Thin Walls, Ribs and Bosses
Wall transitions
Avoid treating abrupt thickness changes as a material-only issue.
Ribs and bosses
Review intersections, feeding-sensitive masses and die opening.
Machined holes
Define cast cores, drilling allowance, tool access and thread requirements.
Appearance faces
Keep agreed parting lines, ejector marks and finishing access on the drawing.
VISIBLE FACES + FUNCTIONAL MASKING
Choose Your Finish Against a Representative Casting
A383 powder coating needs agreed preparation, color, gloss, masks and handling protection. Approve the actual casting surface rather than a sample made from an unrelated wrought alloy.
For A383 anodizing, review appearance and function separately. High-silicon cast surfaces can respond differently from wrought aluminum; a decorative appearance needs sample approval.
Your visible surfaces
Name the show faces and acceptable surface condition.
Your mating surfaces
Define uncoated sealing faces, bearing seats, contacts and threads.
4 Applications, 4 Different Acceptance Questions
A383 Motor Housing
Which bores, mounting faces and alignment relationships control the assembly?

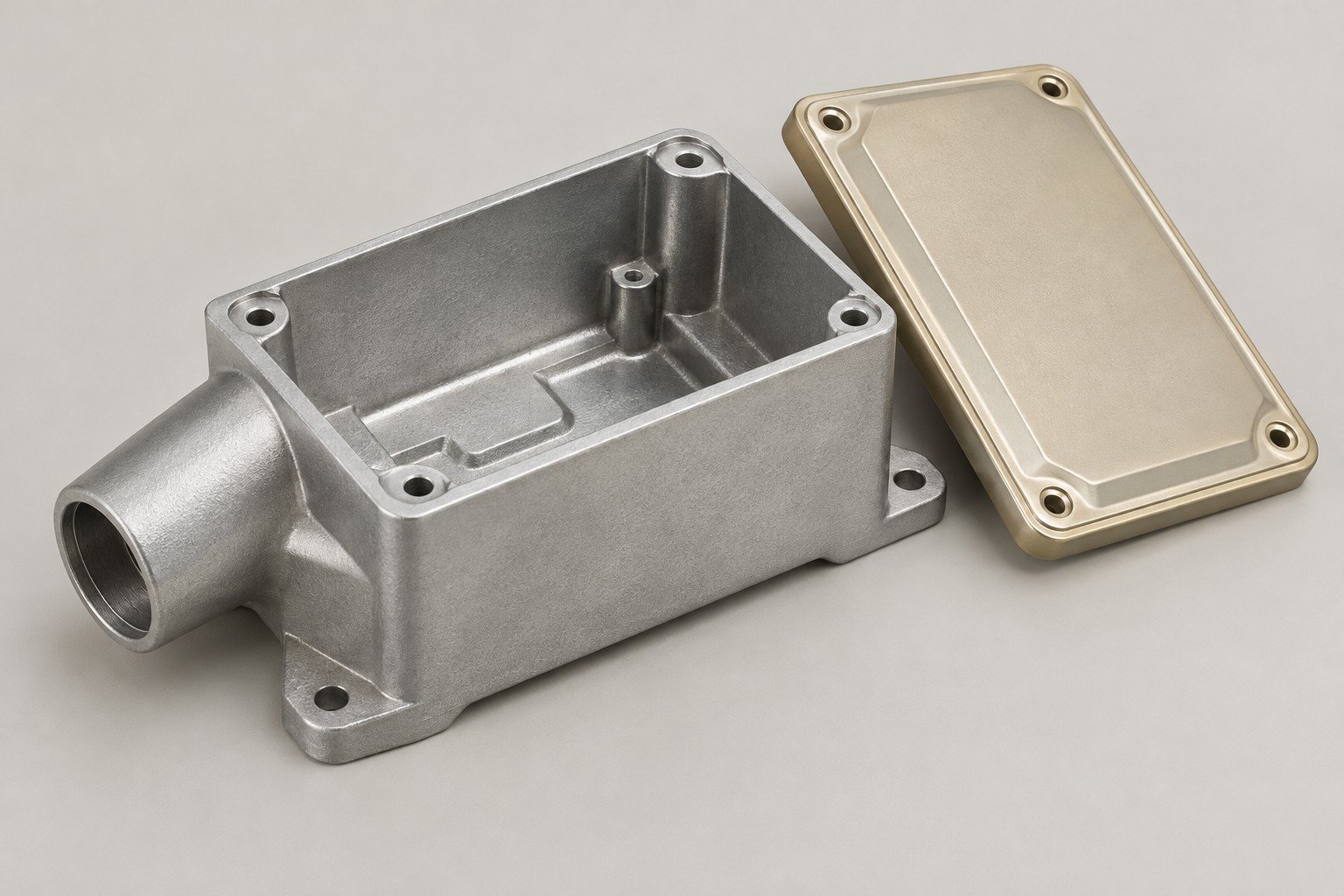

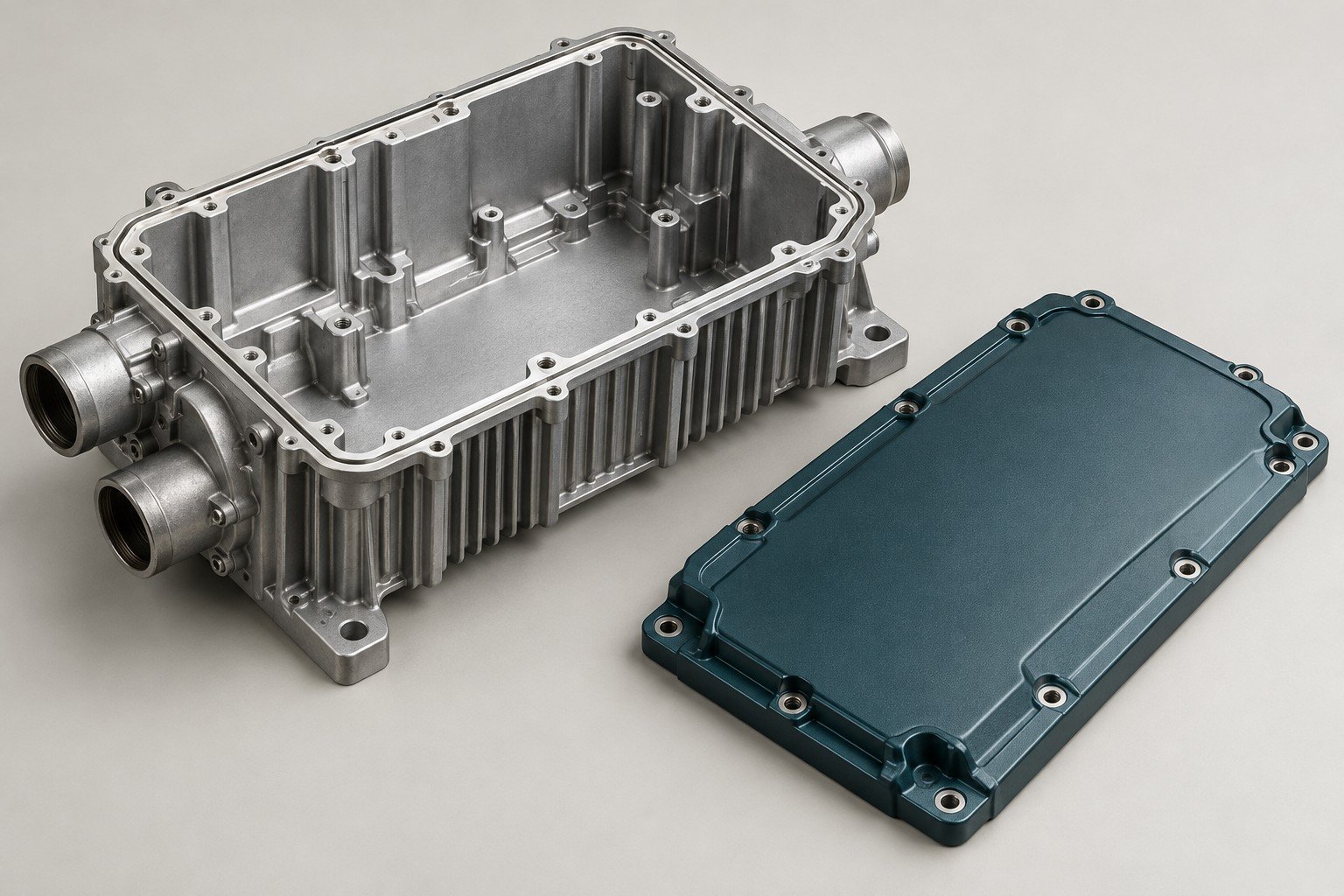

A383 Electronic Enclosure
Which gasket surfaces, cable entries and appearance faces need inspection?

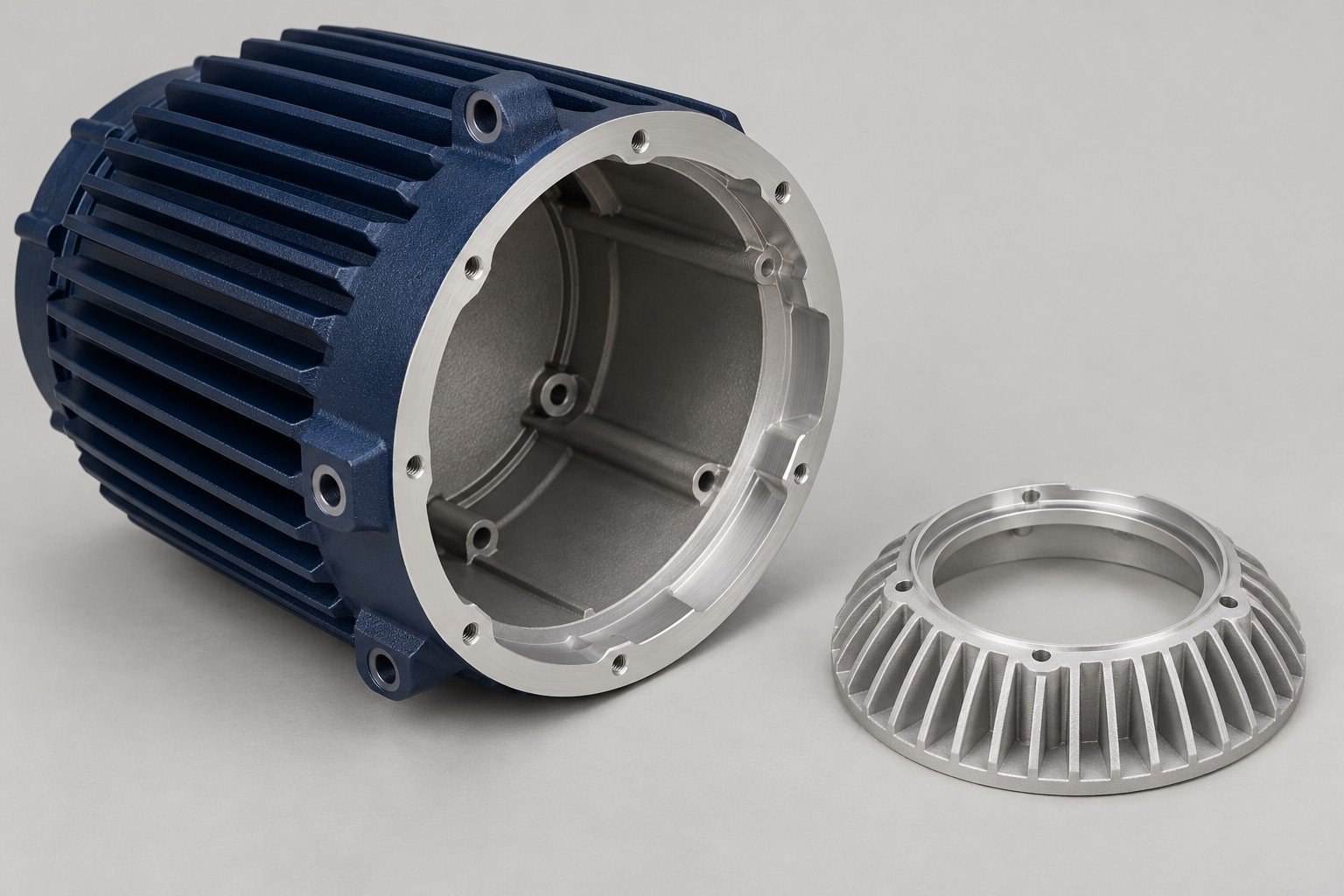

A383 LED Housing
What thermal interface, finish and system verification does your lighting design require?
A383 Automotive Parts
Which program-specific validation, traceability and release documents apply?
Illustrative application scenarios. Material selection alone does not establish a thermal rating, leak classification or automotive qualification.

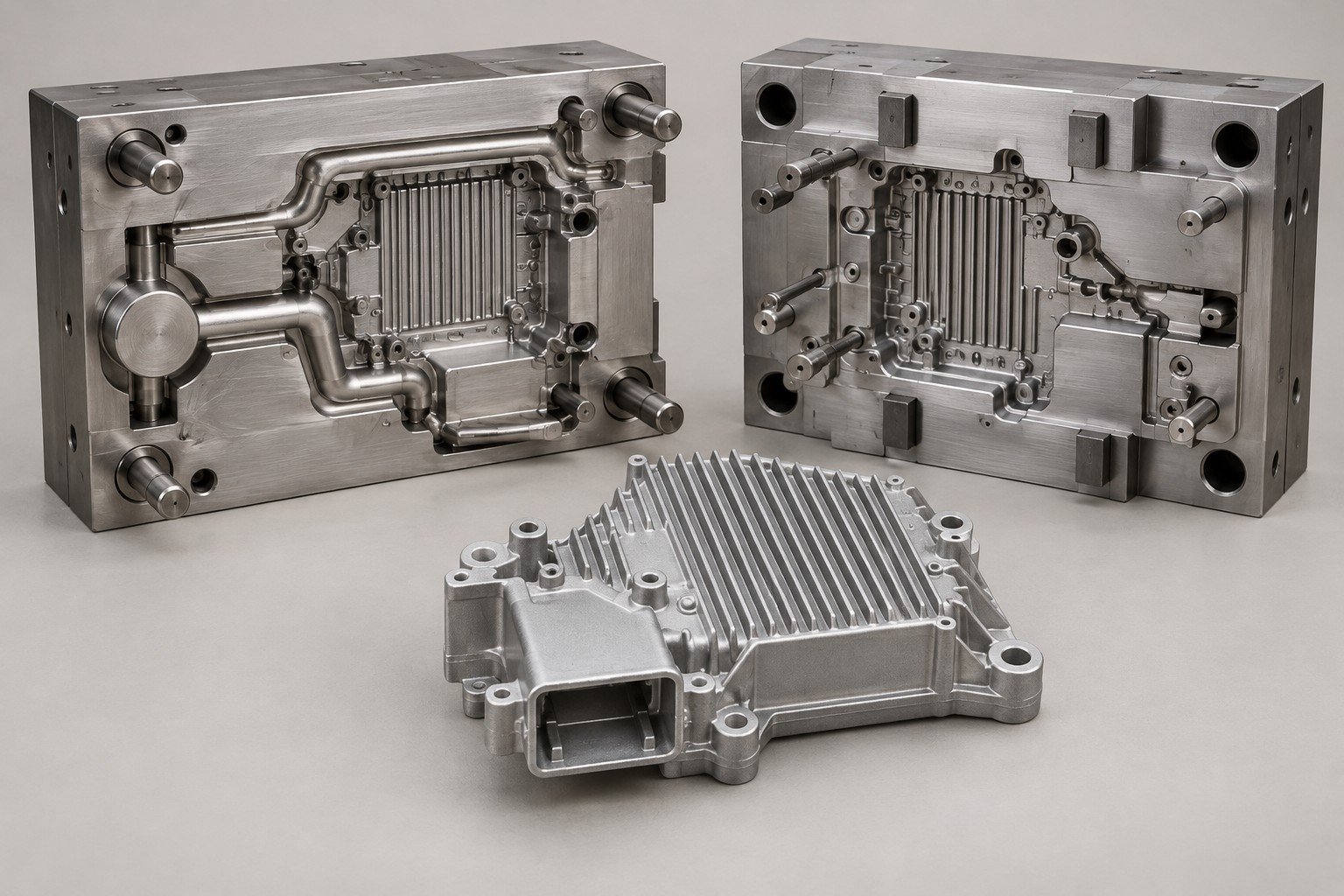

Define Your A383 Die Casting Mold Before the First Trial
Your A383 die casting tooling scope should identify cavities, core actions, trials, ownership, maintenance and engineering-change responsibility.
01 · Review
Freeze the drawing revision, alloy and acceptance requirements.
02 · Plan
Agree die opening, gates, vents, cores and trimming.
03 · Trial
Review cast geometry, surfaces and the agreed test evidence.
04 · Release
Approve the machined and finished part baseline for repeat supply.

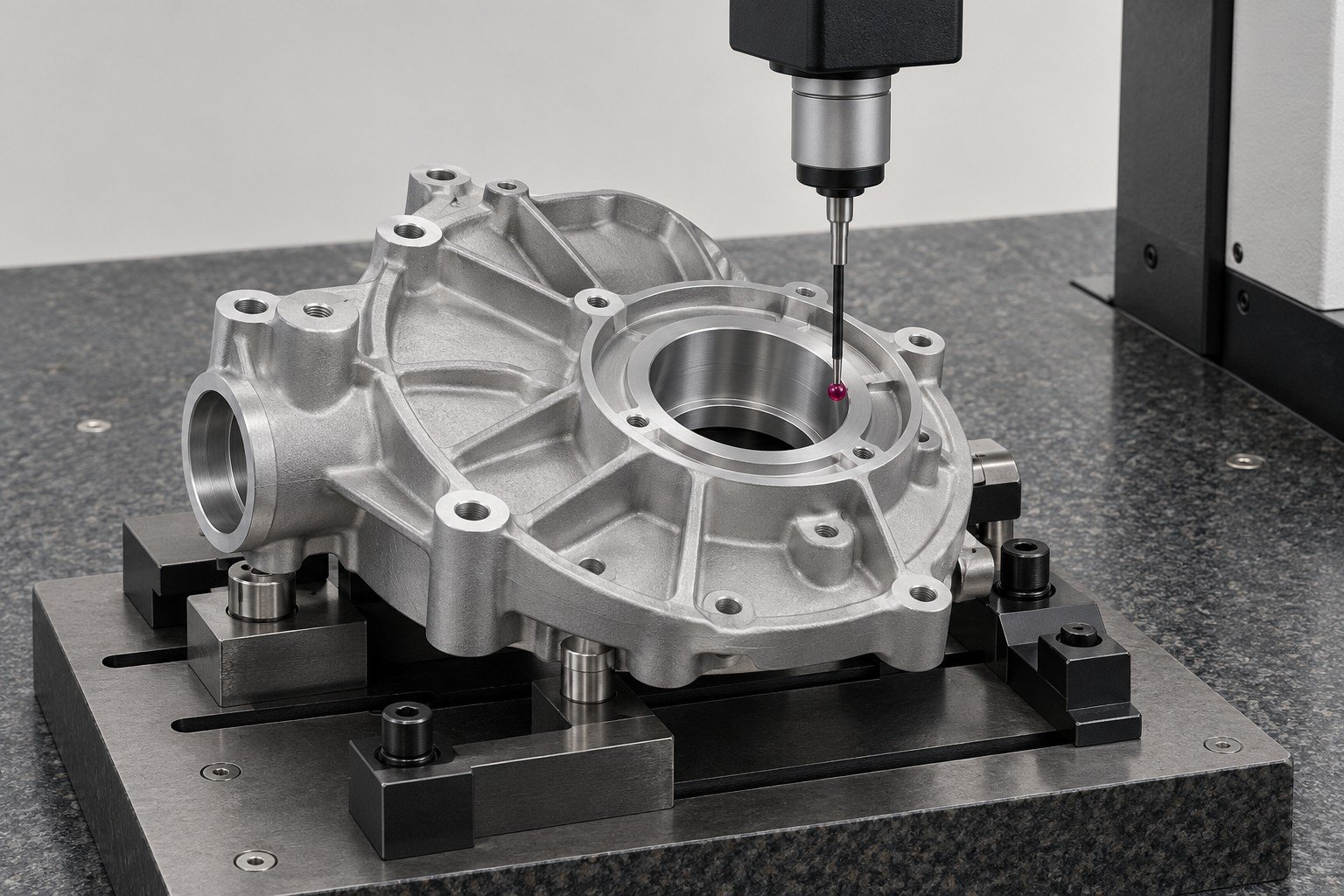

4 Records That Make Your A383 Order Reviewable
Material
Exact grade and agreed chemistry/lot identification.
Dimensions
Controlled drawing and critical-feature measurement scope.
Surface and internal quality
Defined visual criteria and any specified NDT or leak test.
Release baseline
Approved sample, exceptions, finish and packing instructions.
Agree methods, locations, limits and available records for your actual project. General process descriptions are not inspection evidence.
Quality documentation →
Keep A383 Aluminum ASTM B85 Requirements Explicit
For an A383 aluminum ASTM B85 callout, confirm the complete alloy designation, applicable B85/B85M edition and any extra test or acceptance requirements. NADCA tables identify the registered alloy as 383.0; commercial A383 wording should not replace the full contractual designation.
For OEM A383 die casting, retain controlled drawings and approval responsibility for any material or process change.
ASTM die-casting standard scope →5 Inputs for Your A383 Aluminum Die Casting Quote
Die scope
Cavities, core actions, trials and ownership.
Part geometry
Filling path, trimming, walls and local features.
Machining
Datums, bores, faces, threads and inspection.
Finish
Preparation, masks, color and appearance approval.
Releases
Trial/repeat quantities, records and packaging.
Send Your Drawing and Supplied-Part Scope
Your A383 aluminum die casting quote needs CAD, a controlled drawing, exact material, quantities, critical features, finish and acceptance requirements. An alloy price alone is not a finished-part quotation.
Your A383 Questions Before Tooling
What is A383 aluminum?
A383 is commercial wording for a silicon-copper aluminum die casting alloy. Retain the full registered designation and product specification when buying your part.
Can A383 be CNC machined?
Secondary machining can be planned for bores, sealing faces and threads. Agree casting allowance, datums, support and final inspection conditions.
Can A383 be anodized?
Review the intended function and approve appearance on a representative casting. Do not assume the finish will match wrought aluminum.
How much does A383 die casting cost?
Tooling, geometry, quantities, machining, finish and verification determine the supplied-part quote.
Does A383 guarantee a thinner wall?
No universal wall follows from the alloy name. Flow length, local geometry, die design and validation control the actual requirement.
Can ADC12 replace A383?
Only after review of the complete chemistry, product standard, application and design approval. Similar cross-reference names are not substitution permission.
Does the chart show our material test?
No. It shows published typical separately die-cast specimen data, not a test report for your delivered casting.
Can you guarantee one leak rate for every enclosure?
Define the medium, pressure, method, location and acceptance limit for the actual component. An alloy designation does not establish a universal leak rating.
