4340 Alloy Steel for Your Custom Machined Parts
For your 4340 steel machining project, connect the load path, section size and required final condition to the features that control assembly. Plan material records, machining allowance and final inspection before committing to a heavy mechanical part.
1 part model + 1 controlled drawing · Material condition · Quantity
Grade & specificationConfirm grade and product standard.
Stock conditionConfirm bar, billet and the actual supplied condition.
Final-fit reviewDefine datums, fits and thermal sequence.
Material recordsAgree receiving and inspection evidence.
Know Your 4340 Material Before You Order
4340 is nickel-chromium-molybdenum alloy steel. Compare your specified condition, section and verification requirements rather than choosing it from a generic strength ranking.
Specify the requested grade with product form and condition.
Eaton bar reference · not a batch analysis.
Product form, section and annealed or pre-hardened state.
Specified treatment, protection and final-fit dimensions.
Material identity, lot records and agreed inspection.
Custom 4340 Steel Parts for Your Assembly
Select your part family, then review the four decisions that control your order.

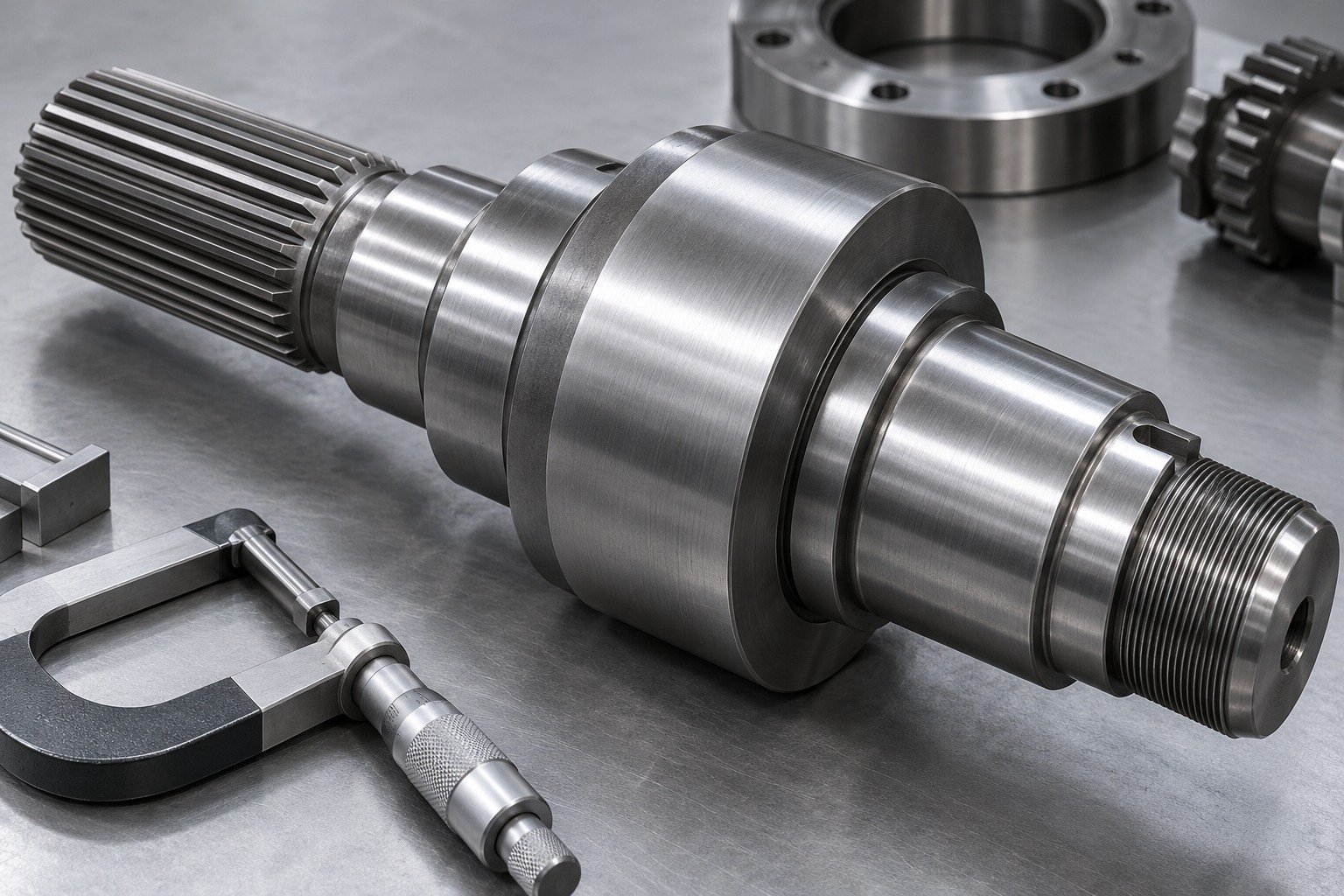

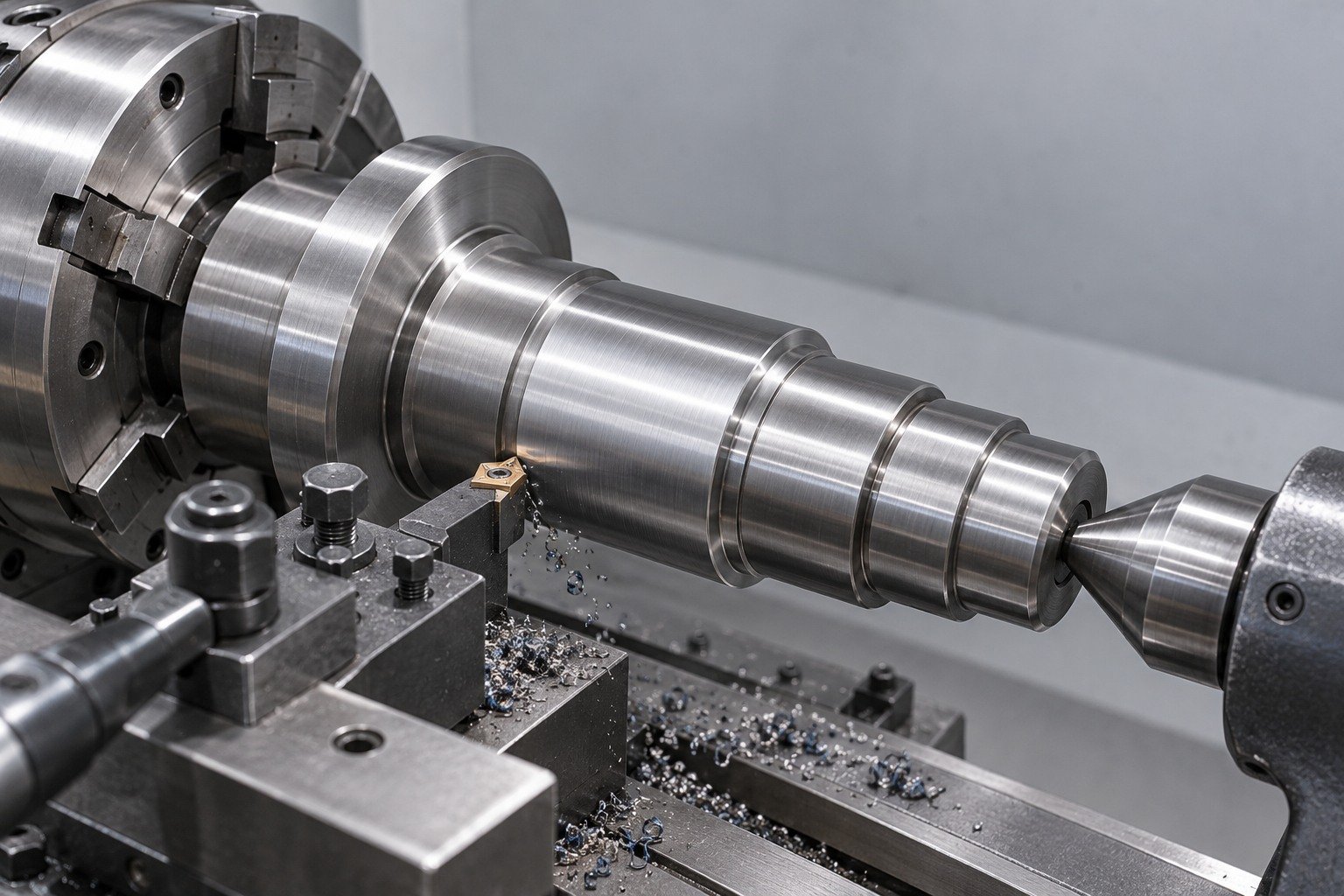

Keep Your Axle Journals on One Datum Axis
For your 4340 alloy steel machining review, identify loaded journals, spline or keyway, shoulders and threaded ends. Relate your 4340 steel shafts and axles to the datum axis and the mating assembly.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Support the Section Your Axle Must Keep

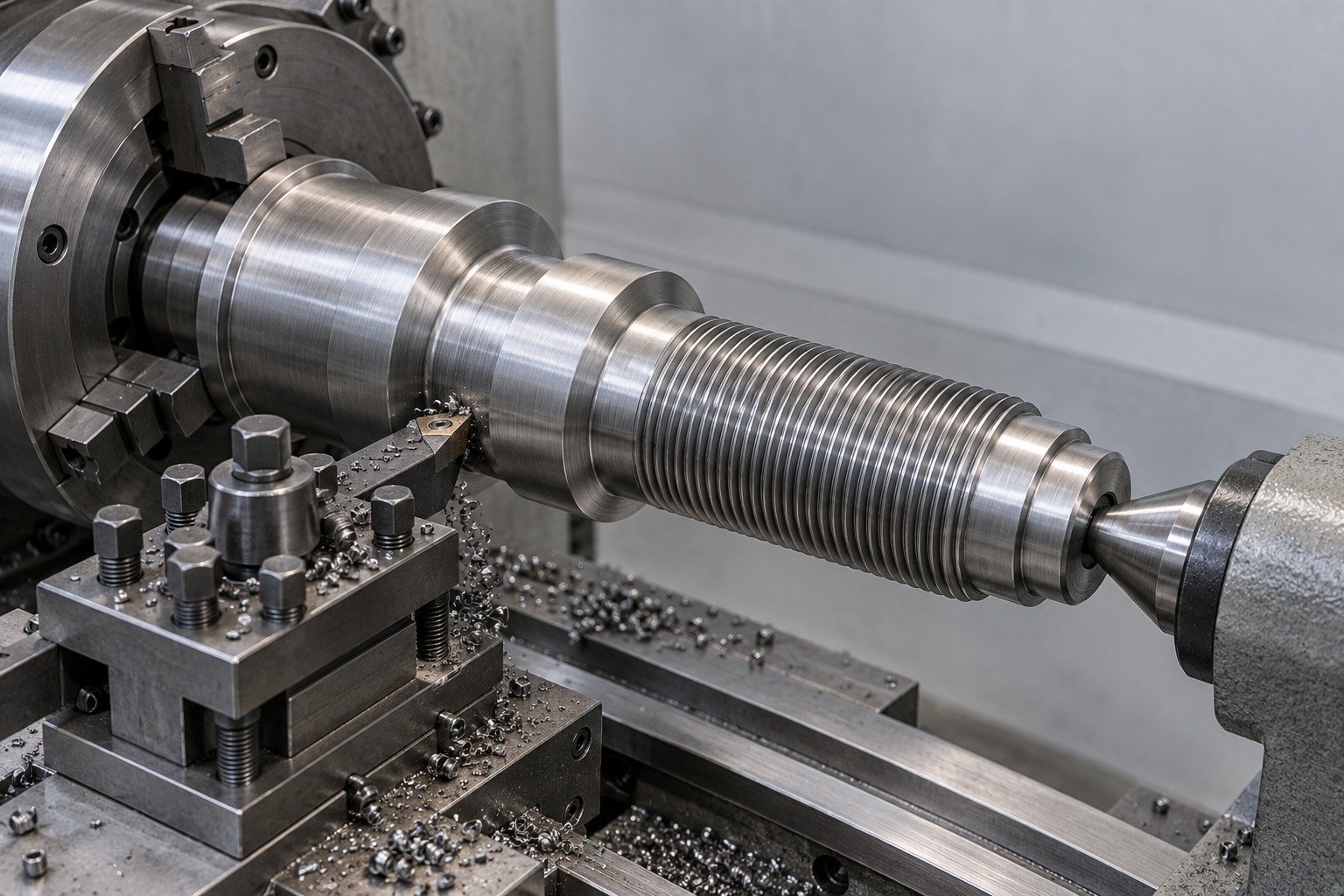

For your 4340 steel turning inquiry, show support locations, clamping allowance and unsupported length. Identify final 4340 steel grinding surfaces, runout checks and the remaining stock after treatment.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

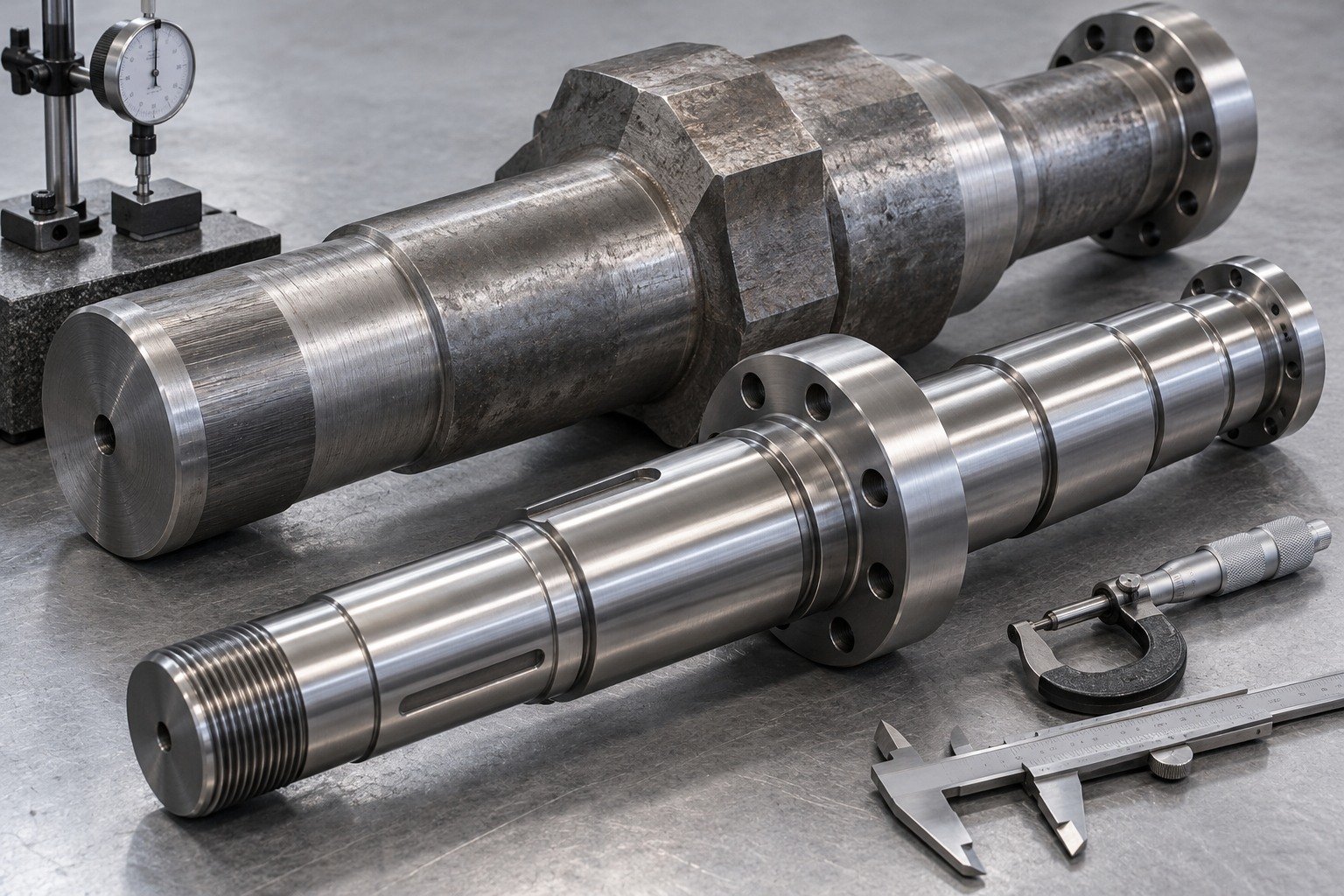

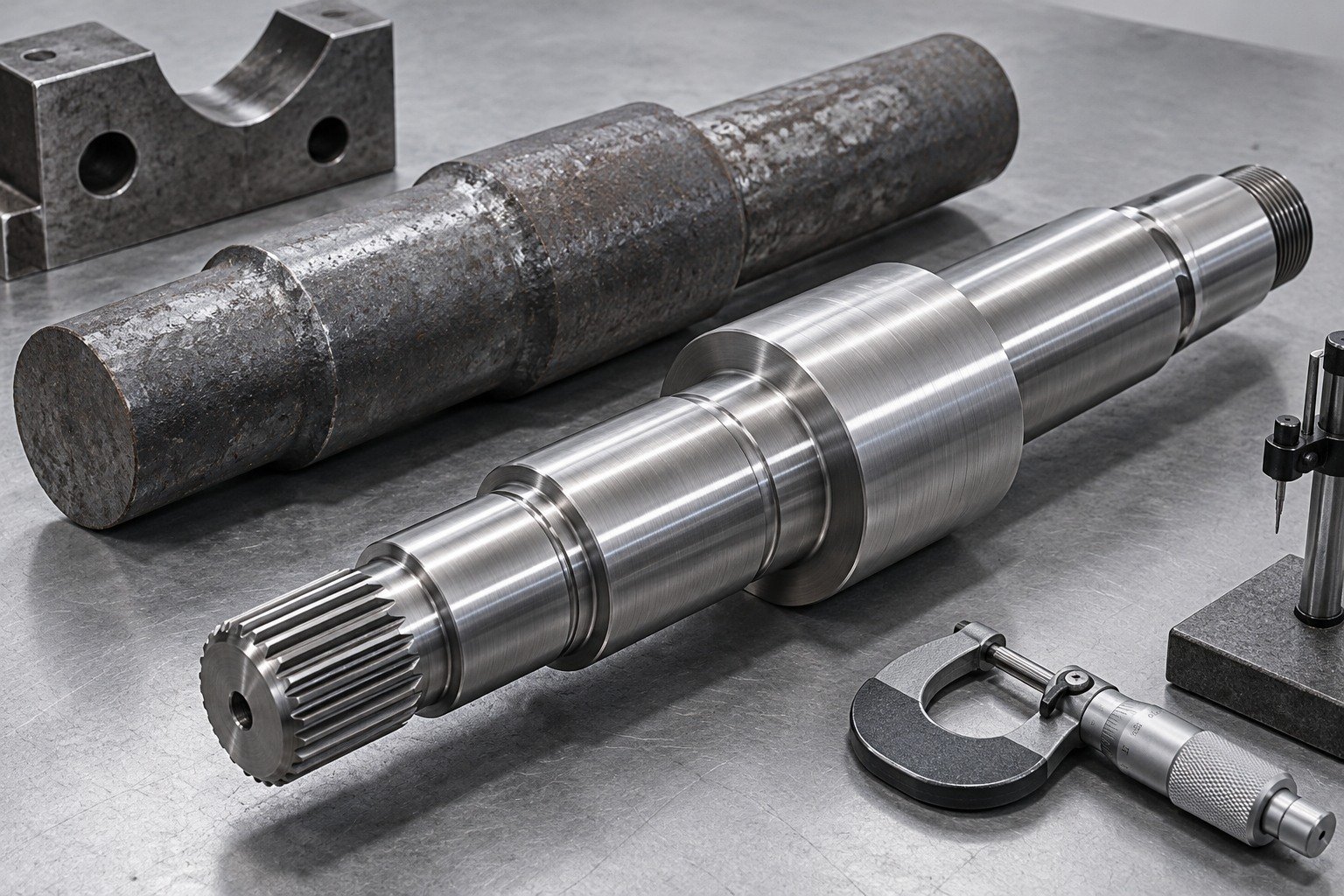

Set the Final Condition Before Choosing Stock
State whether stock is annealed or supplied in a specified treated condition. For your 4340 steel heat treatment route, agree section-specific requirements, test locations and final machining allowance.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

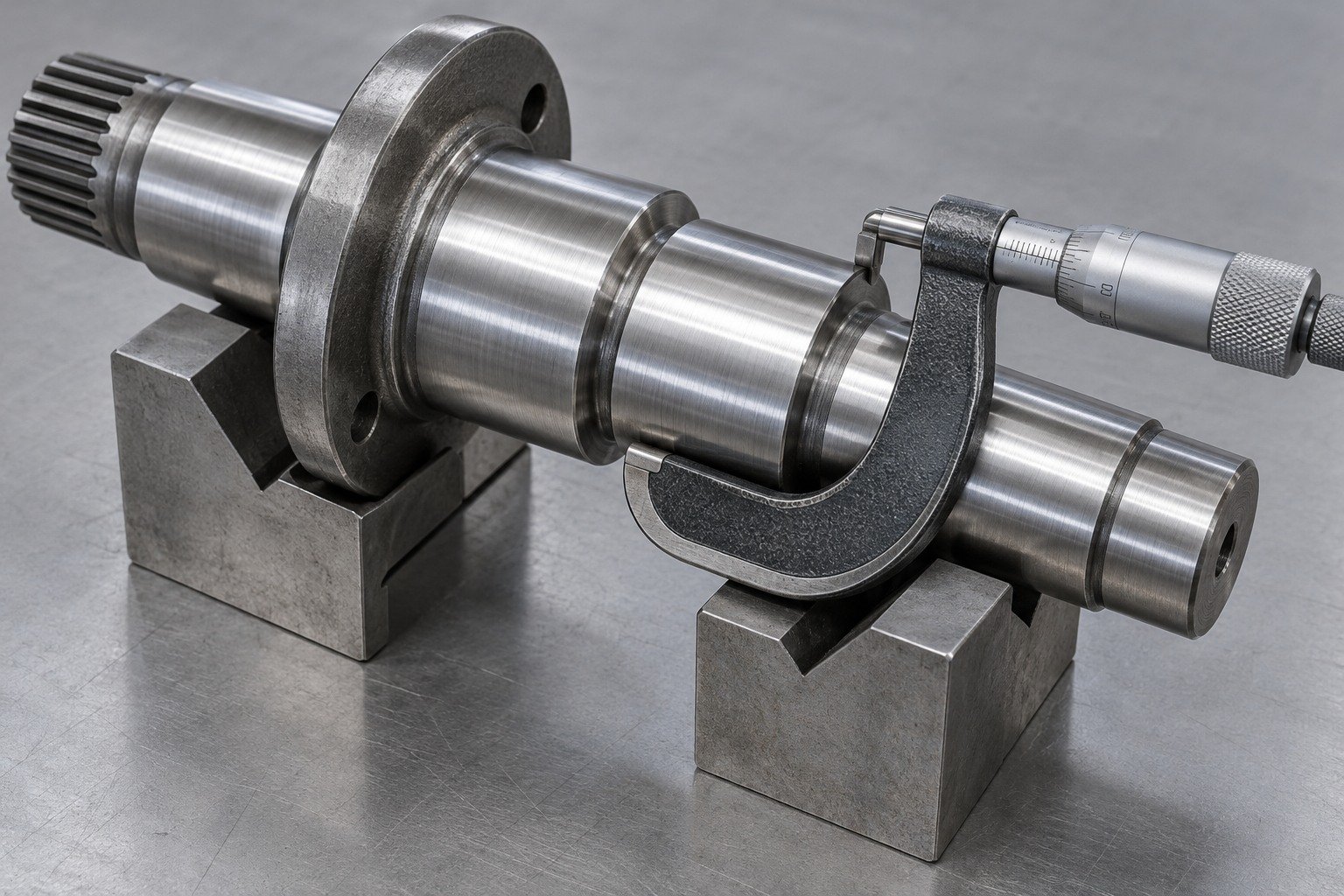

Accept the Axle After Its Final Processing
Define final journal fits, runout, spline or keyway relationships and surface protection. Keep the dimensional records tied to the specified final thermal condition.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

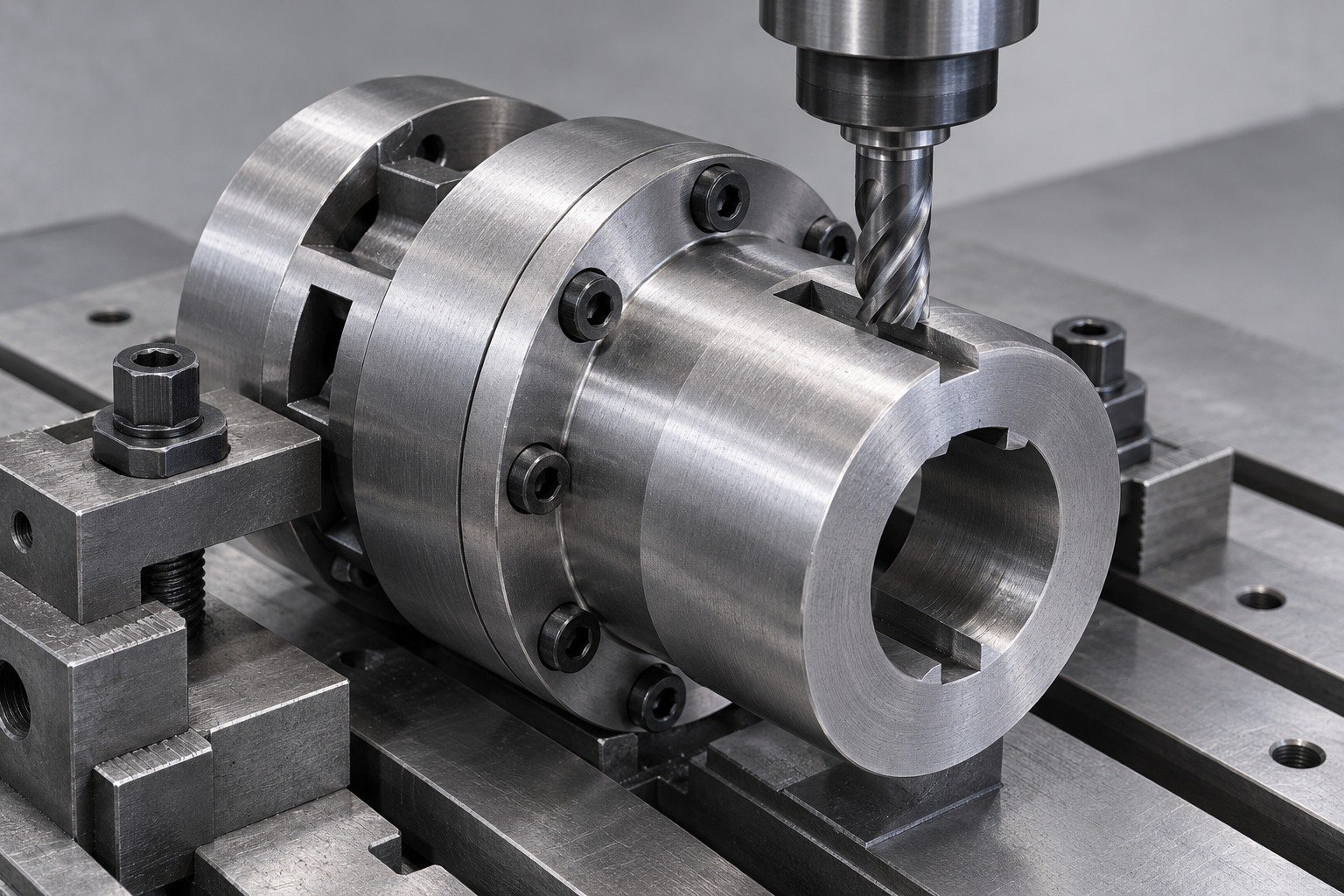

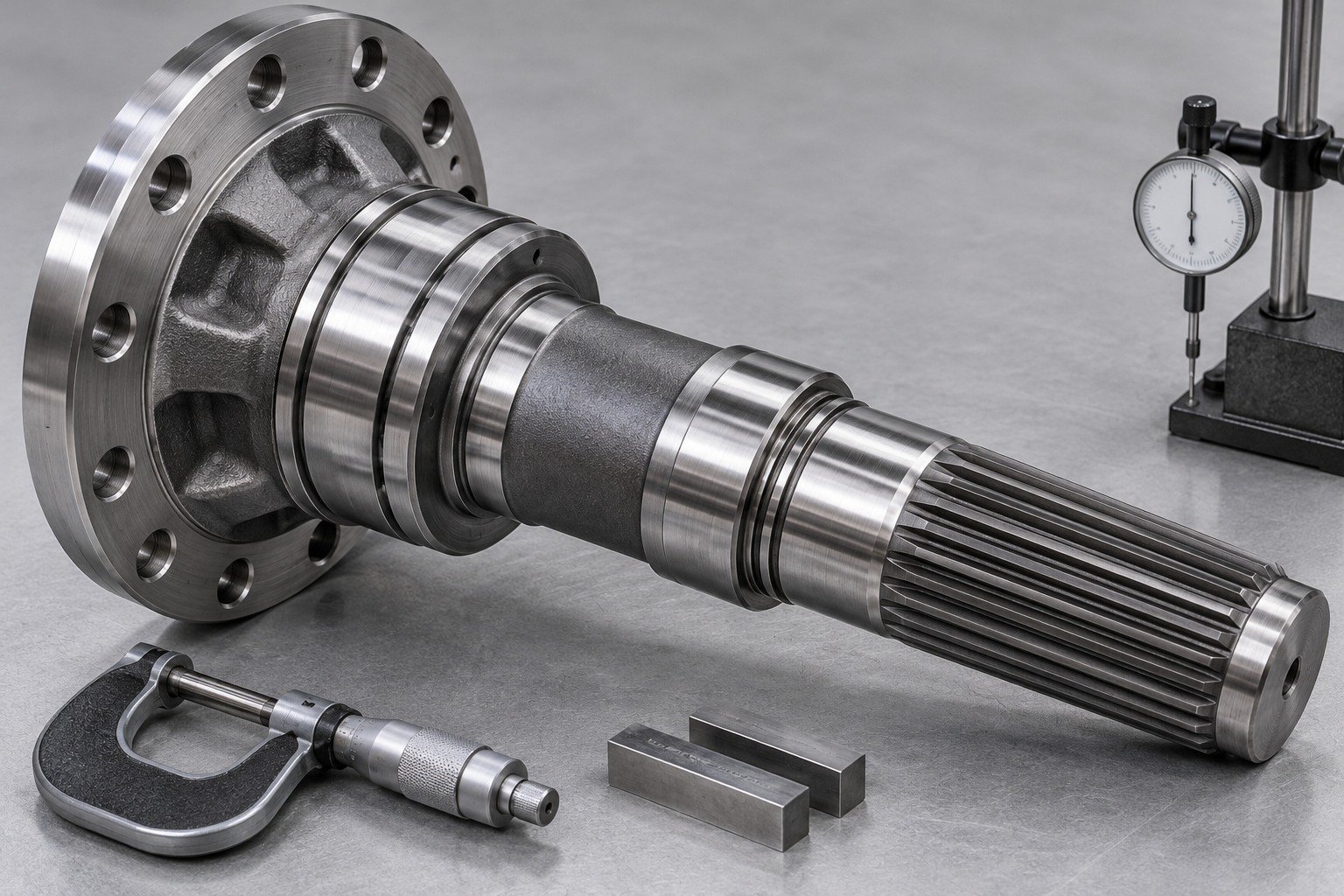

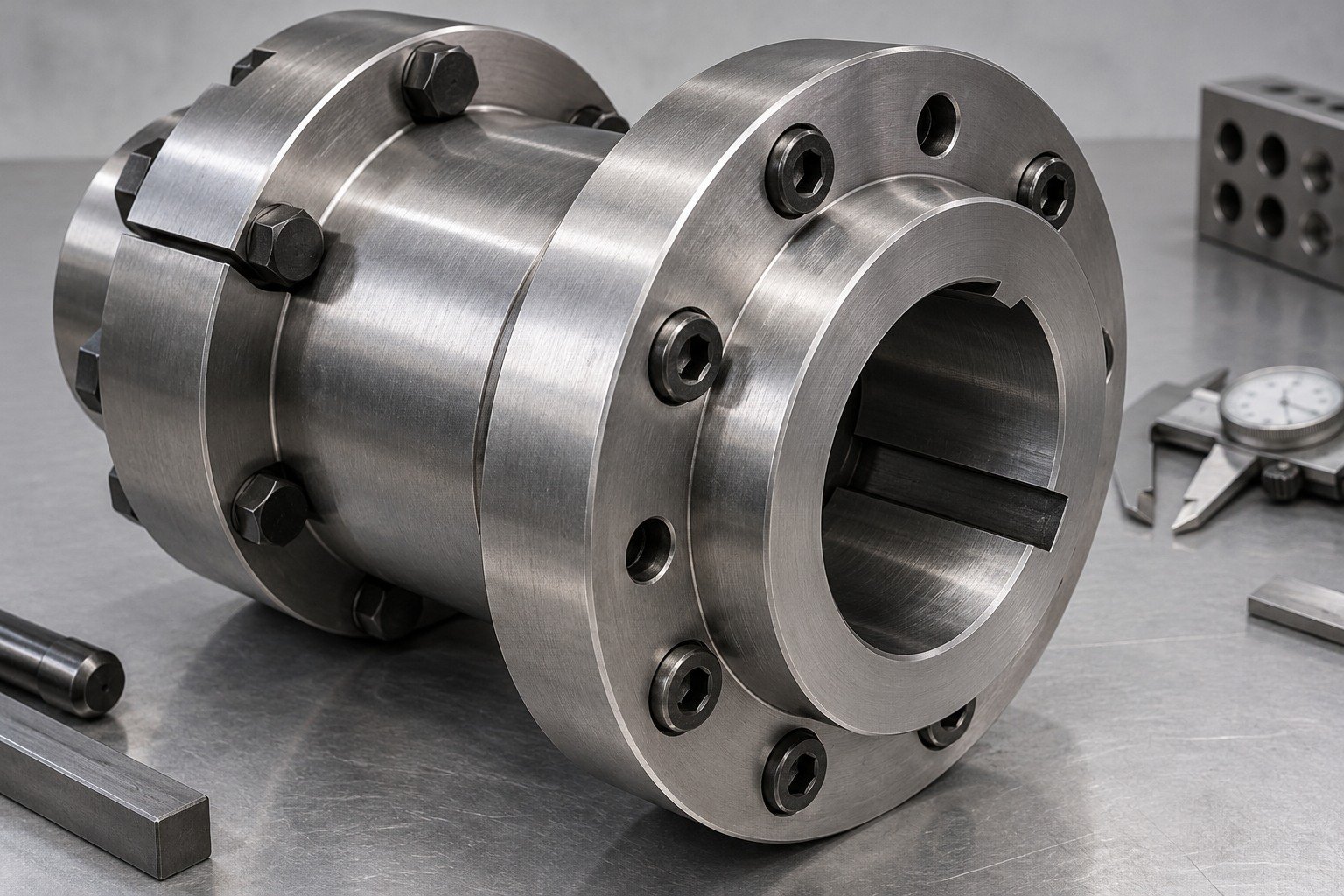

Connect Your Torque Interface to the Hub Bore
For your custom 4340 steel parts, define hub bore, key or spline, flange fasteners and locating face. Supply the mating shaft and assembly requirements when torque-interface geometry controls acceptance.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

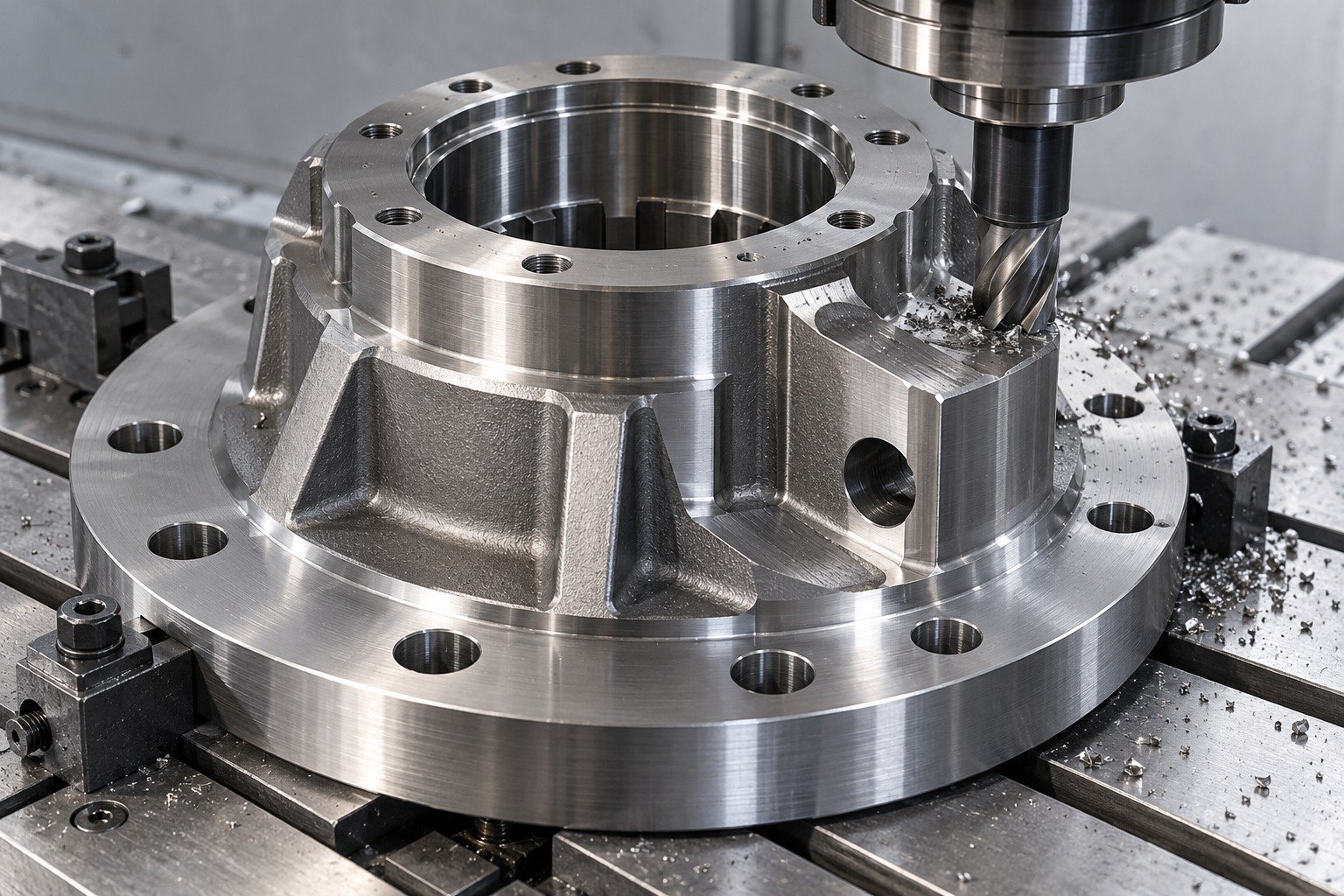

Plan Your Heavy Coupling Setups Together
For your 4340 steel milling review, relate flange holes and torque features to the central bore. Identify cutter clearance, corner radii and permissible edge breaks before finishing the bore.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

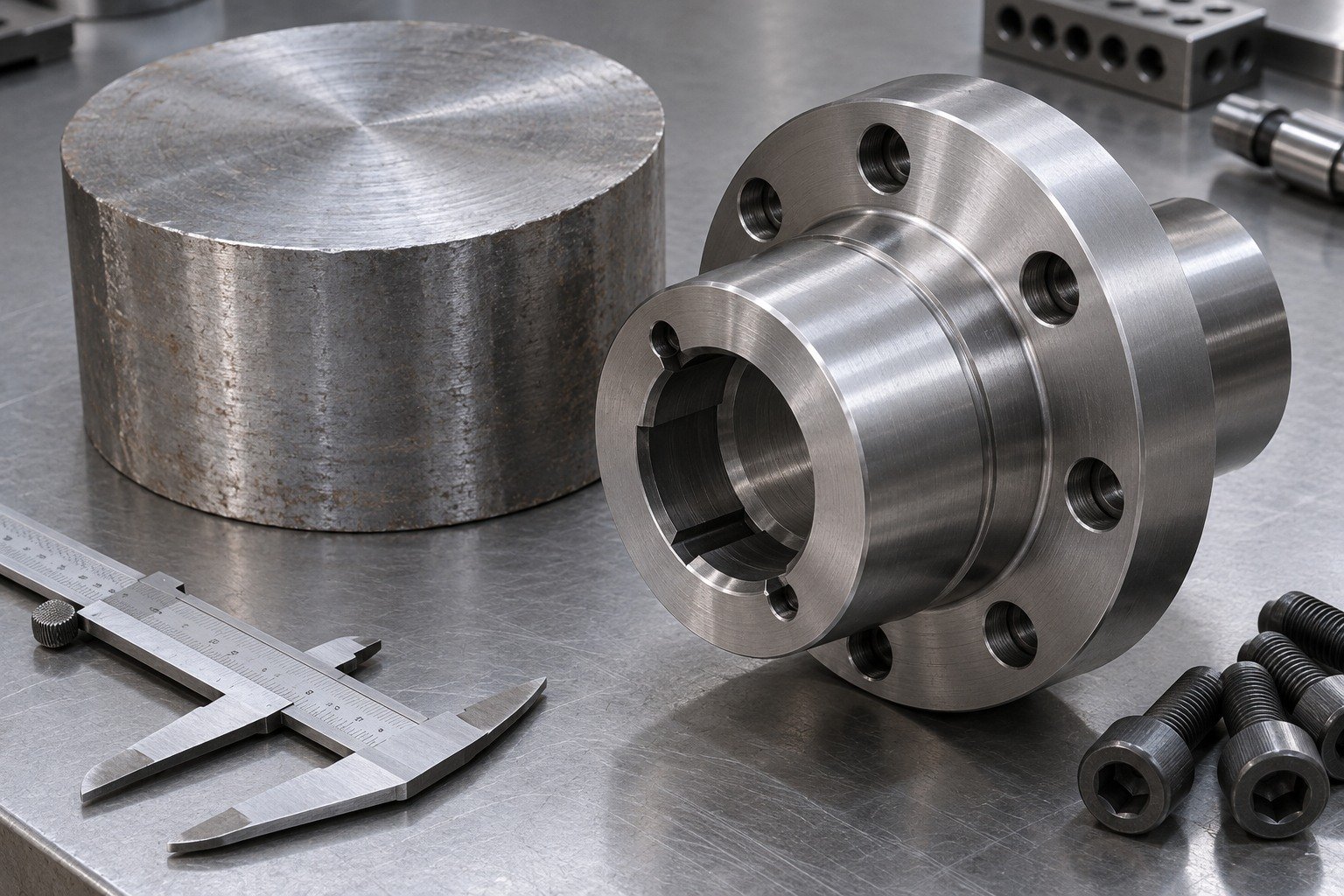

Reserve Stock for Your Final Coupling Fit
Specify the incoming condition, required final properties and section. Leave an agreed route to finish the bore and locating face after treatment or distortion correction.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

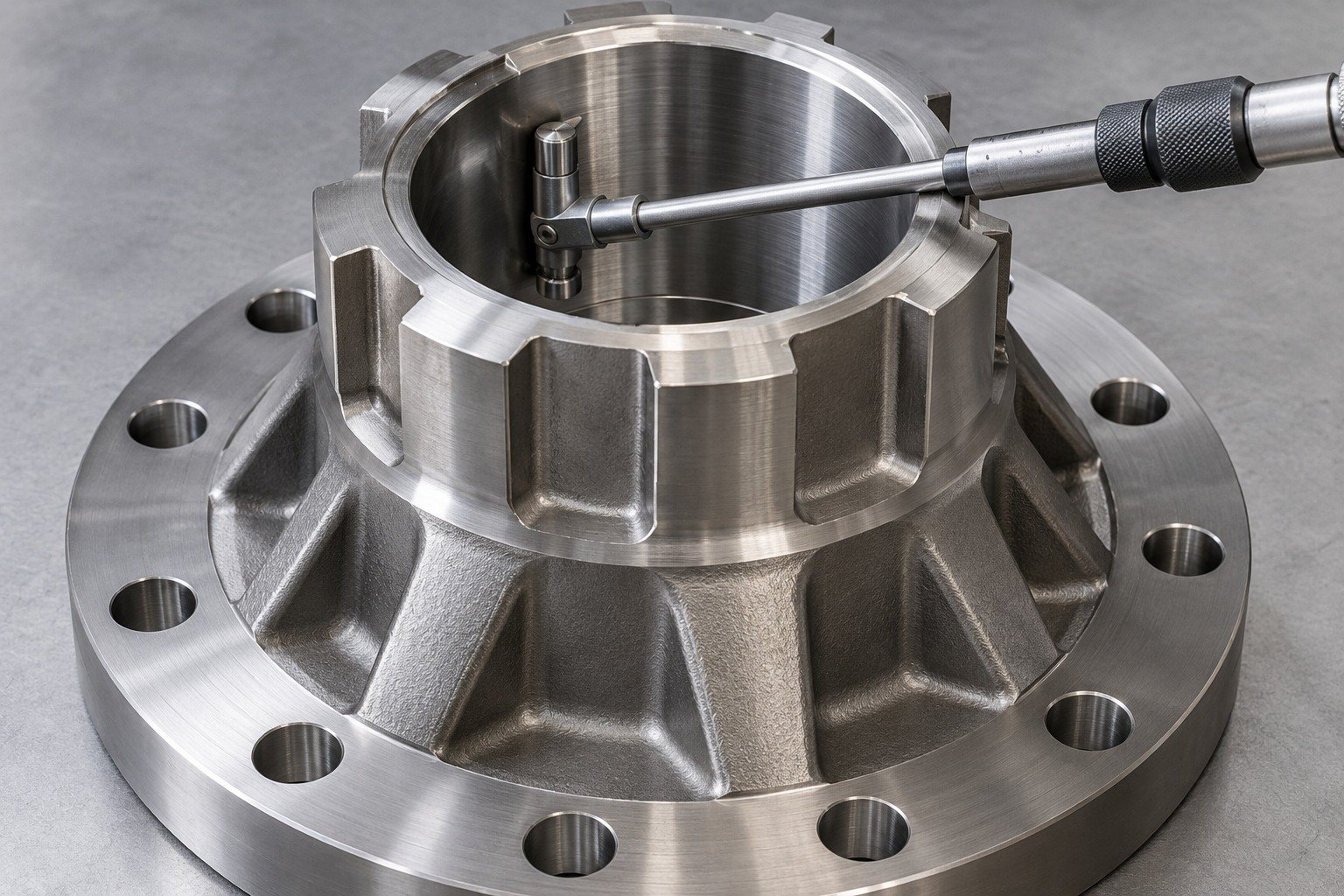

Agree the Coupling Measurements Your Assembly Needs
Agree bore size, face runout and key or spline inspection. State how the coupling is supported during measurement and which drawing revision governs final release.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

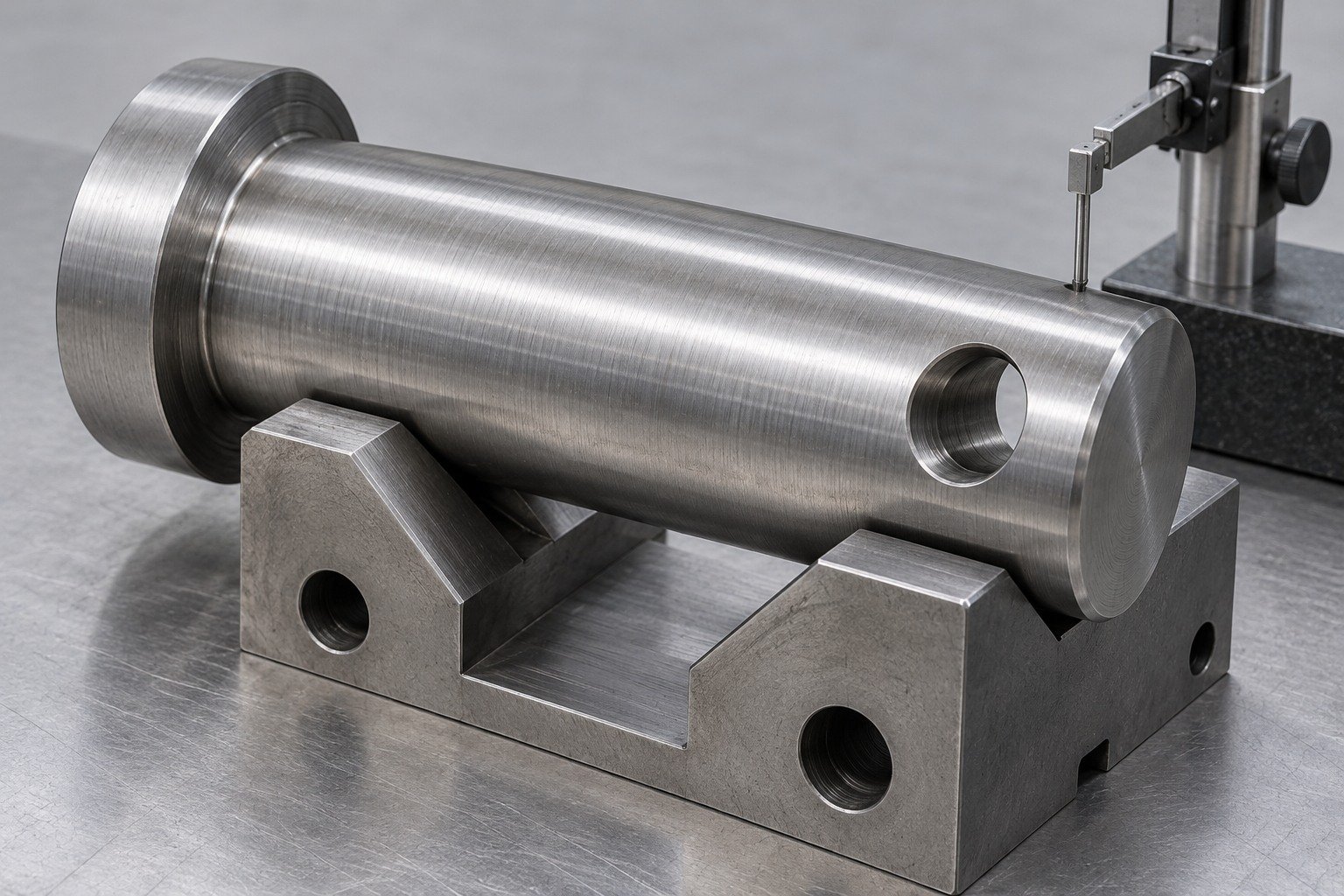

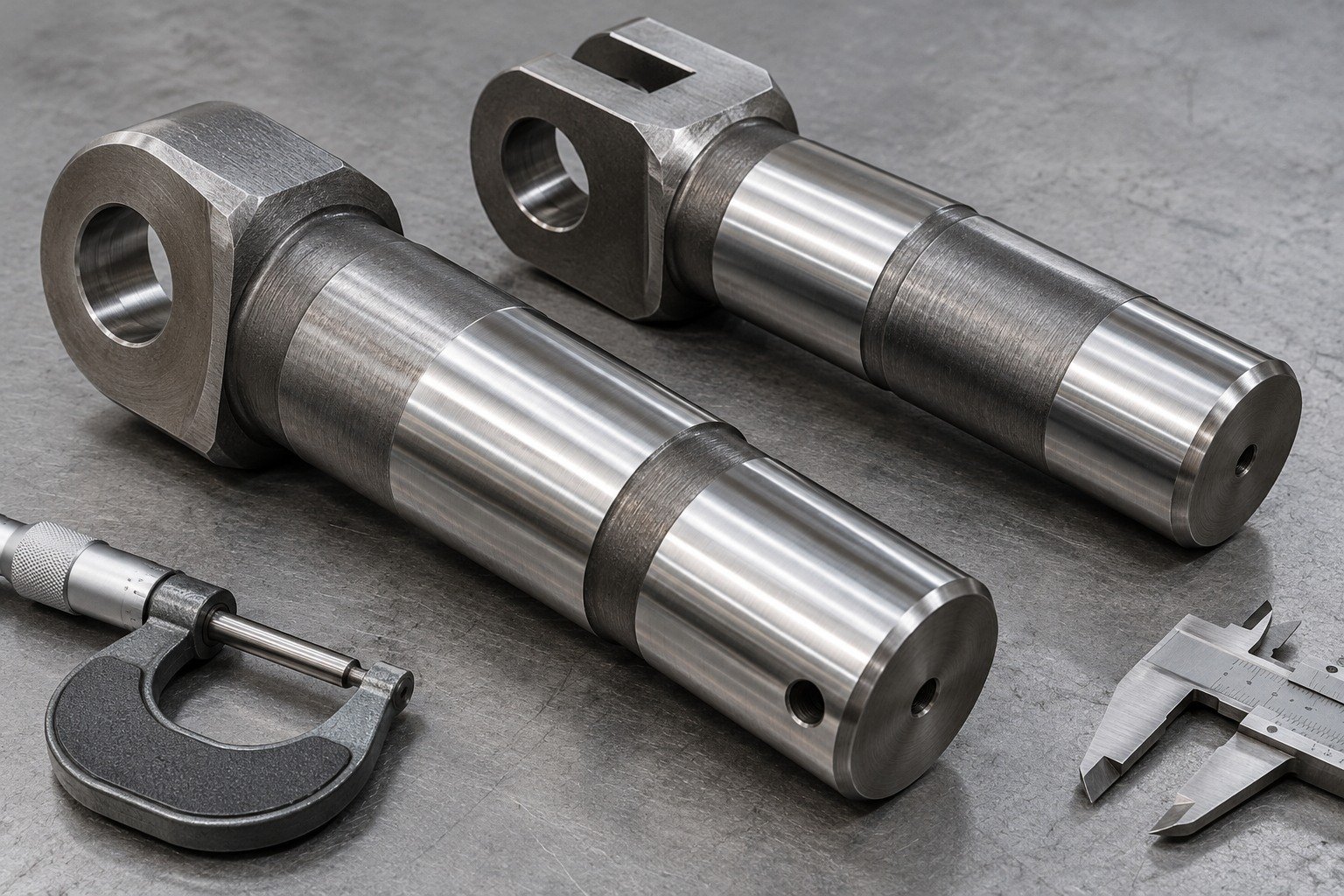

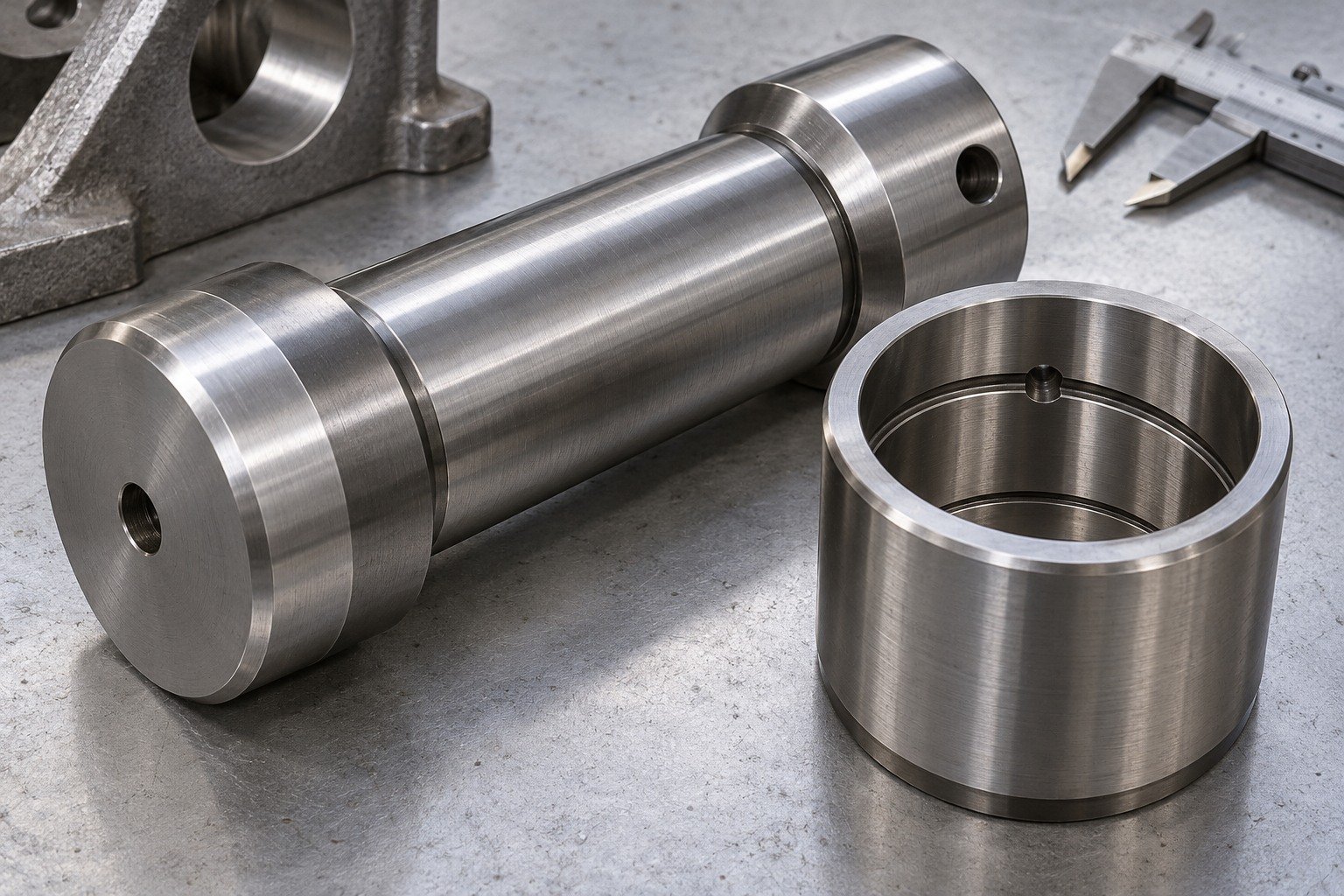

Define the Loaded Pin and Its Mating Bushing
For your 4340 steel pins and 4340 steel bushings, identify loaded bearing lands, shoulders, lubrication passages and retention features. For 4340 steel threaded parts, state thread fit and useful engagement.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Keep Cross-Holes Clear of Critical Bearing Lands
For 4340 steel drilling and 4340 steel tapping, identify intersections, exits and burr access. Show whether cross-holes or retaining grooves interrupt the bearing surface and define permitted edge finishing.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Review the Pin Section and Required Condition
Keep the specified final condition, pin section and acceptance evidence together. Define test scale and locations where hardness is required; do not transfer a catalogue value to every pin.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

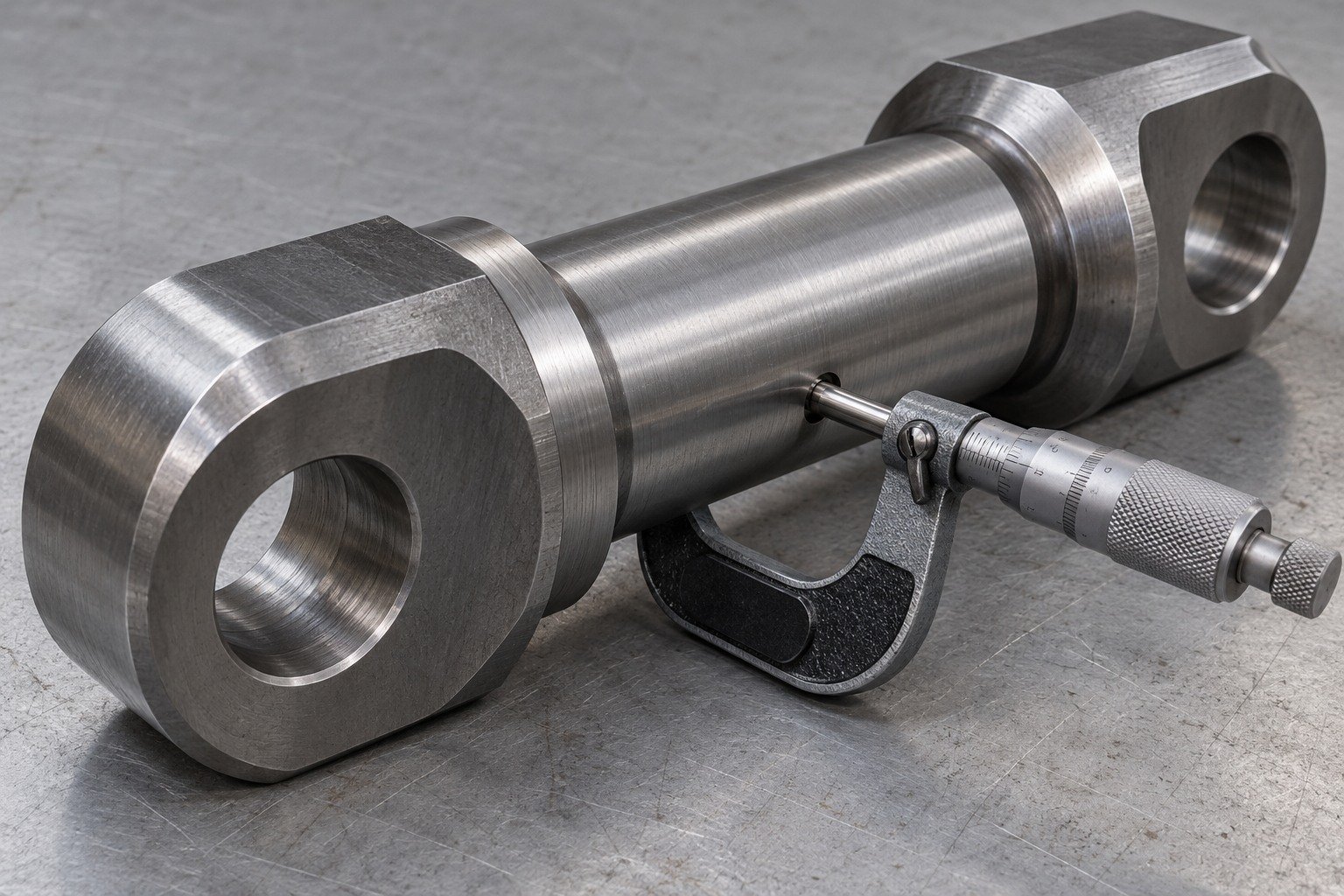

Verify Pin Fit, Retention and Final Surface
Agree pin and bushing fits, retention dimensions and any thread gauging. Identify masked bearing lands and measurements after the complete finish route.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

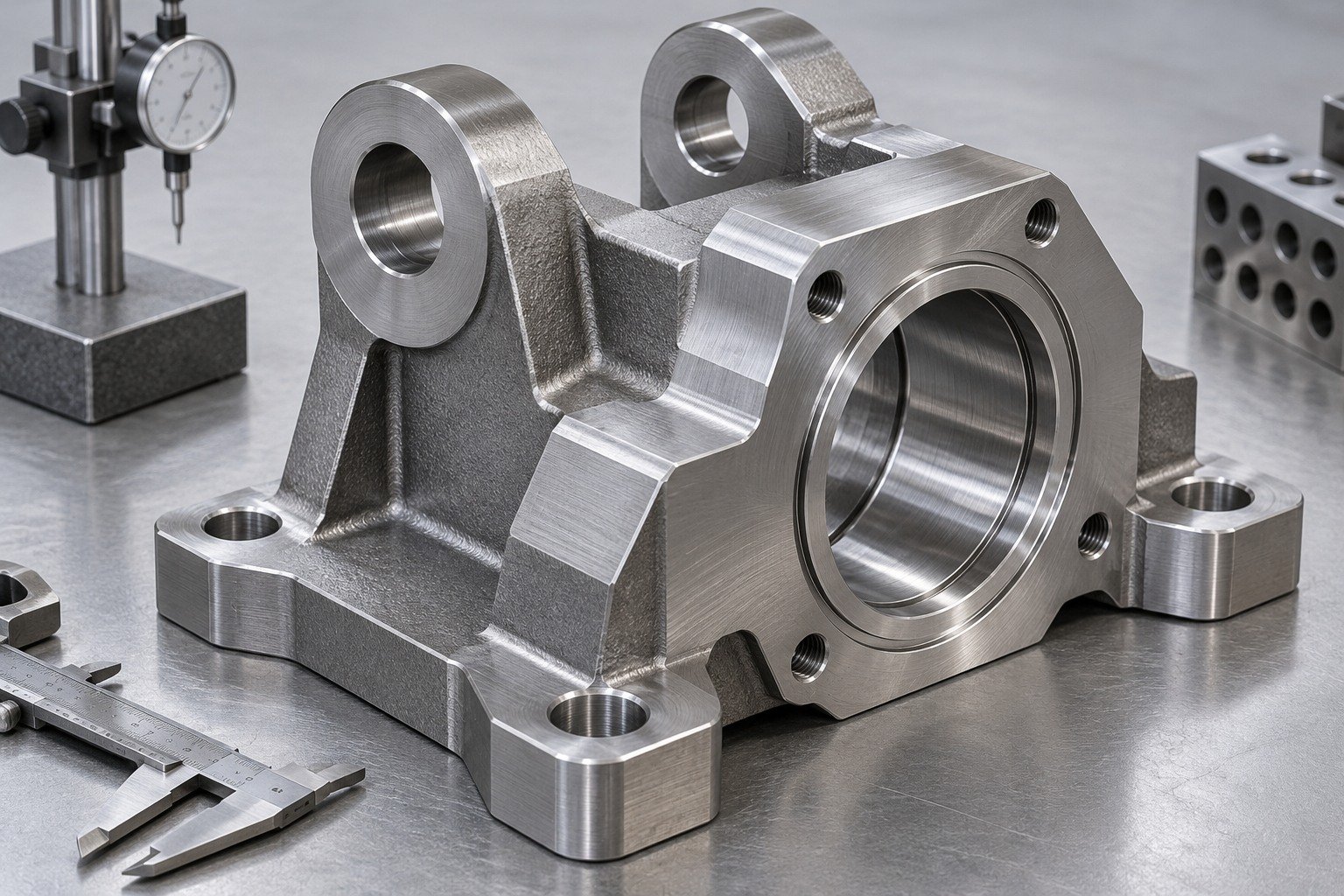

Locate the Bearing Bore from the Mounting Faces
For your 4340 steel CNC machining inquiry, identify bearing-bore position, mounting datums, lug faces and fastening relationships. Include the assembled load direction and mating bearing details.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

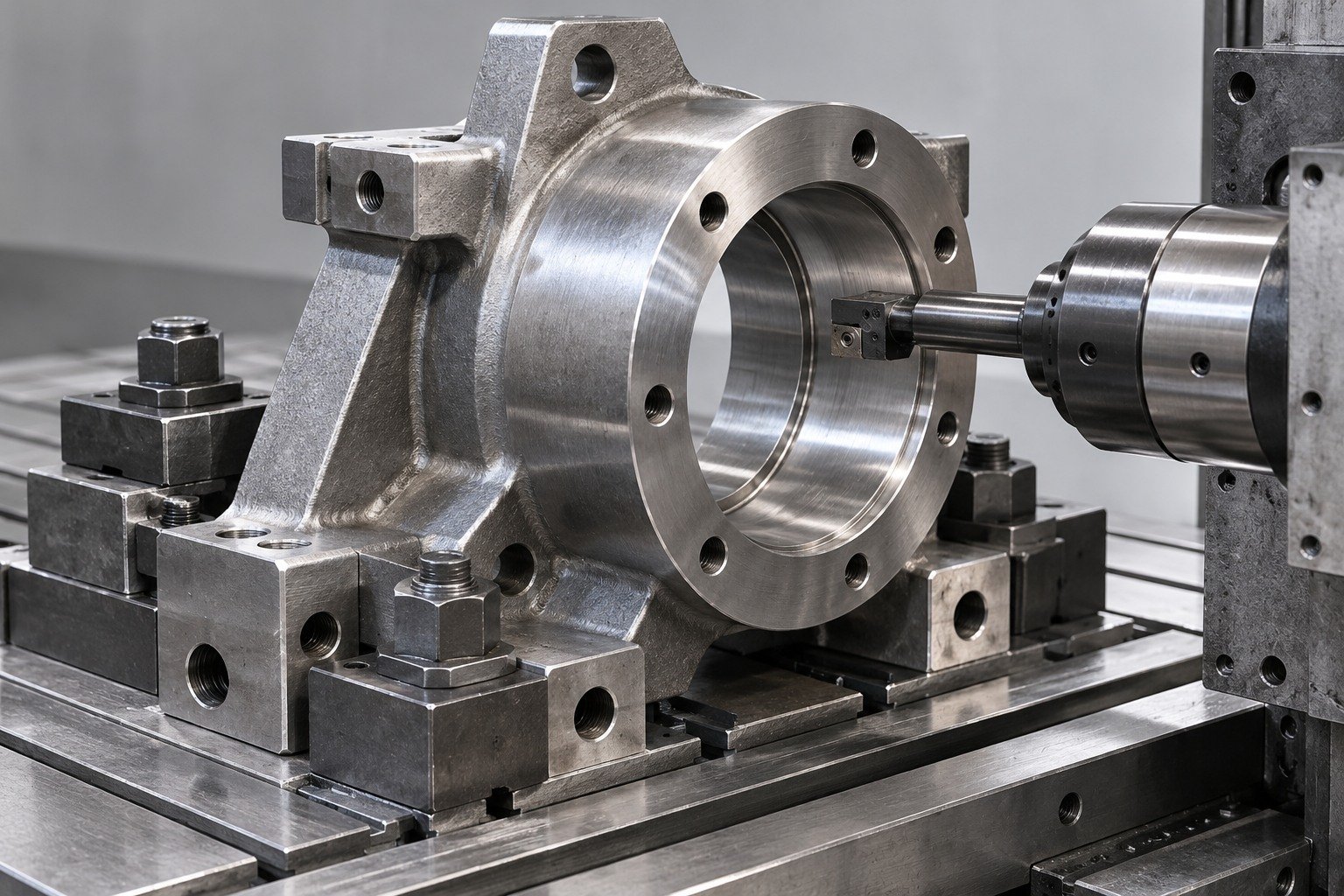

Connect the Carrier Bore to Its Mounting Pattern
Show boring entry, tool overhang, mounting-hole access and internal reliefs. Identify which bore and locating faces share one datum scheme for your carrier.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

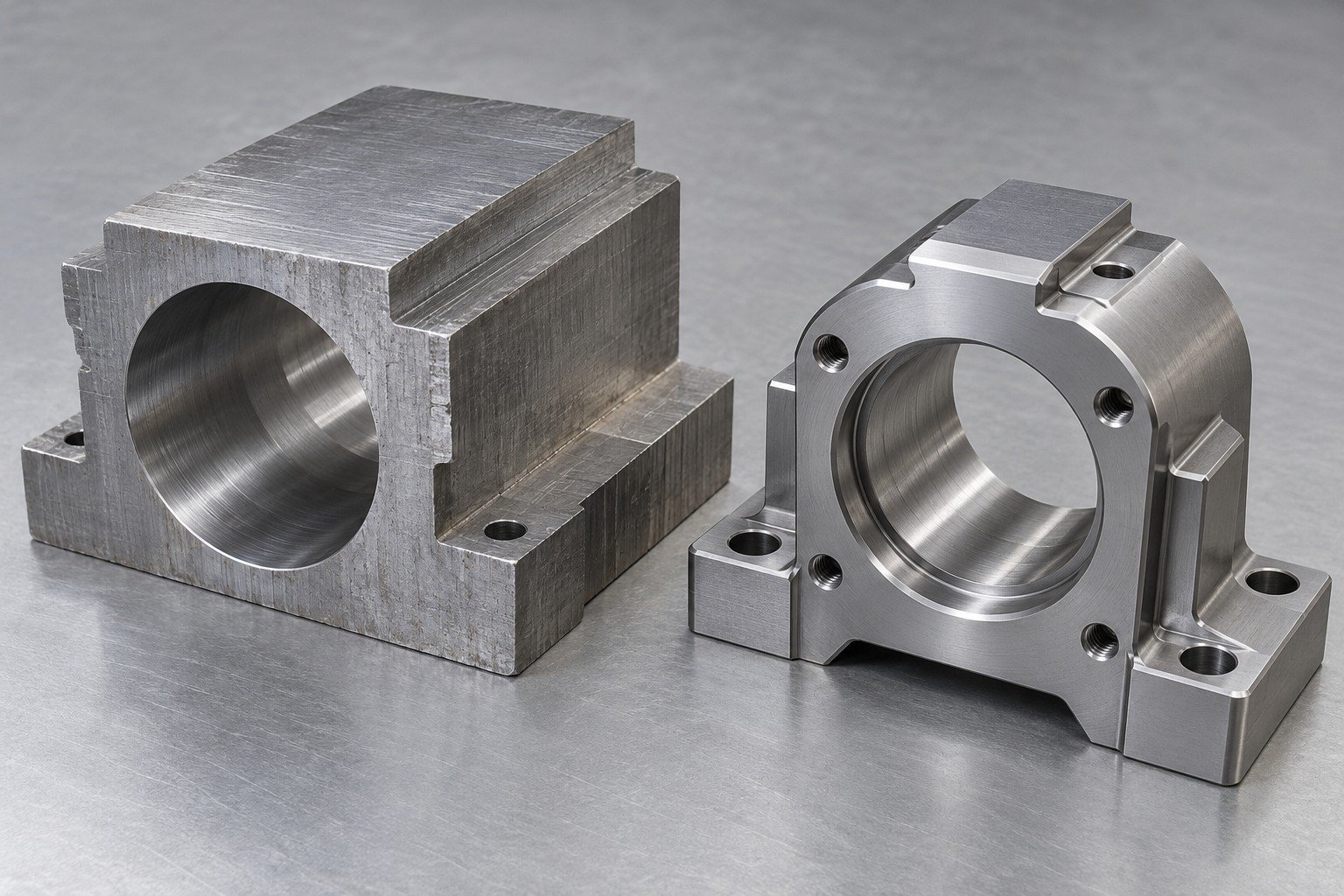

Plan Carrier Allowance Around the Required Condition
Agree supplied condition and treatment sequence before setting the final bore. Mark functional pads, finishing allowance and surfaces that require protection during handling.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

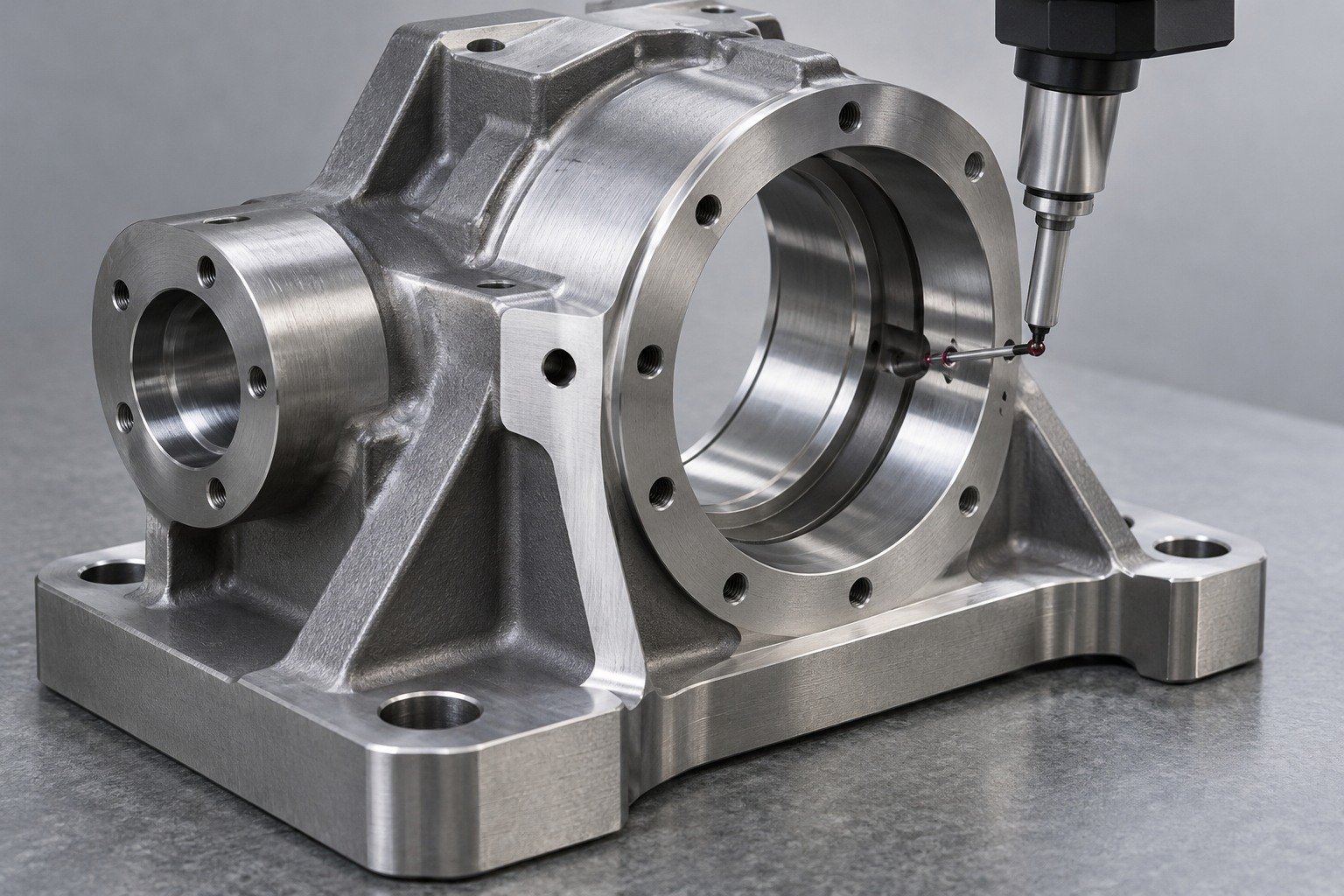

Release the Carrier Against the Assembly Datums
Agree bore size and position, mounting-face relationships and surface acceptance. Keep dimensional checks with the required material and treatment records.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
4340 Steel Properties Depend on Condition
Do not transfer a generic strength or hardness value to your finished component.
| Your callout | What to confirm |
|---|---|
| Annealed incoming stock | Product form, section, supplied condition and material record |
| Pre-hardened or specified +QT stock | Requested hardness or property range, section and evidence |
| Specified treatment | Target condition, section, distortion allowance and final inspection |
Section size and thermal condition control which properties can be accepted.
Specify the required property range, test location and traceable material condition.
34CrNiMo6 is a comparison candidate.
European names do not approve substitution without checking the complete specification.
4340 Steel Composition & European Grade Names
Compare the actual product references; the similar names do not approve interchangeability.
Nickel & Chromium: Compare the Reference Ranges
Mass % · common axis 0–2.25%
4340 · Ni
1.65–2.0%
34CrNiMo6 · Ni
1.3–1.7%
4340 · Cr
0.7–0.9%
34CrNiMo6 · Cr
1.3–1.7%
01.125%2.25%
Producer reference limits · not LK lot analysis.
| Mass % | 4340 · Eaton bar | 34CrNiMo6 · Ovako EN ISO 683-2 |
|---|---|---|
| C | 0.38–0.43 | 0.30–0.38 |
| Mn | 0.60–0.80 | 0.50–0.80 |
| Si | 0.15–0.35 | 0.10–0.40 |
| Ni | 1.65–2.00 | 1.30–1.70 |
| Cr | 0.70–0.90 | 1.30–1.70 |
| Mo | 0.20–0.30 | 0.15–0.30 |
| P max | 0.035 | 0.025 |
| S max | 0.040 | 0.035 |
European comparison: 34CrNiMo6 / 1.6582 is listed as a similar designation. Chemistry differs. Confirm the complete specification, section, condition and required evidence before substitution.
Resolve 6 Risks Before You Release the Drawing
Review 4340 steel machinability together with geometry, material condition and the final manufacturing route.

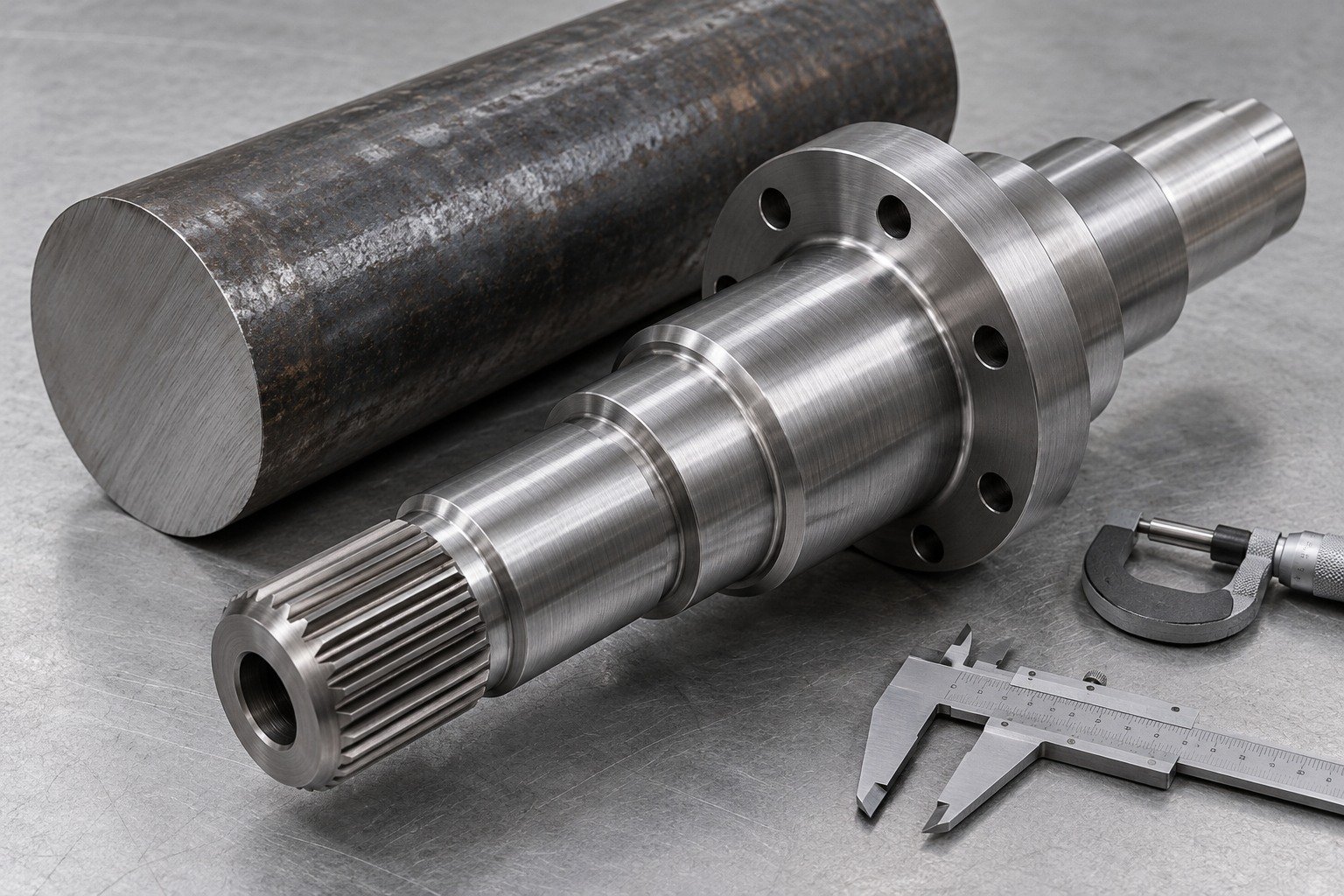

Confirm the Product Form and Supplied Condition
For your 4340 cold drawn steel inquiry, state section, supplied condition and straightness requirements. Identify long, slender or asymmetric features that may move when stock is removed.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect

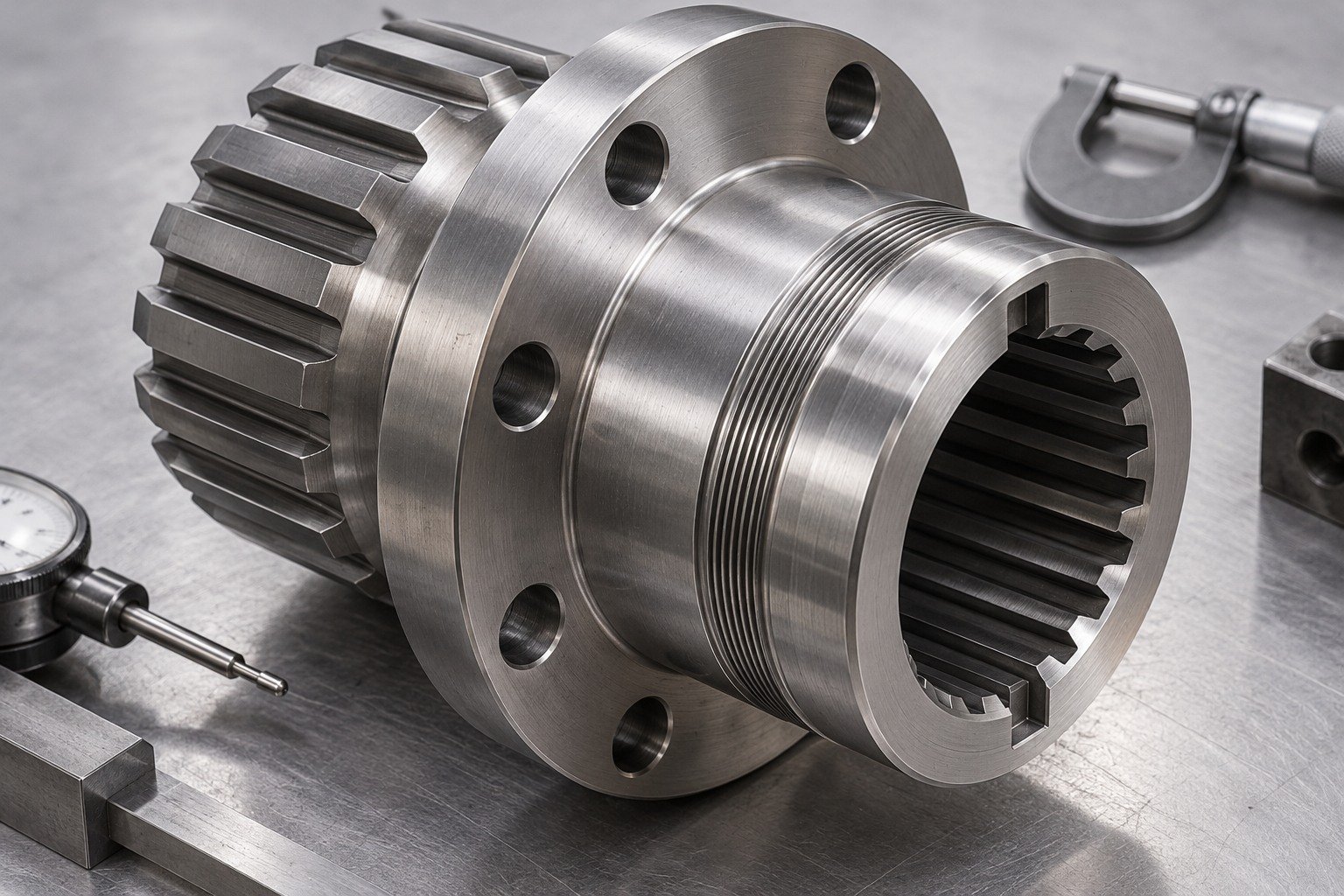

Show the Intersections Your Tools Must Reach
Identify drilling entry, useful thread engagement, runout and burr access. Separate sealing surfaces from edges that may be broken.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect
Define the Condition. Protect the Final Fit.
For your 4340 steel heat treatment or 4340 steel quench and temper requirement, agree target condition, section, test locations and final machining allowance.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect

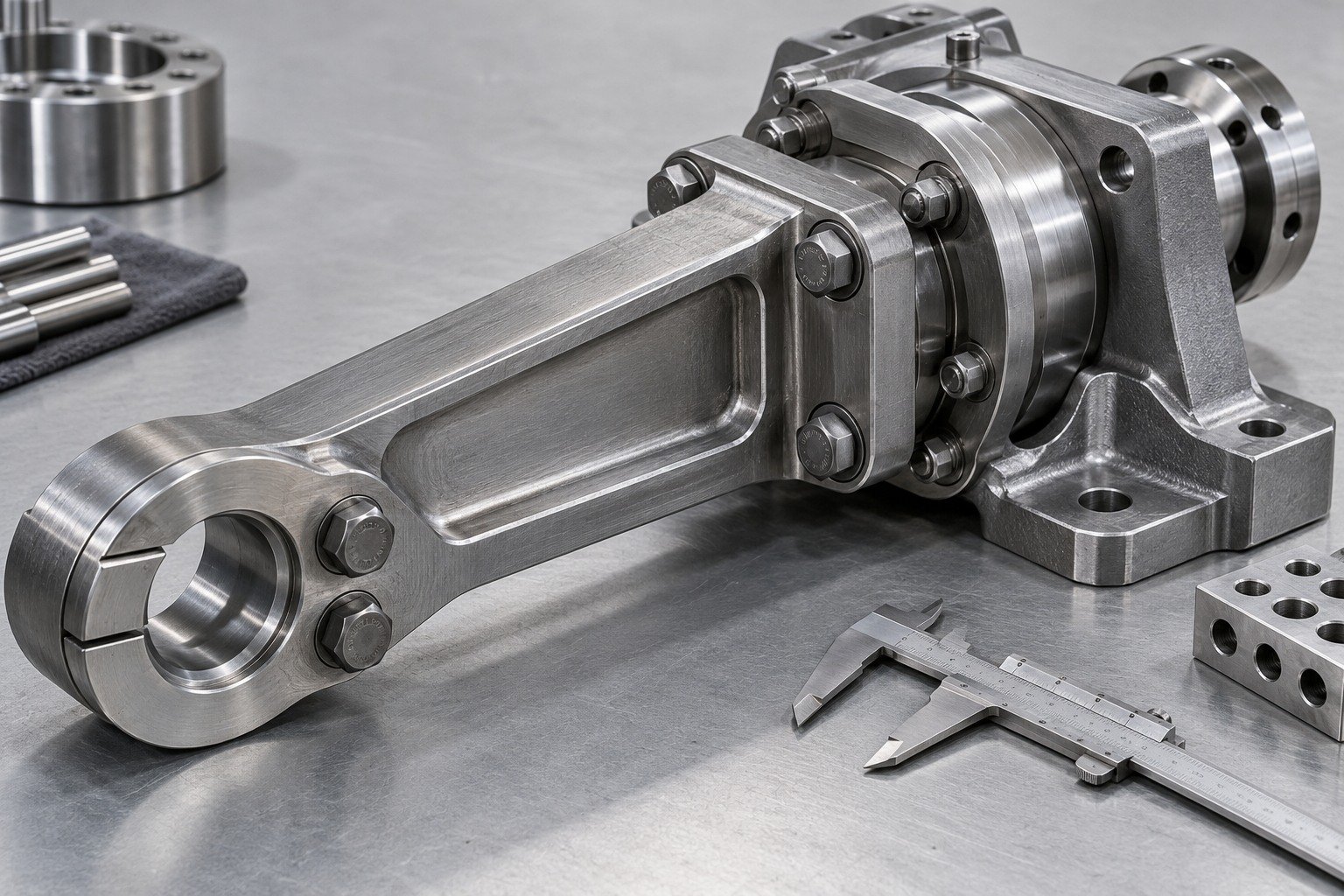

Review Your Joint Before Choosing Welding
For 4340 steel welding, review the actual material condition, section, joint and qualified procedure before committing. Where your design permits a bolted joint, define fastener and locating requirements separately.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect

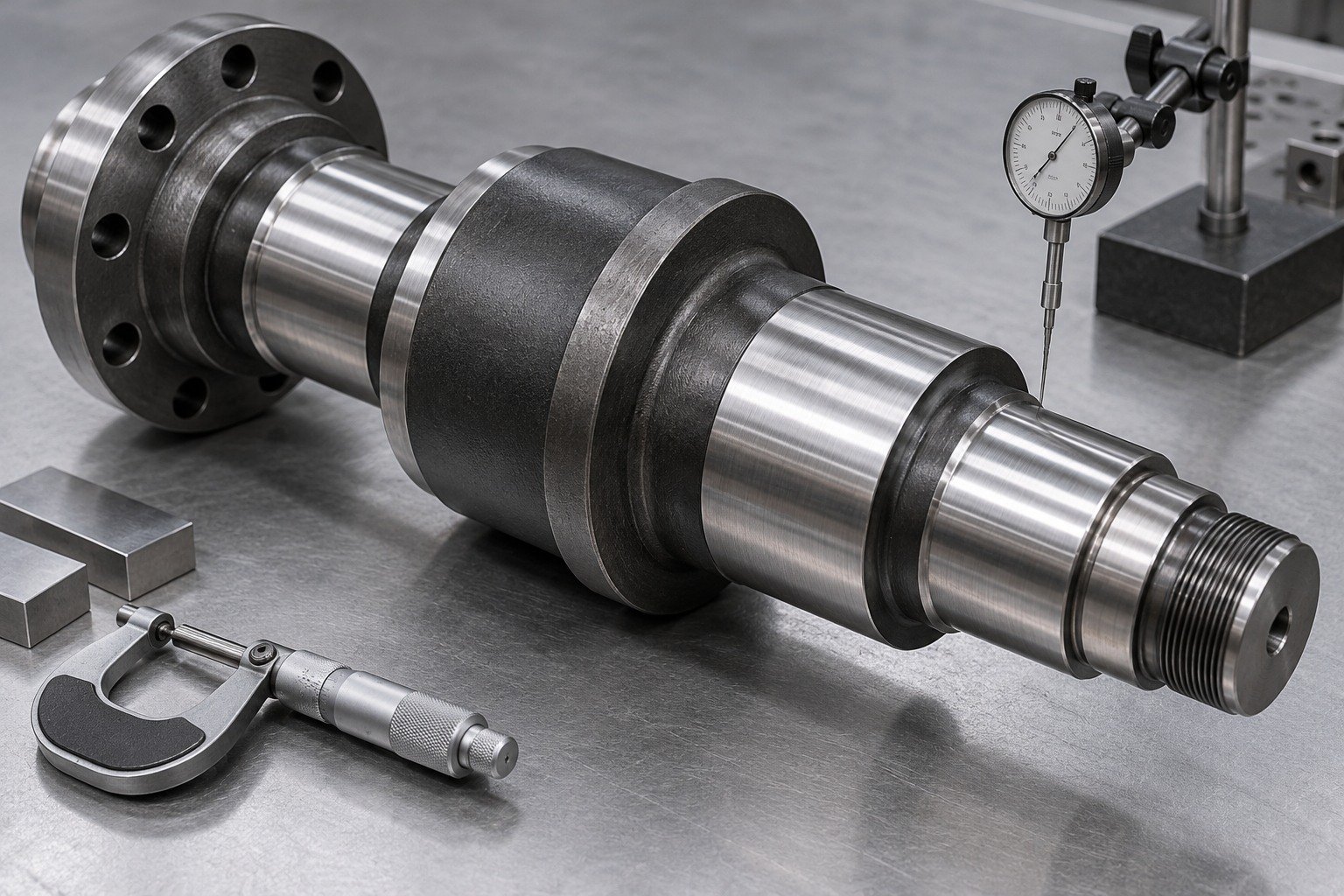

Protect Your Service Surfaces Without Losing Fit
For a 4340 steel black oxide or 4340 steel zinc plating inquiry, specify exposure, full finish system, masked areas and dimensional acceptance. Review condition-specific controls.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect

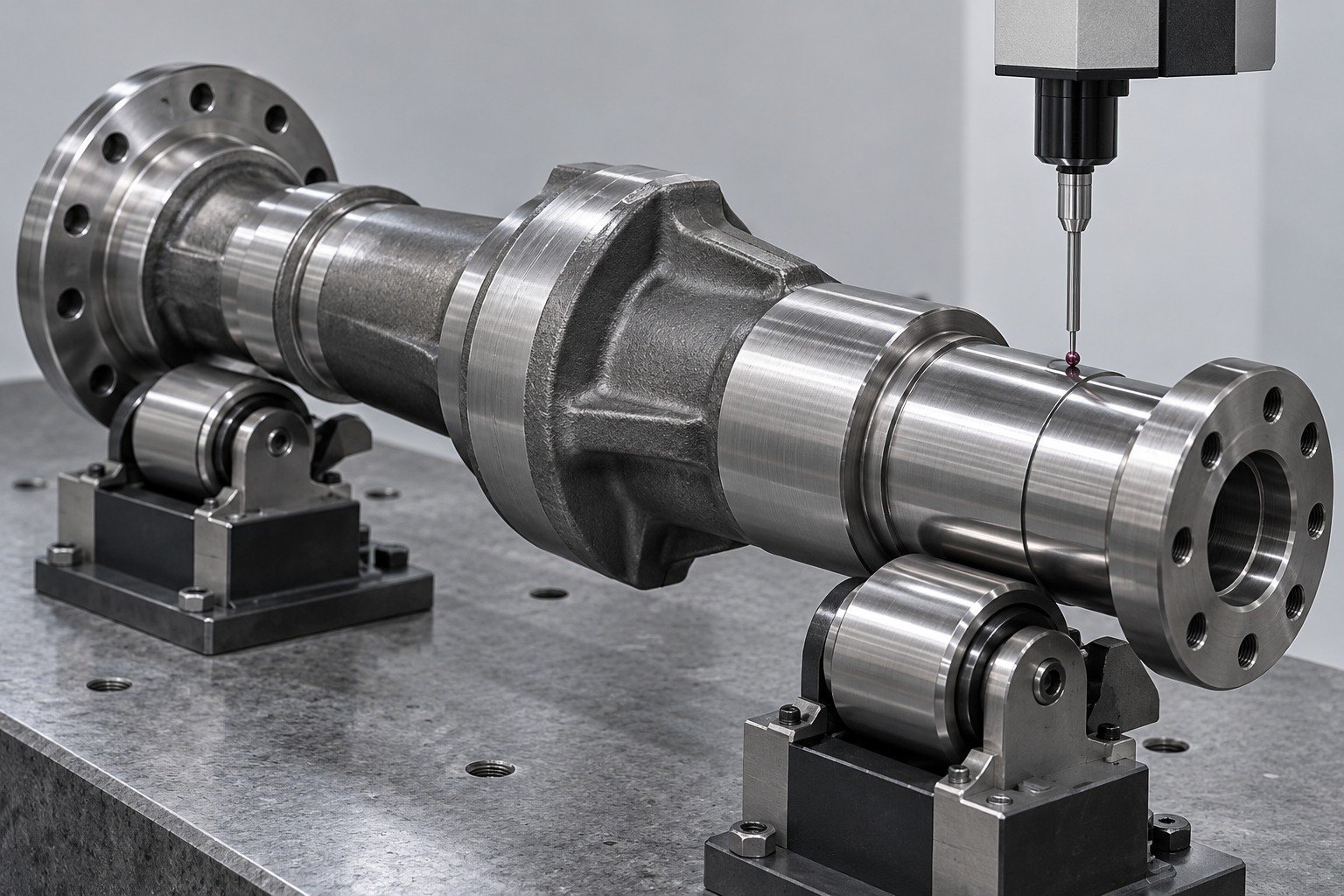

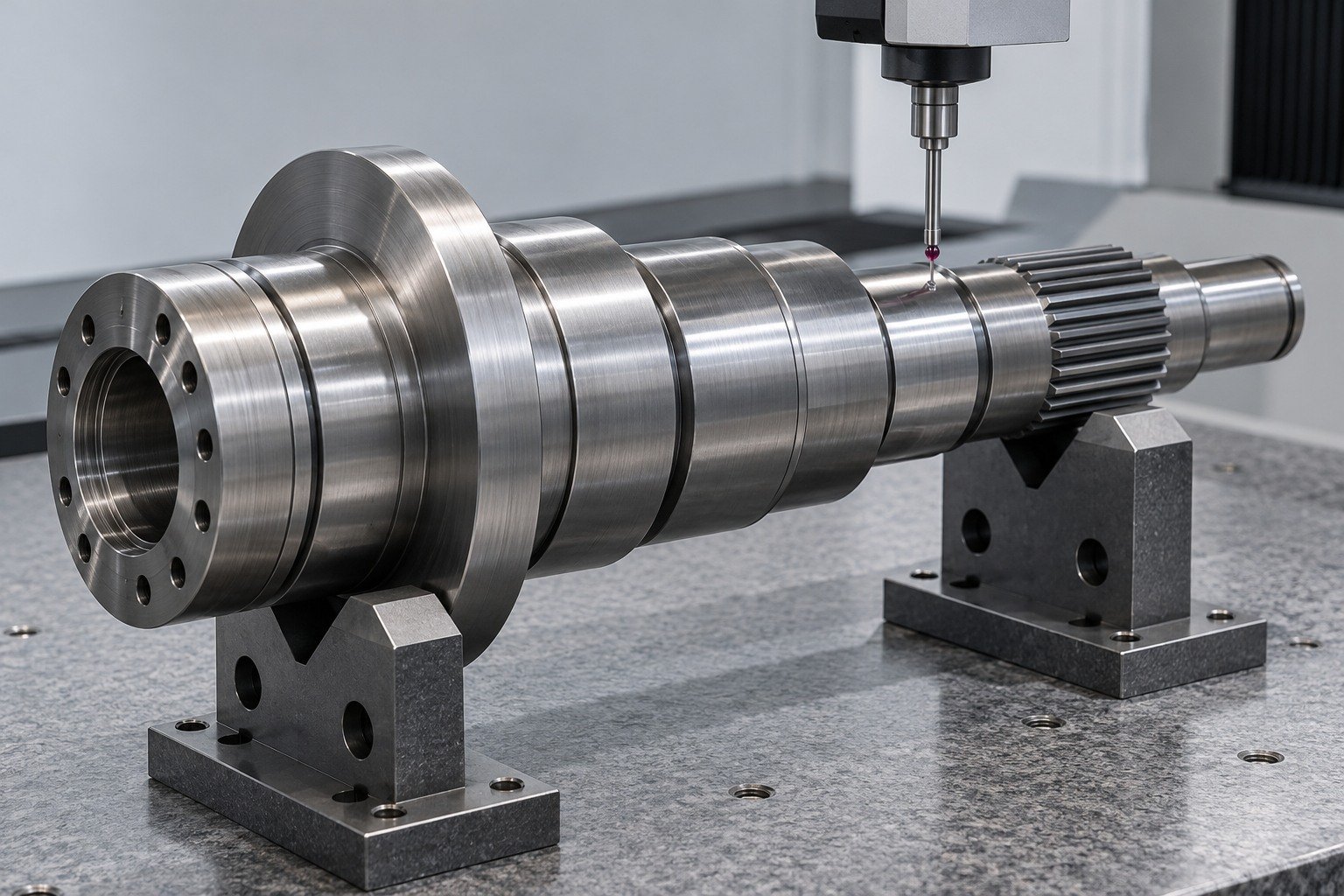

Inspect the Component After the Complete Sequence
Identify datums, mating fits, runout or alignment and final inspection state. A pre-treatment measurement is not final acceptance after a changed thermal or joining route.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect

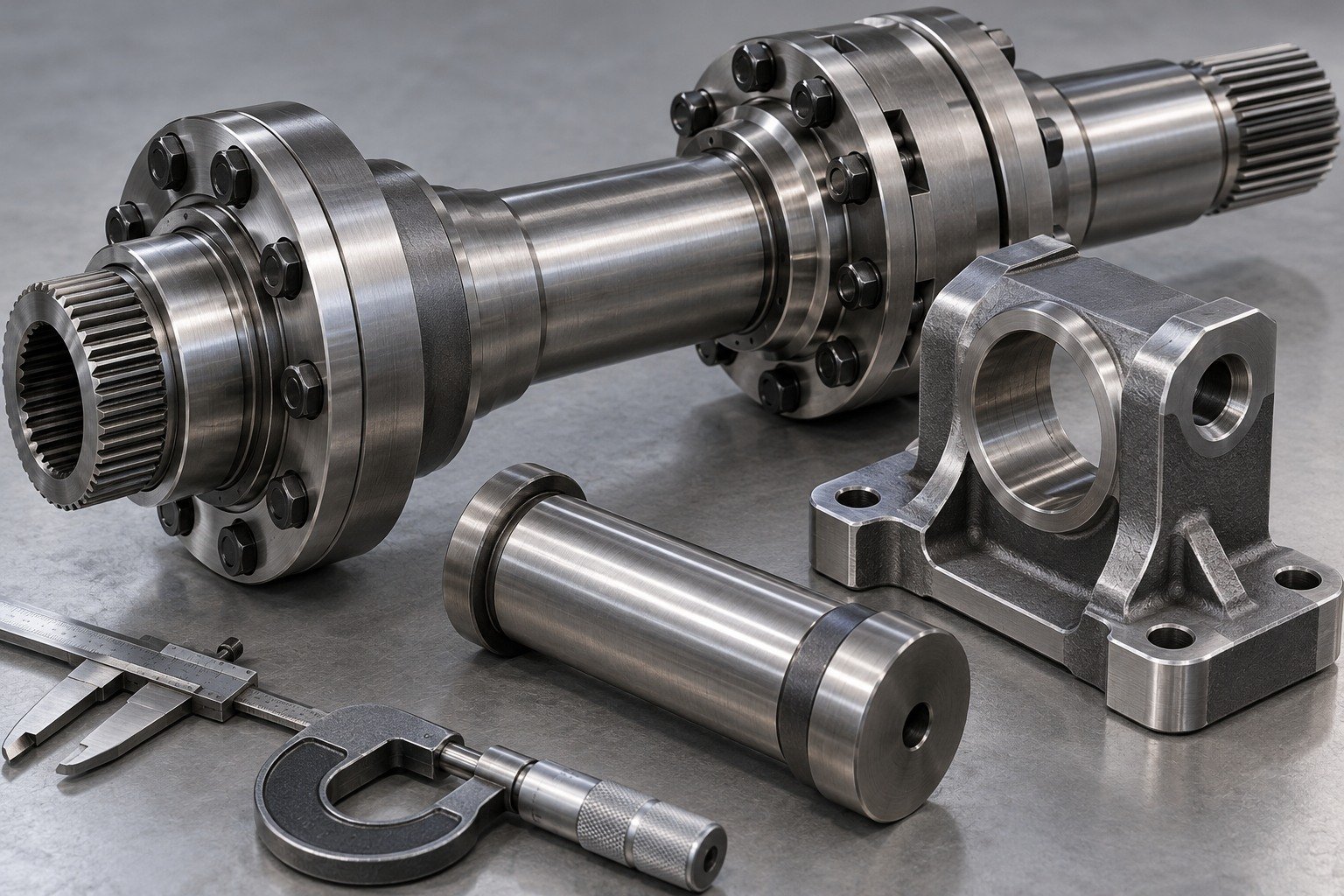

From Your Material to a Finished Component
Illustrative components. Operations and availability are confirmed for your drawing.
3 Part States. One Acceptance Drawing.
01 · Incoming material
Grade, product form, section, condition and lot identity.
02 · After specified processing
Specified thermal route, distortion and remaining finishing allowance.
03 · Finished part
Final fits, surface protection and agreed acceptance evidence.

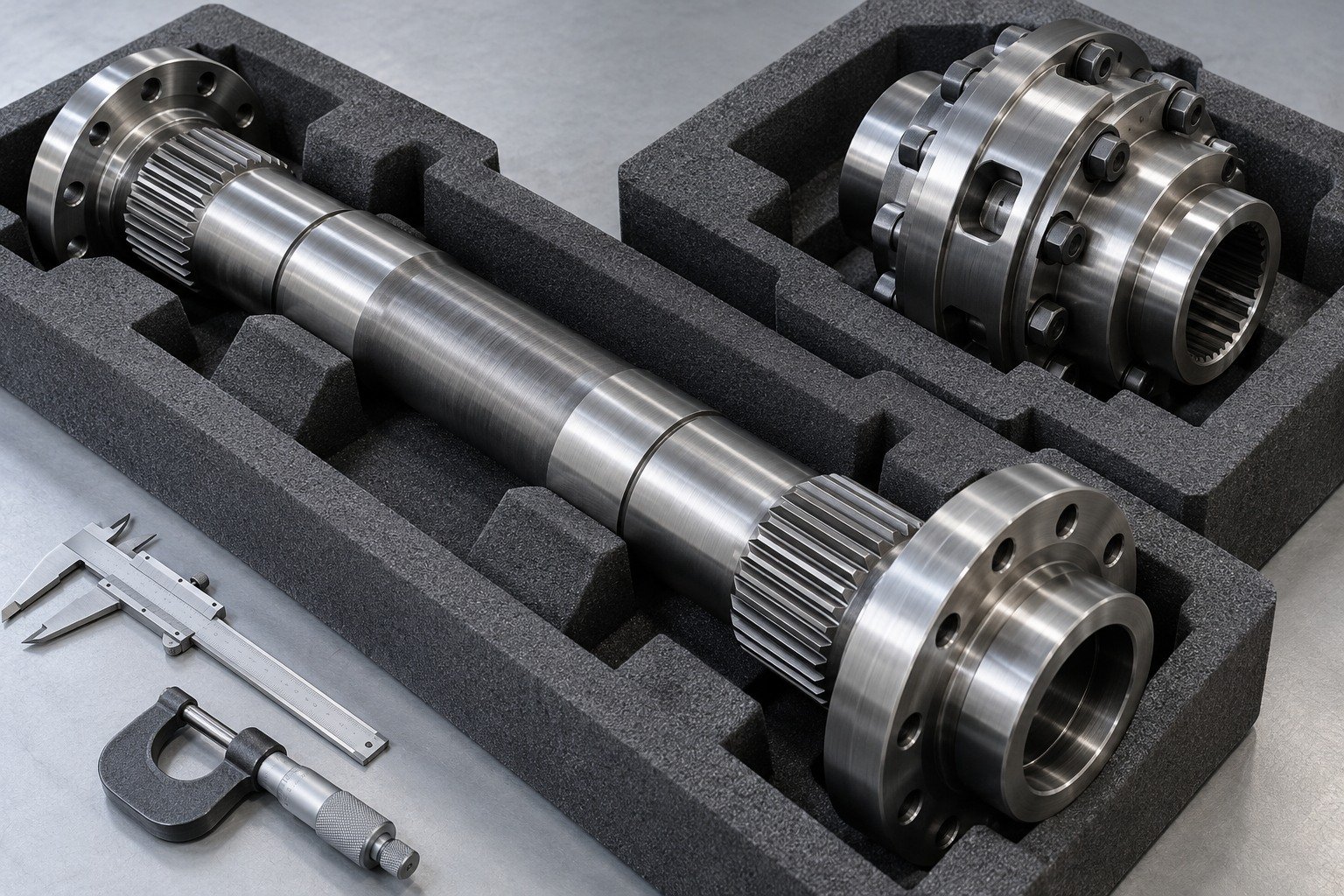

Agree the Evidence Your Receiving Team Needs

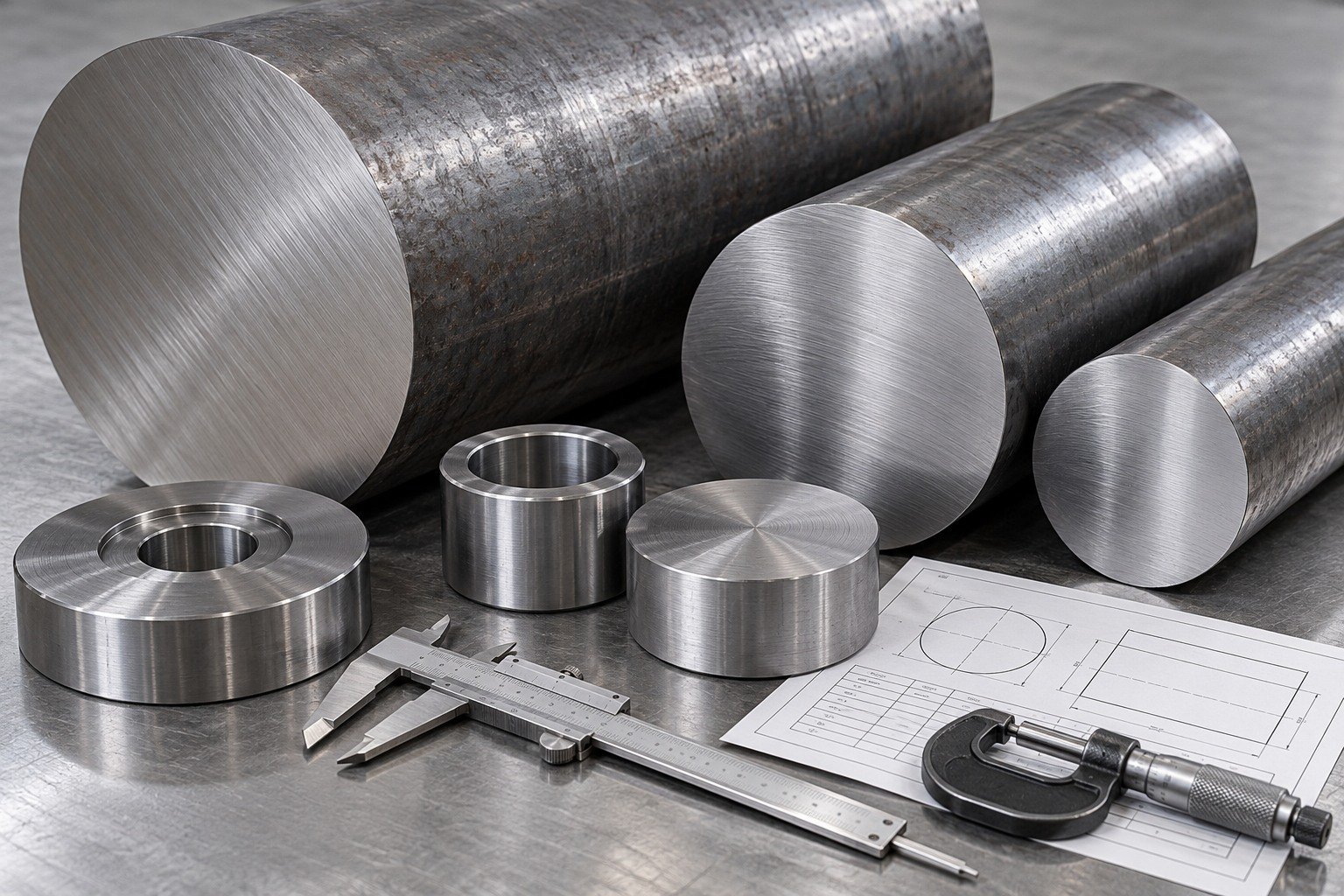

Confirm Your Stock Before the First Setup
Review grade, product standard, form, condition and lot identity. Agree any required material declarations at inquiry.
- Material identity and traceability.
- Critical dimensions and assembly fit.
- Process and finish records, where specified.
Sampling, methods and document scope are agreed with your quotation.
Quality Assurance →

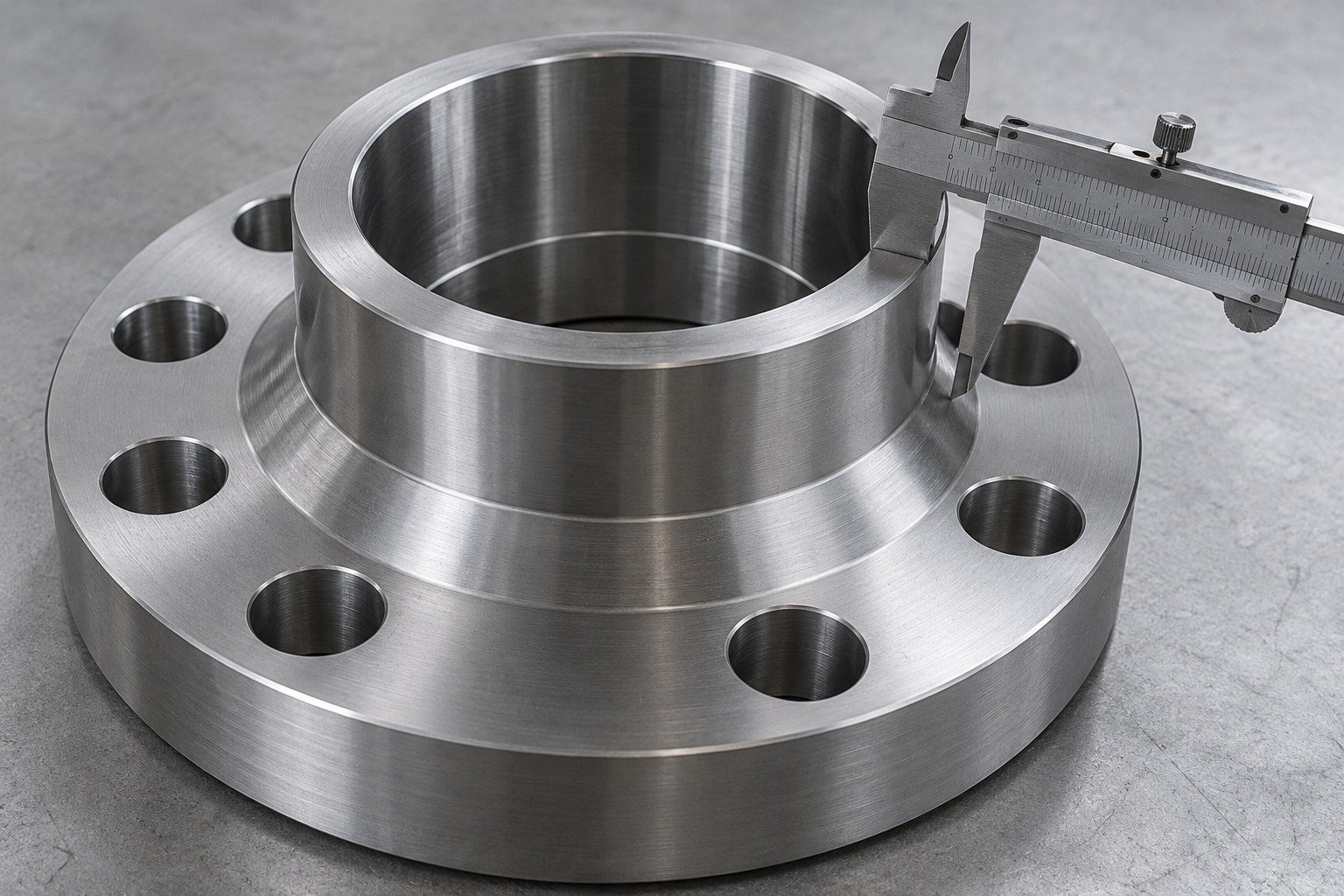

Approve the Finished Condition, Not Just the First Cut
Connect critical journal and bore fits to the ordered stock condition, planned treatment and final finishing sequence.
- Material identity and traceability.
- Critical dimensions and assembly fit.
- Process and finish records, where specified.
Sampling, methods and document scope are agreed with your quotation.
Quality Assurance →
Verify the Features That Control Assembly
Identify bores, thread fits, datum relationships and final inspection scope. Keep the approved drawing revision with the records.
- Material identity and traceability.
- Critical dimensions and assembly fit.
- Process and finish records, where specified.
Sampling, methods and document scope are agreed with your quotation.
Quality Assurance →

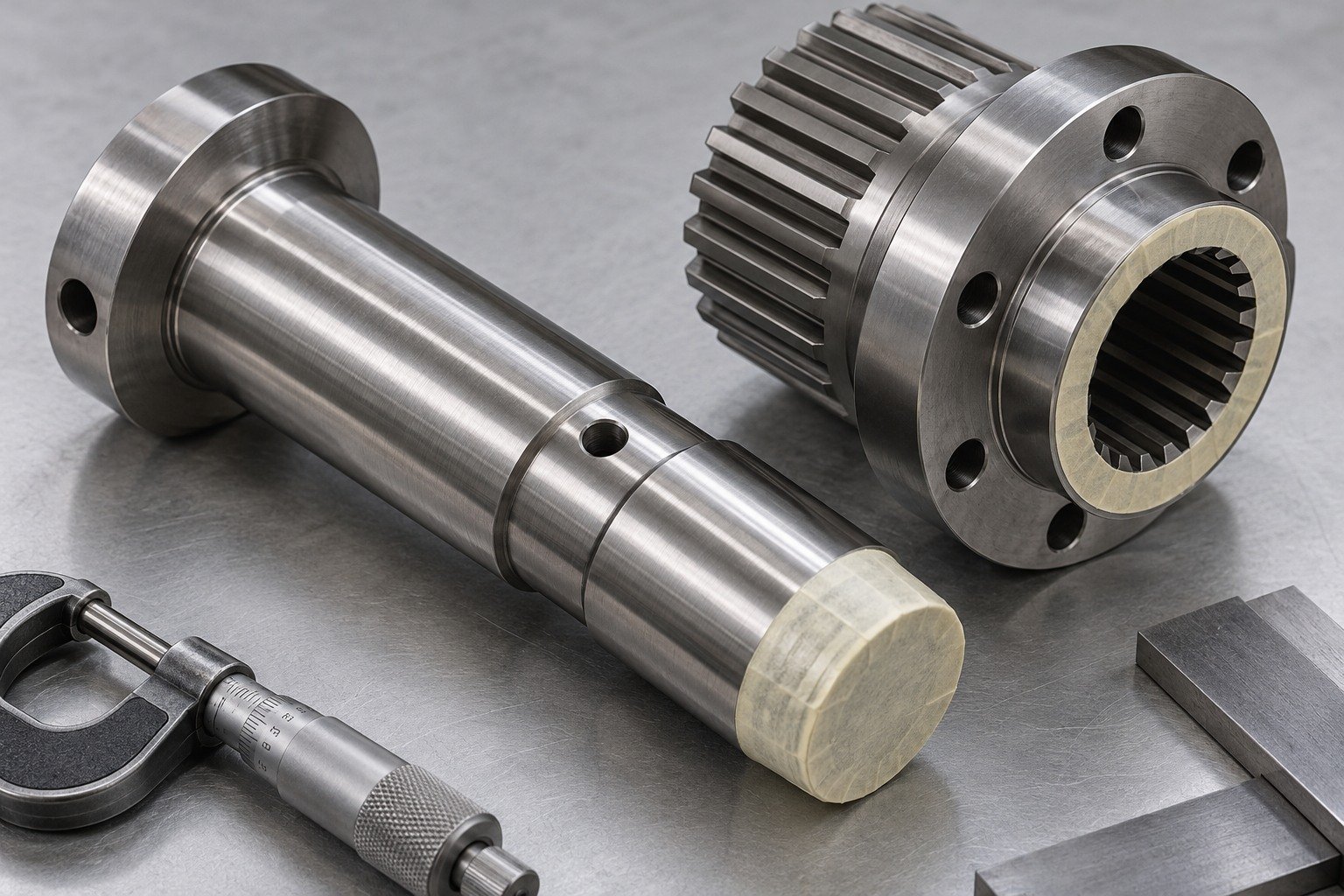

Agree Protection and Receiving Evidence
Confirm handling protection, packaging, part identification and the documents needed by your receiving team.
- Material identity and traceability.
- Critical dimensions and assembly fit.
- Process and finish records, where specified.
Sampling, methods and document scope are agreed with your quotation.
Quality Assurance →
6 Inputs for Your 4340 Steel Machining Quote
01CAD and controlled drawing
02Grade, section, product form and supplied condition
03First-order and repeat quantities
04Critical dimensions and surface finish
05Treatment route, final grinding and protection
06Inspection records and delivery needs
China Manufacturing. Dallas-Area Coordination.
Coordinate your drawing review, material condition, sample decisions and receiving requirements.
Answers Before You Specify
Can 4340 steel be welded?
Treat welding as a condition-specific engineering decision. State the supplied and final condition, section and joint. Agree the procedure, any required thermal controls and final inspection before release.
4340 vs 4140 steel: what should I compare?
Compare required properties, section, nickel-bearing chemistry, supplied condition and final verification. Approve the complete specification before any substitution.
Is 34CrNiMo6 / 1.6582 the same as 4340?
It is a European comparison designation, not automatic equivalence. The selected reference chemistry differs, especially chromium and nickel. Review the exact product specification and final condition.
Does 4340 steel rust?
It is an alloy steel, not stainless steel. Define exposure, protective finish, storage and shipping protection for your component.
Can 4340 steel be hardened?
A specified thermal route can be reviewed. State target properties or hardness, section, test locations and final machining; the grade alone does not define acceptance.
How much does 4340 steel machining cost?
Send the controlled drawing, product form, supplied condition, quantity, process sequence, finish and inspection scope for your quotation.
What is 4340 steel used for?
Loaded shafts, axles, pins, torque couplings and bearing carriers are selection examples. Required condition, section, loading and verified acceptance govern your application.
Compare Carbon & Alloy Steel →
References support material selection. Your order specification and material records govern.
