4140 Alloy Steel for Your Custom Machined Parts
For your 4140 steel machining project, define annealed, pre-hardened or specified quenched-and-tempered stock before choosing the cutting route. Connect final journal fits, protection and inspection to the condition you order.
1 part model + 1 controlled drawing · Material condition · Quantity
Grade & specificationConfirm grade and product standard.
Stock conditionConfirm bar, billet and the actual supplied condition.
Final-fit reviewDefine datums, fits and thermal sequence.
Material recordsAgree receiving and inspection evidence.
Know Your 4140 Material Before You Order
4140 is chromium-molybdenum alloy steel, often called 4140 chromoly steel. Confirm the actual product specification and supplied condition for your drawing.
Specify the requested grade with product form and condition.
Eaton bar reference · not a batch analysis.
Product form, section and annealed or pre-hardened state.
Specified treatment, protection and final-fit dimensions.
Material identity, lot records and agreed inspection.

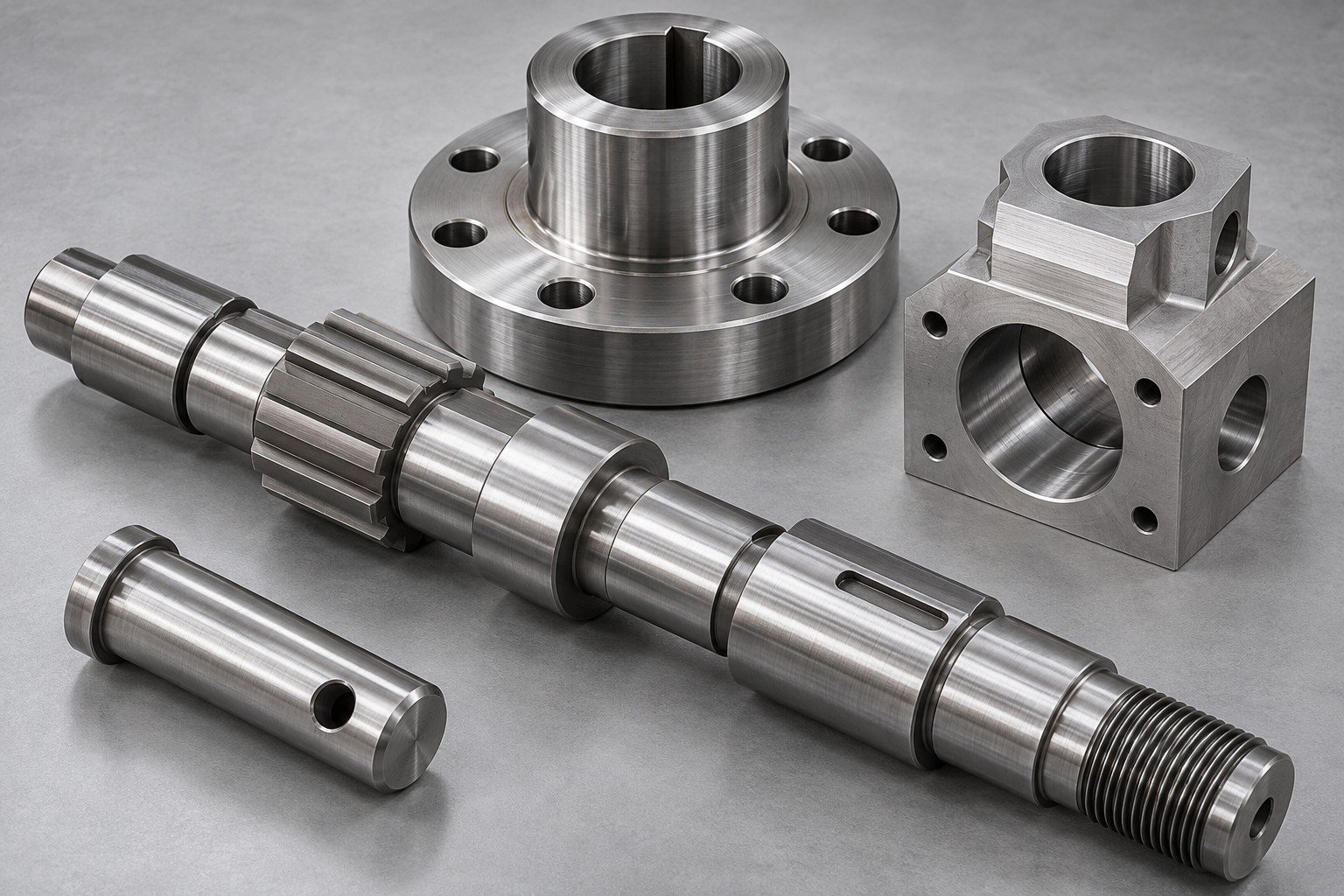

Custom 4140 Steel Parts for Your Assembly
Select your part family, then review the four decisions that control your order.
Locate Your Bearing Journals Before Cutting

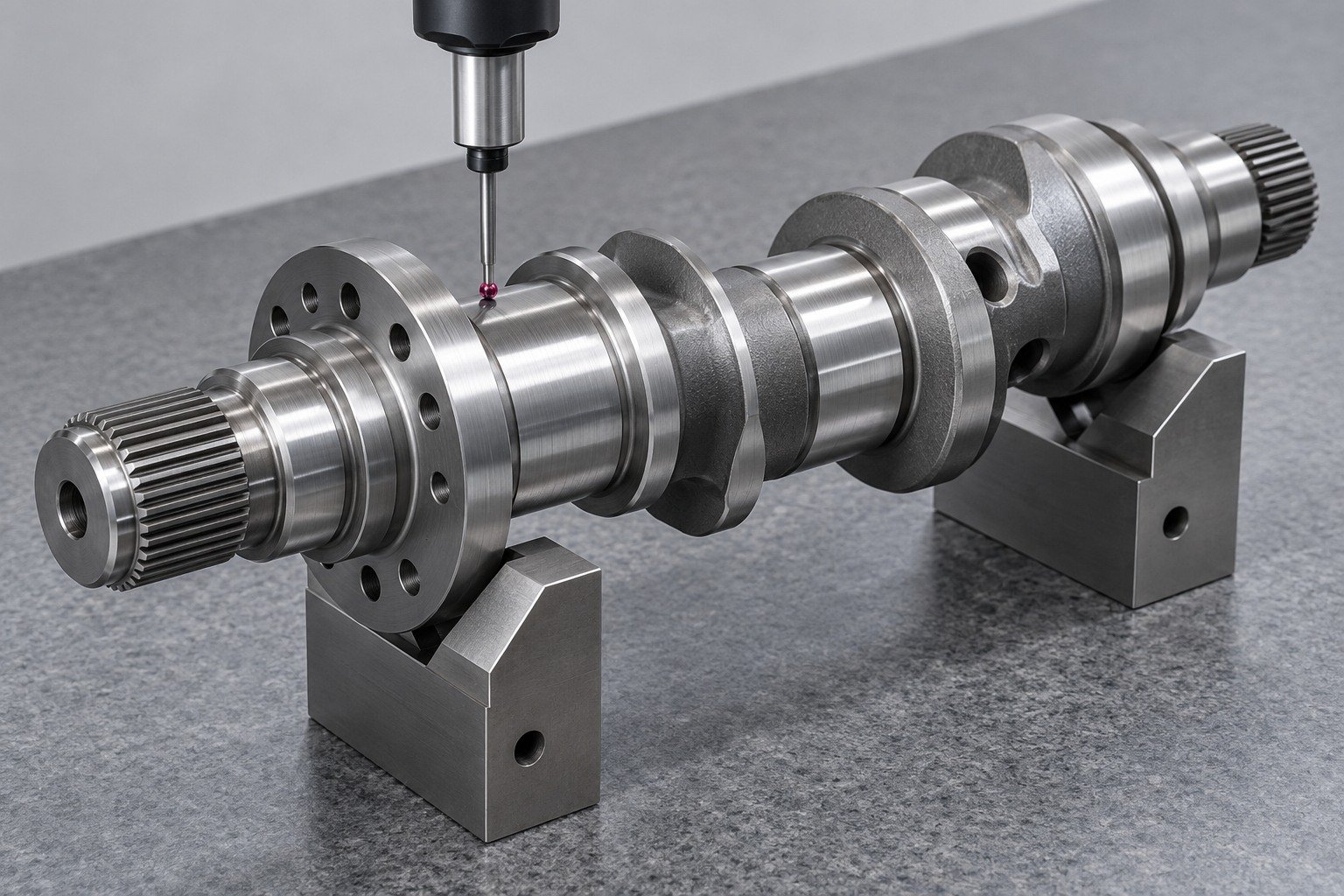

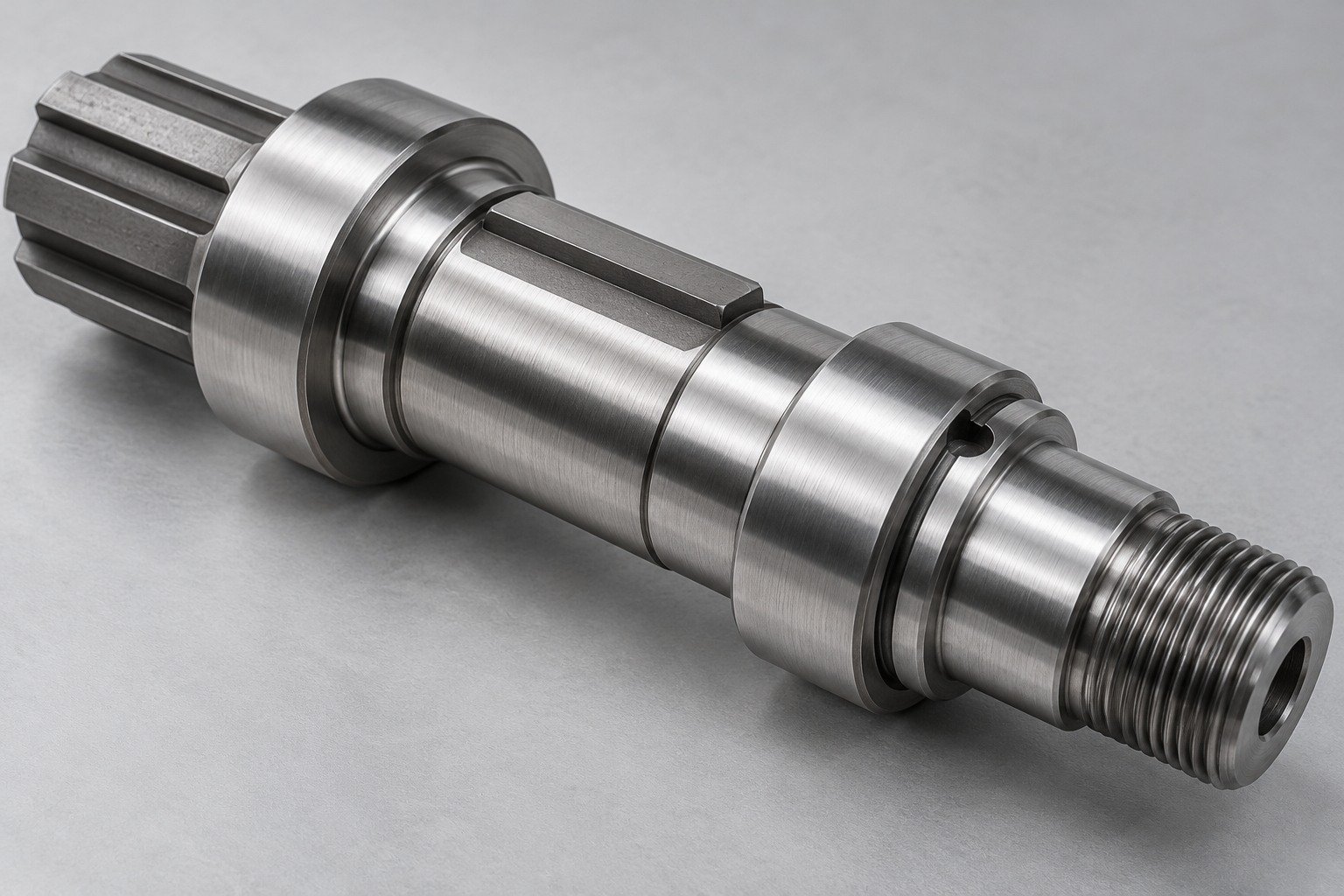

For your 4140 alloy steel machining review, identify bearing journals, shoulders, keyways and threads. Relate the critical diameters to the datum axis for your 4140 steel shafts.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Sequence Turning, Keyways and Final Grinding

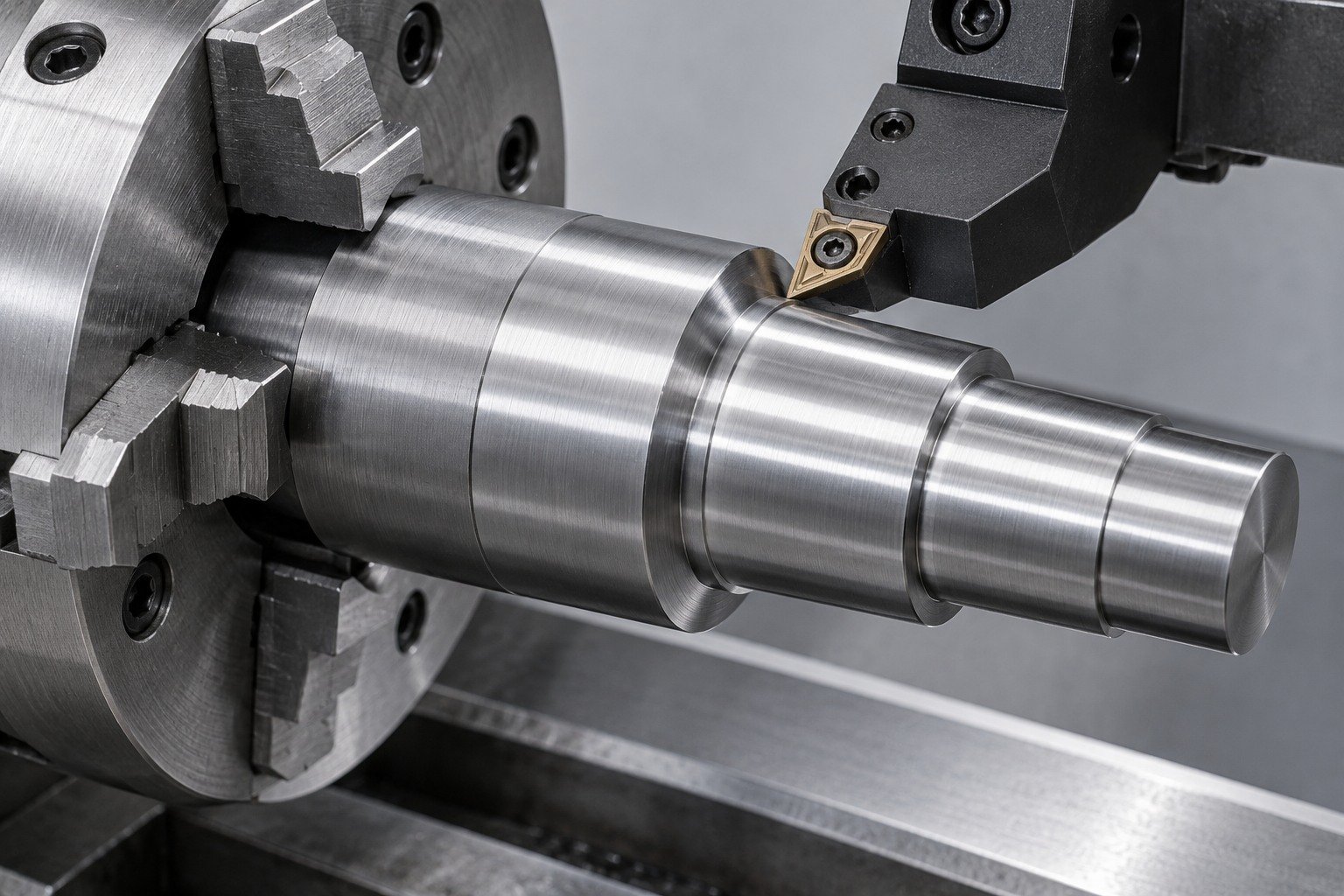

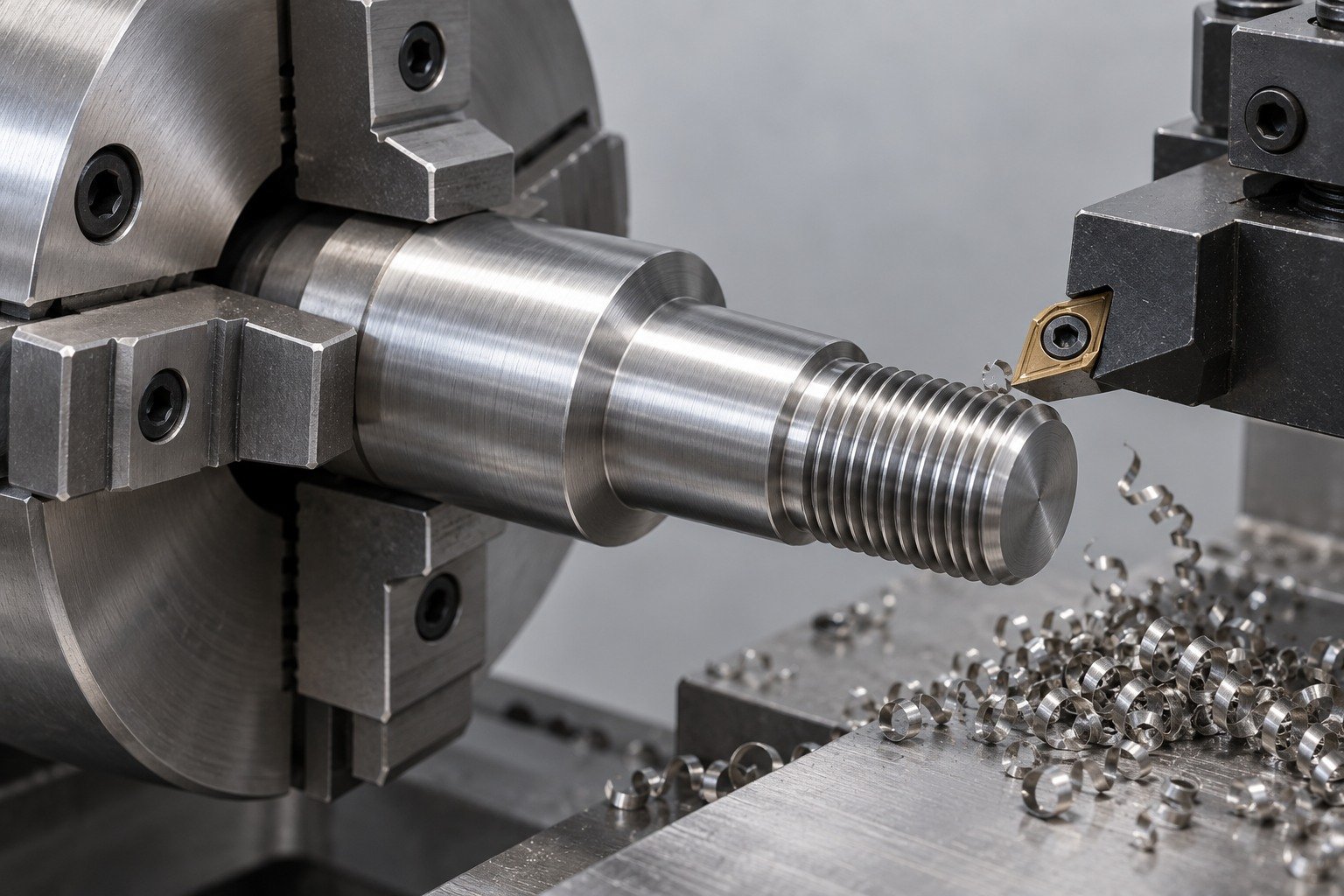

For your 4140 steel turning inquiry, show clamping allowance, unsupported length and journal relationships. Identify 4140 steel grinding requirements separately from the turned surfaces.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Choose the Stock Condition Before the First Setup
For 4140 annealed vs pre hardened stock, compare cutting requirements and the specified final state. If subsequent treatment is required, agree remaining stock and final machining after distortion.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Verify the Journal Fit After the Full Route
Define journal size, runout, shoulder position and final surface condition. Keep inspection after any operation that can change the functional fit.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

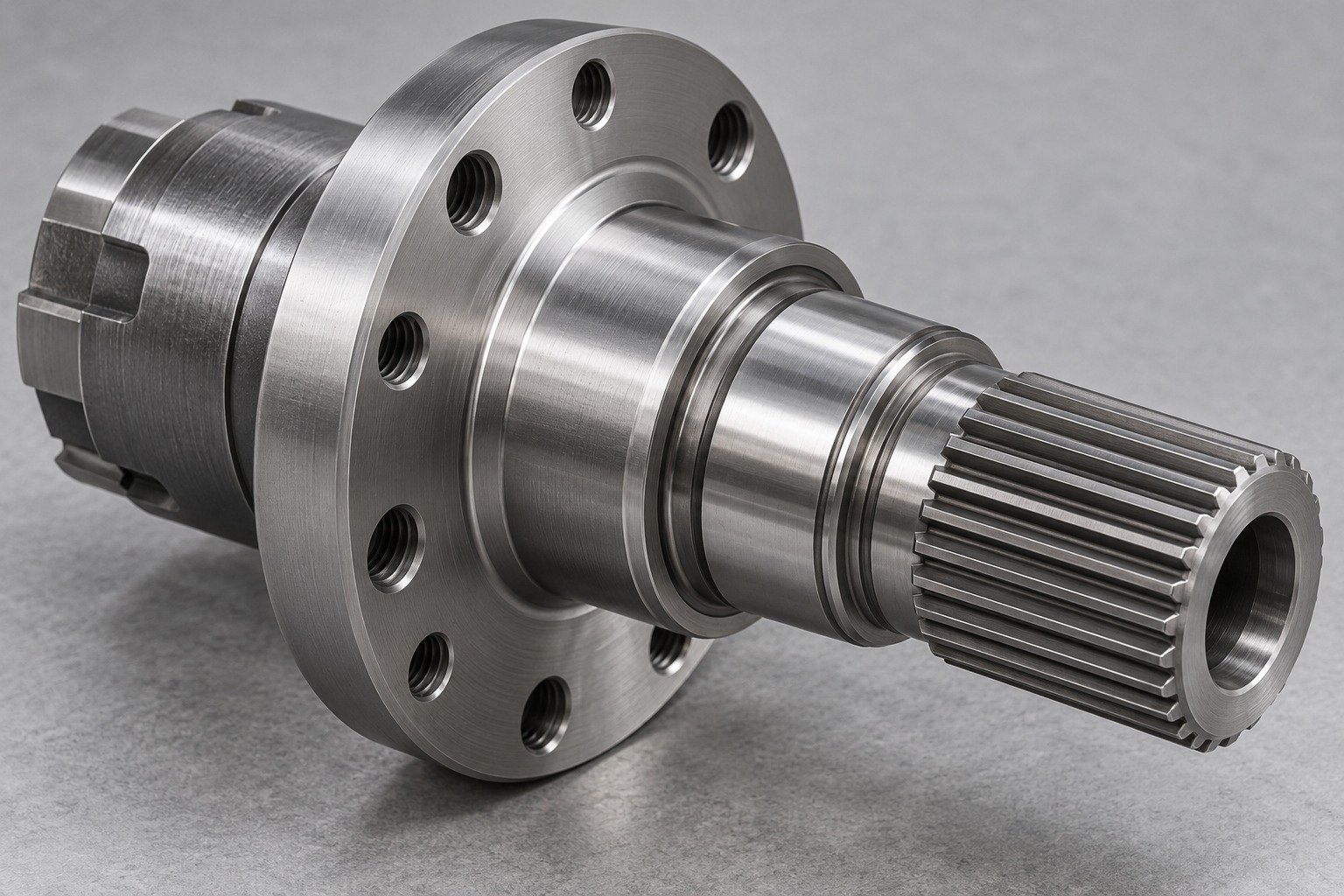

Connect the Hub Bore to the Torque Interface

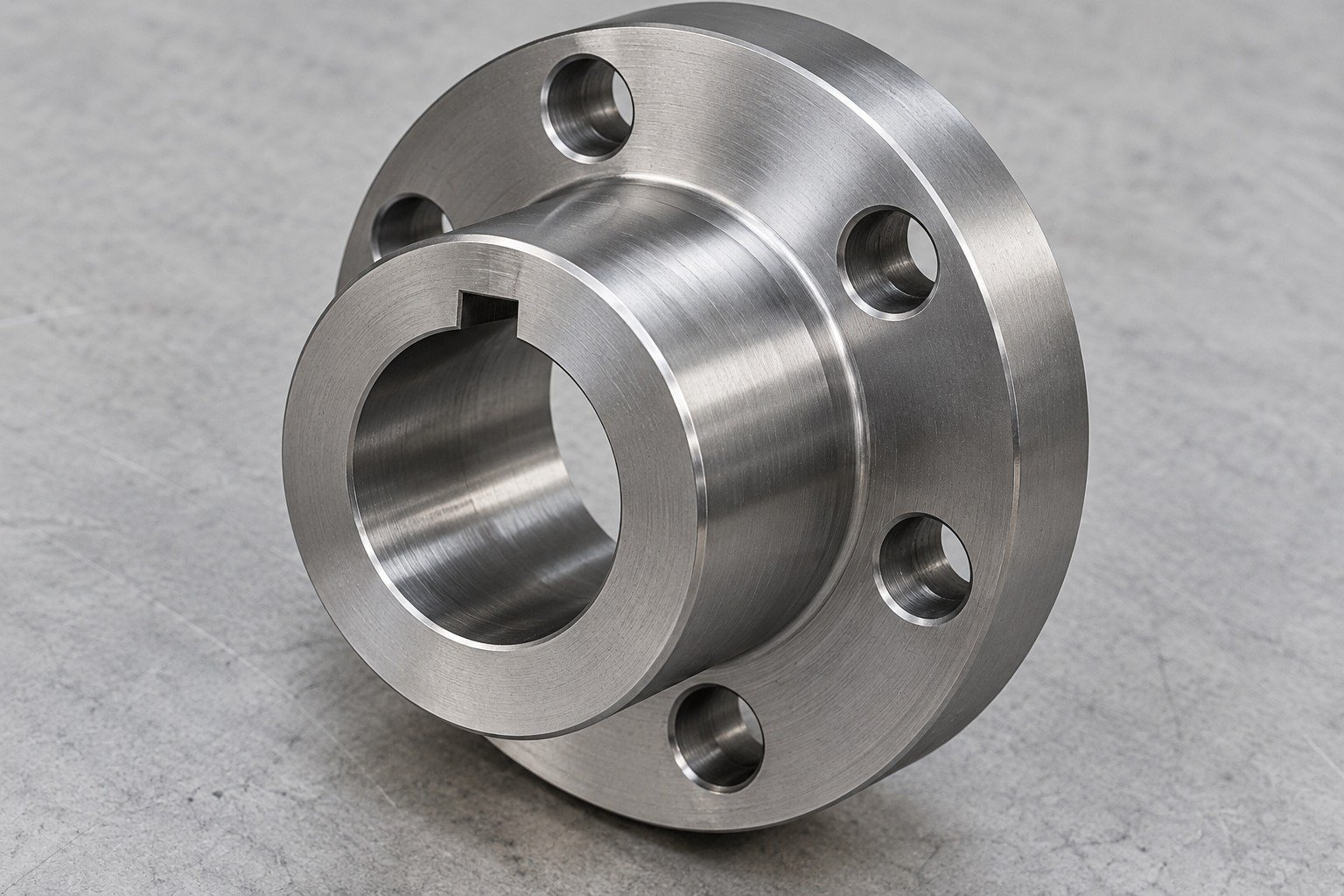

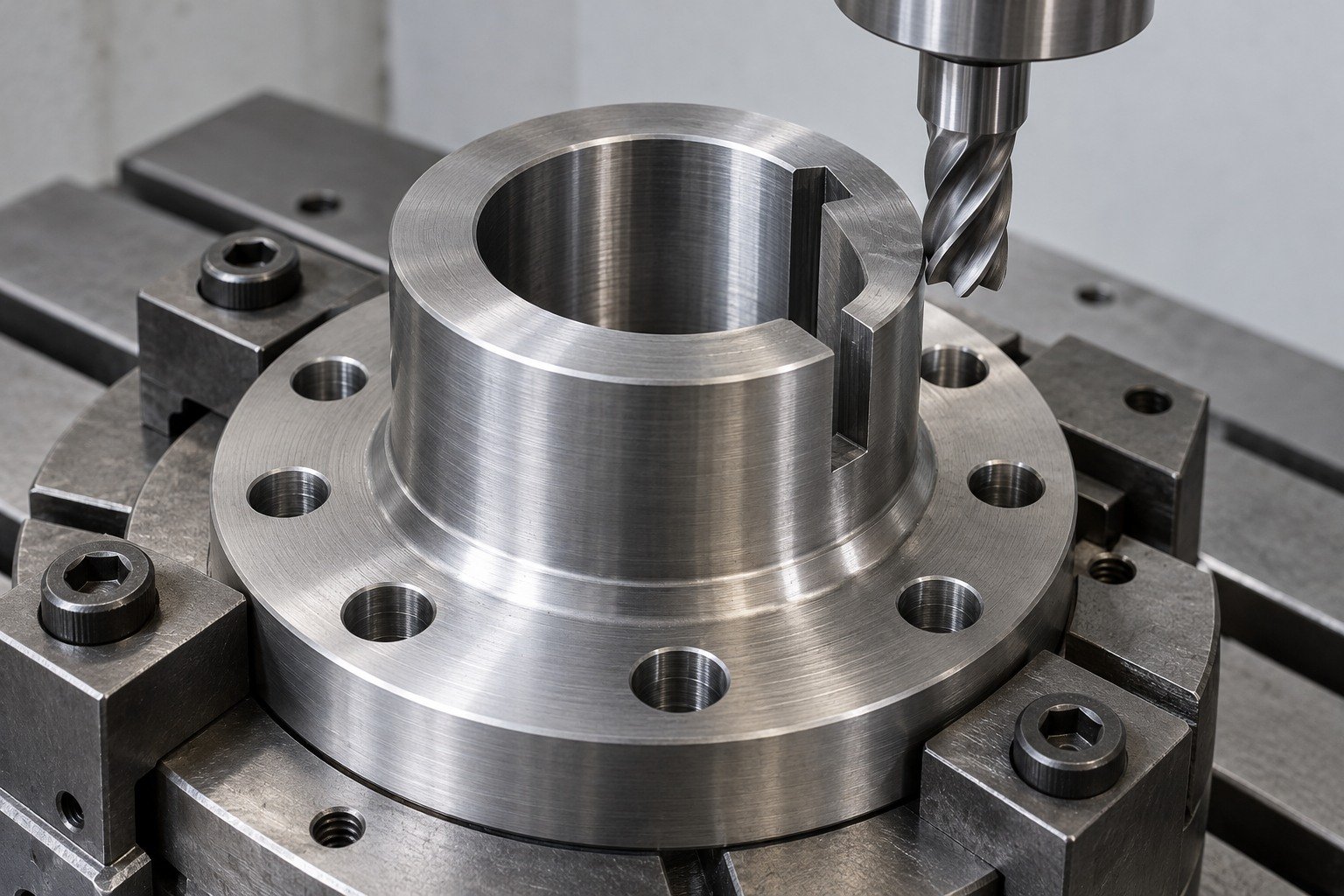

For your custom 4140 steel parts, identify bore fit, keyway, bolt circle and locating face. Provide the mating shaft drawing when it controls your hub acceptance.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Plan Access to the Keyway and Bolt Circle

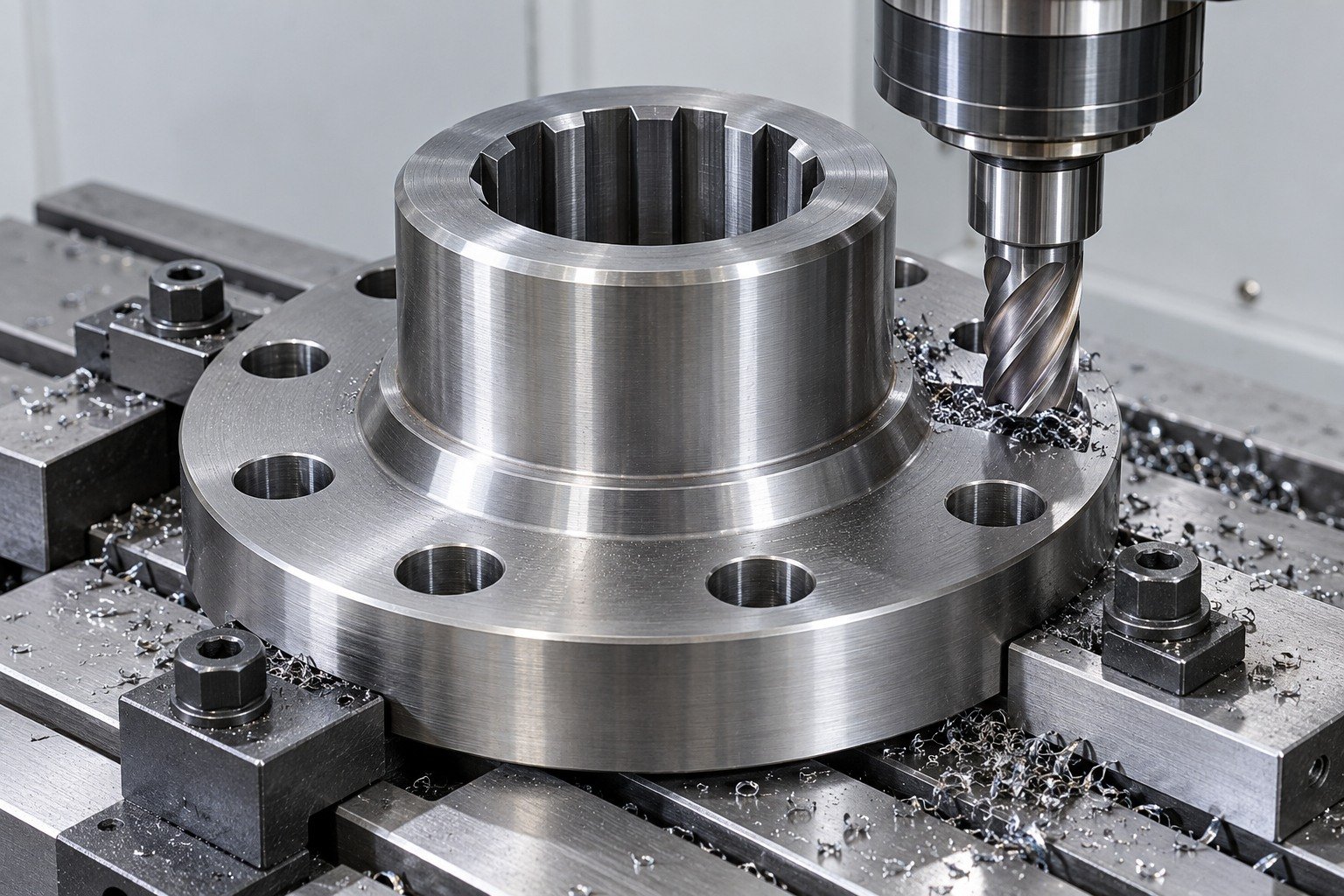

For your 4140 steel milling review, connect keyway position, flange holes and bore axis. Show cutter clearance and which edges may be broken.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Keep the Hub Condition and Final Bore Together
Specify the hub stock condition and any required thermal processing. Define bore protection and final finishing after operations that may change size or shape.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Agree Bore, Face and Keyway Evidence

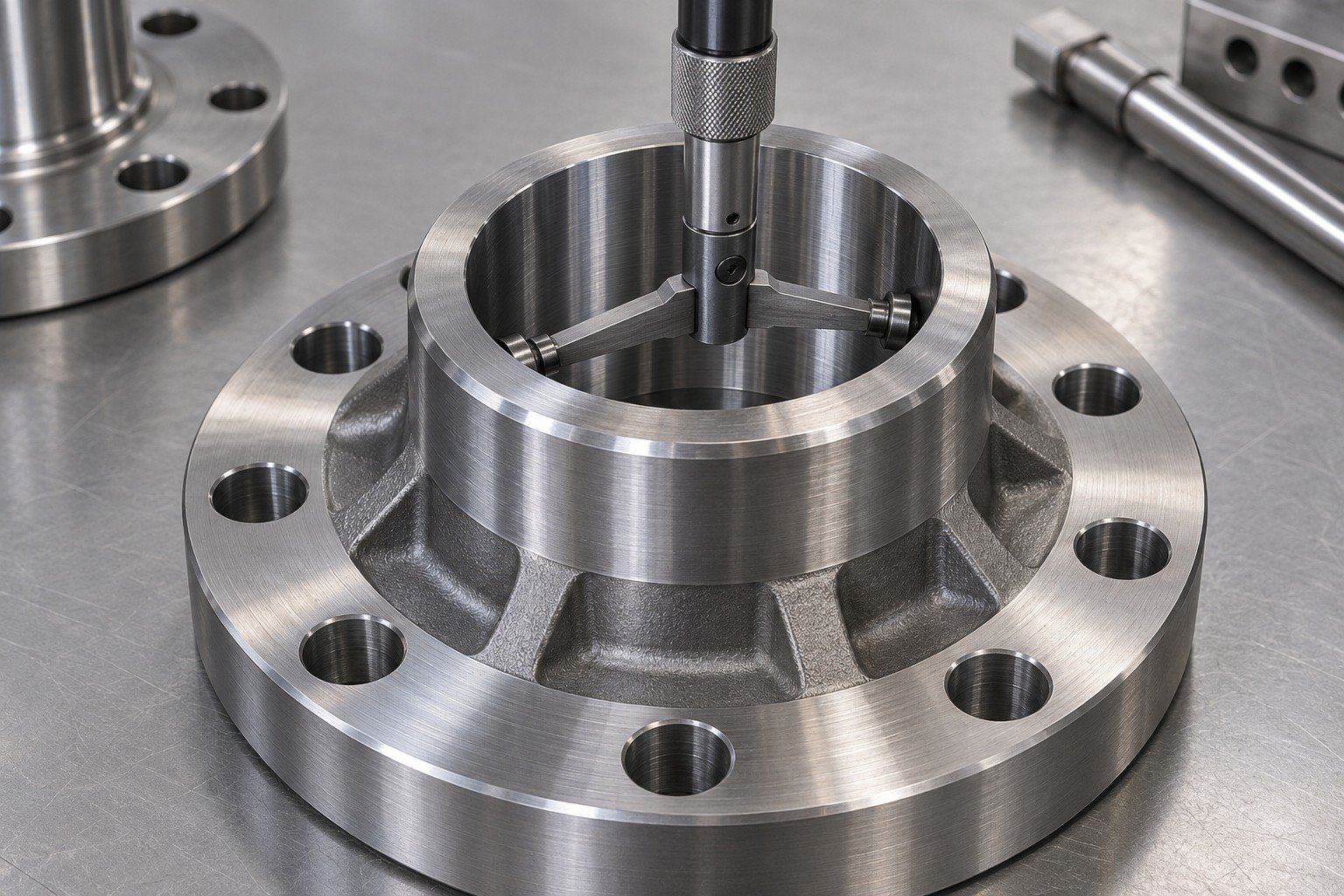

Define how bore size, face runout and keyway relationships are measured. Review the finished assembly condition rather than only an intermediate bore.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

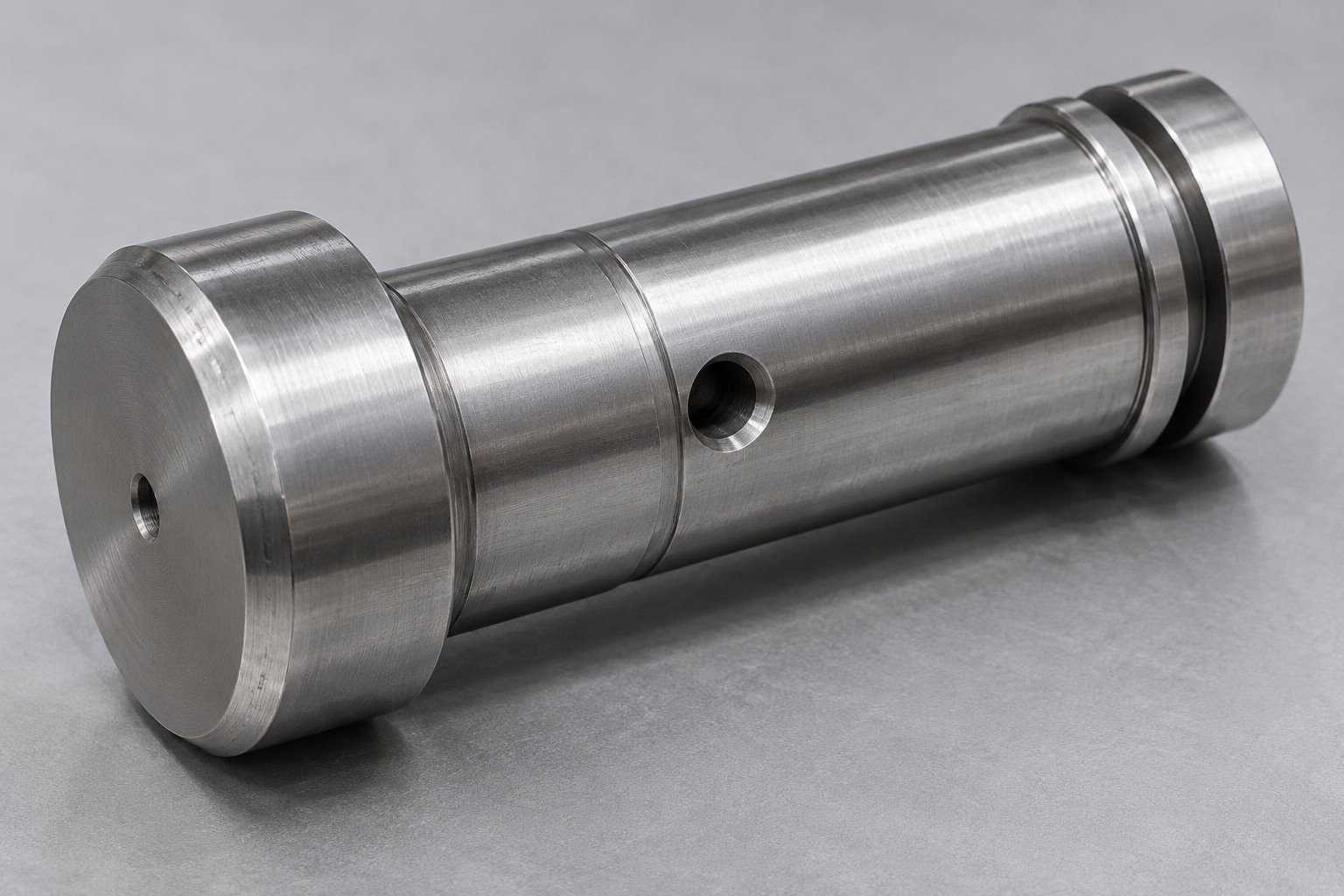

Define Your Pin and Bushing Interfaces

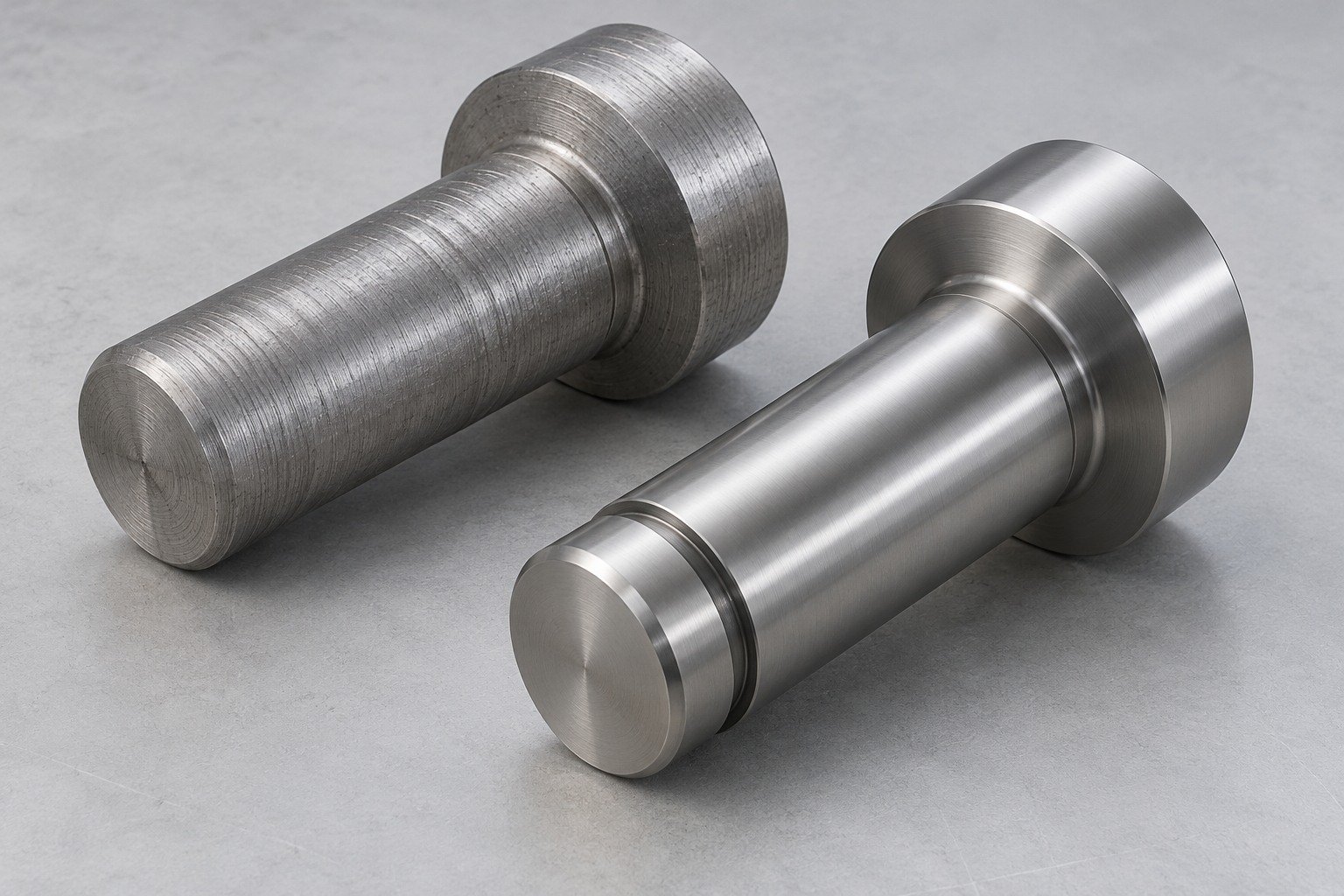

For your 4140 steel pins and 4140 steel bushings, show mating diameter, shoulder position and lubrication features. For 4140 steel threaded parts, define useful engagement and runout.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Give Cross-Holes and Retaining Grooves a Clear Route

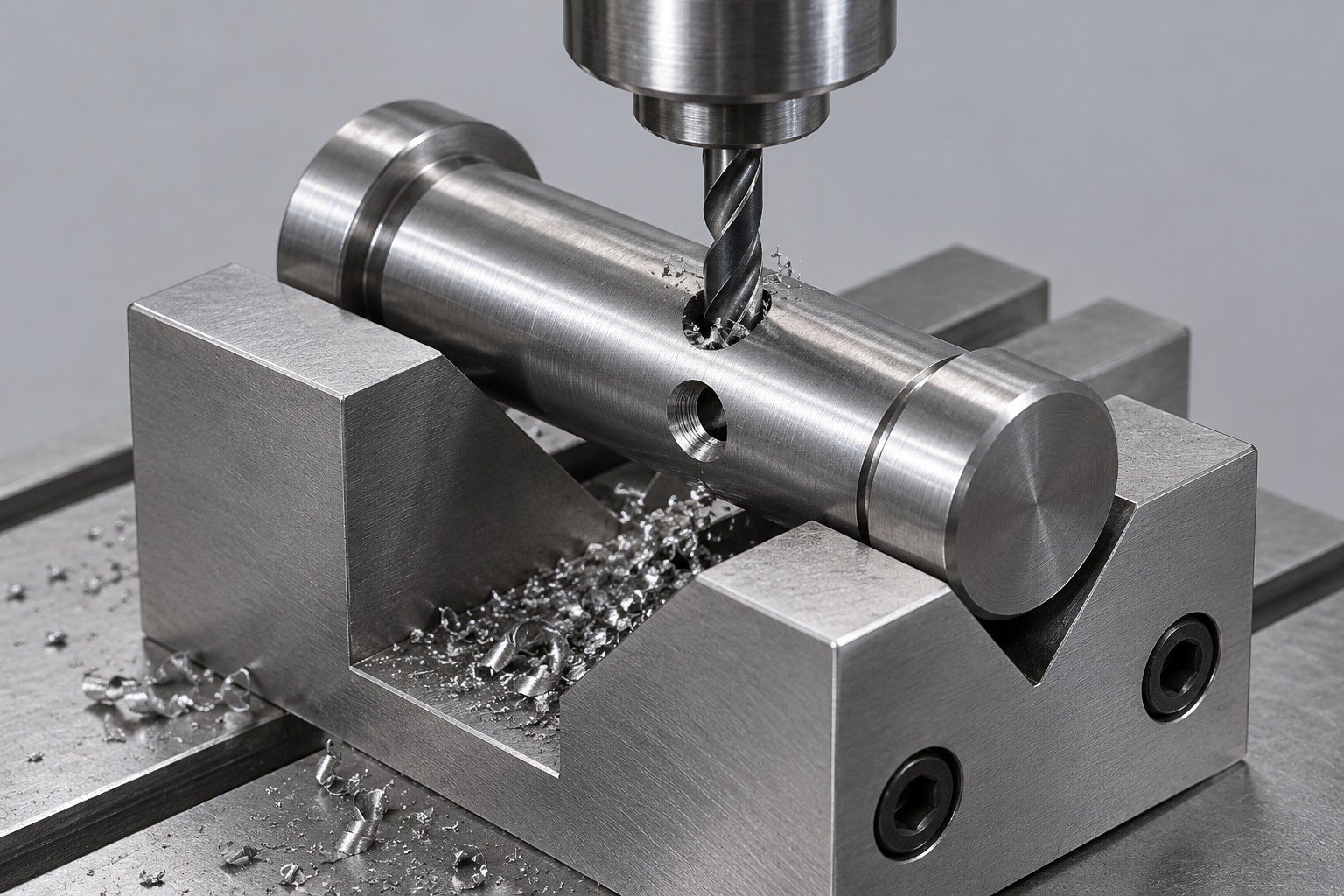

For 4140 steel drilling and 4140 steel tapping, identify entry, intersections and burr access. Relate cross-holes and retaining grooves to the functional turned datum.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Review the Condition Required in Service
State the specified thermal route and final property or hardness requirements. Keep section size, test locations and machining allowance explicit.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Verify the Bearing Land and Threaded End

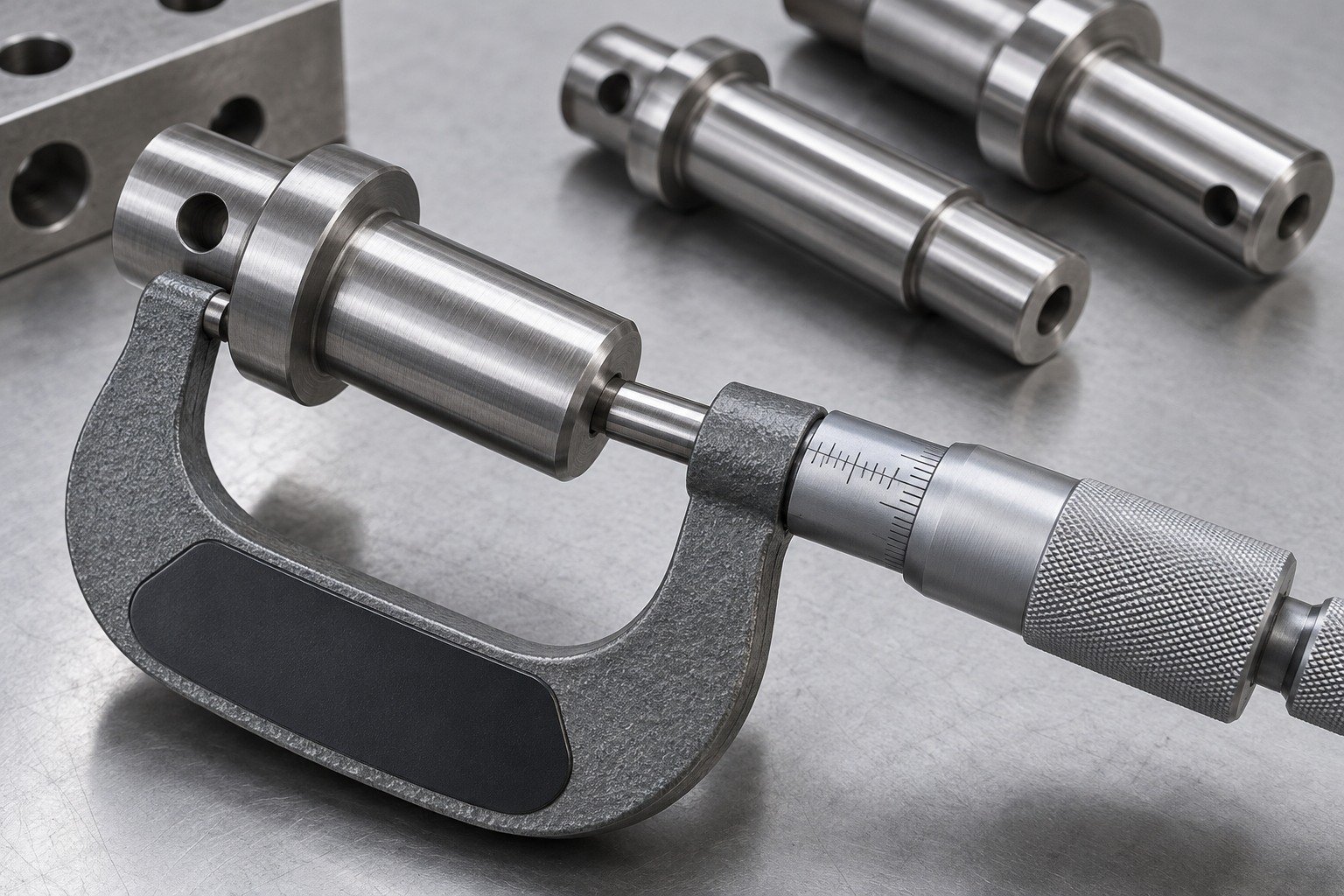

Agree pin diameter checks, bushing bore checks, thread gauging and edge acceptance. State which fits apply after the final surface protection.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.

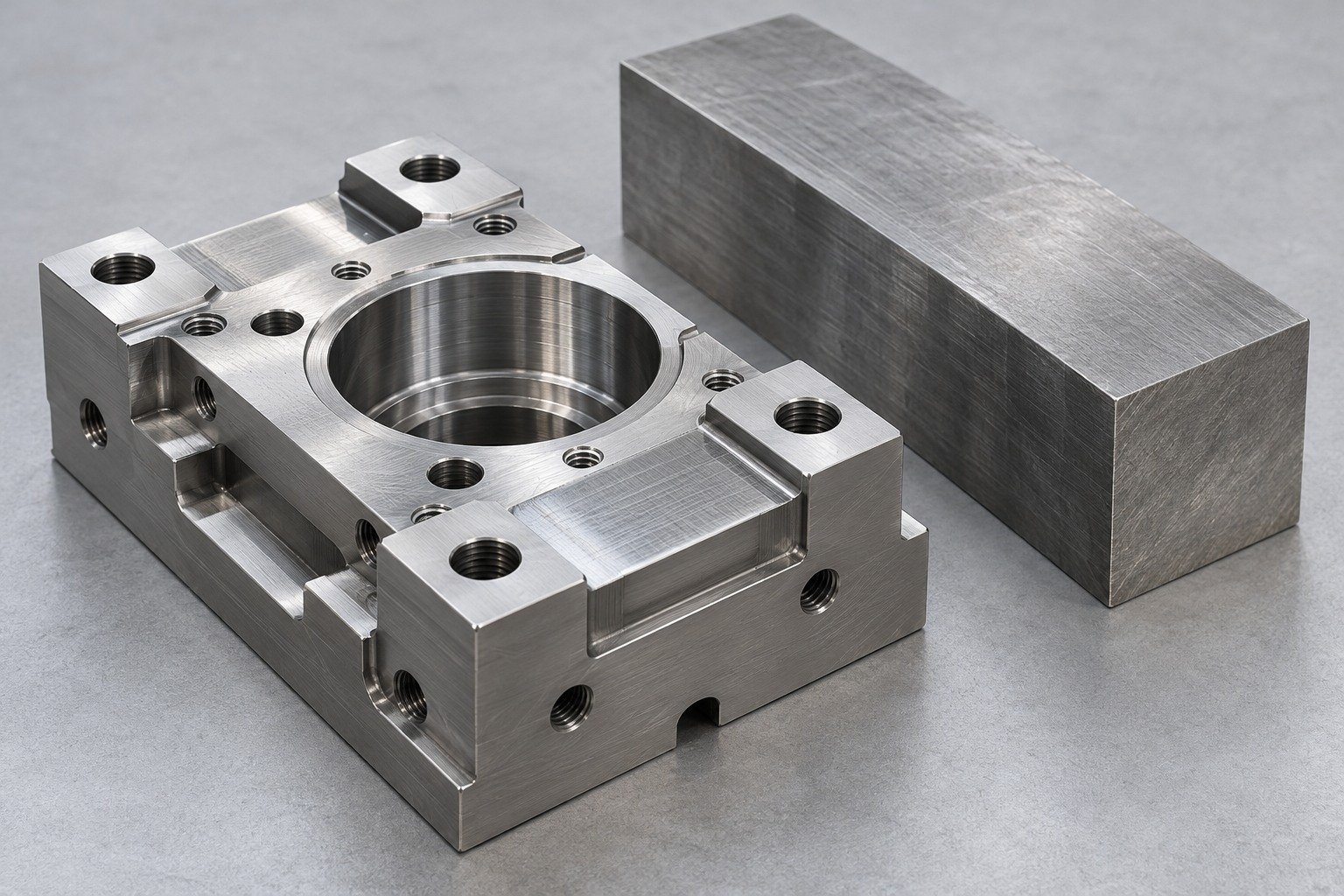

Identify the Faces That Locate Your Block

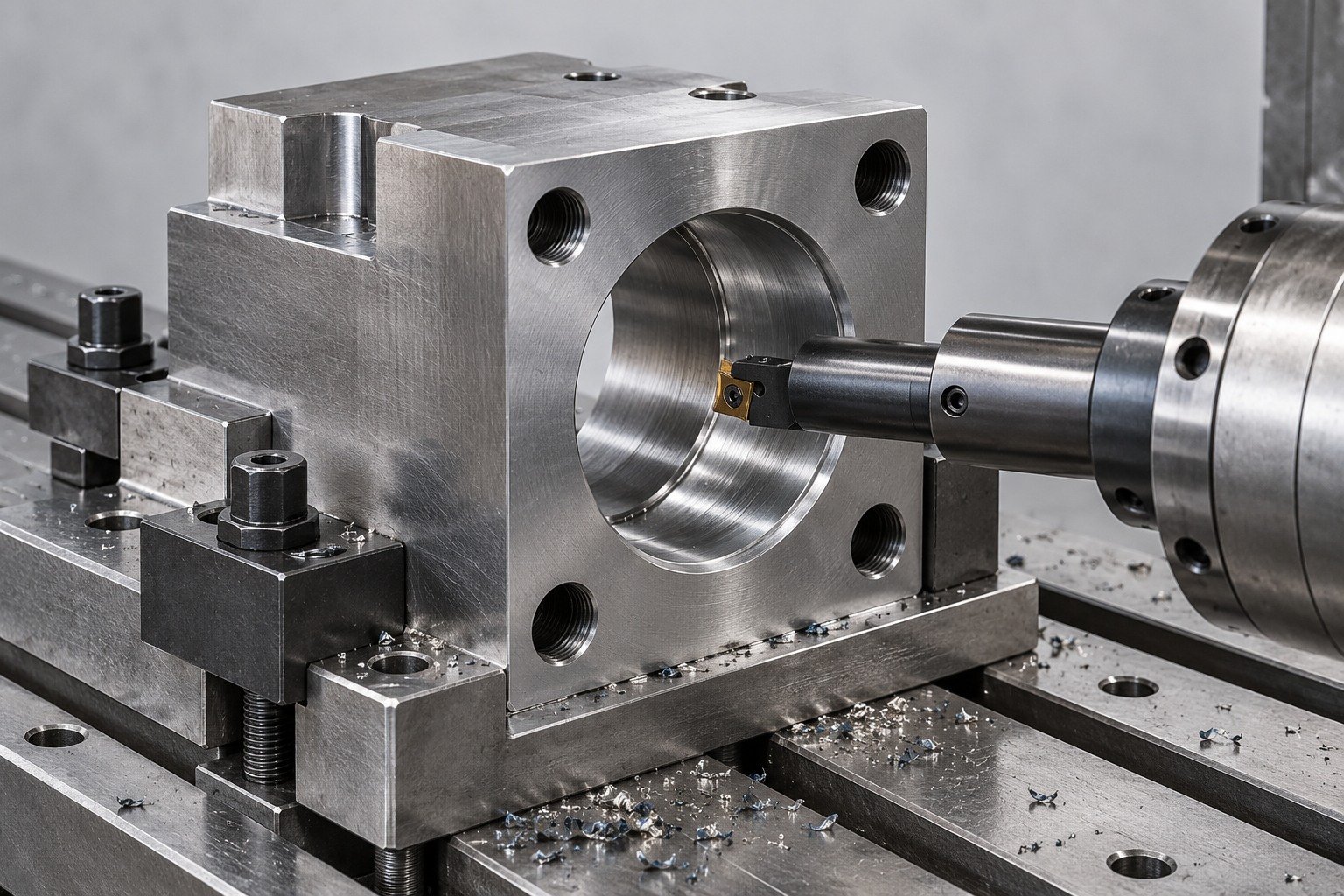

For your 4140 steel CNC machining inquiry, define mounting datums, port locations, bore fits and critical pocket relationships.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Plan the Setup Around Connected Bores
Show entry direction, tool clearance and intersections. Identify features that must be related in one datum scheme and where burr inspection is possible.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Reserve Allowance for Your Final State
Connect supplied condition, any required treatment and final machining. Mark functional pads and protected bores for surface finishing.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
Make Final Inspection Part of the Release

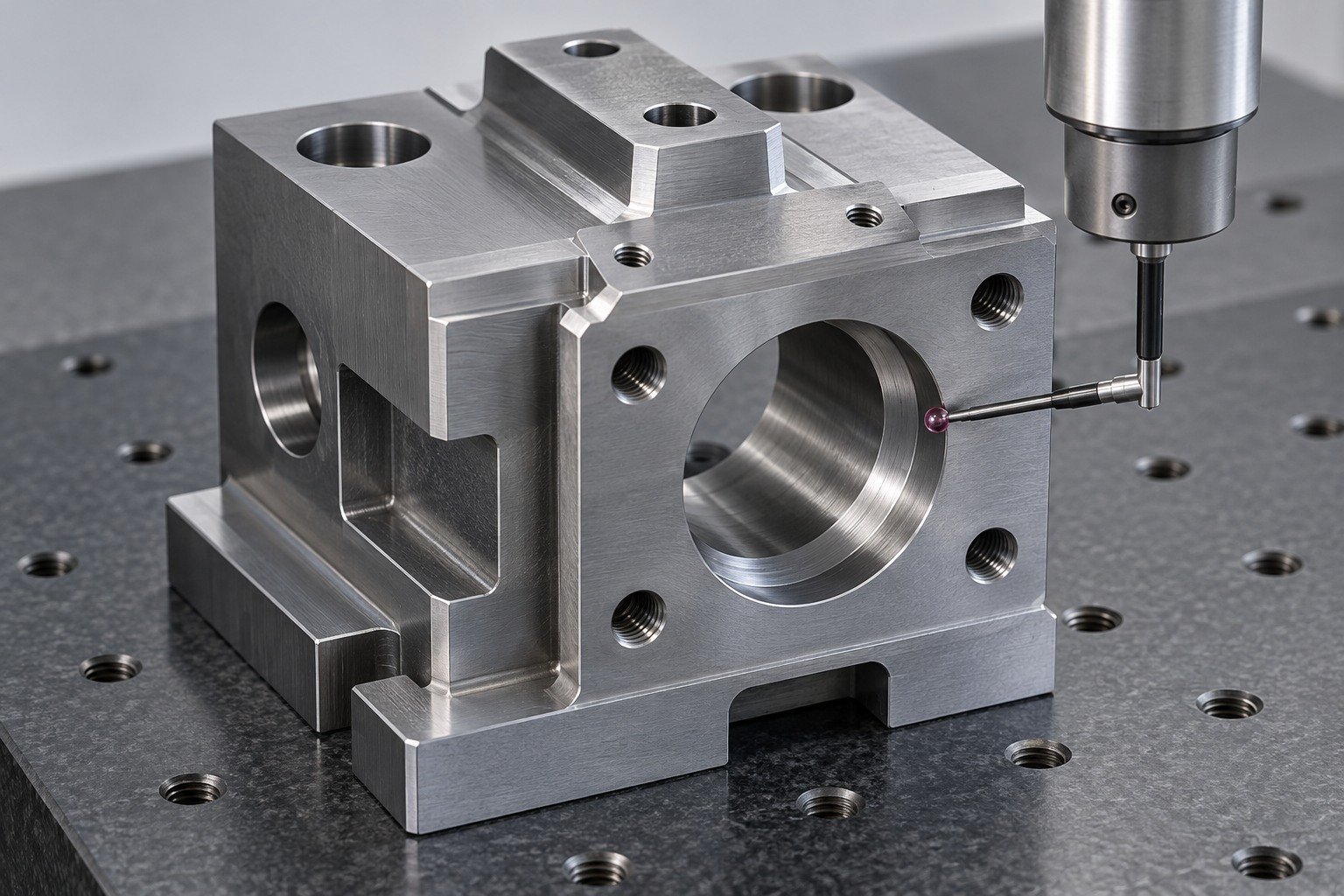

Agree positional checks, critical sizes, finish acceptance and required material records for the completed block.
Your fitDatums, mating faces and critical relationships.
Your processStock condition, sequence and tool access.
Your approvalFinal dimensions and agreed inspection scope.
4140 Steel Properties Depend on Condition
Do not transfer a generic strength or hardness value to your finished component.
| Your callout | What to confirm |
|---|---|
| Annealed incoming stock | Product form, section, supplied condition and material record |
| Pre-hardened or specified +QT stock | Requested hardness or property range, section and evidence |
| Specified treatment | Target condition, section, distortion allowance and final inspection |
4140 pre hardened steel is a condition callout, not one universal hardness.
Specify the accepted range, section, test location and material record.
42CrMo4 is a comparison candidate.
European names do not approve substitution without checking the complete specification.
4140 Steel Composition & European Grade Names
Compare the selected product references before reviewing a substitute.
Chromium & Molybdenum: Compare the Ranges
Mass % · common axis 0–1.25%
4140 · Cr
0.8–1.1%
42CrMo4 · Cr
0.9–1.2%
4140 · Mo
0.15–0.25%
42CrMo4 · Mo
0.15–0.3%
00.625%1.25%
Producer reference limits · not LK lot analysis.
| Mass % | 4140 · Eaton bar | 42CrMo4 · Ovako EN ISO 683-2 |
|---|---|---|
| C | 0.38–0.43 | 0.38–0.45 |
| Mn | 0.75–1.00 | 0.60–0.90 |
| Si | 0.15–0.35 | 0.10–0.40 |
| Cr | 0.80–1.10 | 0.90–1.20 |
| Mo | 0.15–0.25 | 0.15–0.30 |
| P max | 0.035 | 0.025 |
| S max | 0.040 | 0.035 |
European comparison: 42CrMo4 / 1.7225 is listed as a similar designation. The limits differ. Review product standard, supplied condition and required performance; do not apply this table as blanket equivalence.
Resolve 6 Risks Before You Release the Drawing
Review 4140 steel machinability together with geometry, material condition and the final manufacturing route.
Confirm the Product Form and Supplied Condition
For your 4140 cold drawn steel inquiry, state section, supplied condition and straightness requirements. Identify long, slender or asymmetric features that may move when stock is removed.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect
Show the Intersections Your Tools Must Reach
Identify drilling entry, useful thread engagement, runout and burr access. Separate sealing surfaces from edges that may be broken.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect
Define the Condition. Protect the Final Fit.
For your 4140 steel heat treatment or 4140 steel quench and temper requirement, agree target condition, section, test locations and final machining allowance.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect
Review Your Joint Before Choosing Welding

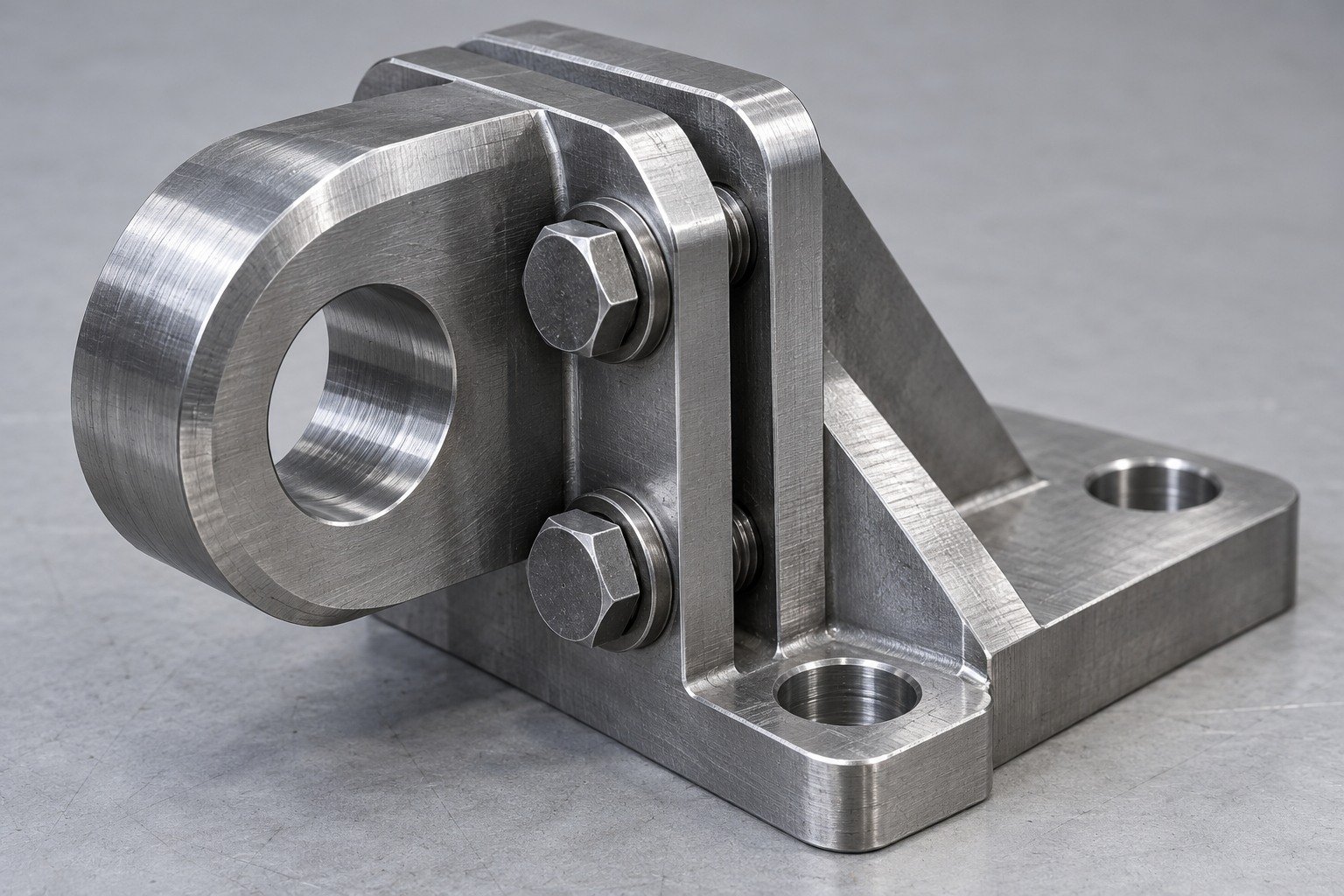

For 4140 steel welding, review the actual material condition, section, joint and qualified procedure before committing. Where your design permits a bolted joint, define fastener and locating requirements separately.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect
Protect Your Service Surfaces Without Losing Fit
For a 4140 steel black oxide or 4140 steel zinc plating inquiry, specify exposure, full finish system, masked areas and dimensional acceptance. Review condition-specific controls.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect

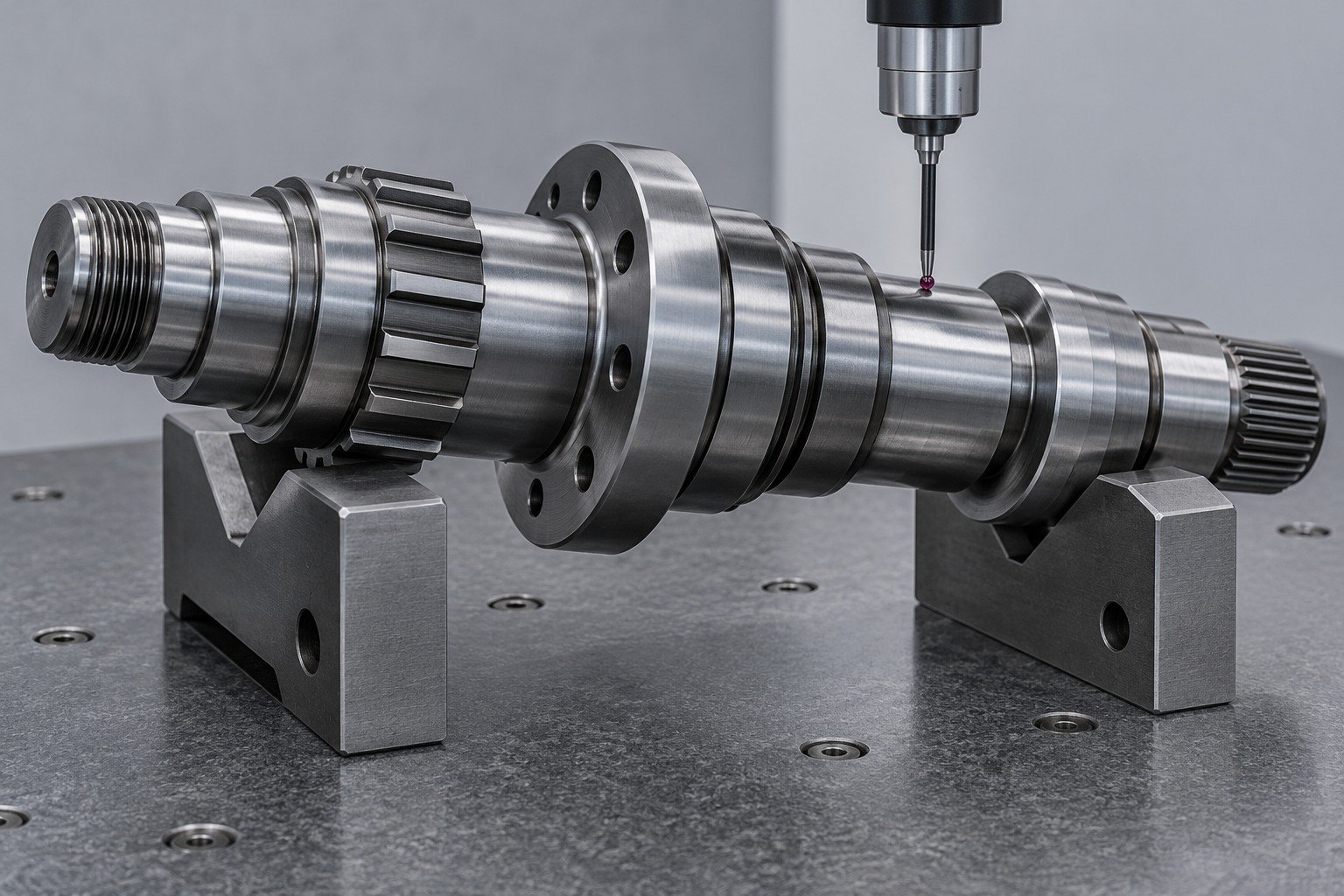

Inspect the Component After the Complete Sequence
Identify datums, mating fits, runout or alignment and final inspection state. A pre-treatment measurement is not final acceptance after a changed thermal or joining route.
01 · Requirement
Define the condition and acceptance method.
02 · Verification
State locations and final inspection scope.
03 · Final fit
Agree dimensions after the full sequence.
Review stockMachineProcess if specifiedInspect

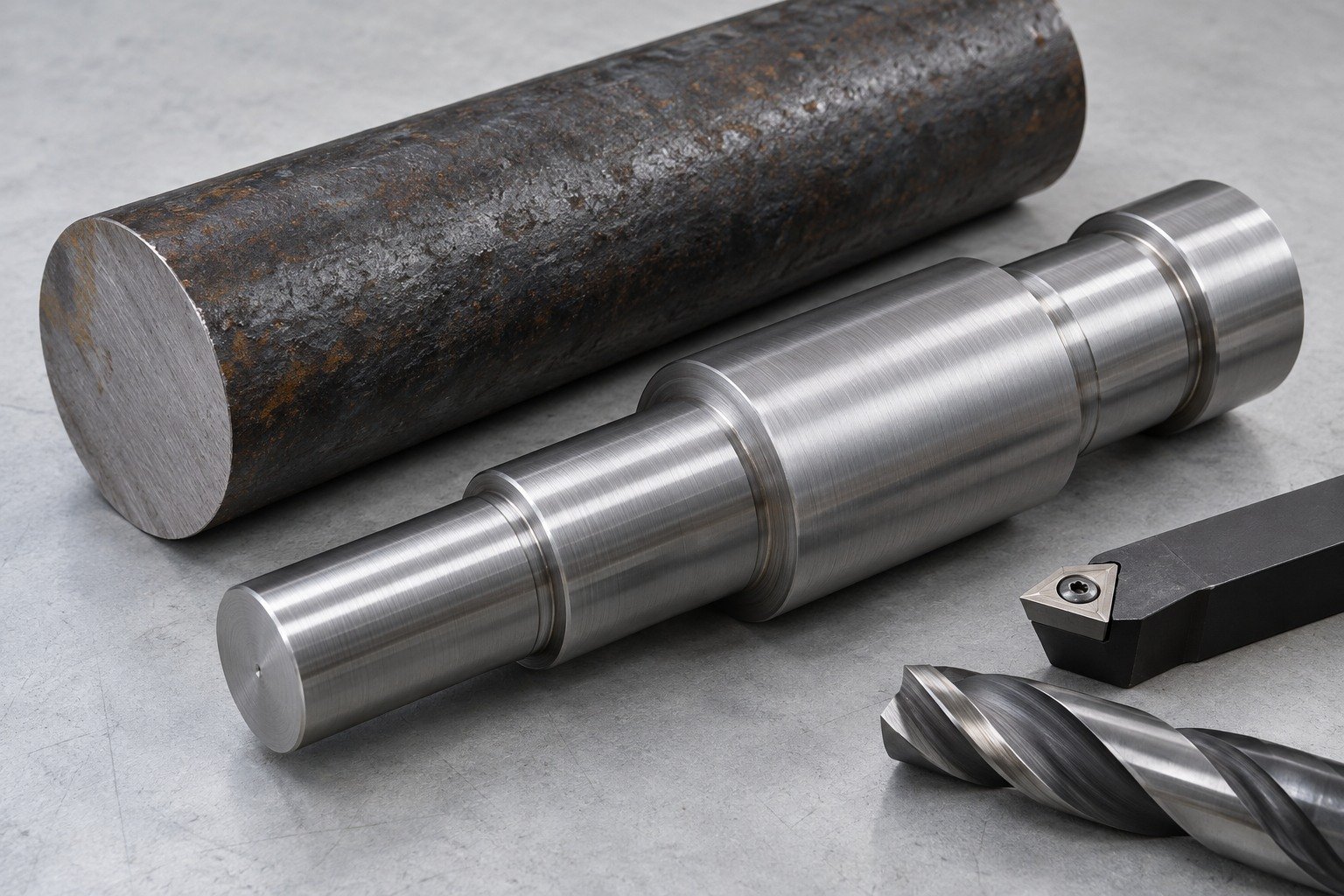

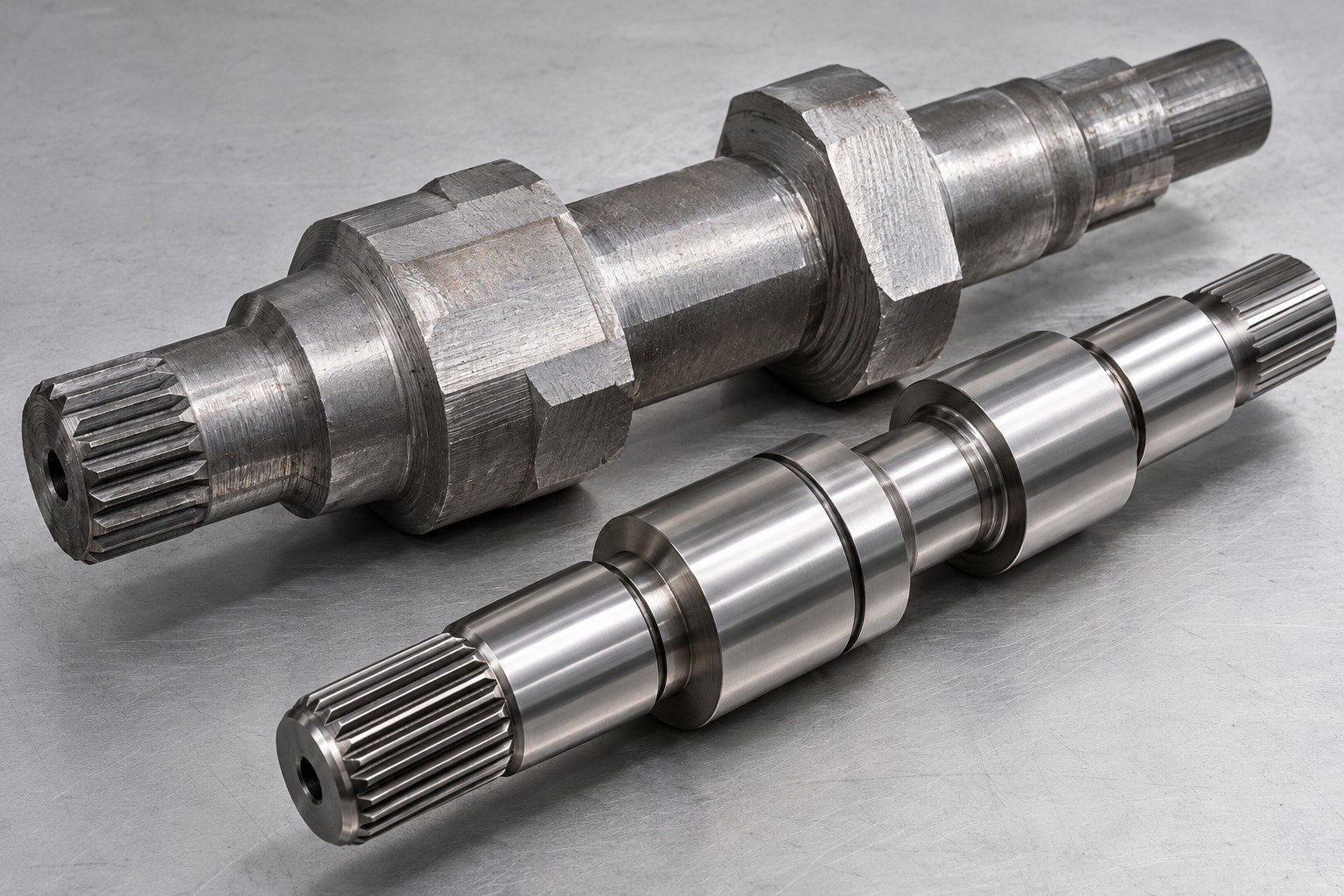

From Your Material to a Finished Component
Illustrative components. Operations and availability are confirmed for your drawing.
3 Part States. One Acceptance Drawing.
01 · Incoming material
Grade, product form, section, condition and lot identity.
02 · After specified processing
Specified thermal route, distortion and remaining finishing allowance.
03 · Finished part
Final fits, surface protection and agreed acceptance evidence.
Agree the Evidence Your Receiving Team Needs
Confirm Your Stock Before the First Setup
Review grade, product standard, form, condition and lot identity. Agree any required material declarations at inquiry.
- Material identity and traceability.
- Critical dimensions and assembly fit.
- Process and finish records, where specified.
Sampling, methods and document scope are agreed with your quotation.
Quality Assurance →
Approve the Finished Condition, Not Just the First Cut
Connect critical journal and bore fits to the ordered stock condition, planned treatment and final finishing sequence.
- Material identity and traceability.
- Critical dimensions and assembly fit.
- Process and finish records, where specified.
Sampling, methods and document scope are agreed with your quotation.
Quality Assurance →
Verify the Features That Control Assembly
Identify bores, thread fits, datum relationships and final inspection scope. Keep the approved drawing revision with the records.
- Material identity and traceability.
- Critical dimensions and assembly fit.
- Process and finish records, where specified.
Sampling, methods and document scope are agreed with your quotation.
Quality Assurance →
Agree Protection and Receiving Evidence

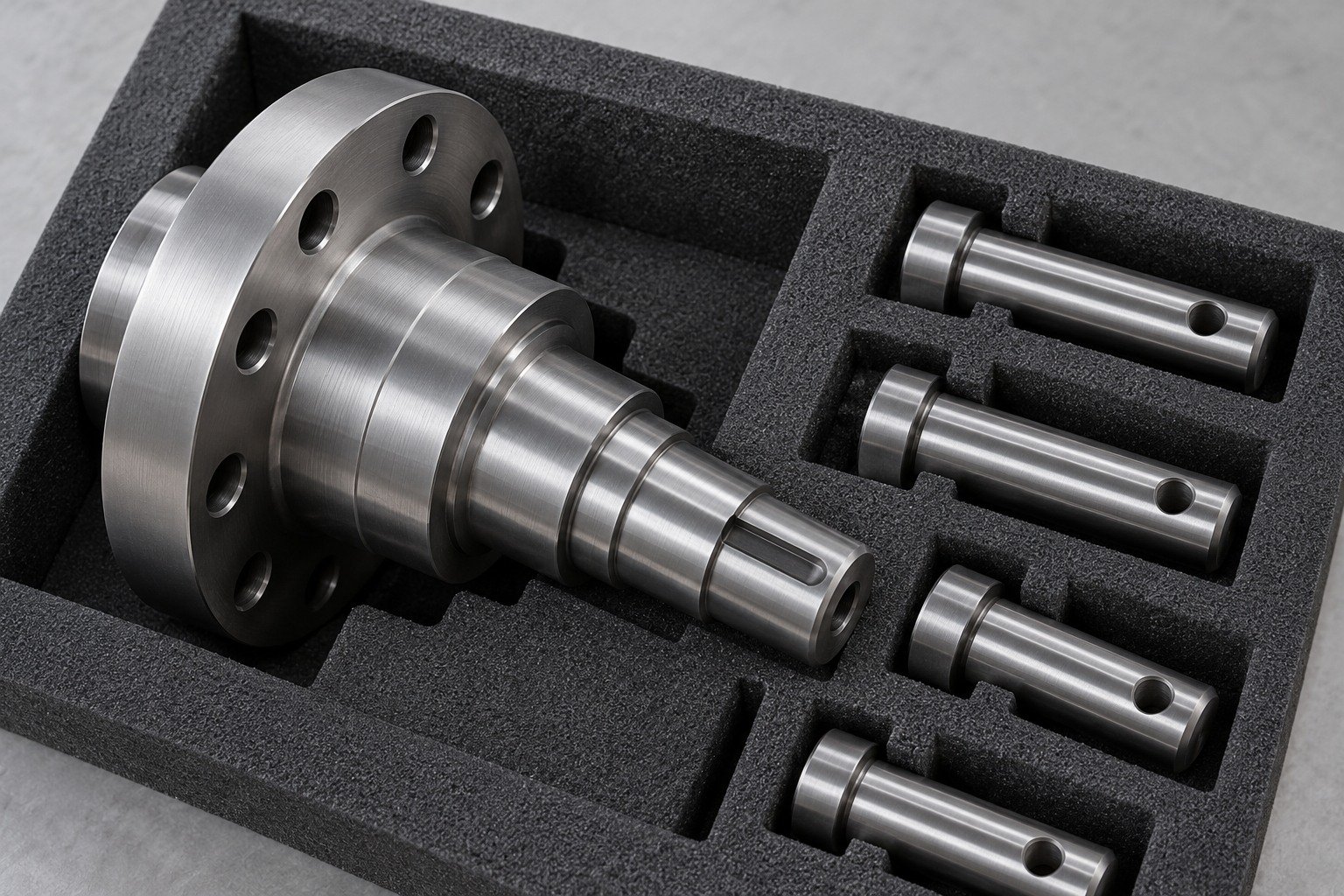

Confirm handling protection, packaging, part identification and the documents needed by your receiving team.
- Material identity and traceability.
- Critical dimensions and assembly fit.
- Process and finish records, where specified.
Sampling, methods and document scope are agreed with your quotation.
Quality Assurance →
6 Inputs for Your 4140 Steel Machining Quote
01CAD and controlled drawing
02Grade, product form and annealed or pre-hardened state
03First-order and repeat quantities
04Critical dimensions and surface finish
05Treatment route, final grinding and protection
06Inspection records and delivery needs
China Manufacturing. Dallas-Area Coordination.
Coordinate your drawing review, material condition, sample decisions and receiving requirements.
Answers Before You Specify
Can 4140 steel be welded?
Treat welding as a condition-specific engineering decision. State the supplied and final condition, section and joint. Agree the procedure, any required thermal controls and final inspection before release.
4140 annealed vs pre hardened: what should I order?
Start with your final properties and machining sequence. Annealed stock and pre-hardened stock require different planning. Specify the accepted condition and evidence rather than assuming a single hardness.
4140 vs 4340 steel: what changes the decision?
Review load, required condition, section and verification requirements. Do not select a grade from a generic strength ranking.
Does 4140 steel rust?
It is an alloy steel, not stainless steel. Define exposure, protective finish, storage and shipping protection for your component.
Can 4140 steel be hardened?
A specified thermal route can be reviewed. State target properties or hardness, section, test locations and final machining; the grade alone does not define acceptance.
How much does 4140 steel machining cost?
Send the controlled drawing, product form, supplied condition, quantity, process sequence, finish and inspection scope for your quotation.
What is 4140 steel used for?
Shafts, pins, spindles, coupling hubs and mechanical blocks are selection examples. Your load, section, ordered condition and final acceptance govern suitability.
Compare Carbon & Alloy Steel →
References support material selection. Your order specification and material records govern.
