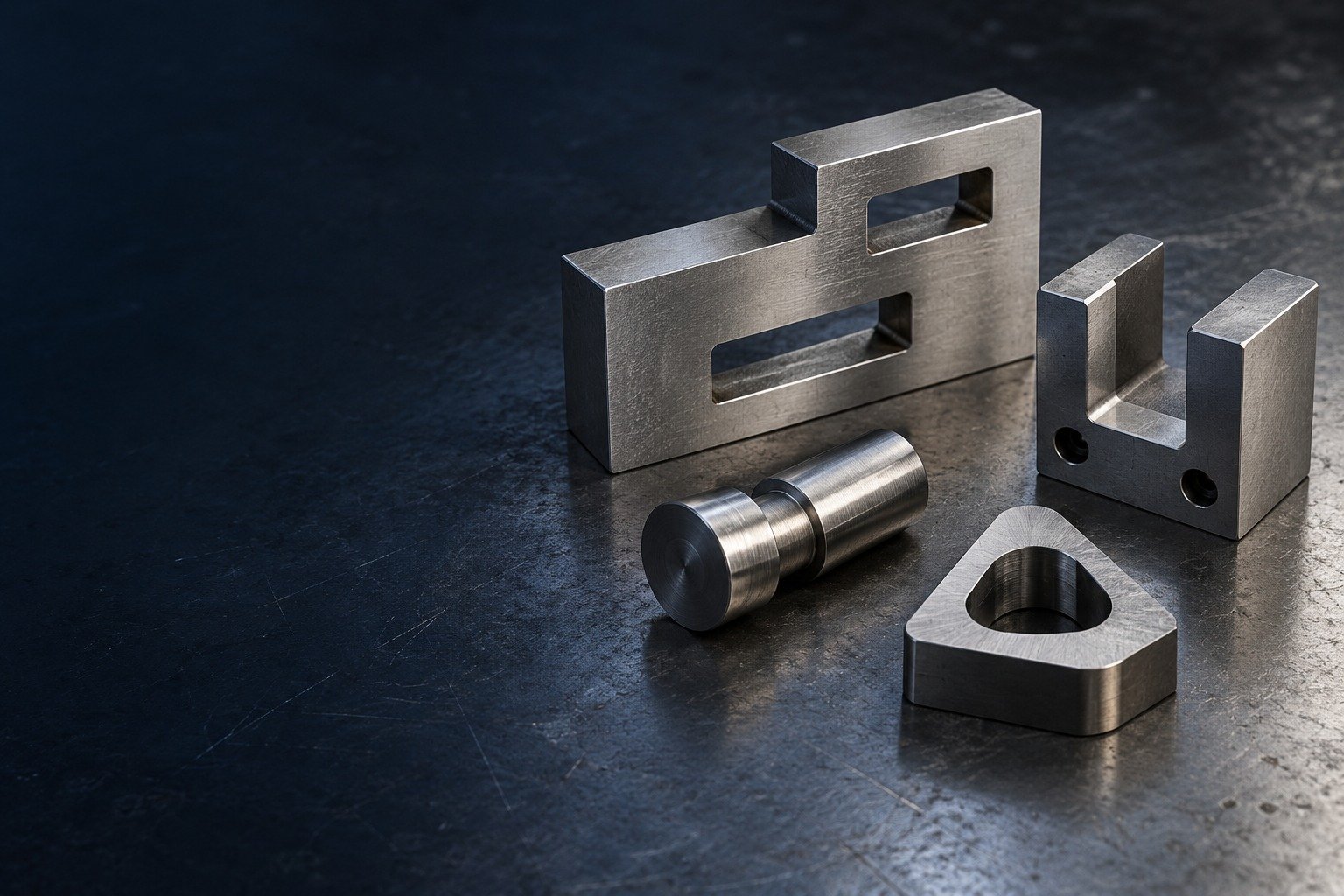

Wide industrial catalog arrangement of O1 tooling concepts: a precision stepped rectangular gauge block with two offset inspection windows, a U-shaped locating fixture jaw, a short cylindrical locating pin and a small triangular cold-work die insert with broad rounded aperture — illustrative component concept
Illustrative component concept

O1 Tool Steel Machining for Your Gauges & Fixtures

For your O1 tool steel machining services inquiry, define the supplied condition and the final gauge, fixture or die fit. Plan the specified thermal route, finishing stock and receiving evidence before production.

AISI O1Confirm your product specification.
Supplied ConditionSeparate annealed and hardened stock.
Final Working FitAllow for the complete route.
Receiving RecordsAgree grade and inspection evidence.

Know Your O1 Material Before You Order

O1 is an oil-hardening cold-work tool steel used for tooling components. Review O1 tool steel properties against the actual product, section and condition; neither the grade name nor a dimensional-stability description guarantees your final fit.

AISI O1

Cold-work tool steel. For European sourcing, review 1.2510 / 100MnCrW4 and the actual product specification.

2 States to Define

Annealed O1 tool steel for initial machining and hardened O1 tool steel for the working condition require different planning.

A comparison name supports review; it does not approve a substitute.

O1 Tool Steel Composition

ElementK460 producer average wt.%
C0.95
Si0.25
Mn1.10
Cr0.55
V0.10
W0.55

BÖHLER K460 average analysis. Producer data refer to long products. Confirm your supplied product form and material record; these are not acceptance ranges.

Your Condition Controls the Route

StageYour required decision
Incoming stockProduct form, actual condition and grade identity.
Specified treatmentTarget condition, responsible party and required evidence.
Finished toolingFinal datums, working features and inspection after finishing.

The specified thermal route must suit your actual section and geometry.

Compare Selected Alloy Content

Selected producer averages · wt.% · common axis 0–6%

O1 / K460 · C
0.95%
A2 / K305 · C
1.00%
O1 / K460 · Cr
0.55%
A2 / K305 · Cr
5.20%
03%6%

Composition only. These bars are not a wear, toughness, machinability or corrosion score. They are not test results from your material lot.

BÖHLER K460 / O1 reference ↗ K305 / A2 comparison source ↗

Custom O1 Tool Steel Parts for Your Tooling

Select the part you need, then review machining, condition and final acceptance.

Define Your Gauges Before Cutting

For your O1 tool steel gauges, identify the measuring function, reference faces and mating feature. A machined gauge blank is not a calibrated instrument unless calibration is part of the agreed scope.

Your decisionWhat to define
Your fitMeasuring feature, reference planes and accepted inspection state.
Your processInitial machining, specified treatment and final finishing.
Your approvalControlled drawing, final condition and receiving evidence.

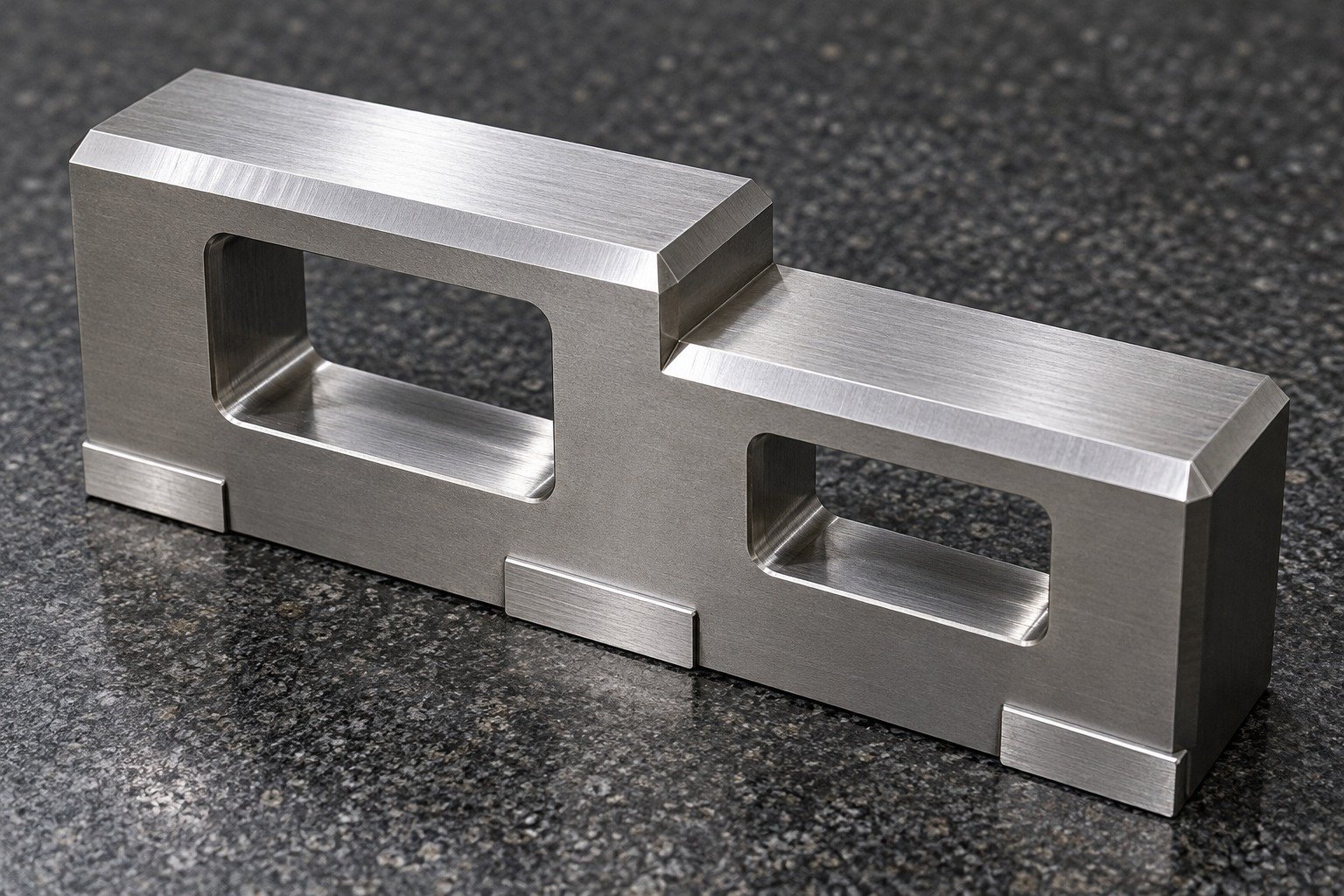

A precision O1 stepped gauge-block concept with two unequal rectangular inspection windows, chamfered edges and three ground reference lands, on granite, credible substantial section — illustrative component concept
Illustrative component concept

Resolve 6 Risks Before Releasing Your O1 Drawing

Connect O1 tool steel heat treatment to finishing and inspection before approving the first production route.

Plan for O1 Tool Steel Heat Treatment Distortion

Review section, shape, uneven material removal and treatment responsibility before release. Agree remaining stock and final datum recovery; do not describe oil-hardening steel as zero-distortion.

01 · Requirement

Show the controlled feature and final state.

02 · Allowance

Agree remaining stock for the actual route.

03 · Evidence

Verify the finished fit and specified condition.

Rough machineTreat if specifiedFinishInspect
An O1 gauge blank on parallels beside a separate precision straightedge, broad stock bands on the reference faces and a substantial central web, no false simulation of quench distortion — illustrative component concept
Illustrative component concept

Verify Your O1 Tooling at 3 Stages

01 · Incoming O1

Identity, stock form and supplied condition.

02 · Specified treatment

Working condition and remaining finish stock.

03 · Finished part

Functional features, protection and records.

Review the Sample Through the Complete Route

Check remaining stock and reference faces before treatment, then review the specified finishing and final measurement plan.

  • Specified O1 product and condition.
  • Final working geometry and locating fits.
  • Agreed treatment, finish and inspection records.

Sampling and document scope are agreed with your quotation.

Quality Assurance →

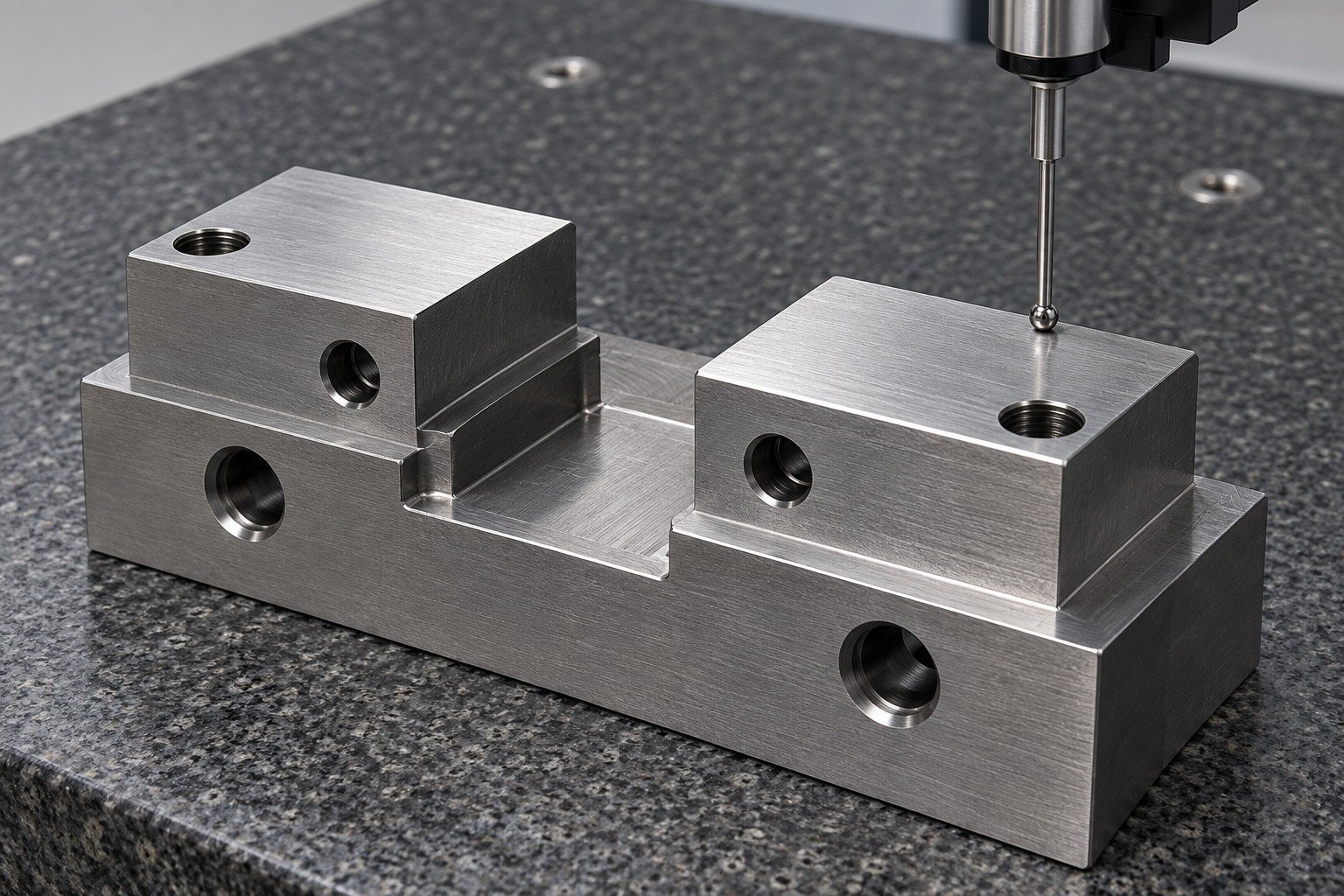

A first-machined O1 fixture jaw with two separated locating lands, height-gauge stylus on the upper datum face on granite, clear supported functional geometry — illustrative component concept
Illustrative component concept

Agree Your Working Surface

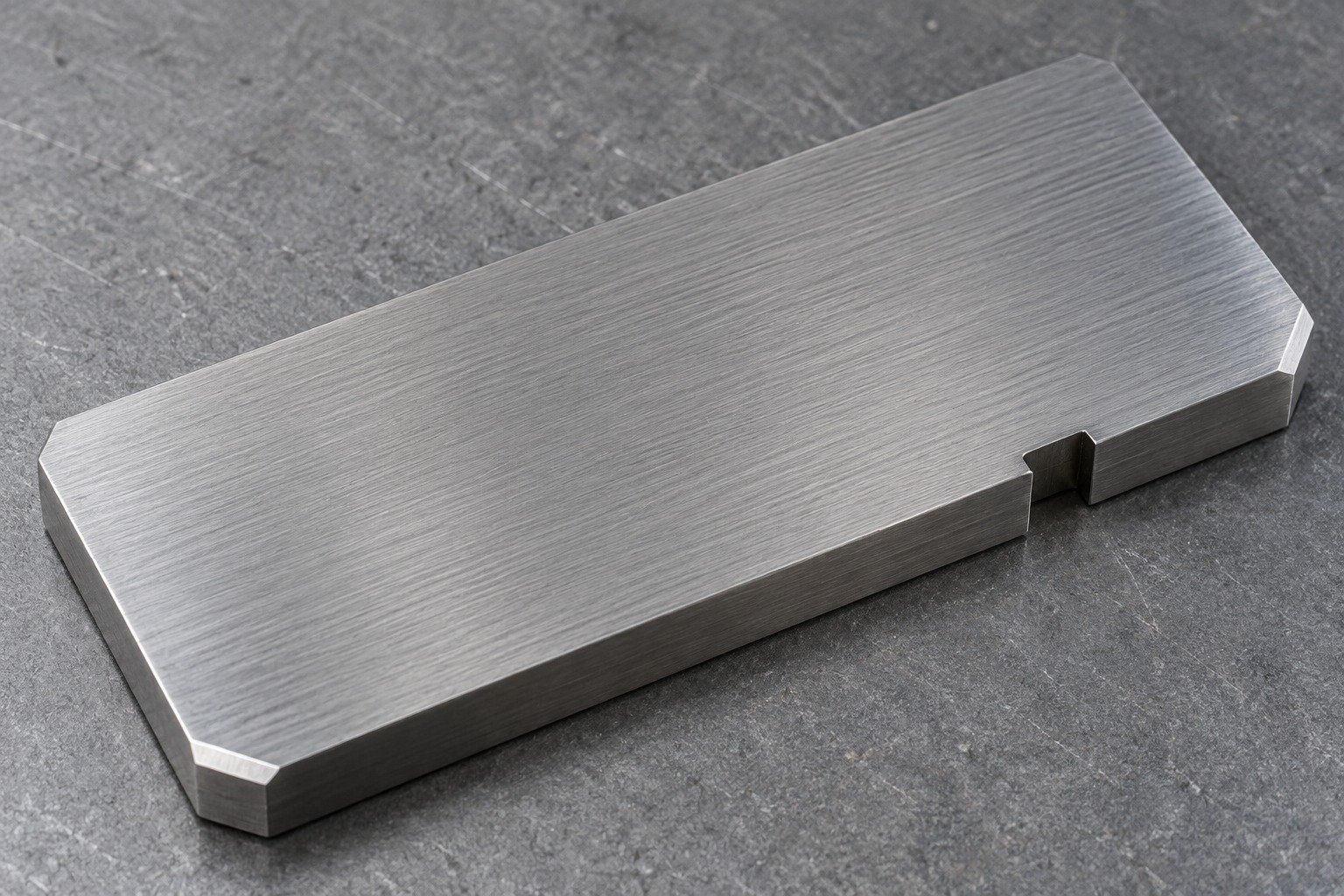

An O1 ground reference coupon with two small chamfers and one offset locating notch, fine uniform parallel grinding texture, neutral steel appearance filling frame — illustrative component concept
Illustrative component concept
As Ground

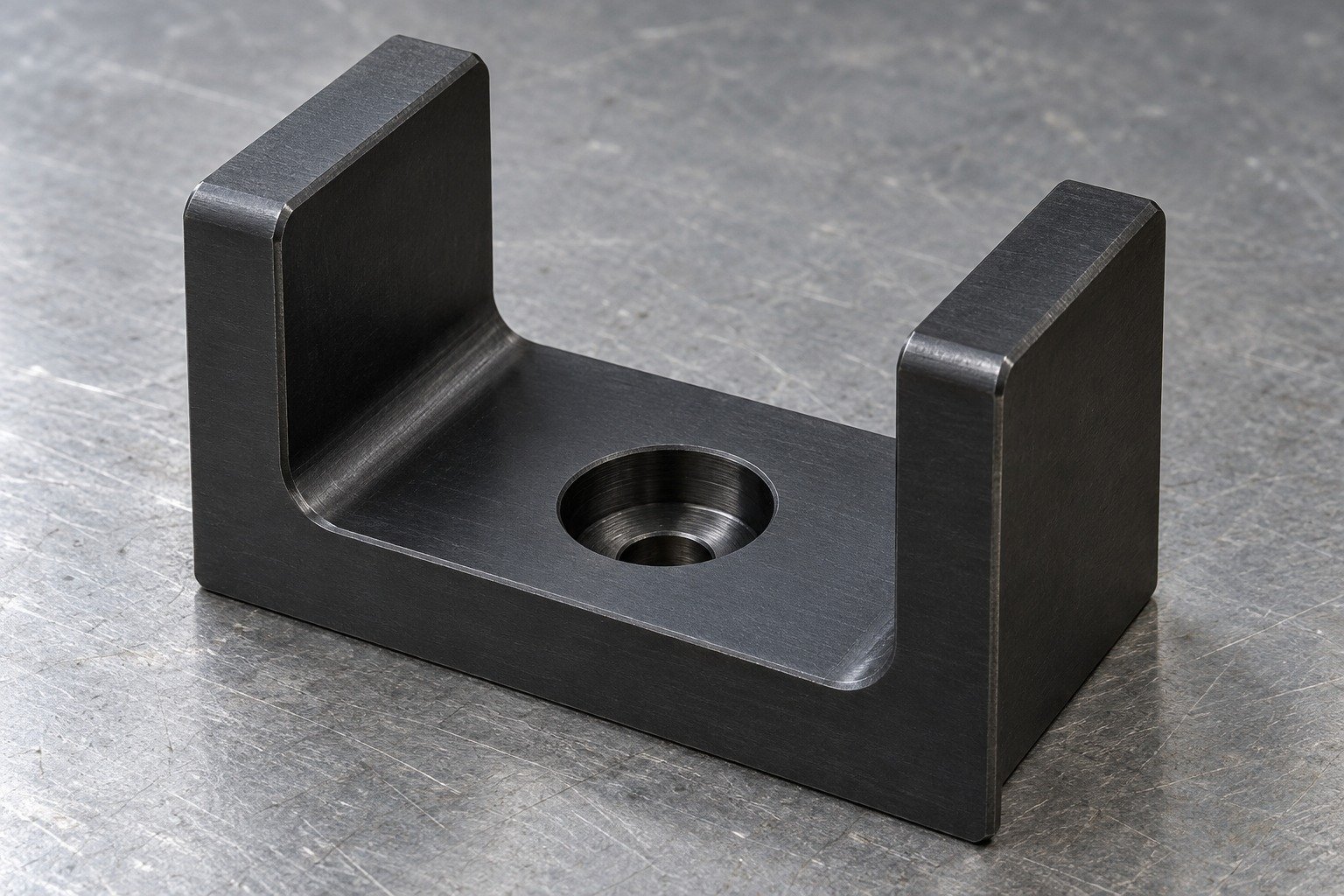

A small O1 U-shaped fixture coupon with rounded internal corners and one counterbore, restrained matte black oxide appearance, precise machined edges, no text — illustrative component concept
Illustrative component concept
Black Oxide

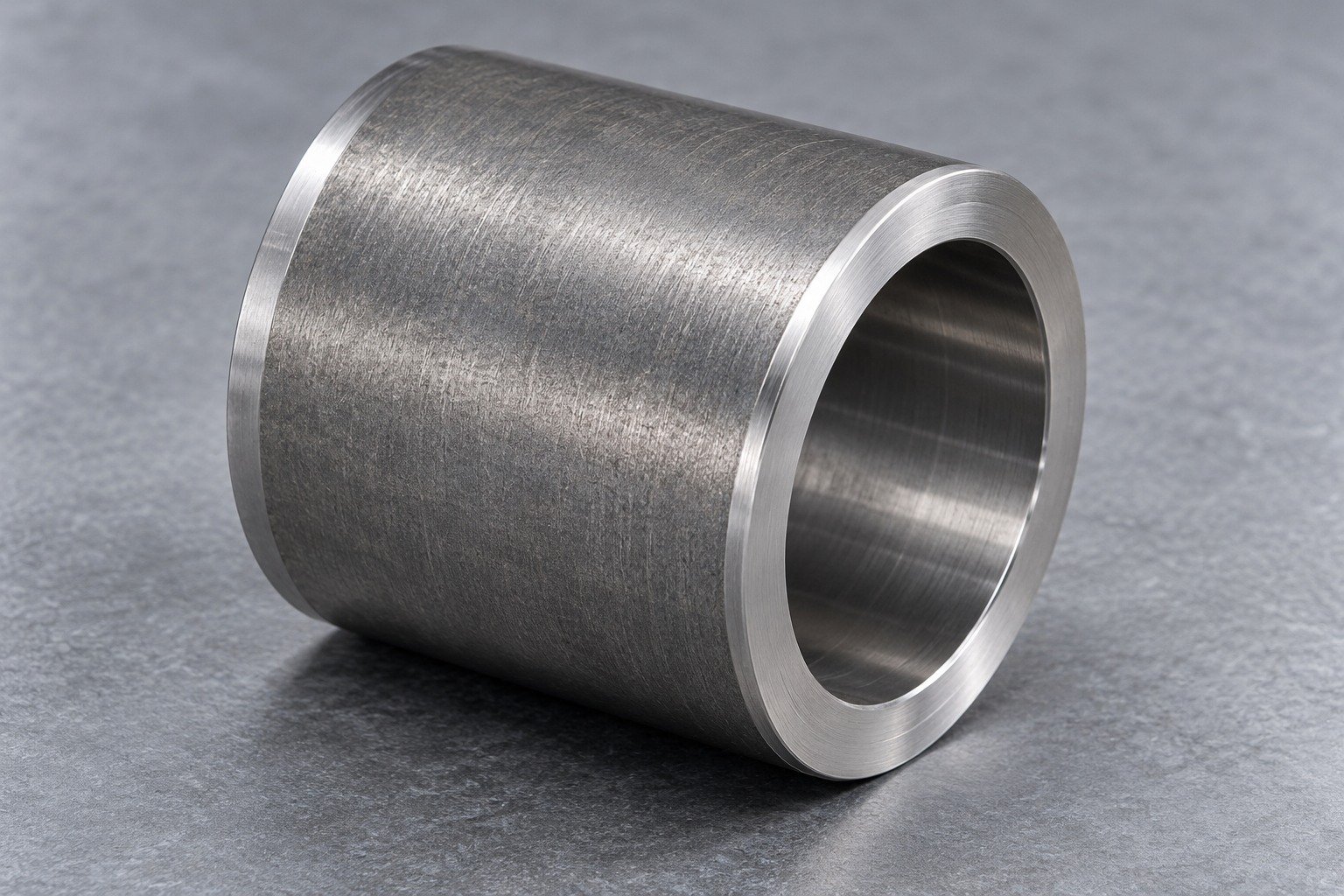

A short thick-walled O1 bushing surface-treatment-review concept, natural restrained satin grey surface with brighter end faces and credible ground texture — illustrative component concept
Illustrative component concept
Treatment Review

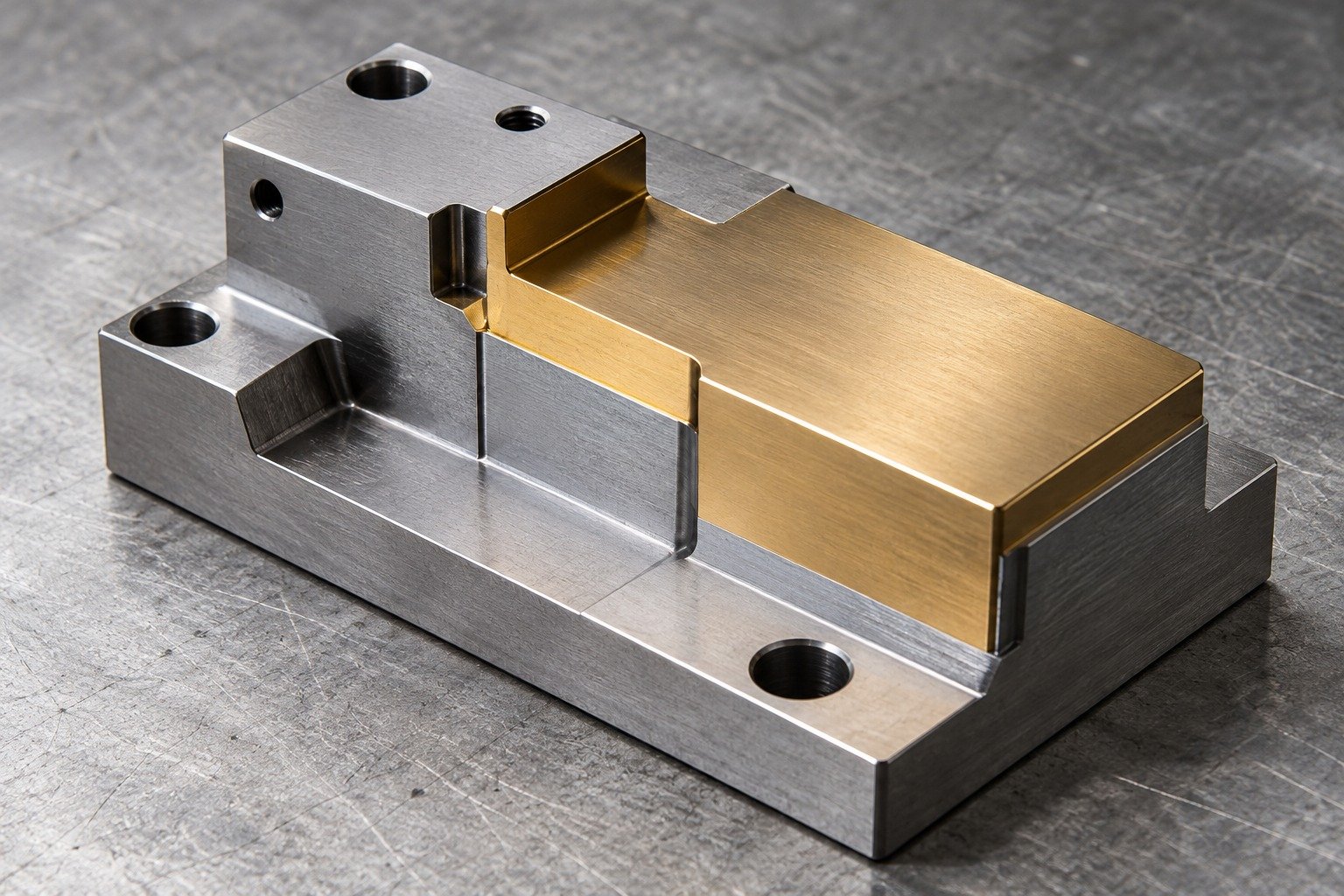

A small O1 stepped tooling sample with a restrained bronze-gold appearance on one broad outside pad and uncoated grey datum faces, plausible masked boundaries, appearance concept only — illustrative component concept
Illustrative component concept
Coating Review

Illustrative appearance samples. Protection, treatment compatibility, masking and manufacturing scope require project review. A visual sample is not a process specification.

Surface Finishing →

O1 vs A2: Define Your Decision

CompareWhat your drawing must resolve
O1 vs A2 tool steelAbrasive wear, impact, working-edge support and the finishing route.
Working-edge supportReview chipping risk, local impact, section and the final profile before approving the grade.
European comparison1.2510 / 100MnCrW4 is a review reference; confirm the product standard and supplied state.

Confirm an alternative before purchase. Do not assume that similar names or higher alloy content approve a replacement.

From O1 Stock to Your Finished Fit

O1 tool steel machinability depends on the actual condition, geometry and operation. Agree the route for your drawing; a generic cutting-speed table is not a production plan.

A distinctive O1 rectangular fixture plate with two rounded unequal recesses and an offset raised boss, securely clamped on a perforated table, carbide end mill cutting a relief with two coolant streams — illustrative component concept
Illustrative component concept

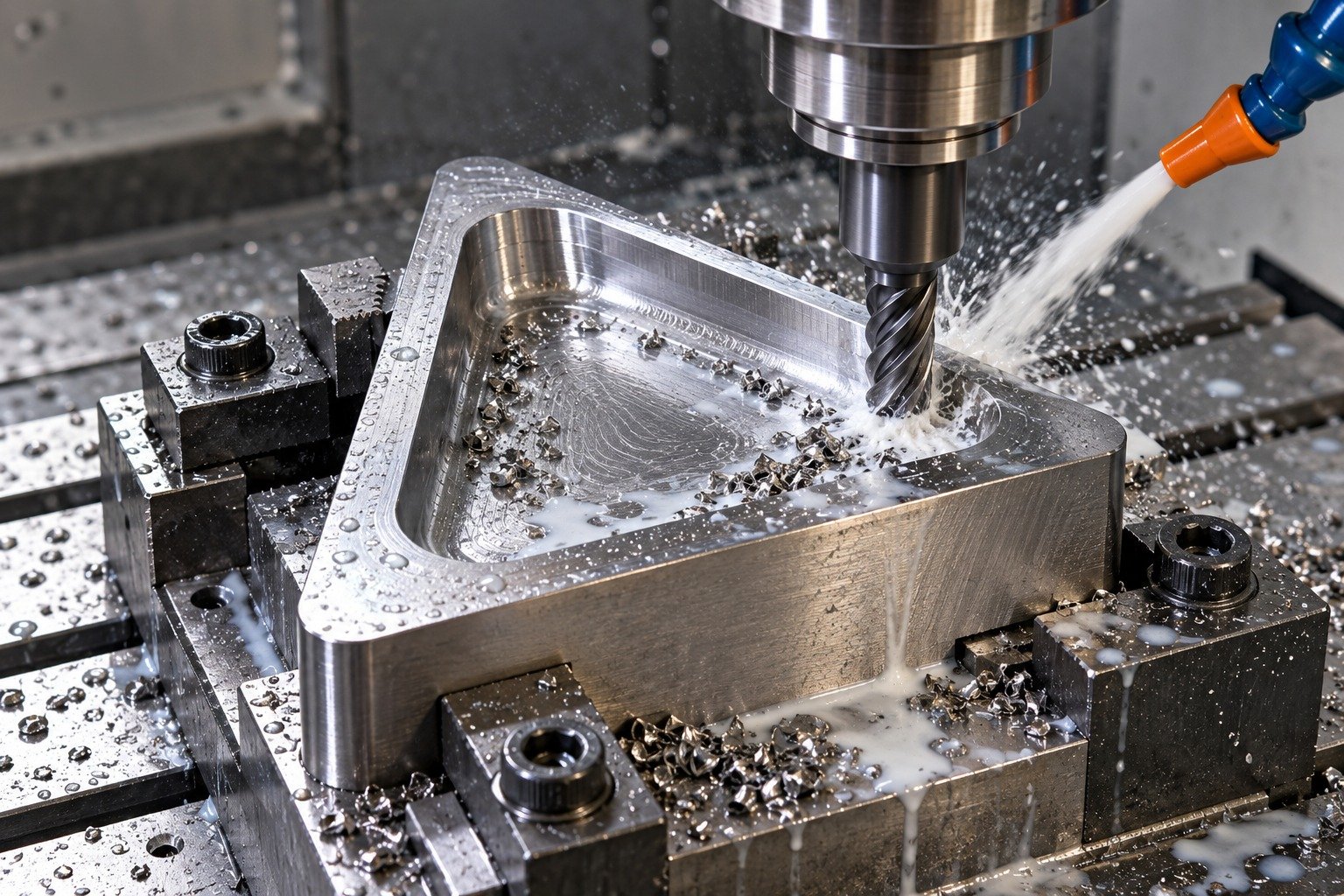

CNC Milling

Review die pockets, relieved sections and dowel relationships.

Explore CNC Milling →

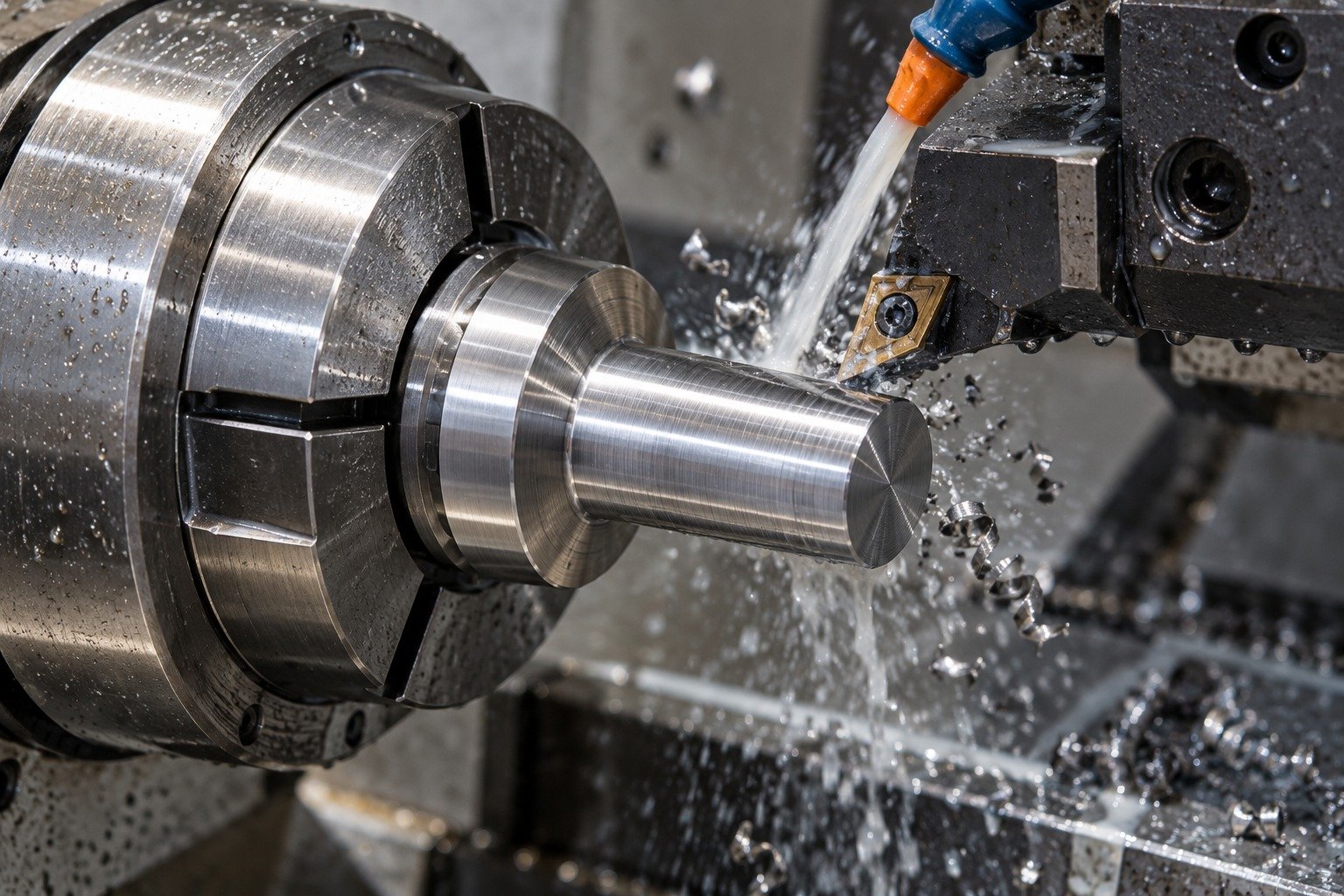

A blunt O1 locating pin with broad short shoulder held in a collet lathe, carbide tool finishing the shank with localized cutting-fluid stream, realistic short metallic chips — illustrative component concept
Illustrative component concept

CNC Turning

Plan punch shanks, shoulders and locating diameters.

Explore CNC Turning →

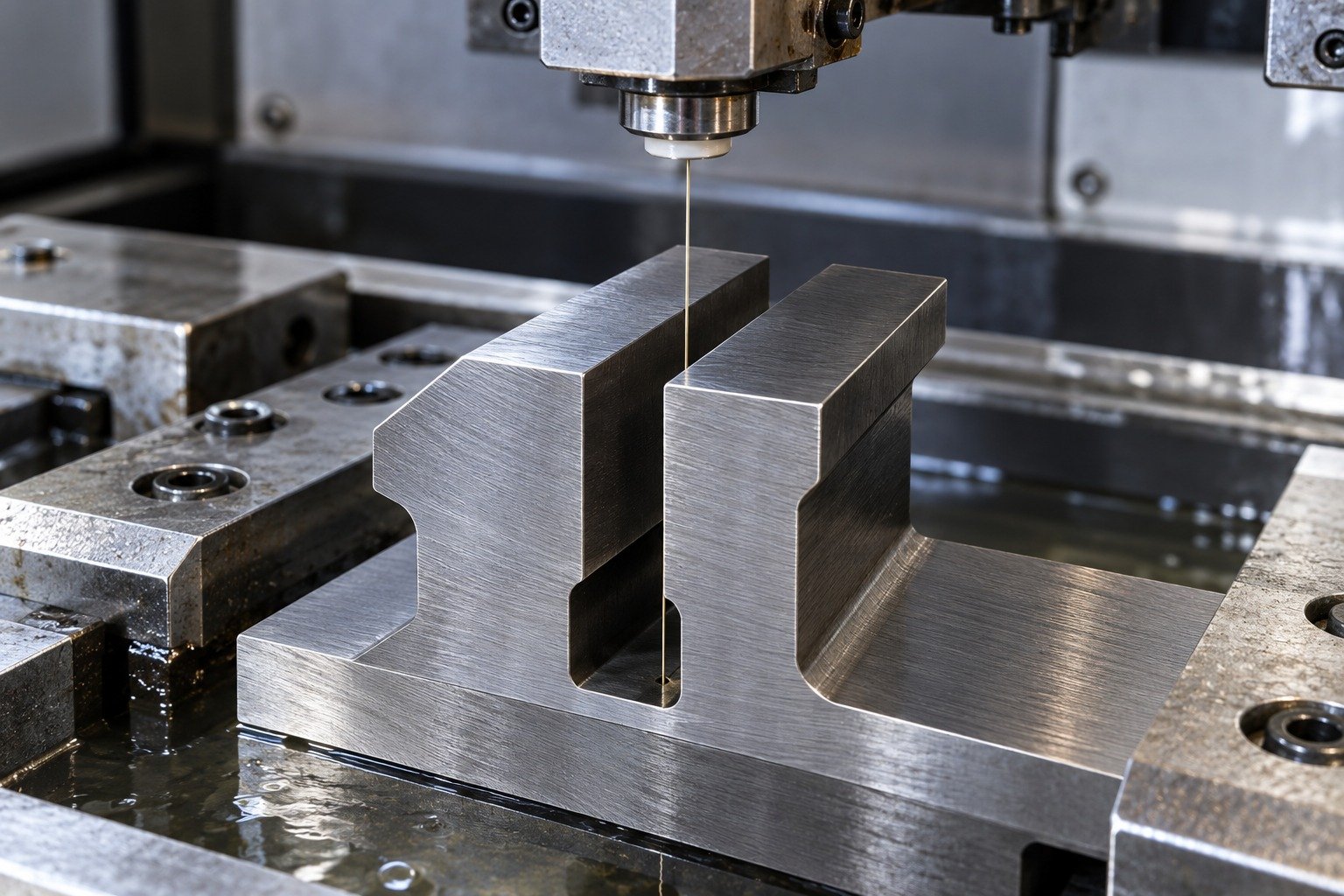

An O1 gauge-profile insert with a smooth angular open slot in a wire EDM machine, one hair-thin vertical wire and credible upper guide above the slot, no milling spindle or visible sparks — illustrative component concept
Illustrative component concept

Wire EDM

For O1 tool steel wire EDM review, identify through profiles and final surface requirements.

Explore Wire EDM →
LK Dongguan factory exterior — user-supplied photograph
LK Dongguan factory · user-supplied photograph

Coordinate Your Drawing and Receiving Requirements

Connect China manufacturing with Dallas-area coordination for your drawing review, sample decisions and delivery requirements.

6 Inputs for Your O1 Quote

01CAD and controlled drawing
02O1 product specification and stock form
03Supplied condition and treatment responsibility
04Trial and repeat quantities
05Final fits, allowance and surface requirements
06Inspection records and delivery needs

Answers Before You Specify O1

How should I plan O1 tool steel heat treatment distortion?

Review the actual section, geometry, roughing pattern and treatment route with the responsible provider. Define finishing stock and recoverable datums before hardening. Dimensional-stability language is not a guarantee of zero movement.

What changes for O1 tool steel annealed vs hardened?

The supplied condition changes your machining and finishing plan. Confirm it before programming, then specify the required final state, remaining stock and inspection after all agreed operations.

What O1 tool steel hardness should I specify?

State the working requirement, test method and locations for the actual part and duty. Supplied stock condition and final hardness are separate decisions; do not assume one value for every section or application.

Does O1 tool steel rust?

Review corrosion exposure, storage and handling protection. Specify cleaning, any protective finish and the ground faces or fits that must remain functional. Do not treat O1 as a stainless material specification.

Can O1 tool steel be welded?

Treat repair or joining as a separate engineering review. Identify the steel, existing condition, section and required final properties, then agree a suitable procedure and final acceptance before repair.

Does an O1 gauge blank include calibration?

Define the required scope in your inquiry. Manufacturing and dimensional inspection of a gauge blank do not by themselves establish a calibrated measuring instrument. Agree the method, environment, records and any external calibration responsibility.

Can I apply any coating to O1 tooling?

Review the proposed process against the actual final condition and operating requirements. Producer guidance limits some advanced-coating routes for this material; confirm compatibility and final fits before approval.

How much does O1 tool steel machining cost?

For your O1 tool steel machining quote, send CAD, the controlled drawing, quantities, supplied state, treatment responsibility, final fit, finishing and inspection requirements. Include any separate gauge verification or calibration scope.
