416 · UNS S41600 · EN 1.4005
416 Stainless Steel for Your Turned & Machined Parts
Balance your machining route with hardness, exposure and final fit.
For your 416 stainless steel machining project, keep material condition and surface acceptance connected to the drawing.
3 Checks Before You Select a Free-Machining Grade
Machining scope
Identify turned, threaded and cross-drilled features, rather than choosing from one machinability score.
Final hardness
Specify incoming condition, required final condition and the point at which fit is accepted.
Exposure & joining
Describe fluids, retained moisture and any welded joints before approving the material.
416 stainless is a free-machining martensitic grade. The Carpenter reference does not recommend it for welding or high-pressure gas/liquid vessels. Review those needs before committing to the route.

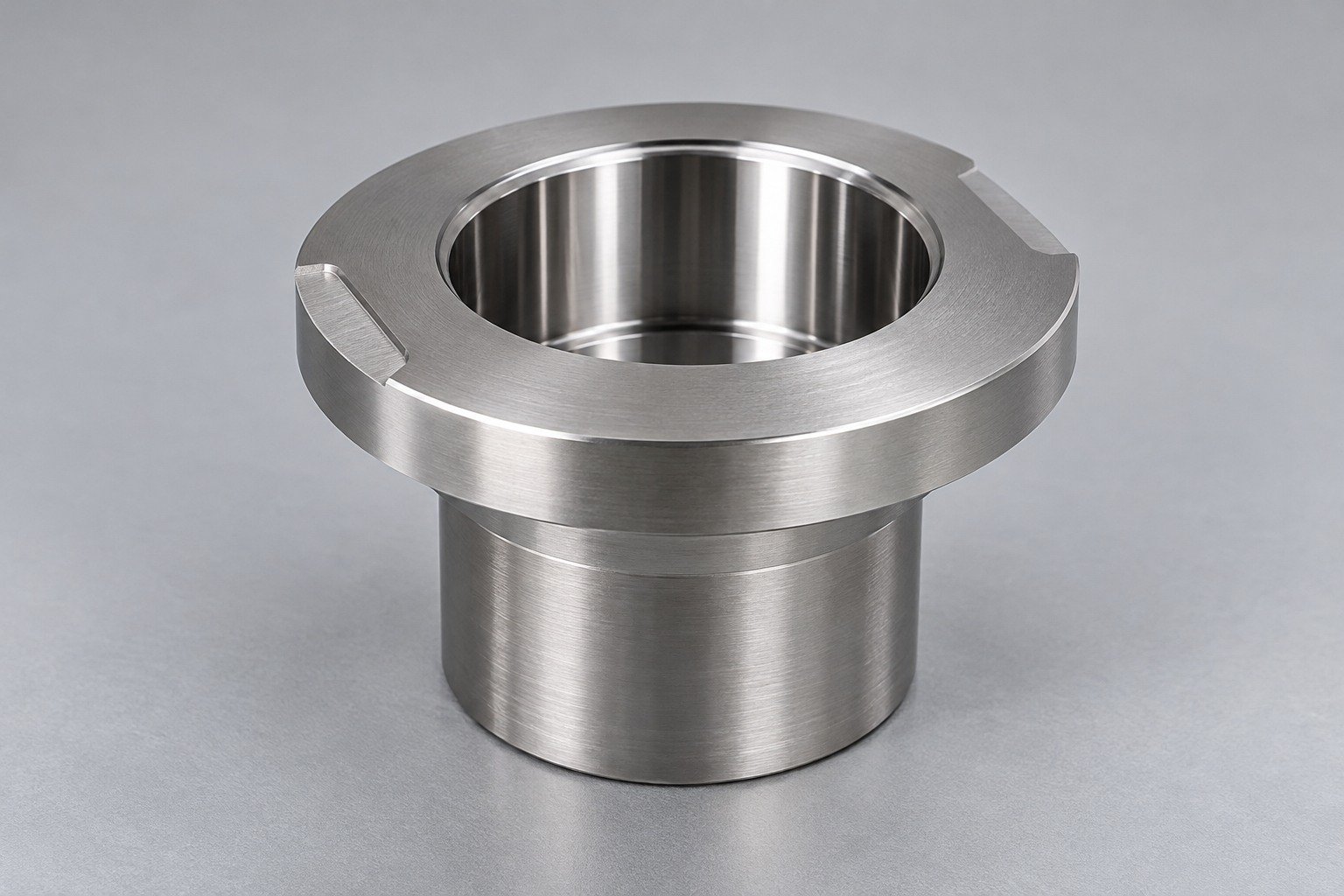

Your Shaft, Bushing and Spacer Need the Same Datum Plan
For 416 stainless steel turning services, connect journals, shoulder positions and bores to the final assembly relationship.
416 stainless steel turning for 416 stainless steel shafts, 416 stainless steel bushings and 416 stainless steel spacers needs explicit fits, length and final surface requirements.
For 416 stainless steel machined parts, define whether acceptance applies before or after any heat treatment.
CNC Turning →
Find Stainless Steel 416 on International Drawings
Use UNS S41600 and the complete product specification to identify your material. EN 1.4005 is a common European lookup correspondence; confirm the actual standard, stock form and condition before substitution.
| Drawing input | Your order check |
|---|---|
| 416 · UNS S41600 | Retain product form, condition and material evidence. |
| EN 1.4005 | A correspondence aid; the full purchase requirement governs. |
| 416 stainless steel ASTM A582 | Confirm the applicable free-machining bar specification, revision and required condition. |
416 Stainless Steel Composition & Material Records
Selected Chromium Range: 416 vs 303
Carpenter type analyses · mass % · common axis 0–20
41612–14%
17–19%
| Element | 416 type analysis · mass % |
|---|---|
| Chromium | 12.00–14.00 |
| Carbon | ≤0.15 |
| Manganese | ≤1.25 |
| Silicon | ≤1.00 |
| Phosphorus | ≤0.060 |
| Sulfur | ≥0.150 |
| Iron | Balance |
The cited PDF states sulfur as a minimum. Keep the governing specification and actual lot record separate from this supplier reference.
Your Screw-Machined Features Need Clear Functional Callouts
For 416 stainless steel Swiss machining and 416 stainless steel screw machine parts, define shoulders, cross holes, stock condition and burr access.
For 416 stainless steel threaded parts, specify thread standard, useful engagement, relief and the final mating condition.
416 stainless steel machinability supports a machining-focused review, but does not remove the need to evaluate geometry, workholding and acceptance.
Swiss Machining →

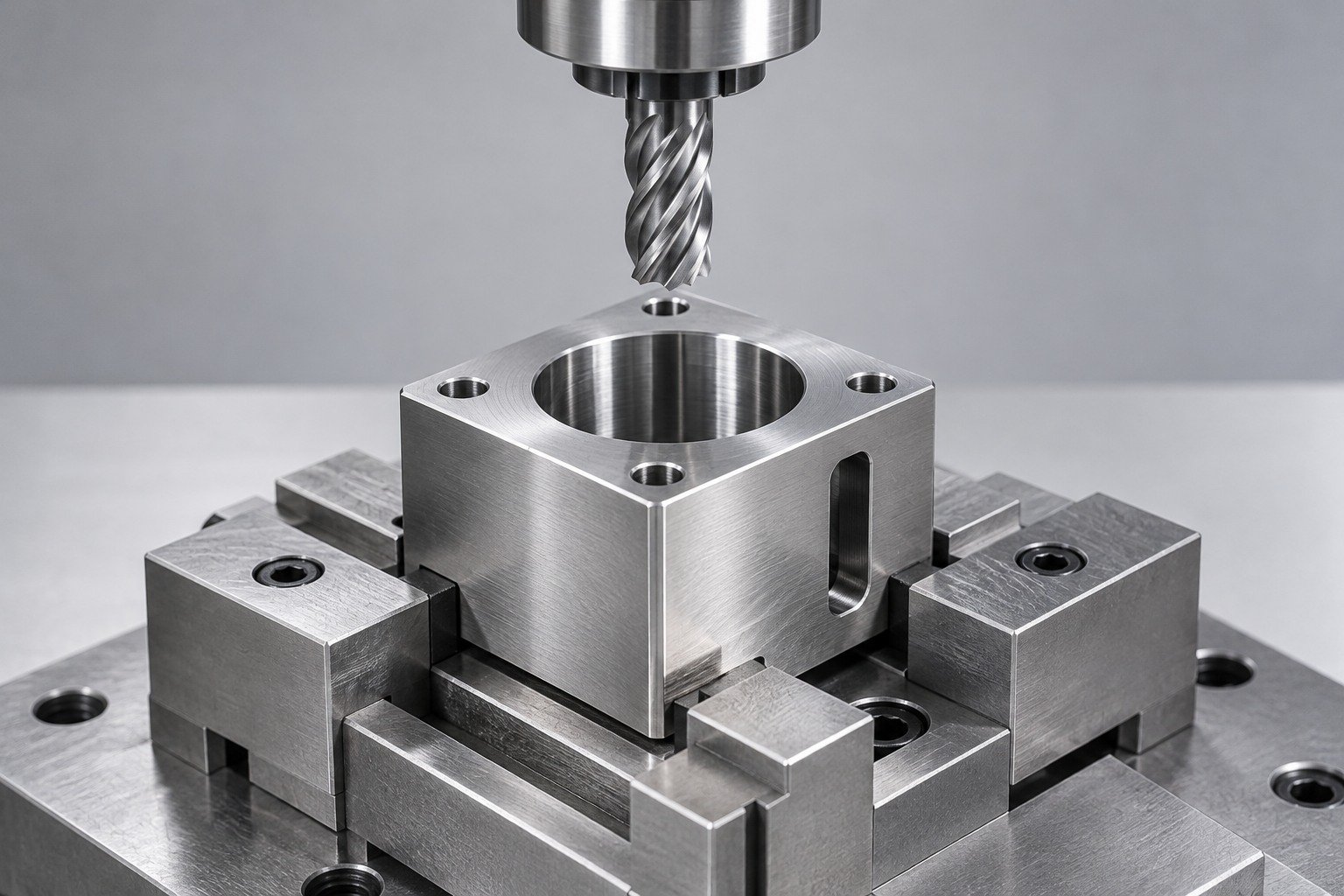

Review Cross Features and Tool Access Before Release
For 416 stainless steel CNC machining, show the datum scheme, stock condition and interfaces that must remain related.
For 416 stainless steel milling, identify slots, thin sections and clamping access. Connect 416 stainless steel drilling and 416 stainless steel tapping to intersection burrs and inspection access.
CNC Milling → · Review Your Machining Route →
Plan Heat Treatment Around Your Final Fit
For 416 stainless steel heat treatment, specify the required final condition, process and evidence. Read 416 stainless steel properties with the stock form and heat-treatment state.
Incoming material
Identify the supplied condition and any required hardness range.
Process sequence
Agree allowance and operations before or after heat treatment.
Final acceptance
State when fits, surface and required material checks apply.
Discuss 416 stainless steel grinding where a finished interface requires that route. Agree the actual process, finish and inspection state.
Control Your Surface, Cleaning and Marking Scope
For 416 stainless steel polishing, identify the faces, finish reference and surfaces that must stay protected.
For 416 stainless steel passivation, agree cleaning, compatibility and the required evidence for the part and its condition.
For 416 stainless steel laser marking, show the location, content and restrictions on functional or exposed faces. A polished surface alone does not prove corrosion suitability.
Surface Finishing Review → · Laser Marking →
4 Drawing Checks for Your Machining Route

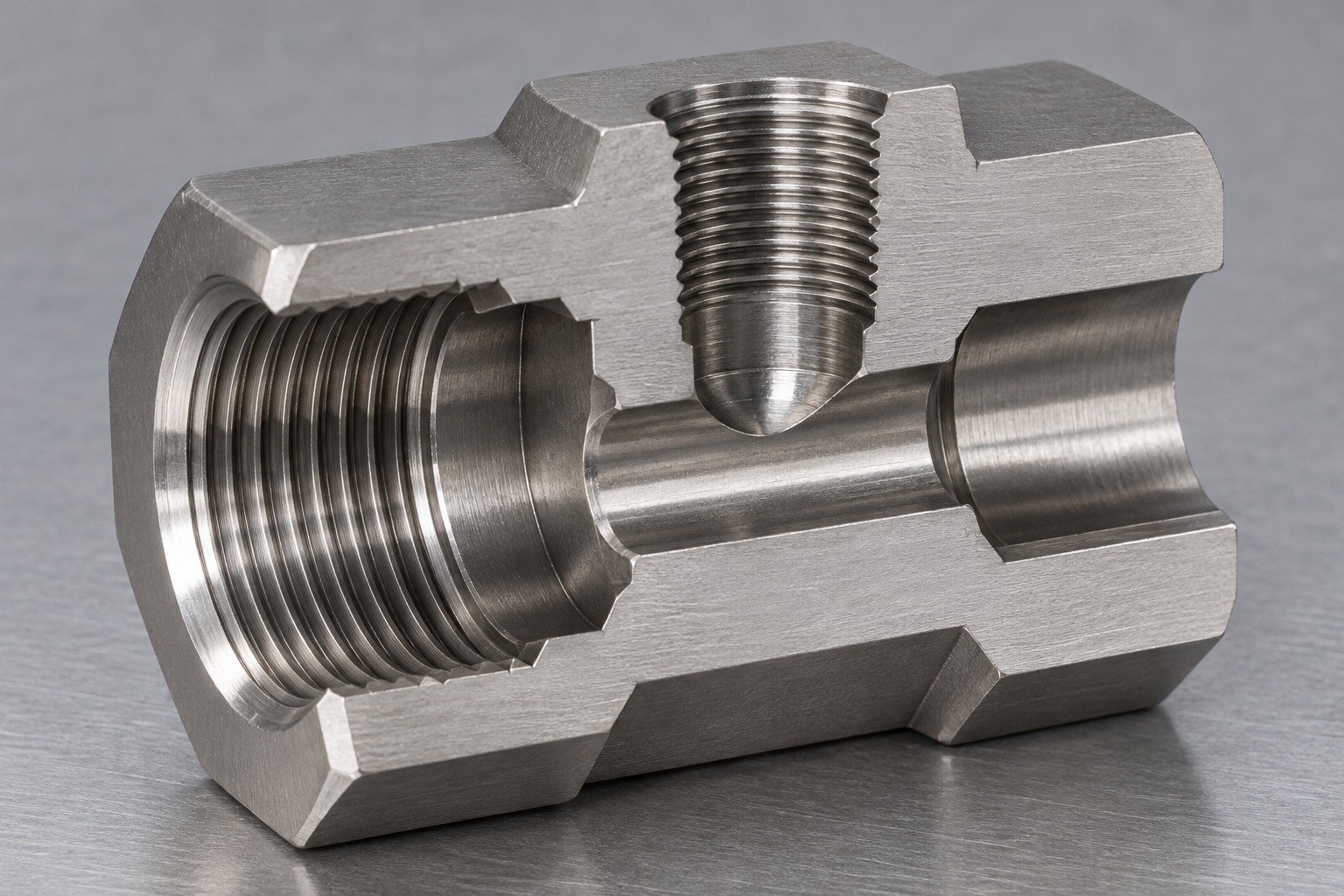

01 · Thread & burr access
Expose the thread and intersecting burr route
Define useful thread length, relief and intersecting passages. Keep burr acceptance inspectable.
Specify useful engagement, hole intersections and edge access. Keep the deburring and inspection route visible in the review.
≥ 0.150%Sulfur · mass % · supplier chemistry minimum
Carpenter 416 free-machining chemistry reference. It is a minimum, not a maximum, and does not guarantee burr-free geometry.
Read the source and conditions →

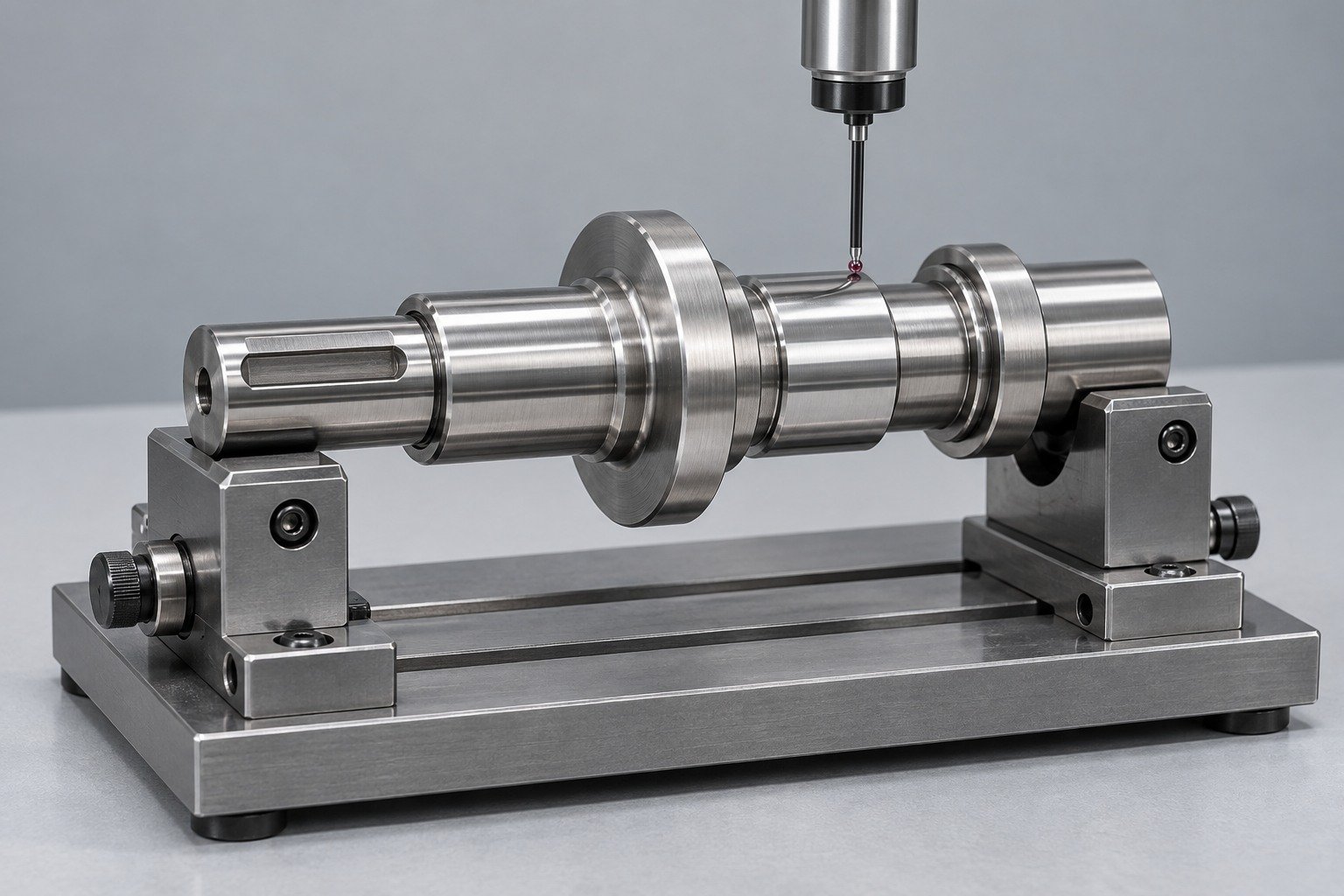

02 · Key & journal relationship

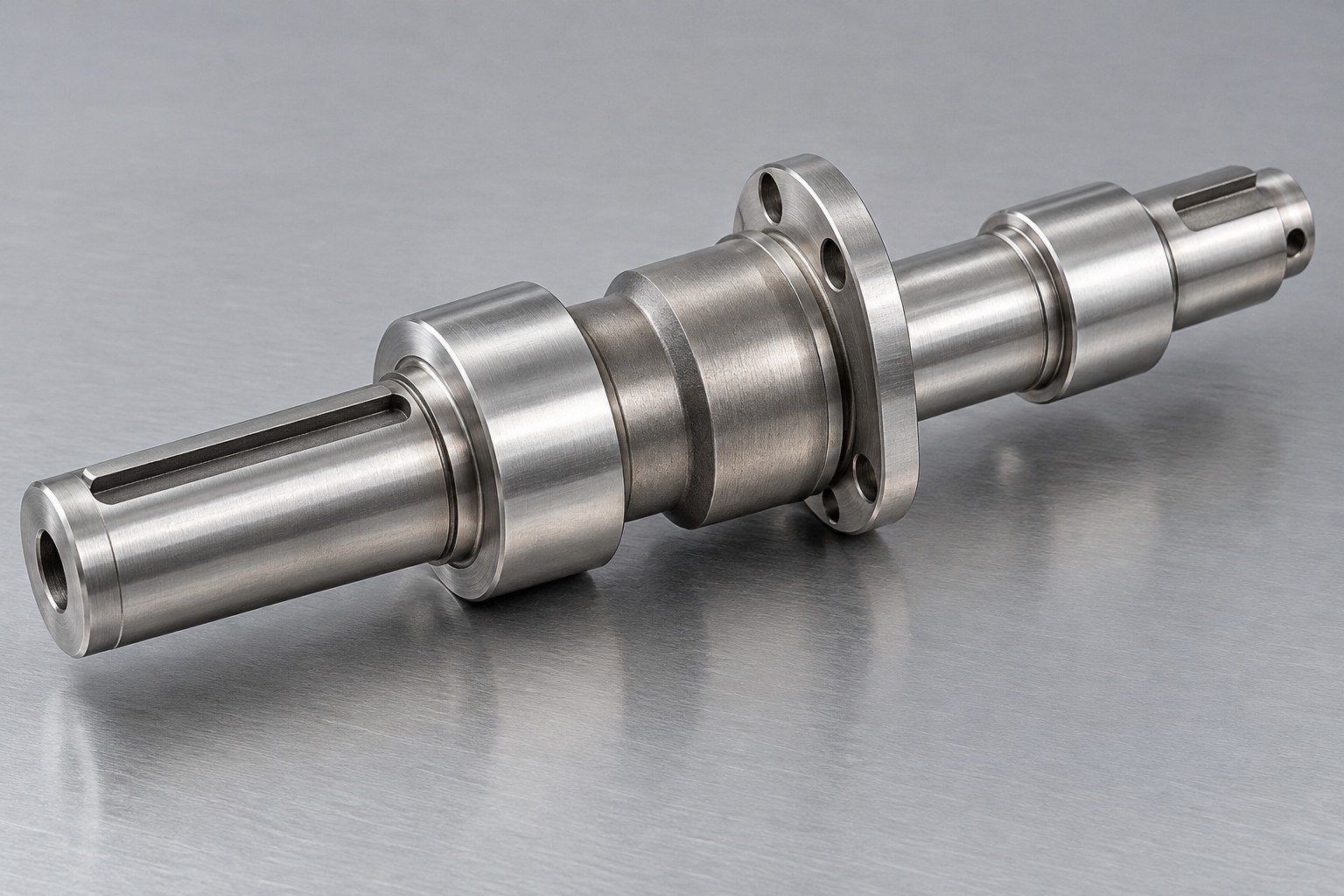

Connect keyway, journal and shoulder locations
Connect keyway, journal, bore and shoulder positions to the functional datum scheme.
Show functional datums and how the shaft will be held and inspected. Confirm the final thermal state for precision features.
1.4005EN correspondence · UNS S41600
The designation does not define one journal tolerance, hardness or corrosion allowance.
Read the source and conditions →

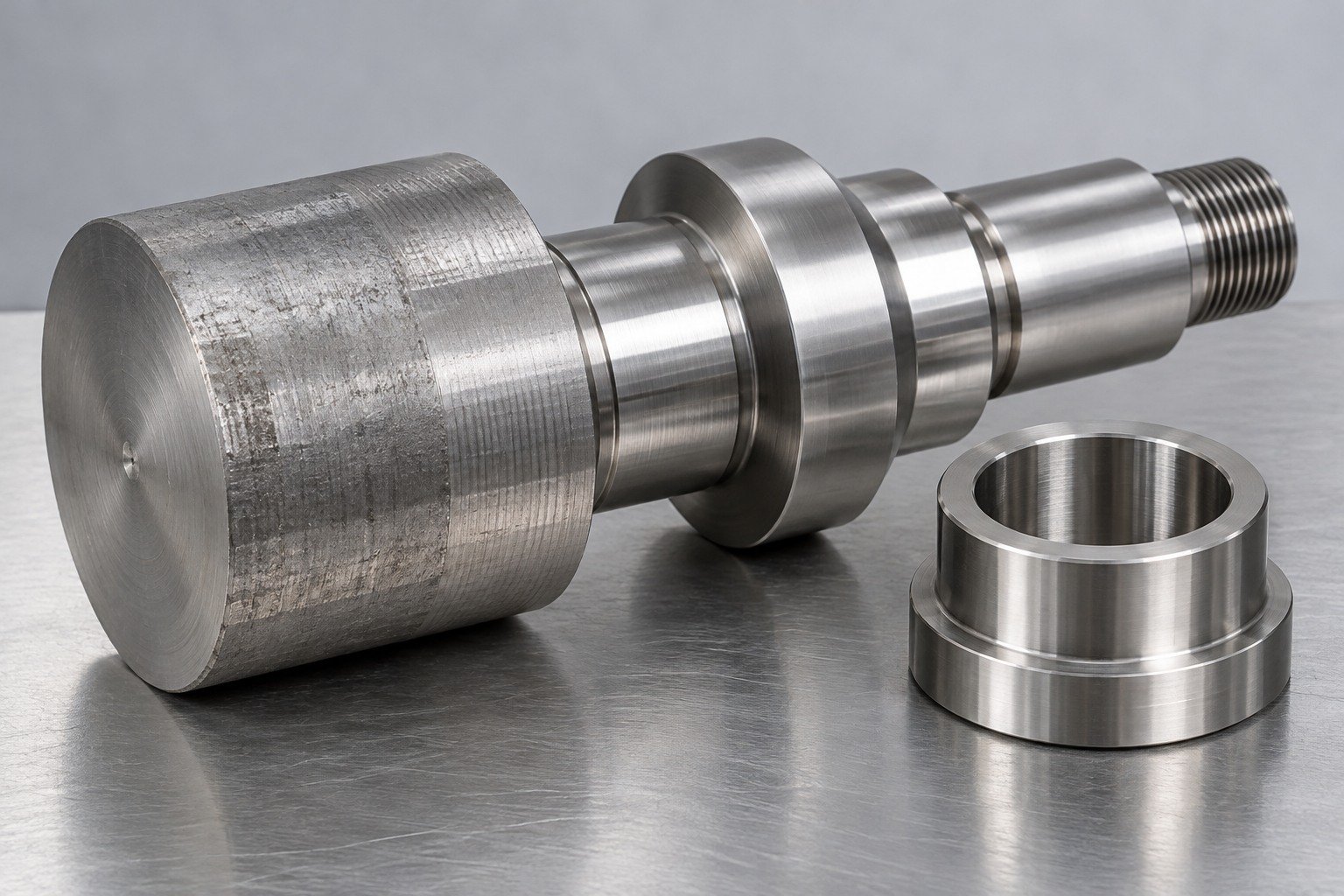

03 · Hardness & sequence
Define hardness before finishing the lands
State the final condition and where dimensional acceptance occurs in the process.
Agree roughing, thermal processing and final finishing around your specified condition. Do not derive hardness from surface brightness.
≤ 0.15%Carbon · mass % · supplier chemistry maximum
Read with the complete Carpenter 416 composition and heat-treatment discussion; no universal finished hardness is implied.
Read the source and conditions →

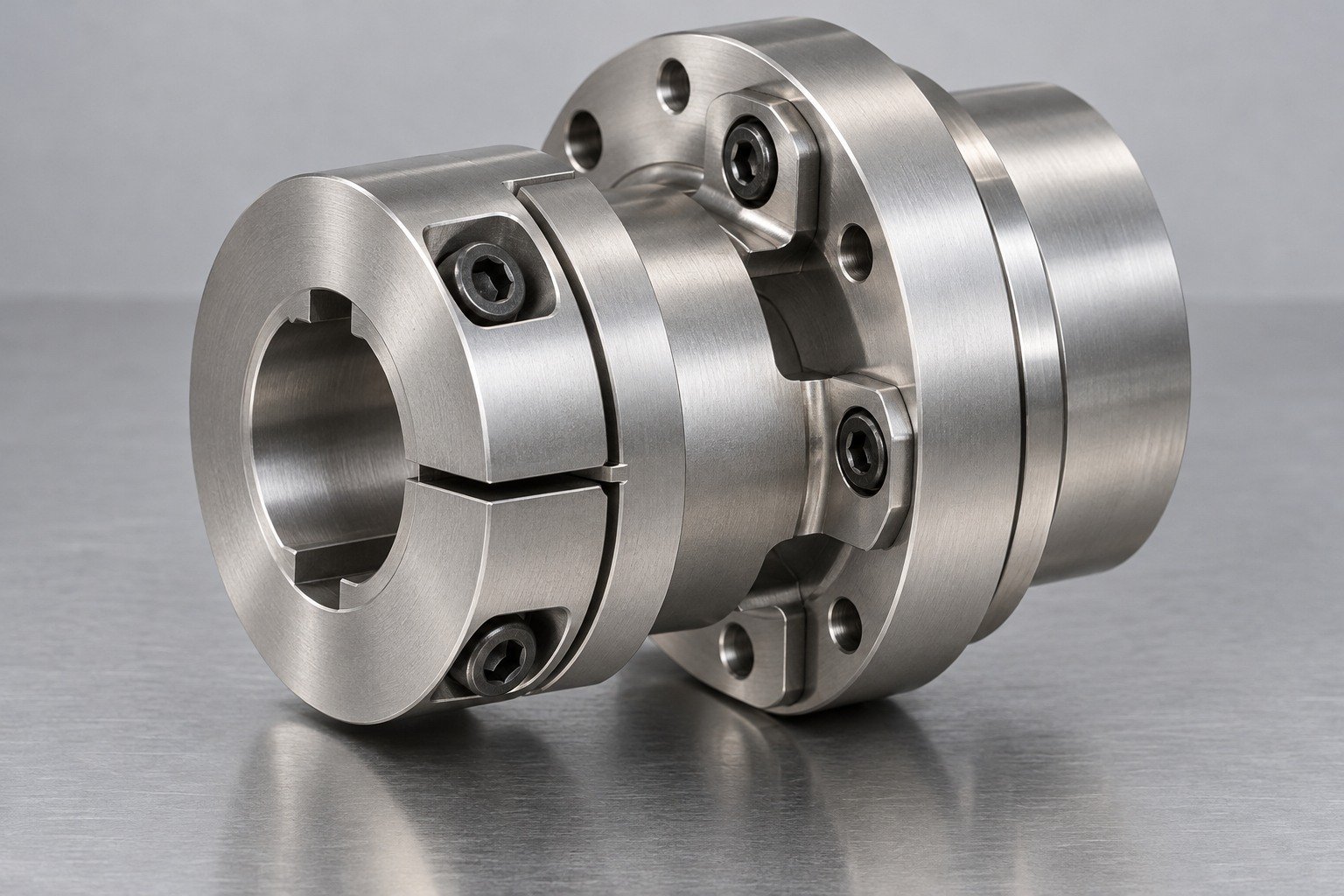

04 · Exposure & finish
Review exposure before fixing the finish or joint
Identify retained moisture, contact materials and exposed faces before approving the route.
Identify protected lands, actual service conditions and joining restrictions. Review welding suitability explicitly.
12–14%Chromium · mass % · supplier chemistry range
416 chemistry reference. A polished surface does not establish corrosion suitability; welding is not the default route.
Read the source and conditions →Keep Your Material and Functional Inspection Connected
Material identity
Grade, standard, condition and lot record.
Functional fit
Journals, threads, bores and datum relationships.
Surface evidence
Finish, cleaning and required treatment checks.
Release record
Revision, exceptions, quantity and packing.
Compare Your Requirement Before Changing Grade
| Your comparison | Review before substitution |
|---|---|
| 416 vs 410 stainless steel | Compare machining, joining, exposure and the exact required condition. |
| 416 vs 420 stainless steel | Compare hardness, product specification and finished acceptance; a similar family does not establish equivalence. |
| 416 vs 303 | Review heat-treatment needs, machining features and actual environment. |
| Corrosion-sensitive service | Share the medium, temperature and cleaning; do not rank material from chromium content alone. |
303 Stainless Steel → · 316 / 316L Stainless Steel → · Material Selection Guide →

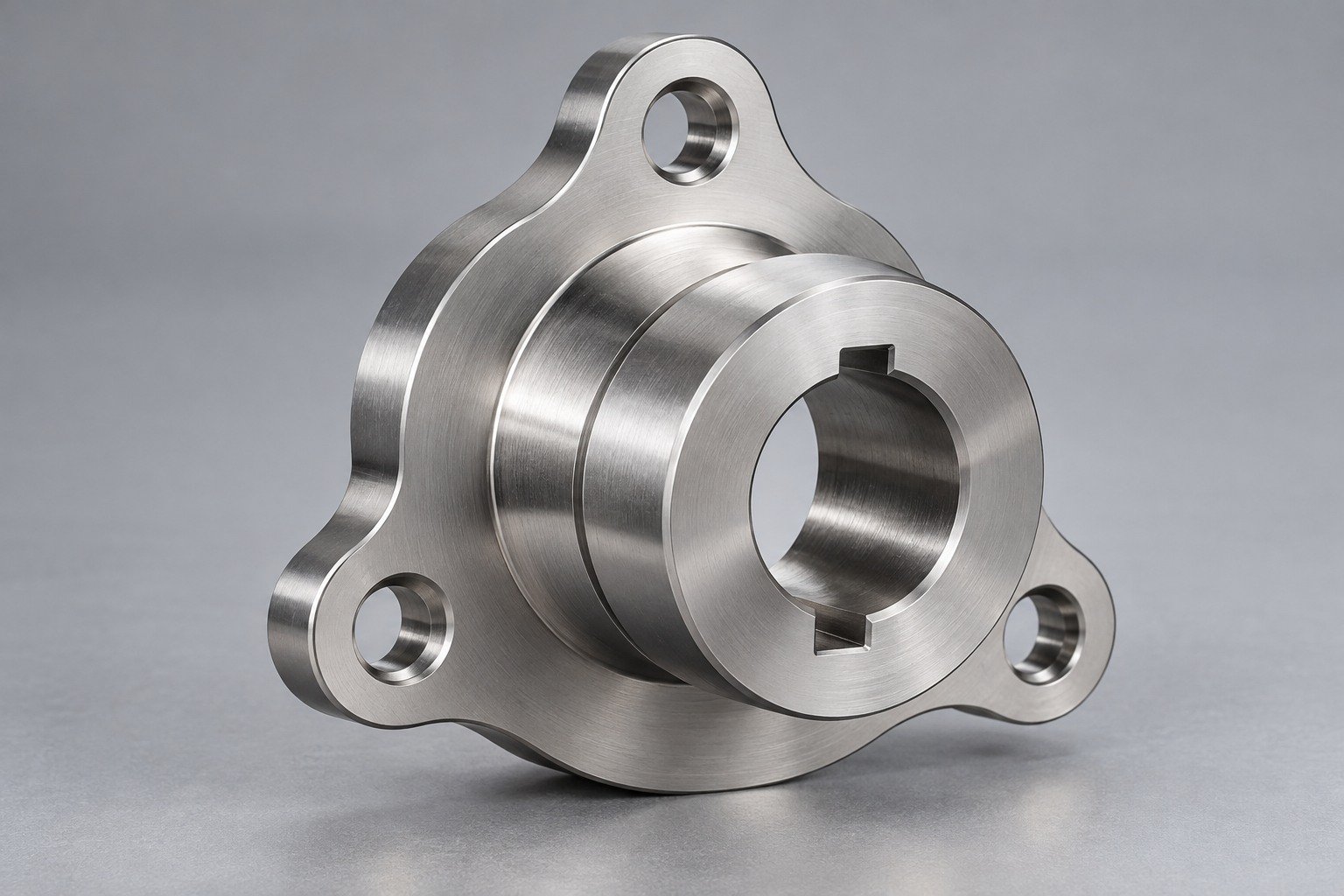

5 Inputs Behind Your 416 Finished-Part Quote
For your 416 stainless steel machining quote, compare the same finished scope. When reviewing a 416 stainless steel CNC parts manufacturer, connect the route and evidence to your drawing.
Stock
Grade, form and supplied condition.
Features
Journals, keyways, threads and access.
Heat route
Final condition and processing sequence.
Surface
Cleaning, finish and marking.
Release
Quantity, inspection records and packing.
For 416 stainless steel prototype machining, state what the sample must demonstrate and how the intended production condition will be represented.
Your Questions Before Ordering 416 Parts
Is 416 stainless steel magnetic?
Yes, 416 is a magnetic martensitic grade. A magnet alone does not establish its identity, condition or specification.
Does 416 stainless steel rust?
It can corrode under unsuitable exposure or surface condition. Review medium, temperature, cleaning and retained moisture before selection.
Can 416 stainless steel be welded?
The Carpenter source does not recommend welding this grade. Identify any joining requirement before material approval and review an appropriate alternative.
Can 416 stainless steel be hardened?
It can be hardened by heat treatment. Specify the required final condition and verification rather than assuming one hardness applies to every supplied part.
What is 416 stainless steel used for?
It may be considered for turned shafts, bushings, spacers and threaded components where the specified material suits the design and environment. This is not application certification.
How much does 416 stainless steel machining cost?
Share the drawing, material form, condition, quantity, finish and inspection requirements. Compare finished-part scope rather than stock price alone.
Does EN 1.4005 automatically replace UNS S41600?
No. Use correspondence names for lookup and review the full specification, product form, condition and substitution permission.
Does the sulfur figure describe a maximum?
The cited Carpenter 416 PDF identifies sulfur as a minimum of 0.150 mass %. Verify the controlling material specification and lot record.
6 Inputs for Your Custom 416 Stainless Steel Parts
For 416 stainless steel machining services, connect the part drawing, condition and acceptance before releasing the order.
Drawing
Revision and CAD.
Material
Grade, form, standard and condition.
Features
Threads, journals, bores and keyways.
Quantity
Prototype and repeat pattern.
Surface
Finish, cleaning and marks.
Records
Material, heat route and inspection evidence.
