FOR YOUR PROFILE, FINISH AND FINAL FIT
6063 AluminumFor Your Custom Machined & Extruded Parts
For your 6063 aluminum CNC machining project, connect the profile, T5/T6 condition and finished features before ordering. Review your section drawing, secondary machining and appearance as one part specification.
01
Section
Existing profile or a new extrusion die?
02
Condition
Confirm the temper and product specification.
03
Features
Separate extruded and machined dimensions.
04
Finish
Define color, masking and final fits.
05
Evidence
Agree material and inspection records.
YOUR MATERIAL DECISION
6063 Aluminum Properties for Your Finished Profile
For custom 6063 aluminum parts, start with the section your assembly needs. 6063 is a candidate for hollow profiles, visible housings and finned sections where extrusion and finishing matter together.
Your load, wall layout, straightness, mating features and environment still control the choice. A material name does not define a finished-part tolerance or thermal result.
Repeat the section
Review die feasibility and cut length.
Machine the interfaces
Locate bores, slots and end faces.
Protect the appearance
Agree visible faces and packaging.
COMPOSITION + CONDITION
6063-T5 vs 6063-T6: Specify the Condition You Need
Keep composition, temper and the applicable product standard on the same purchase order.
6063 T5 Aluminum
Cooled after an elevated-temperature shaping process and artificially aged. For 6063-T5 aluminum parts, confirm the supplied section and its material record.
6063 T6 Aluminum
Solution heat-treated and artificially aged. For 6063-T6 aluminum parts, define the required final condition, including effects of later welding or heat.
6063 Chemical Composition Limits
| Element | Weight % | Element | Weight % |
|---|---|---|---|
| Silicon (Si) | 0.20–0.60 | Magnesium (Mg) | 0.45–0.90 |
| Iron (Fe) | ≤0.35 | Copper (Cu) | ≤0.10 |
| Manganese (Mn) | ≤0.10 | Chromium (Cr) | ≤0.10 |
| Zinc (Zn) | ≤0.10 | Titanium (Ti) | ≤0.10 |
| Other: each | ≤0.05 | Other: total | ≤0.15 |
| Aluminum (Al) | Remainder | Basis | Maximum unless a range is shown |
Weight percentages. “Remainder” identifies the aluminum balance; it is not a separate purity guarantee. Confirm the applicable material specification and lot certificate.
Selected Extruded Strength Limits
| Condition / test-section thickness | UTS min. | 0.2% yield min. | Elongation min. |
|---|---|---|---|
| T5, ≤12.50 mm | 150 MPa | 110 MPa | 8% |
| T6, ≤3.20 mm | 205 MPa | 170 MPa | 8% |
These are source minimum levels for the listed test-section ranges, not universal typical values. Test-section thickness determines the applicable limits. Elongation is in 2 inches or 4× specimen diameter; the source exempts some small/thin shapes from elongation testing.
Thermal, electrical and physical reference
| Property / condition | Reference value |
|---|---|
| Typical thermal conductivity, 25 °C — T5 / T6 | 209 / 201 W/(m·K) |
| Typical electrical conductivity, 20 °C — T5 / T6 | 55 / 53% IACS |
| Density | 0.097 lb/in³ |
| Melting range | 1140–1210 °F |
| Average linear thermal expansion, 68–212 °F | 13.0 × 10⁻⁶ in/(in·°F) |
Conductivity values are typical, not a heat-sink rating or finished-part guarantee. Temperature, geometry and test conditions matter.
Sources: Hydro Alloy 6063 data, Rev. 2026/01 (06/2026); AEC temper definitions. Different limits apply to other thicknesses and conditions. Neither table authorizes an unapproved T5/T6 substitution.
6 Checkpoints from Your Section Drawing to Repeat Parts
01
Release the section
Supply the profile cross section, length and current drawing revision.
02
Confirm the starting route
Identify an existing extrusion, customer-supplied stock or a new die.
03
Set the material baseline
Agree 6063, temper, product form and required material document.
04
Machine the local features
Define datums, clamping, holes, slots, end faces and burr limits.
05
Approve the finished part
Check dimensions in the specified finish state and appearance sample.
06
Retain the repeat baseline
Keep the approved revision, finish reference and change record.
Resolve 8 Profile Risks Before Machining
Use the topic that controls your assembly. These review checks are tailored to your drawing.
01
Choose the Reference Before You Clamp
Use stable assembly references for 6063 aluminum secondary machining. Distinguish an extruded face from a machined datum and agree how the part is supported.
- Name the inspection datum scheme.
- Keep mating features related on the finished drawing.
02

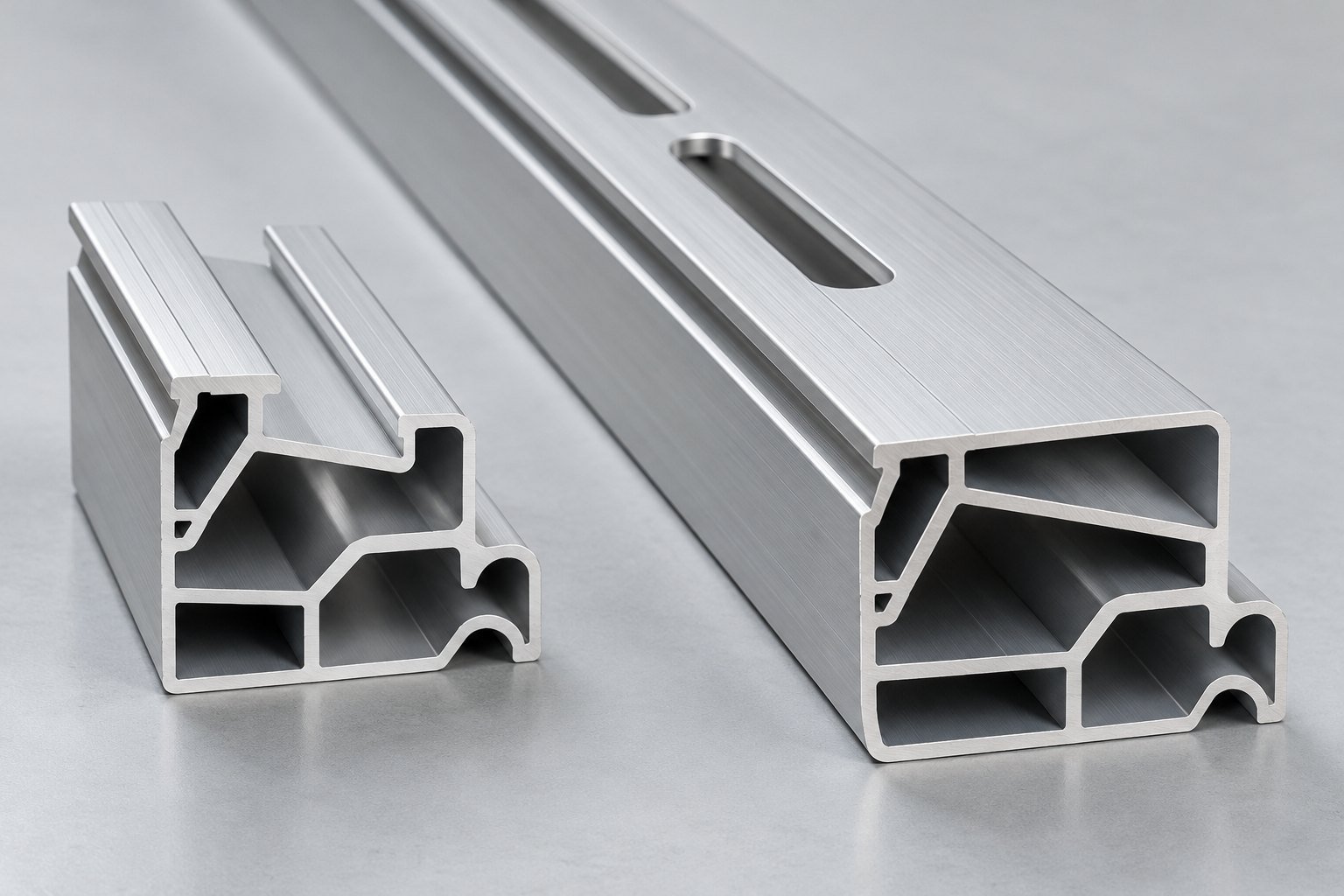

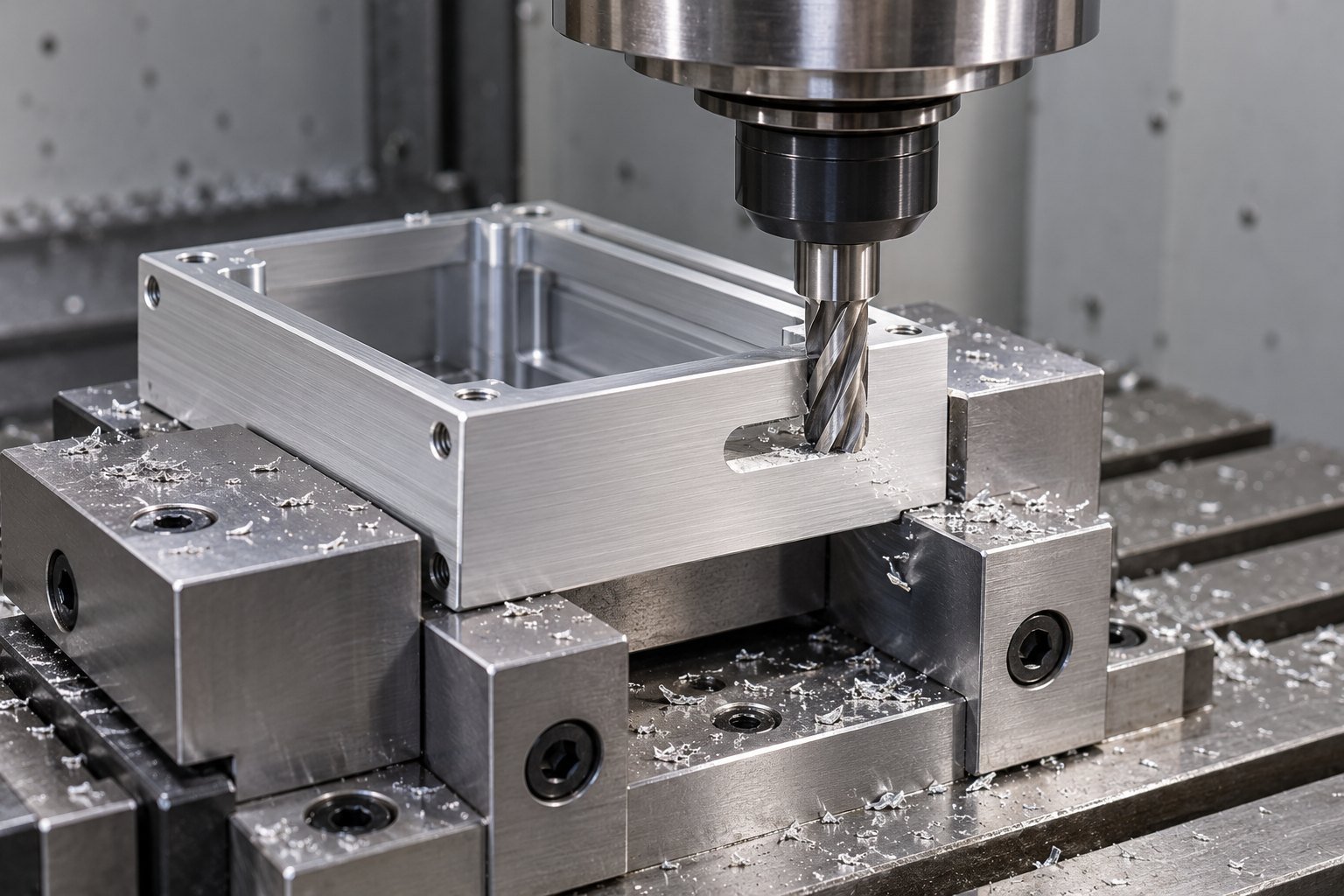

Protect Thin Sections During Machining
For 6063 aluminum profile milling, review wall stiffness, clamp pressure and cutter reach before freezing the geometry.
- Support hollow sections near the cut.
- Review chatter and movement through the setup.
03
Separate Global Shape from Local Features
Cut length, straightness and twist can affect fixture seating even when a local hole is correctly machined.
- Specify the measurement length and condition.
- Do not treat raw-profile tolerance as the finished-feature tolerance.
04
Give the Tool a Feasible Path
Review long slots, internal corner radii and access through a hollow section.
- Identify features that can be machined from an end.
- Resolve inaccessible internal operations before release.
05
Locate Threads Around the Actual Wall
Specify thread depth, engagement and breakout where a hole intersects a hollow profile.
- Check the usable wall and mating screw.
- Define any insert and assembly requirement.
06
Preserve the Thermal Interface
A 6063 aluminum heat sink needs the contact geometry and operating conditions, as well as a material selection.
- Specify flatness or surface requirements only where needed.
- Review airflow, heat input and thermal-interface material.
07
Plan Racking and Visible Surfaces
Identify exposed faces before choosing clamps, rack contacts, marks or packing materials.
- Approve color and texture on a representative sample.
- Locate permissible handling or racking marks.
08
Check the Part After the Specified Finish
Coating, sealing and masking belong in the same dimensional decision as the machined feature.
- State which sizes apply after finishing.
- Define masked threads, bores and contact surfaces.
SURFACE + ASSEMBLY
Choose Your Finish Around the Final Part
Resolve appearance and fits together, before your parts are processed.

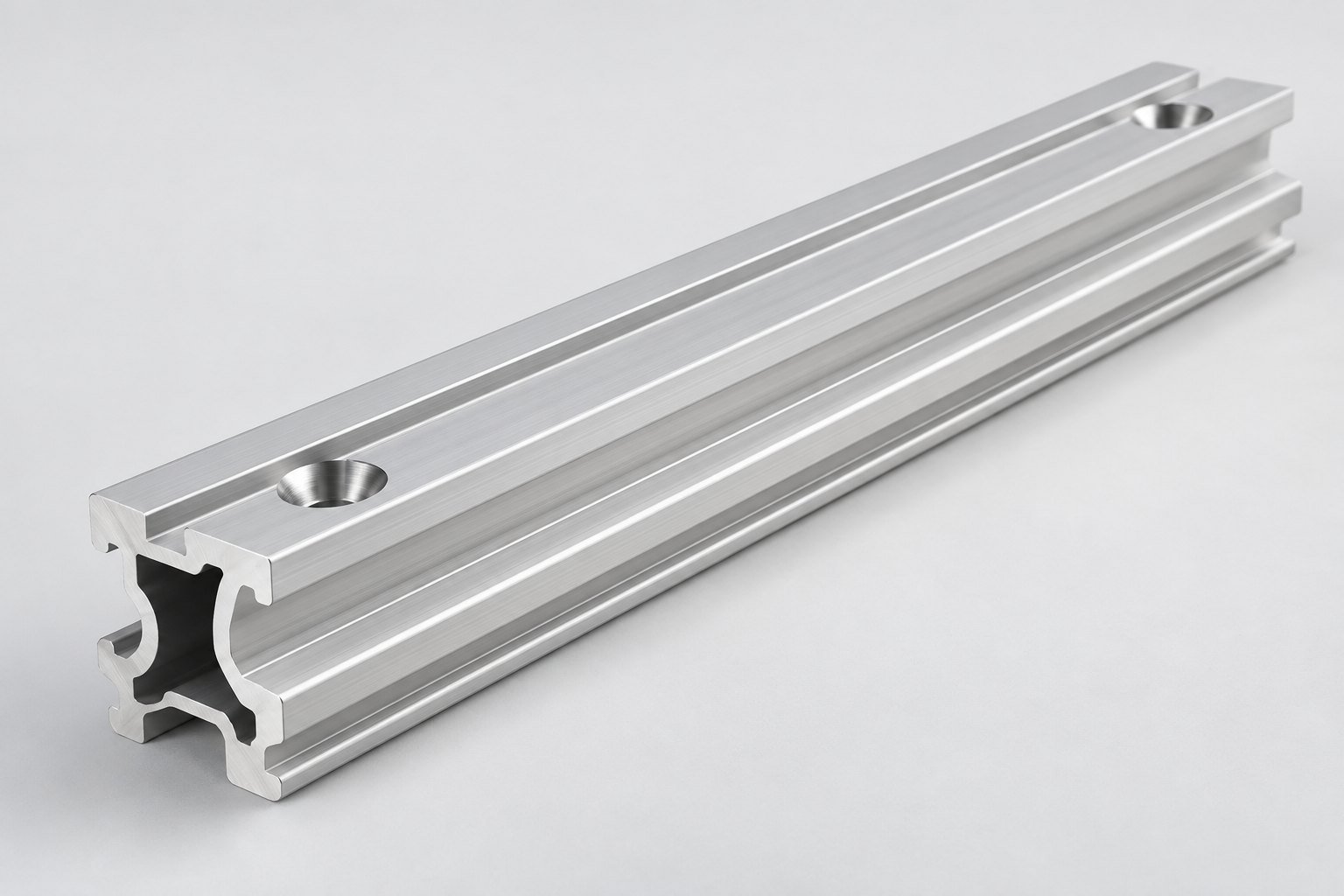

Anodized 6063 Aluminum Parts
Specify the type, color reference, thickness and sealing with your appearance and dimensional requirements. Define visible faces and allowable racking marks.
- Identify cosmetic, sealing and contact surfaces.
- Approve a sample, masking plan and final dimension state.
Illustrative finish concept; color does not identify alloy or temper.

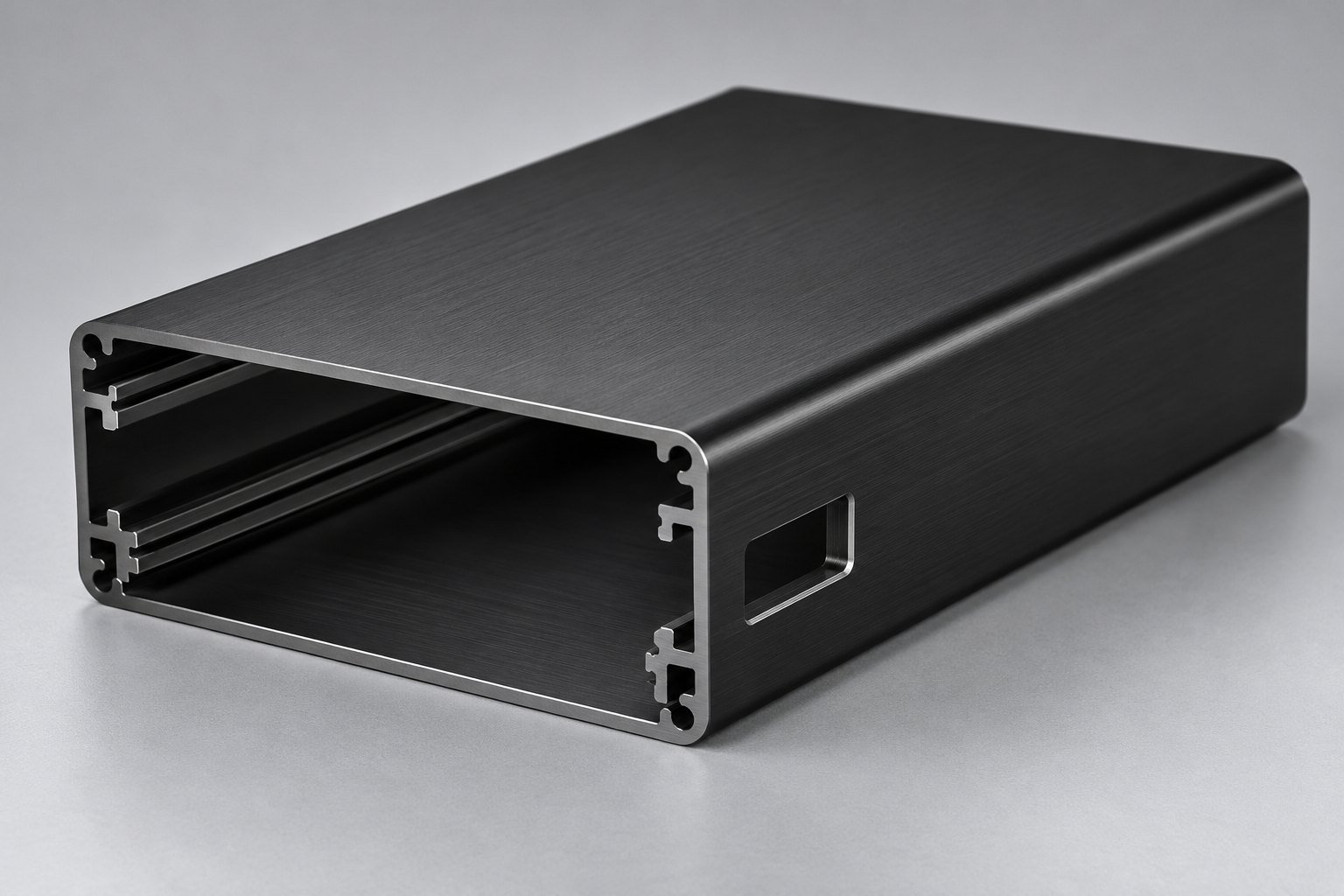

Black Anodized 6063 Aluminum Extrusion
For black anodized 6063 aluminum extrusion, agree gloss, texture, color reference and masked areas. On-screen color is not your production acceptance standard.
- Identify cosmetic, sealing and contact surfaces.
- Approve a sample, masking plan and final dimension state.
Illustrative finish concept; color does not identify alloy or temper.

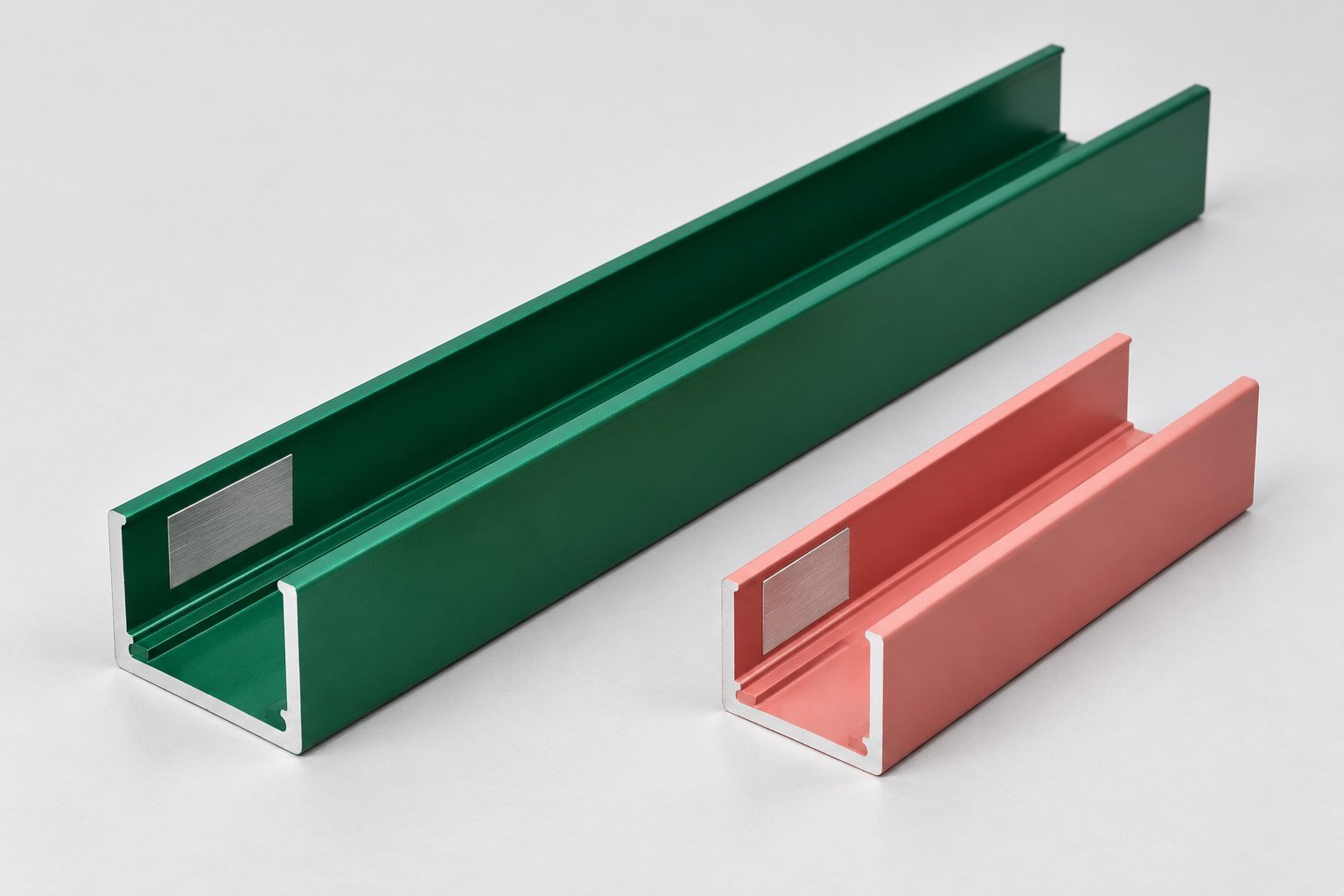

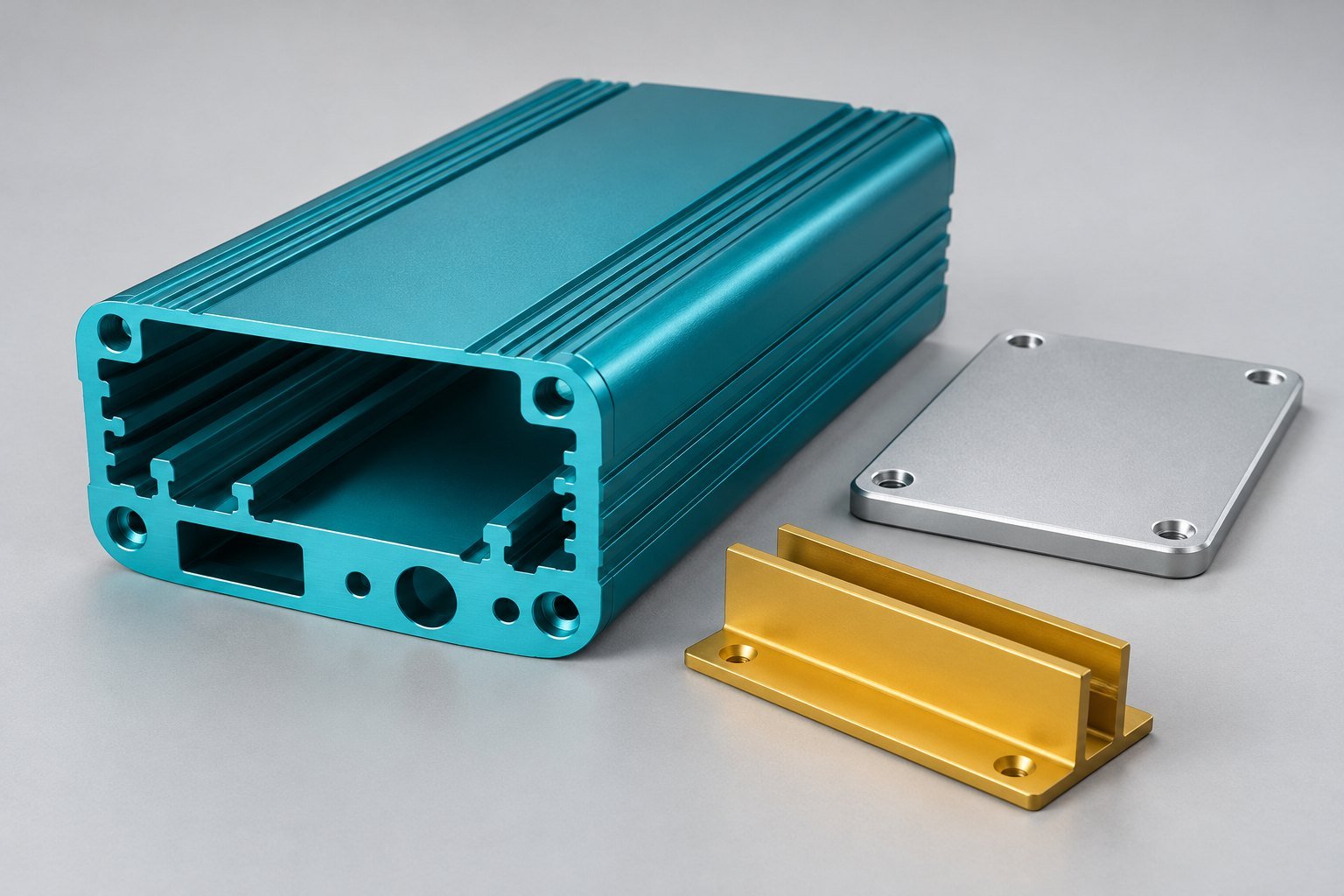

Opaque Color for Your Profile
Agree color, gloss, texture and masking for powder-coated channels or covers. Review coating build at mating edges and any conductive contact areas.
- Identify cosmetic, sealing and contact surfaces.
- Approve a sample, masking plan and final dimension state.
Illustrative finish concept; color does not identify alloy or temper.

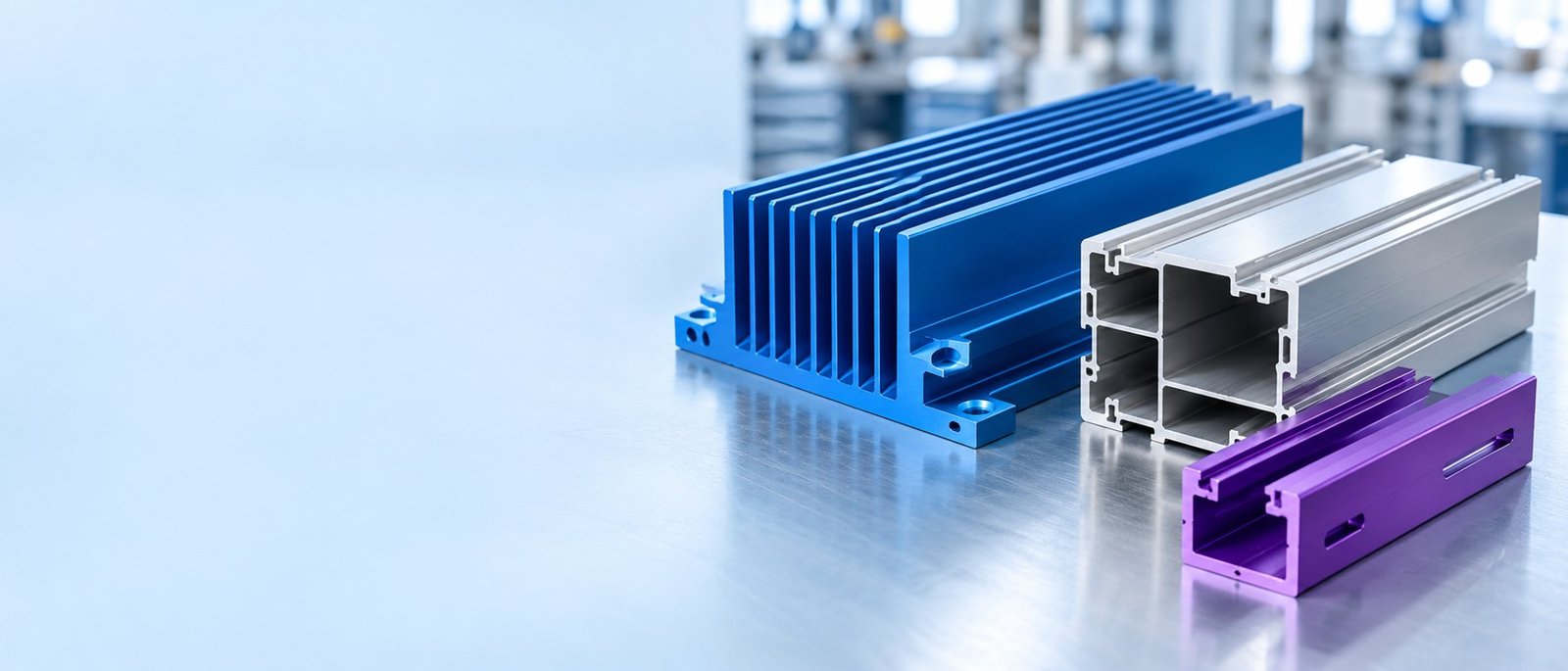

3 Application Reviews for Your 6063 Profile

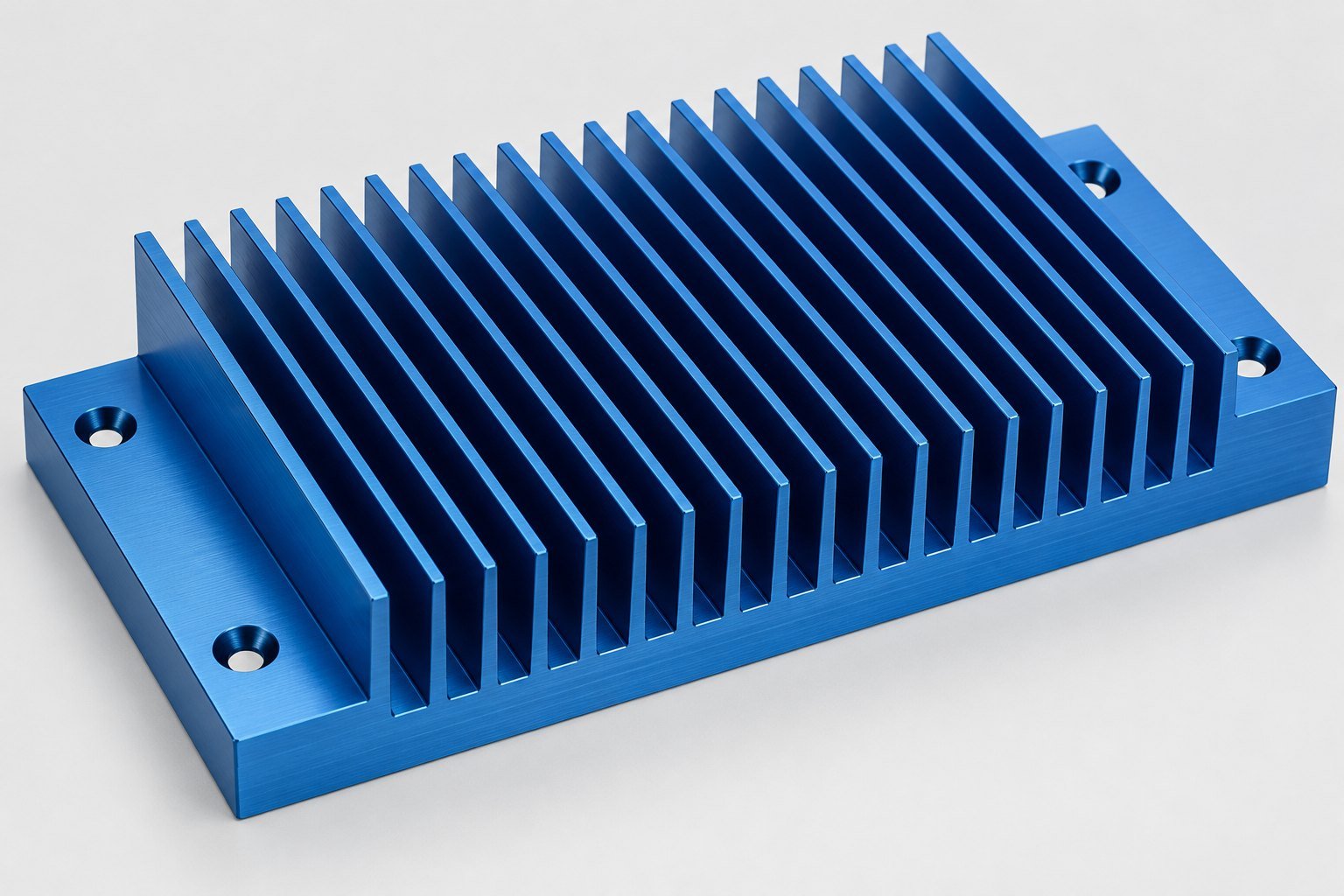

6063 Aluminum Heat Sink
For your power-electronics profile, review fin geometry, base thickness, airflow and the thermal interface. The alloy designation alone does not establish a heat-dissipation rating.

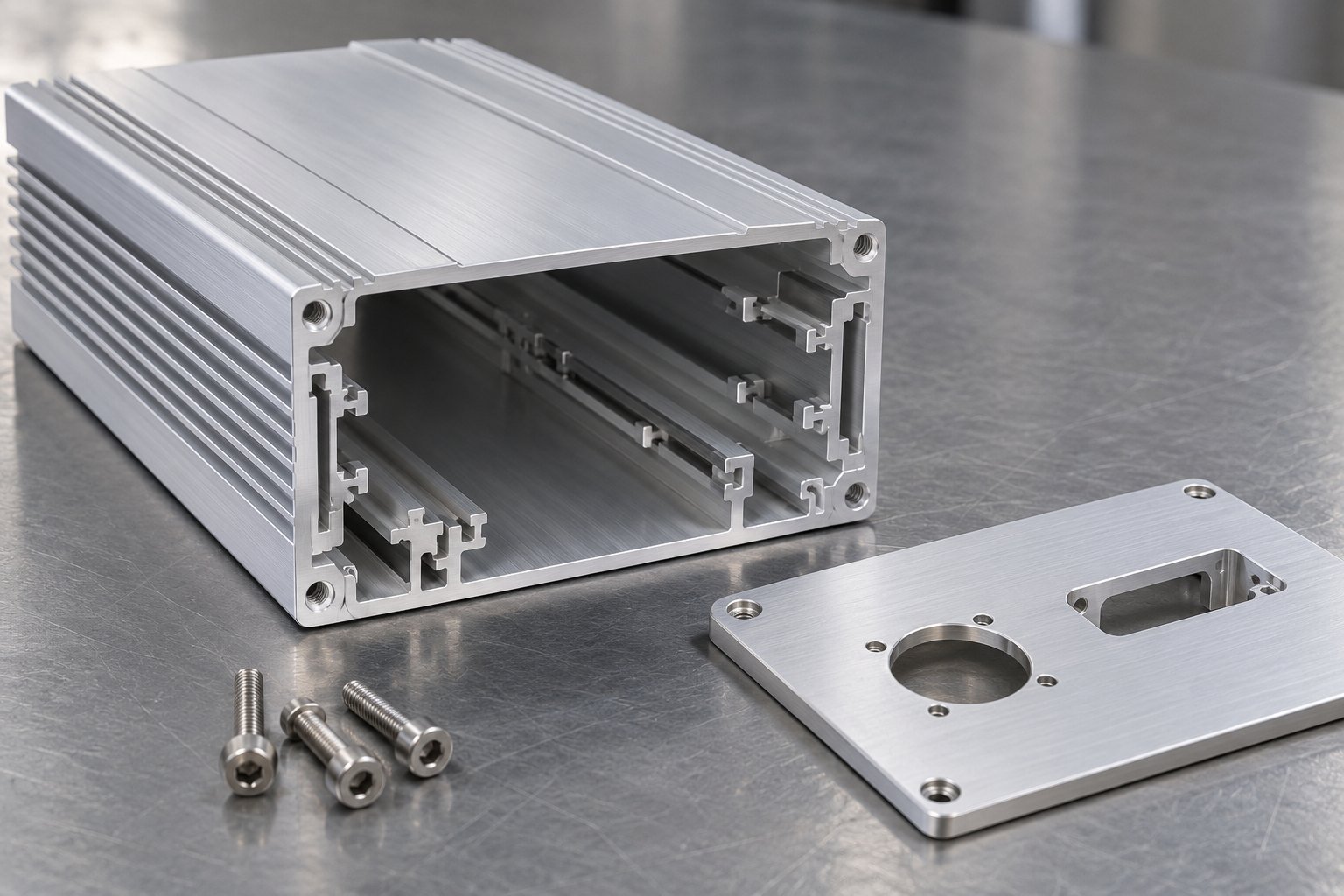

6063 Aluminum Extruded Housing
For a 6063 aluminum electronic enclosure, define board guides, connector ports, covers and mounting faces. IP, EMC or other product ratings require their own design and verification.

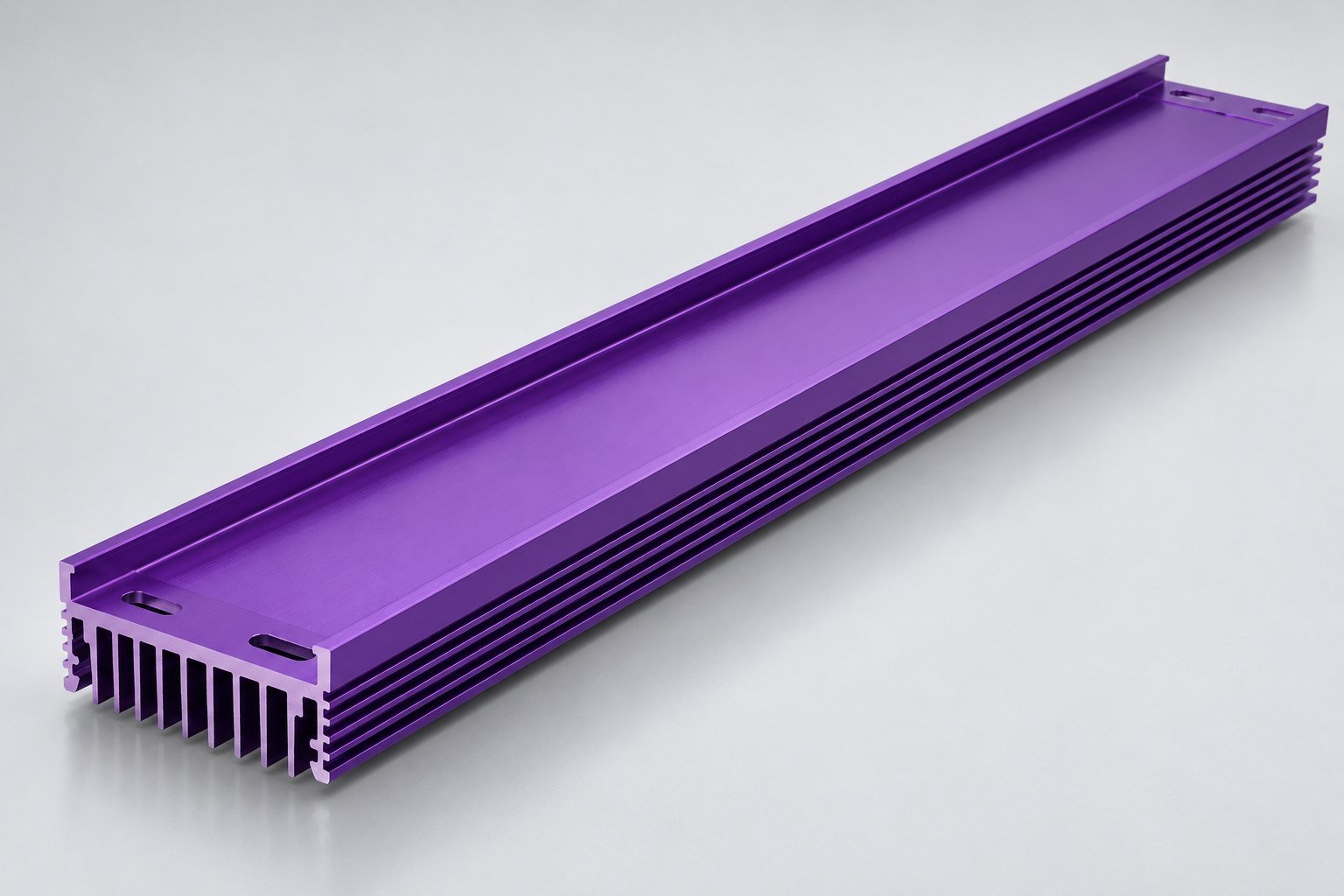

6063 Aluminum LED Heat Sink
Review the LED mounting bed, installation space, cooling path and operating conditions. Mark the contact face and finish requirements before machining.
Illustrative component scenarios, not customer cases, certified assemblies or tested thermal results.
COMPARE THE SAME SUPPLIED SCOPE
5 Cost Drivers You Can Resolve Before Quoting
- Profile route Existing stock, customer-supplied extrusion or a new die.
- Machining Cut length, local features, setups and material removal.
- Quantity Trial parts, repeat demand and release schedule.
- Finish Color, masking, appearance sample and handling protection.
- Verification Measurement, documentation and packaging requirements.
For 6063 aluminum prototype machining, identify what the sample must prove and how the intended production section will be represented.
Value Engineering →
YOUR SECTION + YOUR LOCAL FEATURES
6063 Aluminum Extrusion Machining
For custom 6063 aluminum extruded parts, extrusion can establish the continuous section. CNC operations then create local holes, slots, end faces and assembly interfaces.
6063 aluminum extrusion CNC machining needs a controlled relationship between the starting profile and final drawing. Distinguish cut length, raw profile variation and the finished features you will inspect.
6063-T5 CNC Machining
Confirm stock condition, wall support and burr acceptance for your supplied profile.
6063-T6 CNC Machining
Review the final condition, removal pattern and features that control assembly.
FOR YOUR RECEIVING TEAM
Agree 6 Checks Before Your 6063 Parts Ship
Keep identity, dimensions and appearance evidence separate and traceable.
01
Material callout
6063, temper, product form and the applicable purchase standard.
02
Profile condition
Section dimensions, cut length, straightness or twist where specified.
03

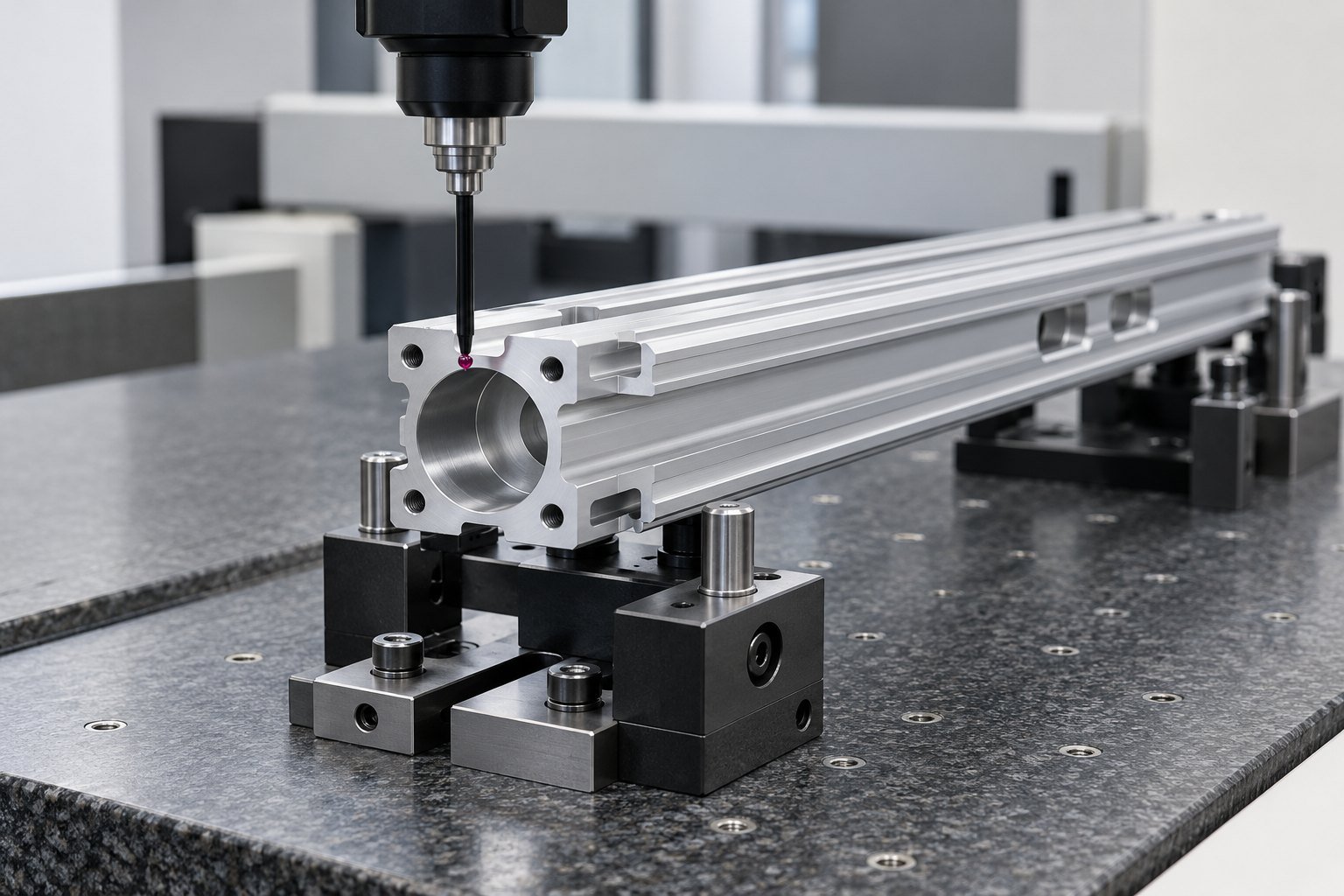

Machined features
Datums, holes, slots, threads and final inspection condition.
04
Finished surface
Color/texture reference, masking and required checks.
05
Records
Material documents, lot linkage and dimensional report scope.
06

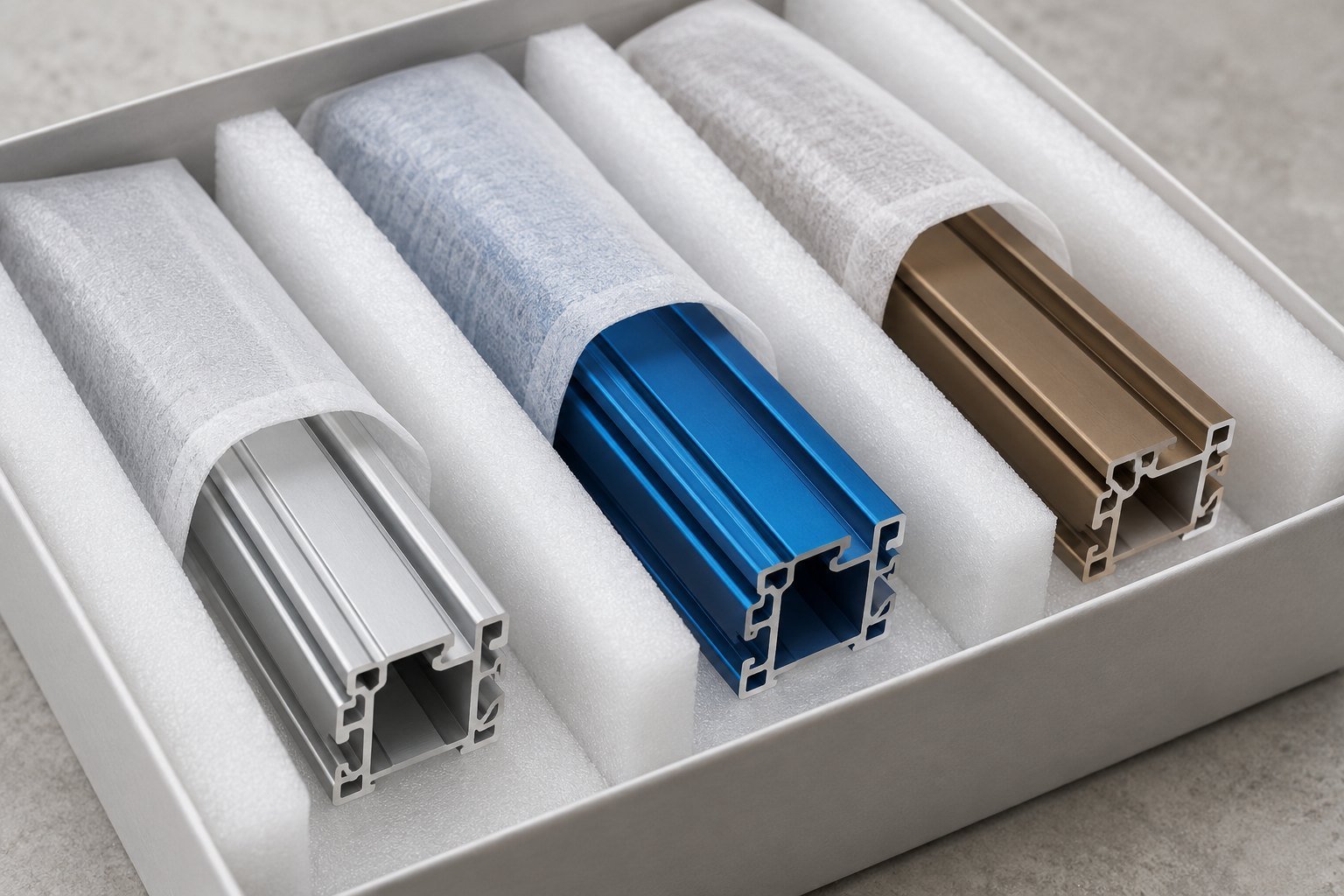

Protection
Handling, separators, identification and packing requirements.
COORDINATE YOUR OPEN DECISIONS
Your Profile Review, Manufacturing and Handoff
Bring your drawing, supply route and delivery requirements to the same project review. China manufacturing and Dallas-area coordination are confirmed in your quotation.
01
Your contact
Coordinate profile questions, drawing revisions and approval decisions.
02
Your scope
Agree extrusion, machining, finish and supplied records.
03
Your sample
Record dimensions, appearance and accepted exceptions.
04
Your delivery
Confirm packing, delivery location and release requirements.
6 Inputs for Your Custom 6063 Parts Quote
01Cross-section drawing, CAD and controlled finished-part revision
026063, temper, product specification and permitted alternatives
03Existing profile, customer stock or new die requirement
04Cut length, trial quantity and repeat demand
05Critical fits, datums, finish, masking and visible faces
06Inspection records, packing and delivery requirements
For 6063 aluminum machining services, identify open requirements before comparing quotations.
Your Questions Before Ordering 6063 Aluminum Parts
Is 6063 aluminum good for CNC machining?
6063 aluminum machined parts can be reviewed for suitable pockets, slots, holes and end features. Feasibility depends on temper, section support, access, removal volume and finished tolerances. Compare the complete route with an extrusion-led or stock-machining alternative.
What is the difference between 6063-T5 vs 6063-T6?
T5 is cooled from an elevated-temperature shaping process and artificially aged; T6 is solution heat-treated and artificially aged. Confirm the required product form, specification and material certificate. The temper code alone does not establish one strength value for every section.
Can 6063 aluminum be anodized?
6063 is commonly considered for anodized profiles. Specify the process, thickness, sealing, color reference and masked areas together. Surface preparation and material condition affect appearance; approve a representative sample.
Is 6063 aluminum good for heat sinks?
It is a candidate for extruded fins and bases. Thermal performance depends on heat input, fin and base geometry, airflow, mounting and the thermal interface. Use a design calculation or test for the actual operating condition.
What files are needed for a custom 6063 parts quote?
Supply the section drawing and CAD, controlled finished drawing, temper and specification, cut length and quantities, critical dimensions, finish, documentation and delivery requirements. State whether an existing section or a new extrusion die is required.
What tolerances can machined 6063 extrusions achieve?
Review the actual drawing. Separate raw-profile dimensional, straightness and twist requirements from local machined-feature tolerances. Geometry, support, length, finish and measurement condition determine feasibility; no single tolerance applies to every extrusion.
What should you ask a 6063 aluminum parts manufacturer?
Ask how the starting section and temper are verified, which revision controls machining, which dimensions apply after finishing and what material, inspection and packing records are supplied. Confirm substitutions and exceptions before manufacture.
How do you review a 6063 aluminum enclosure manufacturer?
Compare section feasibility, board and cover interfaces, connector machining, visible finish and assembly checks. A material choice does not automatically provide IP protection, EMC performance or a qualified product rating.
Do custom 6063 aluminum profiles need a new die?
An available section may suit your requirements; a unique cross-section may need a new die. Review section geometry, die scope, ownership, trial quantities and repeat demand. Die cost and minimum order terms are project-specific.
Can you weld 6063 aluminum parts?
Suitable joining procedures can be reviewed, but welding can reduce strength in heat-affected regions of heat-treated material. Confirm the joint, filler, required final properties, distortion and surface treatment with the design authority.
3 Approvals Before Your Repeat Order
01
Your drawing baseline
Release the section, material callout, machined features and accepted deviations together.
02
Your sample acceptance
Record the agreed dimensional, fit and appearance results with any open exceptions.
03
Your repeat scope
Keep the finish reference, inspection plan, packing and change-control requirements.
